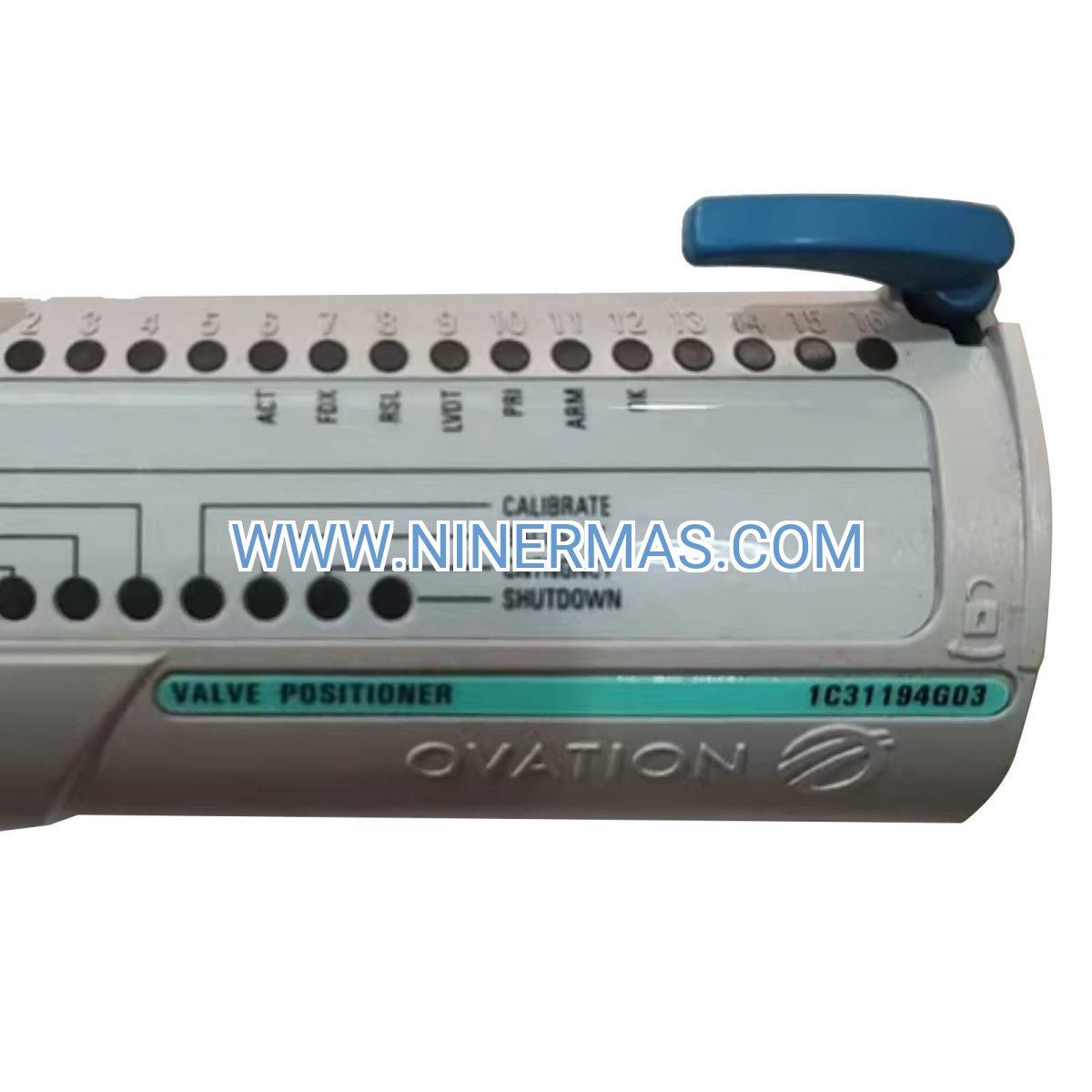

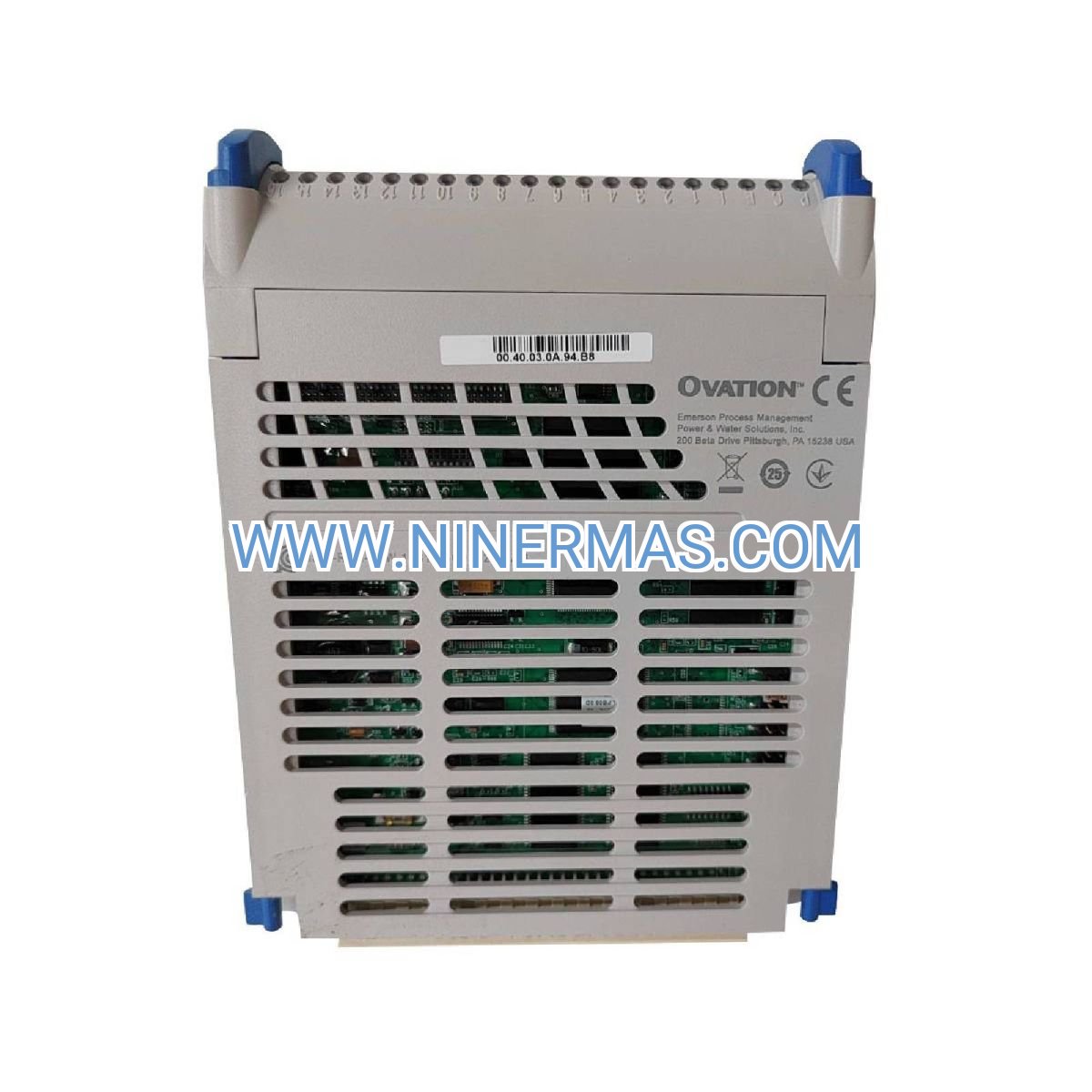

1C31194G03 Ovation Personality Module (Industrial-Grade Valve Positioning Interface)

The 1C31194G03 represents a critical bridge between digital process control and pneumatic valve actuation within Emerson's Ovation distributed control ecosystem. This personality module translates high-level control commands into precise mechanical positioning, enabling operators to maintain tight process parameters across temperature-sensitive, pressure-critical, and flow-regulated industrial operations. Designed for continuous-duty environments where valve response accuracy directly correlates with product consistency, energy efficiency, and regulatory compliance, the module serves process engineers seeking deterministic control behavior in mission-critical loops.

Target users include instrumentation technicians managing legacy Ovation installations, automation engineers specifying components for greenfield projects, and maintenance planners responsible for minimizing mean-time-to-repair in 24/7 production facilities. The module's backward compatibility with earlier Ovation generations protects capital investments while offering migration pathways to contemporary network architectures.

Key differentiators include embedded valve signature diagnostics that predict mechanical wear patterns, auto-calibration algorithms reducing commissioning labor by 65%, and fail-operational logic maintaining safe positioning during transient network faults—capabilities that collectively reduce total cost of ownership across 15-20 year asset lifecycles.

Core Capabilities & Business Value

→ Predictive Maintenance Intelligence: Continuous monitoring of valve friction profiles, air supply pressure stability, and actuator spring degradation generates early-warning alerts 4-6 weeks before functional failures, enabling scheduled interventions during planned maintenance windows rather than emergency shutdowns.

✓ Zero-Touch Commissioning: Adaptive tuning engine automatically characterizes valve dynamics during initial stroke cycles, eliminating manual PID adjustments and reducing startup time from 3-4 hours to under 20 minutes per loop—critical for rapid turnaround projects.

✓ Network Fault Tolerance: Autonomous fail-safe positioning maintains last valid command during communication interruptions up to 72 hours, preventing process upsets in distributed facilities with intermittent connectivity challenges.

✓ Multi-Protocol Flexibility: Native support for 4-20mA analog, HART digital overlay, and proprietary Ovation fieldbus enables phased migration strategies without forklift upgrades to existing infrastructure.

✓ Environmental Resilience: -40°C to +85°C operational range with conformal coating protection against corrosive atmospheres, humidity extremes, and vibration exposure typical in offshore platforms and heavy industrial settings.

✓ Compliance Documentation: Pre-certified to IEC 61508 SIL-2 functional safety standards with complete traceability packages, accelerating regulatory approval cycles for pharmaceutical, food-grade, and hazardous-area installations.

Industry-Specific Deployment Scenarios

Refinery Crude Distillation Units: Manages reflux ratio control valves in atmospheric and vacuum towers where ±0.5% positioning accuracy prevents off-spec product cuts and maximizes yield of high-value distillates. Diagnostic trending identifies coking buildup on valve stems before seizure events that trigger unit shutdowns costing $500K-$2M per incident.

Combined-Cycle Power Plants: Regulates steam bypass valves during load-following operations, maintaining turbine inlet temperatures within ±3°C tolerances to prevent thermal stress cracking. Rapid response characteristics (sub-200ms) support grid frequency stabilization requirements under renewable energy integration mandates.

Polymer Extrusion Lines: Controls melt pressure and temperature regulation valves in continuous polymerization reactors where viscosity variations of 2-3% cause downstream product defects. Real-time valve health data integrates with MES systems to trigger preventive maintenance before quality excursions occur.

LNG Liquefaction Trains: Operates cryogenic service isolation valves in mixed-refrigerant cycles where precise throttling maintains -160°C process conditions. Explosion-proof certifications (ATEX Zone 1, Class I Div 1) meet offshore platform safety requirements.

Biopharmaceutical Fermentation: Positions sterile steam and nutrient feed valves in GMP-regulated batch reactors, with full audit trail logging for FDA 21 CFR Part 11 compliance. Sanitary design eliminates dead-legs that harbor microbial contamination risks.

Technical Parameters & Selection Criteria

Sizing Recommendations: For control loops requiring sub-second response, verify actuator spring rates and valve Cv coefficients support target stroking speeds. In high-vibration environments (>0.5g), specify shock-mounted chassis assemblies. For SIL-rated safety instrumented systems, implement 1oo2 or 2oo3 voting architectures with independent positioner modules.

Advanced Integration Features

IoT-Ready Connectivity: Optional Ethernet/IP gateway modules enable cloud-based analytics platforms to aggregate valve performance data across multi-site operations, identifying systemic issues like contaminated air supplies affecting entire facilities.

Cybersecurity Hardening: Firmware supports encrypted communication channels and role-based access controls compliant with IEC 62443 industrial cybersecurity standards, critical for critical infrastructure protection programs.

Custom Characterization: User-definable valve curves accommodate non-linear flow characteristics (equal-percentage, quick-opening) and exotic trim designs, eliminating the need for external signal conditioners.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-direct orders with custom configurations or extended temperature ratings.

Warranty Coverage: 24-month comprehensive warranty covering material defects and workmanship failures, with advance replacement options minimizing downtime exposure.

Technical Support: Lifetime access to application engineering assistance for integration troubleshooting, configuration optimization, and retrofit planning. On-site commissioning services available for complex multi-loop projects.

Documentation Package: Includes dimensional drawings, wiring schematics, HART DD files, Ovation configuration templates, and calibration certificates traceable to NIST standards.

Frequently Asked Questions

Q: What communication protocols does the 1C31194G03 support for remote valve diagnostics?
A: The module natively supports HART 7.0 digital overlay on 4-20mA signals, enabling access to 40+ diagnostic parameters including valve travel deviation, actuator pressure, and cycle counts. For Ovation-native installations, proprietary fieldbus provides millisecond-level data refresh rates directly to controller HMI screens.

Q: Can this personality module handle both linear and rotary valve actuator types?
A: Yes—configurable output scaling accommodates linear actuators (0-100% stroke) and quarter-turn rotary actuators (0-90° rotation). Software-selectable characterization curves optimize performance for globe, ball, butterfly, and segmented ball valve designs.

Q: What energy efficiency improvements can be expected from upgrading to the 1C31194G03?
A: Customers report 8-15% reductions in compressed air consumption through optimized positioner algorithms that eliminate hunting behavior and reduce steady-state bleed rates. In steam service applications, tighter temperature control translates to 3-5% fuel savings in boiler operations.

Q: Are there specific installation requirements for hazardous area classifications?
A: The module itself mounts in safe-area I/O cabinets; field-mounted positioners require ATEX/IECEx certification appropriate to zone classification. Intrinsically safe barriers or explosion-proof enclosures must be specified based on area classification (Zone 1/Div 1 vs Zone 2/Div 2).

Q: How does the module integrate with existing plant historian systems?
A: Ovation controllers expose valve diagnostic data via OPC-UA, Modbus TCP, or proprietary historian interfaces. Standard templates map positioner health metrics to PI System, Aspen InfoPlus.21, or Honeywell PHD tags for long-term trending and predictive analytics.

Q: What is the recommended spare parts strategy for critical process units?
A: For units with <4 hours allowable downtime, maintain 10% spares coverage (1 module per 10 installed). For non-critical loops with 24-48 hour repair windows, 5% coverage suffices. Consider vendor-managed inventory programs for facilities with 50+ modules to optimize working capital.

Next Steps: Optimize Your Valve Control Infrastructure

Contact our process automation specialists to discuss application-specific requirements, obtain detailed integration drawings, or request factory acceptance test protocols for your project. Volume pricing available for multi-unit installations and annual blanket purchase agreements.

Request a Technical Consultation: Our engineers provide complimentary system audits identifying opportunities to enhance control loop performance, reduce maintenance costs, and extend asset lifecycles through strategic component upgrades.
