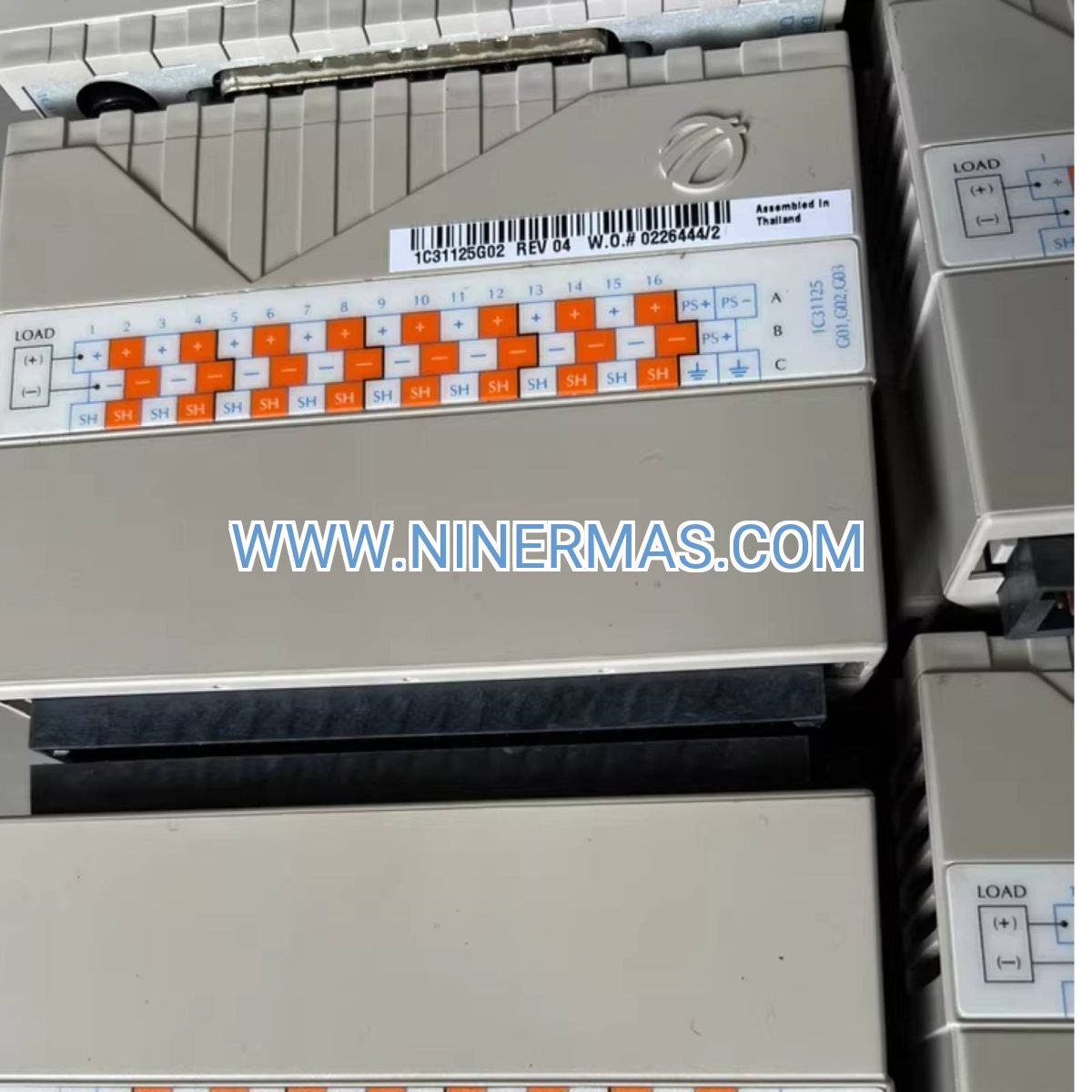

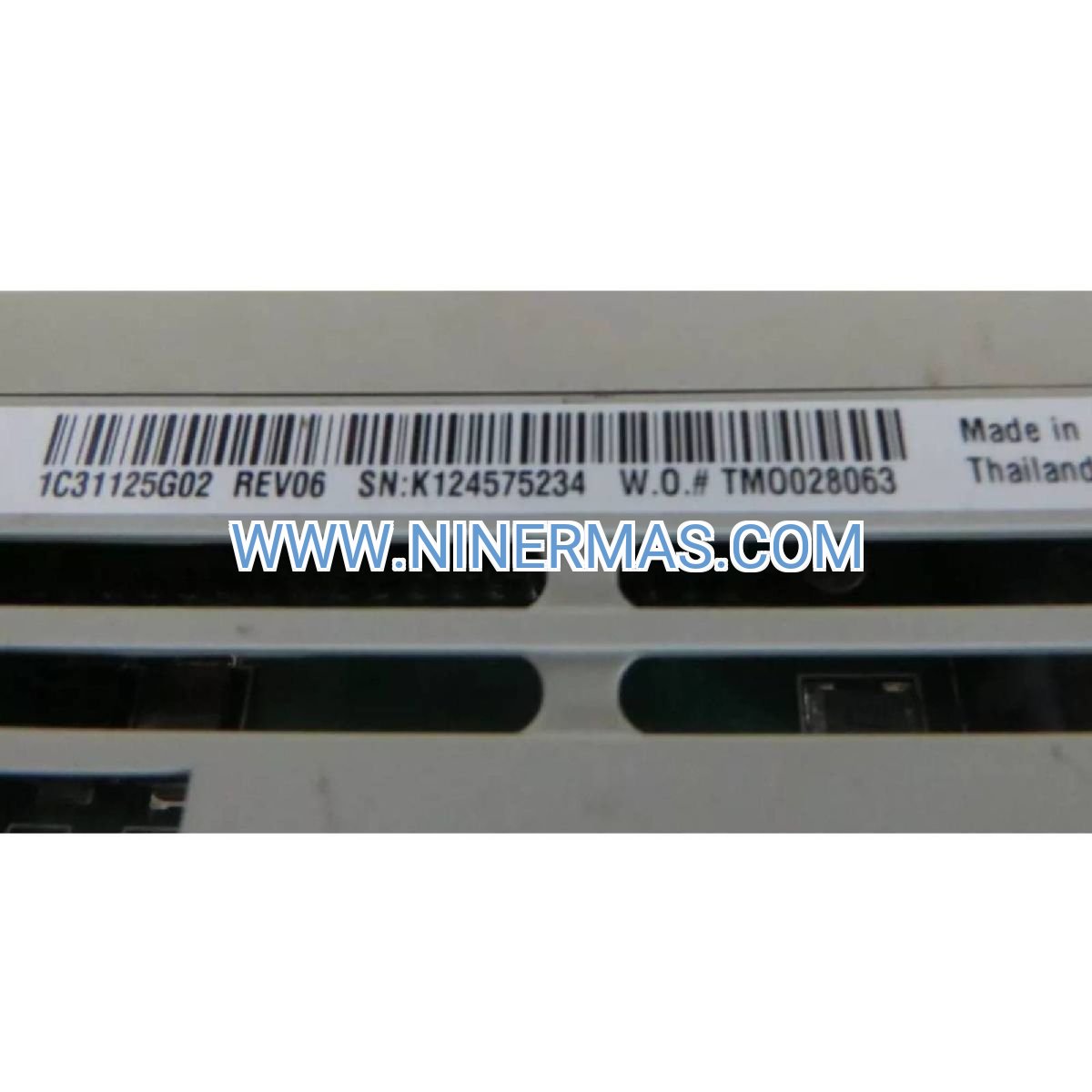

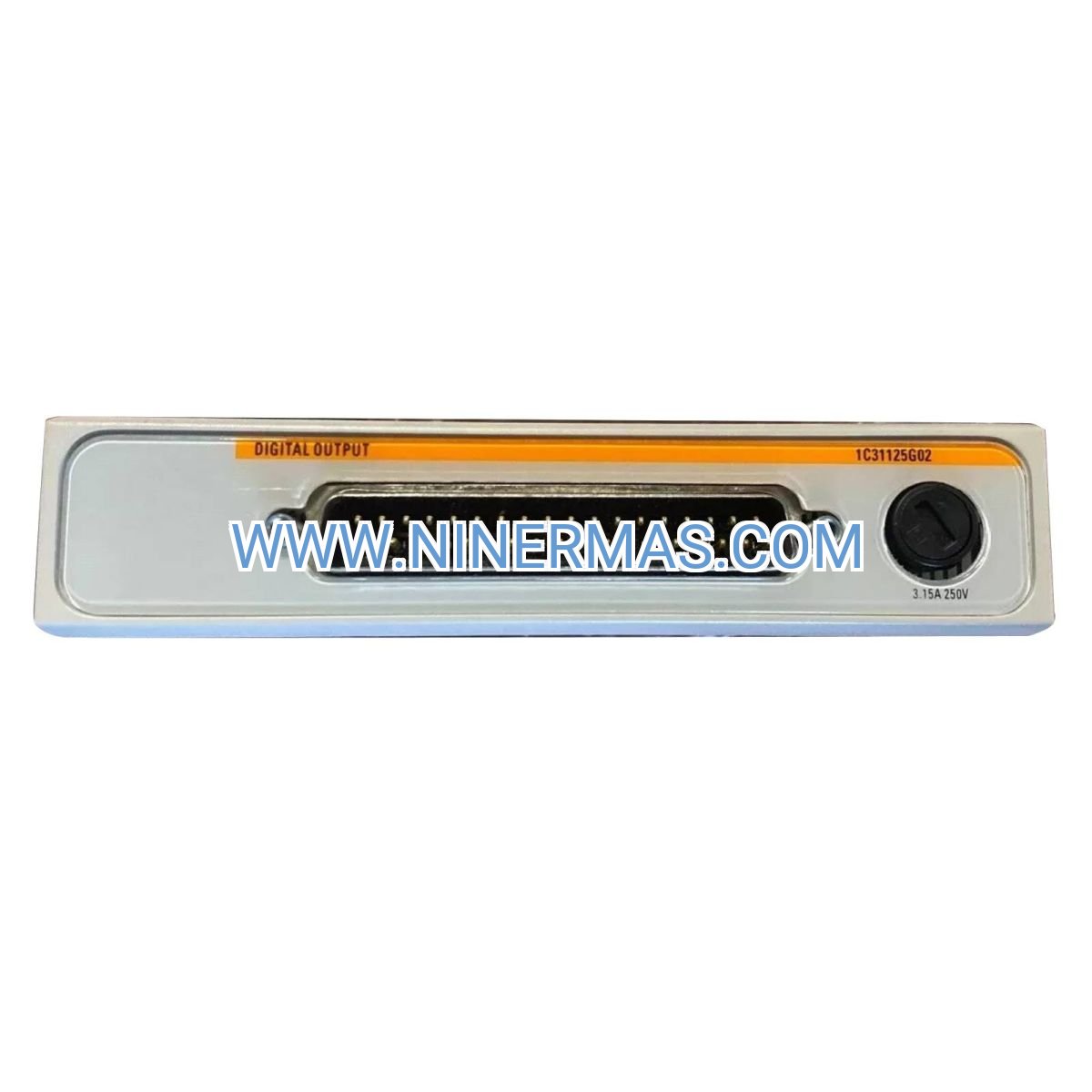

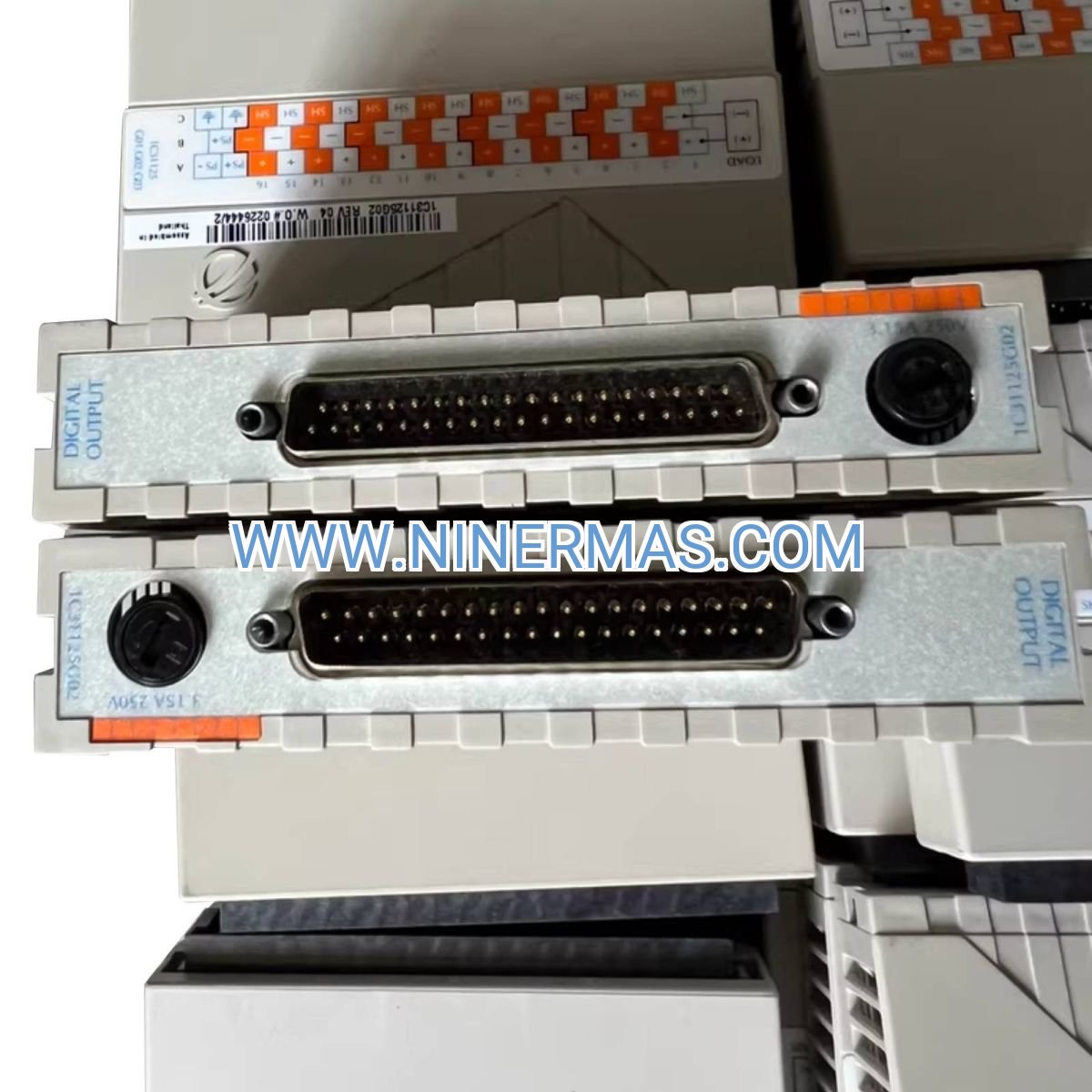

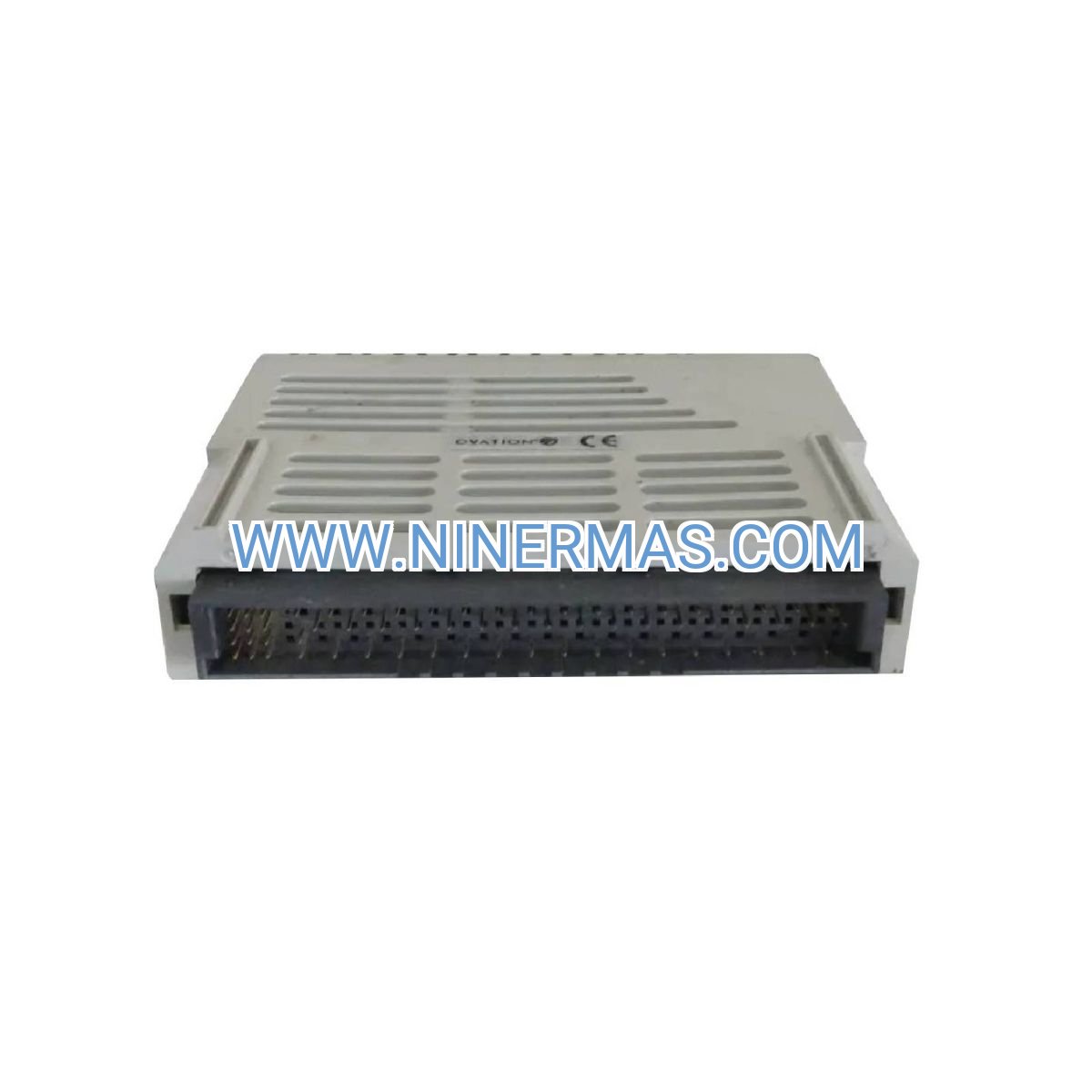

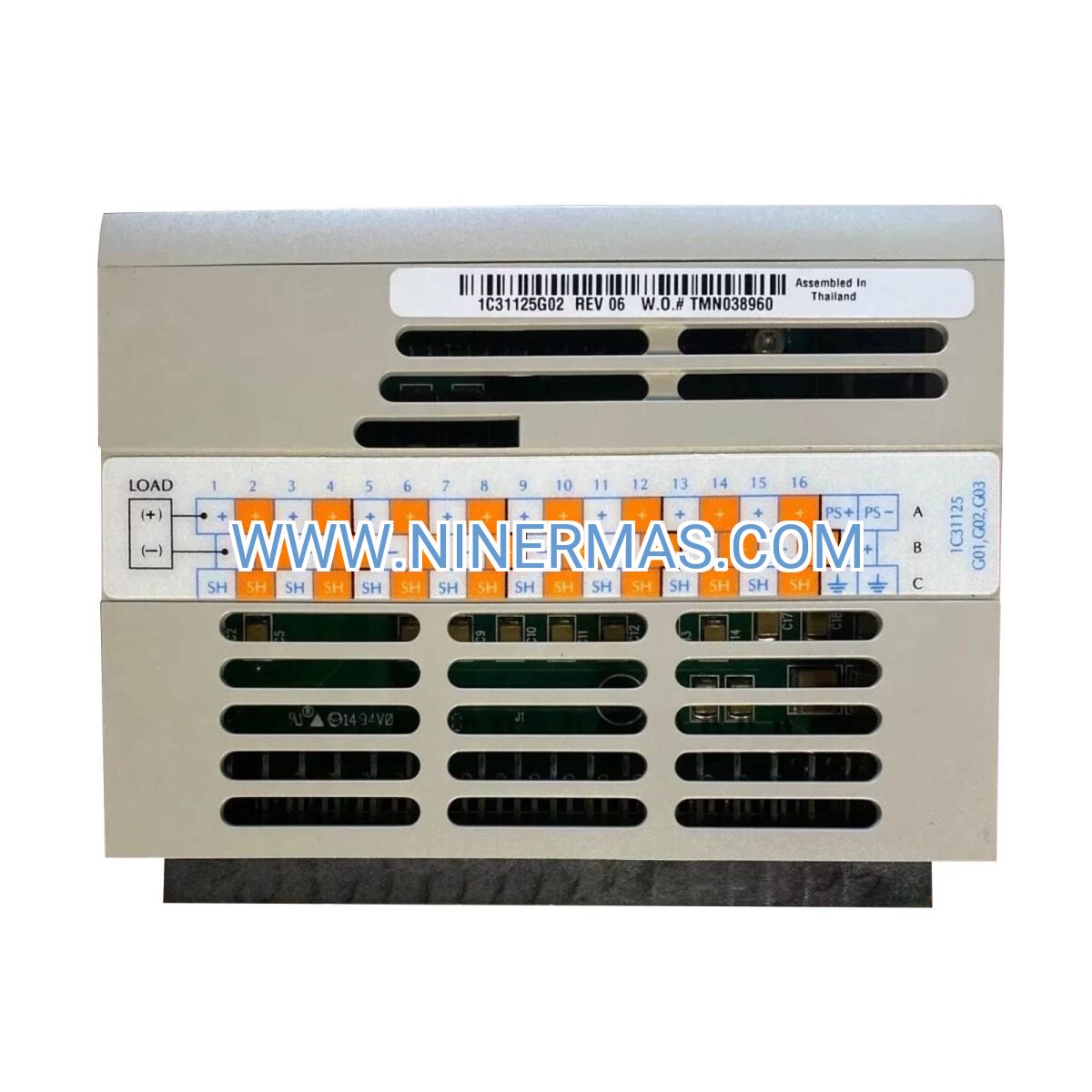

1C31125G02 Digital Output Module (Industrial-Grade High-Current Control)

The 1C31125G02 represents a specialized class of digital output hardware engineered for process industries where conventional I/O modules fall short. This is what you deploy when field devices demand serious current—solenoid valves exceeding 1.5 amps, industrial contactors, high-wattage annunciator panels, and pneumatic actuators that standard outputs simply cannot drive reliably.

Designed for seamless integration within Emerson Ovation distributed control architectures, this module addresses a critical gap: the need to switch heavy loads without external relay interfaces. For plant engineers managing refineries, chemical processing units, or power generation facilities, eliminating intermediary relays translates to fewer failure points, simplified panel layouts, and reduced installation labor.

What sets the 1C31125G02 apart is its ability to handle both continuous high-current operation and transient inrush conditions that destroy lesser modules. Whether you're controlling large-bore isolation valves in pipeline networks or coordinating multiple safety interlocks in mining conveyors, this output module delivers the robustness your application demands.

Core Capabilities & Technical Advantages

→ Extended Current Rating: Each of the 8 channels supports 2.0A continuous operation with 3.5A surge tolerance for 100 milliseconds. This headroom accommodates inductive loads like solenoid coils that draw peak currents during energization—preventing nuisance faults that plague standard 0.5A outputs.

✓ Reinforced Output Protection: Built-in short-circuit immunity and inductive kickback suppression eliminate the need for external snubber circuits. Thermal foldback circuitry automatically limits current during overload conditions, protecting both the module and downstream wiring without requiring manual intervention.

→ Comprehensive Isolation Architecture: 2500VAC channel-to-backplane isolation shields control logic from field-side electrical noise, while 500VAC channel-to-channel isolation prevents cross-talk between outputs. Critical for installations near VFDs, welding equipment, or high-voltage switchgear.

✓ Integrated Diagnostics: Per-channel fault detection reports open-load conditions, short circuits, and over-temperature events directly to the Ovation controller. Maintenance teams receive early warning of degrading field devices before they cause process upsets.

→ Environmental Hardening: Operates reliably from -20°C to +70°C with conformal coating that resists moisture, dust, and chemical vapors. Vibration resistance per IEC 60068-2-6 ensures stable performance in high-vibration environments like compressor stations and mill facilities.

✓ Hazardous Area Certification: Approved for Zone 2/Division 2 installations when properly configured, enabling deployment in petrochemical plants, grain handling facilities, and other classified locations without costly explosion-proof enclosures.

Industrial Application Scenarios

Crude Oil Pipeline Control: Mainline block valves in long-distance pipelines utilize pneumatic actuators with solenoid pilot valves drawing 2-3 amps during stroke initiation. The 1C31125G02 directly drives these solenoids without relay amplification, reducing panel complexity and improving response time. In emergency shutdown scenarios, simultaneous closure of multiple valves remains within the module's aggregate current budget.

Cement Manufacturing Kiln Systems: Rotary cement kilns depend on precise combustion air control via motorized dampers equipped with high-torque actuators. These actuators employ oversized DC solenoids that standard I/O cannot energize. By sourcing sufficient current, the 1C31125G02 ensures damper positioning accuracy that directly impacts clinker quality and fuel efficiency.

Mining Conveyor Safety Interlocks: Underground belt conveyor systems require coordinated activation of brake solenoids, emergency stop circuits, and warning beacons—often simultaneously across multiple conveyor sections. The module's 8-channel capacity and high per-channel current rating guarantee all safety devices engage within regulatory time limits, satisfying MSHA compliance requirements.

Water Treatment Sludge Processing: Dewatering filter presses use hydraulic power units with solenoid valve banks that control press cycles. These solenoids exhibit high inrush current that causes contact welding in standard outputs. The 1C31125G02's arc suppression and current limiting extend contact life by 5-10 years, reducing maintenance frequency and spare parts costs.

Power Plant Auxiliary Systems: Boiler feedwater pumps, cooling tower fans, and fuel handling equipment rely on motor starters with control coils exceeding 1 amp. Direct control from the DCS eliminates hardwired relay panels, simplifying troubleshooting and enabling advanced sequencing logic that optimizes startup/shutdown procedures.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1C31125G02 when field devices require >0.5A per channel or when eliminating external relay interfaces justifies the cost premium. For applications with mixed load types, verify that inductive loads include integral flyback diodes or plan to add external suppression. Confirm total module current (sum of all active channels) remains below 12A to avoid backplane power limitations.

Advanced Integration Features

Backward Compatibility: The module operates in Ovation systems dating to the late 1990s, protecting investments in legacy infrastructure. Firmware updates via Ovation Developer Studio ensure compatibility with current 3.5+ platforms, enabling phased migration strategies.

Predictive Maintenance Integration: When paired with AMS Device Manager, the module streams real-time load current data for trending analysis. Gradual increases in operating current signal degrading field devices—solenoid coils developing shorted turns, contactor mechanisms binding—allowing proactive replacement before failure.

Simplified Spares Management: A single 1C31125G02 module replaces multiple lower-current variants in your storeroom. This consolidation reduces inventory carrying costs and eliminates the risk of installing an under-rated module during emergency repairs.

Cybersecurity Compliance: As part of the Ovation ecosystem, the module benefits from IEC 62443 security features including role-based access control and encrypted configuration downloads. Critical for facilities subject to NERC CIP or TSA pipeline security directives.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock items; custom-configured modules with pre-loaded firmware ship within 10 business days. Expedited processing available for critical outages.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available through Emerson's Impact Partner program, including advance replacement and on-site commissioning support.

Technical Assistance: Access to Emerson's global support network with 24/7 phone support, remote diagnostics via secure VPN, and regional service centers stocked with exchange modules. Online knowledge base includes application notes, wiring diagrams, and troubleshooting flowcharts.

Documentation Package: Each module ships with installation manual, terminal block labeling templates, conformity certificates (CE/UL/ATEX), and calibration data. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

Can the 1C31125G02 control AC solenoid valves rated for 120VAC?
No, this module is designed exclusively for DC loads (18-30VDC). For AC switching applications, consider Emerson's relay output modules or solid-state AC output cards rated for 120/240VAC operation.

What is the maximum wire gauge for field terminations?
The removable terminal blocks accept 12-24 AWG solid or stranded copper conductors. For high-current applications, use 14 AWG minimum to reduce voltage drop. Ferrules are optional but recommended for stranded wire to prevent strand breakage.

How does the module perform with LED indicator loads?
LED loads typically draw <50mA, well within the module's range. However, the open-load detection threshold is 30mA—verify your LED current exceeds this to avoid false fault alarms. For lower-current LEDs, disable diagnostics for those channels.

Is hot-swapping supported during live operation?
Yes, when installed in Ovation redundant I/O configurations. The controller maintains output states during module replacement. For non-redundant systems, outputs de-energize during swap—plan maintenance windows accordingly.

Can I parallel multiple outputs to drive a single high-current load?
Not recommended. Output impedance variations cause unequal current sharing, potentially overloading one channel. For loads >2A, use an external contactor or solid-state relay driven by a single module output.

What energy efficiency improvements does this module offer?
Low on-state voltage drop (<0.5V) minimizes heat generation, reducing cooling requirements. Eliminating external relay coils (typically 2-5W each) can save 16-40W per module in large systems—meaningful in facilities with hundreds of I/O points.

Ready to Upgrade Your Control System?

Whether you're retrofitting an aging DCS installation, expanding capacity for a new process unit, or simply tired of relay failures disrupting production, the 1C31125G02 delivers the performance and reliability your operation demands. Our applications engineers are available to review your specific requirements and confirm compatibility with your existing Ovation infrastructure.

Request a formal quotation, technical datasheet, or application consultation—contact our team today.
