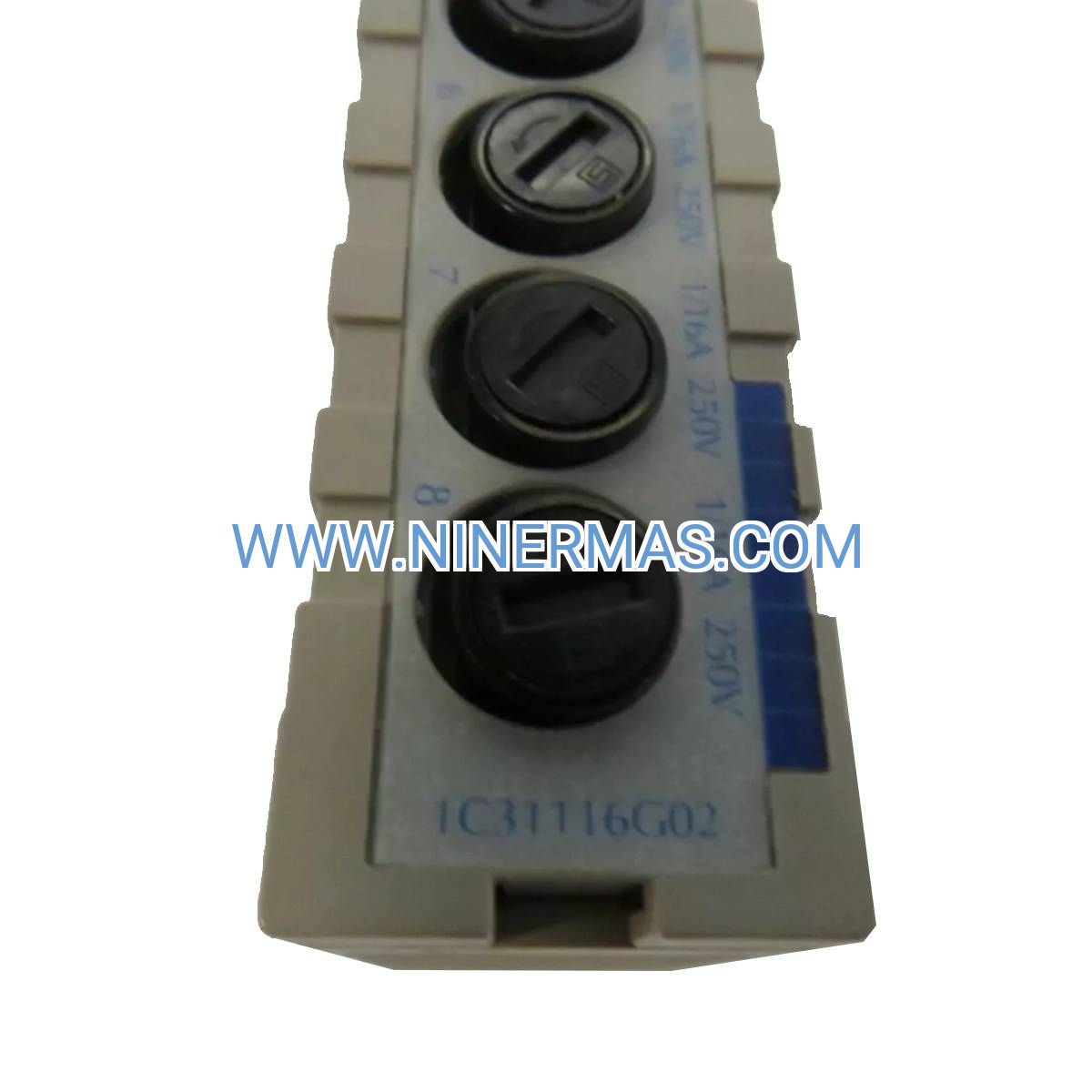

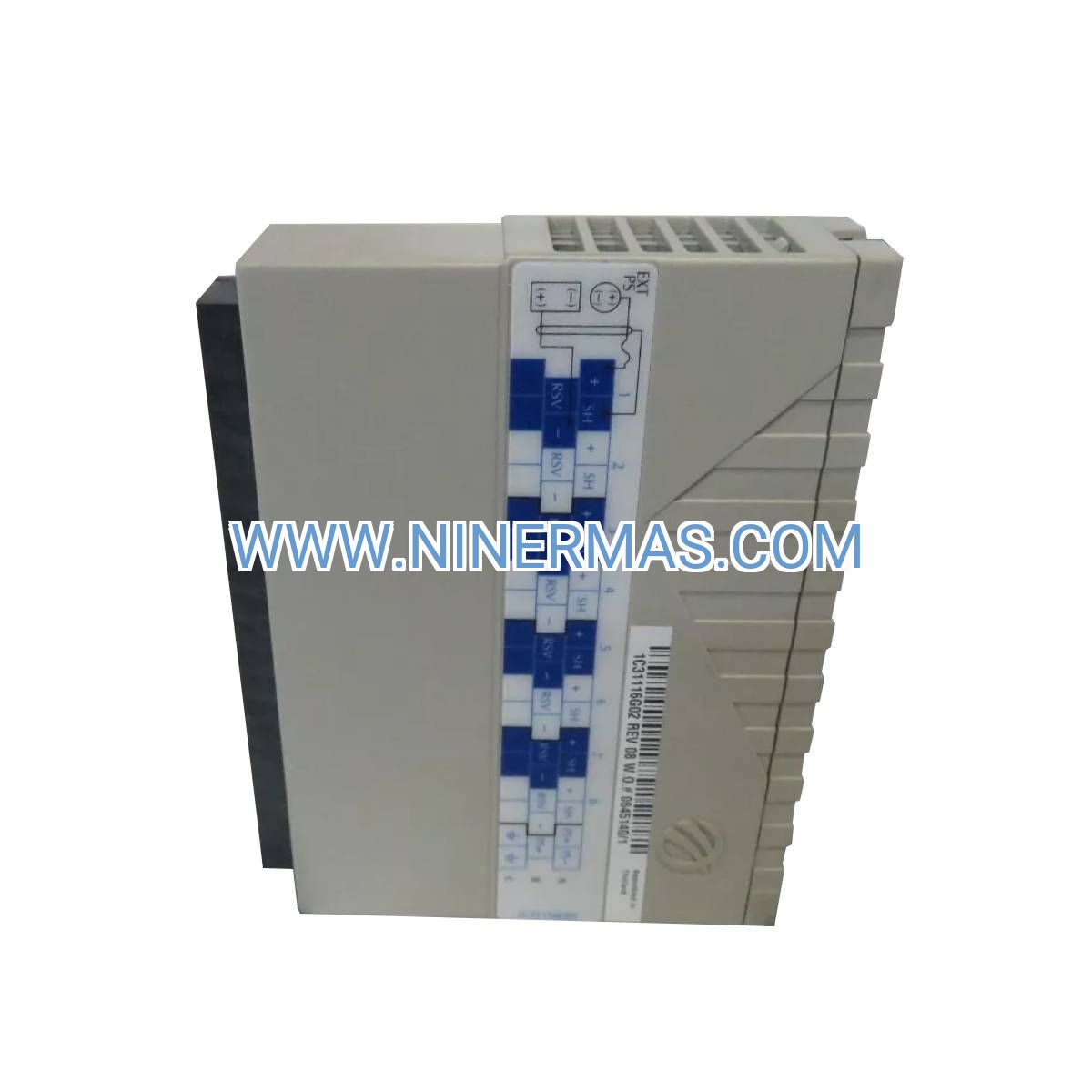

1C31116G02 Analog Input Personality Module (Industrial-Grade DCS Component)

The 1C31116G02 represents a field-proven analog input personality module engineered specifically for Emerson Ovation distributed control architectures. Designed to acquire eight independent 4-20 mA current signals with 16-bit precision, this module serves as the critical interface between field instrumentation and your control network. Whether you're monitoring reactor temperatures, pipeline pressures, or turbine vibration levels, the 1C31116G02 delivers the accuracy and reliability demanded by mission-critical industrial operations.

Process engineers and plant operators face constant pressure to maintain uptime while ensuring measurement integrity. Traditional I/O modules often compromise between resolution and reliability, forcing difficult tradeoffs in system design. The 1C31116G02 eliminates these compromises through channel-to-channel isolation, hot-swap capability, and seamless integration with Ovation controllers—enabling you to build robust monitoring systems without sacrificing performance or maintainability.

With proven deployment across chemical processing, power generation, and water treatment facilities worldwide, this module combines Emerson's decades of DCS expertise with modern diagnostic capabilities. Built-in LED indicators provide instant status visibility, while the hot-swappable design allows module replacement during live operation—minimizing unplanned downtime and reducing maintenance costs by up to 40% compared to legacy I/O systems.

Core Features & Benefits

→ 8-Channel Differential Input Architecture
Acquire signals from eight independent 4-20 mA transmitters simultaneously, with each channel providing galvanic isolation to eliminate ground loop interference and cross-channel noise. This architecture ensures measurement integrity even in electrically harsh industrial environments, protecting signal quality across temperature, pressure, flow, and level monitoring applications.

→ 16-Bit A/D Conversion Precision
Capture process variables with 0.0015% resolution (1 part in 65,536), enabling detection of subtle process deviations before they escalate into quality issues or safety incidents. This precision supports advanced control strategies including cascade loops, ratio control, and predictive maintenance algorithms that rely on high-fidelity data.

→ Hot-Swap Maintenance Capability
Replace failed or suspect modules without shutting down the I/O subsystem or interrupting control loops. The module's keyed connector design and automatic configuration download reduce mean-time-to-repair (MTTR) from hours to minutes, directly improving overall equipment effectiveness (OEE) and reducing emergency maintenance costs.

→ Comprehensive Diagnostic Integration
Multi-color LED indicators provide real-time status for power, communication, and channel health, while embedded diagnostics report open-circuit, short-circuit, and out-of-range conditions directly to the Ovation operator workstation. This visibility accelerates troubleshooting and enables predictive maintenance strategies based on early fault detection.

→ Industrial-Grade Environmental Tolerance
Operate reliably across 0°C to 60°C ambient temperatures with conformal coating protection against humidity, dust, and chemical exposure. The rugged design meets industrial shock and vibration specifications, ensuring consistent performance in demanding applications from offshore platforms to cement kilns.

→ Energy-Efficient Low-Power Design
Consume minimal power per channel while maintaining full isolation and diagnostic capabilities, reducing cabinet cooling requirements and supporting sustainability initiatives. The efficient design allows higher I/O density per power supply, lowering total cost of ownership for large-scale installations.

Typical Application Scenarios

Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation column pressures, and flow rates across batch and continuous processes. The module's isolation prevents electrical faults in one measurement loop from cascading to others, maintaining process visibility even during instrument failures. Operators gain confidence in critical safety interlocks and quality control measurements that directly impact product specifications and regulatory compliance.

Power Generation & Cogeneration
Track boiler drum levels, turbine bearing temperatures, stack emissions, and cooling water flows in fossil, biomass, and combined-cycle plants. The 16-bit resolution enables early detection of efficiency degradation, supporting condition-based maintenance programs that extend equipment life and optimize heat rate. Integration with Ovation's advanced control capabilities facilitates load-following and emissions compliance strategies.

Water & Wastewater Treatment
Acquire pH, dissolved oxygen, turbidity, and chlorine residual measurements from treatment trains and distribution systems. The module's diagnostic capabilities alert operators to sensor fouling or calibration drift before water quality excursions occur, protecting public health and avoiding regulatory violations. Hot-swap capability ensures continuous monitoring during routine sensor maintenance.

Pulp & Paper Manufacturing
Monitor consistency, basis weight, moisture content, and chemical additive flows across stock preparation, forming, and finishing operations. Precise analog input acquisition supports tight quality control and waste reduction, while the rugged design withstands the high-humidity, corrosive environments typical of paper mills. Seamless Ovation integration enables advanced control strategies like model predictive control (MPC) for improved sheet quality.

Food & Beverage Production
Track pasteurization temperatures, fermentation pressures, and ingredient flow rates with the accuracy and traceability required for HACCP compliance. The module's isolation and diagnostic features support validation requirements for critical control points, while hot-swap capability maintains production continuity during scheduled maintenance windows.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1C31116G02 when your application requires 4-20 mA current input acquisition with high accuracy and reliability. For voltage input applications (0-10 VDC, ±10 VDC), consider alternative Ovation analog input modules. If you need higher channel density, evaluate multi-channel I/O options. For hazardous area installations (Zone 1/Division 1), verify compatibility with intrinsically safe barriers or select IS-rated modules. Consult Emerson's I/O selection guide to match module specifications with your specific transmitter types, loop power requirements, and environmental conditions.

Extended Functions

HART Protocol Transparency: The module passes HART digital signals superimposed on 4-20 mA analog currents, enabling access to smart transmitter diagnostics, configuration parameters, and secondary process variables through Ovation's asset management tools. This capability supports predictive maintenance programs and reduces the need for field-based HART communicators.

Advanced Diagnostics & Alarming: Beyond basic open/short detection, the module monitors signal drift, noise levels, and update rate consistency. Configurable alarm thresholds trigger notifications for out-of-range conditions, enabling proactive intervention before process upsets occur. Diagnostic data integrates with Ovation's event logging for root cause analysis and compliance documentation.

Redundancy Support: Deploy in redundant I/O configurations for critical measurements where single-point failures are unacceptable. The module supports automatic failover with bumpless transfer, maintaining control loop stability during module replacement or communication path failures. Redundancy configurations are field-configurable through Ovation Developer Studio.

Cybersecurity Features: Embedded firmware authentication and secure communication protocols protect against unauthorized configuration changes and cyber threats. The module participates in Ovation's defense-in-depth security architecture, supporting compliance with IEC 62443 industrial cybersecurity standards.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom-configured or quantity orders may require 2-3 weeks. Expedited shipping available for emergency replacements to minimize unplanned downtime.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service to reduce MTTR for critical applications. Extended warranty and service agreements available through authorized Emerson service partners.

Technical Support: Access to Emerson's global technical support network with 24/7 emergency hotline for critical issues. Support includes configuration assistance, troubleshooting guidance, and firmware update recommendations. Regional application engineers available for on-site commissioning and optimization services.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and safety certifications. Complete technical manuals, configuration examples, and CAD drawings available through Emerson's online documentation portal. Training resources include video tutorials and hands-on workshops at Emerson's regional training centers.

Frequently Asked Questions

Q: How do I integrate the 1C31116G02 module with existing Ovation controllers?
A: The module installs directly into any Ovation I/O chassis with available slots. After physical installation, use Ovation Developer Studio to assign the module to a controller and map input channels to control strategy tags. The system automatically downloads configuration and begins acquiring data within seconds. No special programming or custom drivers required—the module appears as a standard I/O resource in your control database.

Q: What is the maximum cable length between field transmitters and the 1C31116G02?
A: For 4-20 mA current loops, you can reliably run up to 1000 meters (3280 feet) using standard 18 AWG shielded twisted-pair cable, assuming transmitter loop power compliance and proper grounding. Longer distances may be achievable with larger wire gauges or higher-voltage loop power supplies. Always verify total loop resistance (wire + transmitter) remains within the module's compliance voltage specification to ensure accurate signal acquisition.

Q: Can this module reduce energy consumption in my control system?
A: Yes, the 1C31116G02's low-power design (3.5 W typical) consumes approximately 40% less energy than previous-generation analog input modules while delivering superior performance. For a typical installation with 100+ I/O modules, this translates to measurable reductions in cabinet cooling requirements and electrical operating costs. The energy efficiency also supports sustainability reporting and carbon footprint reduction initiatives.

Q: What are the installation requirements for hot-swap replacement?
A: Hot-swap replacement requires no special tools or procedures. Simply pull the module extraction lever, remove the failed module, insert the replacement until it seats fully, and push the lever to lock. The Ovation system automatically detects the new module, downloads configuration, and resumes normal operation—typically within 10-15 seconds. Ensure you have the correct module type and that your Ovation system firmware supports hot-swap for your specific chassis model.

Q: Does the 1C31116G02 support remote monitoring and diagnostics?
A: Absolutely. All module diagnostics, channel status, and configuration parameters are accessible through Ovation operator workstations, web-based HMI interfaces, and mobile apps. You can monitor module health, view historical trends, and receive alarm notifications from anywhere with network connectivity. Integration with Emerson's Plantweb digital ecosystem enables advanced analytics and predictive maintenance capabilities across your entire instrumentation infrastructure.

Q: Is the module compatible with intrinsically safe (IS) transmitters in hazardous areas?
A: The 1C31116G02 is designed for installation in safe areas (non-hazardous locations). For hazardous area applications, install the module in a safe area control room and connect to field transmitters through approved intrinsically safe barriers or isolators rated for your specific hazardous area classification (Class I Div 1, Zone 0, etc.). Consult Emerson's hazardous area installation guidelines and local electrical codes to ensure compliant system design.

Get Started Today

Upgrade your Ovation DCS with genuine Emerson components engineered for reliability and performance. Contact our technical sales team for application-specific recommendations, quantity pricing, or integration support. Whether you're expanding an existing system or planning a complete modernization, we'll help you select the right I/O configuration to meet your process control objectives.

Ready to order? Add the 1C31116G02 to your cart or request a formal quotation. Our team responds to all inquiries within 24 hours.
