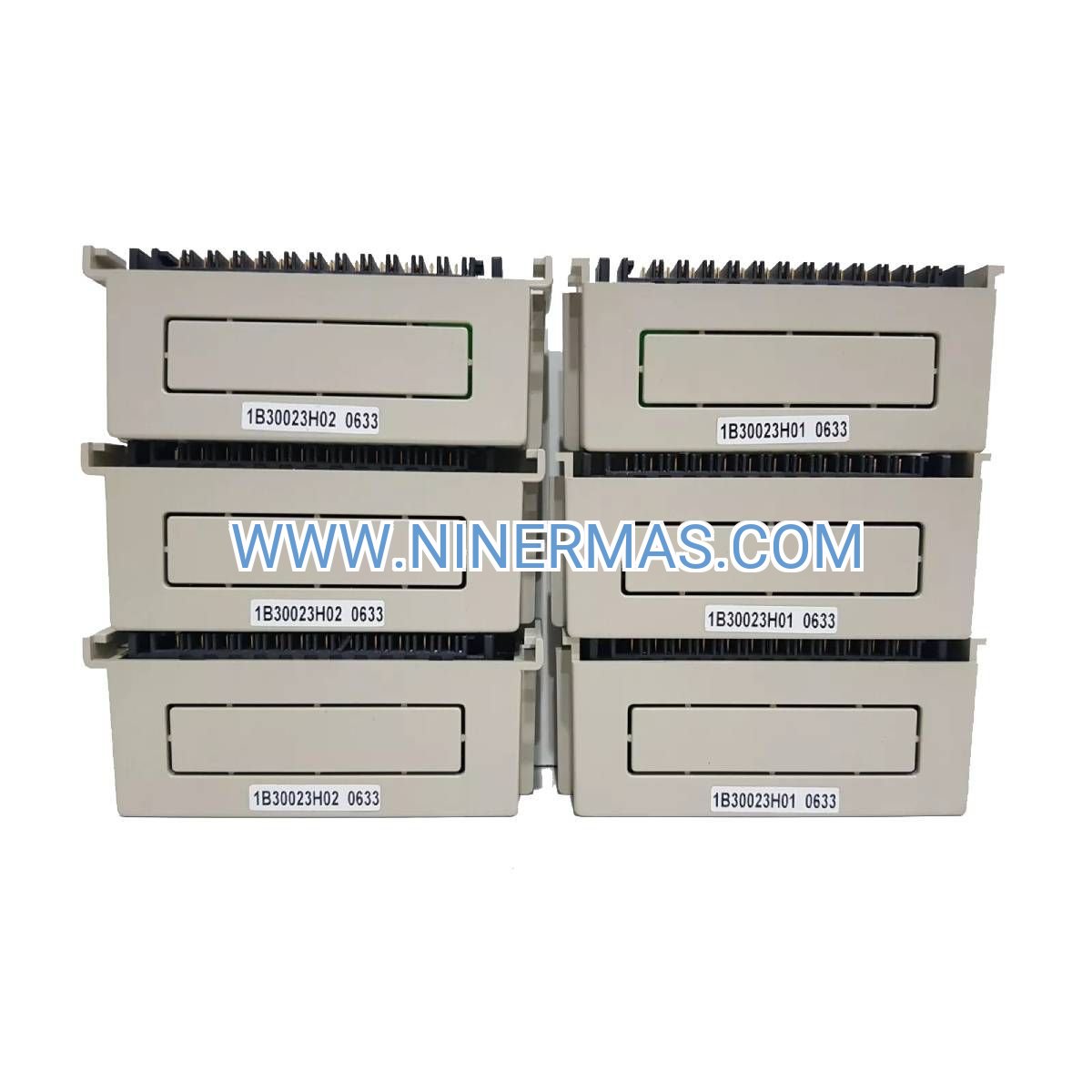

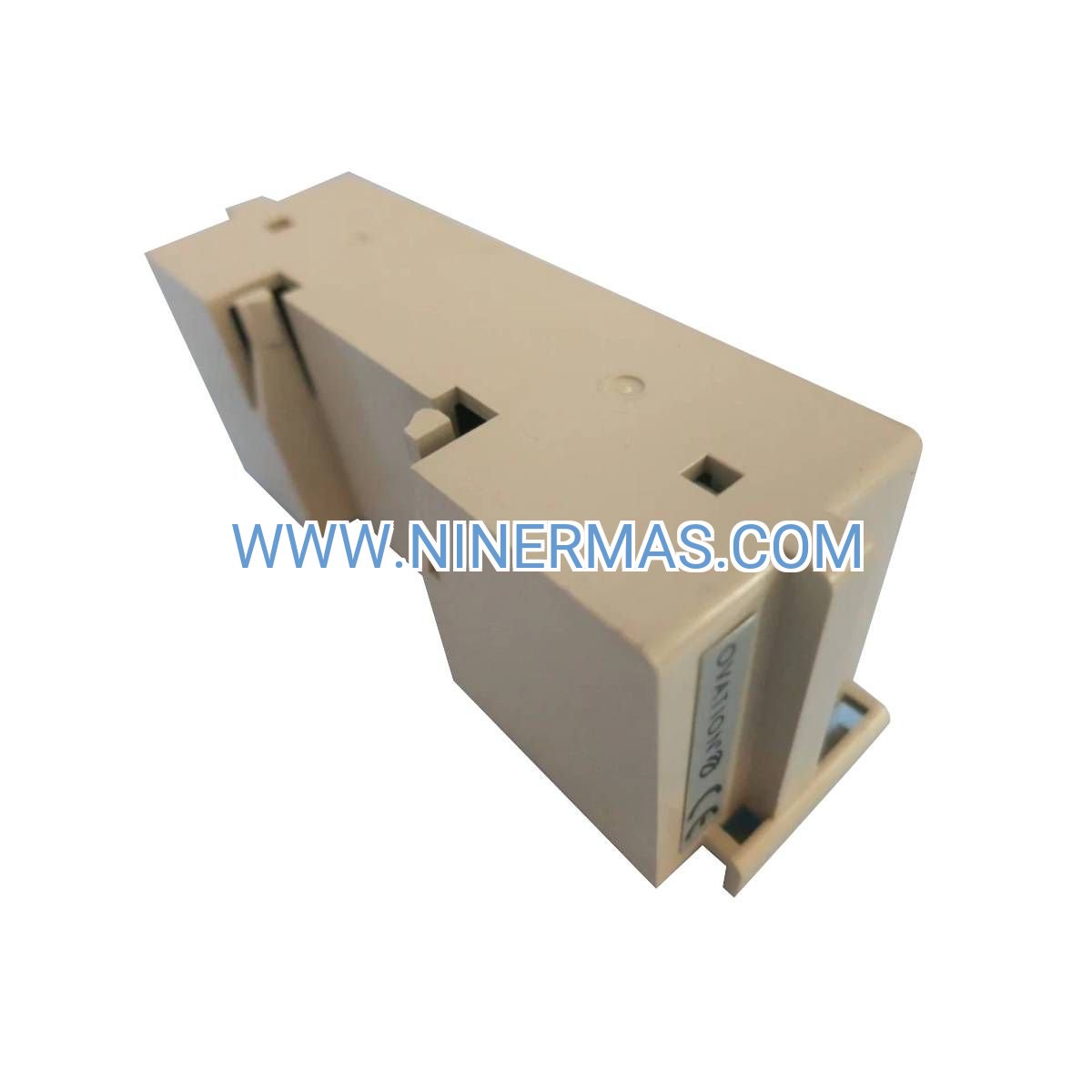

1B30023H02 I/O Bus Terminator Module (Industrial-Grade Signal Control)

The 1B30023H02 I/O Bus Terminator Module is a precision-engineered component designed to maintain signal integrity across Emerson Ovation distributed control system networks. By providing proper impedance matching at network endpoints, this terminator eliminates signal reflections that can compromise data transmission reliability in industrial automation environments.

Built for process industries where communication failures can lead to costly downtime or safety incidents, the 1B30023H02 serves as a critical infrastructure element in power generation, oil & gas refining, chemical processing, and water treatment facilities. System integrators and plant engineers rely on this module to ensure deterministic data exchange between controllers, I/O cards, and field devices.

With UL/CE certification and compatibility across legacy and current Ovation platforms, the 1B30023H02 delivers long-term value through reduced troubleshooting time, extended network uptime, and seamless integration with existing DCS architectures.

Core Features & Benefits

→ Precision Impedance Matching
Engineered to exact specifications for Ovation I/O bus networks, preventing signal degradation and ensuring clean data transmission even in electrically noisy industrial environments.

→ Plug-and-Play Installation
DIN rail or panel mount design enables rapid deployment during system commissioning, expansions, or maintenance windows without specialized tools or extensive configuration.

→ Wide Operating Range
Functions reliably from 0°C to 60°C (32°F to 140°F), accommodating control room and field-mounted enclosure installations across diverse climate conditions.

→ Multi-Platform Compatibility
Supports both current and legacy Ovation controller generations, protecting capital investments and simplifying spare parts inventory management.

→ Regulatory Compliance
UL, CE, and CSA certifications ensure adherence to international safety and electromagnetic compatibility standards for industrial control equipment.

→ Maintenance-Free Operation
Solid-state design with no moving parts or consumable components, reducing lifecycle costs and eliminating scheduled replacement requirements.

Typical Application Scenarios

Power Generation Facilities
In combined-cycle plants and coal-fired stations, the 1B30023H02 terminates I/O bus networks connecting turbine control systems, boiler management units, and emissions monitoring equipment. Prevents communication errors that could trigger false alarms or unplanned shutdowns, maintaining grid stability and generation capacity.

Petrochemical Refineries
Refinery operators deploy this terminator module in distributed control architectures managing distillation columns, catalytic crackers, and blending systems. Ensures reliable data flow between process controllers and field instrumentation, supporting precise quality control and regulatory compliance.

Water & Wastewater Treatment
Municipal treatment plants use the 1B30023H02 to maintain signal integrity in SCADA networks controlling pumping stations, filtration systems, and chemical dosing equipment. Reduces communication-related faults that can impact treatment efficiency or environmental discharge limits.

Pharmaceutical Manufacturing
In cleanroom environments producing sterile products, this module supports validated control systems managing autoclaves, fermentation vessels, and packaging lines. Contributes to data integrity requirements under FDA 21 CFR Part 11 and EU GMP Annex 11.

Pulp & Paper Mills
Paper manufacturers integrate the 1B30023H02 into control networks for digesters, recovery boilers, and coating machines. Minimizes signal-related production interruptions that can result in off-spec product or equipment damage.

Technical Parameters & Selection Guide

Selection Criteria: Deploy one 1B30023H02 module at each physical endpoint of your Ovation I/O bus network. For systems with multiple I/O racks or distributed controller architectures, calculate the number of terminators based on network topology diagrams. Consult Emerson's network design guidelines for installations exceeding 100 meters or involving fiber optic media converters.

Extended Functions

Network Diagnostics Support: When used with Emerson's diagnostic tools, the 1B30023H02 enables signal quality measurements and impedance verification during commissioning and troubleshooting activities.

Redundant Architecture Compatibility: Supports dual-redundant I/O bus configurations common in high-availability applications, ensuring proper termination for both primary and backup communication paths.

Retrofit Integration: Backward-compatible design allows seamless integration into existing Ovation systems during capacity expansions or technology refresh projects without requiring network-wide reconfiguration.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders may require 2-3 weeks for fulfillment.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options available for critical spares programs.

Technical Support: Access to Emerson-certified engineers for installation guidance, configuration assistance, and troubleshooting support via phone, email, and remote diagnostics.

Documentation Package: Each module ships with installation manual, wiring diagrams, compliance certificates, and integration notes for common Ovation controller platforms.

Frequently Asked Questions

How does the 1B30023H02 integrate with existing Ovation controller racks?
The module mounts directly to standard DIN rail or panel surfaces adjacent to your I/O cards. Connection is made via the bus backplane or terminal blocks depending on your rack configuration. No software configuration is required—the terminator provides passive impedance matching automatically upon installation.

What capacity improvements can I expect after installing proper bus termination?
Proper termination typically reduces communication errors by 85-95% in networks experiencing signal reflection issues. This translates to fewer controller faults, reduced diagnostic time, and improved overall system availability—often measured as a 2-3% increase in uptime for critical control loops.

Does the 1B30023H02 support energy-efficient operation in modern DCS networks?
Yes. The module's passive design consumes negligible power (typically <0.5W), contributing to overall system energy efficiency. By preventing communication retries and error recovery cycles, it also reduces the computational load on controllers, indirectly lowering power consumption.

What are the installation requirements for harsh industrial environments?
The 1B30023H02 is rated for industrial temperature ranges and can be installed in NEMA-rated enclosures. For extreme conditions (high vibration, corrosive atmospheres, or temperatures outside the 0-60°C range), consider additional environmental protection such as climate-controlled cabinets or conformal coating services.

Can I monitor terminator status remotely through the Ovation HMI?
As a passive component, the 1B30023H02 does not provide active status reporting. However, improved network performance (reduced error counters, stable scan times) visible in your Ovation diagnostics screens indicates proper terminator function. Some integrators add proximity sensors to verify physical presence during automated system health checks.

Is the 1B30023H02 compatible with third-party I/O modules in hybrid systems?
While designed specifically for Emerson Ovation networks, the module's standard impedance characteristics may function with certain third-party I/O systems using similar bus architectures. Contact our technical team with your specific configuration for compatibility verification and integration guidance.

Ready to Enhance Your DCS Network Reliability?

Ensure optimal signal integrity in your Emerson Ovation control system with the 1B30023H02 I/O Bus Terminator Module. Contact our industrial automation specialists today for technical specifications, quantity pricing, or integration support tailored to your facility's requirements.

Request a Quote: Email sale@ninermas.com or call +0086 187 5021 5667
Technical Inquiries: Our engineers respond within 24 hours to configuration and compatibility questions
