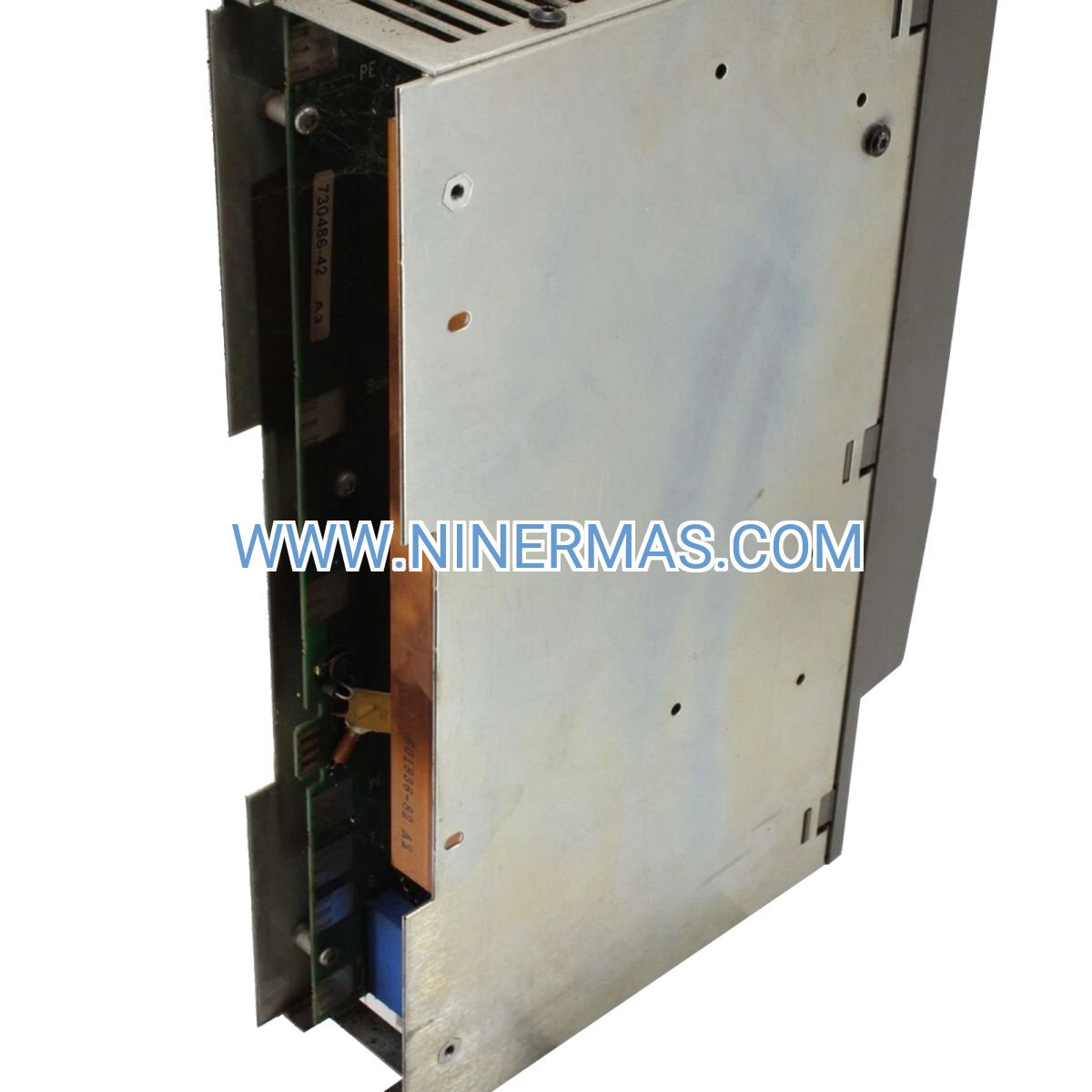

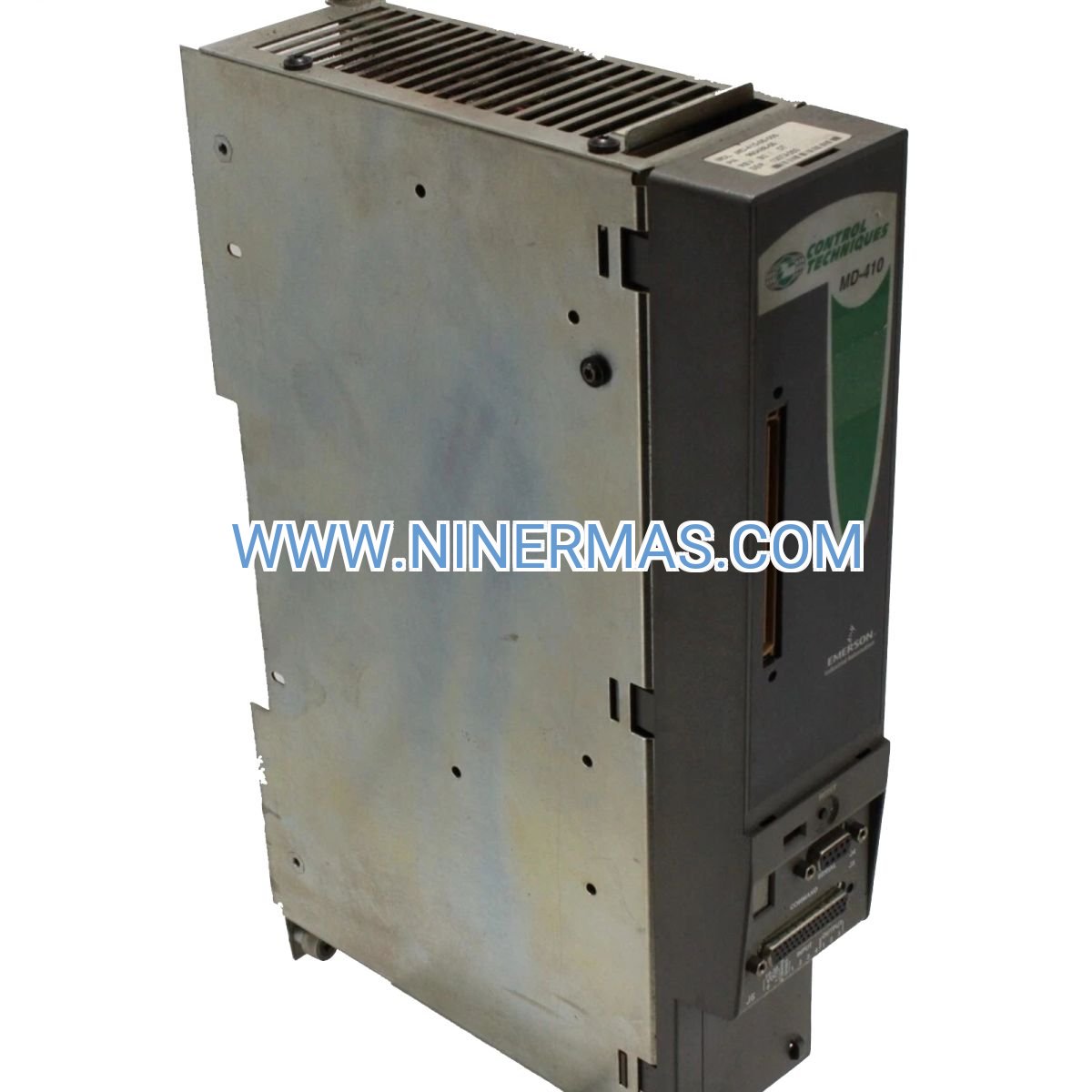

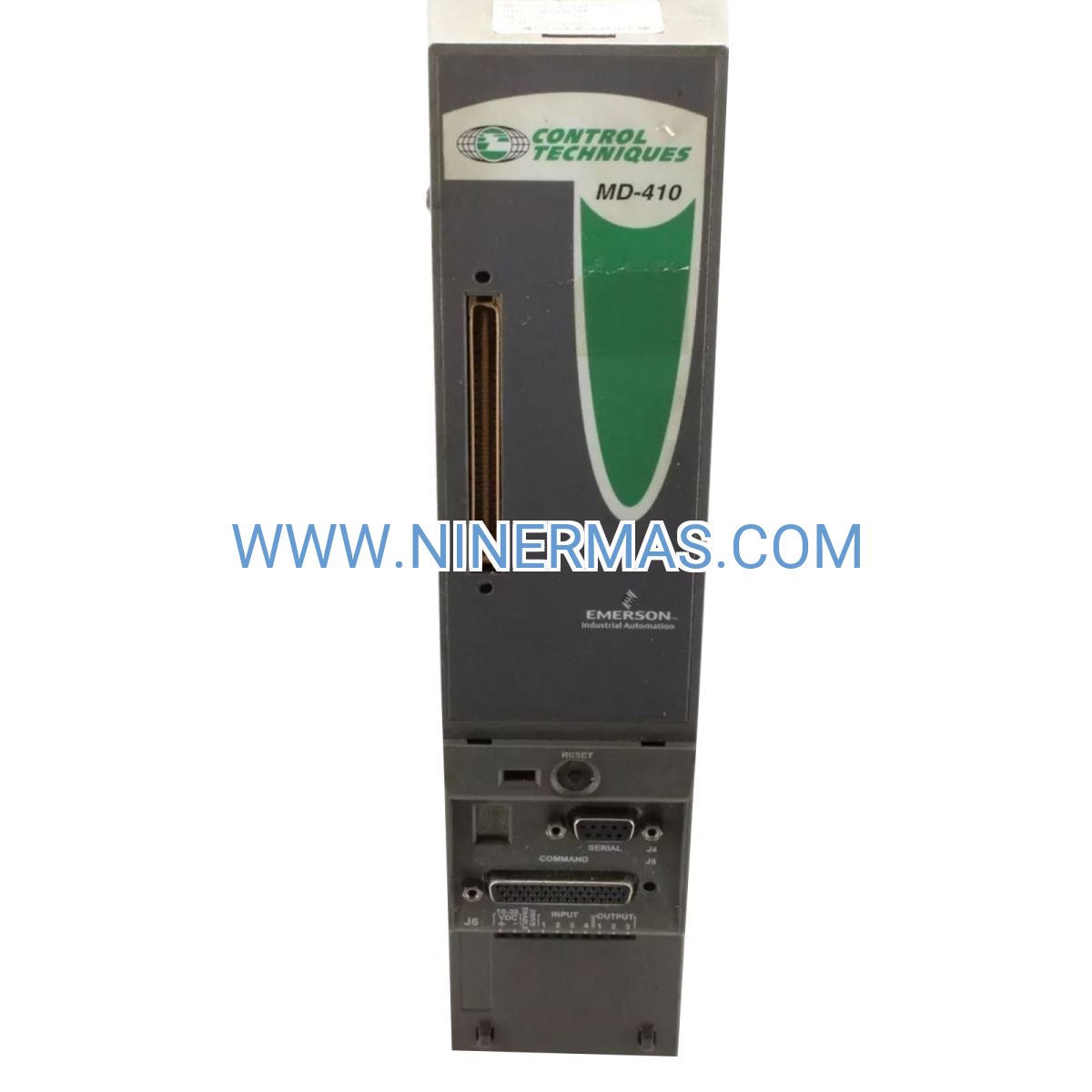

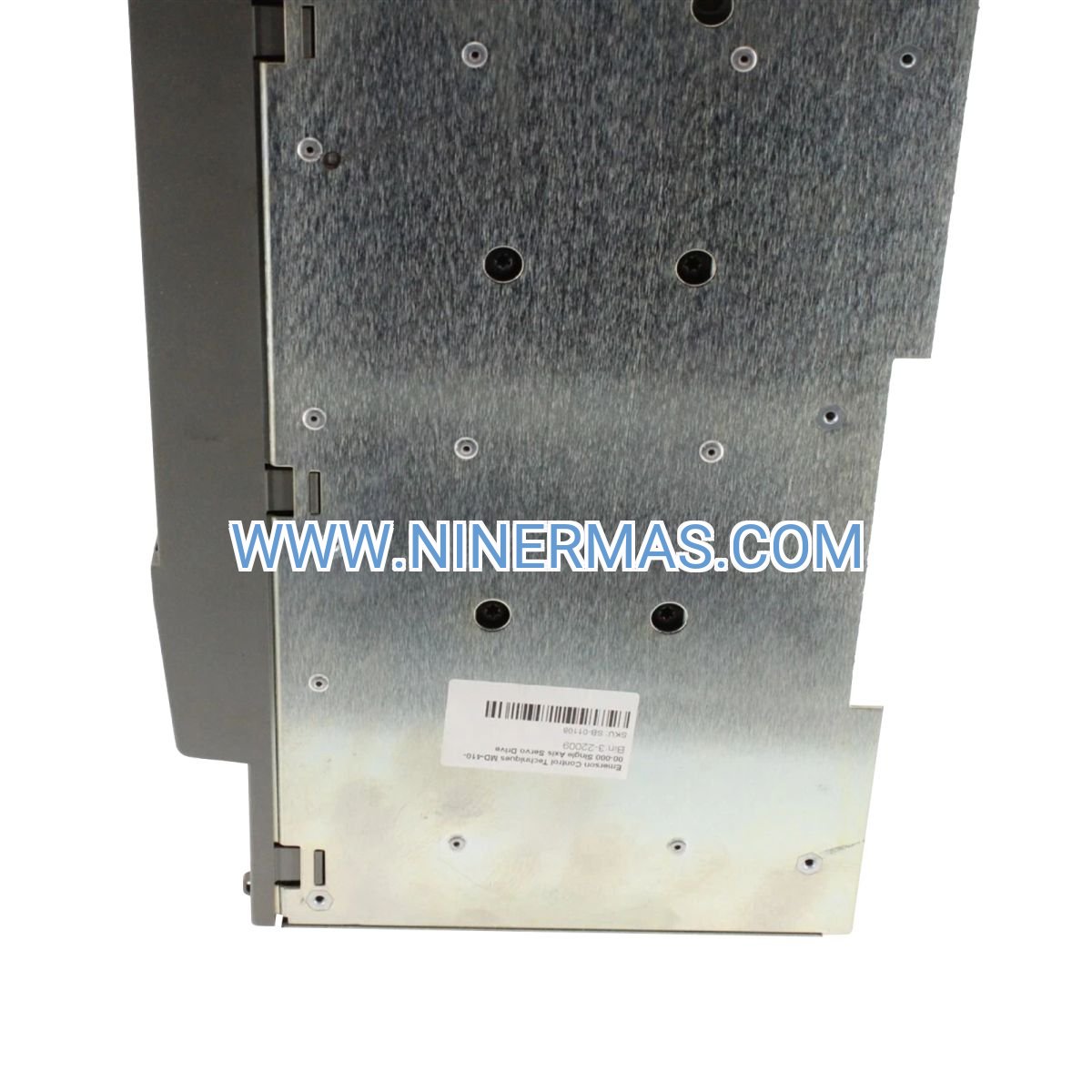

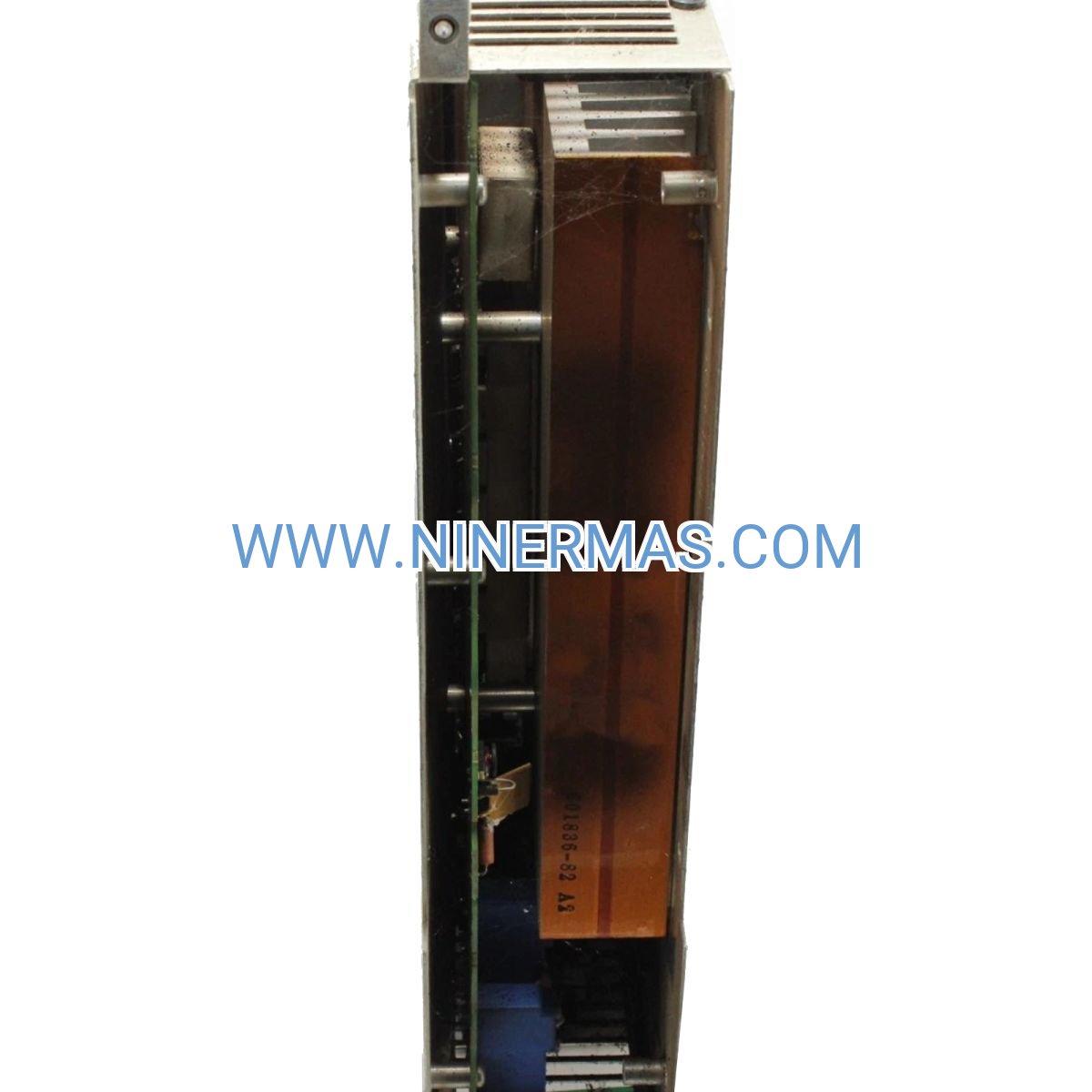

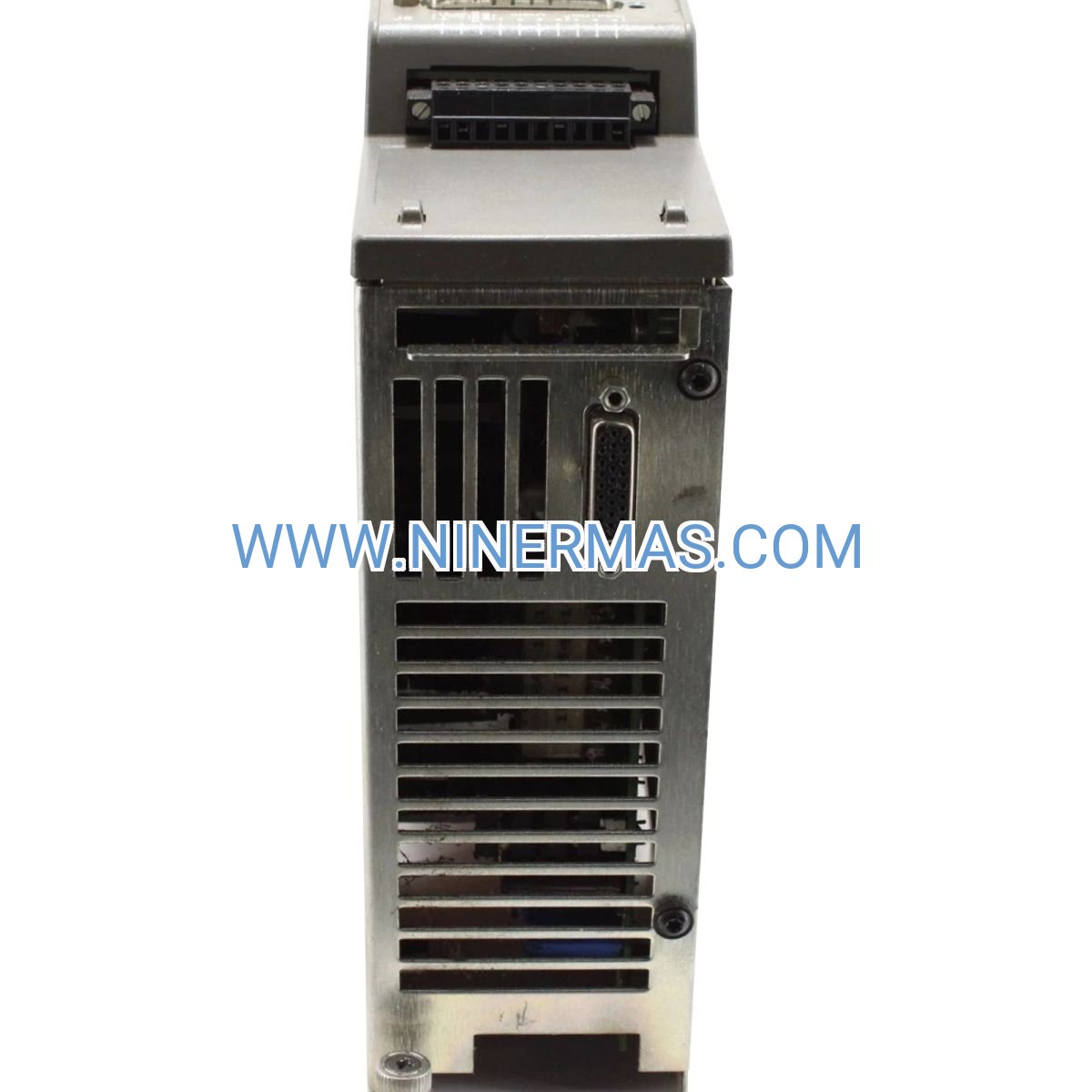

MD-410-00-000 Modular Servo Drive (Industrial-Grade 3-Phase Motion Controller)

The MD-410-00-000 is a backplane-mounted servo drive module engineered for multi-axis industrial automation systems requiring synchronized motion control. Rated at 10A continuous output with 20A peak capability at 460VAC, this Control Techniques MDS platform component addresses the precision positioning, velocity regulation, and torque management demands of metal fabrication, packaging machinery, and material handling operations.

Designed for system integrators and OEMs seeking scalable motion architectures, the MD-410-00-000 eliminates individual axis wiring through shared DC bus topology while maintaining independent overcurrent protection per drive. Its modular construction supports field expansion from single-axis velocity control to complex multi-axis profiling without cabinet redesign.

With proven reliability in 24/7 production environments and compatibility across major PLC ecosystems, this servo module reduces commissioning time through auto-tuning algorithms while delivering the thermal stability required for non-climate-controlled industrial facilities operating across 0-50°C ambient ranges.

Performance Advantages & Technical Capabilities

→ Shared Infrastructure Architecture
Backplane integration (P/N 300488-04 included) consolidates DC bus and logic power distribution across multiple axes, cutting installation wiring by 40% compared to standalone drives while enabling hot-swap maintenance during production windows.

→ Adaptive Control Flexibility
Supports velocity mode, torque mode, and pulse/direction positioning with field-upgradable function modules (FM-2/FM-3/FM-4), allowing migration from basic speed control to advanced cam profiling as application requirements evolve.

→ Industrial-Hardened Protection
Individual axis fusing prevents cascade failures in multi-drive systems, while integrated thermal management maintains rated performance across full ambient temperature range without derating or forced cooling requirements.

→ Universal PLC Compatibility
Accepts standard ±10V analog and pulse train inputs with RS-232/RS-485 serial communication, enabling direct interfacing with Siemens S7, Allen-Bradley ControlLogix, Mitsubishi FX, and other industrial controllers without protocol converters.

→ Rapid Commissioning Protocol
Auto-tuning function adapts to connected motor parameters within 3-5 minutes, eliminating manual inertia calculation and gain adjustment while reducing startup errors by 60% versus traditional parameter entry methods.

✓ Peak Overload Capacity
200% continuous rating (20A peak) handles high-inertia load acceleration and process disturbances without nuisance trips, critical for punch press, shear, and intermittent-duty applications.

Industrial Application Solutions

Packaging & Converting Machinery
Drives registration rollers, flying cutoffs, and rotary knife systems in form-fill-seal lines where ±0.5mm positional accuracy maintains package integrity at speeds exceeding 200 cycles/minute. Synchronized multi-axis operation eliminates mechanical gearboxes prone to backlash accumulation.

Metal Forming & Fabrication
Controls servo presses, CNC punch tables, and coil processing equipment requiring coordinated motion between material feed, tool positioning, and scrap removal axes. Torque mode enables constant force application during forming operations regardless of material thickness variation.

Automated Material Handling
Powers high-speed sortation conveyors, robotic gantry systems, and AS/RS shuttle mechanisms where rapid acceleration (0-1500 RPM in <0.3s) and precise deceleration prevent product damage while maximizing throughput in distribution centers.

Web Processing & Printing
Manages tension control zones in paper mills, textile coating lines, and flexographic presses where maintaining ±2% tension regulation across 500-meter web lengths prevents wrinkles, registration errors, and material waste.

Plastics & Extrusion Systems
Synchronizes haul-off units, winders, and cut-to-length saws in profile extrusion and film production where velocity matching between process stages maintains dimensional tolerances within ±0.1mm over continuous runs.

Technical Specifications & Selection Criteria

Selection Guidelines: Match continuous current rating to motor nameplate current at maximum continuous speed. For applications with frequent starts/stops or high-inertia loads, verify peak current capability covers acceleration torque requirements. Ambient temperatures exceeding 40°C require derating per manufacturer curves or forced ventilation.

Advanced Integration & Expansion Options

Function Module Ecosystem
Field-installable FM-2 indexer enables 16-position preset indexing without external controller. FM-3 programmable module adds 2KB user program memory for standalone sequencing. FM-4 advanced programming supports electronic camming, gearing ratios, and multi-segment profiling for complex machine cycles.

Multi-Axis Coordination
Up to 8 drives share single backplane with synchronized DC bus, reducing cabinet footprint by 35% versus individual drives. Master/follower electronic gearing maintains <0.1° phase accuracy between axes without mechanical couplings.

Diagnostic & Monitoring
Real-time parameter access via RS-485 enables predictive maintenance through current trend analysis, thermal monitoring, and fault history logging. Compatible with SCADA systems for production line OEE tracking.

Custom Configuration Services
Factory pre-programming available for application-specific parameter sets, reducing field commissioning to cable connection and power-up verification. Custom I/O mapping and safety interlocks configurable per machine builder specifications.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock units; 2-3 weeks for factory-configured assemblies with custom parameters or extended I/O.

Warranty Coverage: 24-month manufacturer warranty covering materials and workmanship defects. Extended service agreements available for critical production equipment requiring 4-hour response guarantees.

Technical Resources: Comprehensive installation manual, AutoCAD dimensional drawings, and parameter reference guide included. Application engineering support available for system sizing, tuning optimization, and troubleshooting assistance.

Training & Documentation: Online commissioning tutorials, wiring diagrams, and sample PLC code libraries accessible through manufacturer portal. On-site startup assistance available for multi-axis systems or complex motion profiles.

Frequently Asked Questions

What motor types are compatible with the MD-410-00-000 servo drive module?
The drive supports brushless AC servo motors with incremental encoder or resolver feedback. It interfaces with Control Techniques servo motors as well as third-party motors meeting voltage/current ratings. Verify encoder line count compatibility (typically 1024-4096 PPR) and motor inductance falls within drive specifications for optimal commutation.

Can this servo drive handle vertical axis applications with gravity loads?
Yes, when configured in torque mode with appropriate brake control logic. The drive maintains holding torque during power-on conditions, but requires external mechanical brake for power-loss safety. Regenerative braking dissipates energy through shared DC bus resistor (sized per total system inertia).

How does the backplane mounting system reduce installation complexity?
The 300488-04 backplane provides pre-wired DC bus and control power distribution, eliminating individual power cables to each drive. Logic signals and encoder feedback still require discrete wiring, but overall cabinet wiring reduces by 40% in 4+ axis systems. Hot-swap capability allows drive replacement without disturbing adjacent axes.

What communication protocols enable integration with existing factory networks?
Standard RS-485 port supports Modbus RTU for parameter access and monitoring. For higher-speed deterministic control, optional fieldbus modules add DeviceNet, Profibus-DP, or EtherNet/IP connectivity. Analog ±10V and pulse/direction inputs provide universal PLC compatibility without protocol dependencies.

Does the auto-tuning feature work with high-inertia or geared applications?
Auto-tune adapts to inertia ratios up to 10:1 (load:motor) in direct-drive configurations. Geared systems or ratios exceeding 10:1 may require manual gain adjustment using oscilloscope-based tuning procedures outlined in commissioning guide. Function module FM-4 includes adaptive tuning algorithms for varying load conditions.

What environmental conditions require derating or additional cooling measures?
Full 10A continuous rating applies from 0-40°C ambient. Operation between 40-50°C requires 2.5% derating per degree C or forced air circulation maintaining drive heatsink below 70°C. Altitudes exceeding 1000m require voltage derating per IEC 61800-5-1 standards. Conformal coating available for high-humidity or corrosive environments.

Request Technical Consultation

Our motion control specialists provide application-specific sizing analysis, system architecture recommendations, and ROI calculations for servo upgrade projects. Contact our team to discuss your precision positioning requirements, receive CAD integration drawings, or schedule factory acceptance testing for custom-configured drive assemblies.

Get Expert Guidance: Submit your motor specifications, duty cycle profile, and performance targets for complimentary system design review within 24 hours.
