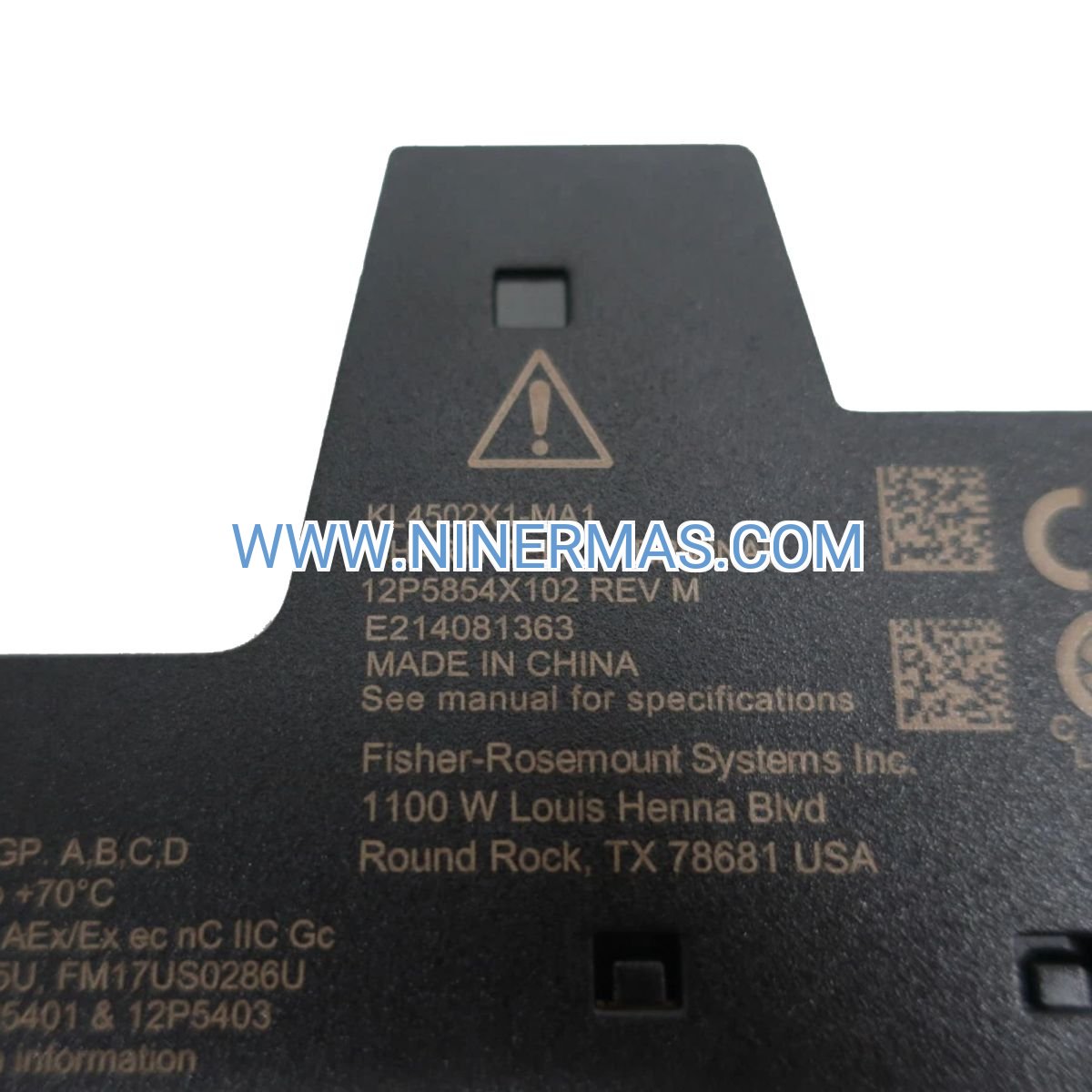

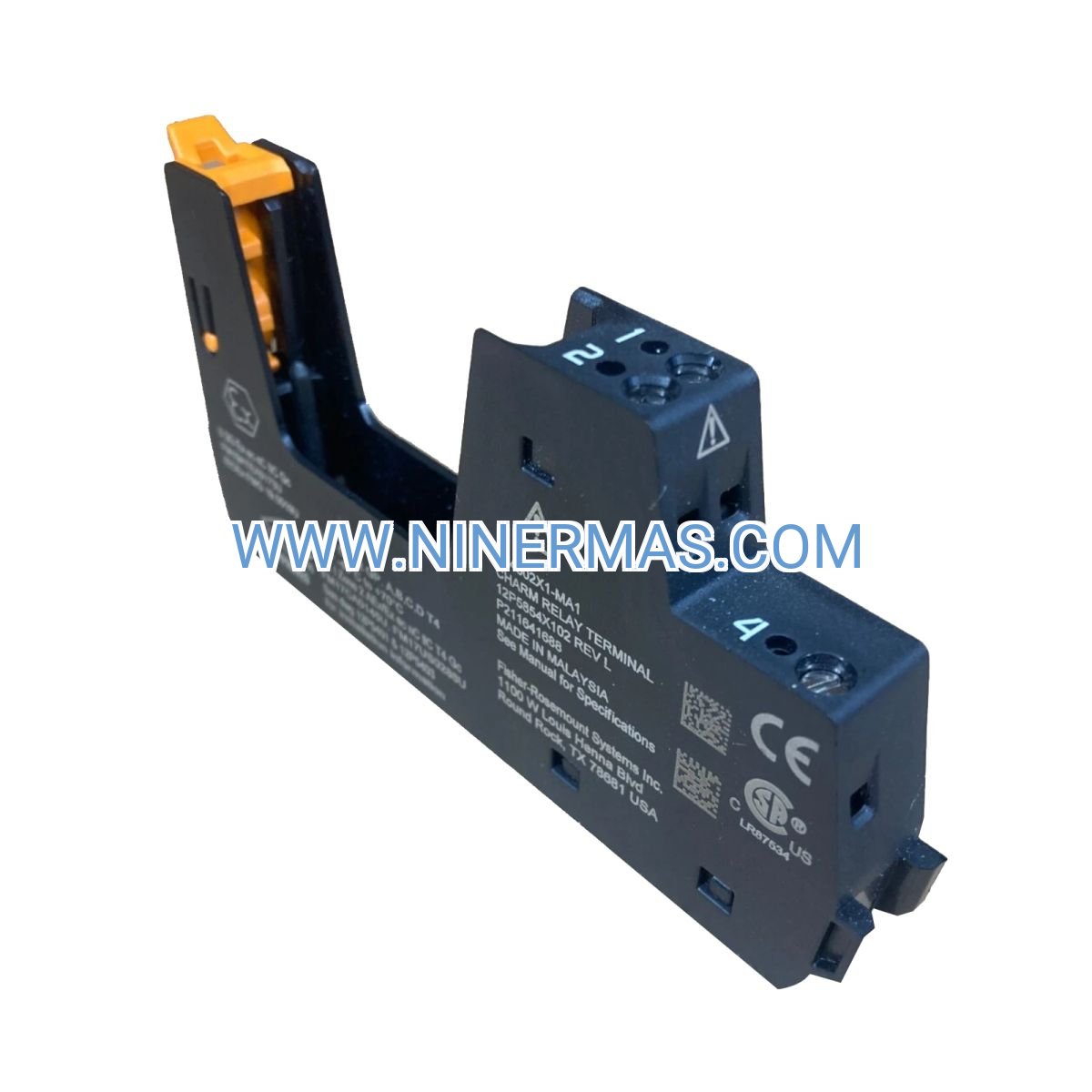

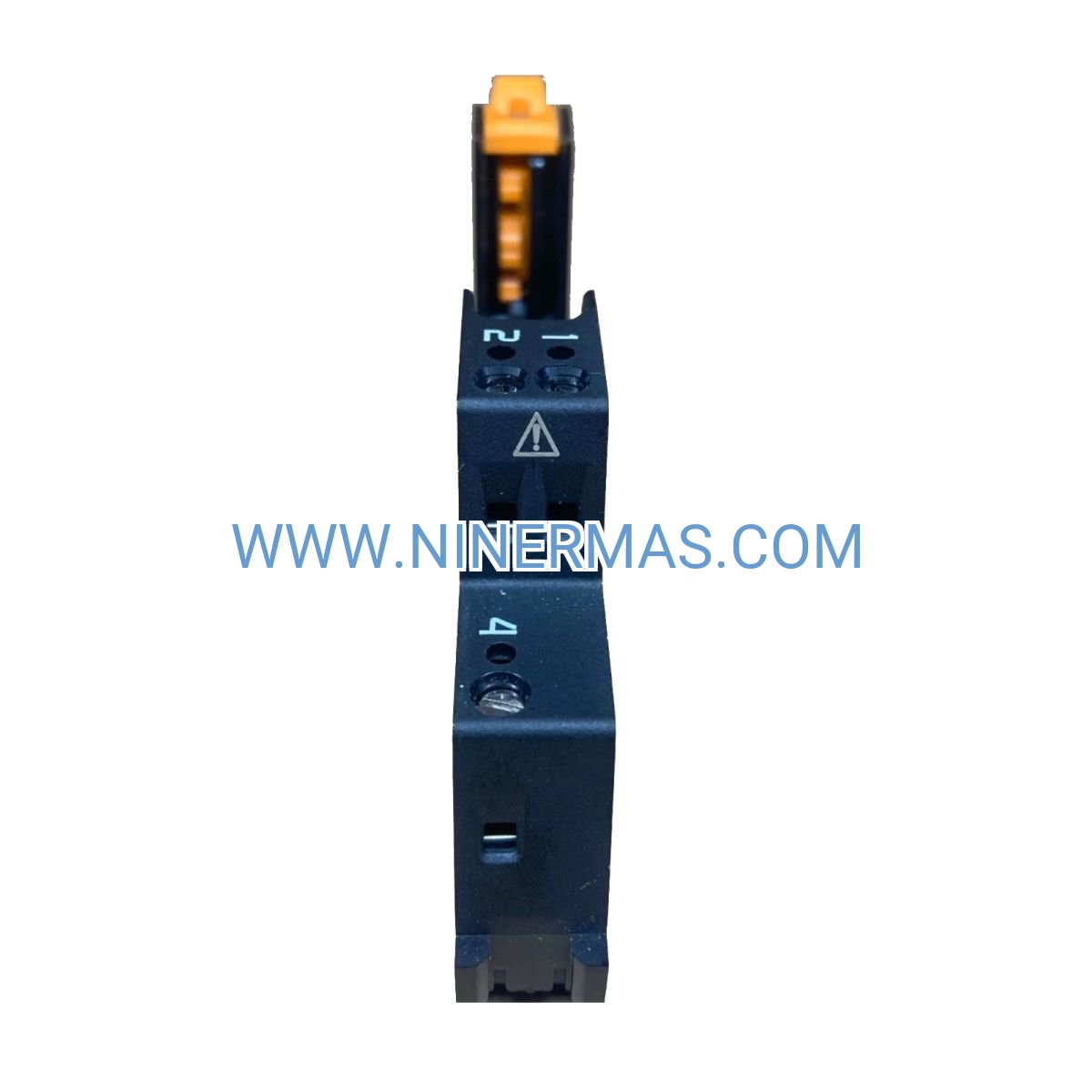

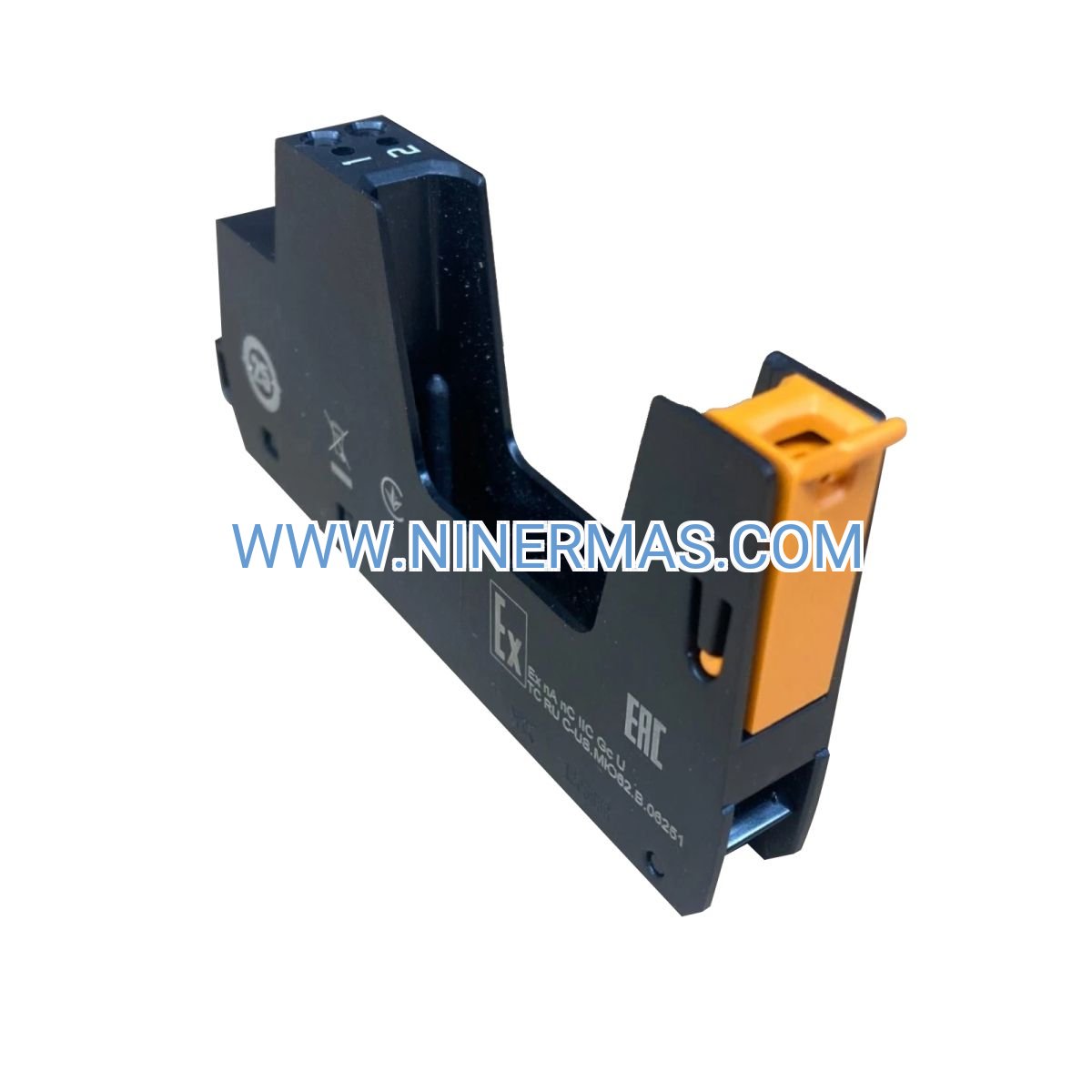

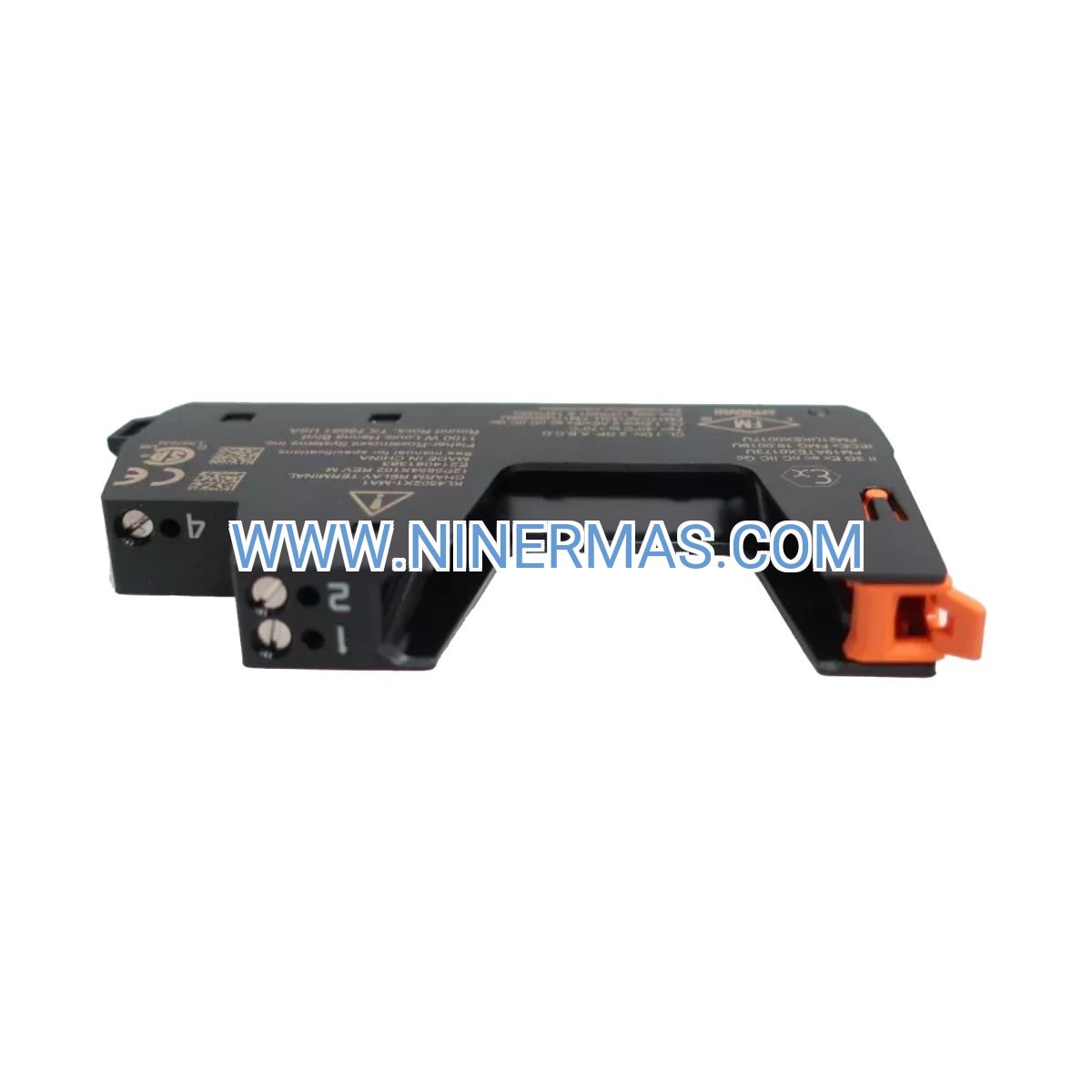

KL4502X1-MA1 Relay Output Terminal Block (Industrial-Grade Electromechanical Switching)

The Emerson KL4502X1-MA1 is a heavy-duty relay output terminal block engineered for DeltaV distributed control systems, providing galvanically isolated electromechanical switching for high-power industrial loads. This terminal block enables DCS control of motor starters, solenoid valves, contactors, and field equipment requiring up to 5A switching capacity at 250 VAC or 28.8 VDC. Designed for harsh process environments in oil & gas, chemical processing, power generation, and manufacturing facilities, the KL4502X1-MA1 delivers reliable on/off control with mechanical contact feedback and immunity to electrical transients.

Built for demanding automation applications, this relay terminal block features Form C (SPDT) contacts with true galvanic isolation between control circuits and load circuits, protecting sensitive DCS electronics from voltage spikes and inductive kickback. The automatic keying system prevents installation errors, while the wide operating temperature range (-40°C to +70°C) and ISA-S71.04 Class G3 corrosion protection ensure dependable performance in extreme industrial conditions. Whether you're controlling pneumatic actuators in a refinery shutdown system or switching heater circuits in a batch reactor, the KL4502X1-MA1 provides the robust interface between your DeltaV system and field devices.

Industrial Control Hub supplies genuine OEM Emerson terminal blocks with full traceability, expert technical support, and fast global shipping. Contact our automation specialists today for application guidance, volume pricing, or system integration assistance.

Key Features & Technical Advantages

→ Dual Voltage Capability: Handles both DC loads (28.8 VDC @ 5A, 48 VDC @ 0.4A) and AC loads (250 VAC @ 5A in Class I, Division 2 areas), providing flexibility for diverse control voltage standards across international installations and mixed-voltage control panels.

→ Galvanic Isolation Protection: Electromechanical relay contacts provide complete electrical separation between DCS control signals and field device circuits, preventing ground loops, voltage transients, and electrical noise from affecting sensitive distributed control system electronics.

→ High Current Switching: 5-ampere contact rating supports direct control of motor starter coils, solenoid valves, contactor coils, and resistive loads up to 1.4kW at 250 VAC, eliminating the need for external interposing relays in many applications.

✓ Automatic Keying System: Terminal block key positions configure automatically during initial installation, creating a mechanical coding that prevents incorrect module insertion during maintenance and ensures proper signal routing throughout the system lifecycle.

✓ Extreme Temperature Operation: -40°C to +70°C ambient temperature range accommodates outdoor installations, non-climate-controlled equipment shelters, arctic facilities, and high-temperature process areas without derating or auxiliary cooling.

✓ Industrial Vibration Resistance: Withstands 10g shock (½ sine wave, 11ms duration) and continuous vibration (1mm peak-to-peak at 2-13.2 Hz; 0.7g at 13.2-150 Hz), ensuring reliable operation in compressor stations, pump houses, and mobile equipment installations.

Industrial Application Scenarios

Emergency Shutdown System (ESD) Valve Control
In oil & gas production facilities, the KL4502X1-MA1 interfaces DeltaV safety logic solvers with pneumatic shutdown valve solenoids. When the ESD system detects high pressure or gas leaks, the relay terminal block de-energizes solenoid valves, allowing spring-return actuators to close isolation valves. The mechanical relay contacts provide positive proof of actuation required by IEC 61511 safety standards, while galvanic isolation prevents electrical faults from compromising safety functions. The 250 VAC rating accommodates standard 120 VAC solenoid coils used in North American installations.

Chemical Batch Reactor Sequencing
Chemical manufacturing plants use the KL4502X1-MA1 to control ingredient addition valves, agitator motors, and heating elements in batch reactors. During recipe execution, the DeltaV batch management system energizes relay outputs to open pneumatic ingredient valves in precise sequence, start variable-frequency drives for agitators, and activate electric heaters for temperature control. The relay's 5A capacity handles VFD start/stop inputs and heater contactors directly, while the -40°C to +70°C rating supports installations in non-climate-controlled chemical warehouses.

Power Plant Auxiliary Equipment Control
Power generation facilities deploy the KL4502X1-MA1 for controlling auxiliary equipment including cooling tower fans, boiler feedwater pumps, and fuel handling conveyors. The terminal block switches motor starter coils for 480 VAC three-phase motors, with the relay isolation protecting DCS I/O cards from voltage transients generated during motor starting and stopping. The vibration resistance specification ensures reliable operation in high-vibration environments near turbines and generators, while the ISA-S71.04 Class G3 coating protects against sulfur dioxide and other corrosive gases in coal-fired plants.

Water Treatment Plant Pump Control
Municipal water treatment facilities use the KL4502X1-MA1 to control lift station pumps, chemical dosing pumps, and backwash valves. The DeltaV SCADA system monitors tank levels and activates relay outputs to start submersible pumps, energize chemical metering pump motors, and open air-operated backwash valves. The terminal block's wide humidity range (5-95% non-condensing) and corrosion protection suit the damp, chlorine-rich atmosphere of water treatment plants, while the 28.8 VDC rating accommodates battery-backed DC control systems for critical pumping applications.

Food Processing Line Equipment Interlocking
Food and beverage manufacturers implement the KL4502X1-MA1 for safety interlocking of conveyors, mixers, and packaging equipment. When operators press emergency stop buttons or safety guards open, the DeltaV safety system de-energizes relay outputs to stop conveyor motors, mixer drives, and filling machine actuators. The mechanical relay contacts provide fail-safe operation—loss of control power automatically opens contacts to stop equipment. The terminal block's conformal coating meets food industry requirements for equipment in washdown areas, while the automatic keying prevents wiring errors during frequent line changeovers.

Technical Specifications & Selection Guide

Selection Criteria: Choose the KL4502X1-MA1 when your application requires switching loads exceeding solid-state output capabilities (typically >2A), when galvanic isolation is mandatory for safety or electrical noise immunity, or when controlling inductive loads that generate back-EMF transients. For intrinsically safe applications in Zone 0/Division 1 hazardous areas, select IS-rated terminal blocks instead. When switching AC loads above 250 VAC or DC loads above 48 VDC, use external contactors or relays rated for the higher voltage.

Advanced Integration & Customization Options

DeltaV System Integration: The KL4502X1-MA1 integrates with DeltaV M-Series and S-Series I/O carriers, connecting to discrete output cards via the automatic keying system. Each terminal block supports one relay output channel, with multiple blocks installed on a single I/O carrier for multi-channel applications. The DeltaV configuration software automatically recognizes the terminal block type and configures appropriate I/O parameters including contact debounce time and diagnostic monitoring.

Contact Protection Networks: For inductive loads (motors, solenoids, transformers), install RC snubber networks (0.1µF capacitor in series with 100Ω resistor) across relay contacts to suppress voltage transients and extend contact life. For DC inductive loads, use flyback diodes (1N4007 or equivalent) across the load to absorb back-EMF energy. Consult Emerson application note AN-KL4502 for detailed contact protection guidelines.

Redundant Output Configuration: In critical control applications, parallel two KL4502X1-MA1 terminal blocks driven by redundant DeltaV controllers to create 1oo2 (one-out-of-two) voting logic. Wire relay contacts in parallel for fail-safe operation—either controller can energize the load. This configuration provides continued operation during controller maintenance or failure, meeting IEC 61511 SIL 2 requirements for safety-instrumented systems.

Remote I/O Applications: Deploy the KL4502X1-MA1 in DeltaV CHARacterization Modules (CHARM) for distributed I/O installations up to 1500 meters from the controller. The relay terminal block's robust design withstands the electrical noise and temperature extremes common in remote field enclosures, while the automatic keying system simplifies installation by field technicians with minimal DCS training.

Delivery, Warranty & Technical Support

Lead Time: In-stock items ship within 1-2 business days via DHL, FedEx, or UPS. Custom configurations and project quantities (>50 units) typically ship within 5-7 business days. Expedited same-day shipping available for emergency replacements—contact our team before 2 PM CST for same-day dispatch.

Warranty Coverage: All Emerson KL4502X1-MA1 terminal blocks include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring 3-year or 5-year coverage. Warranty includes advance replacement service—we ship replacement units before receiving defective returns to minimize downtime.

Technical Support: Our certified DeltaV specialists provide application engineering support including load compatibility analysis, contact protection design, wiring diagram review, and troubleshooting assistance. Support available via email (response within 4 hours), phone (8 AM - 6 PM CST), and remote desktop sessions for complex integration issues.

Documentation Package: Each terminal block ships with installation quick-start guide, wiring diagrams, load derating curves, contact protection schematics, and dimensional drawings. Complete product manual, safety data sheets, and compliance certificates (CE, UL, CSA) available for download from our technical library or provided on request.

Frequently Asked Questions

Q: Can the KL4502X1-MA1 relay terminal block switch 480 VAC motor starter coils directly?
A: No, the terminal block is rated for 250 VAC maximum. For 480 VAC applications, use the relay output to control an intermediate contactor or interposing relay rated for 480 VAC. The KL4502X1-MA1 can switch the 120 VAC coil of a 480 VAC-rated contactor, which then controls the motor starter.

Q: What is the maximum wire size for field device connections on the screw terminals?
A: The screw terminals accept 22-14 AWG (0.33-2.08 mm²) copper wire. For optimal connection reliability, use ferrules on stranded wire and torque terminal screws to 0.5-0.6 Nm (4.4-5.3 lb-in). Larger wire sizes require external terminal blocks or junction boxes.

Q: How does the automatic keying system prevent installation errors?
A: During first installation, the terminal block's mechanical key aligns with the I/O carrier's keyway in a unique position determined by the module type. Once installed, the key position is locked, preventing insertion of incompatible terminal blocks in that carrier slot. This mechanical coding ensures correct signal routing even if terminal blocks are removed and reinstalled during maintenance.

Q: What contact protection is recommended for solenoid valve switching applications?
A: For AC solenoid valves, install an RC snubber (0.1µF/250V capacitor in series with 100Ω/2W resistor) across the relay contacts. For DC solenoids, use a flyback diode (1N4007 or equivalent, rated for at least 2x the supply voltage) across the solenoid coil with cathode toward positive supply. This suppresses inductive kickback and extends relay contact life from ~100,000 to >1,000,000 operations.

Q: Is the KL4502X1-MA1 suitable for safety-instrumented system (SIS) applications?
A: The terminal block can be used in SIS applications up to SIL 2 when properly configured with redundant outputs and appropriate diagnostic monitoring. For SIL 3 applications, consult Emerson's safety manual and consider using certified safety I/O modules. The relay contacts provide fail-safe operation (de-energize to safe state), but the terminal block itself is not SIL-certified as a standalone component.

Q: Can I use the KL4502X1-MA1 in Class I, Division 1 hazardous locations?
A: No, the 250 VAC rating is approved only for Class I, Division 2 (Zone 2) locations. For Division 1 (Zone 1) or Zone 0 applications, use intrinsically safe (IS) terminal blocks such as the Emerson KJ4110X1-BA1, which limits energy to levels incapable of igniting flammable atmospheres. Always verify area classification and select appropriate terminal blocks for your hazardous location requirements.

Order Your KL4502X1-MA1 Relay Terminal Block Today

Ready to upgrade your DeltaV control system with reliable relay output switching? Industrial Control Hub maintains extensive inventory of genuine Emerson terminal blocks for immediate shipment worldwide. Our automation specialists can help you select the right terminal blocks for your application, design contact protection networks, and provide complete system integration support.

Get started now: Add the KL4502X1-MA1 to your cart for instant checkout, request a formal quotation for project quantities, or contact our technical team at sale@ninermas.com or +0086 187 5021 5667 for application engineering assistance. Volume discounts available for orders of 10+ units.
