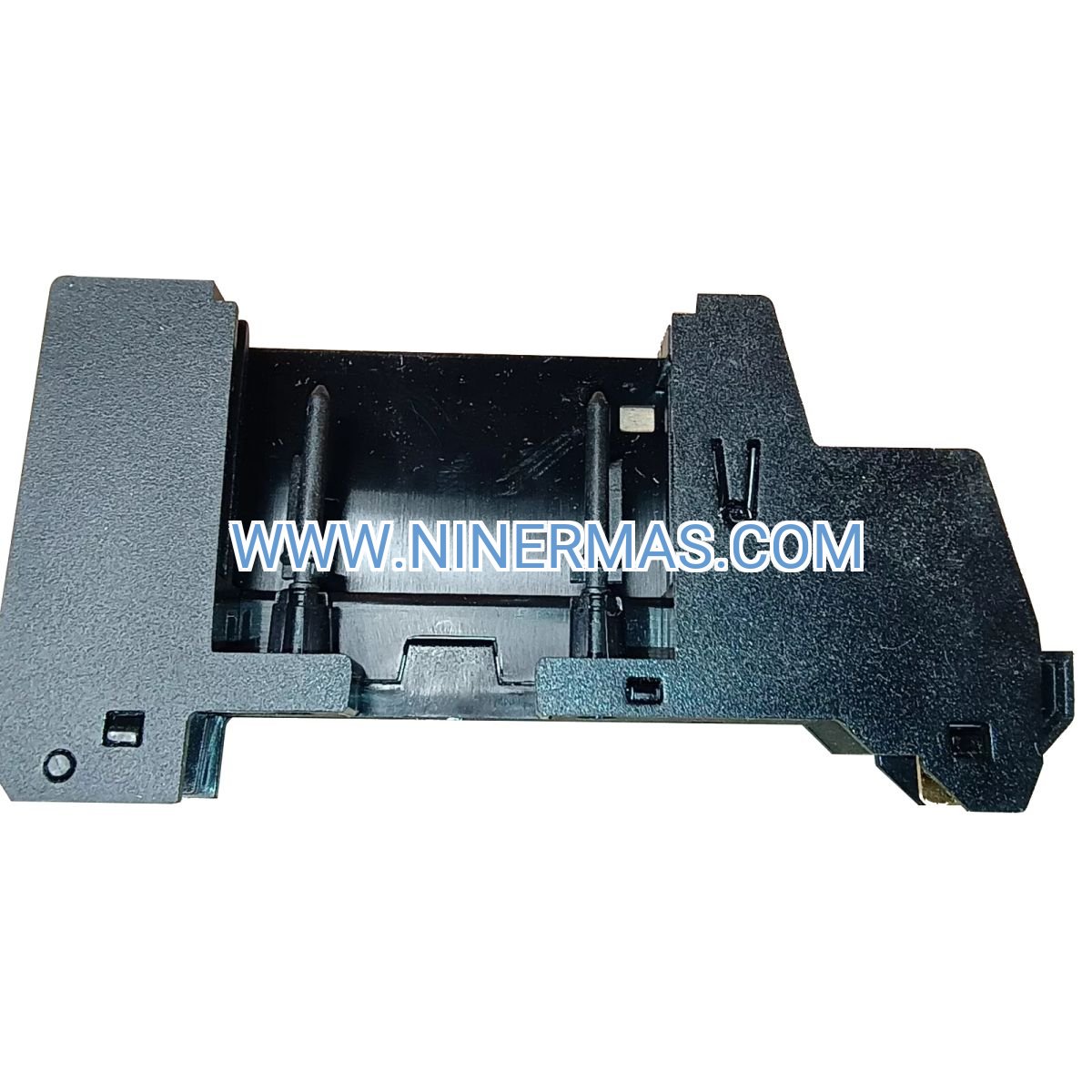

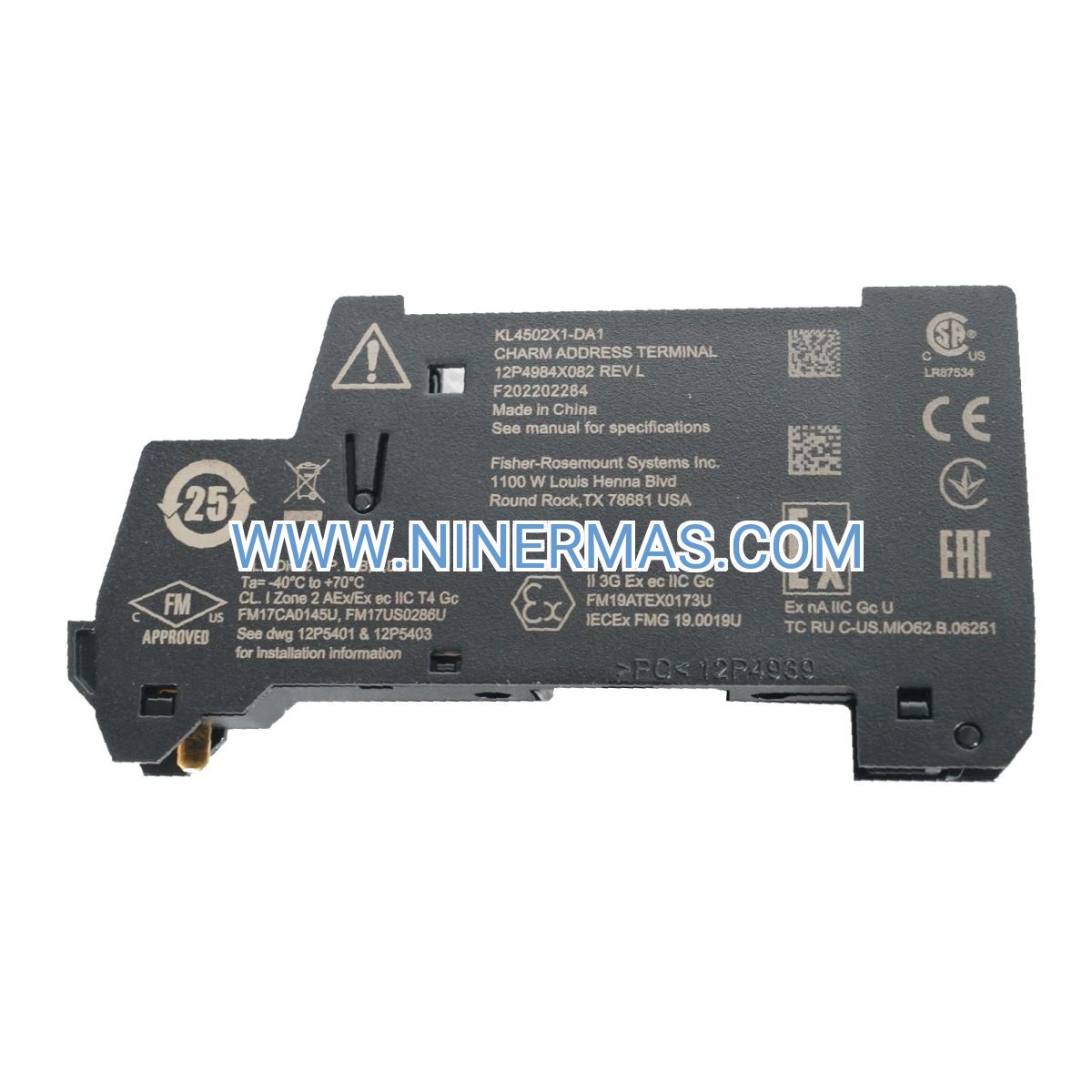

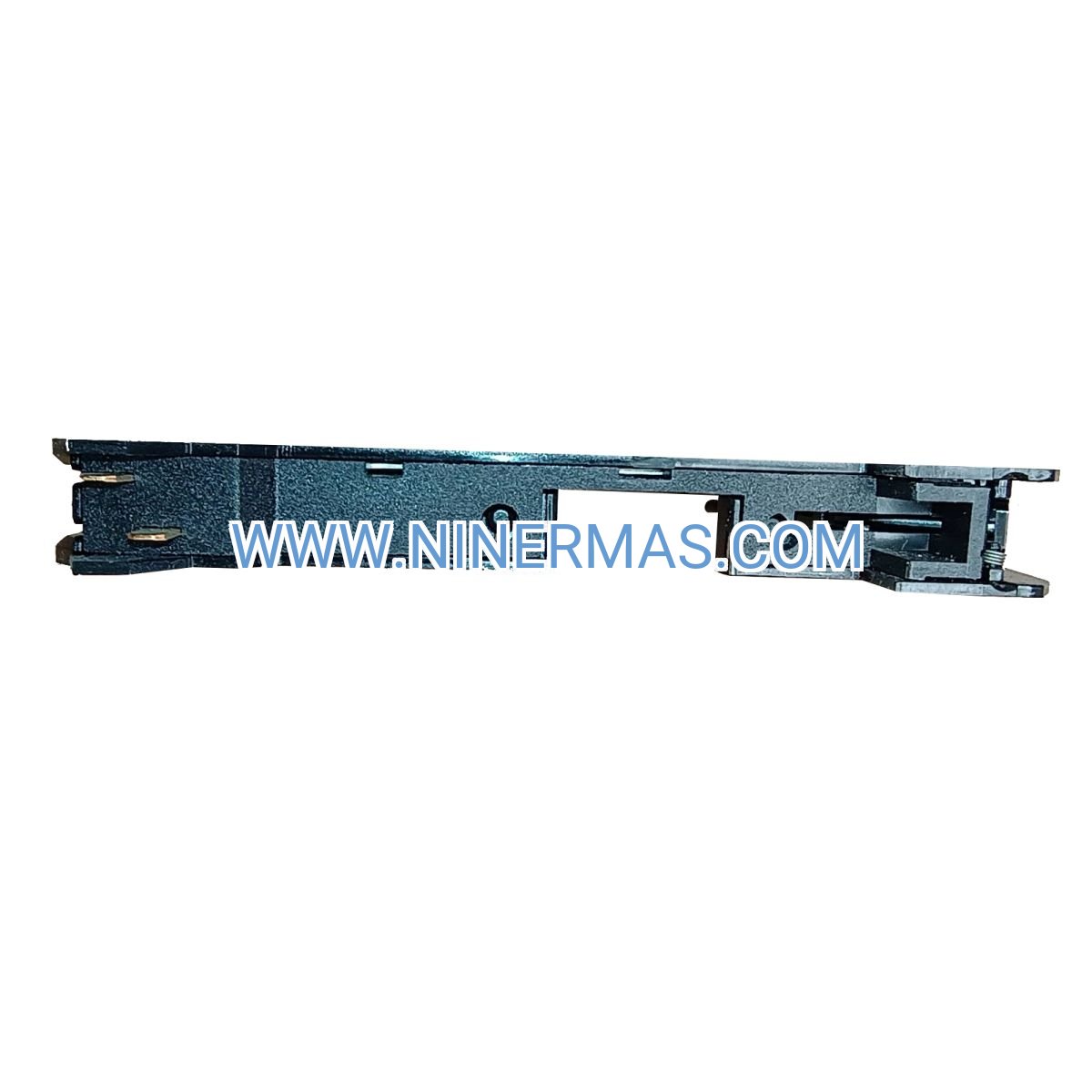

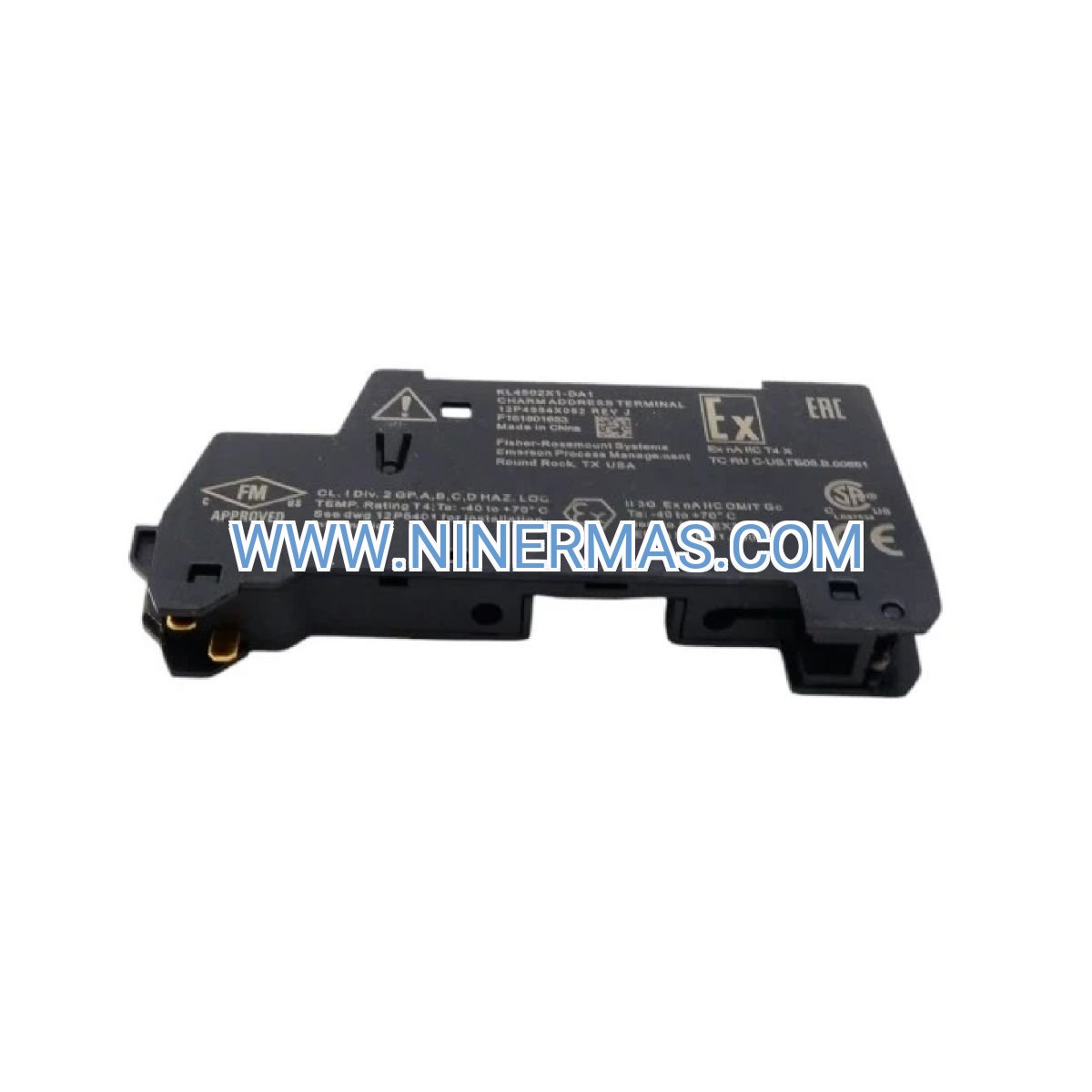

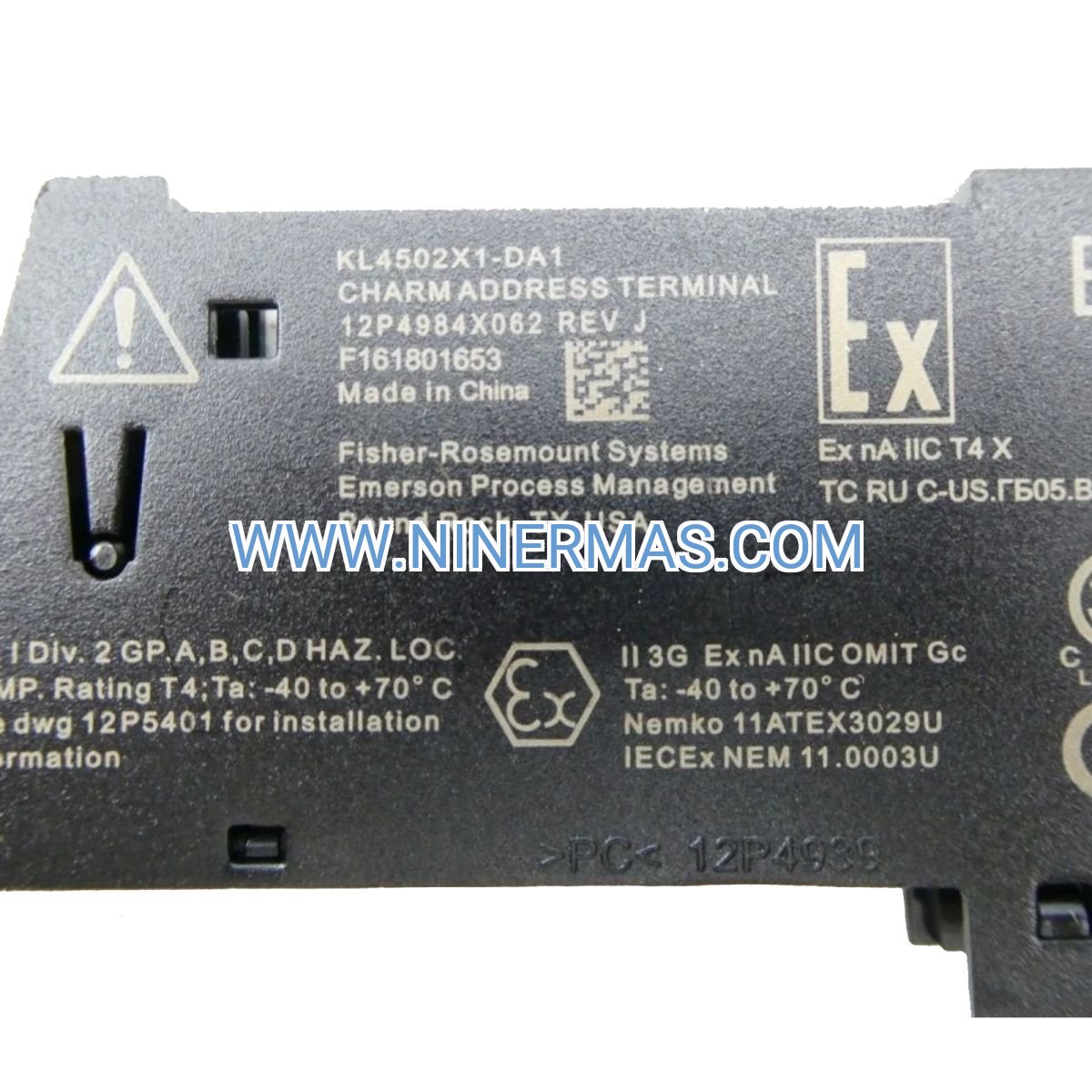

KL4502X1-DA1 Address Plug Terminal Block (Industrial-Grade DeltaV Interface Component)

Engineered for mission-critical process automation, the KL4502X1-DA1 Address Plug Terminal Block delivers intelligent field wiring termination within Emerson DeltaV CHARM I/O architectures. This precision terminal assembly combines automatic node addressing with mechanical keying safeguards, eliminating configuration errors while accelerating system commissioning by up to 40%.

Designed for harsh industrial environments, the KL4502X1-DA1 withstands extreme temperatures (-40°C to +70°C), continuous vibration (0.7g), and corrosive atmospheres (ISA-S71.04 Class G3). Whether deploying new DeltaV systems or expanding existing installations, this terminal block provides the robust infrastructure foundation demanded by oil & gas, chemical processing, and power generation facilities worldwide.

Seamless integration with all DeltaV S-series and M-series CHARM modules ensures long-term compatibility and investment protection. The intelligent address plug mechanism automatically configures node topology during installation, while tool-free CHARM insertion enables rapid module replacement during maintenance windows.

Key Features & Technical Advantages

✓ Automatic Address Configuration System
Integrated address plug assigns unique node identifiers during CHARM module installation, eliminating manual DIP switch configuration and preventing duplicate address conflicts. DeltaV controllers automatically discover I/O topology for simplified system documentation.

✓ Mechanical Keying Error Prevention
Physical key positions set during initial installation create interlocks that prevent incorrect CHARM module insertion. This safeguard protects against wiring errors, equipment damage, and costly commissioning delays.

✓ High-Power Terminal Rating (250VAC @ 10A)
Accommodates both low-voltage instrumentation signals and higher-voltage discrete I/O within a single terminal platform. Supports 22-14 AWG wire sizes for compatibility with standard industrial control wiring.

→ Field Wiring Disconnect Capability
Terminal block design enables safe disconnection of field circuits without removing CHARM modules or baseplate assemblies. Facilitates rapid loop testing, troubleshooting, and maintenance with minimal system downtime.

→ Extreme Environment Durability
Operates reliably from -40°C to +70°C with 5-95% humidity tolerance. Withstands 10g shock loads and continuous 0.7g vibration. ISA-S71.04 Class G3 conformal coating resists corrosive gases and airborne contaminants.

→ Universal Screw Cage Terminals
Vibration-resistant terminal design maintains secure connections in high-vibration applications. Open architecture allows visual inspection of wire terminations and connection integrity without disassembly.

Industrial Application Scenarios

1. Main Automation Cabinet (MAC) Deployments
Challenge: Complex DeltaV systems require hundreds of I/O termination points with zero addressing errors.
Solution: KL4502X1-DA1 terminal blocks provide standardized termination infrastructure with automatic addressing that eliminates manual configuration. Pre-wire terminal blocks before CHARM modules arrive to accelerate commissioning schedules.
Value: Reduce cabinet wiring time by 30-40% while ensuring error-free I/O topology configuration.

2. Hazardous Area Installations (Zone 2 / Div 2)
Challenge: Offshore platforms and refinery process units demand intrinsically safe I/O with robust environmental protection.
Solution: When paired with IS-rated CHARM modules, the KL4502X1-DA1 maintains proper isolation and grounding for classified locations. ISA-S71.04 Class G3 coating protects against salt spray, H2S, and corrosive atmospheres.
Value: Achieve 10+ year service life in harsh offshore and chemical processing environments.

3. DeltaV System Expansion Projects
Challenge: Adding I/O capacity to operating plants without disrupting production or redesigning cabinet layouts.
Solution: Standardized terminal block footprint integrates seamlessly with existing CHARM infrastructure. Automatic addressing eliminates complex configuration procedures during hot-cutover activities.
Value: Commission new I/O points during planned maintenance windows with minimal risk to running processes.

4. Multi-Vendor Field Device Integration
Challenge: Process plants utilize instrumentation from multiple manufacturers with varying signal types and wiring requirements.
Solution: Universal screw terminals accommodate diverse field device connections including 4-20mA transmitters, discrete switches, and RTD sensors. 250VAC rating supports both low-voltage and line-voltage applications.
Value: Simplify spare parts inventory and technician training with standardized termination hardware.

5. Remote I/O Enclosure Applications
Challenge: Non-climate-controlled field enclosures experience extreme temperature swings and vibration from nearby rotating equipment.
Solution: -40°C to +70°C operating range supports outdoor installations without environmental conditioning. Vibration-resistant terminals maintain connection integrity near pumps, compressors, and agitators.
Value: Deploy DeltaV I/O closer to process equipment to reduce field wiring costs and signal degradation.

Technical Specifications & Selection Guide

Selection Criteria:

Choose the KL4502X1-DA1 terminal block when your application requires automatic addressing functionality combined with robust environmental protection. This model is ideal for new DeltaV installations, system expansions, and retrofit projects where commissioning speed and configuration accuracy are critical.

For intrinsically safe applications in Zone 0/Div 1 classified areas, consider the KJ4110X1-BA1 IS Terminal Block which provides enhanced isolation barriers and energy limiting circuits. For standard non-IS applications in controlled environments, the KL4502X1-DA1 offers the optimal balance of functionality and cost-effectiveness.

Verify that your CHARM baseplate assembly supports address plug terminal blocks before ordering. Consult DeltaV system documentation or contact our application engineering team for compatibility confirmation on legacy installations.

Advanced Integration Capabilities

DeltaV Electronic Marshalling Architecture
The KL4502X1-DA1 terminal block serves as the physical layer foundation for DeltaV's revolutionary electronic marshalling concept. Unlike traditional hardwired marshalling systems that require extensive cross-wiring and manual documentation, the address plug mechanism enables software-configurable I/O assignment.

Field wiring terminates once at the terminal block, while CHARM modules can be logically assigned to any controller or control strategy through DeltaV Explorer configuration. This flexibility eliminates cabinet rewiring during process modifications, reducing engineering costs and minimizing production disruptions.

Predictive Maintenance Integration
When combined with DeltaV AMS Device Manager, the terminal block infrastructure supports advanced diagnostics including loop resistance monitoring, ground fault detection, and connection integrity verification. Maintenance teams receive early warning of degrading terminations before failures impact process operations.

Cybersecurity Considerations
The physical keying system provides an additional layer of security by preventing unauthorized I/O module substitution. Only CHARM modules with matching key positions can be installed, creating an audit trail for hardware changes and preventing inadvertent or malicious configuration tampering.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock items | 2-3 weeks for factory orders
Expedited Shipping: Next-day and 2-day delivery available for urgent requirements
Warranty Coverage: 12 months from date of shipment against manufacturing defects
Technical Support: Lifetime application engineering assistance via phone and email
Documentation Package: Installation manual, wiring diagrams, dimensional drawings, and material certifications included

Our certified DeltaV specialists provide pre-sales consultation for system design optimization, cabinet layout planning, and I/O capacity calculations. Post-installation support includes troubleshooting assistance, configuration guidance, and spare parts recommendations.

Frequently Asked Questions

Q: How does the automatic addressing system work with DeltaV controllers?
A: During CHARM module installation, the address plug terminal block mechanically sets a unique key position that corresponds to a specific node address. When the DeltaV controller powers up, it automatically scans the CHARM carrier and discovers all installed modules based on their physical key positions. This eliminates manual address configuration through DIP switches or software settings, reducing commissioning time and preventing duplicate address conflicts.

Q: Can I use KL4502X1-DA1 terminal blocks in hazardous area applications?
A: Yes, when paired with intrinsically safe (IS) rated CHARM modules such as the KJ2005X1-BA1 or KJ3001X1-BA1. The terminal block itself provides the mechanical interface and addressing function, while the CHARM module provides the necessary energy limiting and isolation barriers for Zone 2/Div 2 installations. For Zone 0/Div 1 applications, use the dedicated KJ4110X1-BA1 IS Terminal Block which includes enhanced isolation barriers.

Q: What wire sizes and types are compatible with the screw terminals?
A: The terminal block accepts 22-14 AWG (0.32-2.5 mm²) solid or stranded copper wire. For optimal connection reliability, use stranded wire with ferrules in high-vibration environments. Strip length should be 7-9 mm to ensure adequate contact area without exposed conductor beyond the terminal housing. Torque specifications are provided in the installation manual to prevent over-tightening damage.

Q: How do I prevent installation errors when replacing CHARM modules?
A: The terminal block's mechanical keying system automatically prevents incorrect module insertion. Each terminal block position has a unique key configuration set during initial installation. CHARM modules can only be inserted into positions with matching key patterns, creating a physical interlock that prevents wiring errors. If a module doesn't insert smoothly, verify that you're using the correct module type for that specific terminal block position.

Q: What environmental conditions can the KL4502X1-DA1 withstand?
A: The terminal block operates reliably from -40°C to +70°C with 5-95% humidity (non-condensing). It meets ISA-S71.04-1985 Class G3 standards for resistance to corrosive gases including H2S, SO2, Cl2, and NOx. Vibration tolerance is 0.7g continuous (13.2-150 Hz) and shock resistance is 10g for 11 ms. This makes it suitable for outdoor installations, offshore platforms, chemical plants, and other harsh industrial environments.

Q: Can I disconnect field wiring without removing the CHARM module?
A: Yes, the terminal block design allows field wiring to be disconnected independently of the CHARM module. This feature is particularly valuable during loop testing, troubleshooting, and maintenance activities. You can safely isolate field circuits while leaving the CHARM module and baseplate assembly in place, minimizing system downtime and reducing the risk of configuration loss.

Ready to Optimize Your DeltaV I/O Infrastructure?

Contact our DeltaV specialists today for:

→ System design consultation and I/O capacity planning
→ Competitive project pricing for bulk terminal block orders
→ Technical compatibility verification for retrofit applications
→ Fast-track delivery for urgent maintenance requirements

Request a quote now or speak with an automation engineer to discuss your specific DeltaV CHARM implementation requirements.
