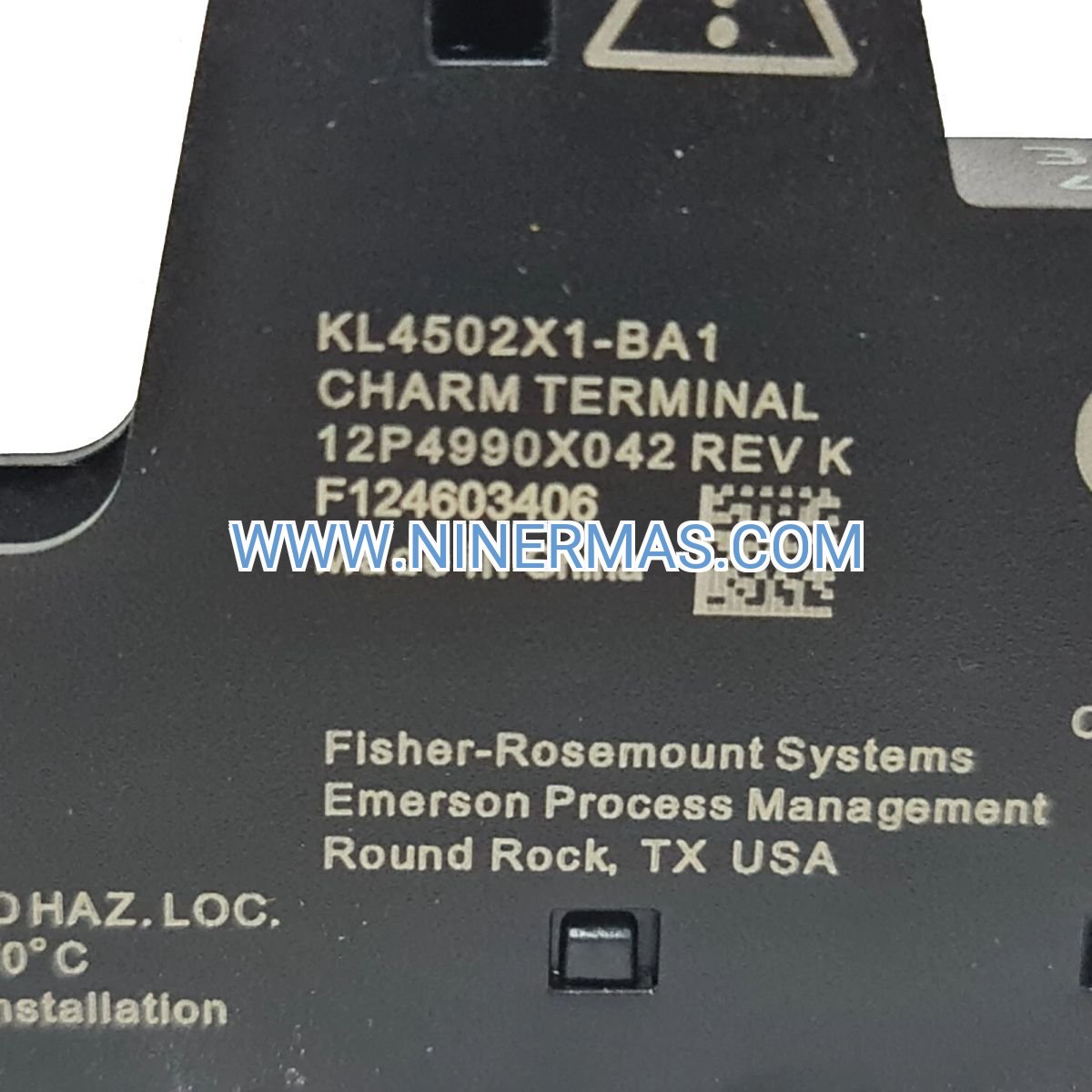

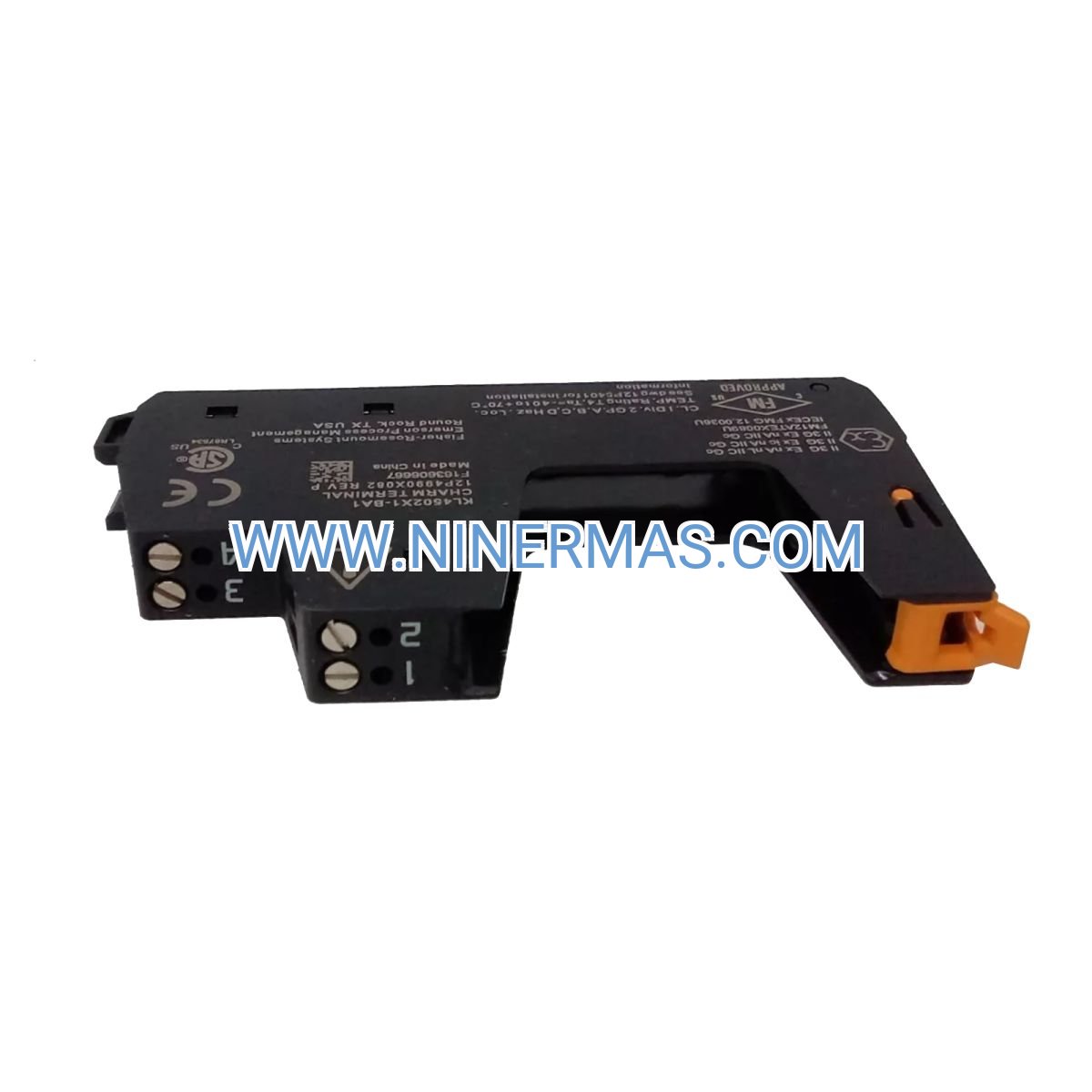

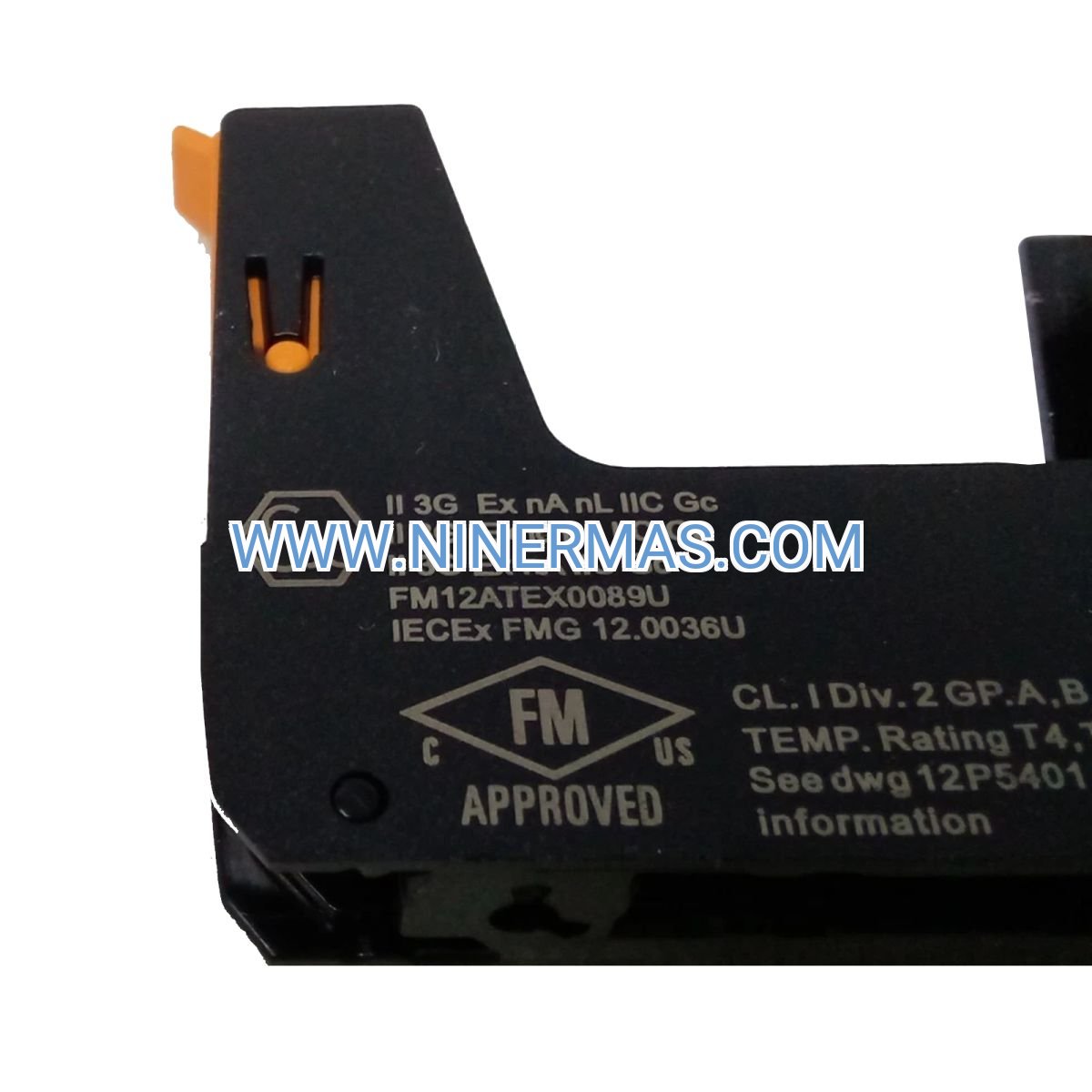

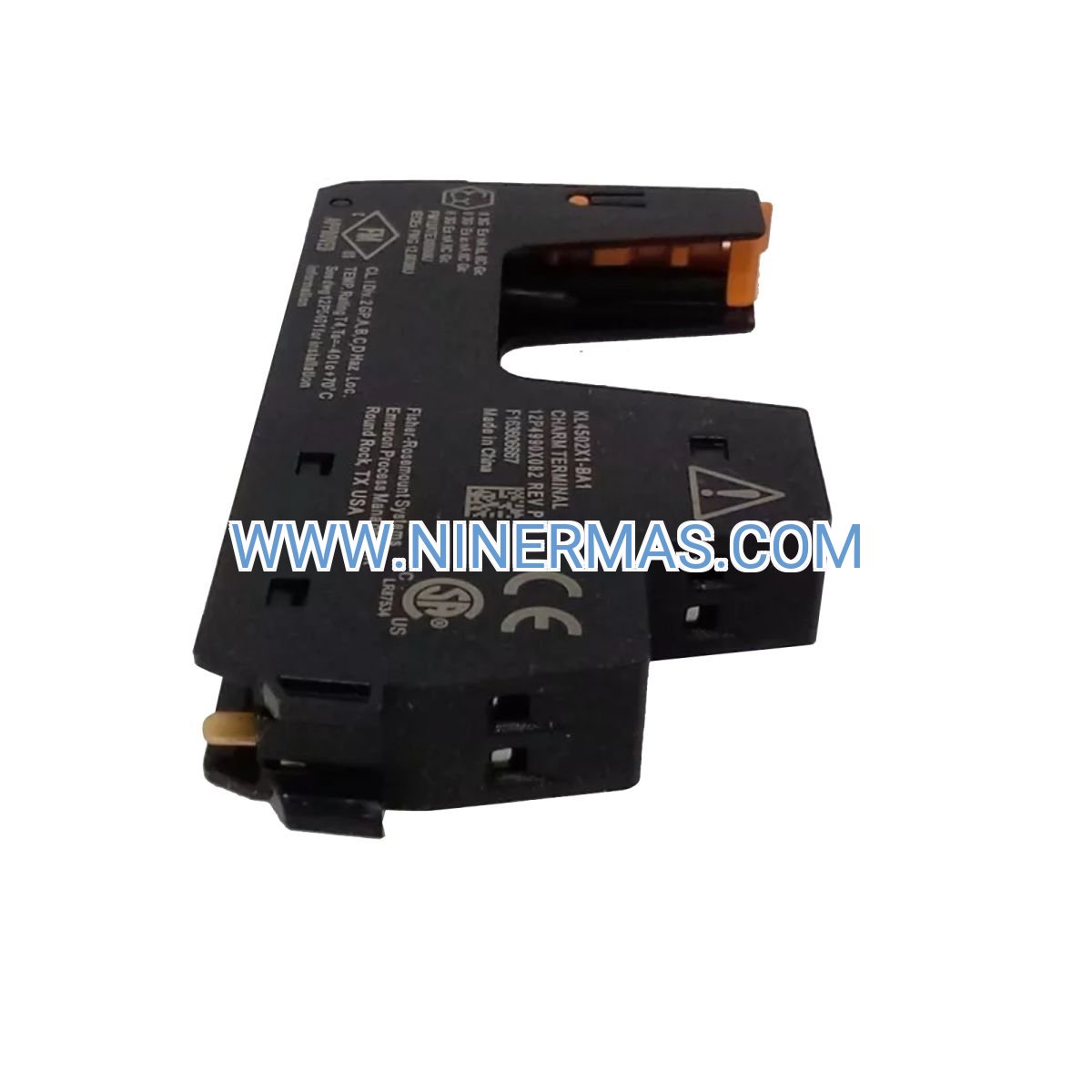

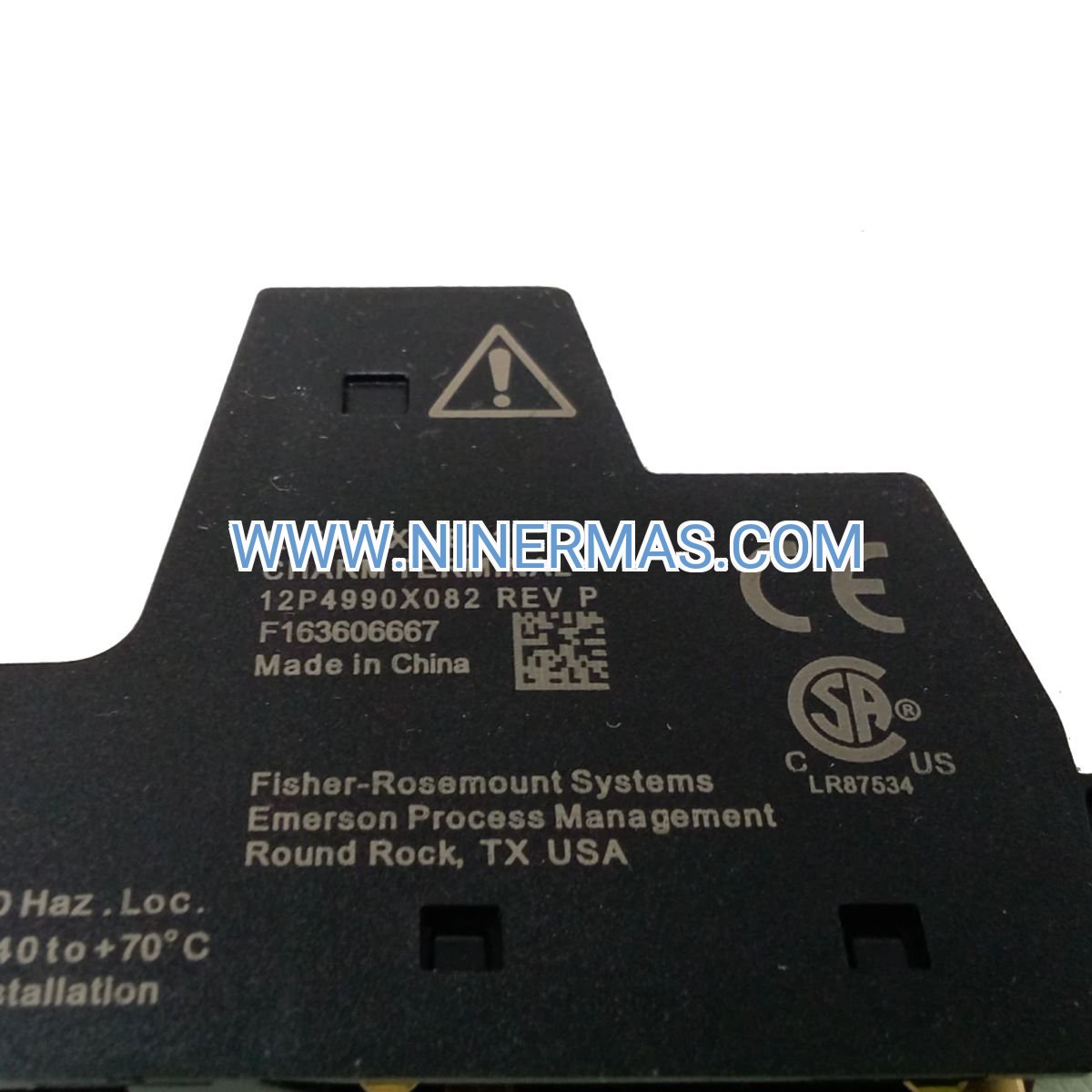

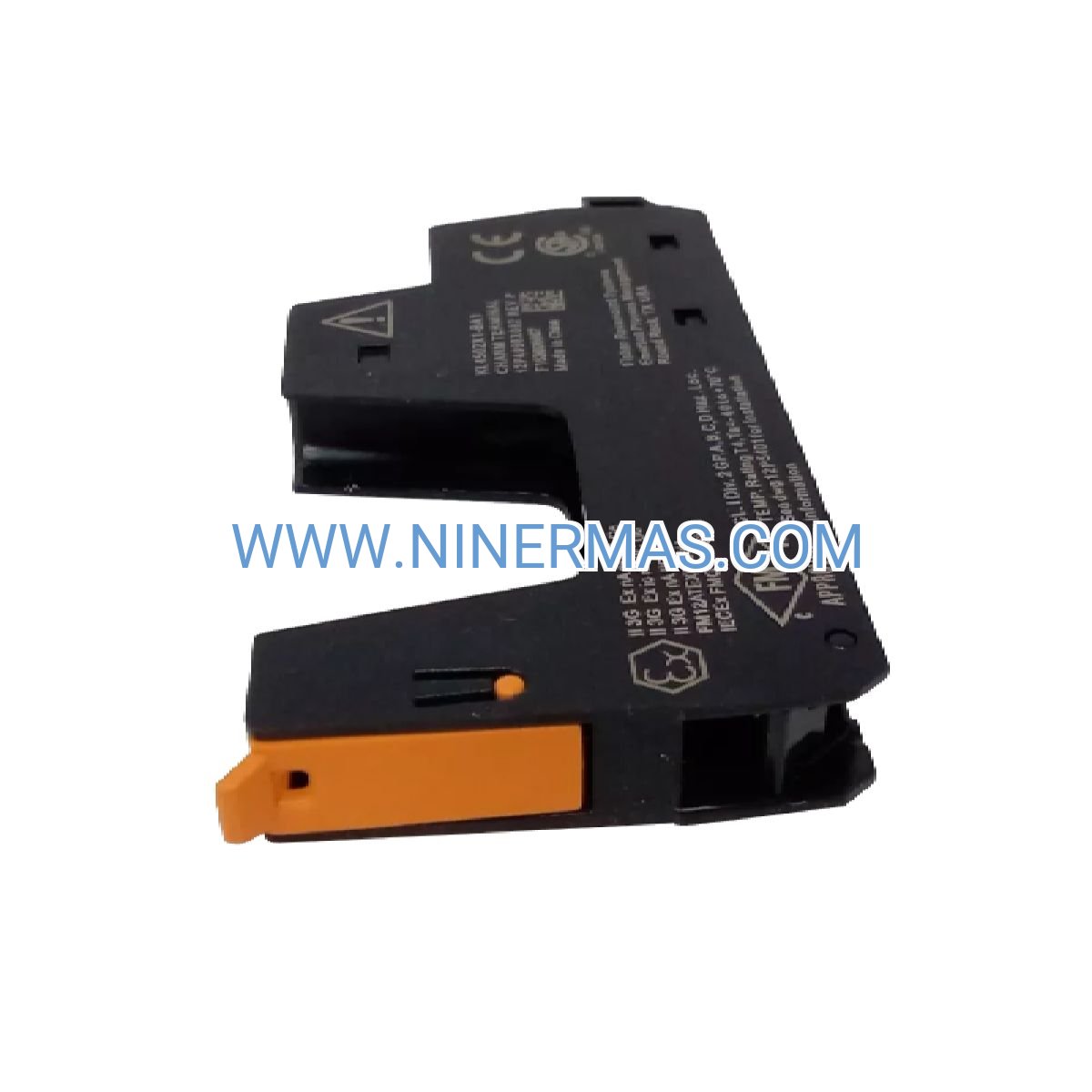

KL4502X1-BA1 CHARM Terminal Block (Industrial-Grade Field Wiring Solution)

The KL4502X1-BA1 CHARM Standard Terminal Block delivers dependable field-to-controller connectivity for Emerson DeltaV distributed control systems. Engineered for process automation environments, this terminal block bridges instrumentation signals to CHARM I/O modules through a self-keying mechanism that eliminates installation errors while accelerating commissioning timelines.

Designed for harsh industrial conditions, the KL4502X1-BA1 withstands temperature extremes from -40°C to +70°C, corrosive atmospheres per ISA-S71.04 Class G3, and mechanical stress from vibration and shock. Its 250 VAC electrical rating and 2A current capacity accommodate diverse signal types—from 4-20mA analog transmitters to 24 VDC discrete devices—making it a versatile foundation for mixed I/O architectures.

Whether you're upgrading legacy marshalling systems or deploying new DeltaV installations, the KL4502X1-BA1 reduces cabinet footprint by up to 70% through electronic marshalling, while its field-disconnect design enables CHARM module replacement without rewiring. Ideal for oil & gas, chemical processing, power generation, and water treatment facilities seeking reliable, maintainable control infrastructure.

Key Features & Technical Advantages

→ Self-Keying Installation System
Automatic key position configuration during first CHARM insertion prevents module mismatches. Once keyed, only compatible CHARM types can be installed, eliminating wiring errors and reducing commissioning time by 30-40% compared to manual verification methods.

→ Wide Environmental Operating Range
Operates reliably from -40°C to +70°C with 5-95% humidity tolerance (non-condensing). Meets ISA-S71.04-1985 Class G3 standards for airborne contaminants, ensuring stable performance in refineries, offshore platforms, and chemical plants.

→ Robust Electrical Specifications
250 VAC voltage rating at 2A maximum current supports analog signals (4-20mA, thermocouples, RTDs), discrete I/O (24 VDC), and HART communication circuits. Adequate isolation for mixed signal types within the same cabinet.

→ Field-Disconnect Architecture
CHARM modules can be removed for maintenance or replacement without disturbing field wiring. This design reduces downtime during module swaps and simplifies troubleshooting—technicians can test circuits while CHARMs remain partially ejected in locked position.

✓ Vibration & Shock Resistance
Withstands 1mm peak-to-peak vibration (2-13.2 Hz) and 0.7g acceleration (13.2-150 Hz), plus 10g shock loads. Maintains secure terminal connections near compressors, pumps, and rotating equipment.

✓ DIN Rail Mounting Flexibility
Standard 35mm DIN rail compatibility enables efficient cabinet layouts on CHARM baseplates. Secure mounting mechanism resists loosening under industrial vibration conditions.

Industrial Application Scenarios

Analog Transmitter Integration
Challenge: Process plants require reliable termination for hundreds of 4-20mA transmitters measuring pressure, flow, temperature, and level.
Solution: KL4502X1-BA1 terminal blocks provide secure screw-cage connections for 22-14 AWG wiring, supporting transmitter signals with proper isolation. The 250 VAC rating ensures adequate separation between analog and discrete circuits.
Outcome: Simplified wiring, reduced installation errors, and faster loop commissioning.

Discrete I/O Field Wiring
Challenge: Control cabinets must accommodate digital inputs from limit switches, pushbuttons, and proximity sensors, plus outputs to solenoid valves and motor starters.
Solution: The 2A current capacity handles standard 24 VDC discrete devices, while clear terminal labeling accelerates wire identification during installation and troubleshooting.
Outcome: Reduced wiring time, improved maintainability, and lower risk of cross-wiring.

HART-Enabled Instrumentation
Challenge: Modern transmitters use HART protocol for simultaneous analog and digital communication, requiring proper signal integrity.
Solution: KL4502X1-BA1 terminal block design minimizes electrical noise and maintains HART communication reliability when paired with compatible CHARM modules.
Outcome: Successful HART device configuration, diagnostics, and asset management.

Intrinsically Safe Circuit Termination
Challenge: Hazardous area installations (Zone 0/Div 1) demand proper separation between IS and non-IS circuits.
Solution: When used with IS CHARM modules, the terminal block maintains required isolation and supports intrinsically safe field wiring.
Outcome: Compliant installations with reduced certification complexity.

Technical Specifications & Selection Guide

Selection Criteria: Choose KL4502X1-BA1 for standard (non-IS) CHARM modules including SE4301 (digital input), SE4302 (digital output), SE4303 (analog input), and SE4304 (analog output) series. For intrinsically safe applications, specify KJ4110X1-BA1 IS terminal blocks instead.

Extended Capabilities & System Integration

Electronic Marshalling Benefits: The KL4502X1-BA1 is integral to DeltaV's electronic marshalling architecture, which eliminates traditional marshalling cabinets and reduces I/O system footprint by 60-70%. This space savings translates to smaller control rooms, lower HVAC costs, and reduced construction expenses.

Flexible I/O Reconfiguration: CHARM modules can be changed to different I/O types by resetting terminal block keys—no rewiring required. This flexibility supports process modifications, capacity expansions, and technology upgrades without extensive cabinet rework.

Enhanced Diagnostics Integration: Works with CHARM module diagnostics to identify open circuits, short circuits, and wiring faults. Diagnostic data appears in DeltaV control studio, accelerating troubleshooting and reducing mean time to repair (MTTR).

Pre-Wiring Capability: Terminal blocks can be installed and field-wired before CHARM modules arrive on site, enabling parallel construction and commissioning activities. CHARMs are inserted and configured after field wiring is complete, compressing project schedules.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock items; 2-3 weeks for factory orders
Custom Configurations: Pre-wired terminal block assemblies available with 4-6 week lead time
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Application engineering assistance for cabinet design, wire sizing, and troubleshooting
Documentation Package: Installation manual, wiring diagrams, terminal layouts, and keying instructions included

Frequently Asked Questions

Q: How does the auto-keying mechanism work on the KL4502X1-BA1?
A: During first CHARM module insertion, the terminal block automatically sets its key position to match the CHARM type. Once keyed, only compatible CHARMs can be installed. To change CHARM types, manually reset the key using a small screwdriver—detailed instructions are in the installation manual.

Q: What wire sizes and types are compatible with this terminal block?
A: The screw-cage terminals accept 22-14 AWG (0.32-2.5 mm²) solid or stranded copper wire. Strip length should be 7-9mm. For optimal connection reliability, use ferrules on stranded wire, especially in high-vibration environments.

Q: Can I use KL4502X1-BA1 for intrinsically safe circuits in hazardous areas?
A: No. For intrinsically safe applications in Zone 0/Div 1 areas, use the KJ4110X1-BA1 IS Terminal Block instead. The KL4502X1-BA1 is designed for standard (non-IS) CHARM modules in general-purpose or Division 2 locations.

Q: How do I remove a CHARM module without disconnecting field wiring?
A: Pull the CHARM module partially out until it locks in the ejected position. In this position, you can inspect the module, check LEDs, or swap it for a replacement without disturbing field connections. Push firmly to fully seat the new CHARM.

Q: What's the maximum cabinet temperature for reliable operation?
A: The KL4502X1-BA1 operates reliably up to +70°C (+158°F) ambient temperature. For cabinets in direct sunlight or high-temperature process areas, ensure adequate ventilation or cooling to maintain temperatures within specification.

Q: Are terminal blocks interchangeable between different CHARM module types?
A: Yes, after resetting the keying mechanism. The KL4502X1-BA1 supports all standard (non-IS) CHARM families—SE4301, SE4302, SE4303, and SE4304 series. Simply reset the key position when changing CHARM types; no rewiring is necessary if signal types remain compatible.

Order Your KL4502X1-BA1 Terminal Block Today

Simplify your DeltaV field wiring with genuine Emerson terminal blocks. Contact our automation specialists for technical consultation, volume pricing, or custom pre-wired assemblies. We support projects worldwide with fast shipping, expert guidance, and comprehensive documentation.
