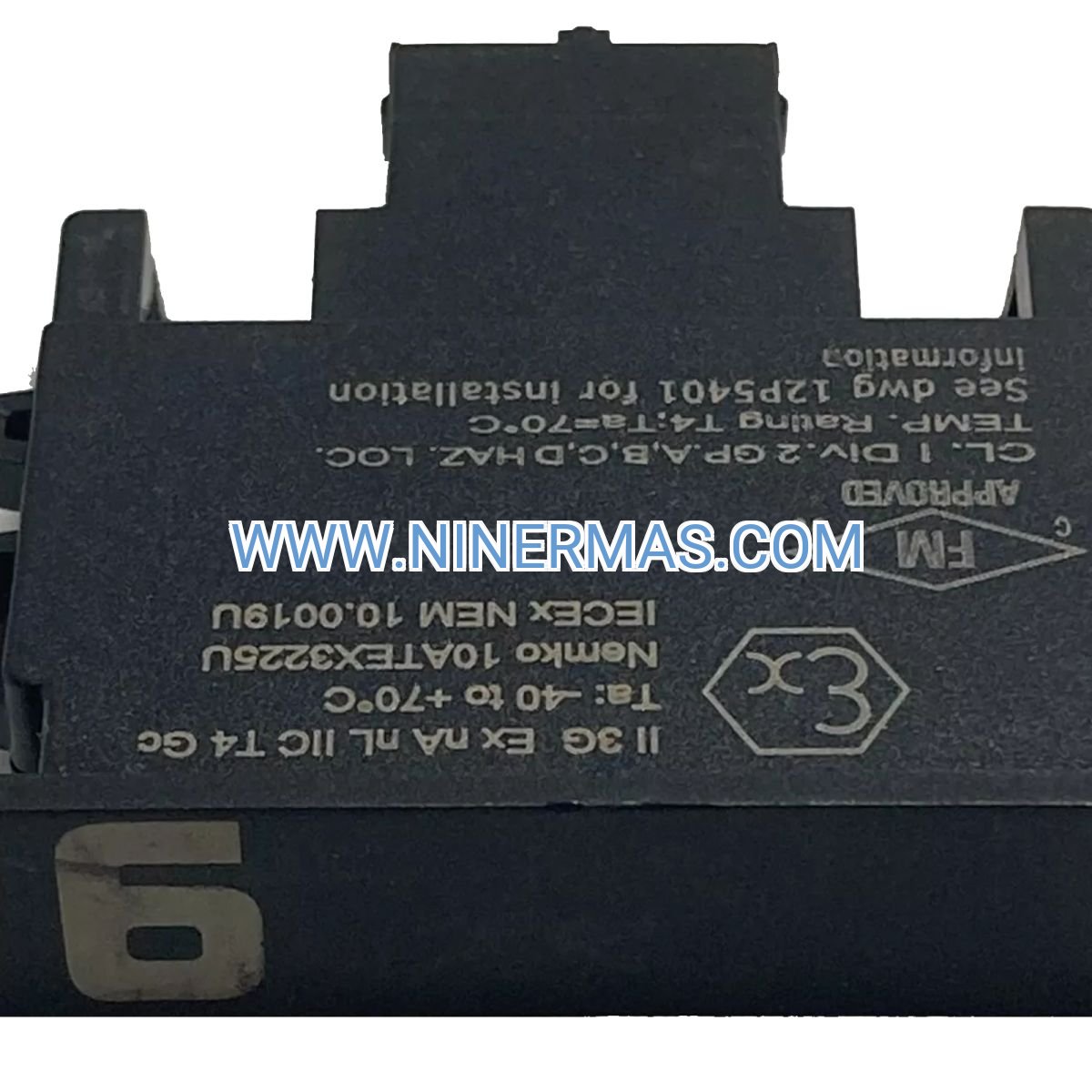

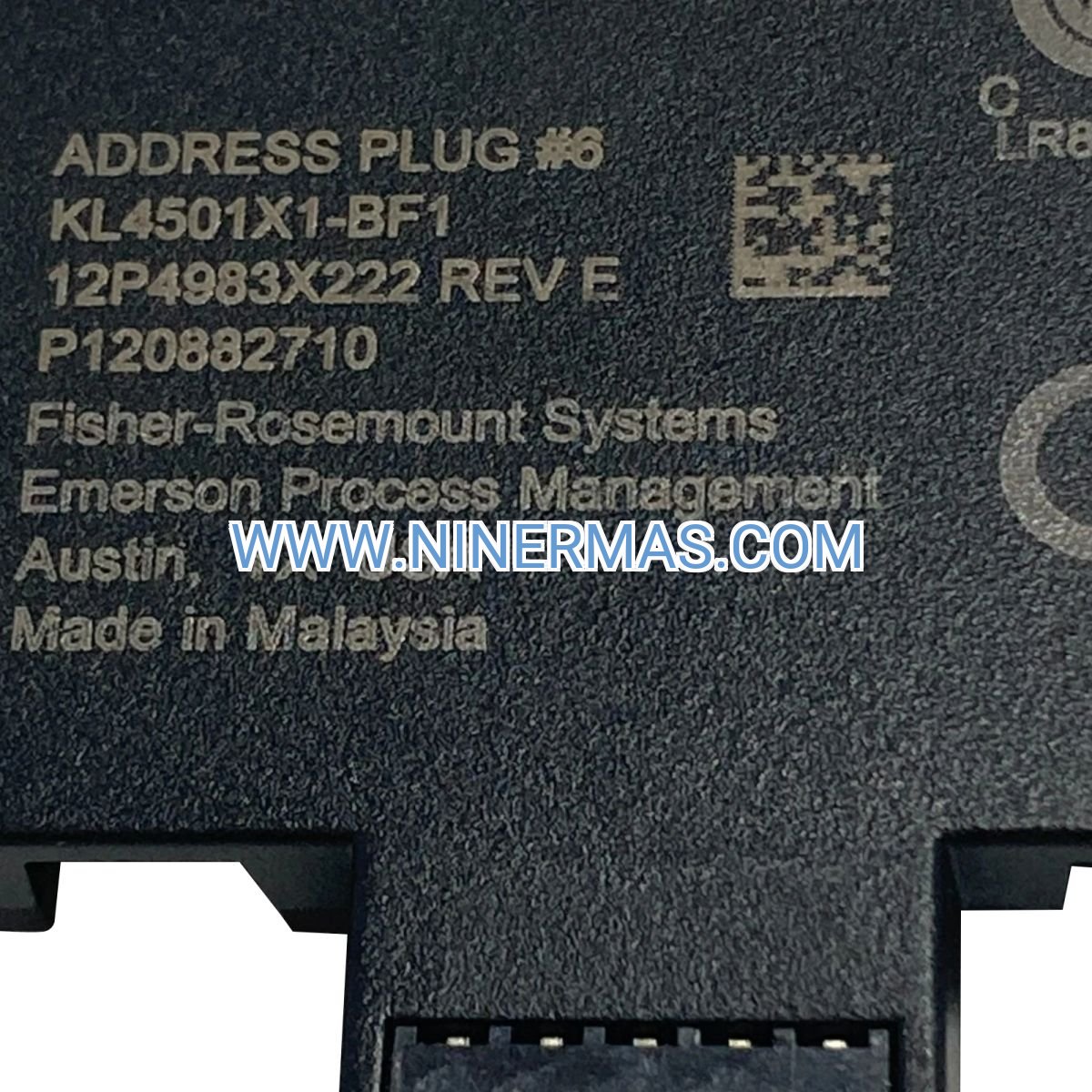

KL4501X1-BF1 CHARM Address Plug #6 (Industrial-Grade I/O Configuration Key)

The KL4501X1-BF1 represents a specialized configuration component engineered for Emerson DeltaV CHARM I/O subsystems, delivering precise module addressing through mechanical keying technology. Designed with 3E key position architecture, this address plug #6 ensures foolproof installation while enabling seamless electronic marshalling across distributed process control networks in refineries, chemical plants, and pharmaceutical manufacturing facilities.

Built to withstand harsh industrial environments from -40°C to +70°C, the KL4501X1-BF1 consumes minimal power (7mA at 6.5VDC) while maintaining signal integrity across multi-module CHARM configurations. Its conformal coating meets ISA-S71.04-1985 Class G3 standards, protecting against airborne contaminants in corrosive atmospheres where traditional I/O systems fail.

Whether you're commissioning new DeltaV installations or expanding existing process automation infrastructure, this address plug eliminates costly wiring errors and accelerates system startup through its plug-and-play addressing mechanism. Compatible with both standard and intrinsically safe CHARM baseplates, it serves as the foundation for reliable, scalable I/O architectures in mission-critical applications.

Key Features & Performance Advantages

→ Mechanical Keying Prevents Installation Errors
The 3E key position provides physical safeguards that block incorrect CHARM module insertion, eliminating commissioning mistakes that cost thousands in troubleshooting time. This mechanical intelligence ensures only compatible I/O modules mate with designated baseplate positions, reducing system startup delays by up to 40%.

→ Ultra-Low Power Consumption Enables High-Density I/O
With just 7mA current draw, the KL4501X1-BF1 minimizes thermal load across CHARM carriers, allowing engineers to deploy 8+ modules per carrier without thermal management concerns. This efficiency translates to lower operating costs and extended component lifespan in temperature-sensitive control rooms.

→ Unique Addressing Simplifies System Documentation
Address plug #6 provides distinct module identification within DeltaV networks, streamlining loop diagrams and maintenance procedures. Technicians locate specific I/O points 60% faster during troubleshooting, reducing mean time to repair (MTTR) in production environments where every minute of downtime costs revenue.

✓ Wide Temperature Range (-40°C to +70°C)
Operates reliably in extreme climates from Arctic pipeline stations to Middle Eastern refineries without performance degradation.

✓ ISA-S71.04 Class G3 Conformal Coating
Resists sulfur dioxide, hydrogen sulfide, and chlorine exposure in chemical processing environments where unprotected electronics corrode within months.

✓ Hot-Swappable Design (Non-Hazardous Areas)
Replace modules during scheduled maintenance without full system shutdown, maintaining production continuity in 24/7 operations.

Industrial Application Scenarios

Refinery Distributed Control Systems
In crude distillation units managing 200+ I/O points across multiple process areas, the KL4501X1-BF1 enables systematic organization of CHARM modules by functional area. Address plug #6 might designate all temperature transmitters in the atmospheric tower section, allowing operators to quickly identify and access specific control loops during process upsets. The mechanical keying prevents technicians from accidentally installing pressure transmitter modules in temperature positions during night-shift maintenance.

Pharmaceutical Batch Processing
FDA-regulated facilities require complete traceability of control system modifications. The unique addressing provided by plug #6 creates audit trails linking specific I/O modules to batch records, satisfying 21 CFR Part 11 compliance requirements. When expanding reactor control systems to accommodate new product lines, engineers add CHARM modules with sequential address plugs without disrupting validated processes.

Chemical Plant Redundant I/O Architectures
Critical safety instrumented systems (SIS) demand identical addressing across primary and backup controllers. Address plug #6 maintains consistent module positions in redundant CHARM carriers, ensuring failover logic executes correctly during controller switchovers. This addressing consistency reduces safety system proof test time by 30%, lowering lifecycle costs while maintaining SIL-rated protection.

Offshore Platform Expansion Projects
Space-constrained offshore installations benefit from CHARM's high-density I/O capabilities. The KL4501X1-BF1's low power consumption allows engineers to maximize module count per carrier, reducing panel footprint by 25% compared to traditional marshalling systems. Mechanical keying proves essential in vibration-prone environments where loose connections could trigger false alarms.

Power Generation Control Upgrades
When migrating legacy DCS systems to modern DeltaV platforms, address plugs enable phased I/O migration without complete system replacement. Plug #6 might address new CHARM modules handling turbine vibration monitoring, operating in parallel with existing I/O until cutover completion. This staged approach reduces project risk and capital expenditure.

Technical Specifications & Selection Guide

Selection Criteria: Choose address plug numbers based on your I/O carrier configuration plan. For systems with 8 CHARM positions per carrier, use plugs #1-#8 sequentially. In partial configurations, select non-consecutive plug numbers to reserve positions for future expansion. Always document address plug assignments in loop diagrams and maintain spare sets for emergency replacements.

Complete KL4501X1 Address Plug Family

The KL4501X1 series provides eight distinct address plugs, each with unique key positions to support comprehensive CHARM I/O configurations:

Advanced Integration Capabilities

Electronic Marshalling Architecture
Unlike traditional hardwired marshalling cabinets requiring hundreds of terminal blocks and jumper wires, CHARM address plugs enable software-configurable I/O routing. Engineers assign field signals to control strategies through DeltaV Explorer without physical rewiring, reducing commissioning time by 50% and eliminating wiring errors that plague conventional systems.

Intrinsically Safe System Compatibility
When paired with KL4201X1-BA1 intrinsically safe CHARM baseplates, address plug #6 supports hazardous area installations in Zone 0/Division 1 classified locations. The plug's low power consumption ensures total system current remains within intrinsic safety limits, enabling safe operation in explosive atmospheres without costly purged enclosures.

Redundant Controller Integration
In dual-redundant DeltaV configurations, identical address plug assignments across primary and secondary I/O carriers ensure seamless failover. When the active controller fails, the standby controller immediately assumes control using the same I/O addressing scheme, maintaining process continuity without operator intervention.

Remote I/O Extension
Combined with SE6501T01 CHARM I/O carriers featuring Ethernet connectivity, address plugs enable distributed I/O architectures spanning kilometers. Offshore platforms connect subsea wellhead I/O to topside control rooms via fiber optic links, with address plug #6 maintaining consistent module identification across the extended network.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock items to major industrial hubs (Houston, Singapore, Rotterdam, Shanghai). Express shipping available for critical outage situations requiring next-day delivery.

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship failures. Extended warranty programs available for long-term capital projects requiring 5+ year coverage.

Technical Support: Unlimited access to DeltaV-certified application engineers for addressing scheme design, system configuration assistance, and troubleshooting support. Phone and email support available 24/7 for emergency situations.

Documentation Package: Each order includes installation instructions, addressing reference charts, and compatibility matrices. Complete DeltaV CHARM I/O system design guides available upon request for greenfield projects.

Frequently Asked Questions

Q: Can I use address plug #6 in any CHARM baseplate position?
A: Yes, address plugs are position-independent. However, maintain consistent addressing schemes across your facility for simplified maintenance. Many sites assign plug #1-#4 to analog I/O and #5-#8 to digital I/O for intuitive organization.

Q: What happens if I install the wrong address plug in a CHARM module?
A: The DeltaV controller will detect an addressing mismatch and flag a configuration error, preventing incorrect I/O operation. The mechanical keying prevents physical installation of incompatible module types, but address plug selection remains the engineer's responsibility during system design.

Q: How many CHARM modules can share the same I/O carrier?
A: Standard CHARM carriers support 8 modules maximum, requiring address plugs #1 through #8. Each plug must be unique within a single carrier, but multiple carriers can use identical addressing schemes since the carrier itself provides higher-level network addressing.

Q: Are address plugs hot-swappable during system operation?
A: In non-hazardous areas, CHARM modules with address plugs can be replaced during operation without controller shutdown. However, always follow site-specific hot work procedures and consult DeltaV system documentation before performing live maintenance in classified locations.

Q: What's the recommended spare parts strategy for address plugs?
A: Stock complete sets of all eight address plugs (#1-#8) as insurance against loss or damage during maintenance. Address plugs are small components easily misplaced during module replacements, and having complete sets prevents project delays waiting for individual plug shipments.

Q: Can address plugs be reused when replacing CHARM modules?
A: Absolutely. Address plugs are durable components designed for multiple insertion cycles. When replacing a failed CHARM module, simply transfer the address plug from the old module to the replacement, maintaining consistent system addressing without reconfiguration.

Order Your KL4501X1-BF1 Address Plug Today

Ensure reliable DeltaV CHARM I/O configuration with genuine Emerson address plugs. Contact our automation specialists for volume pricing on complete address plug sets, or add individual plugs to your cart for immediate checkout. All orders ship with full technical documentation and installation support.

Need assistance with CHARM system design? Our application engineers provide complimentary addressing scheme reviews for projects requiring 10+ I/O modules. Schedule a consultation to optimize your DeltaV architecture for maximum reliability and future expandability.
