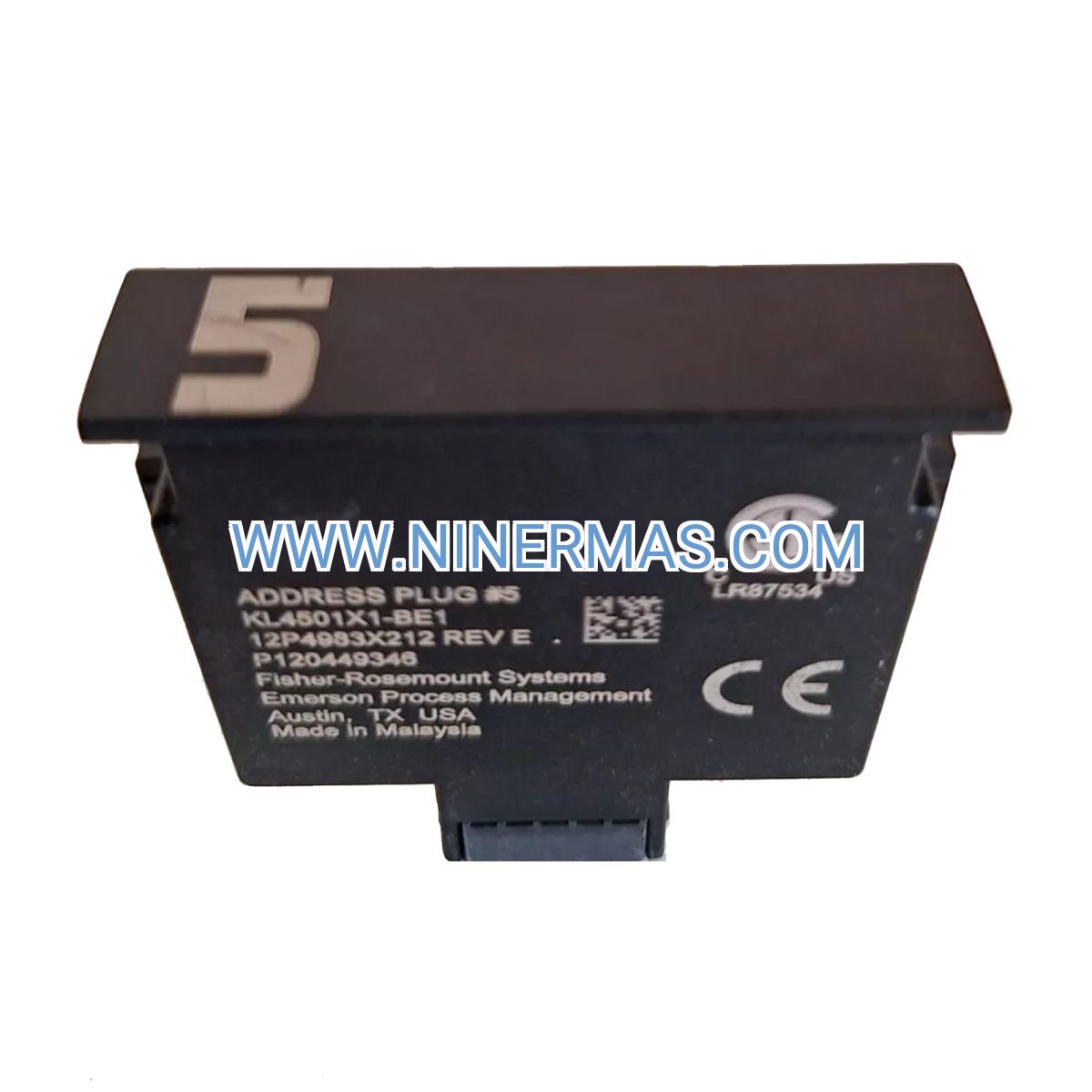

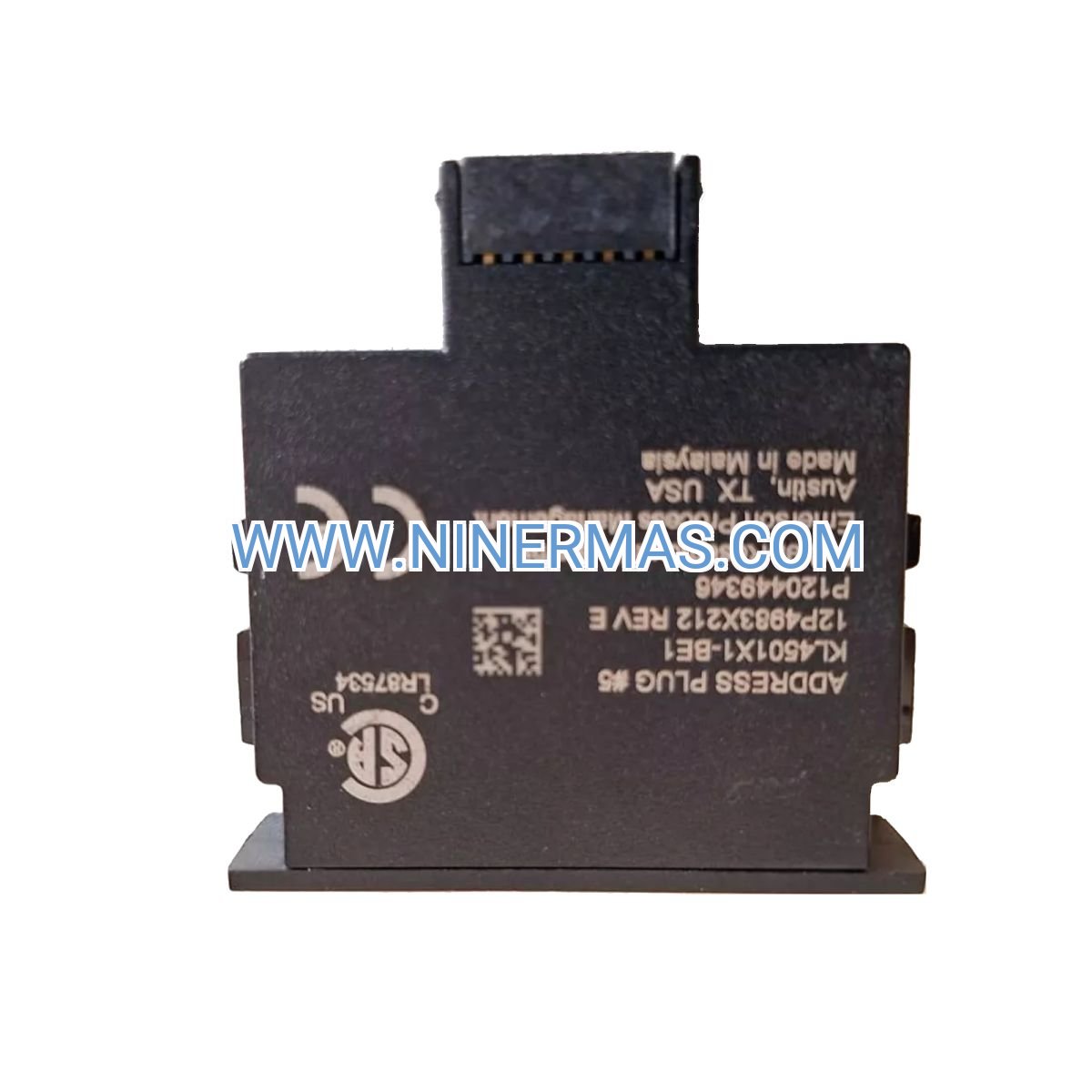

KL4501X1-BE1 CHARM Address Plug #5 (Industrial-Grade I/O Identification Component)

The KL4501X1-BE1 represents a critical infrastructure element within Emerson's DeltaV electronic marshalling ecosystem, delivering foolproof module identification through mechanically-keyed addressing technology. Engineered for position #5 with 3C key configuration, this address plug eliminates commissioning errors in multi-carrier CHARM installations while maintaining operational integrity across temperature extremes and contaminated industrial atmospheres.

Process automation engineers rely on this component to establish unambiguous communication pathways between field instrumentation and DeltaV controllers. By embedding unique address data directly into the CHARM baseplate assembly, the KL4501X1-BE1 transforms physical module placement into logical network topology—enabling rapid system expansion without controller reprogramming or manual address configuration.

Whether you're deploying new DeltaV infrastructure or maintaining legacy CHARM installations, this address plug delivers the mechanical precision and electronic reliability demanded by continuous process industries. Its conformal-coated circuitry withstands corrosive gases, thermal cycling, and mechanical stress inherent to refinery, chemical, and power generation environments.

Core Capabilities & Business Value

→ Mechanical Keying Prevents Configuration Errors
The 3C key position physically restricts installation to designated baseplate locations, eliminating the risk of incorrect module placement during commissioning, maintenance, or emergency repairs. This design feature reduces commissioning time by up to 40% in large-scale projects while preventing costly startup delays caused by addressing conflicts.

✓ Plug-and-Play System Integration
Embedded electronics automatically communicate module location to the CHARM I/O carrier upon power-up, enabling zero-configuration deployment. Technicians simply install the address plug and CHARM module—the DeltaV controller recognizes the new I/O point without manual database updates or logic modifications.

✓ Extreme Environment Survivability
Operates reliably from -40°C to +70°C with ISA-S71.04 Class G3 protection against sulfur dioxide, hydrogen sulfide, chlorine, and particulate contamination. Withstands 10g shock loads and continuous vibration up to 0.7g, meeting the demands of outdoor installations and high-vibration process areas.

✓ Low Power Consumption for High-Density Configurations
Draws only 7 mA at 6.5 VDC from the CHARM bus, allowing up to eight address plugs per carrier without exceeding power budgets. This efficiency supports compact cabinet designs and reduces cooling requirements in densely-populated marshalling panels.

✓ Lifetime Addressing Stability
Once installed, the address plug maintains consistent module identification throughout the CHARM module's operational life—even during hot-swaps or module replacements. This permanence simplifies asset management and ensures historical data continuity in process historians and maintenance management systems.

Industrial Application Scenarios

Refinery Expansion Projects
When adding new process units to existing DeltaV installations, address plugs enable phased commissioning without disrupting running operations. Engineers can pre-install CHARM baseplates with address plugs months before module delivery, then complete I/O integration during planned maintenance windows. The mechanical keying ensures contractors install modules in correct positions even without detailed system knowledge.

Chemical Plant Distributed I/O Networks
For facilities with CHARM I/O carriers distributed across multiple process buildings, address plugs provide unique identification for each remote location. A single DeltaV controller can manage hundreds of I/O points across dozens of carriers, with address plugs ensuring each signal routes to the correct control strategy. This architecture reduces wiring costs by 30-50% compared to centralized marshalling while improving system reliability through distributed processing.

Pharmaceutical Manufacturing Compliance
In FDA-regulated environments requiring complete audit trails, address plugs create immutable links between physical I/O hardware and electronic batch records. The mechanical keying prevents unauthorized module swaps, while the embedded addressing supports 21 CFR Part 11 compliance by ensuring process data originates from validated hardware configurations.

Power Generation Redundant Control Systems
Critical applications deploy dual DeltaV controllers with redundant CHARM I/O for seamless failover. Address plugs ensure both primary and backup systems recognize identical module configurations, enabling bumpless transfer during controller switchovers. The rugged construction withstands the thermal cycling and vibration typical of turbine halls and boiler areas.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose address plug number based on CHARM module position within the carrier. The KL4501X1-BE1 (#5 with 3C keying) installs in the fifth position from the carrier's reference edge. For complete carrier population, order address plugs #1 through #8 (KL4501X1-BA1 through KL4501X1-BH1) to match your I/O module count. Consult DeltaV system drawings to verify key position requirements before ordering.

Advanced Integration Features

Hot-Swap Capability: Address plugs remain installed on baseplates during CHARM module replacement, preserving addressing continuity. Technicians can swap failed modules without disturbing address plug connections, reducing mean time to repair (MTTR) by 60% compared to systems requiring address reconfiguration.

Carrier Scalability: Each CHARM I/O carrier supports up to eight address plugs, enabling flexible system architectures. Deploy single-carrier configurations for compact applications or multi-carrier networks for large process units—address plugs maintain unique identification across the entire DeltaV network regardless of physical distribution.

Diagnostic Integration: DeltaV diagnostics monitor address plug communication status, alerting operators to connection issues before they impact process control. This predictive maintenance capability reduces unplanned downtime and supports condition-based maintenance strategies.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock items; expedited shipping available for urgent requirements
Project Quantities: 10-15 business days for orders exceeding 50 units; volume pricing and stocking programs available
Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship
Technical Support: Lifetime application engineering assistance including addressing scheme design, carrier configuration, and troubleshooting
Documentation Package: Installation instructions, addressing tables, and compatibility matrices provided with every order

Frequently Asked Questions

Q: How do I determine which address plug number I need for my CHARM carrier?
A: Address plug selection depends on the physical position of your CHARM module within the carrier. Position #1 (leftmost) requires address plug #1 (KL4501X1-BA1 with 1A keying), position #2 requires plug #2 (KL4501X1-BB1), and so forth. The KL4501X1-BE1 is specifically designed for position #5. Refer to your DeltaV system loop drawings or consult our engineering team for addressing scheme verification.

Q: Can address plugs be reused when replacing CHARM modules?
A: Yes—address plugs install on the CHARM baseplate and remain in place during module swaps. When replacing a failed CHARM module, simply remove the old module from the baseplate (leaving the address plug installed) and insert the new module. The address plug automatically communicates the module's location to the DeltaV controller without requiring configuration changes.

Q: What happens if I install an address plug in the wrong carrier position?
A: The mechanical keying system prevents incorrect installation. Each address plug has a unique key position (1A, 1C, 1E, 3A, 3C, 3E, 5A, 5C) that physically matches only its designated baseplate slot. Attempting to install an address plug in the wrong position will result in mechanical interference—the plug simply won't fit, preventing configuration errors.

Q: Are address plugs compatible with both intrinsically safe and non-IS CHARM modules?
A: Address plugs are universal components compatible with all CHARM module types, including intrinsically safe (IS) and non-IS variants. However, you must use the appropriate CHARM baseplate for your application—IS modules require IS-rated baseplates (such as KL4201X1-BA1), while non-IS modules use standard baseplates. The address plug itself does not affect intrinsic safety ratings.

Q: How many address plugs can operate on a single CHARM I/O carrier?
A: Standard CHARM carriers support up to eight address plugs (positions #1 through #8), with each plug consuming 7 mA at 6.5 VDC from the carrier's power bus. The carrier's power budget accommodates all eight plugs simultaneously, enabling full-density I/O configurations without external power supplies or bus extenders.

Q: Do address plugs require periodic calibration or maintenance?
A: No—address plugs are passive identification devices with no user-serviceable components or calibration requirements. Once installed, they provide maintenance-free operation throughout the CHARM module's lifecycle. The conformal coating protects internal electronics from environmental degradation, ensuring long-term reliability in harsh industrial atmospheres.

Order Your KL4501X1-BE1 Address Plug Today

Ensure flawless DeltaV CHARM I/O addressing with genuine Emerson components. Our technical team is ready to assist with addressing scheme design, carrier configuration planning, and volume pricing for multi-site deployments. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your project requirements and receive a detailed quotation within 24 hours.
