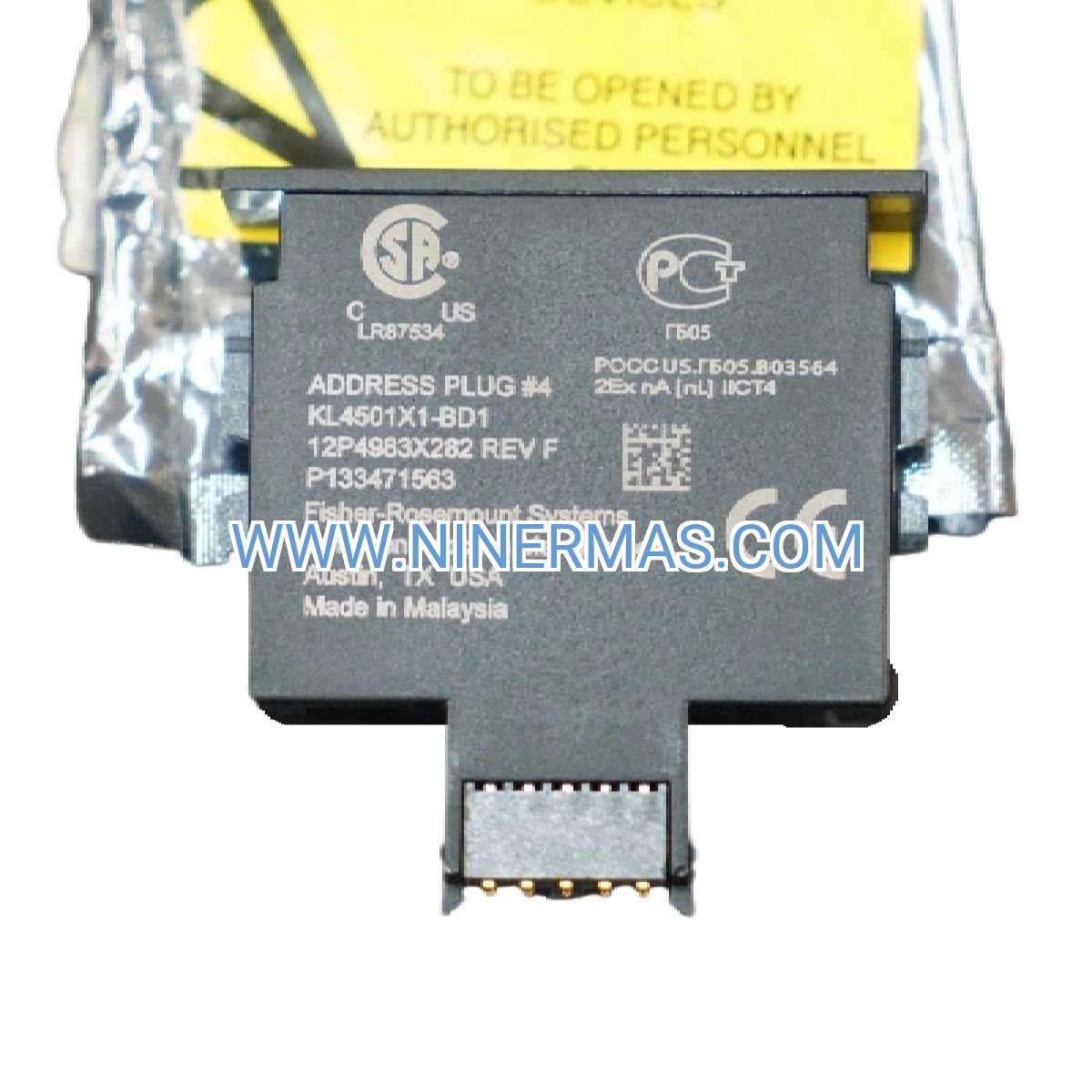

KL4501X1-BD1 CHARM Address Plug (Industrial-Grade I/O Addressing Component)

The KL4501X1-BD1 represents a critical infrastructure element within Emerson's DeltaV distributed control architecture, delivering foolproof addressing for CHARM electronic marshalling systems. Engineered with a unique 3A mechanical key configuration, this Address Plug #4 guarantees error-free module placement while eliminating addressing conflicts across multi-carrier installations spanning thousands of I/O points.

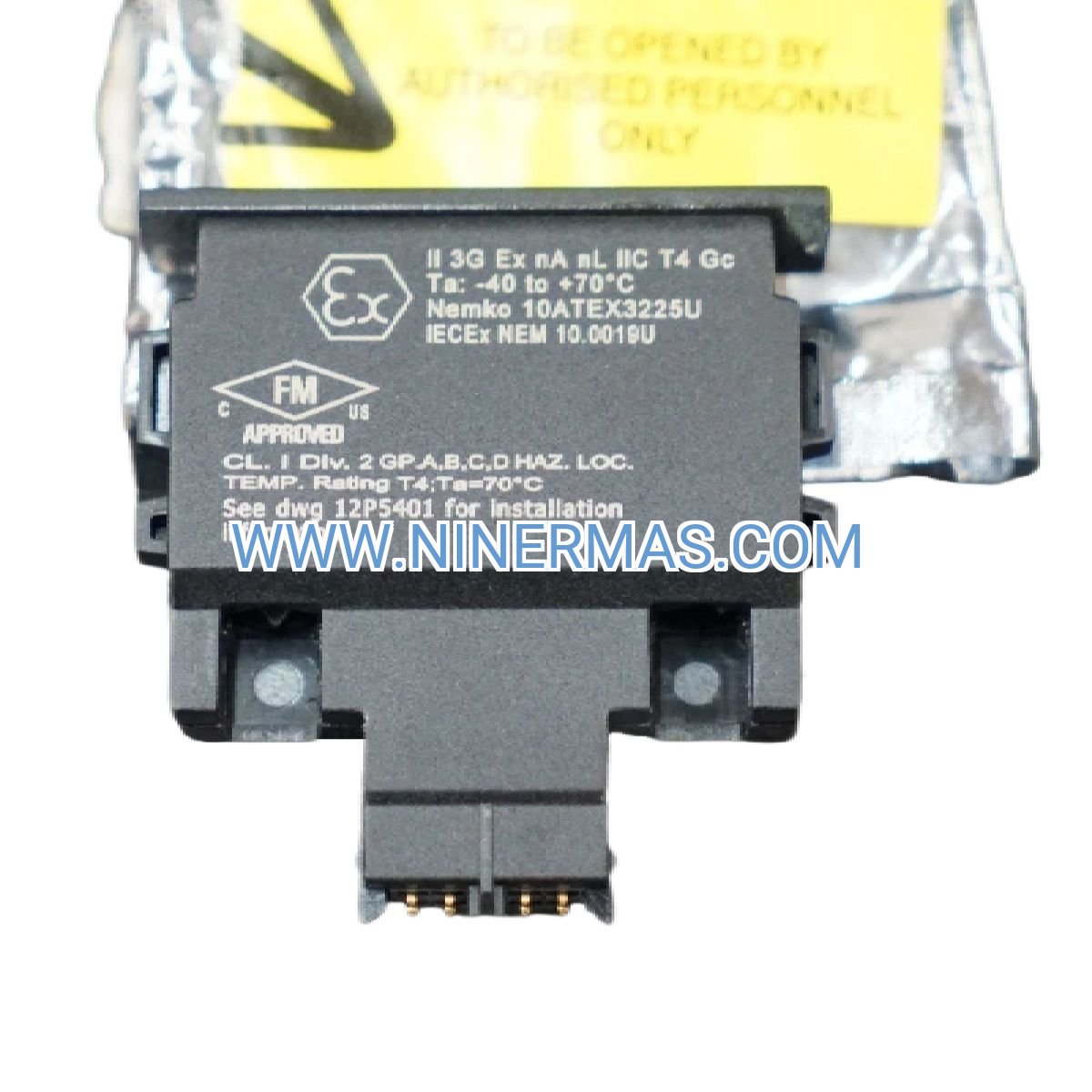

Designed for process industries demanding zero-downtime reliability, this component operates flawlessly across extreme temperature ranges (-40°C to +70°C) while withstanding industrial shock, vibration, and corrosive atmospheres. Whether commissioning greenfield refineries or expanding legacy pharmaceutical facilities, the KL4501X1-BD1 streamlines system integration through standardized addressing conventions that reduce engineering hours and accelerate project timelines.

Industrial Control Hub stocks authentic Emerson components with immediate global dispatch, backed by DCS application engineering expertise to optimize your I/O architecture. Secure your addressing infrastructure with OEM-certified precision components that protect multi-million-dollar control investments.

Key Features & Technical Advantages

→ Mechanical Keying Prevents Configuration Errors
The 3A key position physically restricts CHARM module installation to designated Position #4 only, eliminating human error during commissioning and maintenance activities. This mechanical safeguard reduces troubleshooting time by up to 40% in large-scale DCS deployments.

→ Extended Environmental Tolerance
ISA-S71.04-1985 Class G3 conformal coating protects against corrosive gases, humidity (5-95% non-condensing), and temperature extremes from -40°F to +158°F. Proven reliability in offshore platforms, chemical processing, and desert installations.

→ Shock & Vibration Hardened Design
Withstands 10g half-sine shock pulses and continuous vibration up to 0.7g (13.2-150 Hz), ensuring stable operation near rotating equipment, compressors, and high-traffic industrial zones.

→ Low Power Consumption Architecture
Draws only 7 mA at +6.5 VDC from CHARM bus, minimizing heat generation and enabling dense I/O packing without thermal management concerns.

✓ Standardized Addressing Across Multi-Unit Facilities
Consistent address plug numbering simplifies documentation, operator training, and spare parts management when replicating process units or expanding production capacity.

✓ Permanent Installation Lifecycle
Once seated on CHARM baseplates, address plugs remain in place throughout module operational life, eliminating reconfiguration risks during routine maintenance or module swaps.

Industrial Application Scenarios

Refinery Distributed Control Systems
In crude distillation units processing 200,000+ barrels per day, the KL4501X1-BD1 enables systematic organization of analog input modules monitoring temperature, pressure, and flow across 50+ CHARM carriers. Standardized Position #4 addressing across parallel distillation trains reduces commissioning errors and accelerates turnaround activities.

Chemical Batch Process Control
Pharmaceutical and specialty chemical facilities leverage address plug keying to prevent cross-contamination risks during recipe changeovers. Mechanical addressing ensures that reactor temperature control modules always occupy designated positions, maintaining FDA 21 CFR Part 11 compliance through hardware-enforced configuration management.

Power Generation SCADA Integration
Combined-cycle power plants utilize complete address plug sets (#1-#8) to organize turbine vibration monitoring, emissions control, and heat recovery steam generator (HRSG) instrumentation. The KL4501X1-BD1's shock resistance ensures reliable operation in high-vibration turbine deck environments.

Water Treatment SCADA Expansion
Municipal water utilities expanding treatment capacity add new CHARM carriers with pre-configured address plugs, enabling parallel commissioning without disrupting existing SCADA operations. Position #4 typically houses pH/ORP monitoring modules in standardized treatment train architectures.

Mining & Metals Process Automation
Concentrator plants and smelting operations deploy address plugs in dust-laden, high-vibration environments where mechanical keying prevents costly addressing errors during maintenance shifts. The conformal coating withstands sulfur dioxide and other corrosive process gases.

Technical Specifications & Selection Guide

Selection Criteria: Order complete sets of 8 address plugs (KL4501X1-BA1 through BH1) for each CHARM I/O carrier to maintain addressing flexibility during system reconfiguration. Stock Position #4 plugs as spares when standardizing on specific CHARM module layouts across multiple process units.

Complete Address Plug Family Overview

The KL4501X1 series comprises 8 variants, each mechanically keyed for a specific carrier position:

Advanced Integration Capabilities

Redundant I/O Architecture Support
In critical process applications requiring N+1 redundancy, address plugs maintain consistent addressing between primary and backup CHARM carriers. This addressing symmetry enables seamless failover without controller reconfiguration, supporting 99.99% uptime requirements in continuous process industries.

Hot-Swap Maintenance Procedures
Address plugs remain installed during CHARM module replacement, preserving I/O addressing during online maintenance. Technicians swap modules without disturbing address plug seating, reducing mean time to repair (MTTR) by 60% compared to traditional marshalling systems.

Asset Management Integration
When integrated with DeltaV AMS Suite, address plug positions correlate with asset hierarchy structures, enabling predictive maintenance workflows that track module performance by physical location. Position #4 modules across multiple carriers can be analyzed collectively for calibration drift patterns.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items shipped from our Shanghai distribution center. Express 24-48 hour delivery available for critical project milestones.

Project Quantity Pricing: Volume discounts apply for orders of 50+ address plugs (complete carrier sets). Contact our DCS specialists for multi-site project quotations.

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship. Extended warranty programs available for long-term service agreements.

Technical Documentation: Installation manuals, addressing scheme templates, and DeltaV configuration guides provided with every order. Application engineering support included for system design consultation.

Return Policy: 30-day satisfaction guarantee with full refund for unused components in original packaging. No restocking fees for defective items.

Frequently Asked Questions

Q: Can I use KL4501X1-BD1 in positions other than #4 on the CHARM carrier?
A: No. The 3A mechanical key configuration physically prevents installation in positions #1-3 or #5-8. Each address plug is uniquely keyed to its designated position, ensuring foolproof addressing and preventing configuration errors.

Q: What happens if I install a CHARM module without an address plug?
A: The CHARM module will not communicate with the DeltaV controller. Address plugs provide the unique identifier that enables the controller to recognize and exchange data with each module. Missing address plugs result in "module not found" errors during system diagnostics.

Q: How do address plugs improve system commissioning efficiency?
A: Mechanical keying eliminates addressing errors that typically consume 15-20% of commissioning time in large DCS projects. Pre-installed address plugs enable parallel commissioning of multiple I/O carriers without addressing conflicts, reducing overall project schedules by 2-3 weeks in 500+ I/O point installations.

Q: Are address plugs compatible with intrinsically safe CHARM baseplates?
A: Yes. The KL4501X1-BD1 installs on both standard and intrinsically safe (I.S.) CHARM baseplates such as the KL4201X1-BA1. Address plug selection is independent of baseplate type—choose based on position number only.

Q: What is the recommended spare parts inventory for address plugs?
A: Maintain one complete set of 8 address plugs (#1-#8) for every 10 CHARM carriers in your facility. This 10% spare ratio supports system reconfigurations, emergency replacements, and expansion projects without procurement delays.

Q: Can address plugs be reused when replacing CHARM baseplates?
A: While address plugs are mechanically robust, Emerson recommends installing new address plugs when replacing baseplates to ensure optimal electrical contact and mechanical retention. Reused plugs may exhibit wear on keying features that could compromise installation integrity.

Order Your KL4501X1-BD1 Address Plug Today

Secure your DeltaV I/O addressing infrastructure with genuine Emerson components from Industrial Control Hub. Our DCS specialists provide application engineering support to optimize your CHARM system architecture, recommend complete bill-of-materials for expansion projects, and expedite delivery to meet critical commissioning deadlines.

Ready to configure your order? Contact our technical sales team at sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Request a quotation for complete address plug sets, CHARM baseplates, and terminal blocks to streamline your procurement process.
