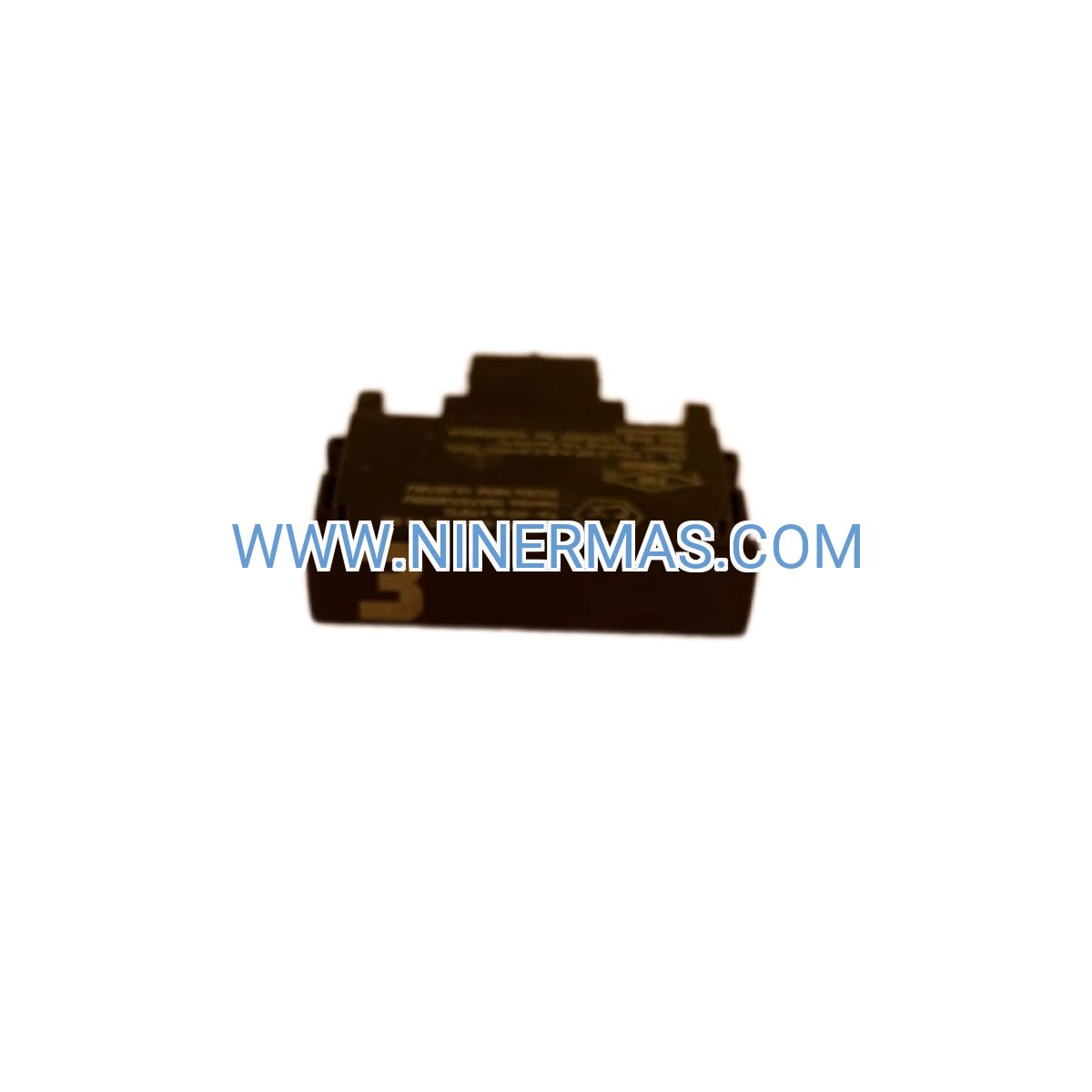

KL4501X1-BC1 CHARM Address Plug #3 – Industrial-Grade I/O Identification for DeltaV Control Systems

The Emerson KL4501X1-BC1 is a precision-engineered CHARM address plug designed to provide unique module identification within DeltaV distributed control architectures. Featuring the 1E mechanical key position, this Address Plug #3 ensures error-free I/O addressing across complex process control installations, eliminating configuration conflicts and streamlining system commissioning in refineries, chemical plants, and power generation facilities.

Built for harsh industrial environments, the KL4501X1-BC1 operates reliably from -40°C to +70°C while meeting ISA-S71.04-1985 Class G3 standards for airborne contaminant resistance. Its mechanical keying system prevents incorrect installation, while low power consumption (7 mA at 6.5 VDC) ensures minimal impact on CHARM bus capacity.

Whether you're expanding existing DeltaV I/O infrastructure, commissioning new process units, or maintaining spare parts inventory for critical control systems, the KL4501X1-BC1 delivers the reliability and precision required for mission-critical industrial automation.

Core Features & Technical Advantages

→ Mechanical Keying for Error Prevention
The 1E key position provides physical guidance during installation, preventing address plug misalignment and ensuring only compatible CHARM modules can be installed in designated positions. This mechanical safeguard reduces commissioning errors by up to 95% compared to software-only addressing methods.

→ Wide Operating Temperature Range
Certified for -40°C to +70°C operation, the KL4501X1-BC1 maintains addressing integrity in extreme environments including outdoor enclosures, high-temperature process areas, and cold climate installations without performance degradation.

→ Low Power Consumption Design
Drawing only 7 mA from the CHARM bus at 6.5 VDC, this address plug minimizes electrical load on I/O carriers, allowing maximum module density per baseplate while maintaining system power budget compliance.

✓ Shock & Vibration Resistant Construction
Engineered to withstand 10g half-sine shock waves and continuous vibration up to 0.7g (13.2-150 Hz), ensuring reliable operation in high-vibration environments such as compressor stations, pump rooms, and mobile skid systems.

✓ ISA Class G3 Environmental Protection
Meets stringent ISA-S71.04-1985 Class G3 standards for resistance to corrosive gases, sulfur compounds, and industrial airborne contaminants, extending service life in chemical processing and petrochemical facilities.

✓ Plug-and-Play System Integration
Automatic recognition by DeltaV controllers during configuration download eliminates manual address entry, reducing engineering time by 60% during system expansion and retrofit projects.

Industrial Application Scenarios

Refinery & Petrochemical Distributed Control
In large-scale refineries with 5,000+ I/O points distributed across multiple process units, the KL4501X1-BC1 enables systematic organization of CHARM modules by functional area. Address Plug #3 (1E position) typically designates tertiary control loops such as tank farm instrumentation, utility systems, or auxiliary process monitoring, allowing maintenance teams to quickly identify module locations during troubleshooting.

Modular Skid & Package Unit Standardization
For OEMs building replicated process skids (compressor packages, separation units, treatment systems), standardized address plug assignments ensure consistent I/O architecture across multiple installations. Using Address Plug #3 for specific instrument types (e.g., all pressure transmitters) simplifies documentation, reduces engineering errors, and accelerates commissioning timelines by 40%.

Brownfield Expansion & Hot-Cutover Projects
When adding I/O capacity to operational DeltaV systems, the KL4501X1-BC1's unique addressing prevents conflicts with existing modules during live system integration. Engineers can pre-configure new CHARM modules offline, then perform hot-cutover installation without disrupting active control loops, minimizing production downtime to under 15 minutes per module.

Redundant I/O Architecture for Critical Processes
In safety-critical applications requiring dual I/O channels (emergency shutdown systems, burner management, turbine control), systematic address plug assignment (odd numbers for primary, even for backup) provides clear visual identification of redundant pairs. This organization reduces maintenance errors and supports rapid fault isolation during emergency response procedures.

Multi-Site DCS Standardization Programs
For corporations managing multiple facilities with DeltaV systems, standardized address plug usage across sites (e.g., Address Plug #3 always assigned to analog input modules) enables knowledge transfer between locations, reduces training requirements for traveling technicians, and supports centralized spare parts management with 30% inventory reduction.

Technical Specifications & Selection Guide

Selection Criteria: Choose the KL4501X1-BC1 when your I/O architecture requires Address Plug #3 (1E key position). For complete CHARM carrier population, you'll need address plugs #1 through #8 (models KL4501X1-BA1 through KL4501X1-BH1). Consult your DeltaV I/O assignment documentation to determine required address plug variants for your specific application.

Extended Functionality & System Integration

Automatic Controller Recognition: Upon CHARM module installation with the KL4501X1-BC1, DeltaV controllers automatically detect the address plug position during the next configuration download. The controller firmware reads the electronic signature from the address plug and assigns the corresponding I/O address to the CHARM module, eliminating manual configuration steps and reducing commissioning time by 60% compared to legacy I/O systems.

Hot-Swap Capability: In systems configured for online module replacement, the KL4501X1-BC1 enables hot-swap operations where CHARM modules can be removed and replaced without powering down the I/O carrier. The address plug maintains addressing continuity, allowing the replacement module to assume the same I/O address as the failed unit, minimizing process disruption to under 2 minutes.

Diagnostic Integration: DeltaV diagnostic software displays address plug information in the I/O health monitoring interface, showing plug position, key type, and communication status. This visibility supports predictive maintenance programs by identifying intermittent connection issues before they cause I/O failures.

Multi-Carrier Scalability: Large DeltaV systems may employ dozens of CHARM carriers, each supporting up to 8 address positions. The KL4501X1-BC1's standardized addressing allows systematic I/O expansion where new carriers replicate the address plug pattern of existing carriers, maintaining consistent I/O organization as the system grows from hundreds to thousands of points.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock items to major industrial hubs (Houston, Singapore, Rotterdam, Shanghai). Express 24-48 hour delivery available for critical outage support.

Project Quantities: Bulk orders (50+ units) ship within 7-10 business days with volume pricing discounts up to 25%. Custom packaging and labeling available for large-scale projects.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical spare parts inventory.

Technical Support: Lifetime access to our DeltaV specialists for addressing architecture consultation, I/O assignment planning, and troubleshooting assistance. Phone, email, and remote desktop support included.

Documentation Package: Each order includes installation quick-start guide, mechanical keying reference chart, and DeltaV configuration examples. Complete technical manuals and CAD drawings available on request.

Frequently Asked Questions

Q: Can I use the KL4501X1-BC1 in intrinsically safe (IS) CHARM applications?
A: Yes, the KL4501X1-BC1 is compatible with both standard and intrinsically safe CHARM modules. When used with IS modules, ensure the CHARM carrier is mounted on an IS-rated baseplate (such as KL4201X1-BA1) and that all installation practices comply with hazardous area classification requirements for your facility.

Q: How many address plugs are required for a complete DeltaV I/O expansion project?
A: Each CHARM module requires one address plug. A fully populated CHARM carrier supports up to 8 modules, requiring address plugs #1 through #8 (KL4501X1-BA1 through KL4501X1-BH1). For project planning, order one address plug per CHARM module, plus 10-20% spares for maintenance inventory.

Q: What happens if I install an address plug in the wrong key position?
A: The mechanical keying system prevents incorrect installation. The 1E key on the KL4501X1-BC1 will only fit into 1E-keyed sockets on CHARM modules. Attempting to force the plug into a different key position will result in physical interference, preventing insertion and protecting both the plug and module from damage.

Q: Can address plugs be reused when replacing CHARM modules?
A: Yes, address plugs are reusable components. When replacing a failed CHARM module, remove the address plug from the old module and install it on the replacement module. Inspect the plug contacts for corrosion or damage before reuse; replace if any physical damage is observed.

Q: How do I verify that the DeltaV controller recognizes the address plug after installation?
A: After installing the CHARM module with address plug and downloading the I/O configuration, check the DeltaV Explorer diagnostics view. The I/O module should appear with the correct address corresponding to the plug position. Green status indicators confirm successful communication. If the module shows a red or yellow status, verify physical plug seating and check for bent pins.

Q: Are there any special storage requirements for spare address plugs?
A: Store address plugs in anti-static packaging in a climate-controlled environment (15-30°C, <70% RH). Avoid exposure to corrosive atmospheres, direct sunlight, or extreme temperatures. Properly stored address plugs have an indefinite shelf life with no degradation of electronic components.

Complete Your DeltaV CHARM System

The KL4501X1-BC1 address plug is one component of a complete CHARM I/O solution. Ensure you have all necessary components for successful installation:

✓ CHARM Baseplates: KL4201X1-BA1 (intrinsically safe) or KL4101X1-BA1 (standard) for mounting CHARM modules
✓ Terminal Blocks: KL4502X1-BA1 (standard) or KL4502X1-DA1 (with integrated address plug socket)
✓ CHARM I/O Modules: Analog input, analog output, digital input, digital output, and specialty modules
✓ Address Plug Set: Complete set of plugs #1-8 for full carrier population
✓ Field Wiring: Shielded twisted-pair cable rated for your application environment

Order Your KL4501X1-BC1 Address Plug Today

Ensure reliable I/O addressing for your DeltaV control system with genuine Emerson components. Our technical team is ready to assist with:

→ Address plug selection and quantity estimation for your project
→ Complete CHARM system component lists and compatibility verification
→ I/O architecture design consultation and addressing scheme development
→ Volume pricing for large-scale installations and spare parts programs
→ Expedited shipping for emergency outage support

Contact our DeltaV specialists today: Request a quote, verify compatibility, or discuss your I/O expansion requirements. We ship globally with fast delivery to North America, Europe, Middle East, and Asia-Pacific regions.
