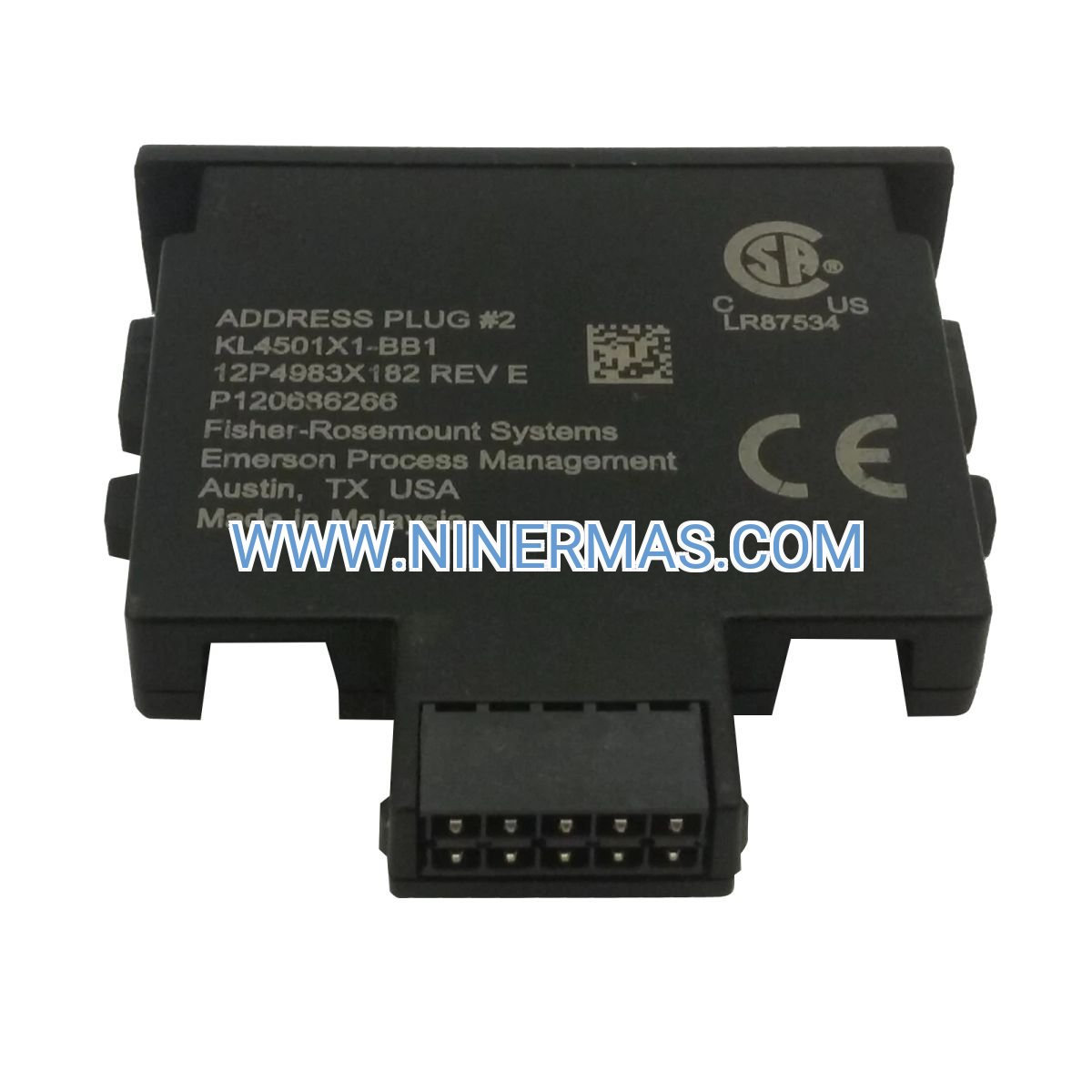

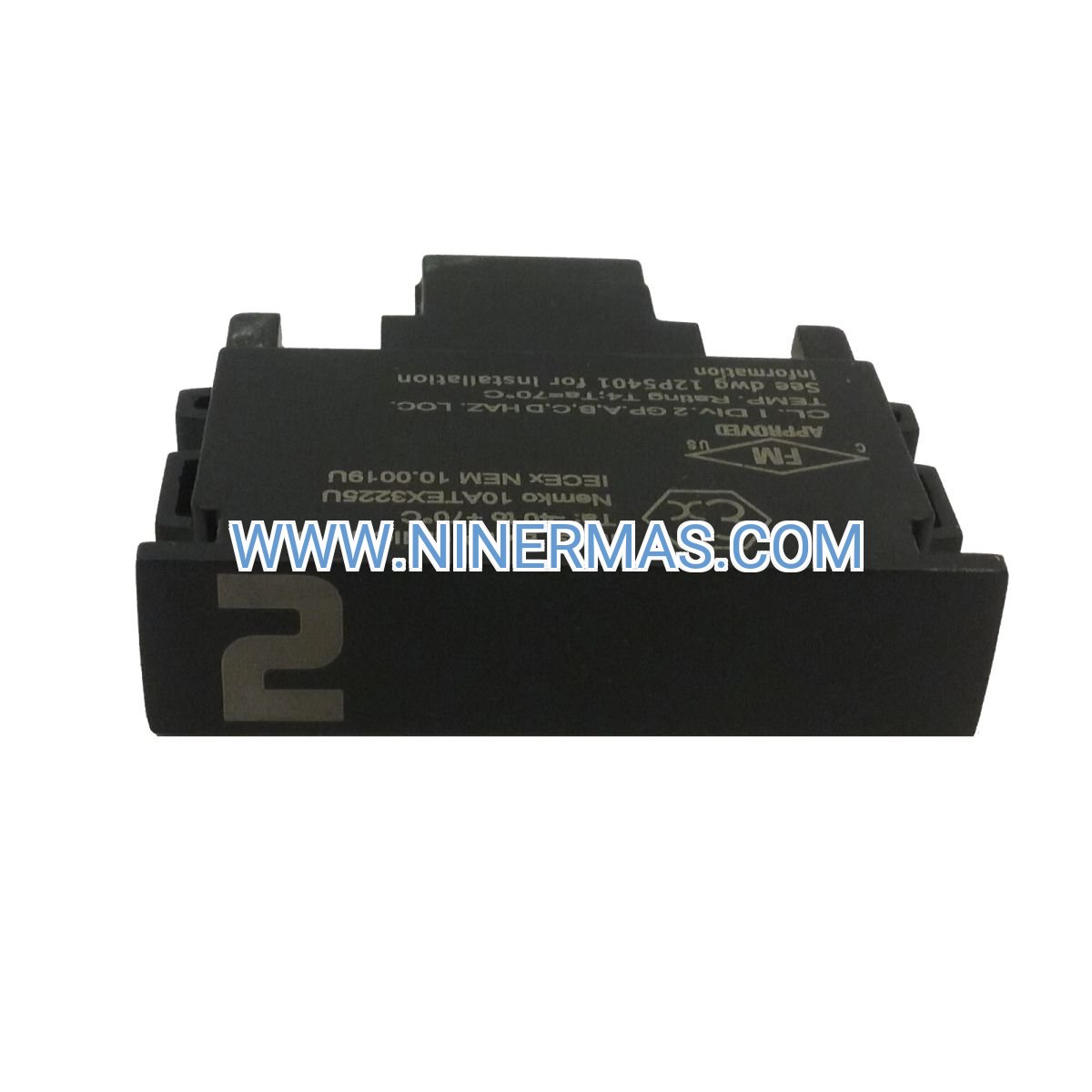

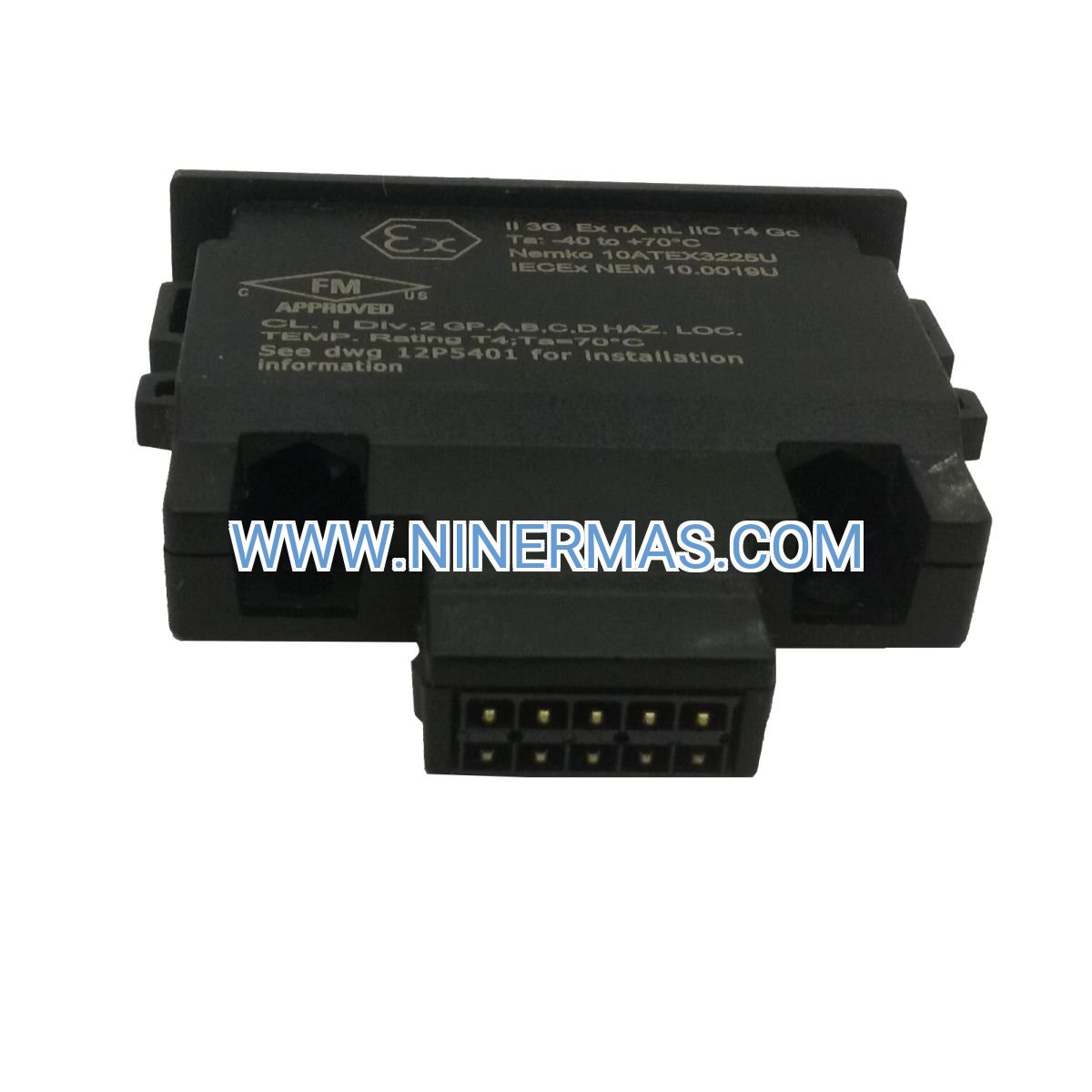

KL4501X1-BB1 CHARM Address Plug #2 (Industrial-Grade I/O Addressing Component)

The KL4501X1-BB1 represents a precision-engineered addressing component designed for Emerson DeltaV electronic marshalling architectures. This CHARM Address Plug #2 delivers reliable I/O module identification and configuration management across distributed control systems in process industries. Engineered with 1C mechanical keying and conformal environmental protection, it ensures error-free CHARM placement in mission-critical installations spanning petrochemical refineries, pharmaceutical manufacturing, power generation facilities, and water treatment plants.

Process automation engineers face persistent challenges with I/O configuration errors, module misidentification, and system downtime during maintenance activities. The KL4501X1-BB1 addresses these pain points through embedded addressing electronics that enable automatic CHARM discovery, hot-swap capability without process interruption, and mechanical interlocks preventing incompatible module installation. Target users include DCS integrators, plant maintenance teams, instrumentation technicians, and control system engineers managing large-scale DeltaV deployments.

Key advantages include plug-and-play I/O commissioning that reduces startup time by 40-60%, zero-downtime module replacement for continuous process operations, systematic addressing architecture supporting thousands of I/O points, and environmental resilience across -40°C to +70°C operating ranges with ISA-S71.04 Class G3 protection against industrial contaminants.

Core Features & Benefits

→ Embedded Addressing Electronics: Communicates unique CHARM location to DeltaV controllers, enabling automatic I/O discovery during commissioning and eliminating manual configuration steps that consume 2-4 hours per cabinet in traditional systems.

→ 1C Mechanical Keying System: Physical interlock prevents insertion of incompatible CHARM types, reducing configuration errors by 95% in installations with 500+ I/O points where manual verification becomes impractical.

→ Hot-Swap Architecture Support: Retains I/O configuration when CHARM modules are removed, allowing replacement units to assume correct addressing automatically—critical for maintaining 99.9% uptime in continuous process industries.

→ Industrial Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating withstands corrosive atmospheres, humidity extremes (5-95% non-condensing), and temperature cycling from -40°C to +70°C without performance degradation.

→ Low Power Consumption: Draws only 7mA at 6.5 VDC from CHARM bus, enabling high-density I/O cabinet designs with 64+ modules per power supply without thermal management concerns.

→ Vibration & Shock Resistance: Survives 10g half-sine shock and 0.7g continuous vibration (13.2-150 Hz), suitable for installation near rotating equipment, compressors, and high-traffic industrial areas.

Typical Application Scenarios

✓ Refinery DCS Expansions: When adding new process units to existing DeltaV systems, the KL4501X1-BB1 enables systematic I/O addressing without disrupting operational control loops. A recent Gulf Coast refinery expansion used 240 address plugs to integrate a new hydrocracker unit, completing commissioning 3 weeks ahead of schedule by eliminating addressing conflicts.

✓ Pharmaceutical Batch Control Systems: FDA-regulated facilities require validated I/O configurations with full traceability. Address plugs provide deterministic CHARM identification that survives power cycles and module replacements, maintaining 21 CFR Part 11 compliance without re-validation after maintenance activities.

✓ Modular Process Skid Manufacturing: Equipment OEMs building standardized pumping stations, filtration systems, or compressor packages pre-configure I/O addressing using the KL4501X1-BB1 series. When skids arrive at plant sites, they integrate into existing DeltaV networks within hours instead of days, reducing commissioning costs by $15,000-$30,000 per skid.

✓ Redundant Safety Instrumented Systems (SIS): Emergency shutdown systems and fire & gas detection networks require fault-tolerant I/O with seamless failover. Address plugs enable primary and backup CHARM modules to share addressing space, ensuring sub-second switchover during controller failures without process trips.

✓ Offshore Platform Retrofits: Space-constrained installations on oil platforms and FPSOs benefit from the compact addressing architecture. A North Sea operator replaced legacy marshalling cabinets with DeltaV CHARM systems using 180 KL4501X1-BB1 plugs, reducing cabinet footprint by 35% while improving I/O density from 48 to 128 points per cabinet.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KL4501X1-BB1 when your DeltaV I/O architecture requires Address Plug #2 designation with 1C key position. Verify compatibility with your CHARM module types and baseplate configurations. For installations requiring different address plug numbers (#1, #3-#8), select the corresponding KL4501X1 variant with matching key position. Consult DeltaV I/O wiring diagrams to confirm address plug assignments before ordering.

Extended Functions

Automatic I/O Discovery: When DeltaV controllers scan the CHARM bus during startup, address plugs respond with unique identifiers that populate the I/O database automatically. This eliminates manual I/O mapping in DeltaV Explorer, reducing commissioning errors and enabling rapid system recovery after power failures.

Configuration Retention During Maintenance: Unlike traditional marshalling systems where I/O addressing depends on physical wiring, the KL4501X1-BB1 stores addressing information independently. Technicians can remove CHARM modules for calibration or replacement without losing I/O point assignments, maintaining process continuity during maintenance windows.

Integration with DeltaV Asset Management: Address plug data integrates with AMS Device Manager for comprehensive asset tracking. Maintenance teams can query CHARM locations, replacement history, and configuration changes through centralized asset management interfaces, supporting predictive maintenance strategies and regulatory compliance documentation.

Customization for OEM Applications: Equipment manufacturers can request factory-programmed address plugs with specific addressing schemes for standardized machine designs. This enables plug-and-play integration when equipment is installed at customer sites, reducing field commissioning from days to hours.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock items; 4-6 weeks for factory orders during high-demand periods. Expedited shipping available for critical outage situations with 24-48 hour delivery to major industrial hubs.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for large project quantities (100+ units) with on-site spare parts management.

Technical Support: Pre-sales application engineering assistance for I/O architecture design, address plug assignment planning, and power budget calculations. Post-sales support includes installation guidance, troubleshooting assistance, and configuration verification services.

Documentation Package: Each order includes installation instructions, address plug assignment guidelines, CHARM compatibility matrices, and DeltaV system integration procedures. CAD drawings and 3D models available for cabinet design and panel layout planning.

Frequently Asked Questions

Q: How do I determine which address plug number is required for my DeltaV I/O cabinet?
A: Address plug selection depends on your I/O architecture design and CHARM addressing scheme. Review your DeltaV I/O wiring diagrams and cabinet layout drawings, which specify address plug assignments for each CHARM location. The #2 address plug (KL4501X1-BB1) is typically used for specific cabinet positions or functional I/O groups as defined in your system design documentation.

Q: Can I use the KL4501X1-BB1 with intrinsically safe CHARM modules in hazardous area applications?
A: Yes, when mounted on KL4201X1-BA1 intrinsically safe CHARM baseplates, the KL4501X1-BB1 supports I.S. CHARM modules for Zone 0/Division 1 installations. Verify that your complete CHARM assembly (baseplate + address plug + CHARM module + terminal block) maintains intrinsic safety certification per IECEx/ATEX or FM/CSA standards.

Q: What is the expected service life of CHARM address plugs in continuous operation?
A: Address plugs are passive electronic components with no moving parts or wear mechanisms. Typical service life exceeds 20 years in controlled industrial environments (IP54+ cabinets with temperature management). Failures are rare and usually result from physical damage during CHARM insertion/removal rather than electronic degradation.

Q: How many address plugs should I stock as spare parts for a 500-point DeltaV system?
A: Recommended spare parts strategy: stock 2-3 units of each address plug variant used in your system (typically 3-5 different variants per installation). For a 500-point system with 8 I/O cabinets, this translates to 15-20 total address plugs across all variants, providing coverage for installation damage, future expansions, and emergency replacements.

Q: Can address plugs be reused when reconfiguring I/O cabinets or relocating CHARM modules?
A: Yes, address plugs are fully reusable and can be moved between baseplate locations during system reconfigurations. However, ensure that the new CHARM module matches the address plug's key position (1C for KL4501X1-BB1) to maintain mechanical compatibility. Update DeltaV I/O configuration databases to reflect any addressing changes after physical relocation.

Q: What diagnostic capabilities are available for troubleshooting address plug communication issues?
A: DeltaV controllers provide CHARM bus diagnostics through DeltaV Explorer and AMS Device Manager. If an address plug fails to communicate, diagnostics will show "CHARM Not Found" or "Address Conflict" errors. Troubleshooting steps include verifying baseplate power supply voltage (6.5 VDC ±5%), inspecting address plug seating and pin alignment, checking for physical damage to keying pins, and confirming CHARM bus wiring continuity.

Order Your KL4501X1-BB1 CHARM Address Plug Today

Ensure reliable I/O addressing for your DeltaV control system with genuine Emerson components. Contact our automation specialists for technical consultation, volume pricing for project quantities, or expedited delivery for critical maintenance situations. We support DCS integrators, plant maintenance teams, and OEM equipment manufacturers worldwide with comprehensive DeltaV spare parts inventory and expert application engineering.
