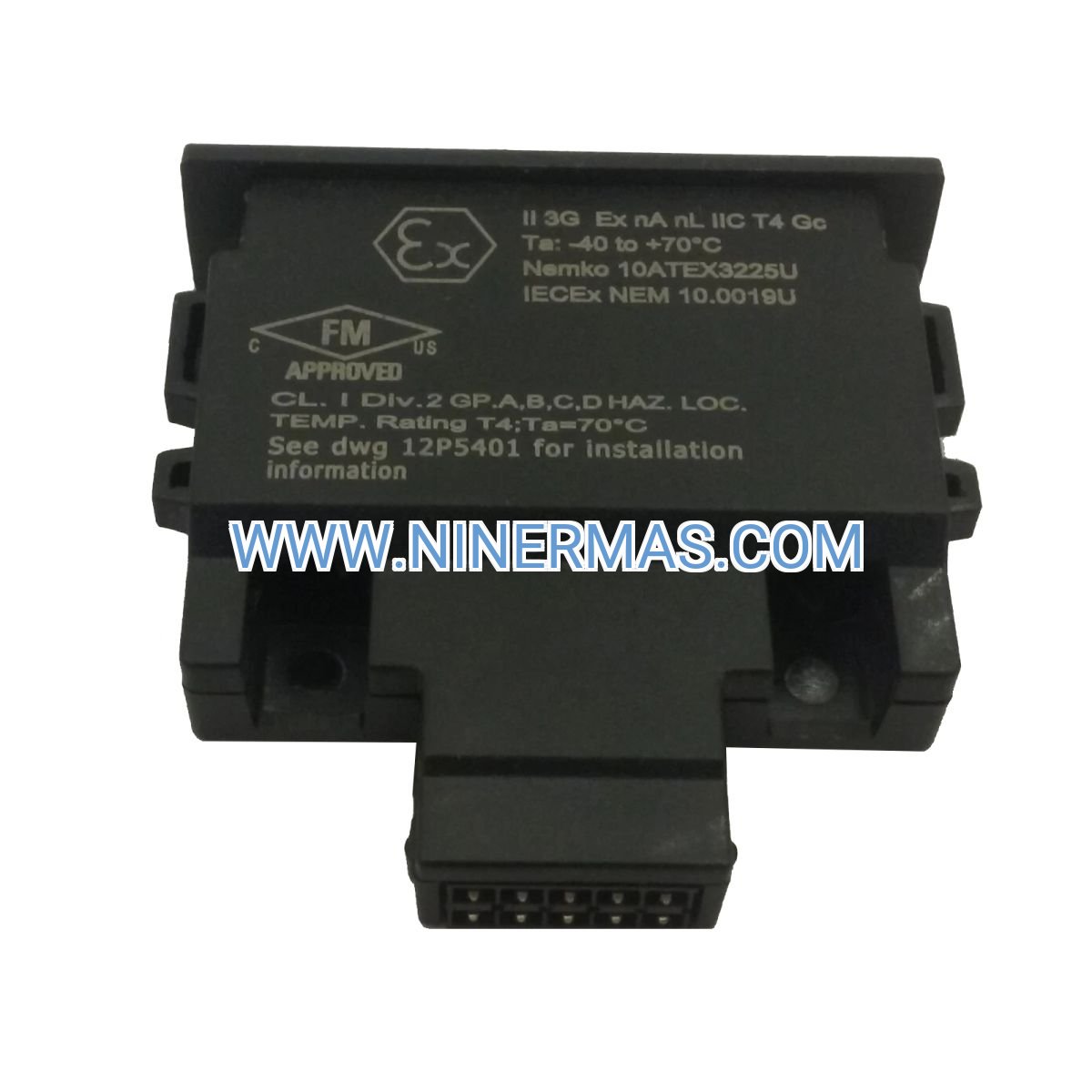

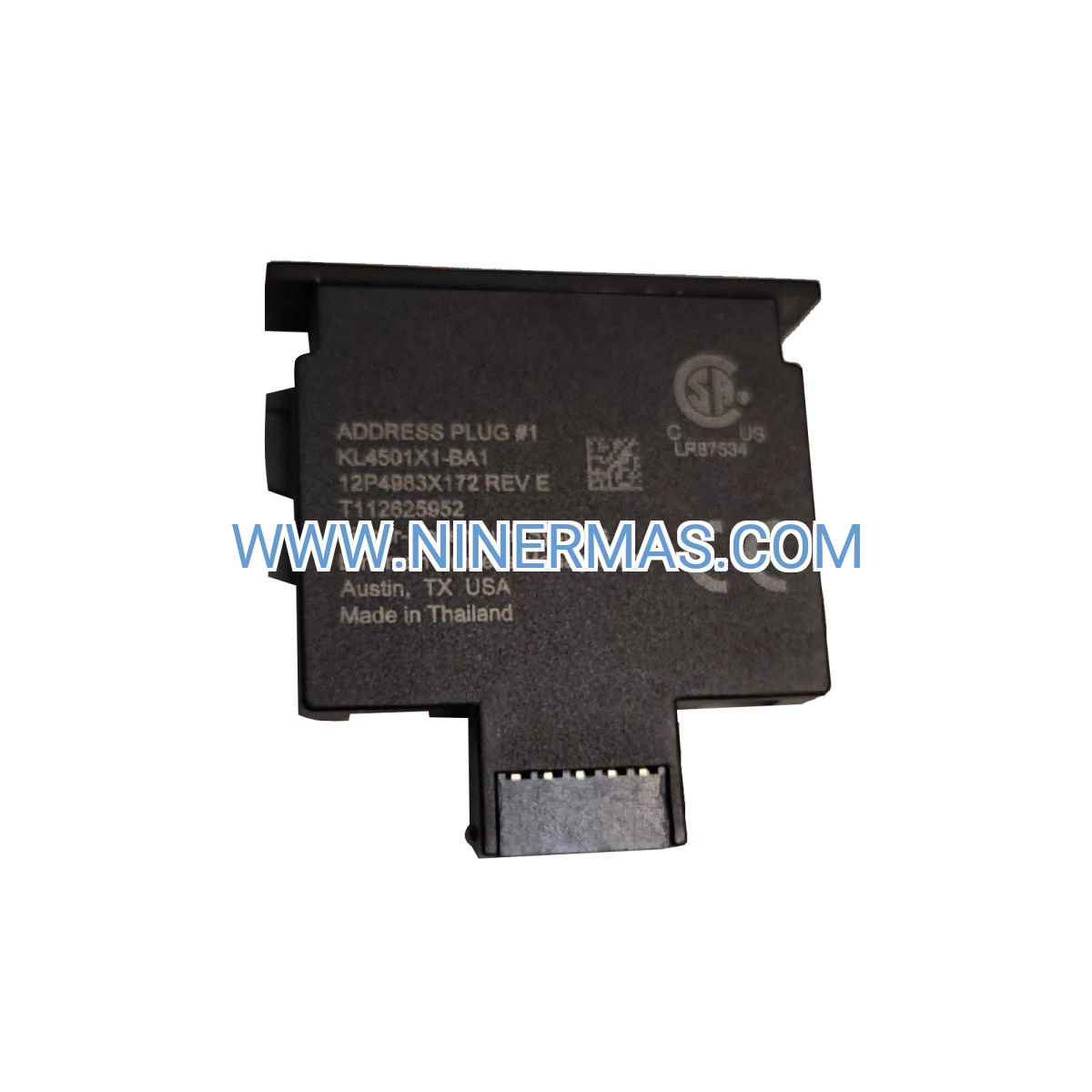

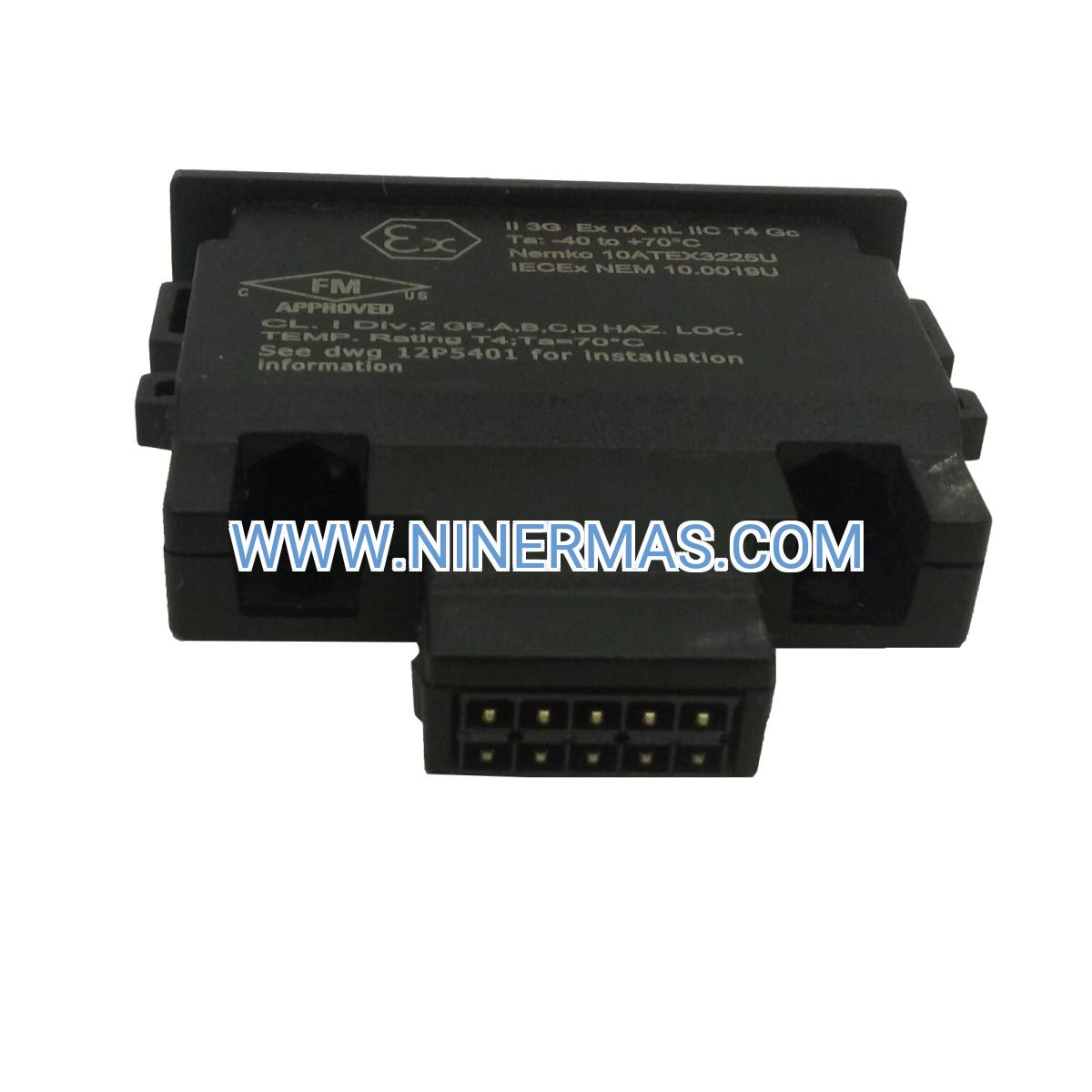

KL4501X1-BA1 CHARM Address Plug #1 (Industrial-Grade I/O Addressing Component)

The Emerson KL4501X1-BA1 represents a mission-critical addressing component within DeltaV CHARM I/O architectures, delivering precise module identification and configuration capabilities for distributed process control systems. Engineered with key position 1A mechanical keying, this address plug ensures foolproof installation while enabling systematic organization of I/O modules across oil & gas, chemical processing, pharmaceutical manufacturing, and power generation facilities.

Built to withstand extreme industrial environments, the KL4501X1-BA1 operates reliably from -40°C to +70°C with ISA-S71.04-1985 Class G3 conformal coating protection against corrosive atmospheres. Its low 7mA power draw and vibration-resistant construction make it ideal for installations near rotating machinery, outdoor enclosures, and offshore platforms where environmental stress is constant.

Whether you're commissioning new DeltaV systems, expanding existing CHARM I/O networks, or maintaining critical spare parts inventory, the KL4501X1-BA1 provides the physical addressing foundation that enables hot-swappable module replacement, simplified troubleshooting, and validated system documentation for regulatory compliance.

Key Features & Technical Advantages

→ Mechanical Keying System: Unique 1A key position prevents incorrect plug installation, eliminating addressing errors during commissioning and maintenance. Each of the 8 available key positions (1A, 1C, 1E, 3A, 3C, 3E, 5A, 5C) corresponds to specific module locations on CHARM carriers.

→ Hot-Swap Enablement: Retains address assignment when CHARM modules are removed for service, allowing replacement modules to automatically assume correct addressing upon insertion—minimizing downtime during emergency repairs.

→ Environmental Resilience: ISA Class G3 conformal coating protects against sulfur dioxide, hydrogen sulfide, chlorine, and other corrosive gases common in chemical plants and refineries. Operates in 5-95% humidity without condensation damage.

→ Vibration & Shock Tolerance: Withstands 10g half-sine shock pulses and continuous vibration up to 0.7g (13.2-150 Hz), suitable for installation adjacent to compressors, pumps, and high-velocity piping systems.

→ Low Power Consumption: Draws only 7mA at 6.5 VDC from the CHARM bus, reducing thermal load on power supplies and enabling higher module density per carrier without exceeding power budgets.

✓ Wide Temperature Range: -40°C to +70°C operation supports outdoor installations, non-climate-controlled MCC rooms, and extreme ambient conditions in desert or arctic environments.

Industrial Application Scenarios

Refinery Distributed Control Systems: In crude distillation units with 200+ I/O points distributed across multiple CHARM carriers, address plugs provide systematic numbering that accelerates troubleshooting. When an analog input module fails, technicians locate the exact position using the address plug number without tracing complex wiring harnesses—reducing mean time to repair by 40%.

Pharmaceutical Batch Processing: FDA-regulated facilities require precise documentation of DCS configurations for validation packages. Address plugs serve as physical evidence of proper I/O addressing, supporting 21 CFR Part 11 compliance during regulatory audits. The mechanical keying prevents unauthorized configuration changes that could invalidate batch records.

Offshore Oil & Gas Platforms: Harsh marine environments with salt spray, temperature extremes, and constant vibration from wave action demand rugged components. The KL4501X1-BA1's conformal coating and vibration resistance ensure reliable addressing despite 24/7 exposure to corrosive atmospheres and mechanical stress from platform movement.

Chemical Plant Expansion Projects: When adding new process units to existing DeltaV systems, standardized address plug numbering schemes enable rapid integration. Pre-engineered skid packages arrive with address plugs pre-installed according to project specifications, reducing field commissioning time by 30%.

Power Generation Control Rooms: Coal-fired and combined-cycle plants with hundreds of CHARM I/O modules benefit from systematic addressing during annual maintenance outages. Spare modules can be quickly swapped without reconfiguring the DCS database, as address plugs maintain position identifiers even when modules are removed.

Technical Specifications & Selection Guide

Selection Criteria: Choose address plug variants based on your CHARM carrier addressing scheme. Each carrier supports up to 8 module positions, requiring address plugs #1 through #8 with corresponding key positions. Maintain complete sets of all 8 variants in critical spare parts inventory to enable rapid module replacement without procurement delays.

CHARM Address Plug Family Overview

Advanced Integration & IoT Connectivity

DeltaV Mobile Integration: When combined with DeltaV Mobile applications, address plug numbering enables technicians to scan QR codes on CHARM carriers and instantly view module configurations, calibration histories, and maintenance schedules on tablets or smartphones—accelerating field diagnostics by 50%.

Asset Management Systems: Address plug identifiers integrate with CMMS platforms (SAP PM, Maximo, eMaint) to track module lifecycle data, predict failure modes based on operating hours, and automatically generate work orders when modules approach recommended replacement intervals.

Digital Twin Applications: In Industry 4.0 implementations, address plug data feeds digital twin models that simulate CHARM I/O network performance, enabling predictive maintenance algorithms to identify potential addressing conflicts before they cause control system faults.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 24-48 hours. Bulk orders (50+ units) typically ship within 5-7 business days. Expedited shipping available for emergency replacements.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical spares inventory.

Technical Support: Our certified DeltaV application engineers provide system design consultation, addressing scheme optimization, and troubleshooting assistance. Support includes configuration file review, wiring diagram verification, and commissioning guidance.

Documentation Package: Each order includes installation instructions, addressing scheme templates, and compatibility matrices. Complete CHARM I/O system manuals available upon request.

Frequently Asked Questions

Q: Can I use the same address plug model for multiple positions on a CHARM carrier?
A: No. Each position requires a unique address plug with the corresponding key position (1A, 1C, 1E, etc.). The mechanical keying prevents installation of incorrect address plugs, ensuring proper module addressing.

Q: What happens if I install a CHARM module without an address plug?
A: The DeltaV controller will not recognize the module, and it will not appear in the I/O configuration. Address plugs are mandatory for proper CHARM module operation.

Q: Are address plugs compatible with both standard and intrinsically safe CHARM baseplates?
A: Yes. Address plugs work with all CHARM baseplate variants, including standard (KL4201X1-AA1) and intrinsically safe (KL4201X1-BA1) models. The addressing mechanism is identical across all baseplate types.

Q: How do I determine which address plug variant I need for a replacement?
A: Check the existing address plug's key position marking (1A, 1C, etc.) molded into the plug body. Order the same variant to maintain your addressing scheme. Alternatively, consult your DCS configuration database or wiring diagrams.

Q: Can address plugs be reused when replacing CHARM modules?
A: Yes. Address plugs remain in the baseplate when modules are removed and can be reused indefinitely unless physically damaged. This enables hot-swap module replacement without reconfiguring addresses.

Q: What is the recommended spare parts strategy for address plugs?
A: Maintain at least one complete set of all 8 address plug variants (KL4501X1-BA1 through BH1) in your critical spares inventory. This ensures you can replace any CHARM module position without procurement delays during emergency repairs.

Order Your KL4501X1-BA1 Address Plug Today

Ensure reliable DeltaV CHARM I/O addressing with genuine Emerson components. Our global logistics network delivers to North America, Europe, Asia-Pacific, and Middle East markets with competitive pricing and volume discounts for project quantities. Contact our technical sales team for addressing scheme consultation, bulk pricing, or expedited delivery options.

Ready to optimize your DeltaV I/O system?
Request a quote or technical consultation today.
Email: sale@ninermas.com | Phone: +0086 187 5021 5667
