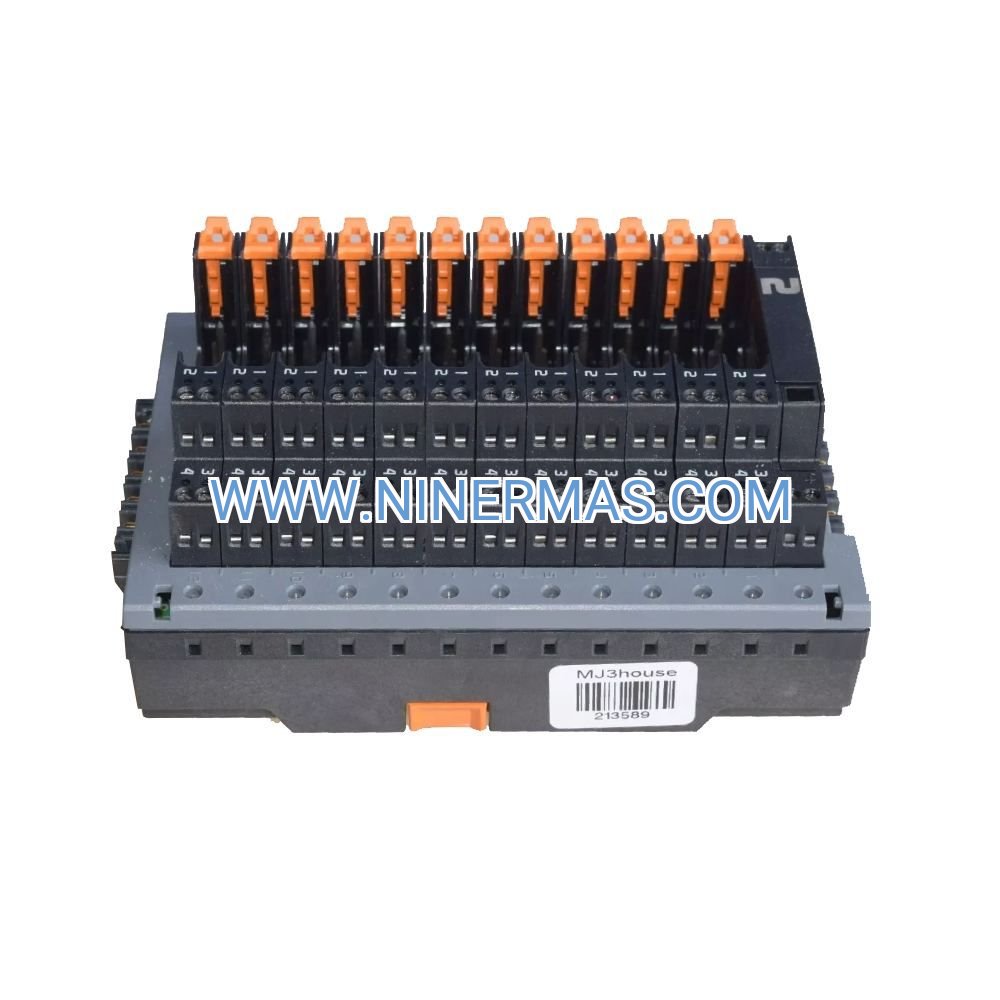

KL4201X1-BA1 Intrinsically Safe CHARM Baseplate (Industrial-Grade DeltaV Mounting Platform)

The KL4201X1-BA1 represents a mission-critical mounting infrastructure for DeltaV distributed control architectures deployed in explosive atmosphere environments. This intrinsically safe CHARM baseplate delivers certified electrical isolation and mechanical stability for I.S. I/O modules across Zone 0, Zone 1, Division 1, and Division 2 classified locations. Engineered for process industries where safety integrity and operational continuity are non-negotiable, this baseplate eliminates ignition risks while maintaining seamless backplane communication between field instruments and control networks.

Designed for plant engineers and automation integrators managing hazardous area installations, the KL4201X1-BA1 solves the dual challenge of regulatory compliance and system reliability. Whether you're retrofitting legacy DeltaV systems or commissioning greenfield facilities in oil refineries, chemical plants, or pharmaceutical manufacturing zones, this baseplate provides the foundation for intrinsically safe signal transmission without compromising diagnostic capabilities or hot-swap serviceability.

Key advantages include FM/CSA/ATEX/IECEx multi-certification for global deployment, DIN rail mounting for rapid installation, and compatibility with the complete DeltaV I.S. CHARM module portfolio—delivering a future-proof platform that reduces total cost of ownership through minimized downtime and simplified maintenance workflows.

Core Capabilities & Business Value

✓ Multi-Zone Hazardous Area Certification
FM, CSA, ATEX, and IECEx approvals enable deployment across Zone 0/1/2 and Division 1/2 environments, eliminating costly re-certification delays and ensuring compliance with international safety standards from OSHA to EU ATEX directives.

✓ Hot-Swappable Module Architecture
Replace or upgrade CHARM I/O modules during live operation without process interruption, reducing mean time to repair (MTTR) by up to 70% compared to traditional hardwired I/O systems and protecting production schedules during critical maintenance windows.

✓ Integrated Backplane Connectivity
Pre-wired communication pathways between baseplate terminals and CHARM modules eliminate 80+ field wiring terminations per I/O rack, cutting installation labor by 40-60% while reducing human error in hazardous area junction boxes.

✓ Extended Temperature Range Operation
-40°C to +70°C operating envelope supports outdoor installations in Arctic pipelines, desert petrochemical facilities, and tropical offshore platforms without supplemental environmental controls, lowering infrastructure costs by $5,000-$15,000 per I/O cabinet.

→ DIN Rail Quick-Mount System
Tool-free snap-on installation to standard 35mm DIN rail reduces commissioning time from 45 minutes to under 10 minutes per baseplate, accelerating project timelines and freeing technicians for higher-value integration tasks.

→ Universal CHARM Module Compatibility
Supports analog input (AI), analog output (AO), digital input (DI), and digital output (DO) CHARM modules across 4-20mA HART, NAMUR, and discrete signal types, providing architectural flexibility for mixed-signal applications without baseplate inventory proliferation.

Industrial Application Scenarios

Upstream Oil & Gas Wellhead Monitoring
In remote drilling sites and offshore platforms, the KL4201X1-BA1 enables intrinsically safe connection of pressure transmitters, temperature sensors, and flow meters in Zone 1 wellhead enclosures. Plant operators gain real-time production data while maintaining SIL-rated safety integrity, preventing ignition events that could trigger catastrophic blowouts or facility evacuations.

Chemical Reactor Control Systems
Pharmaceutical and specialty chemical manufacturers deploy this baseplate in Zone 0 reactor vessels and solvent handling areas where flammable vapor concentrations exceed lower explosive limits (LEL). The I.S. barrier design permits continuous process variable monitoring without introducing electrical energy capable of igniting methanol, acetone, or hydrogen atmospheres—protecting both personnel safety and batch quality.

Petrochemical Distillation Column Automation
Refineries integrate KL4201X1-BA1 baseplates in distillation tower I/O marshalling cabinets to interface with level transmitters, analyzer systems, and control valves in Division 1 process areas. The hot-swap capability allows instrument technicians to replace failed CHARM modules during turnaround windows without depressurizing columns or halting crude processing, preserving $50,000-$200,000 per day in production revenue.

Pharmaceutical Clean Room Environmental Control
Biopharmaceutical facilities utilize this baseplate for monitoring critical environmental parameters (temperature, humidity, differential pressure) in classified manufacturing suites containing isopropyl alcohol and other Class I solvents. The IP20-rated enclosure prevents particulate ingress that could compromise sterile production while maintaining intrinsic safety for solvent vapor zones.

LNG Terminal Loading Arm Interlocks
Liquefied natural gas export terminals install KL4201X1-BA1 baseplates in marine loading arm control panels to manage emergency shutdown (ESD) systems and leak detection networks in Zone 1 jetty areas. The -40°C cold-weather rating ensures reliable operation during cryogenic LNG transfer operations in northern climates without heater trace requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KL4201X1-BA1 when your application requires intrinsically safe I/O in Class I Division 1 or Zone 0/1 areas with DeltaV control infrastructure. For non-hazardous locations, consider standard CHARM baseplates (VE series) to reduce hardware costs by 30-40%. Verify that your CHARM I/O modules carry matching I.S. certifications (Entity or FISCO models) to maintain end-to-end intrinsic safety integrity. Consult entity parameters (Vmax, Imax, Ci, Li) on module datasheets to ensure compatibility with connected field devices and zener barriers.

Critical Technical Indicators: Maximum loop resistance of 300Ω for 4-20mA circuits, voltage drop under 2.5V at full load, isolation voltage rating of 250VAC between I/O channels and backplane, and MTBF exceeding 500,000 hours under IEC 61709 stress conditions.

Extended Functionality

Advanced Diagnostic Integration: The KL4201X1-BA1 supports DeltaV AMS Suite predictive maintenance capabilities, transmitting baseplate health metrics (terminal resistance, backplane communication errors, module insertion status) to central asset management databases. Maintenance teams receive automated alerts for loose terminal connections or corrosion-induced contact degradation before signal failures impact process control.

Cybersecurity-Hardened Communication: Backplane data exchange employs encrypted handshake protocols compliant with IEC 62443 industrial cybersecurity standards, preventing unauthorized CHARM module substitution or man-in-the-middle attacks on I/O signal paths—critical for facilities subject to NERC CIP or FDA 21 CFR Part 11 data integrity requirements.

Modular Expansion Architecture: Deploy multiple KL4201X1-BA1 baseplates on shared DIN rail assemblies to create scalable I/O racks supporting 8, 16, or 32+ I.S. signal channels. Standardized 35mm spacing permits high-density installations in space-constrained marshalling panels while maintaining NEC Article 501 separation distances for intrinsically safe wiring.

Customization Options: Emerson offers factory-configured variants with alternative terminal block styles (spring-clamp, push-in), conformal coating for corrosive atmosphere protection (NEMA 4X equivalent), and extended temperature ratings to -55°C for Arctic applications. Consult factory representatives for lead times on custom certifications (KOSHA, PESO, INMETRO) required for South Korean, Indian, or Brazilian installations.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock KL4201X1-BA1 units shipping from regional distribution centers in North America, Europe, and Asia-Pacific. Expedited same-day dispatch available for critical outage scenarios with premium freight surcharges.

Custom Configuration Lead Time: 4-6 weeks for factory-modified baseplates with non-standard certifications, alternative terminal blocks, or conformal coating treatments. Engineering review and certification documentation add 2-3 weeks to standard production cycles.

Warranty Coverage: 24-month manufacturer's warranty covering material defects and workmanship failures under normal operating conditions. Warranty excludes damage from improper installation, overvoltage events, or operation beyond published environmental specifications.

Technical Support Services: Lifetime access to Emerson Global Support Network including 24/7 emergency hotline, remote diagnostic assistance via DeltaV Live operator, and on-site commissioning support for projects exceeding 50 I/O points. Annual support contracts available with guaranteed 4-hour response SLAs.

Documentation Package: Each baseplate ships with installation manual (multi-language), hazardous area certification certificates (FM/ATEX/IECEx), CAD drawings (DWG/PDF formats), and loop wiring diagrams. Digital asset library includes 3D STEP models for panel layout design and Autodesk Inventor assemblies for mechanical integration.

Frequently Asked Questions

Q: How do I interface the KL4201X1-BA1 baseplate with existing DeltaV controllers?
A: The baseplate connects to DeltaV M-series or S-series controllers via CHARM I/O modules that plug into the baseplate socket. Field wiring terminates on baseplate screw terminals, while the CHARM module handles signal conditioning and digital communication over the DeltaV carrier network. No direct controller-to-baseplate wiring is required—all data exchange occurs through the CHARM module's backplane interface.

Q: What is the maximum I/O channel capacity per baseplate?
A: Each KL4201X1-BA1 baseplate accommodates one CHARM I/O module. Channel count depends on the installed module type: 8 channels for analog input modules (KL3101X1), 4 channels for analog output modules (KL4001X1), 16 channels for discrete input modules (SE6504), or 8 channels for discrete output modules. Deploy multiple baseplates on shared DIN rail to scale total I/O capacity.

Q: Does the intrinsically safe design reduce energy consumption compared to conventional I/O?
A: Yes. Intrinsically safe circuits limit current to 20-30mA maximum, reducing power dissipation by 60-75% versus traditional 4-20mA loops with 24VDC power supplies. A 32-channel I.S. I/O rack typically consumes under 15W total, lowering UPS sizing requirements and cooling loads in marshalling cabinets—translating to $200-$500 annual energy savings per cabinet in continuous process facilities.

Q: What are the installation requirements for mounting in hazardous classified areas?
A: Install the baseplate inside a purged/pressurized enclosure (Type X/Y/Z per NFPA 496) or explosion-proof junction box rated for the area classification. Maintain minimum 50mm separation from non-I.S. wiring per NEC Article 504. Use blue-insulated I.S. cable for field wiring and apply permanent "Intrinsic Safety" labels at all termination points. Verify that total cable capacitance and inductance remain within entity parameters published on CHARM module certification drawings.

Q: Can I monitor baseplate health status remotely through DeltaV control system?
A: Absolutely. The KL4201X1-BA1 transmits diagnostic data (module presence, backplane communication status, terminal block continuity) to DeltaV controllers via CHARM module health registers. Configure AMS Device Manager to poll these parameters every 60 seconds and trigger email/SMS alerts when anomalies are detected. Historical trend data supports predictive maintenance strategies, identifying baseplates approaching end-of-life before catastrophic failures occur.

Q: Is the baseplate compatible with third-party intrinsically safe barriers and isolators?
A: The KL4201X1-BA1 is designed for use with Emerson's integrated I.S. CHARM modules that incorporate internal barrier circuits. However, it can interface with external zener barriers (MTL, Pepperl+Fuchs, Stahl) when using non-I.S. CHARM modules in the baseplate—though this configuration sacrifices hot-swap capability and diagnostic transparency. For optimal performance, deploy I.S.-certified CHARM modules (KL-series, SE-series) that eliminate external barrier requirements.

Take the Next Step

Ready to enhance your DeltaV system's safety integrity and operational flexibility? Contact our industrial automation specialists today for application-specific guidance, hazardous area certification verification, and volume pricing for multi-site deployments. Request a technical datasheet package including loop drawings, certification matrices, and compatibility charts—or schedule a virtual consultation to review your I/O architecture and identify optimization opportunities.

Get a Quote: Email your project specifications (I/O count, area classification, delivery timeline) to our sales team for same-day pricing and lead time confirmation.
