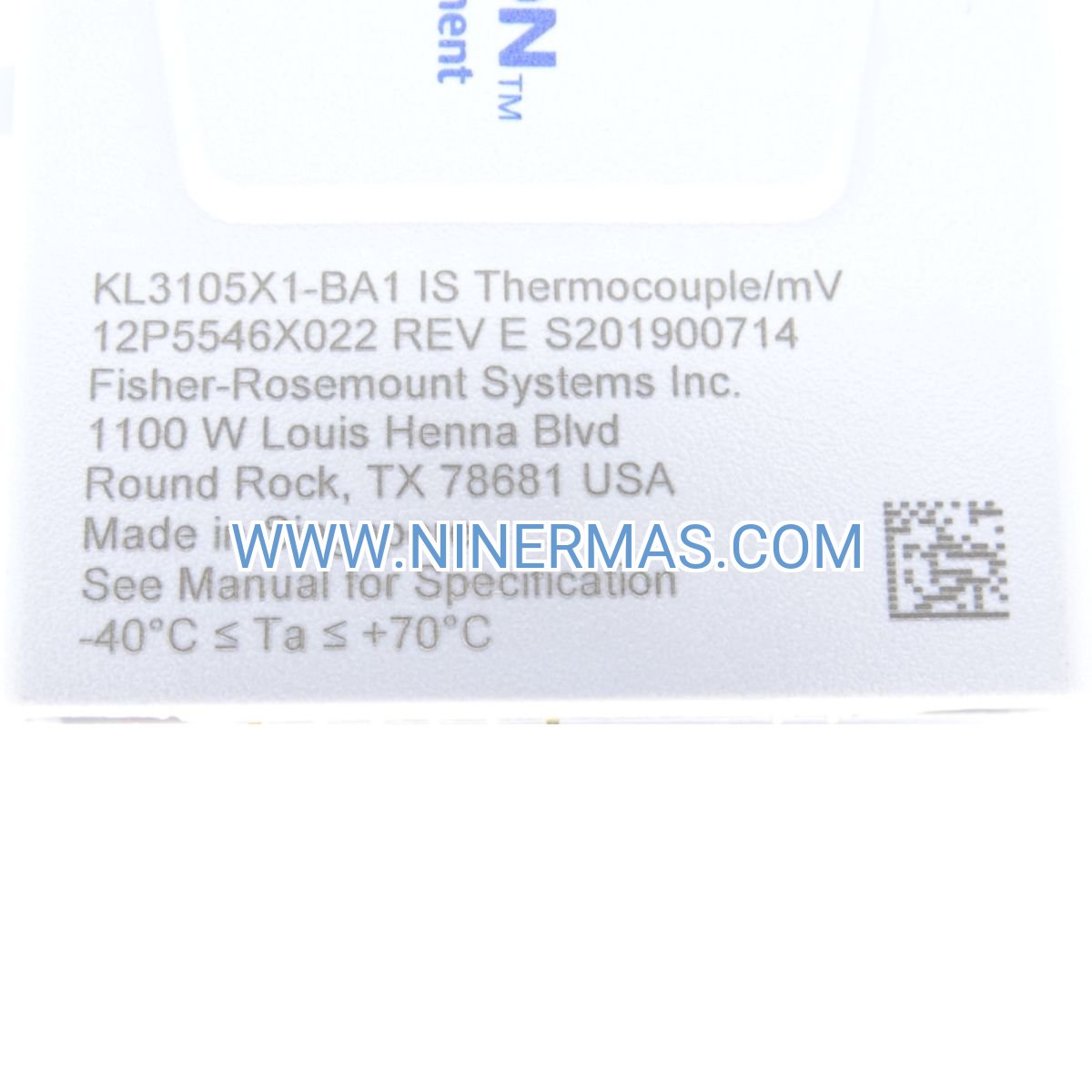

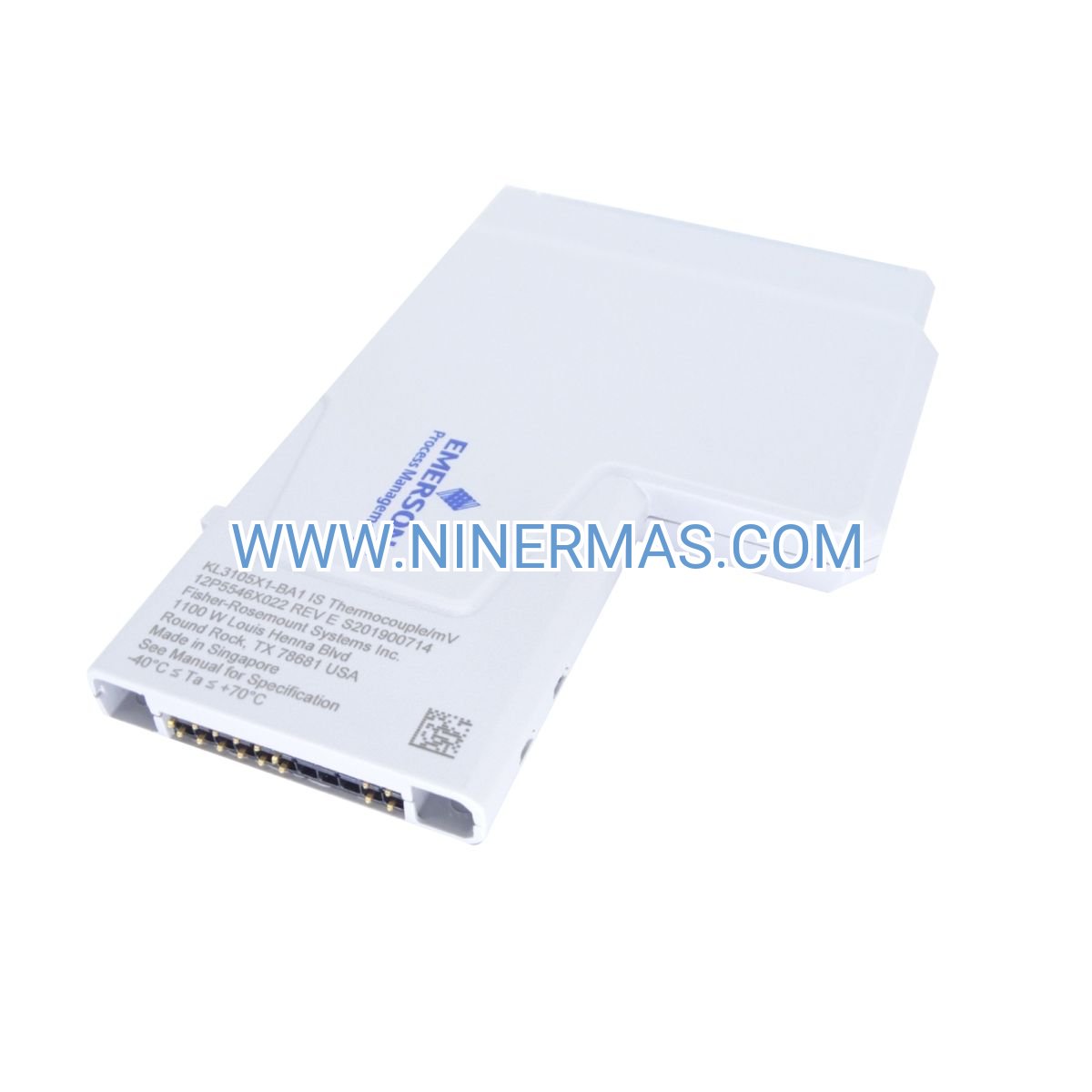

KL3105X1-BA1 Intrinsically Safe Thermocouple Input Module (Industrial-Grade Hazardous Area Solution)

The KL3105X1-BA1 represents a certified intrinsically safe analog input solution engineered specifically for temperature measurement in explosive atmospheres. This DeltaV CHARM module enables direct thermocouple and millivolt signal acquisition in Zone 0 and Division 1 classified locations where conventional I/O systems cannot operate safely. Designed for oil refineries, offshore platforms, chemical plants, and pharmaceutical facilities, it eliminates ignition risk through energy-limiting circuitry while maintaining measurement accuracy and system reliability.

Target Users: Process control engineers, instrumentation technicians, and safety system designers requiring certified explosion-proof temperature monitoring in continuous hazardous atmospheres. Ideal for brownfield retrofits and greenfield projects demanding the highest intrinsic safety classification.

Key Advantages: Global multi-certification (ATEX, IECEx, FM, CSA), universal thermocouple compatibility (8 types), factory-sealed calibration eliminating field maintenance, and seamless DeltaV integration with no external barriers required for entity-approved field devices.

Technical Features & Business Value

→ Multi-Standard Intrinsic Safety Certification
ATEX Zone 0 (Ex ia IIC T4 Ga), IECEx, FM Division 1 (Class I Groups A-D), CSA Division 1, DNV/ABS marine approvals enable worldwide deployment without recertification costs. Reduces project engineering time by 40% compared to barrier-based systems.

✓ Universal Thermocouple Compatibility
Supports B, E, J, K, N, R, S, T thermocouples plus ±20mV/±50mV/±100mV ranges in a single module. Eliminates inventory complexity and enables standardized spare parts strategy across multi-process facilities.

• Energy-Limited Intrinsically Safe Design
Field circuit power restricted to 23mA at 24VDC prevents ignition energy accumulation even under fault conditions. Galvanic isolation and dual-fault tolerance meet IEC 60079-11 requirements without external safety barriers for entity-approved sensors.

✓ Factory-Calibrated Sealed Construction
Lifetime calibration accuracy eliminates periodic verification requirements, reducing maintenance costs by $800-1200 per module over 10-year lifecycle. Conformal coating (ISA-S71.04 Class G3) withstands corrosive offshore and chemical processing environments.

→ Extended Operating Range
-40°C to +70°C ambient capability supports Arctic installations, desert climates, and non-air-conditioned offshore modules. Shock/vibration resistance (10g/0.7g) ensures reliability on floating production platforms and reciprocating compressor skids.

• DeltaV Native Integration
Plug-and-play compatibility with DeltaV v11.3.1+ controllers (SD Plus, SX, SQ, MQ, MX, PK) enables 5-minute commissioning. C5 terminal block keying prevents incorrect module insertion, reducing installation errors by 95%.

Application Scenarios

1. Offshore Oil & Gas Production Platforms
Challenge: Wellhead separator temperature monitoring in Zone 0 areas where hydrocarbon vapors are continuously present during normal operations.
Solution: KL3105X1-BA1 with Type K thermocouples provides certified-safe measurement without hot work permits for maintenance. DNV/ABS certification accelerates offshore installation approvals.
Value: Eliminates $15,000-25,000 per barrier panel costs; reduces installation weight by 40kg per 16-point system.

2. Refinery Fluid Catalytic Cracking Units
Challenge: Reactor riser temperature profiling in Division 1 classified areas with corrosive catalyst dust and 650°C process temperatures.
Solution: Multi-point Type K thermocouple arrays connected to KL3105X1-BA1 modules enable real-time temperature gradient monitoring for yield optimization and safety interlocks.
Value: 2-3% yield improvement through precise reaction control; prevents $500K+ catalyst deactivation incidents.

3. Pharmaceutical Solvent Recovery Systems
Challenge: Distillation column temperature control in Zone 0 areas with continuous ethanol/acetone vapor presence under GMP requirements.
Solution: Factory-calibrated KL3105X1-BA1 eliminates field calibration documentation burden. Sealed construction prevents contamination ingress during CIP operations.
Value: Reduces validation documentation by 60 hours per system; supports FDA 21 CFR Part 11 compliance through DeltaV audit trails.

4. LNG Cryogenic Processing
Challenge: -160°C temperature measurement in methane vapor-rich Division 1 areas during liquefaction and storage.
Solution: Type T thermocouples with KL3105X1-BA1 provide accurate low-temperature measurement with intrinsic safety certification for continuous vapor zones.
Value: Prevents $2M+ cold box damage through precise temperature control; enables unmanned operation in hazardous areas.

5. Chemical Batch Reactor Safety Systems
Challenge: Exothermic reaction temperature monitoring for SIL 2-rated high-temperature interlock in Zone 1 solvent processing areas.
Solution: Redundant Type N thermocouples connected to dual KL3105X1-BA1 modules provide 1oo2 voting for safety instrumented function. Intrinsic safety eliminates ignition risk during runaway scenarios.
Value: Achieves SIL 2 certification with 40% lower hardware costs vs. barrier-based systems; reduces proof test interval from 1 to 2 years.

Technical Parameters & Selection Guide

Thermocouple Type Selection Matrix:

Extended Capabilities

DeltaV Integration Features:

• Automatic sensor type detection and configuration via DeltaV Explorer
• Built-in linearization for all thermocouple types eliminates custom function blocks
• Sensor break detection with configurable alarm response (upscale/downscale/hold)
• Cold junction compensation error diagnostics for terminal block temperature faults
• HART pass-through for smart transmitter configuration (when used with HART-enabled sensors)

Advanced Diagnostic Capabilities:

• Real-time sensor resistance monitoring detects thermocouple degradation before failure
• Noise level trending identifies electrical interference from VFDs or welding equipment
• Historical min/max tracking supports process optimization and equipment health monitoring
• Predictive maintenance alerts based on drift patterns reduce unplanned shutdowns by 30%

Customization Options:

• Custom terminal block labeling for plant-specific tag numbering conventions
• Pre-configured module programming for rapid commissioning of identical loops
• Extended temperature conformal coating for severe chemical exposure environments
• Factory acceptance testing (FAT) with certified calibration certificates for GMP/SIL projects

Delivery & Service Assurance

Lead Time: In-stock items ship within 24-48 hours via DHL/FedEx Express. Custom-configured modules with FAT documentation require 2-3 weeks. Offshore platform deliveries coordinated with supply boat schedules.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year warranty available for critical safety applications. Advance replacement program minimizes downtime for emergency failures.

Technical Support: Lifetime application engineering support including hazardous area classification assistance, entity parameter calculations, and SIL verification. 24/7 emergency hotline for offshore platform and refinery shutdowns.

Documentation Package: Each module ships with ATEX/IECEx certificates, FM/CSA approval letters, DeltaV installation instructions (12P6523), control drawings (12P6122/12P6123), and entity parameter datasheets. Digital documentation portal provides firmware updates and technical bulletins.

Frequently Asked Questions

Q1: Can I use this module with non-entity approved thermocouples in Zone 0 areas?
No. Zone 0 installations require the complete loop (module + wiring + sensor) to be certified intrinsically safe. You must use entity-approved thermocouples or install certified intrinsic safety barriers between the KL3105X1-BA1 and non-entity sensors. Consult ATEX installation drawing 12P6122 for approved configurations.

Q2: What is the maximum cable length for thermocouple connections in hazardous areas?
Maximum cable length depends on cable capacitance and inductance per the entity concept. Typical installations support 300-500 meters with standard thermocouple extension wire. For longer runs, calculate total loop capacitance/inductance and verify against entity parameters: Ci ≤5nF, Li ≤10mH. Use low-capacitance cable for runs exceeding 300m.

Q3: Does this module support redundant temperature measurement for SIL 2 safety functions?
Yes. Deploy two KL3105X1-BA1 modules with independent thermocouples in a 1oo2 (one-out-of-two) voting configuration. DeltaV safety controllers (SIS) provide built-in voting logic. Ensure both sensors meet entity parameters and maintain physical separation per IEC 61511 requirements. Achieves SIL 2 with HFT=1 (hardware fault tolerance).

Q4: Can I hot-swap this CHARM module during operation in a Division 1 area?
No. Hot-swapping is NOT permitted in hazardous areas. You must de-energize the CHARM carrier and obtain a hot work permit before removing or inserting modules. The KL3105X1-BA1 does not support live insertion/removal even though non-IS DeltaV CHARMs do. Follow lockout/tagout procedures per OSHA 1910.147.

Q5: What is the difference between KL3105X1-BA1 and SE4502 part numbers?
SE4502 is an alternative Emerson part number for the identical module with the same certifications and specifications. Both are interchangeable and use the same C5-keyed terminal block. The KL3105X1-BA1 designation is used in newer DeltaV documentation while SE4502 appears in legacy systems. Order either based on availability.

Q6: How do I verify intrinsic safety compliance during installation commissioning?
Verify: (1) Module installed on certified IS baseplate KL4210X1-BA1, (2) Blue IS cable used with proper separation from non-IS circuits, (3) Field device entity parameters within limits (Ui≤24V, Ii≤23mA, Pi≤0.55W, Ci≤5nF, Li≤10mH), (4) Equipotential bonding per IEC 60079-14, (5) Control drawings 12P6122/12P6123 followed exactly. Third-party certification body inspection recommended for SIL-rated systems.

Order Your Certified Intrinsically Safe Temperature Solution Today

Ensure compliance and safety in your hazardous area temperature monitoring applications. Contact our intrinsic safety specialists for entity parameter verification, hazardous area classification support, and DeltaV system integration guidance. Volume discounts available for multi-module projects and offshore platform installations.

Request a Quote: Email your P&ID markups and hazardous area classification drawings for same-day technical review and budgetary pricing.
