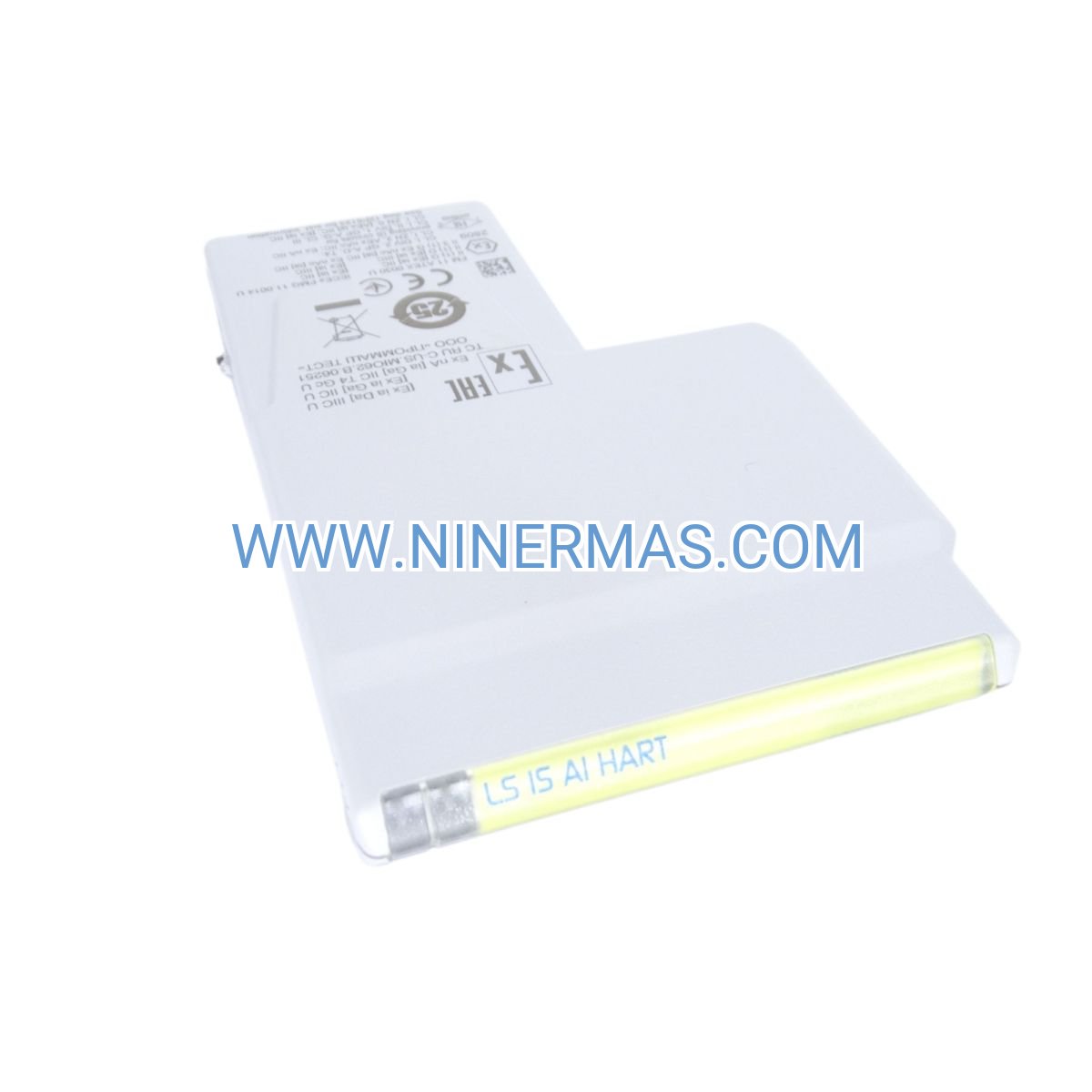

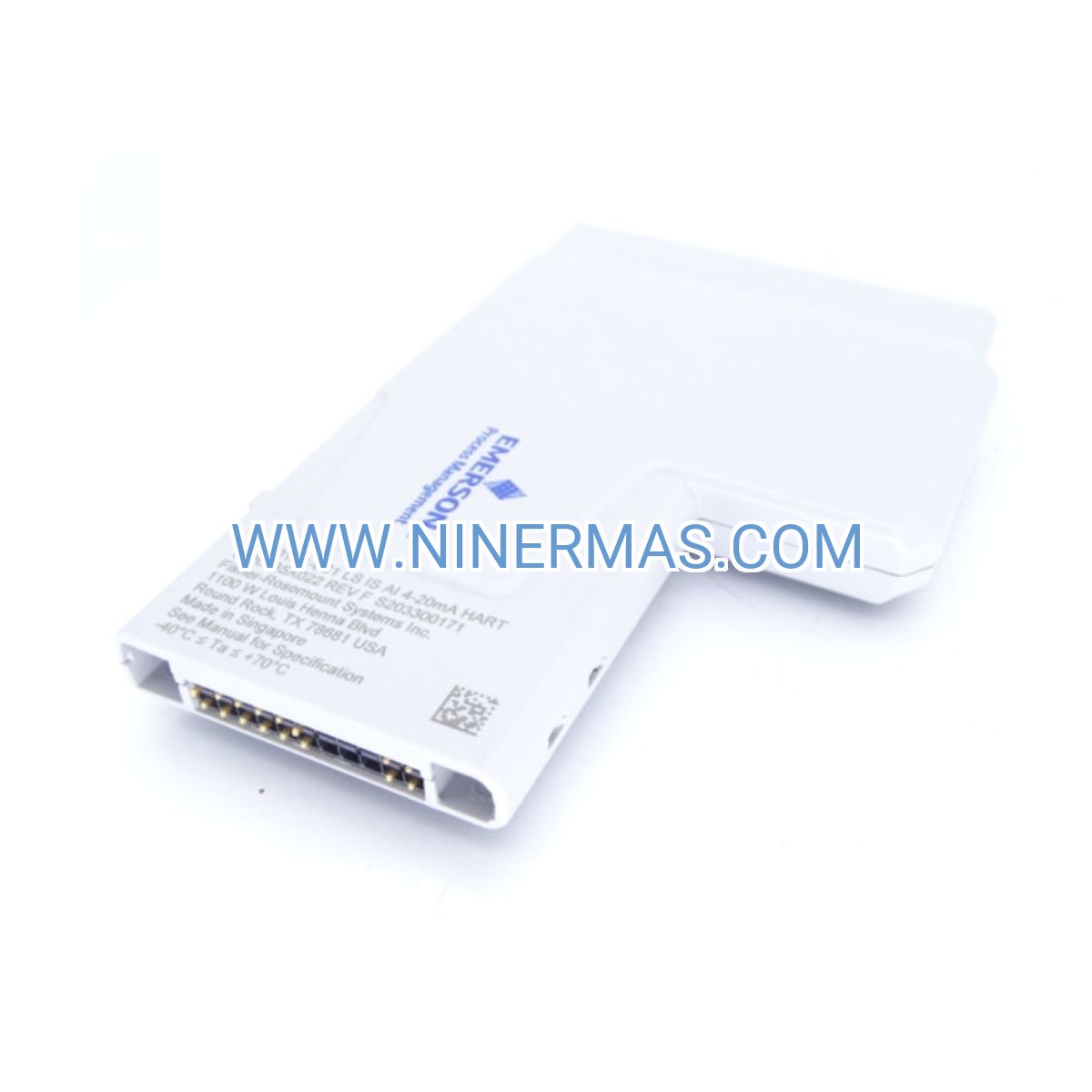

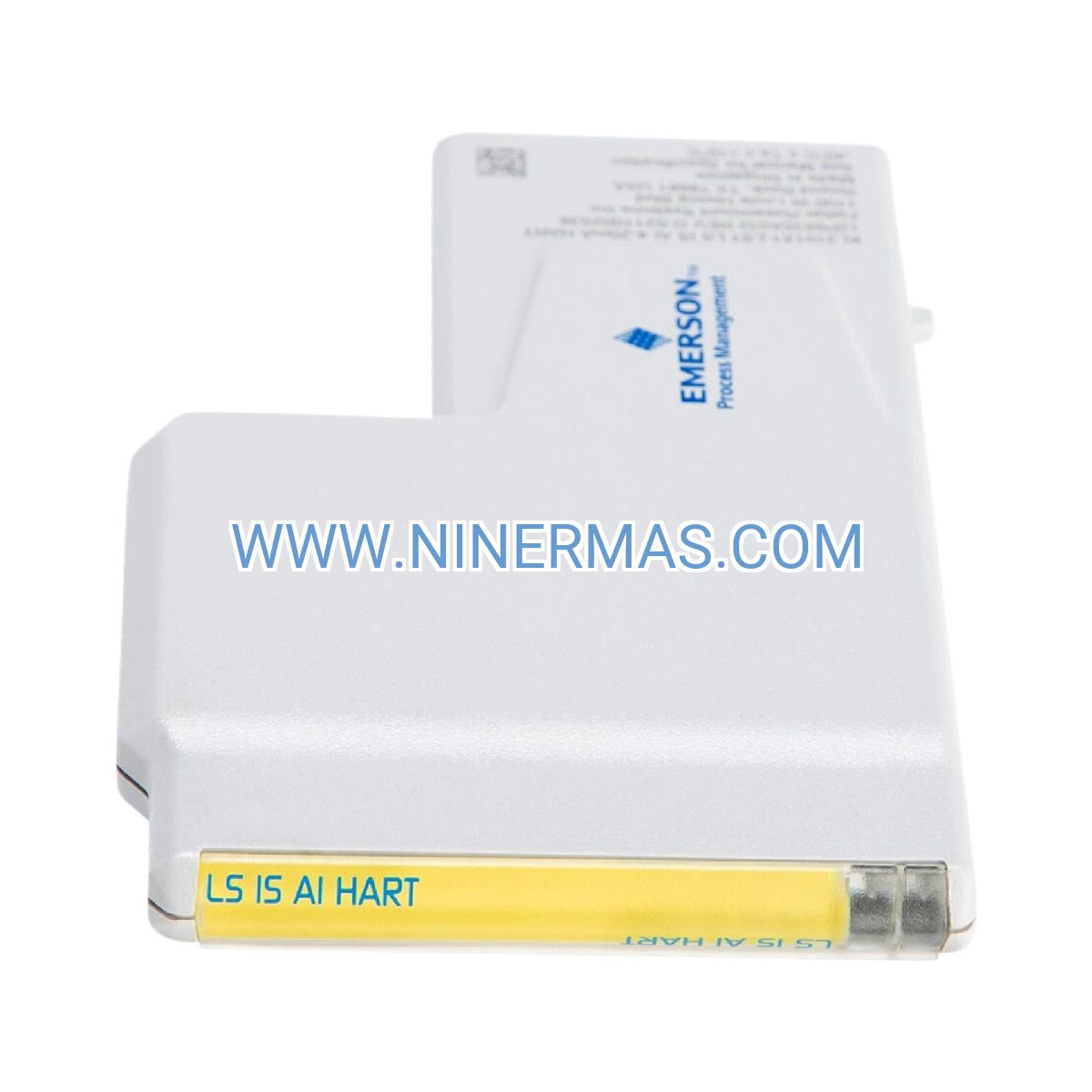

KL3101X1-LS1 Intrinsically Safe Analog Input Module (Industrial-Grade HART-Enabled CHARM I/O)

The KL3101X1-LS1 represents a breakthrough in hazardous area instrumentation—an intrinsically safe analog input module that eliminates traditional safety barriers while delivering certified Zone 0/Division 1 protection for DeltaV distributed control systems. Designed for direct installation in explosive atmospheres, this CHARM-based I/O card combines 4-20mA signal acquisition with HART digital communication, enabling real-time process monitoring and smart device diagnostics in oil refineries, offshore platforms, chemical plants, and pharmaceutical facilities where flammable gases or vapors demand the highest safety integrity levels.

Unlike conventional analog input cards that require costly intrinsic safety barriers and complex wiring infrastructure, the KL3101X1-LS1 integrates energy-limiting circuitry directly within the module housing. This barrier-free architecture reduces installation footprint by up to 40%, cuts commissioning time, and eliminates potential failure points in safety-critical loops. For plant engineers managing brownfield expansions or greenfield projects in classified areas, this translates to lower total cost of ownership, simplified loop drawings, and faster regulatory approval cycles.

Whether you're retrofitting aging DCS infrastructure on an FPSO vessel, expanding capacity in a catalytic cracker unit, or implementing predictive maintenance strategies through HART diagnostics, the KL3101X1-LS1 delivers field-proven reliability backed by global certifications from ATEX, IECEx, FM, CSA, and marine classification societies. Ready to simplify your hazardous area I/O architecture? Contact our application engineers for entity parameter calculations and project-specific technical support.

Key Features & Industrial Benefits

→ Certified Intrinsic Safety for Zone 0/Division 1 Environments
ATEX II 1G Ex ia IIC T4 Ga and IECEx Ex ia IIC T4 Ga certifications permit installation in areas where explosive gas atmospheres are continuously present or expected during normal operations. FM and CSA Division 1 approvals cover Class I Groups A-D for North American installations. This eliminates the need for purged enclosures or expensive explosion-proof housings, reducing equipment costs by 25-35% compared to traditional barrier-based designs.

✓ HART Version 7 Protocol Integration
Bi-directional HART communication overlay enables access to transmitter diagnostics, configuration parameters, and multi-variable data without additional wiring or I/O points. Perform remote zero/span calibrations, monitor sensor health indicators, and retrieve process alerts from the control room—minimizing confined space entries and hot work permits in hazardous zones. Compatible with AMS Device Manager and all HART-certified field instruments.

✓ Integrated 24V DC Field Power Supply
Provides 60mA loop power for energizing 2-wire transmitters directly from the CHARM module, eliminating separate power distribution requirements in the field junction box. Simplifies wiring schematics, reduces cable count, and ensures consistent excitation voltage across temperature extremes from -40°C to +70°C—critical for maintaining measurement accuracy in Arctic offshore installations and desert petrochemical complexes.

✓ Barrier-Free Installation Architecture
Energy-limiting circuitry certified to entity concept standards allows direct connection to intrinsically safe field devices without Zener barriers, galvanic isolators, or repeater power supplies. This reduces marshalling cabinet space by 50%, cuts installation labor hours, and improves system reliability by removing potential points of failure in the safety loop. Cable capacitance and inductance parameters support runs up to 1,500 meters with standard instrumentation cable.

✓ Hot-Swap Capability with Safety Interlocks
While the module supports removal and insertion on certified IS baseplates, power-off procedures are mandatory in hazardous areas to maintain intrinsic safety integrity. This design ensures compliance with IEC 60079-11 energy limitation requirements while enabling planned maintenance during scheduled shutdowns. Status LEDs provide visual confirmation of module health and communication activity.

✓ Extreme Environment Durability
Conformal coating protects against corrosive atmospheres per ISA-S71.04 Class G3 standards. Shock resistance to 10g and vibration tolerance to 0.7g meet offshore platform and rotating equipment installation requirements. Operating temperature range of -40°C to +70°C accommodates cryogenic LNG facilities, high-temperature reformer units, and outdoor installations in extreme climates without derating or thermal management systems.

Industrial Application Scenarios

Offshore Oil & Gas Production Platforms
Challenge: Wellhead pressure and temperature monitoring in Zone 0 areas on FPSOs and fixed platforms requires intrinsically safe I/O, but traditional barrier panels consume valuable topside real estate and add weight to structural load calculations.
Solution: Deploy KL3101X1-LS1 modules in local control panels near process equipment, connecting directly to transmitters without barriers. HART diagnostics enable condition-based maintenance of critical safety instrumentation, reducing helicopter visits for calibration and troubleshooting. DNV and ABS marine certifications streamline classification society approvals.
Value Delivered: 40% reduction in marshalling cabinet footprint, 30% faster installation versus barrier-based systems, remote diagnostics capability eliminates 60% of offshore technician callouts.

Refinery Fluid Catalytic Cracking Units
Challenge: Division 1 classified areas surrounding reactor vessels, regenerators, and fractionation columns require hundreds of analog inputs for temperature, pressure, and flow control—traditional barrier installations create maintenance bottlenecks and single points of failure.
Solution: Intrinsically safe CHARM modules installed in field-mounted DeltaV controllers reduce signal cable runs by 70%, improve loop response times, and eliminate barrier calibration drift issues. HART pass-through provides access to transmitter diagnostics for predictive maintenance programs targeting 99.5% uptime.
Value Delivered: $180K savings on barrier panels and installation labor for 200-point expansion project, 15% improvement in control loop performance through reduced signal latency.

Chemical Batch Reactor Monitoring
Challenge: Zone 0 areas inside reactor containment require real-time pressure and temperature monitoring during exothermic reactions, but conventional I/O systems cannot be installed within classified boundaries.
Solution: KL3101X1-LS1 modules mounted on IS baseplates inside containment structures provide direct sensor interface with certified energy limitation. Multi-variable HART transmitters deliver primary process variable plus electronics temperature and diagnostic alerts through single I/O point, optimizing channel utilization.
Value Delivered: Enables real-time safety instrumented system (SIS) integration for SIL 2 applications, reduces reaction batch cycle time by 8% through improved measurement accuracy.

LNG Liquefaction & Regasification Terminals
Challenge: Cryogenic temperature measurement in Zone 0 areas around LNG storage tanks and vaporizers demands intrinsically safe I/O that maintains accuracy across -196°C to +50°C process conditions.
Solution: Wide operating temperature range (-40°C to +70°C ambient) and low-temperature cable specifications support RTD and thermocouple transmitter installations in cryogenic service. HART communication enables remote sensor linearization and cold junction compensation adjustments without entering hazardous areas.
Value Delivered: Meets NFPA 59A and EN 1473 safety requirements, supports custody transfer measurement accuracy of ±0.1% through superior signal integrity.

Pharmaceutical Solvent Recovery Systems
Challenge: Zone 0 classified solvent storage and distillation areas in API manufacturing facilities require intrinsically safe instrumentation that supports FDA 21 CFR Part 11 validation and GMP documentation.
Solution: Intrinsic safety certification documentation and DeltaV batch management integration provide complete audit trail for regulatory compliance. HART device descriptions and electronic device data sheets (EDDS) support validation protocols and change control procedures.
Value Delivered: Accelerates FDA pre-approval inspection (PAI) readiness, reduces validation documentation effort by 40% through standardized I/O platform.

Technical Specifications & Selection Guide

Selection Criteria: Choose KL3101X1-LS1 when field devices are located in Zone 0/Division 1 areas and barrier elimination is desired. For Zone 1/Division 2 applications where barriers are acceptable, consider standard AI CHARM modules (SE4003) for lower cost. Verify field device entity parameters (Uo, Io, Po, Co, Lo) are compatible with module limits before specifying. For applications requiring >60mA loop power, use external IS power supplies with appropriate entity calculations.

Advanced Integration Capabilities

DeltaV Batch Management Integration: Intrinsically safe analog inputs support recipe-driven process control in pharmaceutical and specialty chemical batch operations. HART device tags and descriptors populate automatically in batch reports for electronic batch record (EBR) compliance. Phase logic can trigger HART commands for transmitter range changes or diagnostic resets during recipe transitions.

AMS Suite Predictive Maintenance: HART diagnostic data streams to AMS Device Manager for condition monitoring and predictive maintenance workflows. Alert thresholds for sensor drift, electronics temperature, power supply voltage, and communication errors trigger work orders in CMMS systems. Trend analysis identifies degradation patterns weeks before failure, enabling planned maintenance during scheduled turnarounds.

OPC UA and MQTT Connectivity: DeltaV v14+ supports OPC UA server functionality, enabling intrinsically safe I/O data to flow to cloud analytics platforms, historian databases, and third-party SCADA systems. MQTT publish/subscribe patterns support IIoT architectures for remote asset monitoring and digital twin applications in offshore and pipeline operations.

Cybersecurity Hardening: Intrinsic safety certification does not compromise DeltaV cybersecurity features—CHARM modules support encrypted CHARM bus communication, role-based access control (RBAC) for configuration changes, and audit logging per IEC 62443 industrial cybersecurity standards. HART communication is isolated from Ethernet networks, preventing lateral movement in segmented OT architectures.

Delivery, Warranty & Technical Support

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx with full hazmat documentation. Project quantities (50+ modules) available with 4-6 week lead time—contact our sales team for volume pricing and delivery schedules aligned to your construction milestones.

Warranty Coverage: 18-month manufacturer warranty from date of shipment covers defects in materials and workmanship. Extended warranty programs available for offshore and remote installations where replacement logistics are critical. Advance replacement service ensures <24-hour downtime for emergency failures.

Technical Support Services: Our application engineers provide pre-sale support including entity parameter calculations, cable specification verification, and hazardous area classification reviews. Post-sale commissioning assistance includes DeltaV configuration file templates, HART device integration procedures, and troubleshooting support via phone, email, and remote desktop sessions.

Documentation Package: Each module ships with ATEX/IECEx certificate of conformity, FM/CSA certification labels, installation instructions (12P6523), control drawings (12P6122, 12P6123), and entity parameter data sheets. Digital documentation library includes CAD drawings, 3D STEP models, and loop wiring diagrams for engineering design integration.

Frequently Asked Questions

Q: Can I use KL3101X1-LS1 with non-intrinsically safe transmitters in safe areas?
A: Yes, the module functions normally with any 4-20mA HART transmitter regardless of hazardous area rating. However, the intrinsic safety certification is only valid when connected to intrinsically safe or entity-certified field devices per control drawing specifications. Using non-IS devices in safe areas does not violate certifications but provides no cost advantage over standard AI modules.

Q: What is the maximum cable length for intrinsically safe loops with this module?
A: Maximum cable length depends on cable capacitance and inductance parameters. Using typical instrumentation cable (50 pF/m, 0.6 μH/m), loops can extend up to 1,500 meters while remaining within entity limits (Ci=5nF, Li=10μH). High-capacitance cables or long runs require entity calculations per IEC 60079-11 Annex B—our technical team provides free calculation services for project-specific installations.

Q: Does the module support HART multidrop mode for multiple transmitters on one loop?
A: No, the KL3101X1-LS1 is designed for point-to-point HART communication with a single field device per channel. HART multidrop mode requires 4mA fixed current and is incompatible with analog input signal acquisition. For applications requiring multiple HART devices on shared wiring, consider HART multiplexer solutions with separate intrinsic safety barriers.

Q: Can I hot-swap this module during operation in a hazardous area?
A: No, intrinsic safety certification requires power-off procedures before module insertion or removal in classified locations. Hot-swapping is only permitted in safe areas or when the hazardous area is verified gas-free through gas detection monitoring. This restriction ensures energy limitation integrity is maintained per IEC 60079-11 requirements. Plan module replacements during scheduled maintenance windows or temporary area declassification.

Q: What DeltaV software version is required for intrinsically safe CHARM support?
A: DeltaV v11.3.1 introduced intrinsically safe CHARM subsystem support with proper entity parameter enforcement and configuration validation. Earlier versions lack IS-specific safety interlocks and should not be used for hazardous area installations. Current recommendation is DeltaV v14.3 LTS or later for cybersecurity patches and extended support lifecycle.

Q: Are there any restrictions on transmitter power consumption for intrinsically safe loops?
A: Yes, field devices must draw ≤60mA to remain within the module's certified current limit. Most 2-wire transmitters consume 3.6-22mA, providing adequate margin. High-power devices like radar level transmitters or multi-sensor analyzers may exceed 60mA and require external IS power supplies. Always verify transmitter current draw specifications before loop design—our team can recommend compatible devices for your application.

Order Your KL3101X1-LS1 Intrinsically Safe Analog Input Today

Simplify your hazardous area I/O architecture with certified Zone 0/Division 1 protection and barrier-free installation. Whether you're designing a new offshore platform, expanding refinery capacity, or upgrading aging DCS infrastructure, the KL3101X1-LS1 delivers proven reliability backed by global certifications and expert technical support.

Request a quote today and receive entity parameter calculations, cable specification guidance, and project-specific application engineering support at no charge. Volume discounts available for orders of 10+ modules—contact our sales team to discuss your project requirements and delivery schedule.
