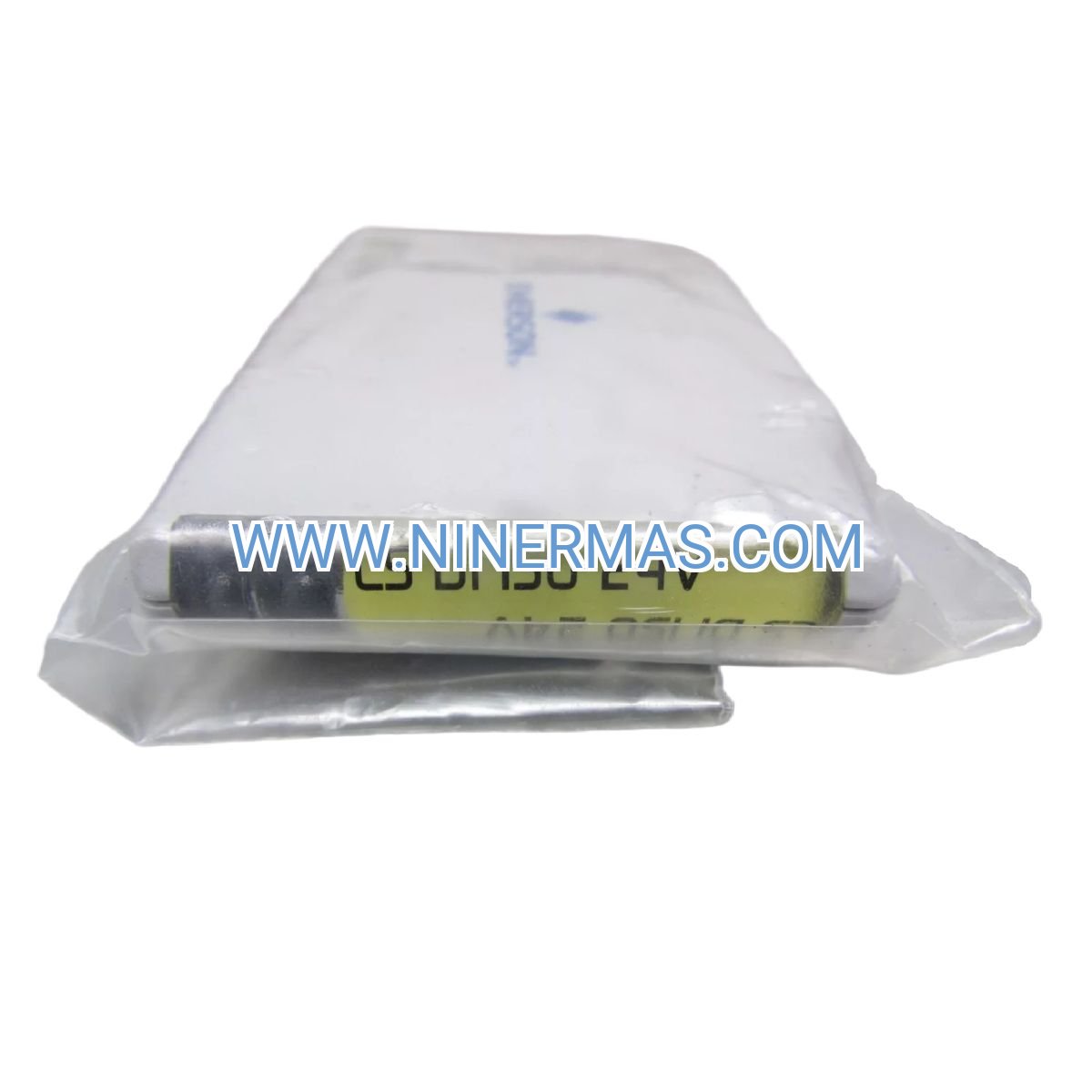

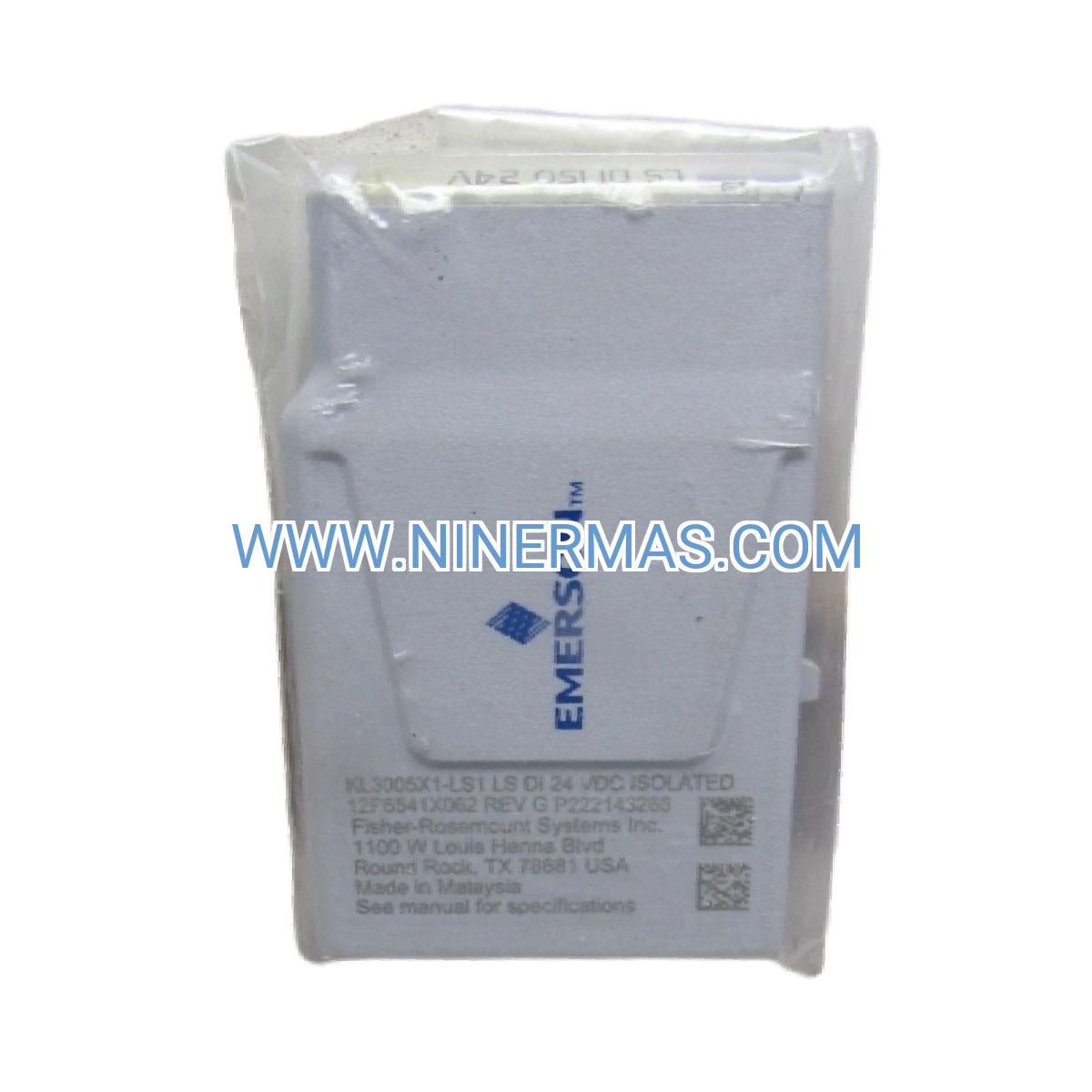

KL3005X1-LS1 Isolated Digital Input CHARM (Industrial-Grade Signal Conditioning)

The KL3005X1-LS1 represents a field-proven solution for monitoring discrete 24 VDC signals in electrically challenging industrial environments. Engineered as a hot-swappable CHARM module for Emerson DeltaV distributed control platforms, this isolated digital input conditioner delivers 1500V galvanic separation between field circuits and control backplane—eliminating ground loop interference, blocking voltage transients, and maintaining signal integrity across motor control centers, hazardous areas, and high-EMI zones.

Designed for process industries requiring continuous uptime and safety-certified instrumentation, the KL3005X1-LS1 serves automation engineers, system integrators, and plant maintenance teams managing limit switches, proximity sensors, valve position feedback, and emergency shutdown logic. Its conformal-coated construction withstands corrosive atmospheres, temperature extremes (-40°C to +70°C), and high-humidity conditions common in chemical processing, oil & gas, power generation, and water treatment facilities.

Key differentiators include field-replaceable architecture enabling maintenance without process interruption, configurable input filtering to suppress switch bounce and electrical noise, and IEC 61508 SIL 2/3 certification for deployment in safety-instrumented systems. The module integrates seamlessly with DeltaV S-series and M-series I/O carriers, providing comprehensive diagnostics for open circuits, short circuits, and power supply anomalies through the DeltaV control network.

Core Features & Benefits

→ 1500V Galvanic Isolation: Channel-to-backplane electrical separation prevents ground loop currents and voltage spikes from propagating into control systems, protecting sensitive electronics in multi-grounded installations and high-voltage switchgear environments.

→ Hot-Swappable CHARM Architecture: Field-replaceable module design allows technicians to exchange signal conditioning cards during operation without shutting down I/O carriers or interrupting process control loops—reducing mean time to repair (MTTR) by up to 75%.

→ Configurable Input Response: Adjustable filtering from 0.5ms to 100ms per channel adapts to mechanical switch bounce characteristics, pneumatic valve timing, and proximity sensor output profiles—optimizing signal quality for diverse field device types.

✓ SIL 2/3 Safety Certification: IEC 61508 compliance enables integration into safety instrumented systems (SIS) for emergency shutdown, fire & gas detection, and burner management applications requiring proven reliability and failure mode analysis.

✓ Conformal Coating Protection: Factory-applied protective layer shields circuit boards from corrosive gases (H₂S, Cl₂, SO₂), salt spray, condensation, and industrial contaminants—extending operational life in offshore platforms, pulp & paper mills, and mining operations.

✓ Comprehensive Diagnostics: Built-in fault detection identifies open wiring, short circuits, power supply failures, and out-of-range conditions, triggering immediate alarms through DeltaV control network with precise fault location data to accelerate troubleshooting.

Application Scenarios

Emergency Shutdown Systems (ESD): Monitor critical safety switches, valve limit positions, and pressure relief device status in SIL-rated shutdown logic. The module's galvanic isolation prevents electrical faults in field circuits from compromising safety system integrity, while SIL 2/3 certification satisfies functional safety requirements in HAZOP-analyzed installations.

Motor Control Center Integration: Interface with motor starter auxiliary contacts, thermal overload relays, and circuit breaker status indicators in electrically noisy MCC environments. Isolation eliminates ground loop interference from variable frequency drives (VFDs) and soft starters, ensuring accurate motor status feedback to SCADA systems.

Valve Position Monitoring: Capture open/closed feedback from pneumatic actuators, motorized valves, and solenoid-operated devices across multi-grounded piping systems. Configurable input filtering suppresses mechanical bounce from limit switches and proximity sensors, preventing false alarms and unnecessary process interruptions.

Hazardous Area Instrumentation: Connect to intrinsically safe (IS) barriers and Zener barriers in Class I Division 1/Zone 1 locations. The module's robust isolation protects control systems from fault currents while maintaining signal integrity for combustible gas detectors, flame scanners, and explosion-proof limit switches.

High-Voltage Switchgear Monitoring: Interface with auxiliary contacts on medium-voltage breakers, disconnect switches, and transformer tap changers operating at different ground potentials. Galvanic isolation prevents circulating currents between substation ground grids and control room earth references.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KL3005X1-LS1 when field devices operate on separate ground planes from the control system, when electrical noise exceeds 50V common-mode, or when safety certification (SIL 2/3) is mandated. For standard 24 VDC inputs in benign electrical environments, consider non-isolated alternatives. Verify DeltaV system firmware compatibility and I/O carrier slot availability before ordering.

Extended Functions

Advanced Diagnostics Integration: The module reports channel-level health metrics to DeltaV AMS Suite, enabling predictive maintenance through trend analysis of input signal quality, contact resistance degradation, and wiring insulation breakdown. Diagnostic data feeds into asset performance management (APM) platforms for condition-based maintenance scheduling.

Cybersecurity Hardening: Firmware updates delivered through DeltaV control network support IEC 62443 security standards, including encrypted configuration downloads and digitally signed module authentication to prevent unauthorized parameter changes in critical infrastructure installations.

Customization Options: Factory configuration services available for pre-programmed input filtering profiles, custom conformal coating formulations for extreme chemical exposure, and extended temperature range variants (-55°C to +85°C) for arctic and desert deployments.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 4-6 weeks for factory programming and testing. Expedited delivery available for emergency shutdowns and unplanned outages.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical process applications requiring 5-year coverage with advance replacement guarantees.

Technical Support: Access to Emerson-certified application engineers for system integration assistance, troubleshooting support, and configuration optimization. Remote diagnostic services available via secure VPN connection to DeltaV control networks.

Documentation Package: Includes installation manual, wiring diagrams, DeltaV configuration database templates, SIL certification documents, ATEX/IECEx certificates, and dimensional drawings in STEP/DWG formats for panel design integration.

Frequently Asked Questions

Q: How does the KL3005X1-LS1 interface with existing DeltaV I/O carriers?
A: The module plugs directly into any available CHARM slot on DeltaV S-series (e.g., VE4003S2B6) or M-series (e.g., VE4050K2B5) I/O carriers. Configuration occurs through DeltaV Explorer software—no hardware jumpers or DIP switches required. Hot-swap capability allows installation during operation without powering down the carrier.

Q: What input current capacity does each channel support?
A: Each isolated input channel draws approximately 7 mA at 24 VDC nominal voltage. The module supports field devices with contact ratings from 5 mA (solid-state proximity sensors) to 100 mA (electromechanical relay contacts). Verify field device output current specifications match module input requirements.

Q: Can the module reduce false alarms from electrically noisy environments?
A: Yes. The 1500V galvanic isolation blocks common-mode noise up to 1500 VDC continuous, while configurable input filtering (0.5-100 ms) suppresses transient spikes and switch bounce. In VFD-heavy installations, users report 60-80% reduction in nuisance alarms after replacing non-isolated modules with KL3005X1-LS1 units.

Q: Is the module suitable for outdoor installations in extreme climates?
A: The standard version operates reliably from -40°C to +70°C with conformal coating protecting against humidity and corrosive gases. For direct sun exposure or desert environments exceeding 70°C ambient, specify the extended-range variant or install I/O carriers in climate-controlled enclosures with forced ventilation.

Q: How does SIL 2/3 certification impact safety system design?
A: IEC 61508 certification provides documented failure rates (λ), safe failure fraction (SFF), and diagnostic coverage (DC) required for safety integrity level calculations. The module's proven-in-use data and systematic capability (SC 3) enable integration into SIL 2 single-channel or SIL 3 redundant architectures without additional validation testing.

Q: What diagnostic capabilities help troubleshoot field wiring issues?
A: Built-in diagnostics detect open circuits (broken wires), short circuits (wiring faults), and power supply failures, reporting faults to DeltaV operator displays with channel-specific identification. Diagnostic LEDs on the module faceplate provide local indication for technicians performing field maintenance without requiring laptop access to the control system.

Request Technical Consultation

Contact our application engineering team for system integration support, compatibility verification with your existing DeltaV infrastructure, or custom configuration requirements. We provide detailed wiring diagrams, loop drawings, and configuration database templates to accelerate project commissioning and reduce installation errors.
