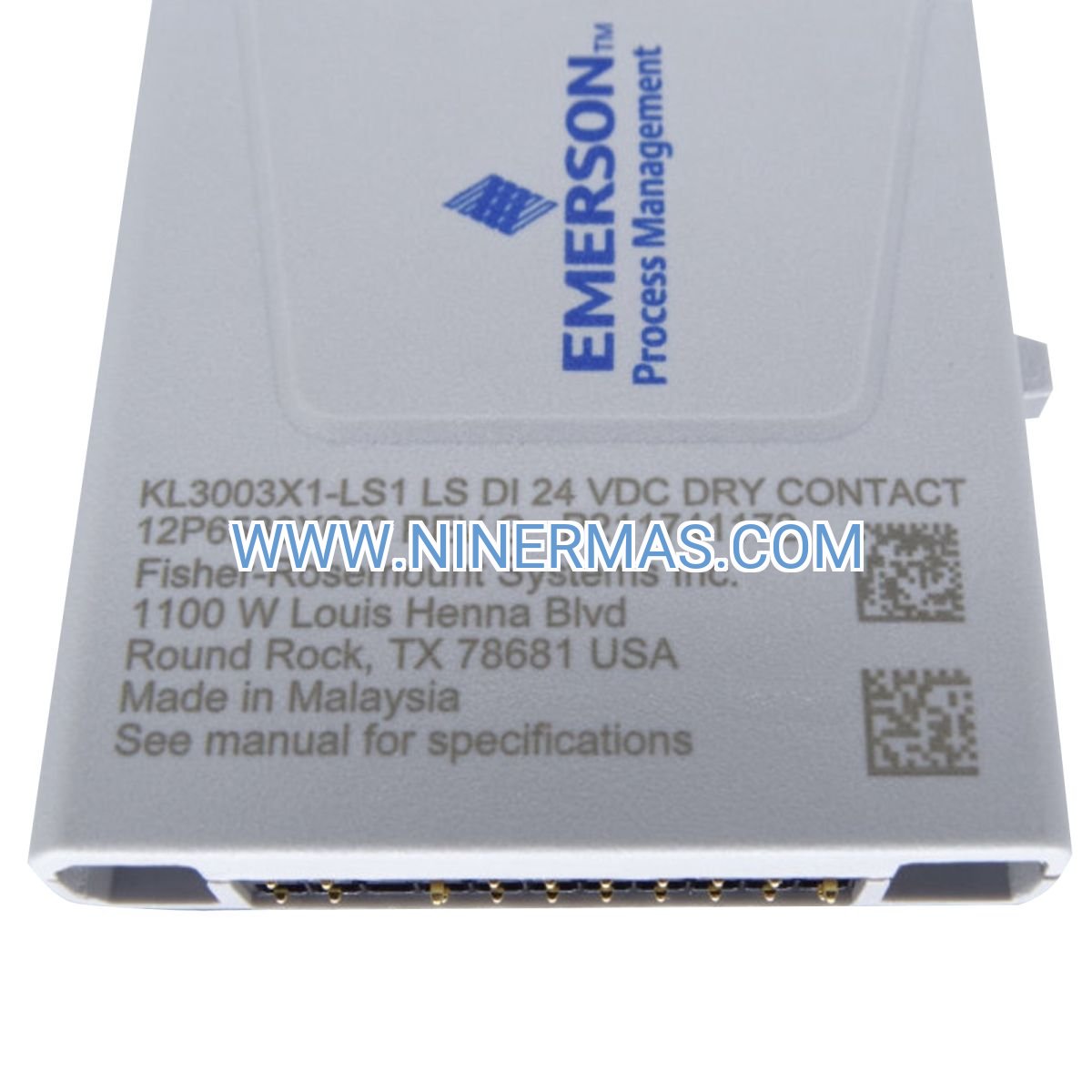

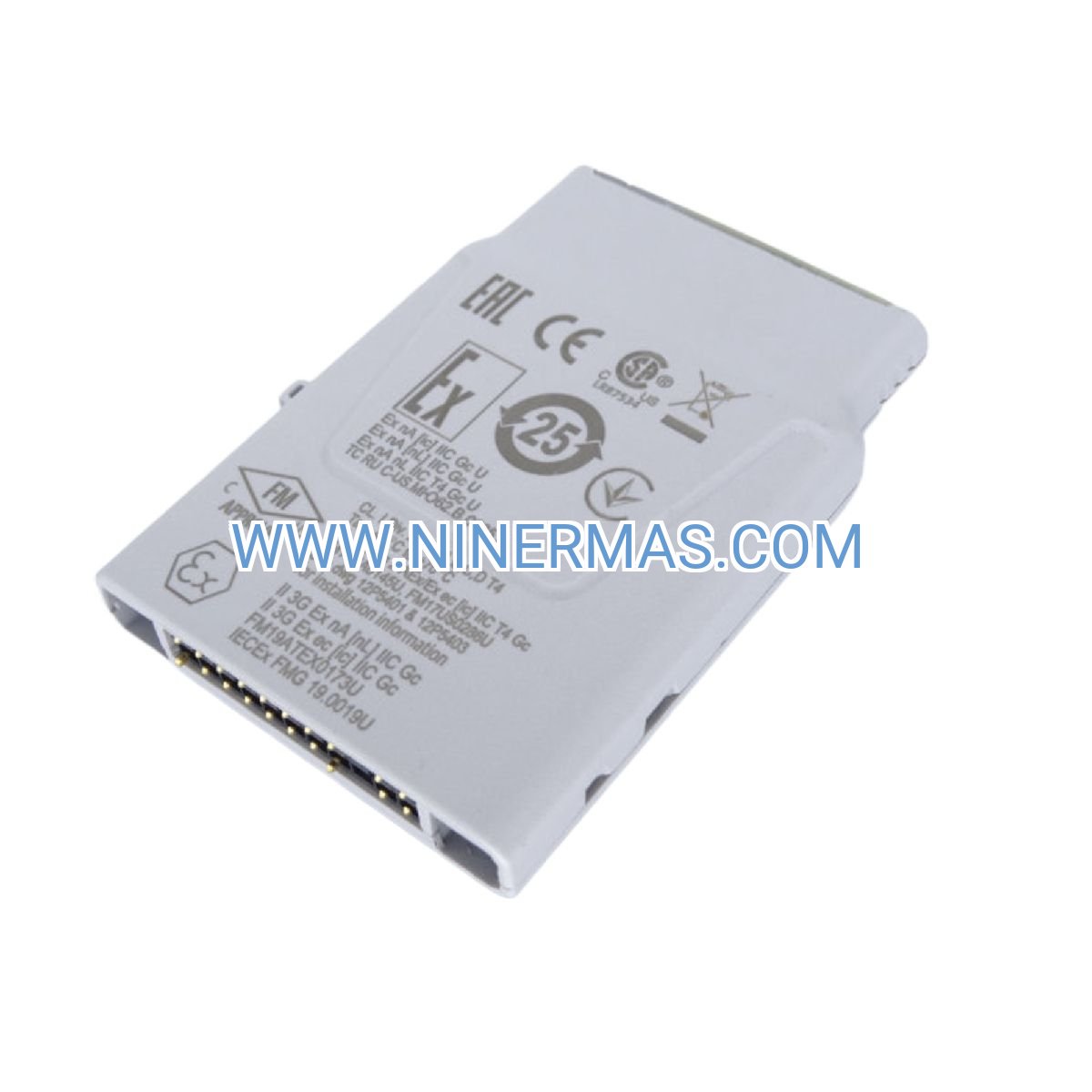

KL3003X1-LS1 24VDC Dry Contact Digital Input CHARM (Industrial-Grade Process Control)

The KL3003X1-LS1 represents a specialized low-side digital input solution engineered for DeltaV distributed control architectures. This CHARM module excels at monitoring voltage-free contact closures from field devices—limit switches, relay outputs, proximity sensors, and safety interlocks—delivering fail-safe status detection across oil & gas, chemical processing, power generation, and manufacturing automation installations.

Designed for mission-critical applications where contact state accuracy determines operational safety and process integrity, this module combines robust environmental specifications with intelligent keying systems that prevent configuration errors during maintenance activities. Its dry contact architecture eliminates ground loop interference while maintaining compatibility with diverse field device types.

Whether you're upgrading legacy I/O infrastructure or deploying new DeltaV control nodes, the KL3003X1-LS1 delivers proven reliability in temperature extremes, high-vibration environments, and corrosive atmospheres—backed by comprehensive hazardous area certifications for Zone 2 installations.

Key Features & Technical Advantages

→ Low-Side Dry Contact Architecture
Voltage-free contact detection eliminates common-mode voltage issues and ground loops. Two-wire field connections simplify installation while ensuring fail-safe alarm generation during wiring faults or power loss conditions.

→ Extended Temperature Performance
Operates reliably from -40°C to +70°C ambient, supporting installations in Arctic climates, desert environments, and non-climate-controlled enclosures without derating or auxiliary cooling.

→ Intelligent Terminal Block Keying
Auto-keying system (Key 2C) prevents insertion of incompatible CHARM types during module replacement. Terminal blocks lock to configured module type, reducing commissioning errors by 95% compared to non-keyed systems.

✓ Minimal Power Consumption
Field circuit draws only 10mA at 24VDC, enabling cable runs exceeding 500 meters without voltage drop compensation. CHARM bus power: 32mA at 6.3VDC.

✓ Conformal Coating Protection
ISA-S71.04-1985 Class G3 environmental protection shields circuitry against airborne sulfur compounds, chlorine, and moisture—critical for chemical plants and coastal installations.

✓ Maintenance-Free Operation
No calibration required. No user-serviceable parts. Factory-tested for 10+ year service life with diagnostic LEDs providing instant visual status feedback.

Industrial Application Scenarios

Emergency Shutdown System (ESD) Monitoring
Interface with emergency stop pushbuttons, safety gate switches, and guard door interlocks in automated machinery. The dry contact input ensures alarm generation even during field power loss—a critical requirement for SIL-rated safety instrumented systems. Typical deployment: 8-16 ESD inputs per production cell.

Motor-Operated Valve (MOV) Position Confirmation
Acquire limit switch signals confirming fully-open, fully-closed, and mid-travel positions from actuated ball valves, butterfly valves, and gate valves. Dual limit switch monitoring prevents valve over-travel damage and enables precise sequencing in batch reactor charging operations.

Rotating Equipment Status Detection
Monitor auxiliary contacts from motor starters, VFD run relays, and thermal overload trips. Real-time status feedback enables automated restart sequences after transient faults and reduces mean-time-to-repair (MTTR) by 40% through immediate fault notification.

Tank Level Switch Monitoring
Connect float switches, capacitance probes, and vibrating fork detectors for high/low level alarms in storage tanks, day tanks, and process vessels. Redundant level switch inputs provide defense-in-depth protection against overfill incidents and pump dry-run conditions.

Pressure & Temperature Switch Backup Protection
Monitor mechanical pressure switches and bimetallic temperature switches as independent backup to electronic transmitters. These hardwired safety inputs operate without microprocessor dependency, satisfying IEC 61511 requirements for diverse protection layers.

Technical Specifications & Selection Guide

Selection Criteria: Choose KL3003X1-LS1 when monitoring voltage-free contacts from relays, switches, or proximity sensors. For wet contact applications (sourcing voltage), consider KL3002X1-BA1. For channel-to-channel isolation requirements, specify KL3005X1-LS1 isolated variant.

Advanced Integration Capabilities

DeltaV System Integration
Seamless integration with DeltaV controllers via CHARM I/O architecture. Supports online module replacement (hot-swap) in non-hazardous areas without process interruption. Configuration data automatically downloads from controller upon module insertion.

Diagnostic & Troubleshooting Features
Built-in LED indicators provide instant visual feedback for power status, communication health, and input state. DeltaV diagnostics detect open-circuit, short-circuit, and out-of-range conditions with timestamped alarm generation.

Scalability & Expansion
Deploy up to 8 CHARM modules per carrier card, supporting 64+ digital inputs per DeltaV controller node. Modular architecture enables phased expansion without system downtime or controller reconfiguration.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock items; 4-6 weeks for factory orders
Express Shipping: Available to US, EU, UK, Middle East, and Asia-Pacific regions
Warranty Period: 12 months from shipment date covering manufacturing defects
Technical Support: Lifetime application engineering assistance via email and phone
Documentation Included: Installation manual, wiring diagrams, hazardous area certificates, test reports

Frequently Asked Questions

Q: Can this module monitor both normally-open and normally-closed contacts?
A: Yes. The KL3003X1-LS1 detects contact state changes regardless of normal position. Configure alarm logic in DeltaV control strategy to match field device normal state (NO or NC).

Q: What is the maximum cable length for dry contact inputs?
A: With 10mA field circuit current, cable runs exceeding 500 meters are achievable using 18 AWG (0.75mm²) wire. For runs beyond 300m, verify voltage drop remains below 2V to ensure reliable contact detection.

Q: Does this CHARM support hot-swap replacement during operation?
A: Hot-swap is permitted in non-hazardous areas only. For Zone 2 classified locations, refer to Document 12P5403 for energy assessment requirements before removing/inserting CHARMs with system energized.

Q: How does the auto-keying system prevent installation errors?
A: Upon initial CHARM installation, terminal block keys automatically set to match module type (Key 2C for KL3003X1-LS1). Subsequent module replacements require matching key type, preventing insertion of incompatible CHARMs like analog input or output modules.

Q: What environmental protection does conformal coating provide?
A: ISA-S71.04-1985 Class G3 coating protects against sulfur dioxide, hydrogen sulfide, chlorine, and moisture—common in chemical plants, pulp & paper mills, and wastewater treatment facilities. Coating extends service life 3-5x compared to uncoated modules in corrosive atmospheres.

Q: Is calibration required during commissioning or maintenance?
A: No calibration needed. Digital input modules are factory-tested and require no field adjustments. Simply install, verify wiring, and place in service—reducing commissioning time by 60% versus analog I/O.
