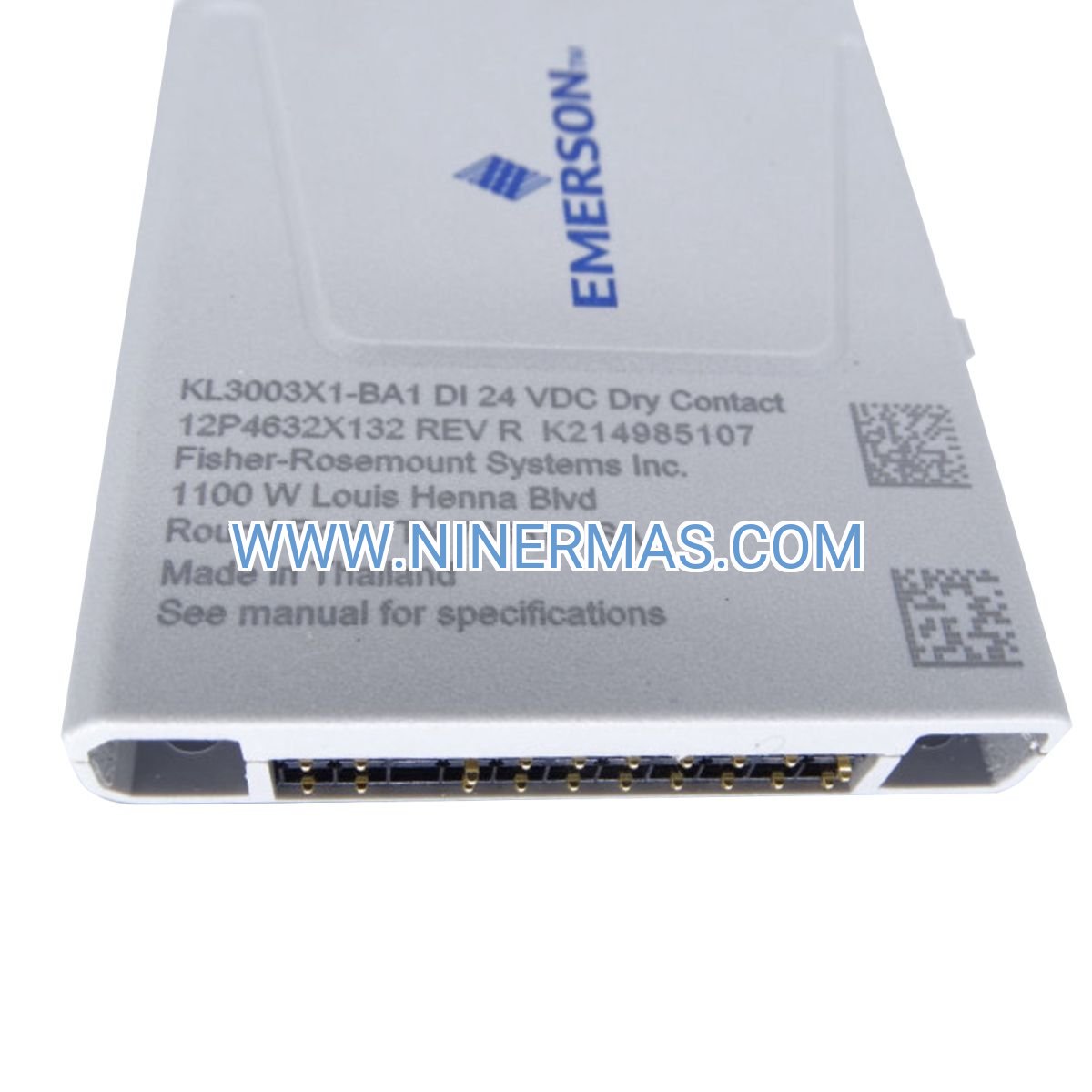

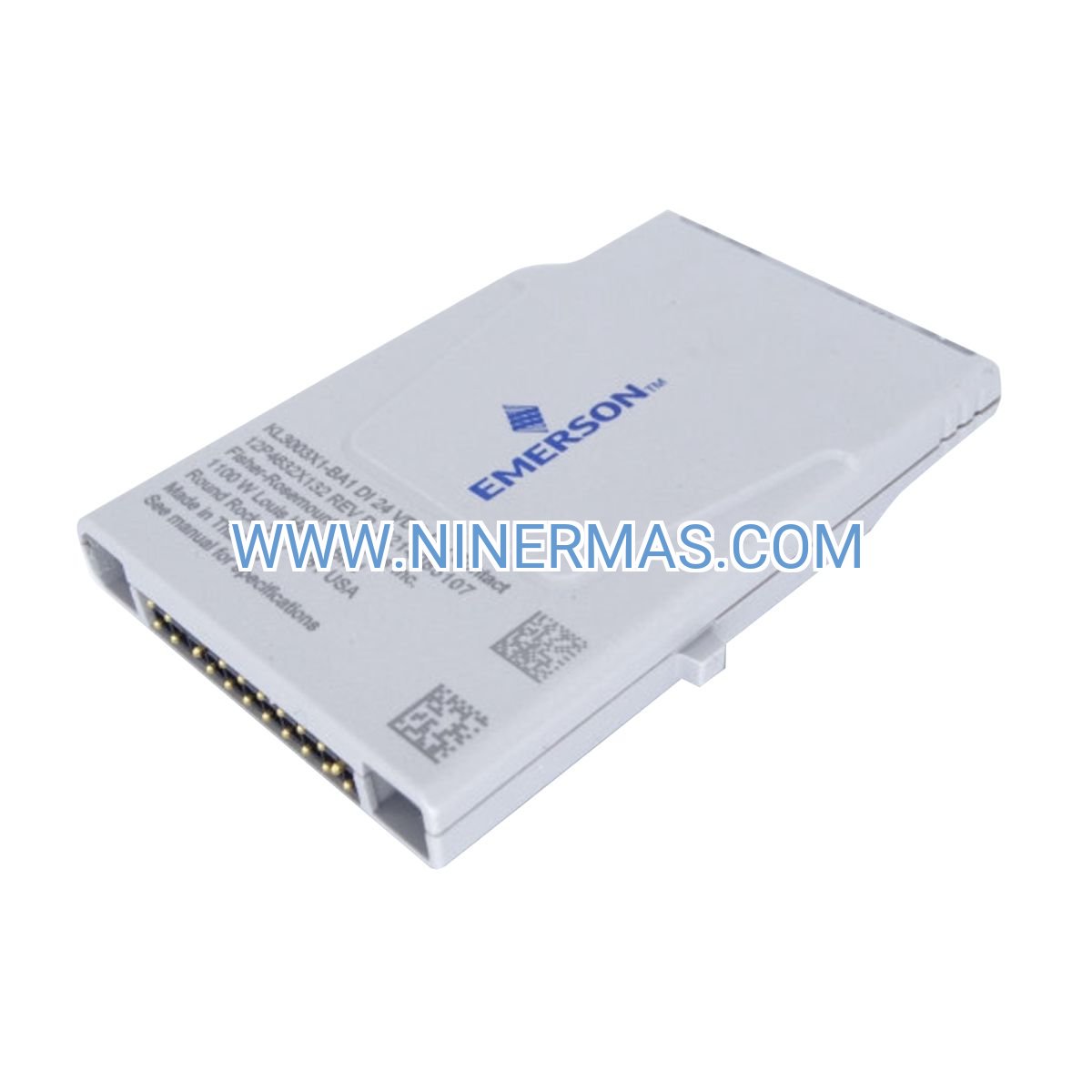

KL3003X1-BA1 Digital Input CHARM (Industrial-Grade 24VDC Dry Contact Module)

The KL3003X1-BA1 represents a field-proven solution for discrete signal acquisition in mission-critical DeltaV distributed control environments. This voltage-free contact monitoring module excels at interfacing relay outputs, limit switches, and binary sensors across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing facilities where signal integrity and environmental resilience define operational uptime.

Built to withstand extreme industrial conditions from arctic installations to desert climates, this CHARM module operates reliably across -40°C to +70°C temperature ranges while maintaining galvanic isolation between field devices and control infrastructure. Certified for global hazardous area deployment (FM, ATEX, IECEx, DNV), it eliminates voltage-matching complexity when integrating third-party safety systems with DeltaV architectures.

Whether monitoring emergency shutdown valve positions in refineries, tracking motor starter auxiliary contacts in chemical plants, or interfacing gas detection panels in offshore platforms, the KL3003X1-BA1 delivers fail-safe discrete input performance that process engineers depend on for safety-critical applications.

Key Features & Technical Advantages

→ Universal Dry Contact Interface
Accepts voltage-free contact closures from any manufacturer's switches, relays, or sensors without external signal conditioning. Eliminates ground loop risks through complete galvanic isolation between field wiring and DCS backplane.

→ Extreme Temperature Performance
Operates continuously from -40°C to +70°C (-40°F to 158°F), accommodating outdoor marshalling cabinets, non-climate-controlled equipment rooms, and installations in harsh geographic regions without thermal derating.

→ Global Hazardous Area Approvals
FM/CSA Class I Division 2 Groups A-D, ATEX Zone 2, IECEx certified, plus DNV/ABS marine certifications enable deployment in explosive atmosphere environments worldwide with single part number procurement.

✓ Conformal Coating Protection
ISA-S71.04-1985 Class G3 coating resists corrosive gases, airborne contaminants, and industrial pollutants common in chemical processing and offshore installations, extending service life in aggressive atmospheres.

✓ Vibration & Shock Resistant Design
Withstands 10g shock (½-sine, 11ms) and 0.7g vibration (13.2-150 Hz) for reliable operation near rotating machinery, reciprocating compressors, and seismically active installations.

✓ Plug-and-Play CHARM Architecture
Terminal Block Key 2C ensures correct module type identification with automatic keying on first insertion. No field calibration required—factory configured for life with IP20 protection rating.

Industrial Application Scenarios

Refinery Safety Interlock Systems
Monitor emergency shutdown (ESD) valve limit switches, pressure relief valve positions, and flame detector relay contacts in hydrocarbon processing units. Dry contact isolation prevents electrical interference in SIL-rated safety instrumented systems while providing positive valve position feedback for automated shutdown sequences.

Chemical Plant Equipment Monitoring
Track motor starter auxiliary contacts, thermal overload relay states, and circuit breaker positions for critical pumps, agitators, and compressors. Real-time status monitoring enables predictive maintenance by detecting abnormal cycling patterns before catastrophic equipment failures occur, reducing unplanned downtime by 30-40%.

Pharmaceutical Batch Process Control
Interface with sterile valve position switches, clean-in-place (CIP) system status relays, and environmental monitoring alarm contacts in FDA-regulated manufacturing environments. Voltage-free monitoring ensures compliance with 21 CFR Part 11 electronic record requirements through reliable audit trail generation.

Power Generation Turbine Protection
Connect vibration monitor trip relays, bearing temperature switches, and lube oil pressure contacts for steam and gas turbine protection systems. The module's -40°C to +70°C rating accommodates outdoor turbine enclosures and non-heated auxiliary buildings in northern climates.

Water Treatment SCADA Integration
Link municipal water treatment plant alarm panels, pump station high-level floats, and chlorine gas leak detector contacts to centralized DeltaV SCADA systems. Dry contact inputs eliminate voltage conversion requirements when interfacing legacy equipment with modern DCS infrastructure.

Technical Specifications & Selection Guide

Selection Criteria: Choose KL3003X1-BA1 when monitoring voltage-free contacts from relays, limit switches, or passive sensors. For wet contact applications (externally powered 24VDC signals), specify KL3002X1-BA1 instead. When galvanic isolation between multiple field circuits is required, select KL3005X1-LS1 isolated digital input CHARM.

Advanced Integration Capabilities

DeltaV Historian Connectivity
All discrete input state changes automatically log to DeltaV Continuous Historian with millisecond timestamps, enabling root cause analysis of process upsets, equipment trips, and safety system activations. Configurable alarm deadbands prevent nuisance alarms from chattering contacts.

Redundant Controller Support
Seamlessly integrates with DeltaV redundant controller pairs (MQ/MX series) for high-availability applications requiring 99.99%+ uptime. Automatic failover occurs within 100ms without loss of discrete input state information during controller switchovers.

Third-Party System Integration
OPC DA/UA server connectivity enables discrete input data sharing with plant-wide MES systems, asset management platforms, and corporate ERP databases. Modbus TCP gateway options available for legacy SCADA system integration without DeltaV architecture modifications.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock items with same-day shipping on orders placed before 2:00 PM CST. Expedited overnight and 2-day delivery available to US, Canada, and Mexico destinations.

International Shipping: 5-7 business days to UK/EU via DHL Express, 7-10 business days to Asia-Pacific markets. All shipments include full export documentation, HS code classification (8537.10.90), and country-of-origin certificates for customs clearance.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended 36-month warranty programs available for critical spares inventory and insurance stock applications.

Technical Support: Unlimited phone and email support from DeltaV-certified application engineers. Wiring diagram review, loop checkout procedures, and commissioning assistance included with every purchase at no additional charge.

Documentation Package: Complete installation manuals (Document 12P5403 Zone 2 Instructions), terminal block wiring diagrams, hazardous area installation guidelines, and DeltaV configuration examples provided in PDF format upon shipment.

Frequently Asked Questions

Q: Can the KL3003X1-BA1 monitor both normally-open and normally-closed contact configurations?
A: Yes, the module detects contact state changes regardless of normal position. Configure the logic inversion in DeltaV control strategy to match your field device wiring (NO vs NC contacts). This flexibility eliminates the need for field wiring changes when replacing failed switches with different contact arrangements.

Q: What is the maximum wire run distance from field devices to the CHARM module?
A: Recommended maximum distance is 300 meters (1000 feet) using 18 AWG shielded twisted-pair cable. For longer runs up to 500 meters, use 16 AWG cable and verify contact resistance remains below 100 ohms to ensure reliable state detection. Always use shielded cable in electrically noisy environments near VFDs or welding equipment.

Q: Does this module require external power supplies for operation?
A: No external power supply needed—the CHARM module draws operating power from the DeltaV controller backplane via the CHARM bus (+6.3VDC @ 32mA). The module provides +24VDC @ 10mA field circuit power for energizing proximity sensors or active switches if required by your application.

Q: How do I replace a failed KL3003X1-BA1 module in a hazardous area installation?
A: Per FM/ATEX requirements, CHARM modules must only be removed/inserted when the area is certified non-hazardous OR the system is completely de-energized. For energy-limited installations, consult Document 12P5403 Section 4.2 for I/O loop assessment procedures before attempting hot-swap operations. Always follow site-specific hot work permit procedures.

Q: Can I mix KL3003X1-BA1 dry contact modules with other CHARM types on the same baseplate?
A: Yes, DeltaV CHARM architecture supports mixing different I/O module types (analog input, analog output, digital input, digital output) on a single baseplate assembly. The Terminal Block Key system (Type 2C for this module) prevents accidental installation of incorrect CHARM types in configured slots.

Q: What diagnostic capabilities does the module provide for troubleshooting field wiring issues?
A: DeltaV diagnostics display real-time contact state, wiring fault detection (open circuit, short circuit), and module health status. The CHARM LED indicators show power status and communication health. Use DeltaV Explorer's I/O diagnostics screen to monitor contact bounce frequency and identify chattering relay contacts requiring replacement.
