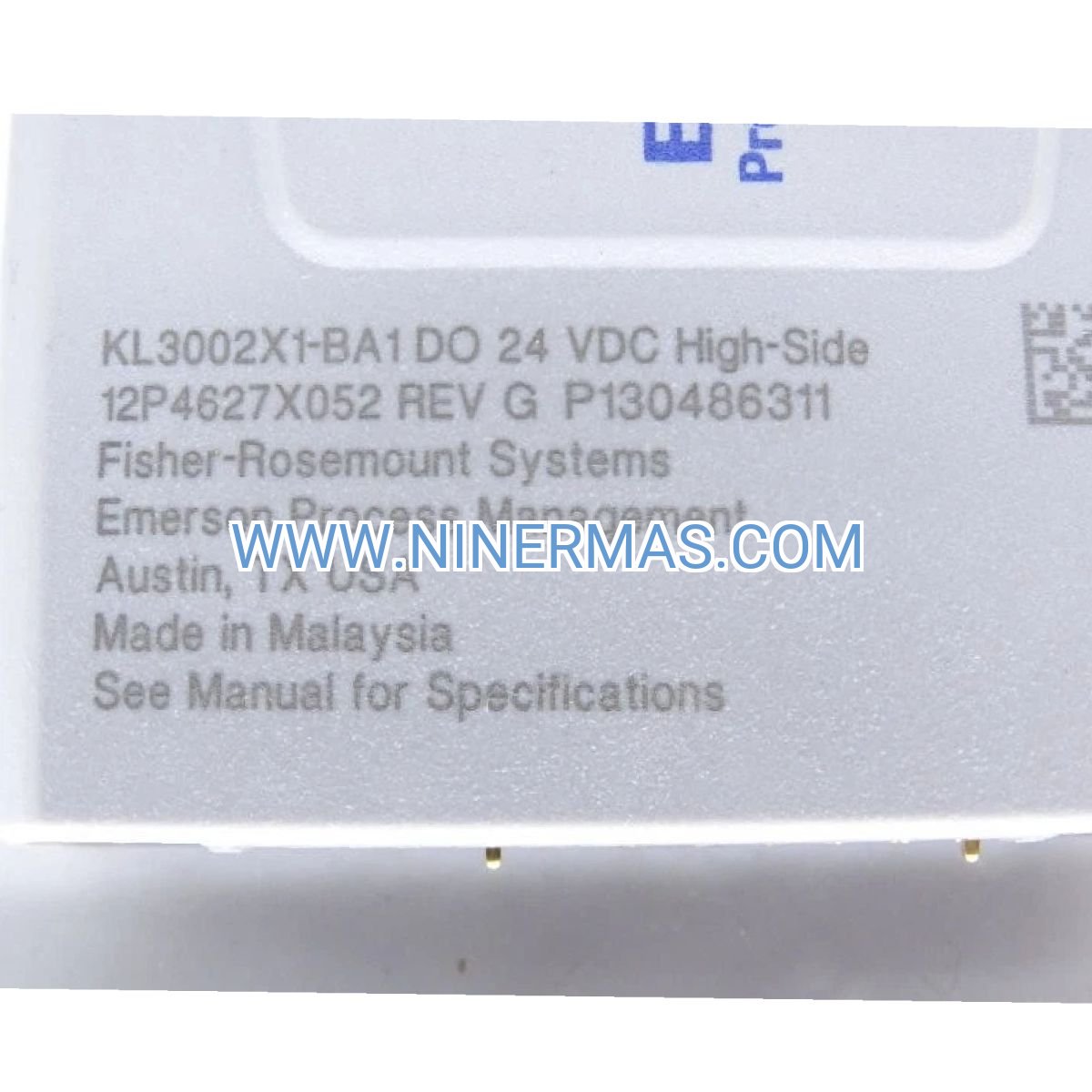

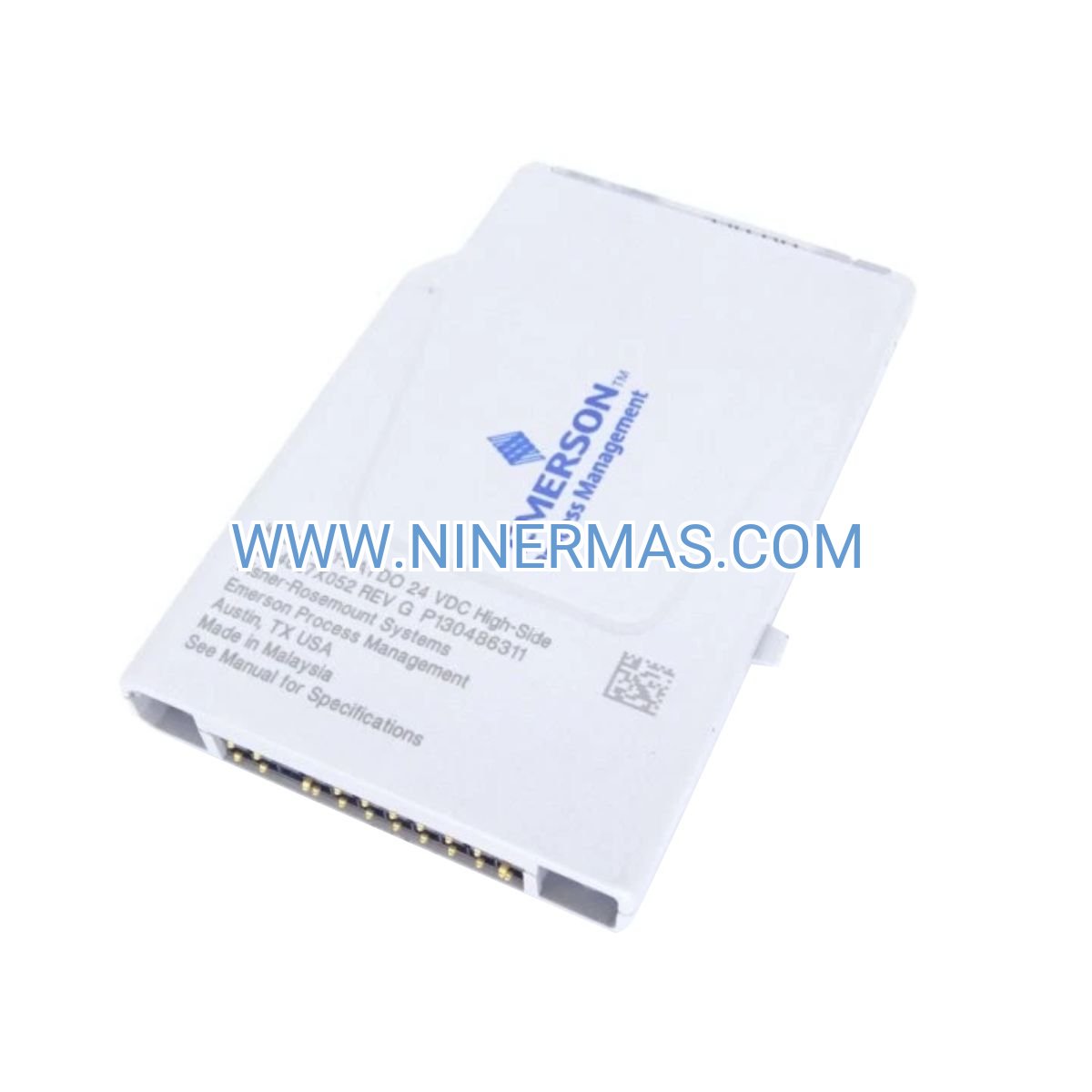

KL3002X1-BA1 High-Side Digital Output CHARM (Industrial-Grade 24VDC Switching Module)

The KL3002X1-BA1 represents a proven solution for discrete output control in mission-critical DeltaV distributed control environments. This high-side switching module delivers dependable actuation of solenoid valves, relay coils, indicator circuits, and electric actuators across oil & gas, chemical processing, pharmaceutical manufacturing, and power generation installations where diagnostic precision and fail-safe operation define system integrity.

Engineered with positive-side switching topology, this digital output CHARM provides real-time load monitoring and comprehensive fault detection—distinguishing open circuits, short circuits, and overload conditions that low-side alternatives cannot reliably identify. Operators gain actionable diagnostics before equipment failures cascade into process disruptions or safety incidents.

Certified for global hazardous area deployment (FM/CSA Class I Division 2, ATEX Zone 2, IECEx, DNV/ABS marine), the module operates reliably from -40°C to +70°C with ISA-S71.04 Class G3 conformal coating protection against corrosive atmospheres and industrial contaminants. Whether controlling emergency shutdown valves in arctic climates or sequencing batch operations in tropical refineries, the KL3002X1-BA1 maintains output integrity across extreme environmental conditions.

Key Features & Technical Advantages

→ High-Side Switching Architecture: Positive-side driver topology enables superior fault diagnostics by monitoring load current on the supply side. Detects open wiring, short circuits, and abnormal load conditions in real time—critical for SIL-rated safety systems and process interlocks where undetected failures pose operational risks.

→ Enhanced Ground Fault Immunity: Unlike low-side switching where accidental load grounding creates unintended energization, high-side configuration prevents false actuations even when field wiring contacts grounded surfaces. This design advantage reduces commissioning errors and improves safety system reliability in complex marshalling environments.

→ Wide Operating Temperature Range: -40°C to +70°C continuous operation accommodates outdoor installations, non-climate-controlled equipment shelters, and extreme geographic locations without performance degradation or recalibration requirements. Thermal monitoring prevents overheating during sustained high-duty-cycle applications.

✓ Comprehensive Load Diagnostics: Real-time current measurement identifies actuator binding, valve seizure, relay coil failures, and wiring degradation before process impact. Diagnostic data integrates seamlessly with DeltaV alarm management and predictive maintenance workflows.

✓ Global Hazardous Area Certifications: FM/CSA (Class I Div 2 Groups A-D), ATEX Zone 2, IECEx international, plus DNV and ABS marine approvals enable deployment in classified locations worldwide. Meets stringent installation requirements for explosive atmosphere protection without costly custom engineering.

✓ Rugged Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating resists airborne contaminants, corrosive gases (H₂S, SO₂, Cl₂), and industrial pollutants common in chemical plants, pulp & paper mills, and wastewater treatment facilities. Operates in 5-95% humidity without condensation-related failures.

Industrial Application Scenarios

Emergency Shutdown (ESD) Valve Control: In offshore oil platforms and onshore gas processing facilities, the KL3002X1-BA1 actuates pneumatic ESD valves that isolate hazardous fluids during emergency conditions. High-side switching provides the fault detection required for SIL 2/3 safety instrumented functions, ensuring valve position verification and detecting solenoid coil failures that could compromise shutdown integrity. The module's marine certifications (DNV/ABS) and corrosive atmosphere protection make it ideal for saltwater environments where equipment reliability directly impacts personnel safety.

Batch Process Sequencing: Pharmaceutical and specialty chemical manufacturers rely on precise discrete output timing to control ingredient addition, mixing cycles, and transfer operations. The KL3002X1-BA1's load current monitoring detects valve actuator stalls or relay contact welding that could cause batch contamination or off-spec production. Real-time diagnostics enable operators to abort sequences before quality issues occur, reducing waste and maintaining FDA/GMP compliance documentation requirements.

Combustion Air Damper Control: Power generation boilers and industrial furnaces use electric actuators to modulate combustion air dampers for optimal fuel efficiency and emissions control. This module's -40°C to +70°C operating range supports installations in outdoor air handling units and non-insulated equipment rooms. Overload detection identifies damper linkage binding or actuator motor failures before combustion instability develops, preventing furnace trips and maintaining steam production continuity.

Refinery Interlock Systems: Crude distillation units and catalytic crackers implement complex interlock logic requiring simultaneous actuation of multiple isolation valves, pump trips, and alarm annunciators. High-side switching enables parallel load monitoring across dozens of outputs, with individual channel diagnostics pinpointing specific failures within milliseconds. The module's shock (10g) and vibration (0.7g) resistance withstands mechanical impacts from nearby reciprocating compressors and centrifugal pumps common in refinery process units.

Water Treatment Chemical Dosing: Municipal and industrial wastewater facilities control chemical feed pumps and metering valves through relay interfaces driven by the KL3002X1-BA1. The module's conformal coating protects against chlorine gas, ammonia vapors, and hydrogen sulfide atmospheres that degrade unprotected electronics. Load diagnostics detect pump seal failures or valve clogging by monitoring current draw changes, triggering maintenance before treatment process upsets occur.

Technical Specifications & Selection Criteria

Selection Criteria: Choose high-side switching (KL3002X1-BA1) when applications require open/short circuit detection, ground fault immunity, or SIL-rated safety system compliance. For applications needing channel-to-channel galvanic isolation (e.g., separate power supplies per output), consider the KL3004X1-BA1 isolated variant instead. Consult load current requirements against module specifications—solenoid inrush currents may require derating or external current limiting.

Advanced Diagnostic Capabilities

The KL3002X1-BA1 integrates intelligent monitoring that transforms discrete outputs from simple on/off switches into predictive maintenance sensors:

Open Circuit Detection: Identifies broken field wiring, disconnected terminal blocks, or failed load devices by sensing absence of current flow when output commands energization. Alarms trigger immediately upon fault detection, enabling rapid troubleshooting before process impact. Particularly valuable in long cable runs (>100m) where wiring damage from mechanical interference or rodent activity may occur unnoticed.

Short Circuit Protection: Automatic current limiting prevents module damage when output wiring shorts to ground or power rails. Unlike fuse-based protection requiring physical replacement, electronic limiting self-recovers once fault clears. Diagnostic logs capture short circuit events with timestamps for root cause analysis and wiring inspection prioritization.

Overload Monitoring: Continuous load current measurement detects gradual increases indicating actuator bearing wear, valve stem corrosion, or relay contact degradation. Trending analysis predicts failures weeks before complete breakdown, enabling scheduled maintenance during planned outages rather than emergency repairs during production runs.

Thermal Management: Internal temperature sensors monitor power dissipation across output drivers, preventing thermal runaway in high-duty-cycle applications (e.g., rapid valve cycling in batch processes). Thermal alarms provide early warning when ambient temperatures exceed design limits or cooling airflow becomes restricted by dust accumulation.

Extended Functionality & System Integration

DeltaV Ecosystem Compatibility: Seamless integration with DeltaV control strategies, alarm management, and asset optimization frameworks. Output diagnostics populate DeltaV AMS Suite for predictive maintenance workflows, while control module logic accesses real-time load status for interlock verification and sequence confirmation.

Redundancy Support: Compatible with DeltaV redundant controller architectures (MQ, MX series) for high-availability applications requiring <0.01% downtime. Automatic failover maintains output states during controller switchovers without process disruption or spurious actuations.

Cybersecurity Compliance: Operates within DeltaV's IEC 62443-certified security architecture, supporting role-based access controls, audit logging, and encrypted communications required for critical infrastructure protection and regulatory compliance (NERC CIP, FDA 21 CFR Part 11).

Custom Configuration Options: Factory-configurable output characteristics including pulse width modulation (PWM) for proportional valve control, time-delayed energization for inrush current management, and programmable fault response behaviors (hold last state vs. safe default position).

Delivery, Warranty & Technical Support

Lead Times: Stock items ship within 1-3 business days via expedited carriers (DHL, FedEx, UPS) to North America, Europe, and Asia-Pacific destinations. Custom-configured modules or large project quantities (>50 units) typically require 4-6 weeks factory lead time—contact our sales team for project-specific scheduling.

Warranty Coverage: Standard 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical spares inventory and long-term service agreements. Warranty claims processed through authorized service centers with advance replacement options minimizing downtime.

Technical Support: Pre-sales application engineering assistance includes load calculation verification, wiring diagram review, and hazardous area certification guidance. Post-sales support provides troubleshooting consultation, firmware compatibility verification, and field service coordination when required. Support available via email (response <4 hours business days) and phone during regional business hours.

Documentation Package: Each module ships with installation quick-start guide, terminal wiring diagrams, and hazardous area certification declarations. Complete technical manuals including Document 12P5403 (Zone 2 Installation Instructions), DeltaV Hardware Reference, and safety data sheets available for download or upon request.

Frequently Asked Questions

Q: What distinguishes high-side switching from low-side switching in industrial control applications?
A: High-side switching (this module) drives loads by controlling the positive supply connection, enabling superior fault detection through load current monitoring. When a load accidentally grounds, high-side switching prevents unintended energization—critical for safety systems. Low-side switching controls the ground return path, offering simpler circuitry but limited diagnostic capability and vulnerability to ground faults causing false actuations.

Q: Can the KL3002X1-BA1 control inductive loads like solenoid valves without external suppression components?
A: Yes, the module incorporates internal flyback diode protection for inductive load switching, eliminating external suppression requirements for most solenoid valves and relay coils. However, loads with extremely high inductance (>10H) or rapid switching frequencies (>10Hz) may benefit from external RC snubbers to minimize electrical noise and extend contact life in downstream relay interfaces.

Q: What DeltaV controller firmware versions support the KL3002X1-BA1 CHARM module?
A: The module requires DeltaV v11.3.1 or later with compatible controller types: SD Plus, SX, SQ, MQ, MX, and PK series. Legacy MD, MD Plus, and SE controllers do not support CHARM I/O architecture. Verify your system version through DeltaV Explorer before ordering—firmware upgrades may be necessary for older installations.

Q: How does the module's -40°C to +70°C operating range compare to standard industrial I/O specifications?
A: This extended temperature range exceeds typical industrial I/O ratings (0°C to +60°C), enabling outdoor installations in arctic climates (Alaska, northern Canada, Siberia) and desert environments (Middle East, Australia) without environmental enclosures. The wide range also accommodates non-climate-controlled equipment shelters and rooftop installations where summer temperatures exceed standard ratings.

Q: What installation precautions apply when deploying the KL3002X1-BA1 in hazardous area Zone 2 locations?
A: Per Document 12P5403, CHARM modules in Zone 2 installations must only be inserted or removed when: (1) system power is completely de-energized, OR (2) the area is verified non-hazardous through hot work permits. Energy-limited I/O loops may permit hot-swapping after engineering assessment confirms compliance with IEC 60079-11 intrinsic safety parameters. Always consult site-specific hazardous area drawings and electrical classification documentation before maintenance activities.

Q: Does the module support remote monitoring and diagnostics through DeltaV's asset management tools?
A: Yes, all diagnostic data (load current, fault status, thermal conditions, output state) integrates with DeltaV AMS Suite and DeltaV Insight for centralized monitoring, trending, and predictive maintenance analytics. Diagnostic parameters populate AMS Device Manager for HART-based field device integration and can trigger email/SMS alerts through DeltaV alarm management when abnormal conditions develop.
