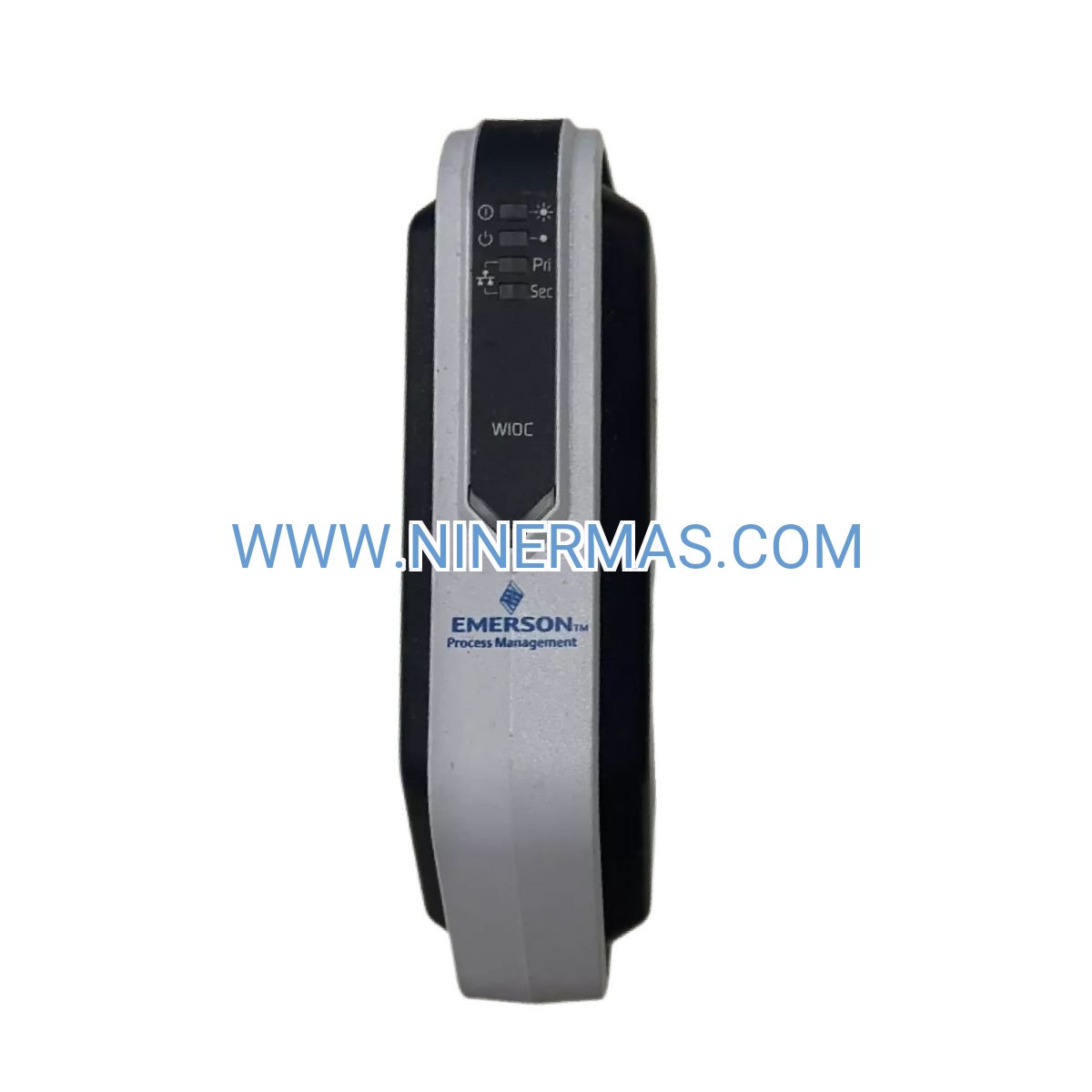

KL2102X1-BA1 Wireless I/O Module (Industrial-Grade DeltaV Integration)

The KL2102X1-BA1 represents a breakthrough in distributed process automation, delivering cable-free connectivity between DeltaV control infrastructure and remote field instrumentation. Engineered for harsh industrial environments, this wireless I/O module slashes installation costs by up to 60% while maintaining deterministic performance required for critical control loops across oil & gas, chemical processing, water treatment, and power generation facilities.

Designed for system integrators and plant engineers facing cable routing challenges in brownfield expansions, offshore platforms, or geographically dispersed assets, the KL2102X1-BA1 eliminates trenching, conduit runs, and hot work permits. Its multi-hop mesh architecture ensures 99.9%+ uptime even in RF-congested environments, while global hazardous area certifications (FM, ATEX, IECEx) enable deployment in Zone 2 and Division 2 classified locations without expensive purge systems or intrinsic safety barriers.

Whether you're monitoring 50 remote tanks, adding vibration sensors to rotating equipment, or connecting wellhead instrumentation miles from your control room, this wireless I/O card integrates seamlessly with existing DeltaV electronic marshalling systems—appearing as native CHARM I/O points with identical configuration, alarming, and trending capabilities as wired modules.

Key Features & Business Value

→ 40-60% Lower Total Installed Cost
Eliminate cable material ($15-50/meter), trenching labor ($80-200/meter), conduit systems, and cable tray infrastructure. Typical ROI achieved in 6-18 months on projects with >500m cable runs or >10 remote measurement points.

→ Extreme Environment Reliability
-40°C to +70°C operating range with ISA-S71.04 Class G3 conformal coating protects against corrosive atmospheres, salt spray, and industrial pollutants. Vibration-rated to 0.7g and shock-tested to 10g for deployment on skids, offshore modules, and mobile equipment.

→ Deterministic Wireless Performance
Guaranteed 1-4 second update rates with <100ms jitter enable closed-loop control applications. Self-healing mesh topology with automatic path diversity maintains connectivity even when individual radio links fail due to obstruction or interference.

✓ Zero Configuration DeltaV Integration
Appears as standard CHARM I/O in DeltaV Explorer—no custom function blocks or special programming required. Supports all standard signal types: 4-20mA, HART, discrete I/O, and pulse inputs with identical diagnostics and calibration workflows as wired modules.

✓ Global Hazardous Area Approvals
FM/CSA Class I Division 2 Groups A-D, ATEX Zone 2, IECEx certified, plus DNV/ABS marine approvals for offshore installations. Reduces certification costs and accelerates project schedules in regulated industries.

✓ Scalable Mesh Architecture
Start with 5-10 wireless points and expand to 100+ nodes without gateway upgrades. Each module acts as a repeater, extending network range up to 1.5km line-of-sight or 300-500m through process structures and equipment.

Application Scenarios

Scenario 1: Tank Farm Modernization
Challenge: Refinery needs level, temperature, and pressure monitoring on 40 storage tanks spread across 15 hectares. Traditional wired I/O requires 8km of cable, 120 manholes, and 6-month installation timeline.
Solution: Deploy KL2102X1-BA1 modules at each tank with solar/battery power. Wireless mesh routes data through 3 gateway nodes to DeltaV control room.
Result: $280K cost savings, 8-week installation, zero trenching permits, flexible reconfiguration as tank assignments change.

Scenario 2: Offshore Platform Expansion
Challenge: Add 15 new measurement points on existing North Sea platform where cable trays are 100% full and structural modifications require $500K+ engineering study.
Solution: Install wireless I/O modules on new instruments, communicate through existing platform wireless gateway infrastructure.
Result: Project completed during normal operations without hot work, platform shutdown, or structural changes. 75% cost reduction vs. cable installation.

Scenario 3: Rotating Equipment Monitoring
Challenge: Monitor bearing temperature and vibration on 12 critical compressors. Slip rings and rotary joints create maintenance headaches and signal quality issues.
Result: Wireless I/O eliminates mechanical connections while providing real-time data to DeltaV predictive maintenance algorithms. Reduced unplanned downtime by 40% through early fault detection.

Scenario 4: Remote Well Monitoring
Challenge: Oil & gas producer needs production data from 25 wells located 2-8km from central battery. Fiber optic cable installation quoted at $1.2M.
Solution: Solar-powered wireless I/O at each wellhead, multi-hop mesh network back to control facility.
Result: $850K project savings, 4-week deployment vs. 6-month cable project, easy addition of new wells as field develops.

Scenario 5: Temporary Process Optimization
Challenge: Chemical plant needs 30 additional temperature/pressure points during 6-month process optimization study. Permanent wiring not justified for temporary project.
Result: Wireless I/O deployed in 3 days, moved between measurement locations as study progresses, redeployed to other units after project completion. Zero cable waste or abandoned infrastructure.

Technical Parameters & Selection Guide

Selection Criteria:

Choose KL2102X1-BA1 when cable installation costs exceed $8,000 per I/O point, measurement locations change frequently, or physical obstructions (rivers, roads, existing equipment) make cable routing impractical. For applications requiring <1 second update rates or safety-instrumented system (SIS) integration, consult factory for wired CHARM alternatives. Wireless I/O is ideal for monitoring applications (85% of industrial use cases) but may not suit fast batch control or high-speed interlocks requiring <500ms response.

Extended Capabilities & IoT Integration

Advanced Diagnostics: Built-in radio signal strength monitoring, battery voltage tracking (for solar installations), and communication path visualization through DeltaV Operate interface. Predictive alerts warn of degrading RF links before communication loss occurs.

Cybersecurity Features: AES-128 encryption, device authentication, and secure key management prevent unauthorized access. Complies with IEC 62443 industrial cybersecurity standards for defense-in-depth network architecture.

Cloud Connectivity: Integrate with Emerson Plantweb Optics or third-party IIoT platforms via DeltaV gateway services. Stream wireless I/O data to cloud analytics for machine learning, remote expert support, or corporate dashboard integration.

Customization Options: Available with extended temperature range (-55°C to +85°C), explosion-proof enclosures for Zone 1/Division 1, and solar panel kits for off-grid installations. Contact engineering for project-specific configurations.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center to Asia-Pacific destinations. 7-10 business days for North America and Europe via expedited air freight.

Custom Configurations: 4-6 weeks for factory-configured systems including wireless site surveys, gateway provisioning, and pre-commissioned I/O modules ready for field installation.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year service contracts available including advance replacement, on-site spares, and priority technical support.

Technical Support: Lifetime access to certified DeltaV application engineers for configuration assistance, troubleshooting, and system optimization. Support available via email, phone, and remote desktop sessions in English and Mandarin.

Documentation Package: Includes installation manual (Document 12P5403), hazardous area certification documents, wireless network planning guide, DeltaV configuration templates, and AutoCAD symbols for P&ID integration.

Frequently Asked Questions

Q1: What is the maximum distance between wireless I/O modules and the DeltaV gateway?
A: Line-of-sight range is approximately 1.5km outdoors. In industrial environments with steel structures, expect 300-500m per hop. The mesh network supports up to 10 hops, enabling total network span of 3-5km. Site surveys recommended for projects >1km to verify RF propagation and identify optimal gateway placement.

Q2: Can I use KL2102X1-BA1 for safety-instrumented systems (SIS) or emergency shutdown applications?
A: No. Wireless I/O is not certified for SIL-rated safety functions per IEC 61508/61511. Use wired CHARM I/O for all safety-critical interlocks, emergency shutdown valves, and fire & gas detection. Wireless modules are appropriate for process monitoring, optimization, and non-safety control loops.

Q3: How does wireless I/O performance compare to wired CHARM modules in terms of update rate and reliability?
A: Wireless I/O provides 1-4 second update rates vs. 100-500ms for wired modules. For 95% of monitoring applications (tank levels, temperatures, pressures), this latency is acceptable. Reliability exceeds 99.9% with proper network design—comparable to wired systems when accounting for cable failures, moisture ingress, and termination issues.

Q4: What power options are available for remote wireless I/O installations without AC mains?
A: Solar panel kits (20-50W) with battery backup (12V 40Ah) provide 7-10 days autonomy in most climates. For arctic or low-sunlight environments, consider thermoelectric generators (TEG) powered by process heat, or small wind turbines. Consult our energy harvesting guide for site-specific recommendations.

Q5: Is the KL2102X1-BA1 compatible with WirelessHART and ISA100.11a field devices?
A: Yes. The wireless I/O card supports both WirelessHART and ISA100.11a protocols, enabling integration with 500+ certified field instruments from Rosemount, Endress+Hauser, Yokogawa, and other major manufacturers. Mixed-protocol networks are supported with appropriate gateway configuration.

Q6: What cybersecurity measures protect wireless I/O networks from unauthorized access or jamming attacks?
A: Multi-layer security includes AES-128 encryption, device whitelisting, secure join procedures, and frequency-hopping spread spectrum (FHSS) to resist jamming. Networks operate in 2.4GHz ISM band with 15 non-overlapping channels. For critical infrastructure, deploy intrusion detection systems and RF monitoring per IEC 62443-3-3 guidelines.

Ready to Eliminate Cable Costs?

Get a wireless I/O feasibility assessment: Our application engineers will review your P&IDs, site layout, and I/O requirements to provide a detailed cost-benefit analysis comparing wireless vs. wired installation. Typical assessment delivered in 3-5 business days at no charge for projects >20 I/O points.

Request a quote: Volume pricing available for orders >10 modules. Multi-year service agreements include spare modules, on-site commissioning support, and guaranteed 48-hour replacement for failed units.

Schedule a demo: See wireless I/O in action at our Shanghai demonstration facility or arrange a temporary installation at your plant for 30-day proof-of-concept testing.

Contact our DeltaV wireless specialists today:
? sale@ninermas.com | ☎ +0086 187 5021 5667
Expert guidance for tank farms, offshore platforms, and remote monitoring projects
