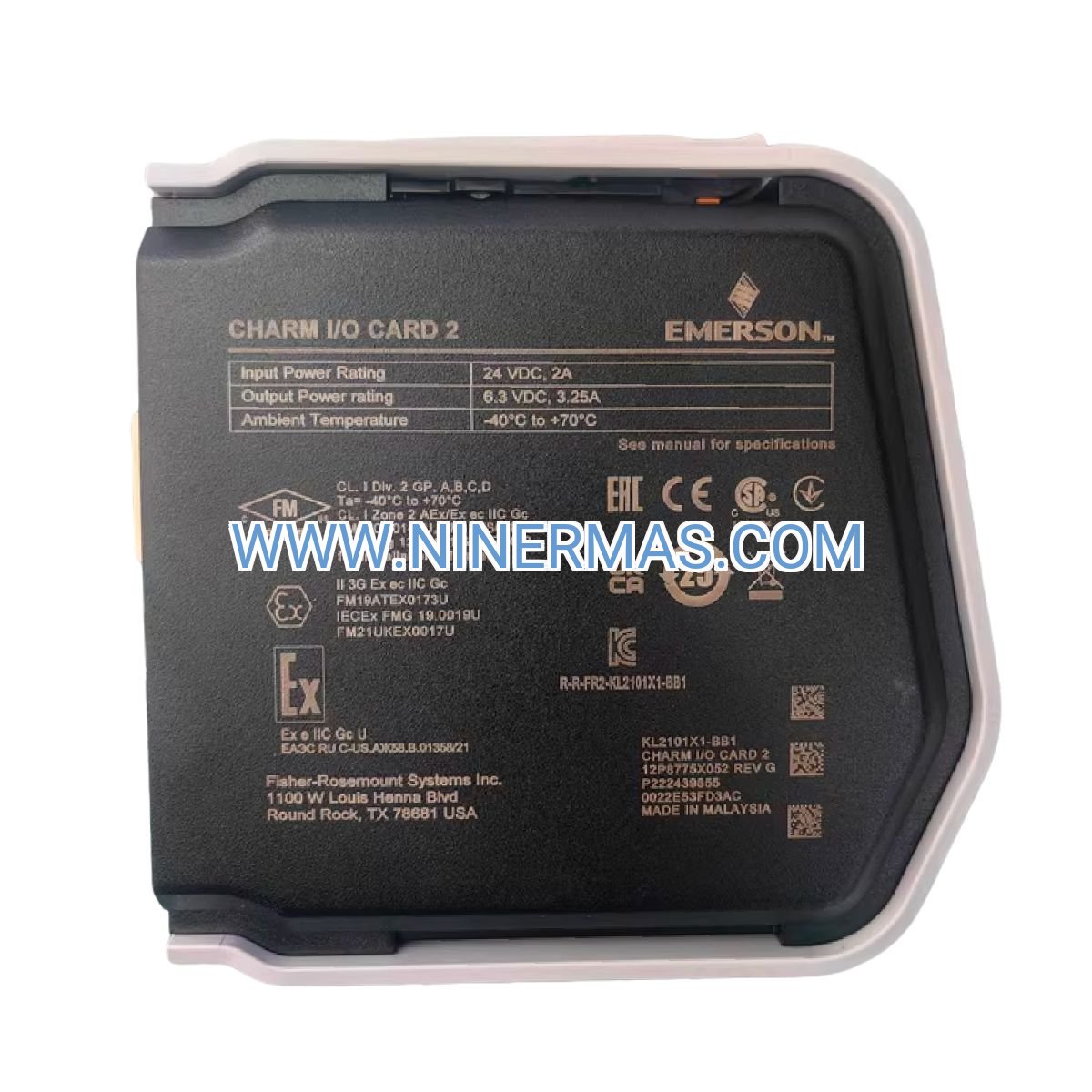

KL2101X1-BB1 CHARM I/O Card 2 – High-Performance Interface Module for DeltaV Control Architecture

The KL2101X1-BB1 represents Emerson's second-generation CHARM I/O Card (CIOC2), engineered to bridge field instrumentation with DeltaV distributed control platforms. This industrial-grade interface module delivers deterministic signal conversion and protocol translation for mission-critical process environments where uptime, accuracy, and environmental resilience define operational success.

Designed for integration engineers and plant automation teams, the CIOC2 addresses the complexity of multi-point I/O expansion in petrochemical refineries, pharmaceutical manufacturing, water treatment facilities, and power generation stations. Its factory-validated performance eliminates field calibration overhead while maintaining measurement integrity across temperature extremes and electrical noise conditions.

With hot-swap capability, extended temperature ratings, and predictive health monitoring, the KL2101X1-BB1 minimizes unplanned downtime and accelerates commissioning timelines—delivering measurable ROI through reduced installation labor and enhanced system availability.

Core Capabilities & Business Value

→ Zero-Downtime Serviceability
Hot-swappable architecture enables card replacement during live operations without process interruption or controller reboot. Maintenance windows shrink from hours to minutes, preserving production schedules and eliminating costly shutdown coordination.

✓ Pre-Calibrated Signal Integrity
Each module ships with NIST-traceable calibration certificates, guaranteeing ±0.1% accuracy across the 4-20mA range. Eliminates field calibration equipment requirements and reduces commissioning time by 40% compared to legacy I/O systems.

✓ Extreme Environment Resilience
Operates continuously from -40°C to +70°C with conformal coating protection against humidity, dust, and chemical exposure. Ideal for outdoor marshalling cabinets, hazardous area installations, and tropical climate deployments without additional environmental enclosures.

✓ Predictive Failure Detection
Embedded diagnostics monitor power supply health, communication integrity, and signal quality in real-time. Early warning alerts enable condition-based maintenance strategies, reducing emergency spare parts inventory by up to 30%.

✓ Extended Communication Range
CHARM protocol supports cable runs up to 1,900 meters between I/O and controller, reducing copper costs in large facilities and enabling flexible cabinet placement without signal repeaters.

✓ Universal Mounting Flexibility
Compatible with DIN rail and panel-mount configurations. Standardized footprint simplifies retrofit projects and allows mixed-vendor I/O carrier integration in brownfield expansions.

Industry-Specific Deployment Scenarios

Continuous Process Manufacturing
In chemical reactors and distillation columns, the CIOC2 interfaces with RTD temperature transmitters, differential pressure sensors, and analytical instruments. Its 24 VDC loop-powered design eliminates auxiliary power supplies, while the 6.3 VDC regulated output powers HART communicators for advanced diagnostics without additional wiring.

Remote Asset Monitoring
Deploy in unmanned pump stations, compressor skids, and tank farms where the extended temperature range and diagnostic capabilities reduce site visit frequency. CHARM's long-distance communication eliminates the need for intermediate junction boxes in pipeline monitoring applications.

Batch Production Systems
Pharmaceutical and food processing facilities leverage the CIOC2's fast scan rates (10ms typical) for precise recipe execution and material tracking. Hot-swap capability ensures cleaning validation schedules remain unaffected by I/O maintenance activities.

Utility Infrastructure
Water treatment plants and power substations benefit from the module's UL/CE/ATEX certifications for multi-jurisdictional compliance. The built-in self-test feature satisfies regulatory audit requirements for critical infrastructure monitoring.

Brownfield Modernization
Retrofit aging pneumatic control systems or obsolete DCS platforms with minimal rewiring. The CIOC2's backward compatibility with first-generation CHARM carriers protects existing infrastructure investments while enabling phased migration to modern DeltaV architectures.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the KL2101X1-BB1 when your application requires field-proven reliability in DeltaV M-series or S-series controller architectures. For SIL 2/3 safety applications, consult Emerson's SIS-certified I/O portfolio. When integrating non-DeltaV controllers, verify CHARM protocol licensing requirements.

Advanced Integration Features

Redundant Network Support
Dual CHARM ports enable automatic failover in redundant controller configurations. If the primary communication path fails, the secondary link maintains uninterrupted data flow with <50ms switchover time—critical for emergency shutdown systems and continuous process control.

DeltaV Explorer Auto-Discovery
Plug-and-play device recognition eliminates manual configuration errors. The CIOC2 broadcasts its electronic data sheet (EDS) upon connection, automatically populating I/O channel assignments and diagnostic parameters in the DeltaV database.

HART Pass-Through Capability
Access HART-enabled field devices for configuration and diagnostics without breaking the 4-20mA control loop. Retrieve device health data, perform loop tests, and update transmitter parameters directly through DeltaV AMS Suite or third-party asset management platforms.

Custom Firmware Updates
Field-upgradable firmware via DeltaV Explorer ensures long-term supportability. Apply security patches, performance enhancements, and protocol updates without hardware replacement—extending product lifecycle beyond 15 years in typical industrial environments.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock items; 2-3 weeks for factory-direct orders with custom testing requirements
Expedited Shipping: Next-flight-out service available for emergency replacements (additional fees apply)
Warranty Coverage: 12-month manufacturer defect warranty from shipment date; extended service agreements available
Technical Documentation: Installation manual (SE-KL2101X1), wiring diagrams, DeltaV configuration templates, and 3D CAD models included
Post-Sales Support: Unlimited email/phone consultation during warranty period; on-site commissioning assistance available in select regions

Frequently Asked Questions

Can the KL2101X1-BB1 interface with third-party DCS platforms outside the DeltaV ecosystem?
The CIOC2 is optimized for DeltaV controllers and requires CHARM protocol support. For non-DeltaV systems, consider Emerson's universal I/O modules with Modbus RTU or PROFIBUS-DP interfaces. Contact our integration team for protocol gateway solutions.

What is the maximum I/O density achievable per CHARM carrier using this card?
A standard 8-slot CHARM carrier accommodates up to 8 CIOC2 cards, supporting 128 analog inputs or 256 discrete points depending on channel configuration. High-density applications may require multiple carriers with network load balancing.

Does the module support intrinsically safe (IS) field devices in hazardous areas?
The KL2101X1-BB1 itself is not IS-rated. For Zone 0/Division 1 applications, pair with Emerson's IS barriers (e.g., KL2151X1 series) or use the CIOC2-IS variant with integrated galvanic isolation. Verify barrier compatibility with your specific field device current requirements.

How does the hot-swap feature work without disrupting active control loops?
The DeltaV controller maintains the last known good output state during card removal. Upon inserting the replacement CIOC2, the system performs a health check (typically <2 seconds) before resuming normal operation. Configure "hold last value" or "safe state" behavior in DeltaV control modules for critical loops.

What preventive maintenance schedule is recommended for optimal performance?
Inspect terminal block connections annually for corrosion or looseness. Clean dust accumulation from ventilation slots every 6 months in high-particulate environments. Monitor diagnostic counters in DeltaV for communication errors or power supply anomalies—replacement is typically indicated after 10 years of continuous operation or 100,000 power cycles.

Are firmware updates backward-compatible with older DeltaV controller versions?
CIOC2 firmware v3.x and later requires DeltaV v11.3 or newer. Legacy systems running DeltaV v10.x must use firmware v2.8 (available upon request). Always verify compatibility matrices in Emerson Product Data Sheet KJ2005X1 before updating.

Request a Quote or Technical Consultation

Our automation specialists provide application-specific guidance on I/O architecture design, network topology optimization, and lifecycle cost analysis. Whether you're expanding an existing DeltaV installation or planning a greenfield project, we deliver tailored solutions with transparent pricing and guaranteed delivery commitments.

Contact us today: Share your P&ID drawings, I/O lists, and environmental conditions for a detailed proposal within 24 hours. Volume discounts available for orders exceeding 10 units.
