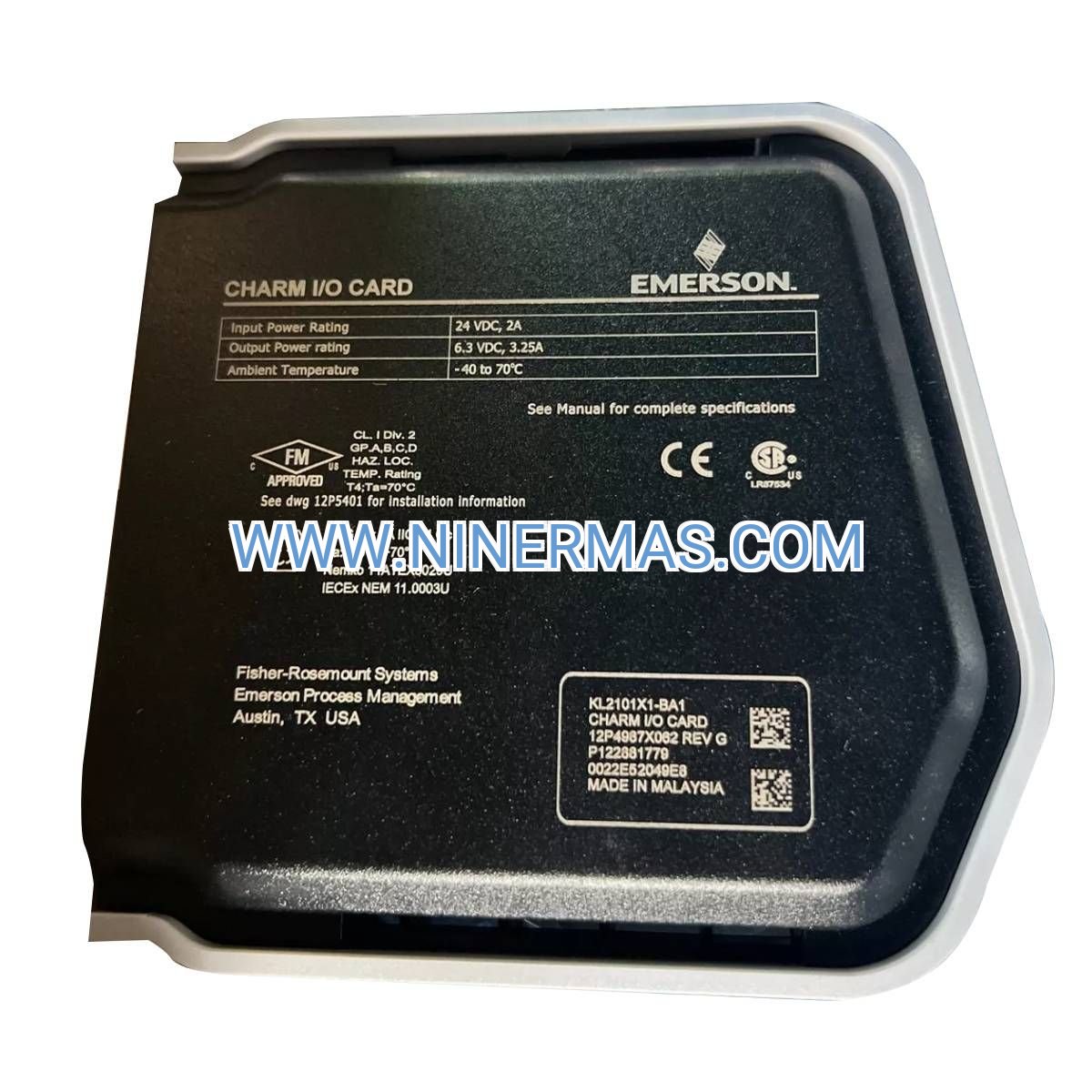

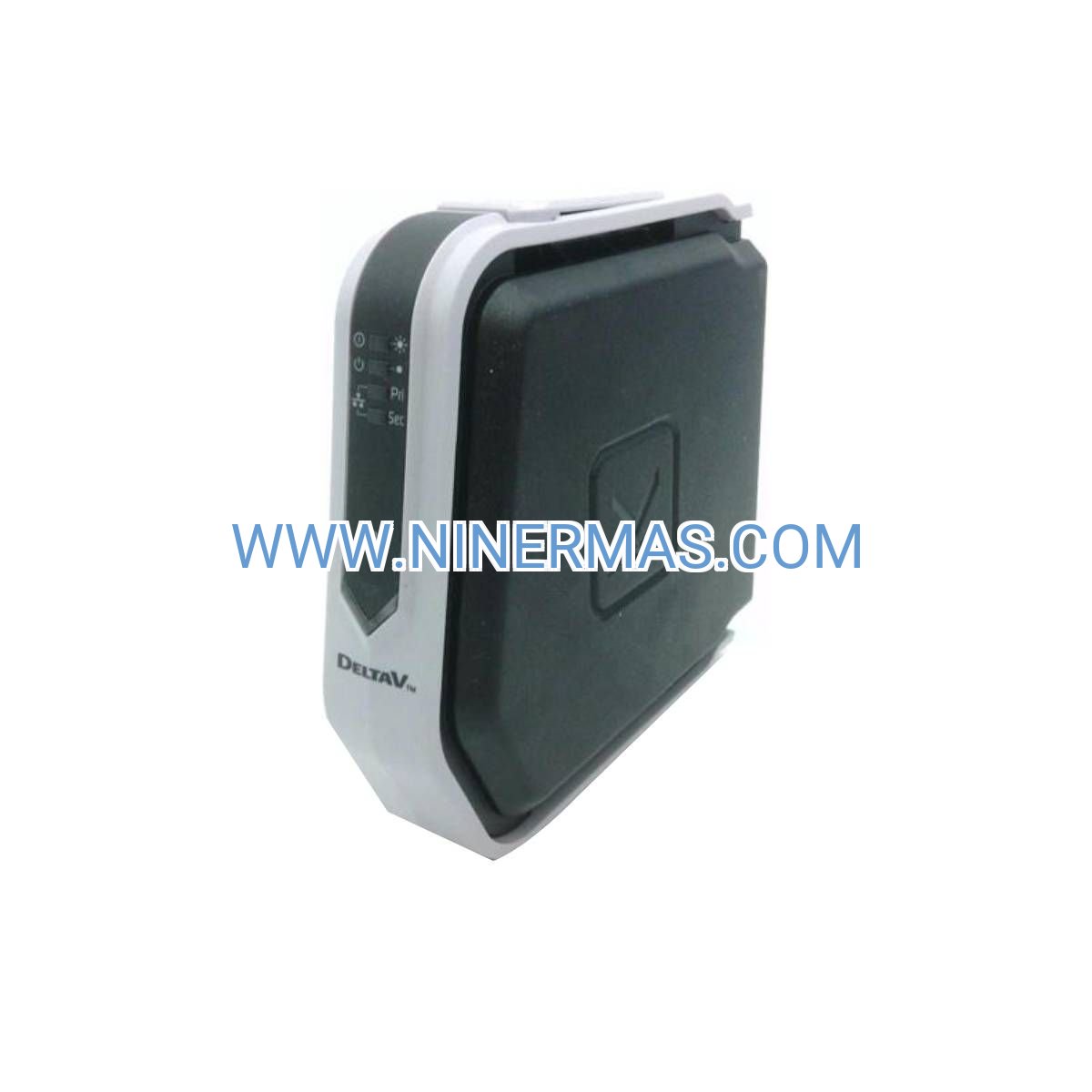

KL2101X1-BA1 CHARM I/O Card (Industrial-Grade DeltaV Interface Module)

The KL2101X1-BA1 is a high-performance CHARacterization Module (CHARM) I/O card engineered for Emerson DeltaV distributed control systems. This intelligent interface module delivers deterministic signal processing and field power distribution for mission-critical process automation applications. Designed for continuous operation in harsh industrial environments, it provides seamless integration between field instrumentation and DeltaV controllers with enterprise-class reliability.

Process engineers and automation specialists rely on this module to eliminate signal degradation in long cable runs while maintaining sub-millisecond response times. The card serves as the critical bridge between analog sensors, digital actuators, and your DeltaV control network, ensuring data integrity across temperature extremes from -40°C to +70°C. Whether you're upgrading legacy systems or designing greenfield facilities, the KL2101X1-BA1 delivers the performance headroom needed for Industry 4.0 readiness.

With built-in diagnostics, cybersecurity hardening, and compliance certifications for global hazardous location standards, this CHARM I/O card reduces total cost of ownership while future-proofing your automation infrastructure. Experience the difference that Emerson's 50+ years of process control expertise brings to every installation.

Core Capabilities & Business Value

→ Hot-Swap Architecture
Replace or upgrade modules during live operation without system shutdown. This zero-downtime maintenance capability translates to 99.9%+ uptime in continuous process industries, eliminating costly production interruptions that typically cost $50,000-$500,000 per hour in lost output.

✓ HART Protocol Integration
Bidirectional digital communication overlaid on 4-20mA signals enables remote device configuration, calibration verification, and predictive diagnostics. Reduce field trips by 60% and catch sensor drift before it impacts product quality or triggers false alarms.

✓ Intrinsic Safety Barriers
FM, CSA, ATEX, and IECEx certifications permit installation in Class I Division 2 and Zone 2 explosive atmospheres. Deploy the same hardware platform across safe and hazardous areas to simplify spare parts inventory and technician training.

✓ Advanced Fault Detection
Continuous self-diagnostics monitor power supply health, backplane communication integrity, and field wiring status. Automated alerts via DeltaV alarms enable proactive maintenance scheduling, reducing unplanned downtime by up to 35%.

✓ Distributed I/O Topology
Eliminate traditional marshalling cabinets by locating I/O cards near field devices. This architecture cuts installation labor costs by 30-40%, reduces copper wiring by 70%, and improves signal quality through shorter home runs.

✓ Cybersecurity Hardened Design
Encrypted configuration files, role-based access controls, and secure boot processes protect against unauthorized modifications. Meets IEC 62443 industrial cybersecurity standards for defense-in-depth protection.

Industry Applications & Problem Solving

Oil & Gas Refining
Control distillation columns, reactor temperatures, and blending operations with 0.1% measurement accuracy. The card's redundancy support enables fault-tolerant architectures required for Safety Instrumented Systems (SIS) up to SIL 2 ratings, ensuring safe shutdown sequences during emergency conditions.

Chemical Manufacturing
Manage batch reactors, continuous polymerization, and specialty chemical synthesis with precise analog control and discrete sequencing. EDDL/FDT device integration provides unified access to 5,000+ smart field device parameters without proprietary software.

Pharmaceutical Production
Maintain FDA 21 CFR Part 11 compliance through electronic signatures, audit trails, and validated system configurations. The module's deterministic scan times ensure repeatable batch execution for GMP-regulated processes, from fermentation to sterile filling.

Power Generation
Monitor turbine vibration, boiler drum levels, and emissions control systems with millisecond-level responsiveness. The extended temperature rating supports installation in outdoor enclosures and high-ambient locations without forced cooling.

Water & Wastewater Treatment
Automate clarifiers, aeration basins, and chemical dosing systems while meeting SCADA integration requirements. The card's open connectivity via OPC UA enables data sharing with municipal reporting systems and asset management platforms.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KL2101X1-BA1 when your application requires flexible I/O configuration, hot-swap serviceability, and HART device support. For applications with extreme vibration (>2g), consider ruggedized mounting accessories. Systems requiring SIL 3 certification should implement dual-redundant configurations with voting logic.

Extended Functionality & Integration Options

Industry 4.0 Connectivity: The module supports OPC UA server functionality for secure data exchange with MES, ERP, and cloud analytics platforms. Publish process variables, alarm states, and diagnostic metrics to Azure IoT Hub or AWS IoT Core without custom gateway hardware.

Predictive Maintenance: Leverage built-in condition monitoring to track I/O card health metrics including power supply voltage drift, backplane communication errors, and thermal stress accumulation. Export data to Emerson AMS Device Manager for fleet-wide asset performance analysis.

Custom Engineering: Factory configuration services available for pre-wired terminal blocks, custom channel assignments, and application-specific firmware. Reduce commissioning time by 50% with plug-and-play modules delivered ready for field installation.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units shipped from regional distribution centers. Expedited same-day shipping available for critical outage situations (additional fees apply).

Custom Configuration: 10-15 business days for factory-configured modules with specialized channel mappings or extended testing protocols.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans available for up to 5 years with advance replacement service.

Technical Support: Lifetime access to Emerson's global support network including 24/7 emergency hotline, online knowledge base with 10,000+ technical documents, and regional field service engineers for on-site commissioning assistance.

Documentation Package: Each module ships with installation manual, wiring diagrams, EDDL device description files, and certificate of conformity. CAD drawings and 3D STEP models available for download.

Frequently Asked Questions

What communication protocols does the KL2101X1-BA1 support for field device integration?
The module natively supports HART protocol for smart transmitter communication, enabling remote configuration and diagnostics over existing 4-20mA wiring. It also interfaces with foundation fieldbus H1 devices when paired with appropriate linking devices, and supports discrete I/O for conventional on/off devices.

Can this I/O card handle both analog inputs and digital outputs simultaneously?
Yes, the CHARM architecture allows flexible channel assignment. You can configure individual channels as analog inputs (4-20mA, 1-5V), analog outputs, digital inputs (dry contact, wet contact), or digital outputs (relay, solid-state) based on your application requirements. Total channel count depends on power budget and backplane capacity.

How much energy efficiency improvement can I expect compared to legacy I/O systems?
Distributed I/O topology reduces copper wiring by 60-70%, cutting installation energy by 15-20%. The module's intelligent power management delivers field power only to active channels, reducing standby consumption by 30% versus always-on designs. In a typical 500-point system, this translates to 2,000-3,000 kWh annual savings.

What are the physical installation requirements for mounting this module?
The card mounts on standard 35mm DIN rail with snap-in retention clips requiring no tools. Minimum clearances: 50mm top/bottom for convection cooling, 25mm sides for wiring access. Enclosure must maintain IP54 rating minimum; IP65 recommended for outdoor installations. Grounding lug accepts 12-14 AWG wire.

Does the KL2101X1-BA1 support remote monitoring and diagnostics capabilities?
Full remote access via DeltaV workstations enables real-time monitoring of channel status, power supply health, and communication statistics. SNMP traps and OPC alarms notify operators of fault conditions. Web-based diagnostics available through embedded server (requires DeltaV v14.3 or later). Mobile app support for iOS/Android provides field technician access.

Is this module compatible with existing DeltaV systems or only new installations?
Backward compatible with DeltaV systems v11.3 and newer after firmware update. Retrofit installations require verification of backplane power budget and controller CPU capacity. Emerson provides free compatibility assessment tools and migration planning services for upgrade projects.

Get Expert Guidance for Your Control System

Our industrial automation specialists are ready to help you specify the right I/O configuration for your DeltaV application. Contact us today for technical consultation, custom quotations, or to discuss volume pricing for multi-site deployments. We offer complete system integration services including design validation, FAT/SAT testing, and startup commissioning support.

Request a quote now or speak with an application engineer to discuss your specific process control requirements.
