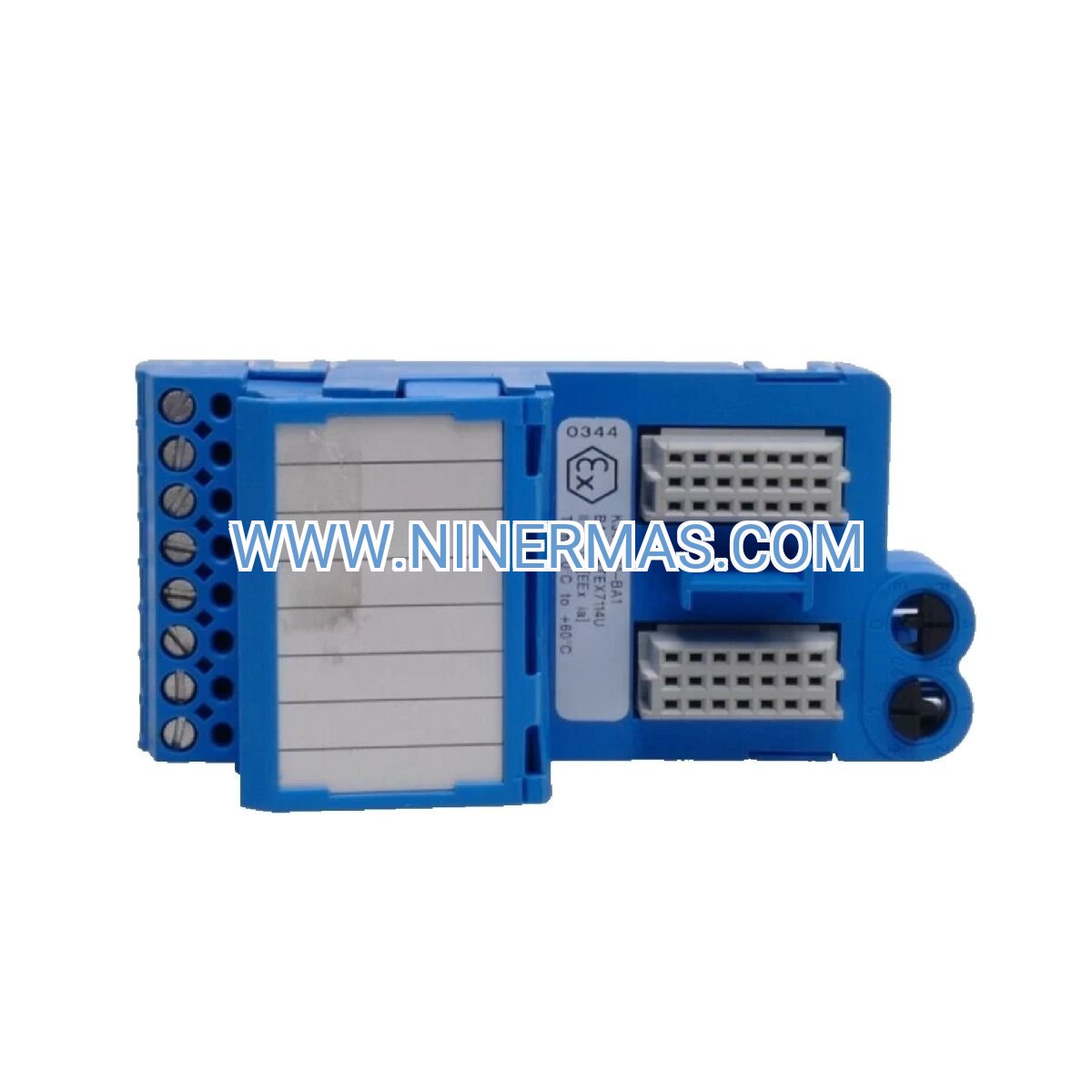

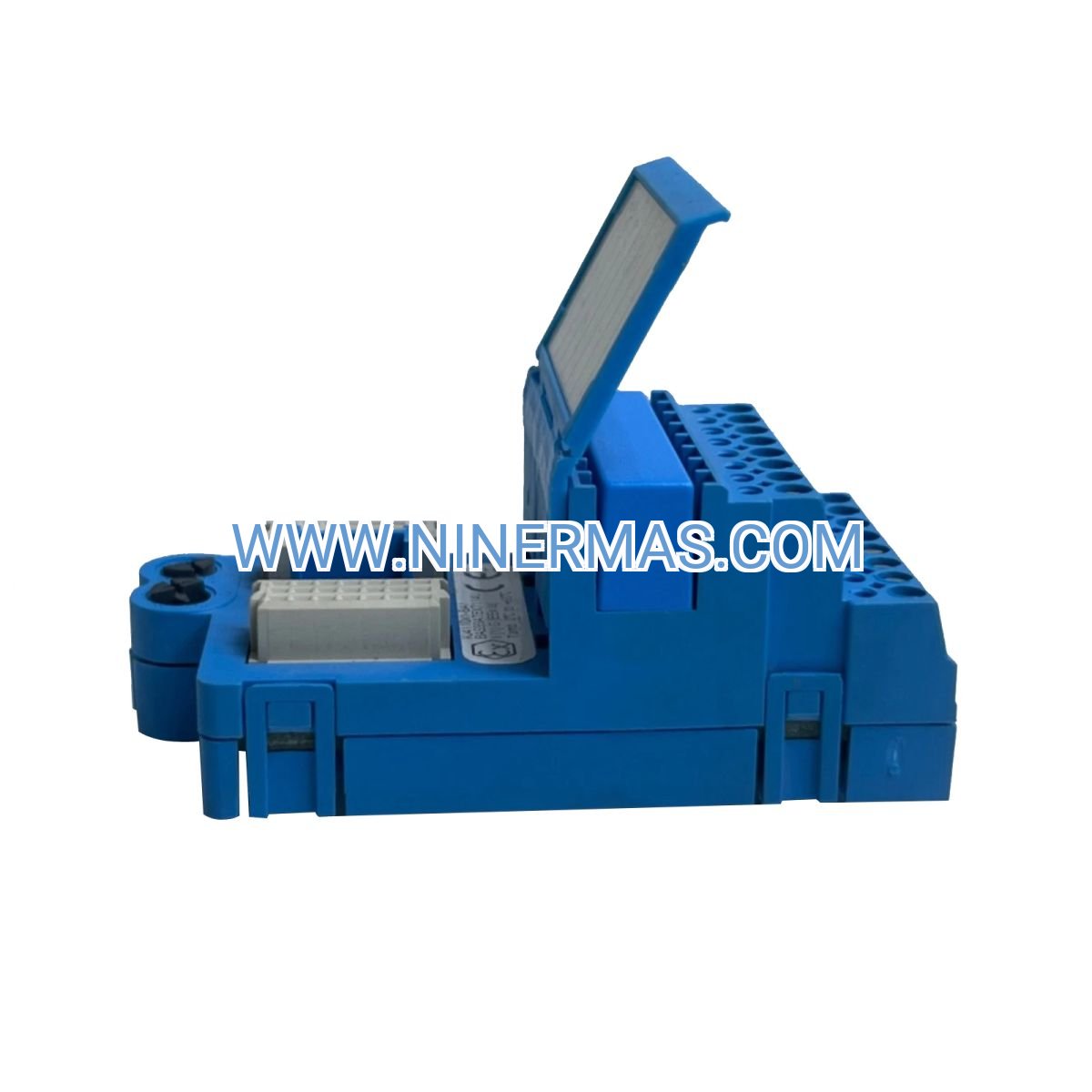

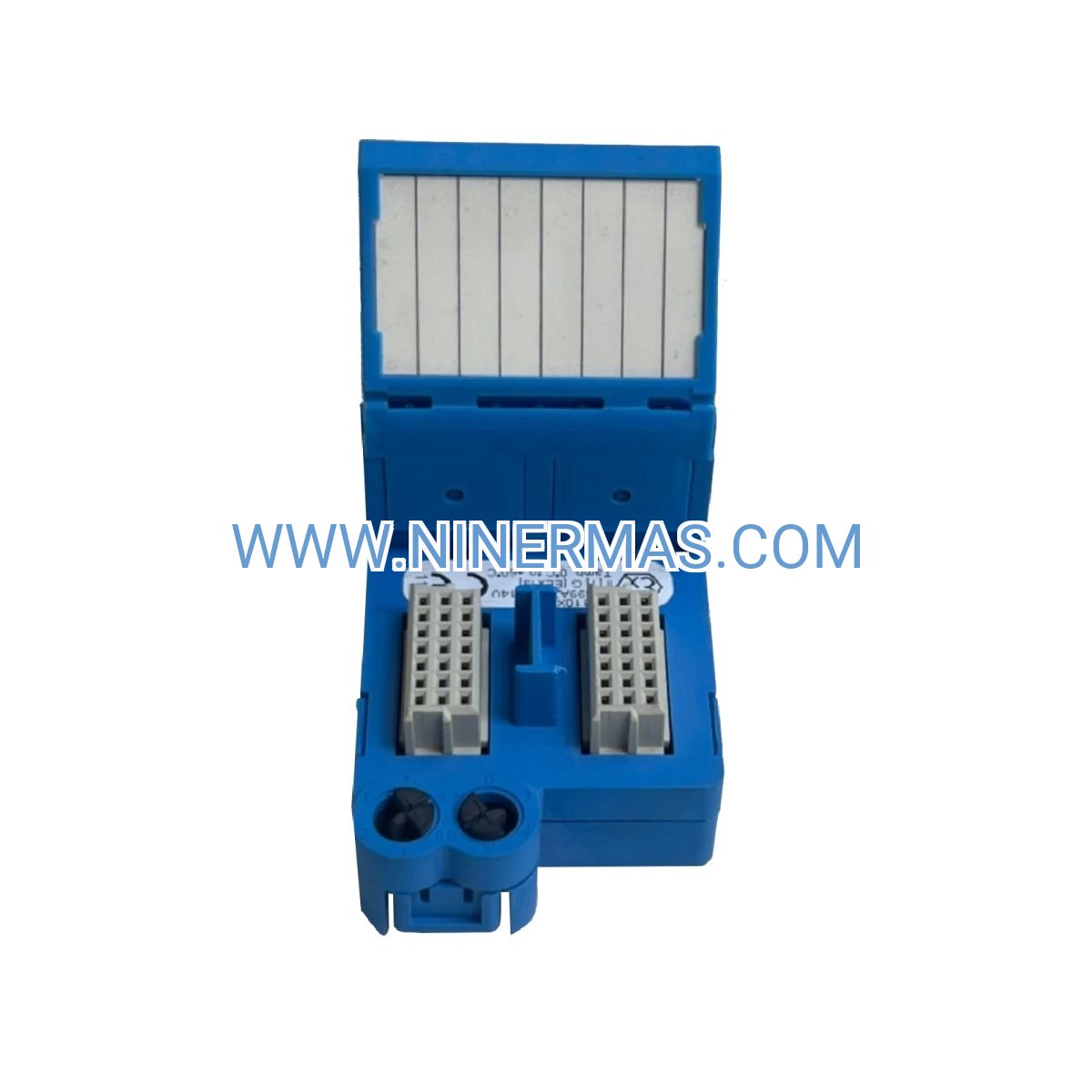

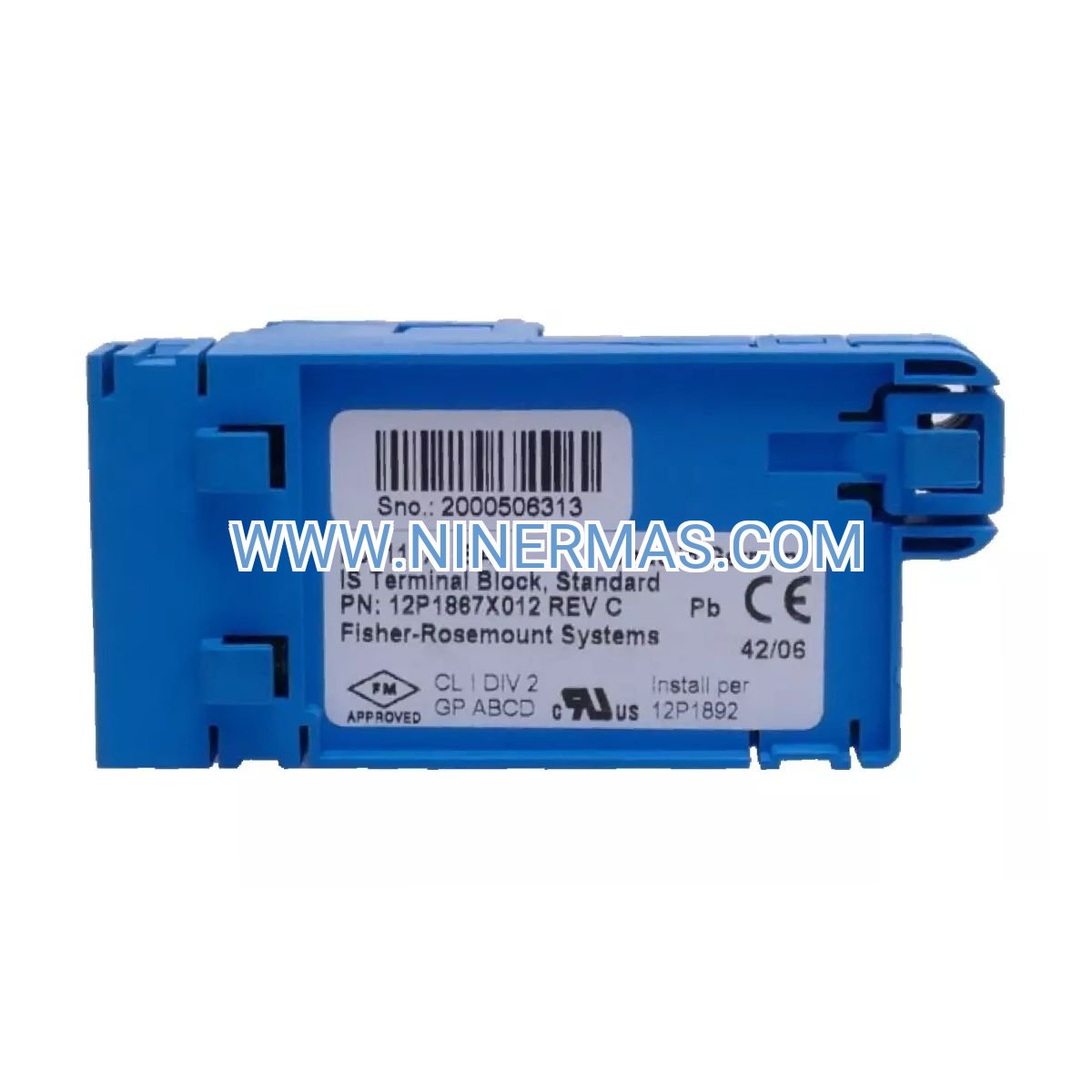

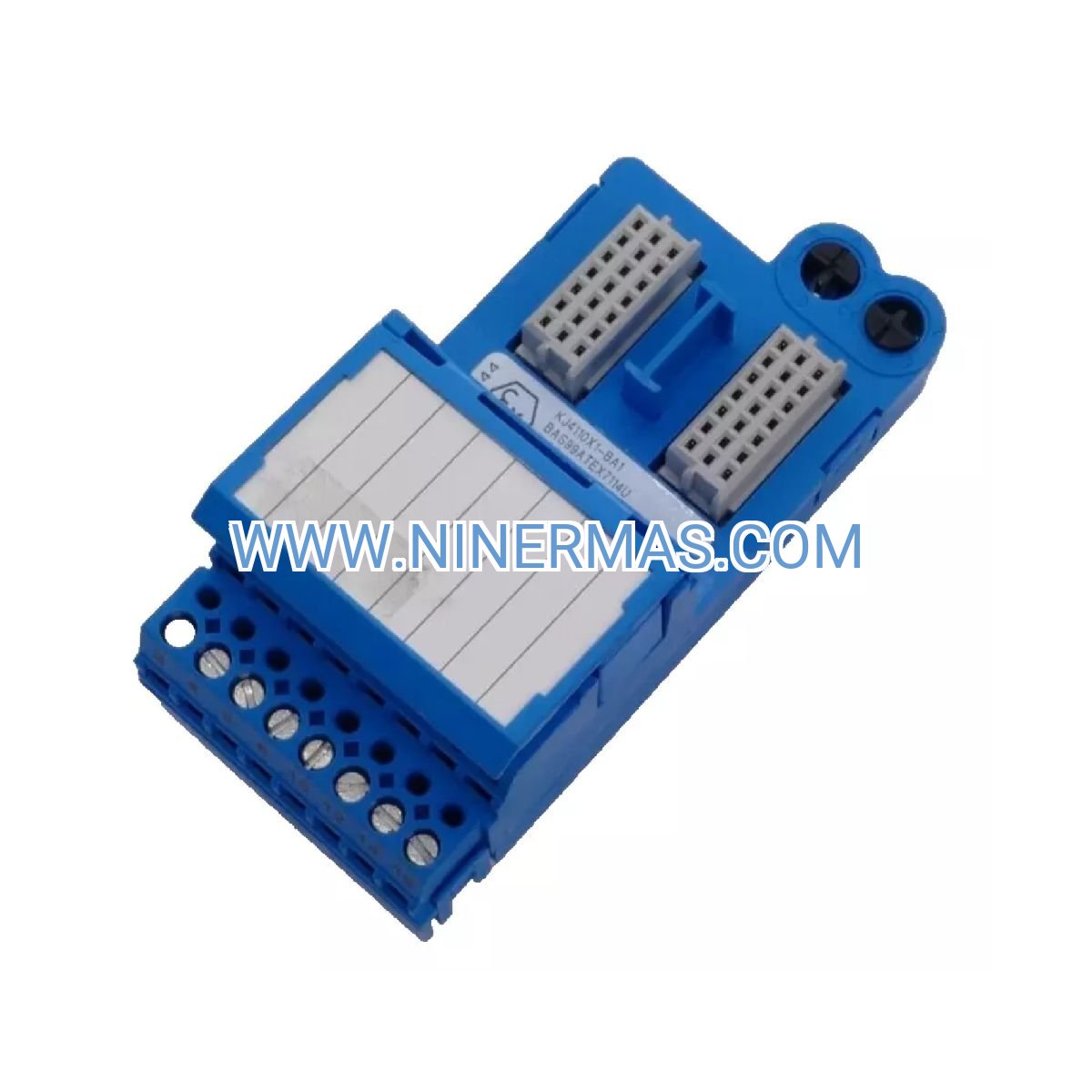

KJ4110X1-BA1 Intrinsically Safe Terminal Block (Industrial-Grade DeltaV Interface)

The KJ4110X1-BA1 (12P1867X) Intrinsically Safe Terminal Block delivers certified explosion-proof field wiring for DeltaV I/O systems operating in the world's most hazardous industrial environments. Designed for Zone 0, Zone 1, and Zone 2 classified locations, this terminal interface ensures electrical energy remains below ignition thresholds even under multiple fault scenarios—protecting personnel, assets, and operations in oil & gas, chemical processing, pharmaceutical manufacturing, and mining facilities where flammable atmospheres demand uncompromising safety standards.

Why Industrial Facilities Choose KJ4110X1-BA1 IS Terminal Blocks

→ Multi-Level Safety Certification
ATEX, IECEx, FM, and CSA approvals for Zone 0/1/2 (Group IIC) and Class I Division 1/2 (Groups A-D) installations eliminate costly explosion-proof enclosures while meeting the strictest global regulatory requirements. Entity concept design ensures compatibility verification between I/O modules, terminal blocks, and field devices through documented parameter matching.

→ Extreme Environment Reliability
Operates continuously from -40°C arctic conditions to +70°C desert heat with ISA-S71.04 Class G3 conformal coating protecting against corrosive chemical vapors, salt spray, and industrial contaminants. IP20 protection rating and 5-95% humidity tolerance ensure decades of maintenance-free service in offshore platforms, refineries, and chemical plants.

→ Simplified Installation & Maintenance

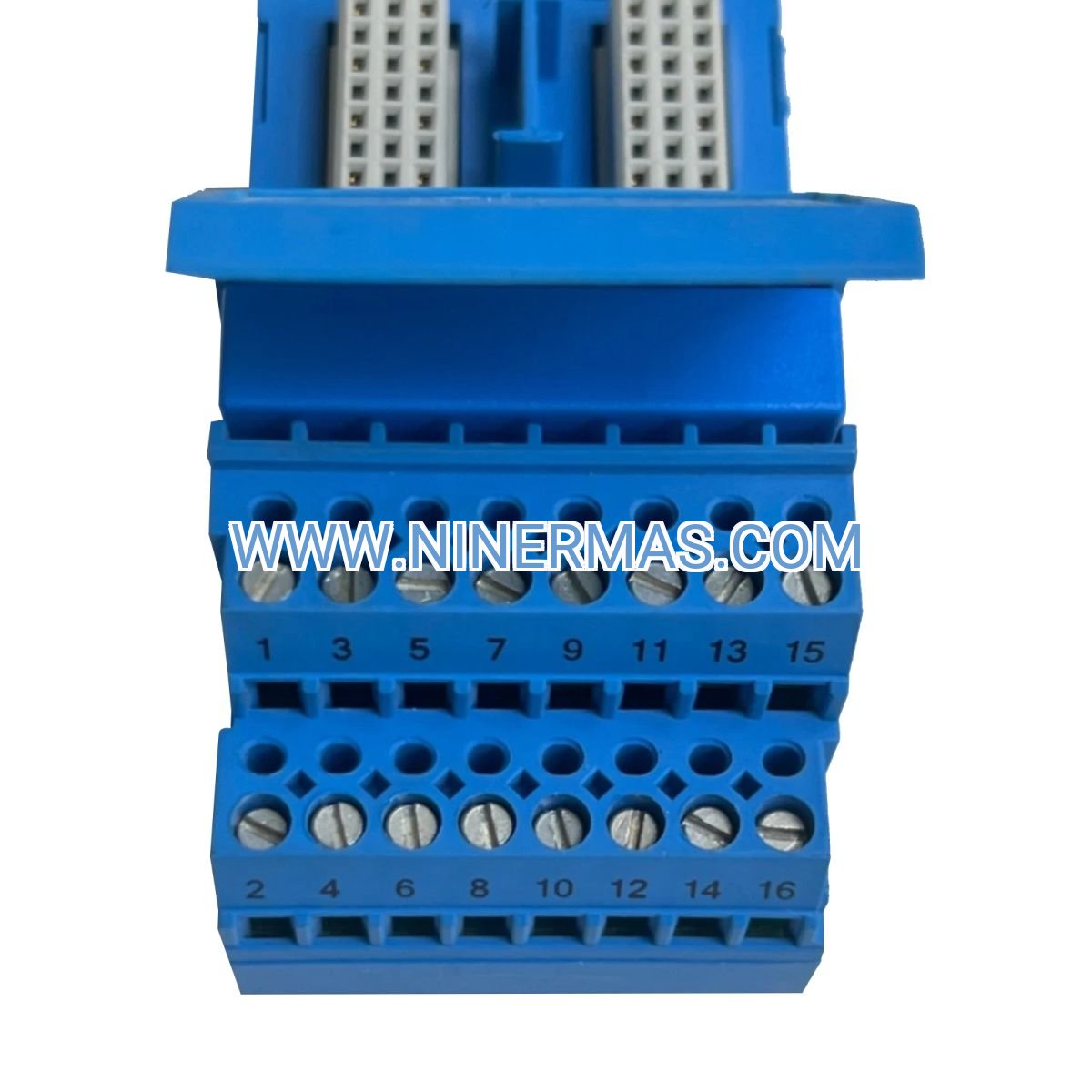

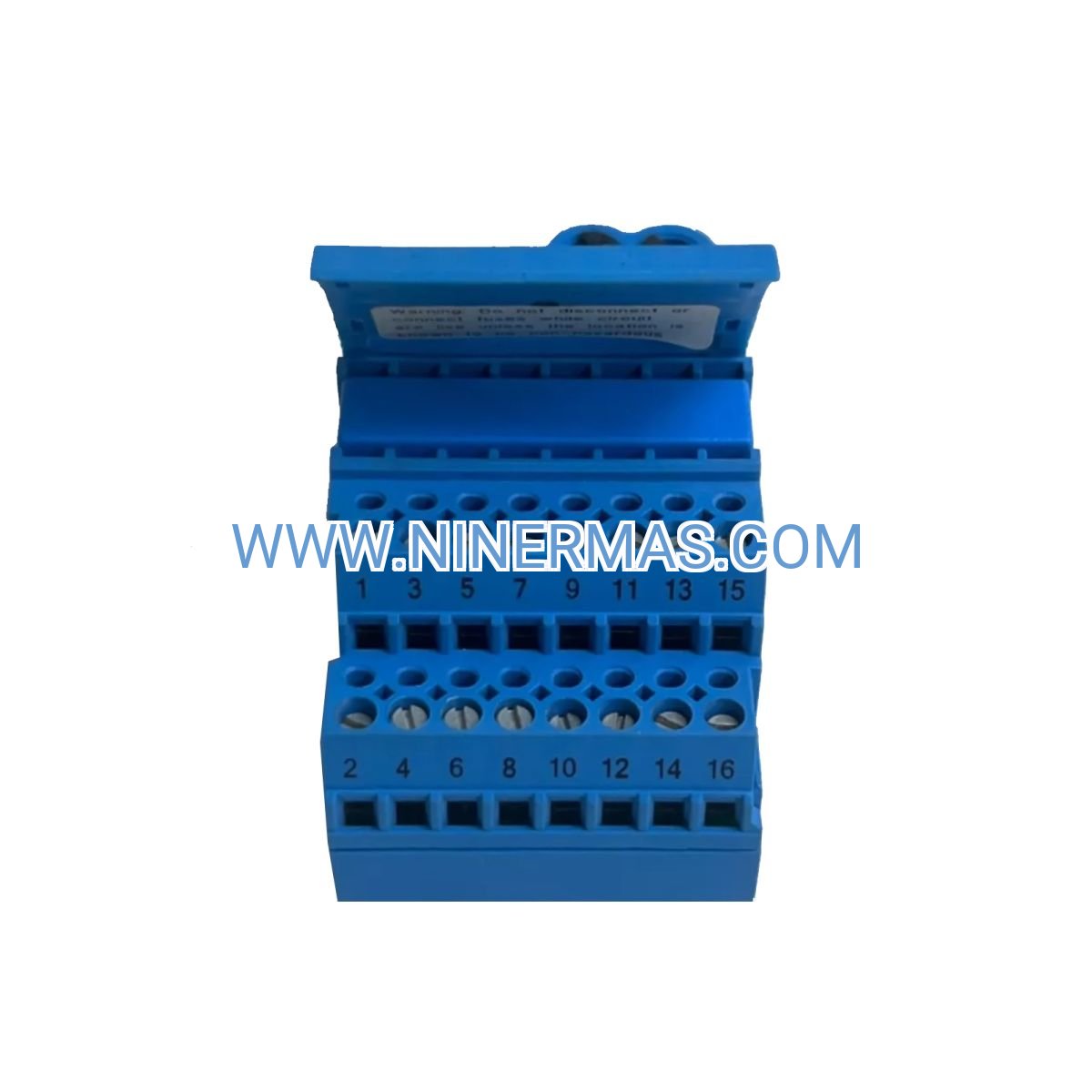

T-type DIN rail mounting on standard DeltaV I/O carriers enables rapid cabinet assembly with mechanical keying preventing incorrect module insertion. Screw terminals accept 22-14 AWG field wiring with captive fasteners, while color-coded identification distinguishes IS circuits from standard I/O for inspection compliance and technician safety.

→ DeltaV System Integration
Native compatibility with DeltaV v10.3 through current v14.x releases supports analog input/output and discrete I/O modules with hot-swap capability for online maintenance. Diagnostic integration provides predictive maintenance alerts through DeltaV Explorer, reducing unplanned downtime and extending asset lifecycle.

Critical Applications Across Hazardous Industries

Offshore Oil & Gas Production Platforms
Zone 0 wellhead instrumentation, separator vessel monitoring, and flare system control require continuous intrinsic safety where explosive gas concentrations exist during normal operations. The KJ4110X1-BA1 enables pressure transmitter, level sensor, and temperature detector connections without hot work permits or explosion-proof junction boxes—reducing installation costs by 40-60% compared to conventional wiring methods.

Petrochemical Refinery Process Units
Crude distillation columns, catalytic crackers, and alkylation units generate Zone 1 flammable vapor atmospheres during routine processing. Intrinsically safe terminal blocks interface with field instrumentation while maintaining energy limitation under short-circuit, open-circuit, and ground fault conditions—ensuring spark energy remains below hydrogen's 20 microjoule minimum ignition threshold.

Chemical Manufacturing & Solvent Handling
Reactor vessels, storage tanks, and transfer systems handling volatile organic compounds demand Zone 1/2 protection for instrumentation circuits. The terminal block's fault-tolerant design assumes two simultaneous failures while maintaining safety integrity, meeting IEC 61508 SIL requirements for safety instrumented systems in chemical process industries.

Pharmaceutical Solvent Recovery & Powder Processing
Spray dryers, fluid bed processors, and solvent distillation systems create Zone 20/21/22 combustible dust atmospheres requiring intrinsically safe electrical installations. FDA 21 CFR Part 11 and EU GMP validation protocols benefit from the terminal block's documented certification pedigree and traceability to manufacturer test reports.

Underground Coal Mining & Surface Processing
Methane detection systems, ventilation monitoring, and conveyor safety circuits in underground coal mines require intrinsic safety certification for explosive methane-air mixtures and combustible coal dust. The KJ4110X1-BA1 supports continuous monitoring applications where equipment failure could result in catastrophic ignition events.

Technical Specifications & Selection Parameters

Hazardous Area Certification Matrix

✓ ATEX Directive 2014/34/EU: Zone 0, Zone 1, Zone 2 | Group IIC (hydrogen, acetylene)
✓ IECEx Scheme: International certification for Ex ia installations
✓ FM Approvals (USA): Class I Division 1 & 2, Groups A, B, C, D
✓ CSA Certification (Canada): Class I Division 1 & 2, Groups A, B, C, D
✓ CE Marking: European conformity for industrial automation equipment

Advanced Integration Capabilities

DeltaV I/O Module Compatibility
Supports the complete range of DeltaV intrinsically safe I/O modules including analog input (AI), analog output (AO), discrete input (DI), and discrete output (DO) cards. Mechanical keying system ensures proper module-to-terminal block matching, preventing configuration errors that could compromise intrinsic safety parameters.

Hot-Swap Maintenance Operations
When configured with redundant I/O modules, technicians can replace failed cards without process shutdown or adjacent channel disruption. This capability reduces mean time to repair (MTTR) from hours to minutes in critical control applications where downtime costs exceed $100,000 per hour.

Diagnostic Health Monitoring
Integrated diagnostics report terminal block status, wiring faults, and I/O module health through DeltaV Explorer interface. Predictive maintenance algorithms identify degrading connections before failure, enabling scheduled repairs during planned outages rather than emergency shutdowns.

Installation Best Practices & Compliance Requirements

Entity Concept Parameter Verification
Before energizing intrinsically safe circuits, verify that terminal block parameters (Ui, Ii, Pi, Ci, Li) are compatible with connected I/O modules and field devices. The sum of cable capacitance and device capacitance must not exceed the maximum allowable capacitance (Ca) specified in certification documents. Similarly, cable inductance plus device inductance must remain below maximum allowable inductance (La).

Cable Selection & Routing
Use instrumentation cable with published capacitance and inductance values (typically 50-100 pF/m and 0.5-1.0 µH/m). Route IS cables in dedicated conduit or cable tray separated from non-IS circuits per ANSI/ISA-RP12.06.01 and IEC 60079-14 standards. Maintain minimum separation distances: 50mm from non-IS circuits, 150mm from power cables exceeding 250V.

Grounding & Bonding
Connect terminal block ground terminal to dedicated IS ground bus using 14 AWG minimum copper conductor. Maintain single-point grounding at control system location to prevent ground loops. For offshore installations, verify galvanic isolation between platform structure ground and IS system ground to prevent cathodic protection interference.

Documentation & Inspection
Maintain intrinsic safety drawings showing entity parameter calculations, cable specifications, and certification document references. Third-party inspection by certified agencies (FM, CSA, ATEX Notified Body) may be required for Class I Division 1 or Zone 0 installations before commissioning approval.

Delivery, Warranty & Technical Support

Lead Time & Availability
Standard delivery: 3-5 business days for in-stock items to North America, 5-7 days to Europe/Asia-Pacific. Expedited shipping available for emergency shutdowns and critical path projects. Custom configurations and project quantities: 2-4 weeks depending on scope.

Warranty Coverage
24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical sparing applications. Advance replacement service ensures <24-hour delivery of replacement units for production-critical installations.

Engineering Support Services
Our certified automation engineers provide hazardous area classification consultation, IS system design review, entity parameter calculation verification, and regulatory compliance assistance. Pre-sales application engineering ensures proper product selection before purchase commitment.

Documentation Package
Every shipment includes ATEX/IECEx/FM/CSA certificates, entity parameter data sheets, installation drawings, and material traceability documentation. Digital documentation portal provides 24/7 access to technical manuals, firmware updates, and application notes.

Frequently Asked Questions

Q: How do I verify compatibility between the KJ4110X1-BA1 terminal block and my existing DeltaV I/O modules?
A: Check the I/O module part number against Emerson's compatibility matrix in the DeltaV I/O System documentation. The terminal block supports all DeltaV IS I/O modules with matching mechanical keying. For entity parameter verification, compare the terminal block's Ui, Ii, Pi values against the I/O module's Uo, Io, Po ratings—the terminal block values must be equal to or greater than the module's output parameters.

Q: What is the maximum cable length I can use between the terminal block and field devices in Zone 1 applications?
A: Maximum cable length depends on cable capacitance and inductance values. For typical instrumentation cable (60 pF/m, 0.6 µH/m), calculate: Cable Length = (Ca - Device Capacitance) / Cable Capacitance per meter. Example: If Ca = 3000 pF and device = 500 pF, maximum length = (3000-500)/60 = 41 meters. Always verify calculations against certification documents and consult with application engineers for complex installations.

Q: Can I use this terminal block in Zone 0 applications, and what additional requirements apply?
A: Yes, the KJ4110X1-BA1 is certified for Zone 0 (continuous explosive atmosphere) installations. Additional requirements include: (1) Use only "ia" certified field devices rated for Zone 0, (2) Implement two-fault tolerance in system design, (3) Verify cable parameters with 50% safety margin, (4) Obtain third-party inspection certification before commissioning, (5) Implement documented management of change procedures for any circuit modifications.

Q: How does intrinsic safety compare to explosion-proof enclosures for cost and maintenance?
A: Intrinsically safe installations typically reduce initial costs by 40-60% compared to explosion-proof methods by eliminating heavy enclosures, conduit seals, and hot work permits. Maintenance costs decrease further because IS circuits can be worked on in hazardous areas without de-energizing or obtaining gas-free certificates. However, IS systems require rigorous documentation and parameter verification—trading installation cost savings for engineering discipline.

Q: What preventive maintenance is required for IS terminal blocks in corrosive environments?
A: Quarterly visual inspection for corrosion, loose connections, and physical damage. Annual torque verification of screw terminals (typically 0.5-0.7 Nm per manufacturer specifications). Bi-annual insulation resistance testing between channels and to ground (minimum 50 MΩ at 500V DC). For Class G3 environments, inspect conformal coating integrity annually and recoat if degradation exceeds 10% surface area.

Q: Can I retrofit this terminal block into existing DeltaV systems running older software versions?
A: The KJ4110X1-BA1 requires DeltaV v10.3 or later. Systems running v9.x or earlier must upgrade control software before installing this terminal block. Backward compatibility with legacy terminal blocks is maintained through mechanical keying—new and old terminal blocks can coexist on the same I/O carrier during phased migration projects.

Order Your KJ4110X1-BA1 IS Terminal Block Today

Ensure intrinsic safety compliance and operational reliability in your hazardous area installations. Contact our application engineering team for entity parameter verification, system design consultation, and project quantity pricing. We support global installations with certified documentation, expedited shipping, and 24/7 technical support for mission-critical DeltaV systems.

Request a Quote: Email your I/O module list, hazardous area classification, and project timeline for same-day quotation and compatibility verification.
