Emerson KJ4006X1-BT1 Redundant Analog Output Terminal Block | DeltaV S-Series 8-Channel HART I/O

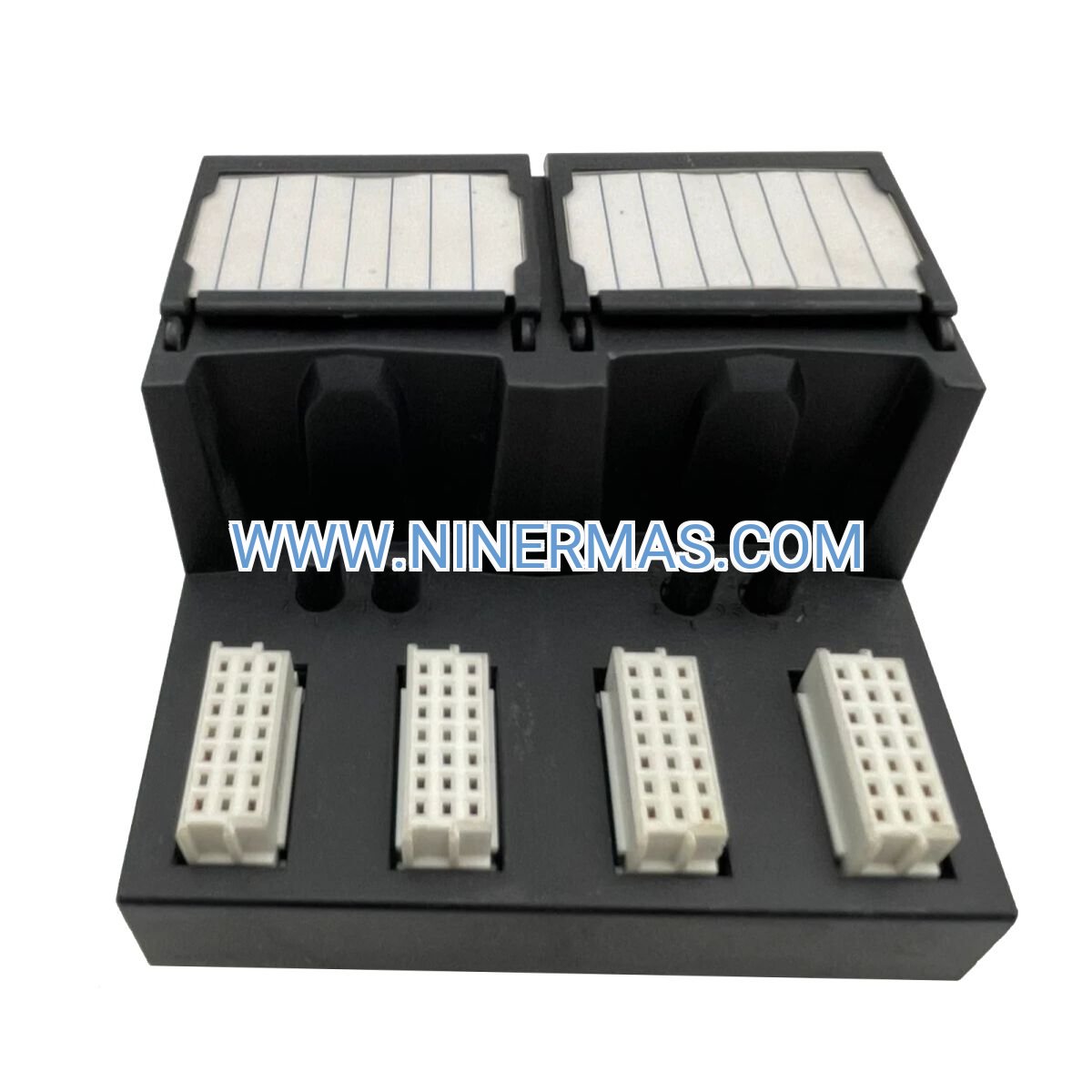

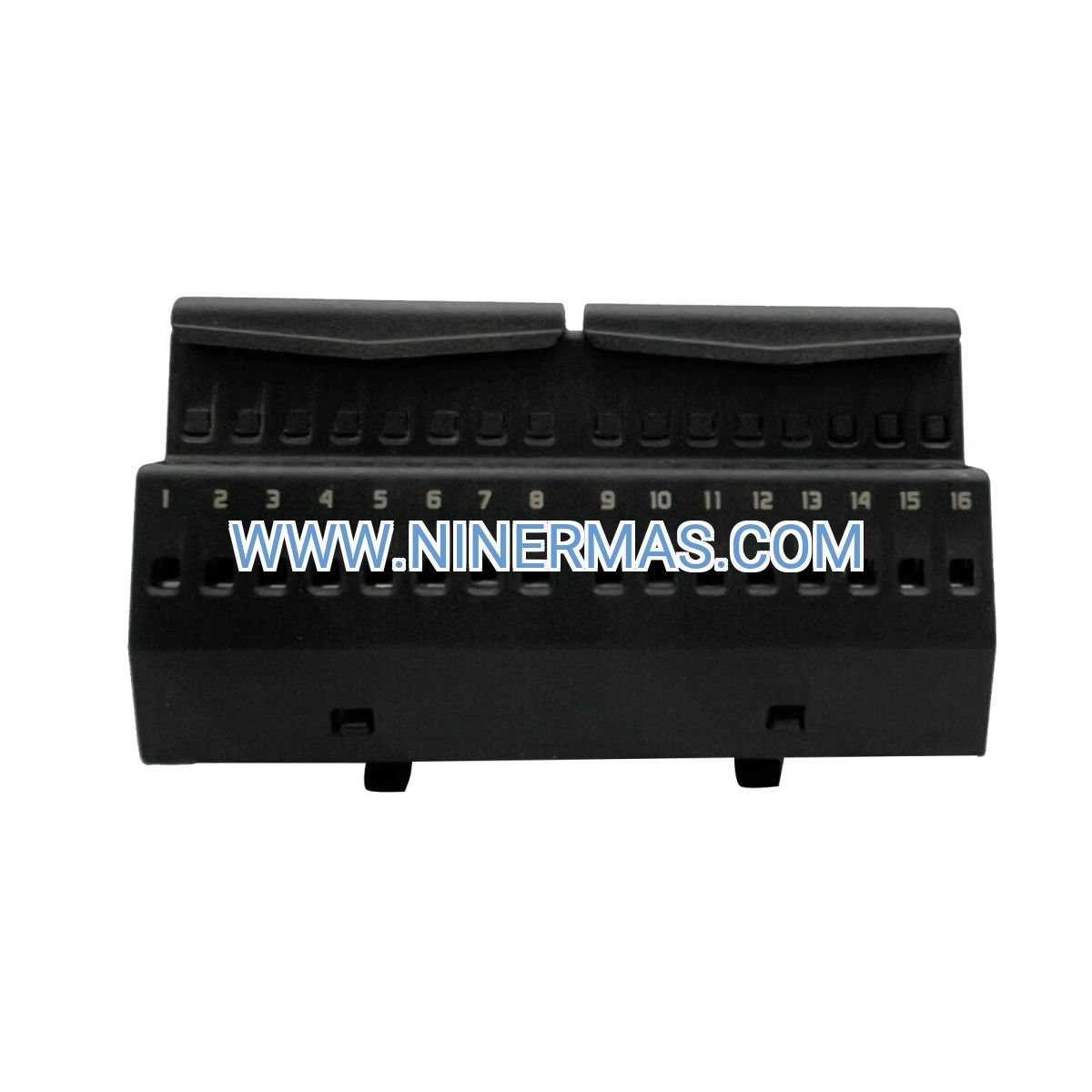

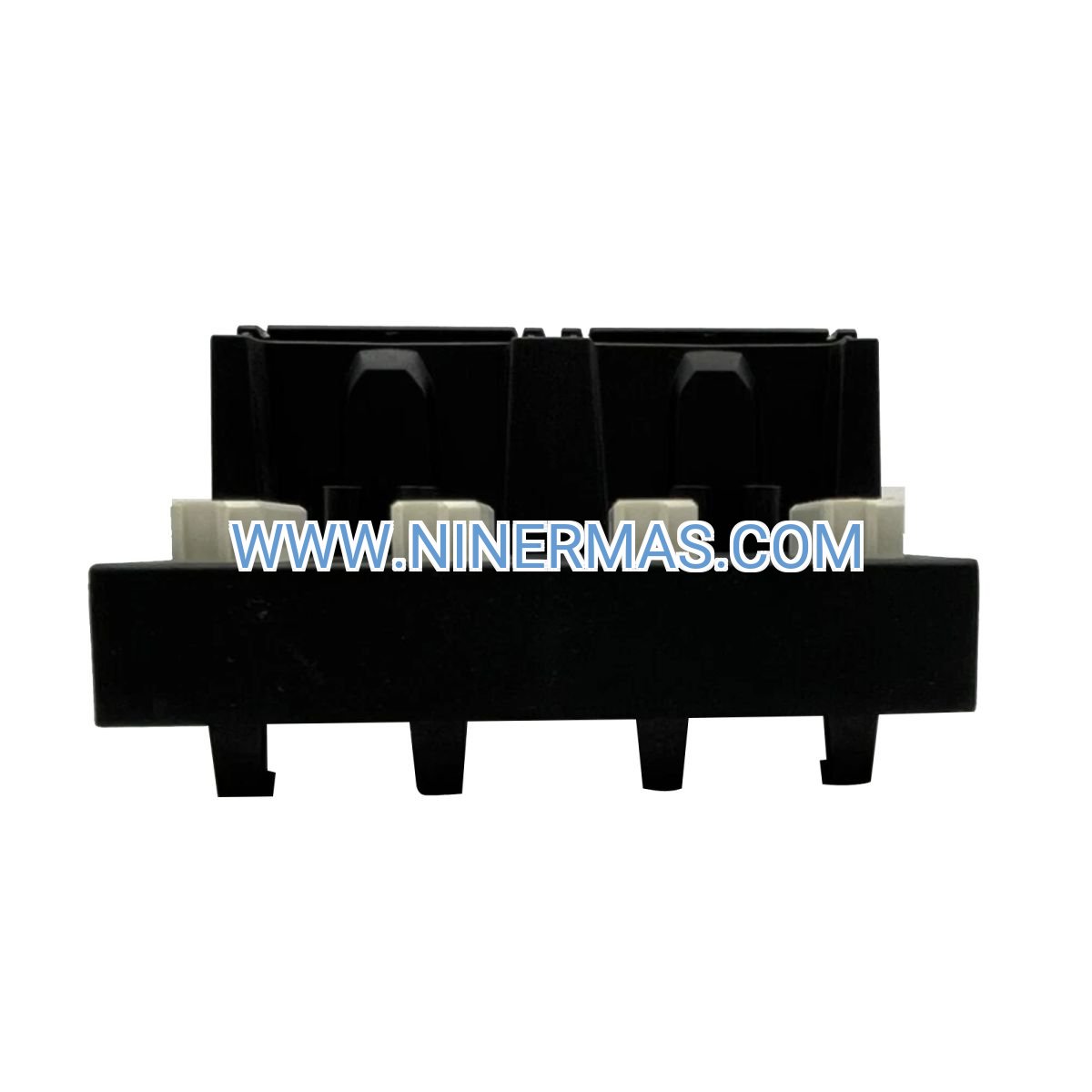

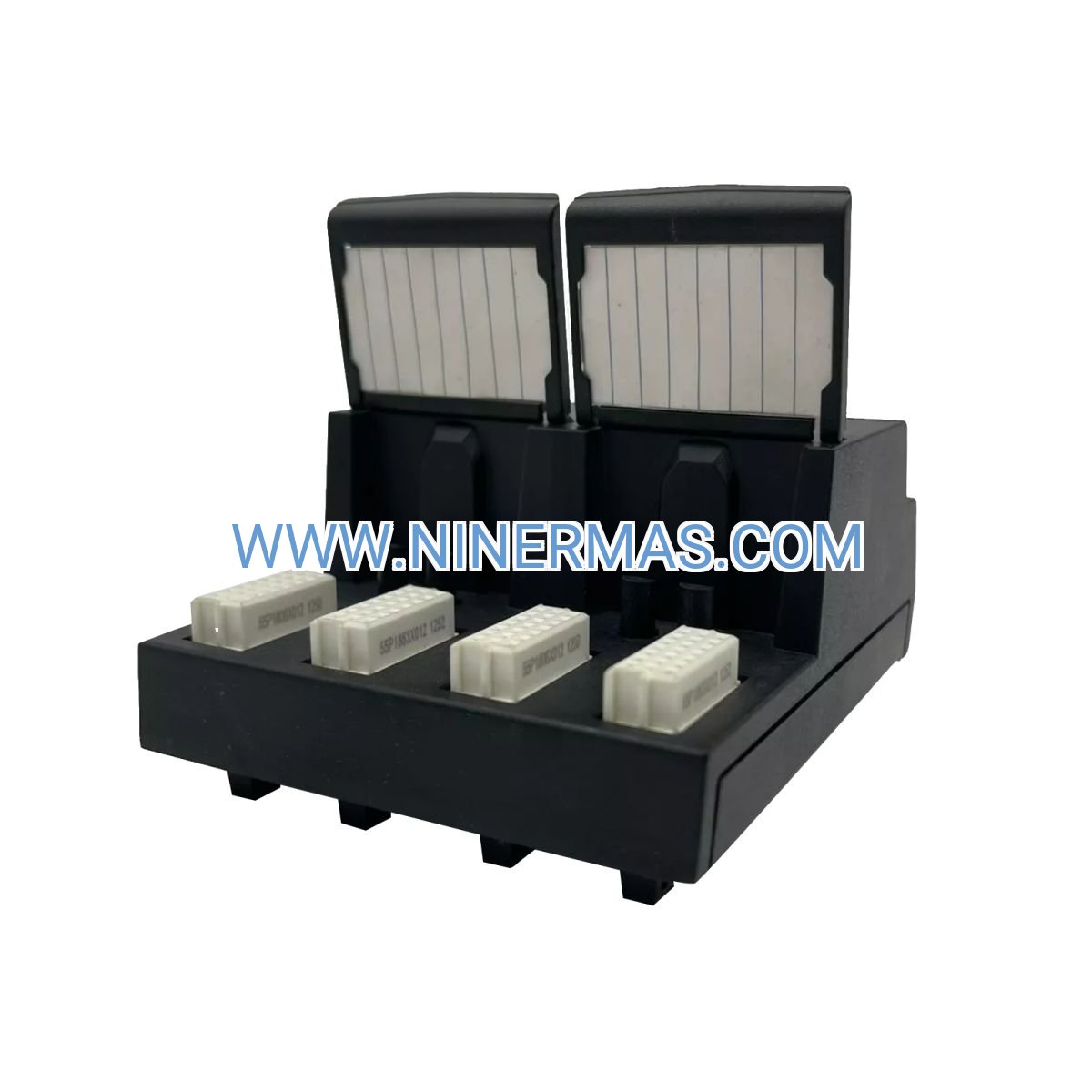

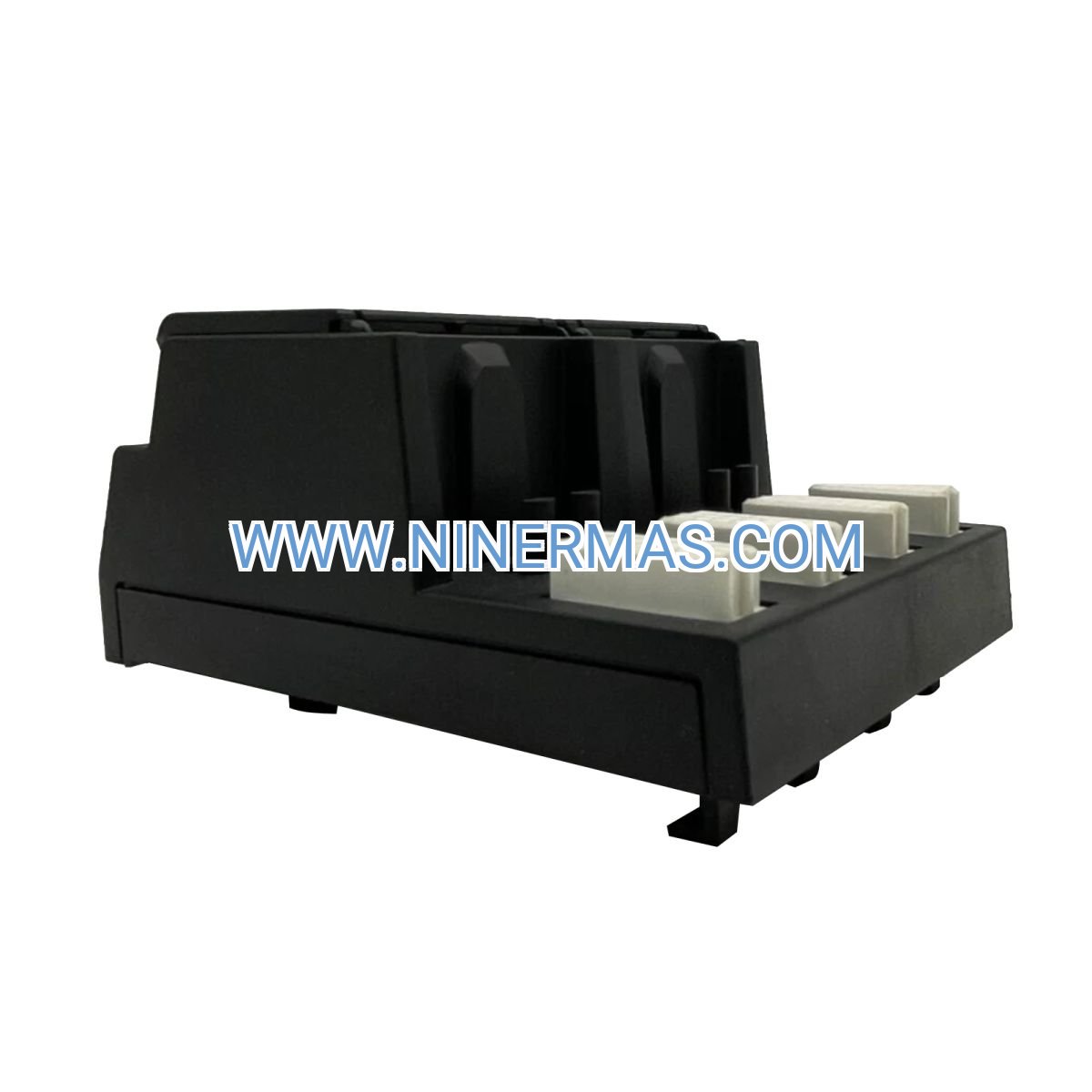

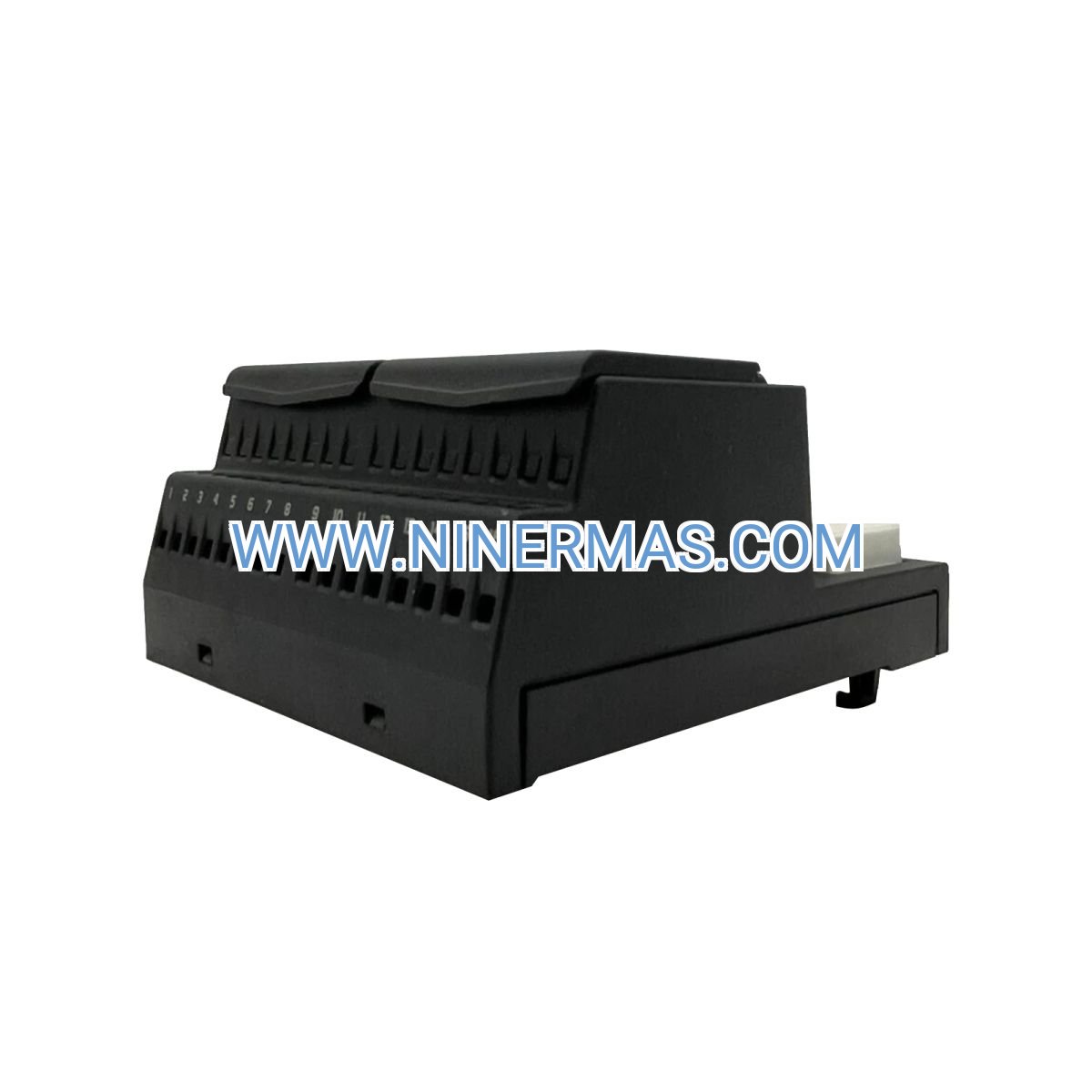

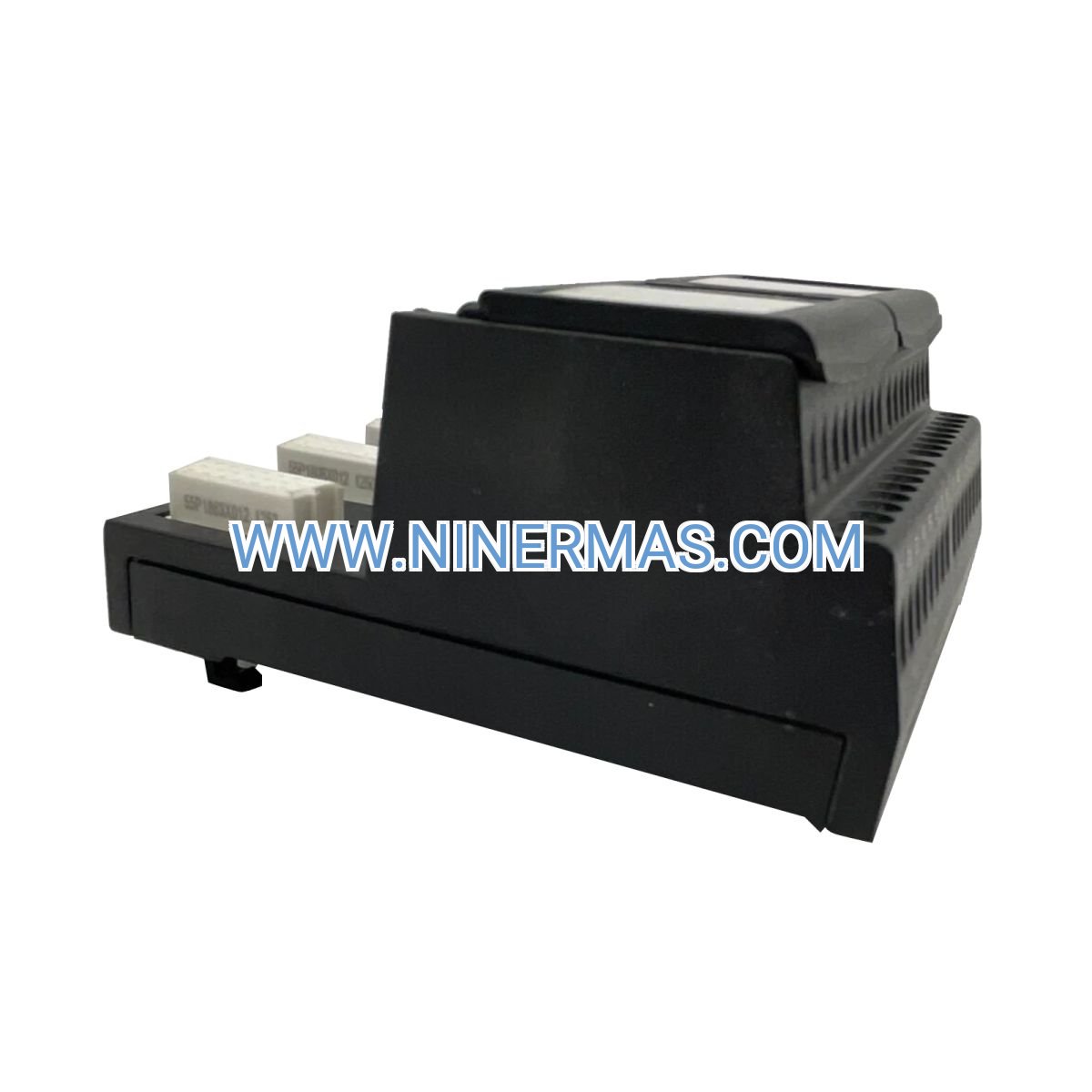

Emerson KJ4006X1-BT1 Redundant Analog Output Terminal Block (Industrial-Grade DeltaV I/O Solution)

The Emerson KJ4006X1-BT1 is a high-reliability redundant analog output terminal block engineered for mission-critical DeltaV S-Series distributed control systems. Through dual-channel redundancy architecture and advanced HART communication protocol, it delivers continuous 4-20mA signal transmission with automatic failover capability, ensuring uninterrupted process control even during component failures.

Designed for industries demanding maximum uptime and safety integrity, this terminal block serves petrochemical refineries, pharmaceutical manufacturing plants, power generation facilities, and water treatment operations. It addresses common challenges including single-point-of-failure risks, signal integrity degradation, costly unplanned downtime, and compliance gaps in safety-instrumented systems (SIS).

Featuring standardized DIN-rail mounting with field-customizable channel configurations, the KJ4006X1-BT1 offers hot-swappable maintenance, 16-bit signal resolution, intrinsic safety barriers compatibility, and comprehensive diagnostics. Ideal for process engineers, automation integrators, DCS upgrade projects, and OEM equipment manufacturers requiring proven DeltaV ecosystem compatibility. Contact our application engineers for system integration guidance and project-specific configurations.

Core Features & Technical Advantages

• Dual-Redundant Architecture
  Employs 1oo2 (one-out-of-two) redundancy with automatic switchover logic, maintaining output signal integrity during module failure or maintenance. Achieves 99.99% system availability in critical loops.
• Superior Energy Efficiency
  Optimized power consumption design reduces heat dissipation by approximately 22% compared to legacy I/O modules, lowering HVAC loads in control room environments and extending component lifespan in high-temperature installations.
• Multi-Channel Intelligent Management
  Supports independent configuration of 8 analog output channels with per-channel diagnostics, loop calibration, and HART device management. Enables staggered maintenance scheduling without full system shutdown.
• Comprehensive Protection Suite
  Integrated safeguards include output current limiting, reverse polarity protection, ESD immunity (IEC 61000-4-2 Level 4), EMI filtering, and thermal shutdown. Minimizes field wiring fault propagation and reduces troubleshooting time.
• Intuitive Diagnostic Interface
  Features tri-color LED indicators per channel with DeltaV Explorer integration, providing real-time status of signal health, HART communication, redundancy state, and fault conditions. Supports predictive maintenance strategies through trend analysis.

Typical Application Scenarios

This terminal block excels in environments requiring high signal reliability, continuous process operation, and stringent safety compliance:

• Petrochemical Refining & Gas Processing
  Controls critical valve positioners, flow control loops, and pressure regulation systems in distillation columns, catalytic crackers, and pipeline metering stations where signal loss could trigger emergency shutdowns.
• Pharmaceutical & Biotech Manufacturing
  Manages sterile process parameters including reactor temperature control, pH adjustment loops, and aseptic filling systems requiring FDA 21 CFR Part 11 compliance and full audit trail documentation.
• Power Generation & Cogeneration Plants
  Interfaces with turbine control systems, boiler feedwater regulation, and emissions monitoring equipment in coal-fired, combined-cycle, and renewable energy facilities demanding IEC 61508 SIL-rated components.
• Municipal Water & Wastewater Treatment
  Operates chemical dosing pumps, clarifier control, and disinfection systems in drinking water plants and sewage treatment facilities where process continuity directly impacts public health and environmental compliance.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical, mechanical, and environmental parameters. Custom configurations available for specialized applications:

Selection Recommendations: When specifying this terminal block, consider maximum loop resistance (based on field wiring distance and cable gauge), required response time for control loops, existing DeltaV controller model compatibility (M3, M5, SIS), cabinet ambient temperature profile, and whether intrinsic safety barriers are needed for hazardous area installations. Our engineering team can review P&IDs and loop diagrams to recommend optimal channel allocation and redundancy configurations.

Advanced Integration Capabilities

• HART Multiplexing – Supports HART pass-through for smart transmitter configuration and diagnostics without breaking the 4-20mA loop
• Asset Management Integration – Compatible with AMS Device Manager and PACTware/DTM for centralized device lifecycle management
• Cybersecurity Hardening – Firmware signed with Emerson cryptographic keys; supports secure boot and configuration lockdown per IEC 62443
• Modbus TCP Gateway – Optional interface for third-party SCADA integration and historian connectivity
• Redundancy Health Monitoring – Continuous self-diagnostics with predictive alerts for proactive module replacement before failure

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured assemblies with factory testing require 12-18 business days. Expedited processing available for critical outage support.

Warranty: Backed by Emerson's standard 24-month warranty covering manufacturing defects and workmanship. Extended service agreements available including advance replacement and on-site commissioning support.

Technical Support: Includes access to 24/7 global technical assistance hotline, remote diagnostic services via secure VPN, and comprehensive documentation package (installation manual, wiring diagrams, loop calibration procedures, HART DD files, and SIL certification reports).

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with full material traceability. Complies with CE, UL 508, CSA C22.2, ATEX/IECEx (when used with approved barriers), and RoHS directives.

Frequently Asked Questions (FAQ)

Q: How does the KJ4006X1-BT1 redundant analog output terminal block integrate with existing DeltaV S-Series controllers?
A: The terminal block connects via the DeltaV carrier backplane using standard I/O interface modules. It auto-discovers during controller startup and appears in DeltaV Explorer for configuration. Ensure your controller firmware is version 11.3 or later for full HART diagnostic support. Existing non-redundant AO modules can be replaced during scheduled maintenance windows with minimal configuration changes.

Q: What is the maximum number of terminal blocks supported per DeltaV controller?
A: A single M-series controller supports up to 12 I/O carriers, with each carrier accommodating multiple terminal blocks depending on power budget and communication bandwidth. For this specific 8-channel AO block, typical installations range from 4-8 blocks per controller. Consult the DeltaV I/O Subsystem Planning Guide for detailed capacity planning.

Q: What energy savings can be achieved, and what factors influence efficiency gains?
A: Compared to legacy relay-based or pneumatic control systems, modern electronic I/O reduces energy consumption by approximately 18-25%. Actual savings depend on loop update frequency, number of active channels, ambient temperature (affects cooling requirements), and whether redundant power supplies are utilized. In a typical 200-point AO system, annual energy cost reduction can reach $800-1,200 USD.

Q: What are the environmental requirements for installation? What is the IP protection rating?
A: The terminal block is rated IP20, designed for installation inside climate-controlled electrical enclosures. Ambient temperature must remain within -40°C to +70°C, with relative humidity below 95% non-condensing. Avoid direct exposure to corrosive gases, conductive dust, or vibration exceeding 2g. For harsh environments, specify NEMA 4X or IP65-rated junction boxes with appropriate ventilation.

Q: Does the system support remote monitoring and data acquisition? Which industrial protocols are compatible?
A: Yes, the terminal block supports remote diagnostics through DeltaV's native OPC UA server, enabling integration with third-party SCADA, historians (OSIsoft PI, Honeywell PHD), and cloud analytics platforms. HART data is accessible via HART-IP gateways. For legacy systems, Modbus TCP mapping is available through DeltaV gateway modules. All communications support TLS encryption and role-based access control per ISA/IEC 62443 standards.

Q: Can I use this terminal block in SIL 2 or SIL 3 safety instrumented systems?
A: The KJ4006X1-BT1 is certified for use in SIL 2 applications per IEC 61508. For SIL 3 loops, it can be deployed in a 1oo2 architecture with appropriate voting logic implemented in the DeltaV SIS controller. Detailed safety manual and FMEDA reports are provided to support safety lifecycle documentation and TÜV certification audits.

Request Engineering Support

To receive a customized system configuration, budget quotation, or technical consultation, please provide the following project details: application description and process overview, required I/O point count and signal types, DeltaV controller model and firmware version, hazardous area classification (if applicable), preferred delivery timeline, and installation location. Our certified DeltaV engineers will respond within 24 business hours with tailored recommendations and commercial proposals.
