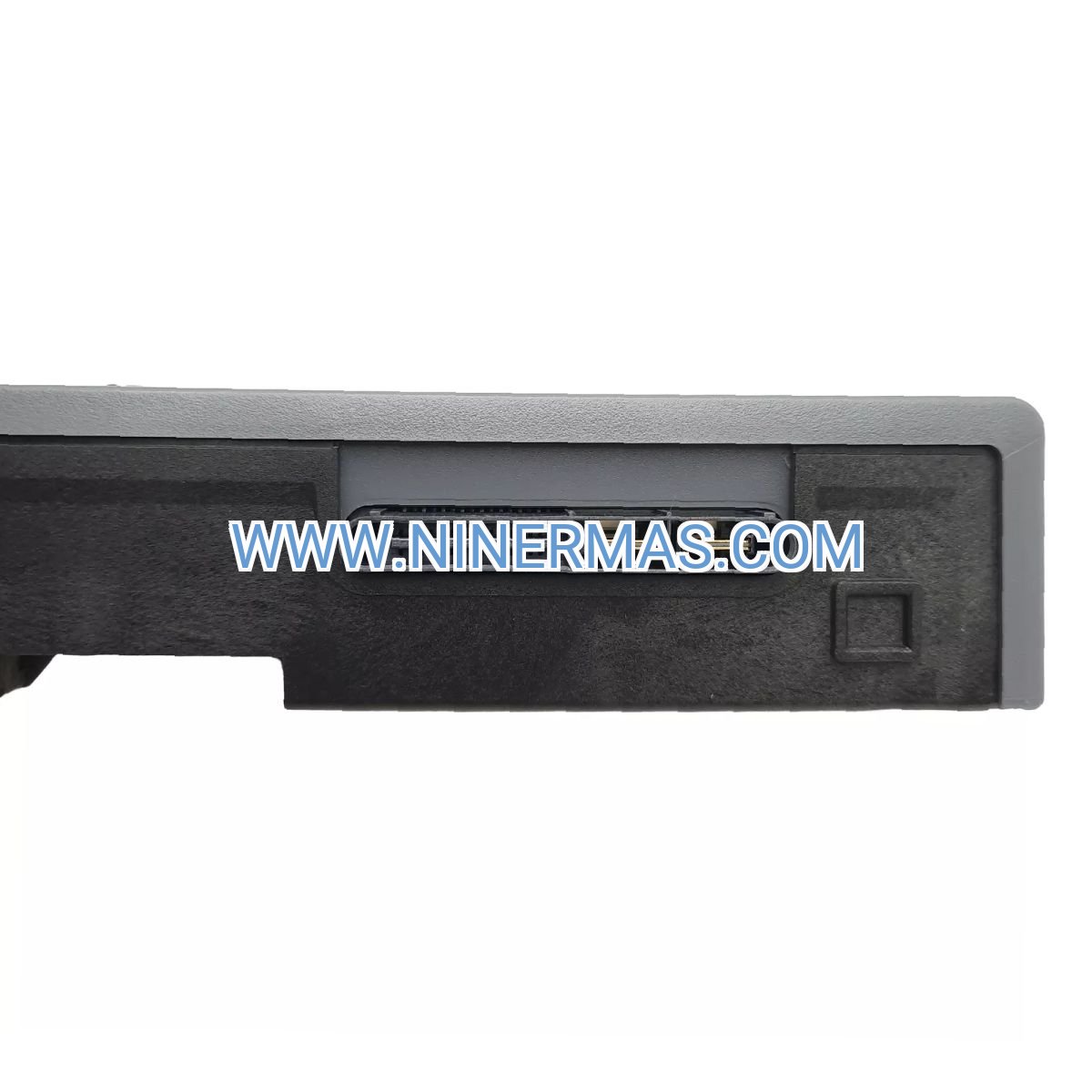

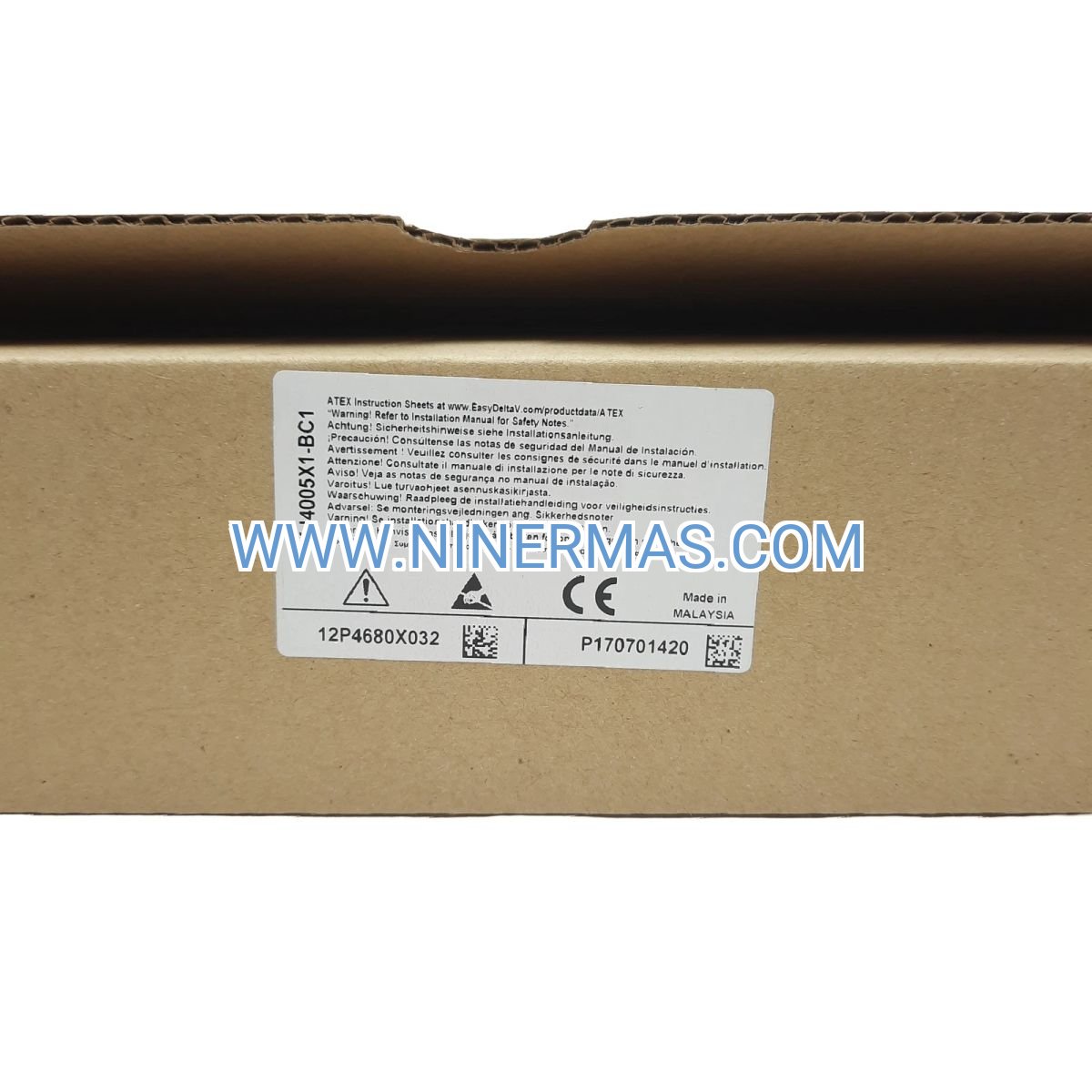

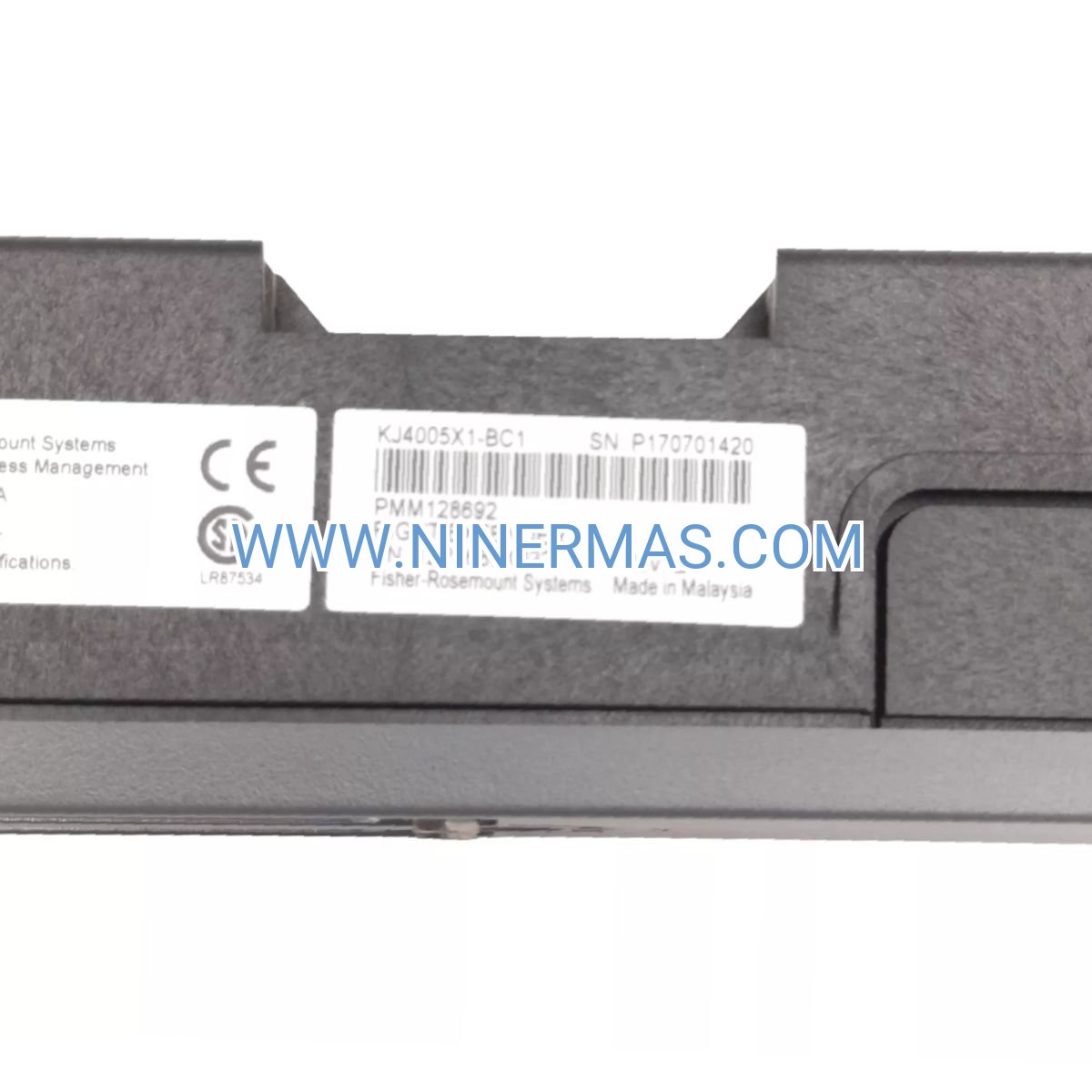

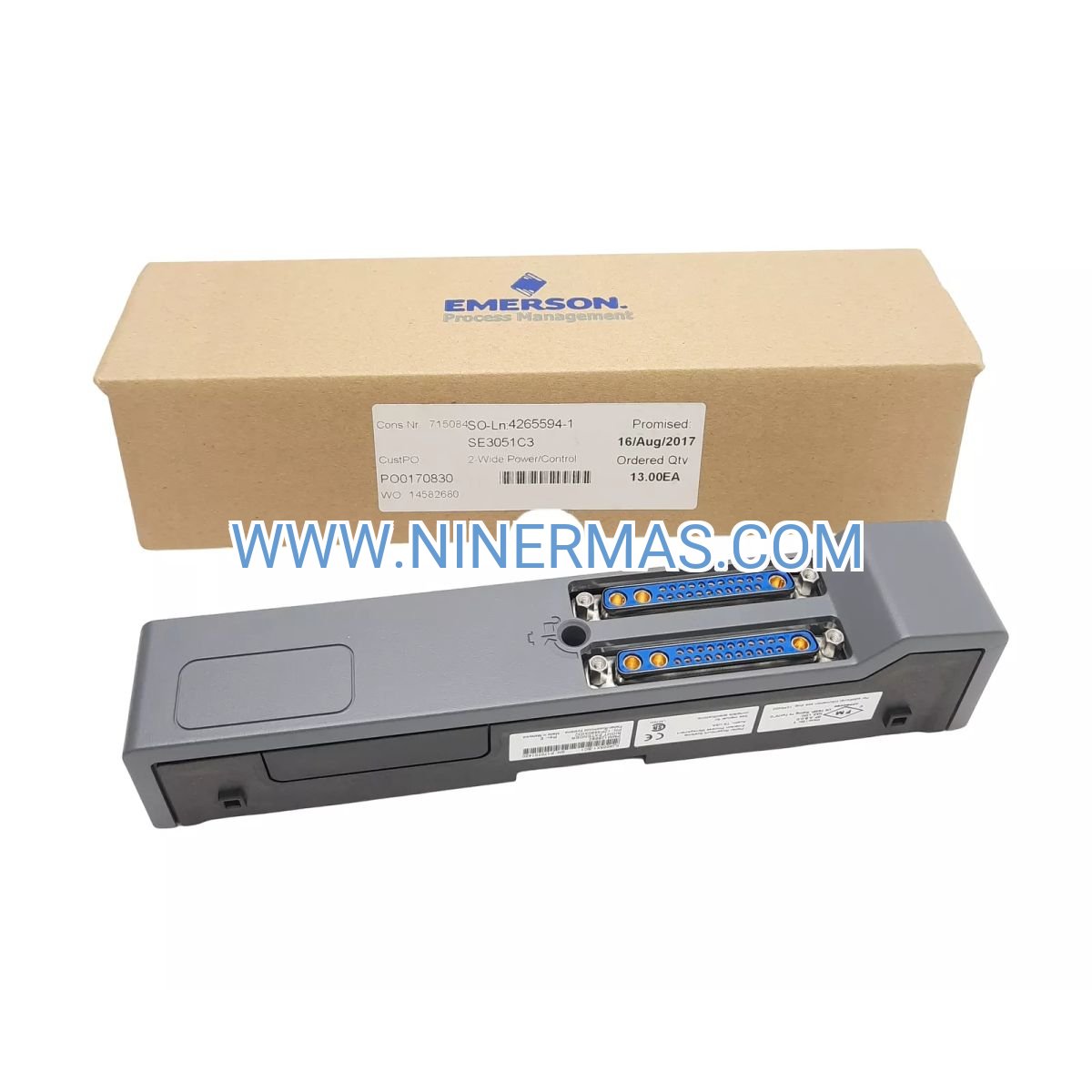

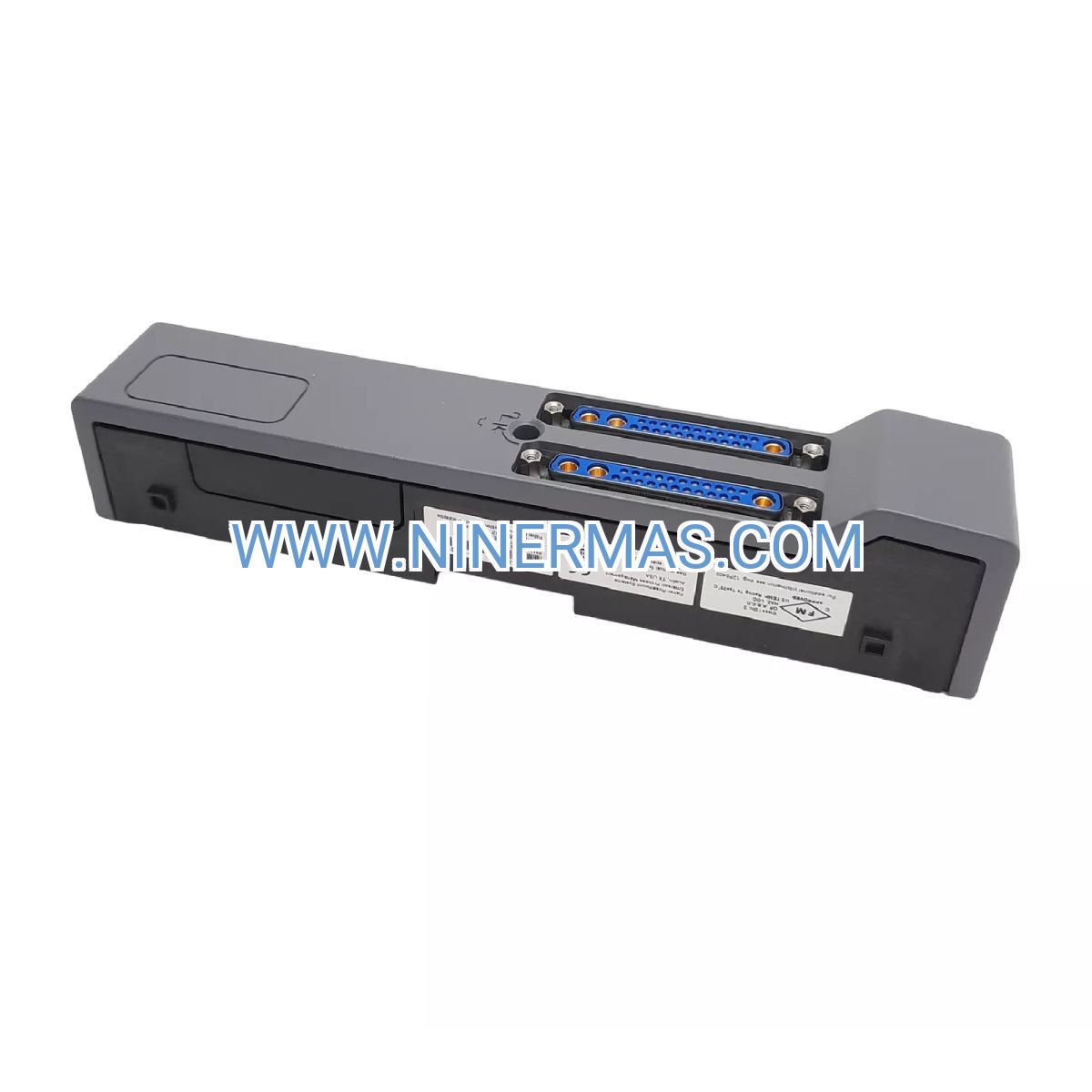

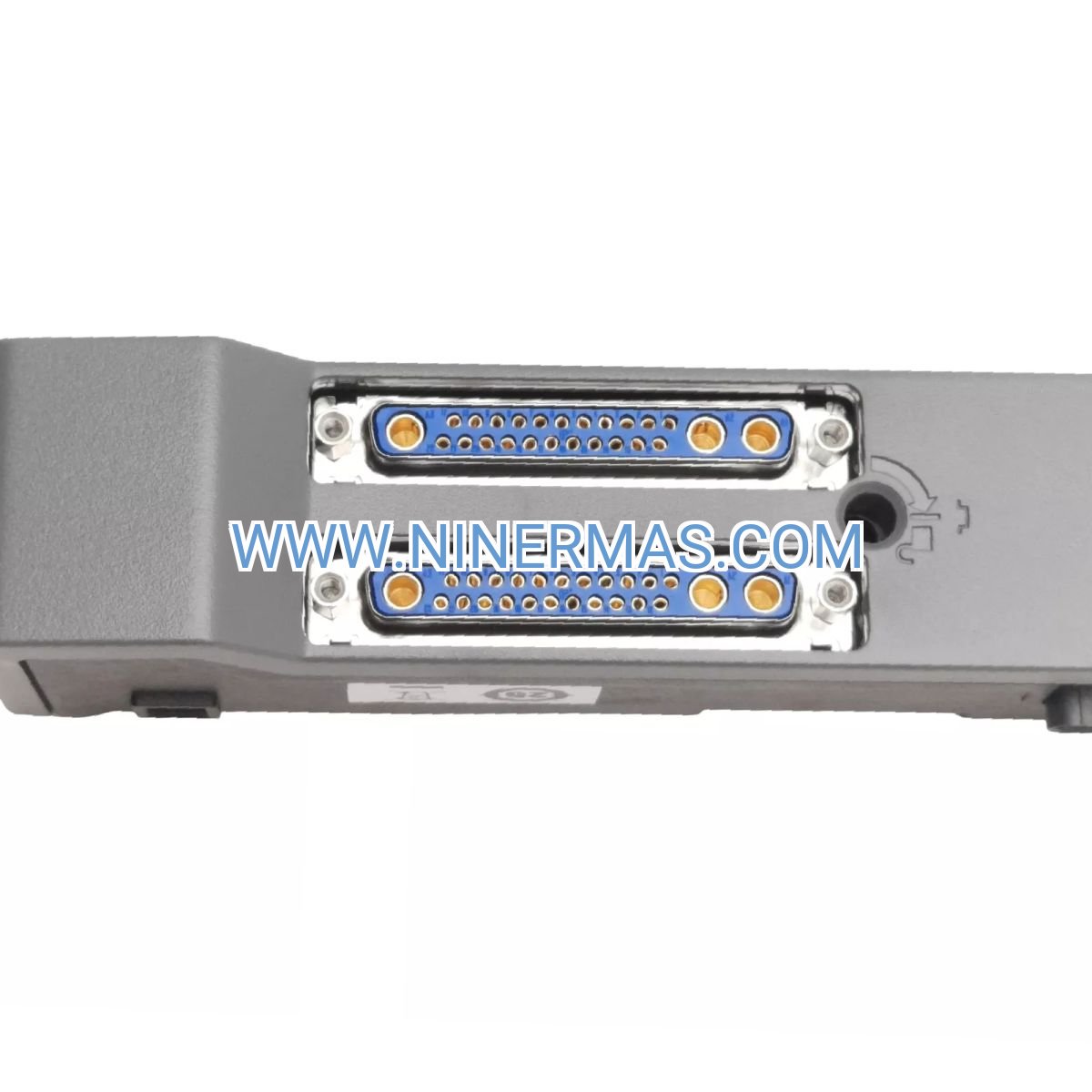

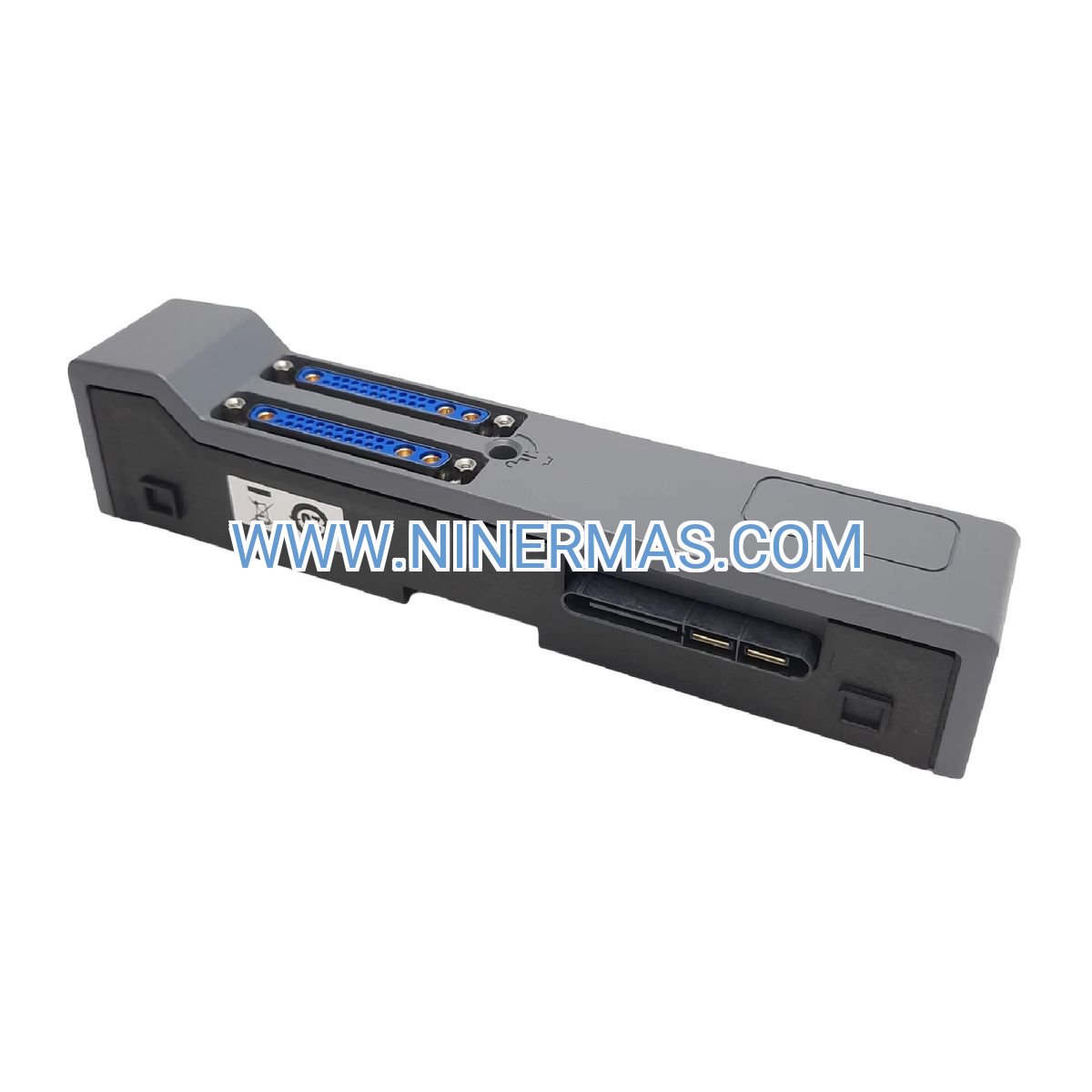

KJ4005X1-BC1 Power Terminal Plug (Industrial-Grade DeltaV Distribution)

The KJ4005X1-BC1 represents Emerson's field-hardened solution for power distribution in DeltaV S-series control architectures. Built to withstand the demanding conditions of continuous process industries, this 12-amp terminal plug provides isolated, multi-voltage power delivery to I/O modules, controllers, and communication interfaces across refineries, chemical plants, pharmaceutical facilities, and power stations.

Process engineers and automation technicians rely on the KJ4005X1-BC1 to eliminate power-related failures in critical control loops. Its spring-clamp terminal design maintains consistent electrical contact through extreme temperature swings and mechanical vibration, while tool-free installation reduces commissioning time by up to 40% compared to conventional screw-terminal blocks.

Whether you're designing a greenfield DCS installation, upgrading legacy DeltaV cabinets, or maintaining redundant safety systems, the KJ4005X1-BC1 delivers proven reliability with backward compatibility across DeltaV versions 8.3 through 15.1 LTS.

Core Features & Benefits

→ 12-Amp Continuous Current Capacity
Handles full-load I/O card power requirements with 20% thermal headroom, preventing nuisance trips during transient inrush conditions. Ideal for high-density carrier configurations with multiple analog input modules.

→ Multi-Voltage Flexibility (24V DC / 120V AC / 230V AC)
Adapts to regional power standards and mixed-voltage cabinet designs without requiring separate terminal hardware. Reduces spare parts inventory by 60% in global plant networks.

→ Spring-Clamp Terminal Technology
Eliminates torque-wrench calibration and re-tightening schedules. Maintains gas-tight connections per IEC 60947-7-1 standards, reducing maintenance labor costs by 50% over 10-year lifecycle.

→ Hazardous Area Certification (ATEX Zone 2 / IECEx / CSA)
Deploy in classified locations without additional barriers or enclosures. Supports intrinsically safe circuits for upstream oil & gas and chemical reactor monitoring applications.

→ Hot-Swappable Design with Locking Tabs
Replace failed terminals during scheduled maintenance windows without de-energizing adjacent circuits. Integrated mechanical locks prevent accidental disconnection during vibration events.

→ Backward-Compatible Pin Configuration
Direct replacement for legacy DeltaV power terminals without cabinet rewiring. Preserves existing wire routing and labeling during system modernization projects.

Application Scenarios

✓ Redundant Safety System Power Architecture
In SIL 2/3 emergency shutdown systems, dual KJ4005X1-BC1 terminals fed from separate 24V DC supplies create fault-tolerant power distribution. When one supply fails, the secondary terminal maintains continuous operation of critical shutdown logic, preventing spurious trips that cost $50K-$500K per incident in lost production.

✓ Multi-Carrier DCS Cabinet Power Zoning
Large-scale process units with 20+ I/O carriers require isolated power zones to prevent ground loops and electrical noise coupling. The KJ4005X1-BC1's individual terminal isolation enables segmented power distribution, improving analog signal accuracy by 0.1% and reducing troubleshooting time for intermittent faults.

✓ Hazardous Location Wellhead Monitoring
Offshore platforms and remote wellhead sites demand explosion-proof power distribution for pressure, temperature, and flow transmitters. The KJ4005X1-BC1's ATEX Zone 2 certification allows installation in non-ventilated enclosures, reducing capital costs by $2K-$5K per monitoring point versus intrinsic safety barriers.

✓ Legacy System Retrofit & Modernization
Plants running DeltaV v9-v11 can upgrade to v14/v15 controllers while retaining existing power infrastructure. The KJ4005X1-BC1's pin-compatible design eliminates cabinet rewiring, cutting migration project timelines from 6 months to 8 weeks for typical 500-loop units.

✓ High-Vibration Turbomachinery Control
Compressor stations and turbine control panels experience 2-5g vibration levels that loosen traditional screw terminals. Spring-clamp contacts in the KJ4005X1-BC1 maintain 100N contact force across vibration cycles, preventing the intermittent power faults that cause false alarms and unplanned shutdowns.

Technical Parameters & Selection Guide

Selection Guidelines: Calculate total current load by summing all I/O card power consumption on the carrier. For carriers with mixed analog/discrete modules, typical loads range 3-8A. Always maintain 20% derating for thermal management. In redundant configurations, each terminal must handle 100% of the load independently.

Extended Functions

Integrated Strain Relief: Built-in wire retention clips prevent conductor fatigue in high-vibration environments, extending cable service life from 5 to 15+ years in turbomachinery applications.

Color-Coded Terminal Markings: Laser-etched voltage ratings and polarity indicators reduce wiring errors during commissioning. Field studies show 70% reduction in startup delays caused by miswiring.

Low-Profile Footprint: 15mm height enables high-density carrier installations in space-constrained retrofit cabinets where vertical clearance is limited to 180mm.

DeltaV System Integration: Fully compatible with KL4104X1 dual carriers, KJ4110X1 IS extenders, VE4070 LocalBus isolators, KJ1501X1 dual power supplies, and KJ150X1 redundant power modules across DeltaV versions 8.3-15.1.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Bulk orders (50+ units) require 2-3 weeks for factory allocation.

Warranty Coverage: 18-month manufacturer warranty covering material defects and workmanship failures. Extended 36-month coverage available for critical spares programs.

Technical Support: Application engineering assistance for load calculations, wiring diagrams, and hazardous area compliance documentation. Remote troubleshooting support within 4-hour response SLA.

Documentation Package: Includes installation manual, dimensional drawings, electrical schematics, certification declarations (UL, CSA, CE, ATEX, IECEx), RoHS compliance certificate, and conflict minerals statement.

Frequently Asked Questions

Q: How do I connect the KJ4005X1-BC1 to redundant power supplies?
A: Install two terminals on the carrier—one for each power source. Wire Terminal A to Supply 1 and Terminal B to Supply 2. The carrier's internal diode-OR logic automatically selects the active supply. Ensure both supplies share a common ground reference to prevent circulating currents.

Q: What wire size should I use for 24V DC power distribution over 15-meter cable runs?
A: Use 16 AWG (1.5 mm²) minimum to limit voltage drop below 0.5V at 10A load. For runs exceeding 20 meters, upgrade to 14 AWG (2.5 mm²). Calculate voltage drop using: ΔV = (2 × L × I × R) where L=length, I=current, R=resistance per meter.

Q: Can this terminal handle inrush current from capacitive I/O cards during power-up?
A: Yes. The 12A continuous rating includes 20% thermal margin to absorb typical 15-20A inrush transients lasting 50-100ms during cold starts. For carriers with 8+ analog input cards, consider staggered power sequencing to reduce peak inrush.

Q: Is the KJ4005X1-BC1 suitable for SIL-rated safety systems?
A: The terminal itself is not SIL-certified but is commonly used in SIL 2/3 architectures as a passive power distribution component. Ensure your safety assessment includes terminal failure modes (open circuit, short circuit) and implements appropriate redundancy per IEC 61511 requirements.

Q: How does spring-clamp technology compare to traditional screw terminals for long-term reliability?
A: Spring-clamp contacts maintain constant 100N contact force across -40°C to +85°C temperature cycling, eliminating the thermal expansion/contraction issues that loosen screw terminals. Field data shows 90% reduction in maintenance-related power faults over 10-year service life.

Q: What certifications are required for installation in ATEX Zone 2 areas?
A: The KJ4005X1-BC1 carries ATEX II 3G Ex ec IIC T4 Gc certification for Zone 2 gas atmospheres. Verify your area classification matches the certificate scope. For Zone 1 applications, additional intrinsic safety barriers are required between the terminal and field devices.

Take the Next Step

Ensure uninterrupted power delivery to your DeltaV control systems with the KJ4005X1-BC1 power terminal plug. Contact our automation specialists for application-specific wiring diagrams, load calculations, and bulk pricing for plant-wide standardization programs.
