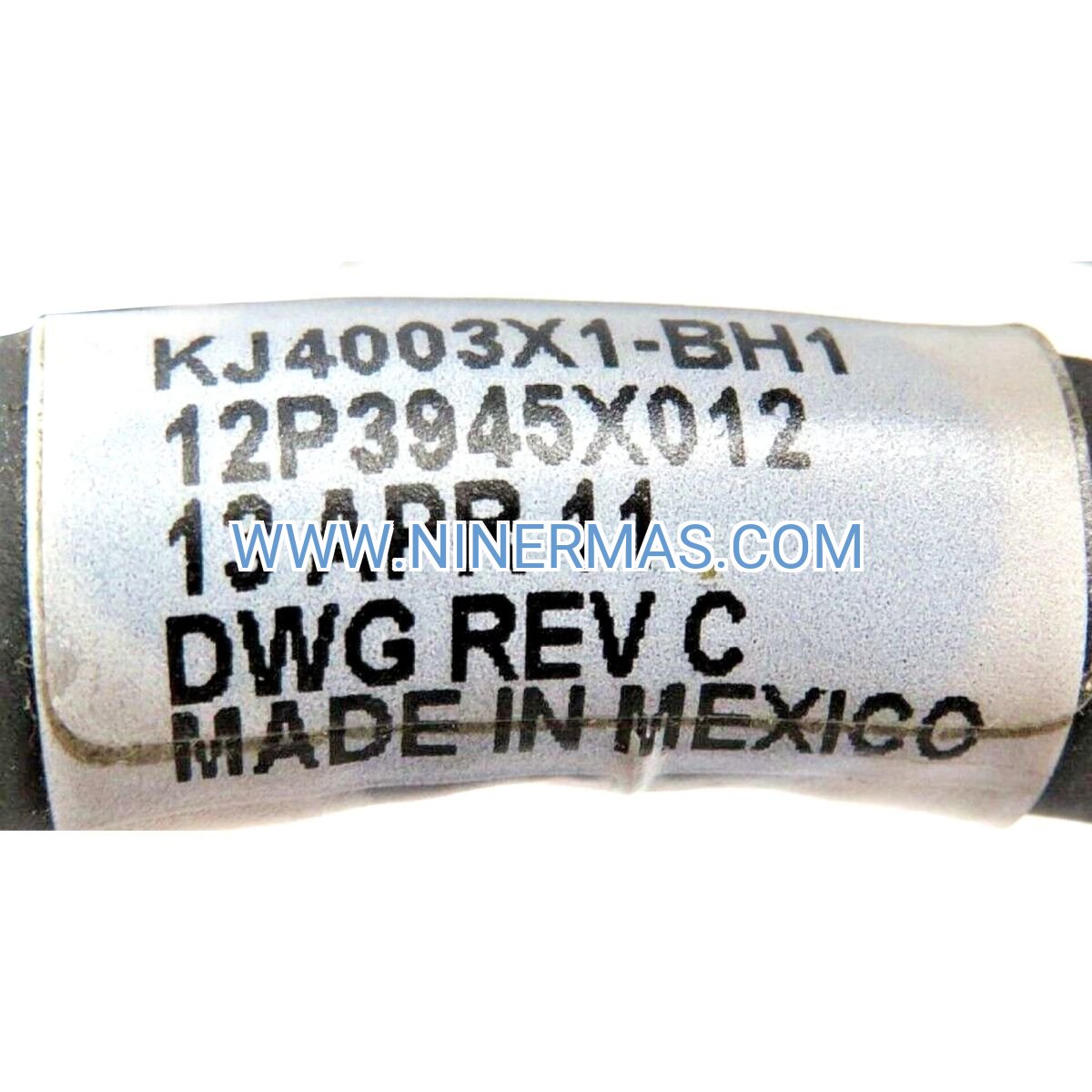

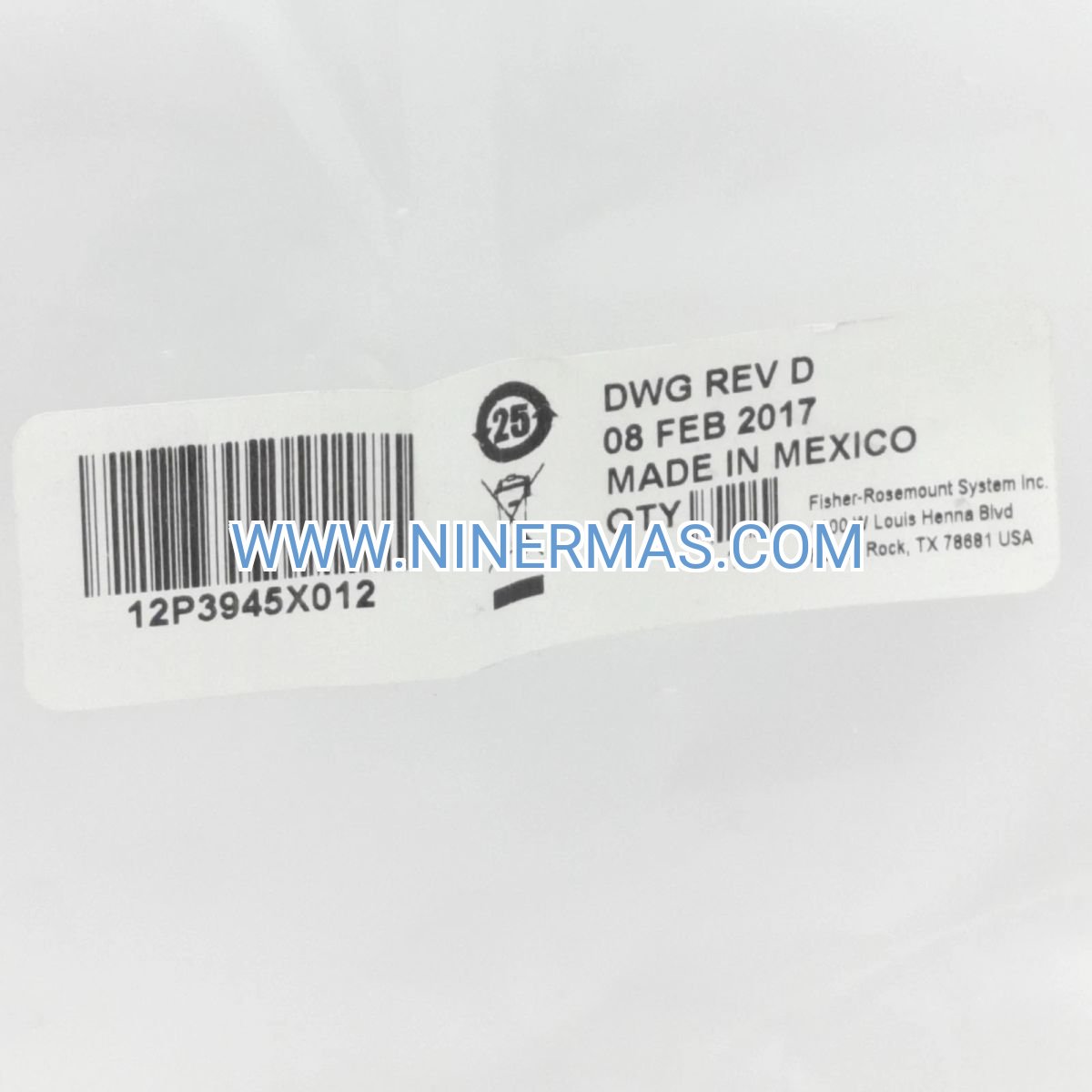

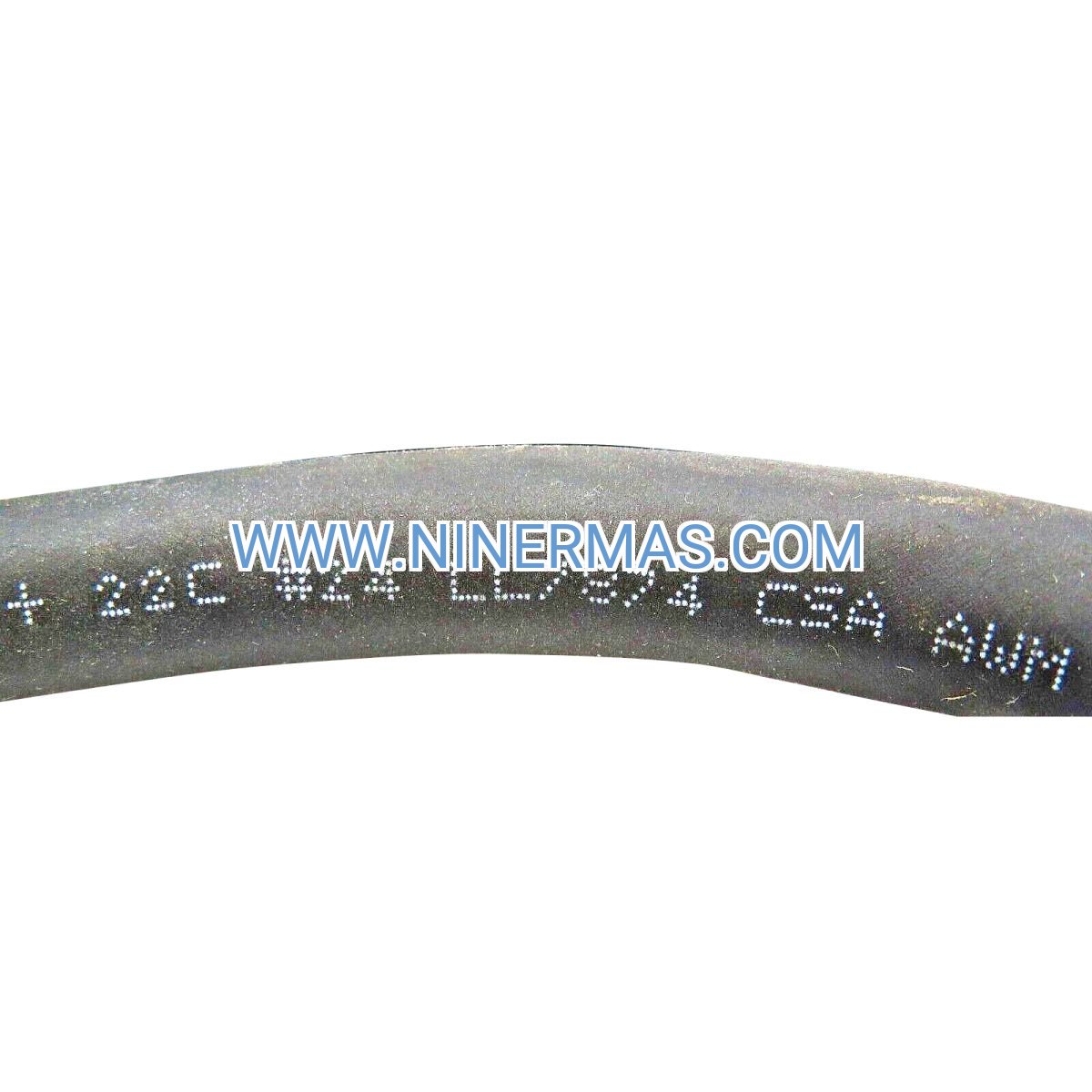

KJ4003X1-BH1 Carrier Extender Cable (Industrial-Grade I/O Bus Extension)

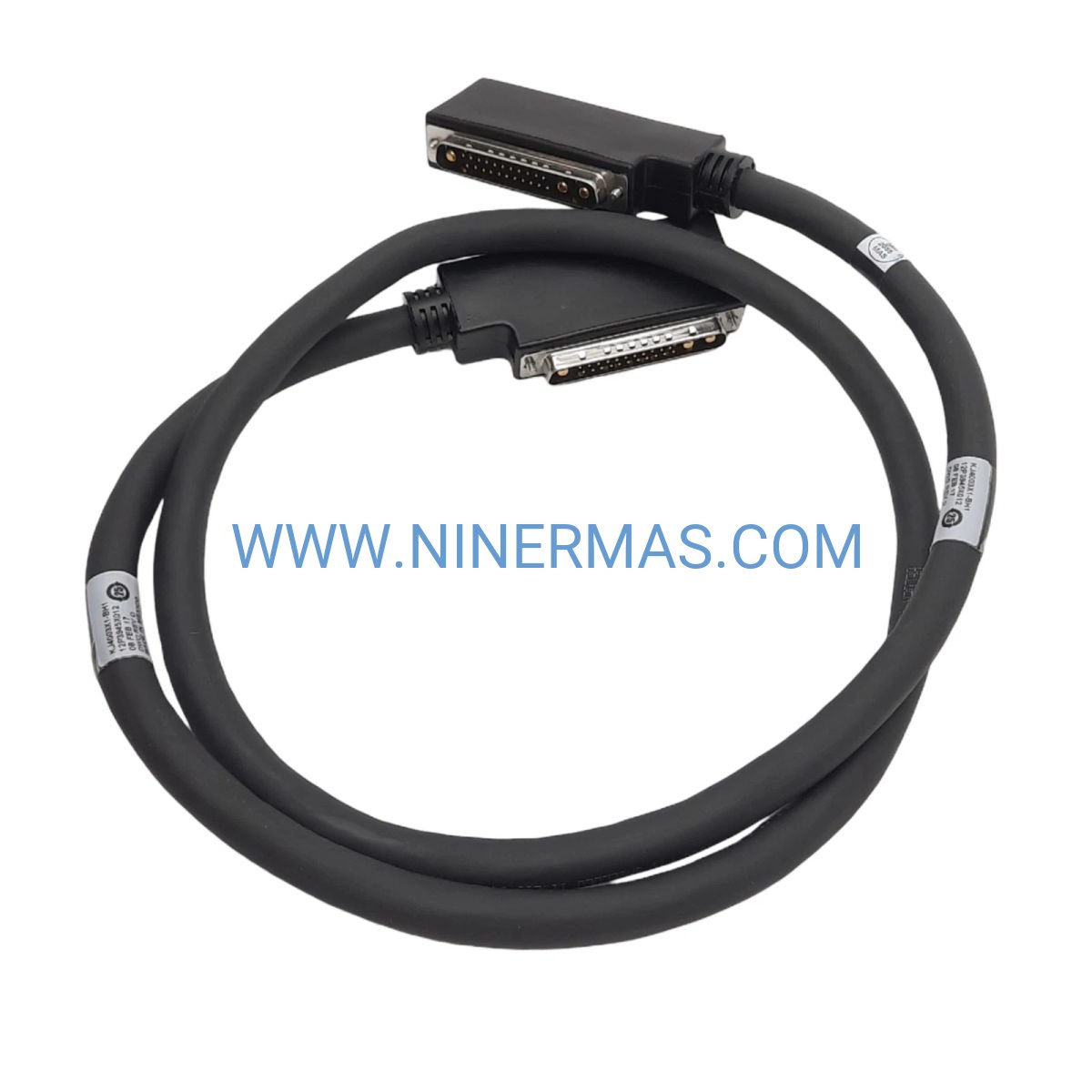

The KJ4003X1-BH1 is a precision-engineered 1.1-meter (43-inch) carrier extender cable designed exclusively for Emerson DeltaV S-Series distributed control systems. This critical infrastructure component enables horizontal carrier interconnection, allowing process facilities to scale I/O capacity dynamically without halting production operations. Engineered for oil refineries, chemical plants, pharmaceutical manufacturing, and power generation facilities, the cable supports both simplex and redundant bus architectures while maintaining signal integrity across extended I/O networks.

Unlike generic interconnect solutions, the KJ4003X1-BH1 delivers deterministic communication performance across DeltaV's proprietary I/O bus protocol, ensuring microsecond-level synchronization between controllers and field I/O modules. Its FM, ATEX, and IECEx certifications permit deployment in Class I Division 2 and Zone 2 hazardous locations, making it indispensable for explosive atmosphere applications where standard cabling would violate safety regulations.

Whether you're commissioning a greenfield DCS installation, retrofitting legacy M-Series systems, or expanding existing S-Series architectures, this extender cable provides the mechanical flexibility and electrical reliability required for mission-critical process automation. Request a technical consultation to optimize your carrier layout and redundancy strategy.

Key Features & Industrial Benefits

→ Online Expansion Capability: Add I/O carriers to running DeltaV systems without process shutdown. Dual-cable configurations support hot-insertion, eliminating costly production interruptions during capacity upgrades—critical for continuous process industries where downtime costs exceed $100,000/hour.

→ Fault-Tolerant Architecture Support: Deploy redundant cable pairs to eliminate single points of failure in safety-instrumented systems (SIS). Automatic failover maintains I/O communication even during cable damage or connector wear, meeting IEC 61511 SIL 2/3 requirements for process safety applications.

→ Hazardous Area Compliance: FM-approved for Class I Division 2 Groups A-D and ATEX-certified for Zone 2 Ex ec IIC T4 environments. Conformal coating resists corrosive gases per ISA-S71.04 Class G3, extending service life in sulfur-rich refineries and chlorine-exposed chemical plants.

✓ Optimized Cable Management: 1.1-meter length perfectly spans standard 19-inch rack spacing while providing slack for cable routing through vertical cable managers. Prevents tension-induced connector failures common with undersized cables.

✓ Wide Temperature Range: Operates reliably from -40°C to +70°C, accommodating unheated control buildings in Arctic climates and high-ambient environments near furnaces or reactors. Storage rating to +85°C prevents degradation during warehouse storage in tropical regions.

✓ Vibration & Shock Resistance: Withstands 10g shock and 0.7g continuous vibration per IEC 60068-2-6, ensuring reliable operation on offshore platforms, near reciprocating compressors, and in seismically active zones.

Application Scenarios Across Process Industries

Refinery Capacity Expansion: When crude processing units add new distillation columns or hydrotreaters, the KJ4003X1-BH1 enables connection of additional 8-Wide I/O carriers to accommodate 128+ new field instruments. Operators maintain production schedules while engineering teams commission new equipment in parallel, avoiding multi-million-dollar shutdown costs.

Pharmaceutical Batch System Scaling: GMP-regulated facilities expanding from 4 to 8 bioreactors use extender cables to add dedicated I/O carriers for each new vessel. Segregated I/O architecture simplifies 21 CFR Part 11 audit trails and prevents cross-contamination between batch campaigns through physical I/O isolation.

Chemical Plant Modernization: Facilities migrating from legacy M-Series to S-Series DeltaV preserve existing cabinet infrastructure by using extender cables to position new carriers in available panel space. This phased approach reduces capital expenditure by 40% compared to complete cabinet replacement while maintaining operational continuity.

Power Plant Distributed I/O Optimization: Coal-fired and combined-cycle plants position I/O carriers near boiler fronts, turbine decks, and emissions control systems using extender cables to minimize field wiring runs. Reduced copper costs and lower voltage drop improve analog signal accuracy for critical combustion control loops.

Offshore Platform Redundancy Implementation: FPSO vessels and fixed platforms deploy dual extender cables between carriers to achieve fault-tolerant I/O architectures. When subsea equipment failures or harsh weather damage one cable, the redundant path maintains well control and process safety system integrity without emergency shutdown.

Technical Specifications & Selection Guide

Selection Criteria: Choose single-cable configuration (KJ4003X1-BH1) for non-critical I/O expansion where brief communication interruptions during maintenance are acceptable. Specify dual-cable configuration (included with SE4050E2C0 carriers) for safety-critical applications requiring continuous operation during cable replacement or when meeting SIL-rated process safety requirements.

Advanced Configuration Options

Simplex Bus Architecture: Standard installations deploy one extender cable per carrier connection, supporting up to 8 carriers with 64 I/O cards total. This cost-optimized topology suits non-critical monitoring applications, batch processes with scheduled maintenance windows, and pilot plant installations where redundancy isn't mandated.

Redundant Bus Architecture: Mission-critical applications use two parallel extender cables between each carrier pair, creating a fault-tolerant I/O network. The DeltaV controller automatically detects cable failures and maintains communication through the surviving path without operator intervention, ensuring zero data loss during cable replacement or accidental damage.

Hybrid Configurations: Large systems combine simplex and redundant segments based on process criticality. Emergency shutdown systems and regulatory-mandated safety loops use dual cables, while non-critical monitoring points use single cables—optimizing capital costs while meeting safety integrity level (SIL) requirements.

Installation Best Practices & Integration

• Carrier Spacing Optimization: Position carriers 1.0-1.1 meters apart to utilize full cable length without excessive slack. Closer spacing creates cable management challenges; wider spacing requires custom cable lengths (consult factory).

• Cable Routing Protection: Route cables through enclosed cable trays or flexible conduit in high-traffic areas. Avoid sharp bends (minimum radius 50mm) and tension loads exceeding 5kg to prevent connector stress fractures.

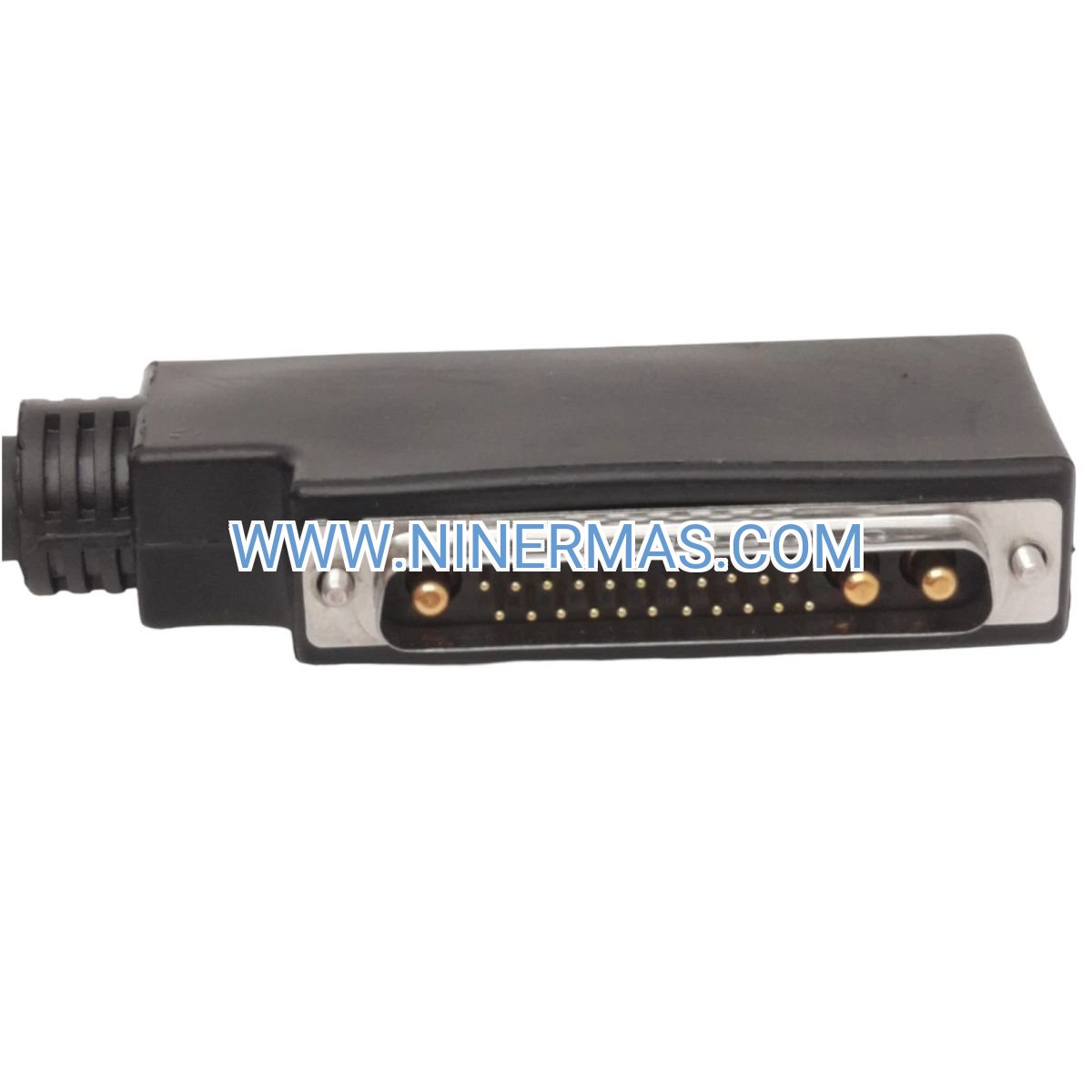

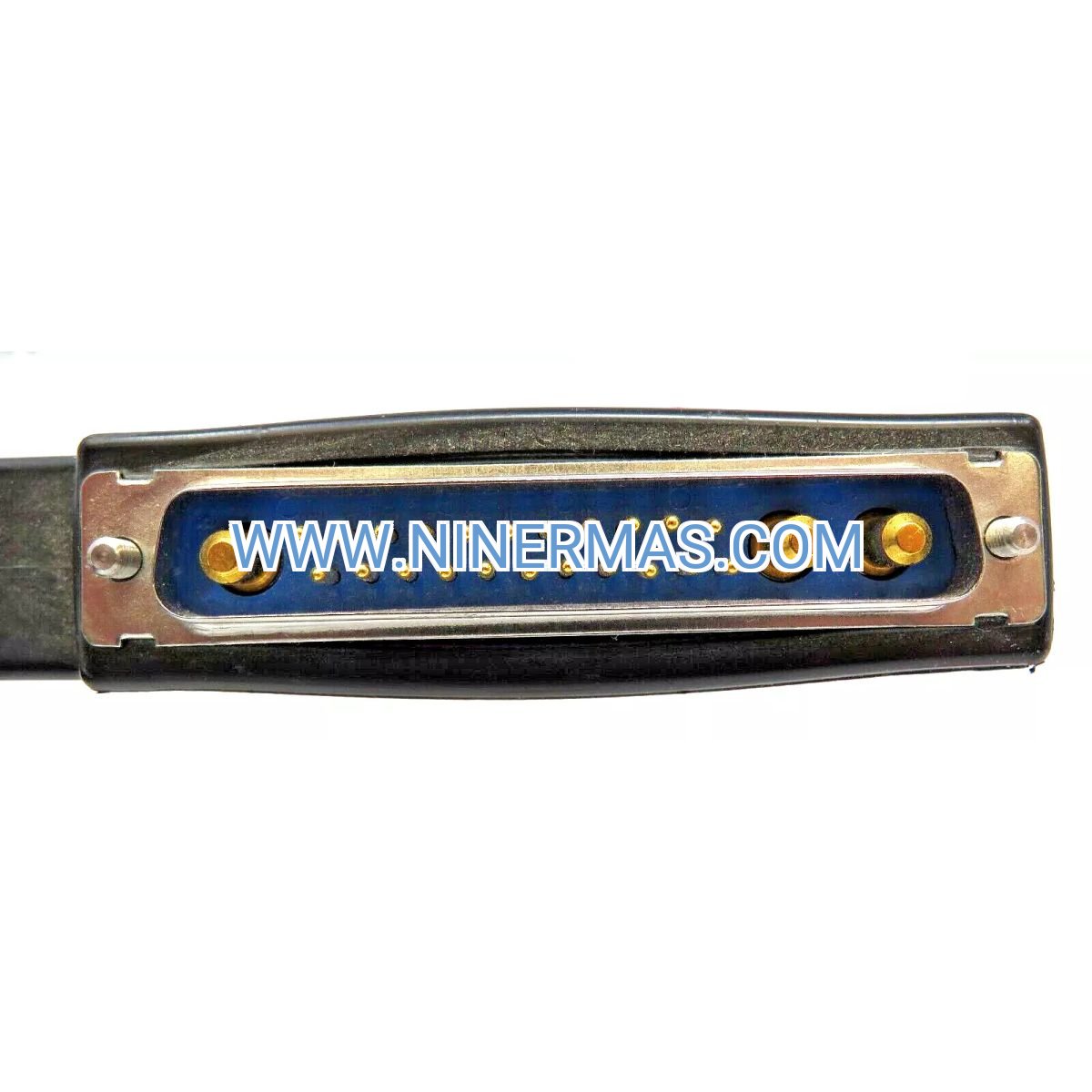

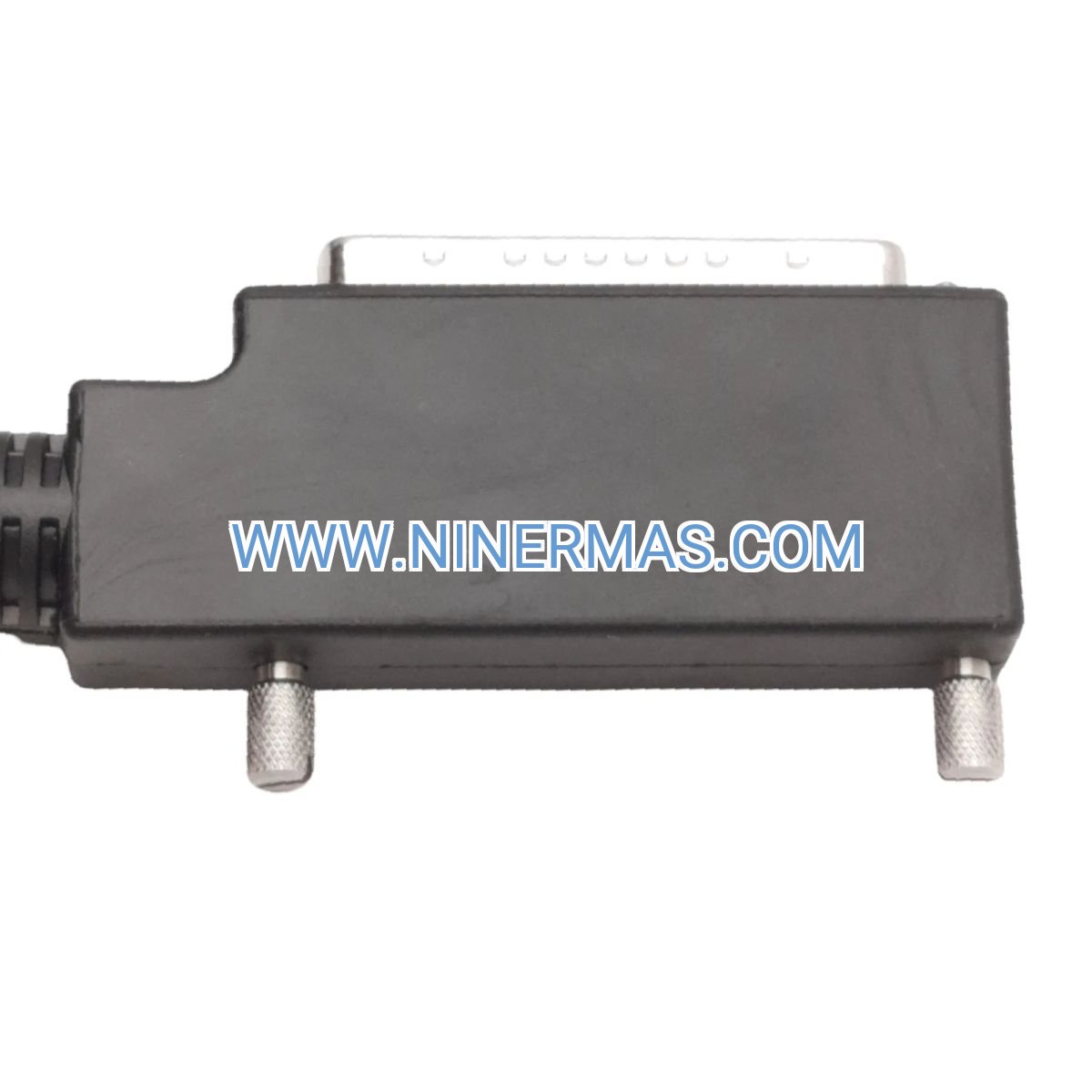

• Connector Keying Verification: Keyed connectors prevent reverse insertion, but verify proper alignment before applying force. Damaged keys can allow incorrect mating, causing I/O bus failures.

• Hot-Insertion Procedures: When adding carriers to redundant systems, follow Document 12P5402 procedures to prevent bus disruption. Single-cable systems require controller shutdown before carrier addition.

• Environmental Considerations: In corrosive atmospheres (H2S, Cl2, SO2), inspect cable jackets quarterly for chemical degradation. Replace cables showing discoloration or brittleness before connector failures occur.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units shipping to North America, Europe, and Asia-Pacific. Expedited 24-hour dispatch available for emergency shutdowns and unplanned outages (contact sales for availability).

Custom Cable Lengths: Factory-built cables from 0.5m to 3.0m available with 4-6 week lead time. Provide carrier spacing dimensions and cabinet layout drawings for accurate length specification.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranties available for critical spares programs and long-term service agreements.

Technical Support: Pre-sales application engineering assistance for carrier layout optimization, redundancy configuration, and hazardous area compliance verification. Post-sales support includes installation troubleshooting, cable testing procedures, and system expansion planning.

Documentation Package: Each cable ships with installation instructions (Documents 12P5402/12P5404), hazardous area certification statements, and material traceability certificates for quality assurance compliance.

Frequently Asked Questions

Q: Can I mix single and dual extender cables in the same DeltaV system?
A: Yes, hybrid configurations are fully supported. Use dual cables for safety-critical I/O (emergency shutdown, burner management) and single cables for non-critical monitoring to optimize costs while meeting safety requirements.

Q: What's the maximum number of carriers I can connect with extender cables?
A: Each S-Series controller supports up to 8 carriers total, accommodating 64 simplex I/O cards or 32 redundant card pairs. This provides capacity for 1,024 simplex I/O points or 512 redundant I/O points per controller.

Q: Does the 1.1-meter cable length include connector housings?
A: The 1.1-meter specification is the total cable assembly length including connectors. Plan carrier spacing at 1.0 meters center-to-center to allow proper cable routing without excessive tension.

Q: Can I add carriers to a running DeltaV system without shutting down the controller?
A: Yes, but only with dual extender cable configurations. Single-cable systems require controller shutdown before carrier addition. Refer to Document 12P5402 Section 4.3 for hot-insertion procedures.

Q: Are custom cable lengths available for non-standard carrier spacing?
A: Factory-built custom cables from 0.5m to 3.0m are available with 4-6 week lead time. Provide cabinet layout drawings showing carrier positions for accurate length specification. Field modification of cables voids certifications.

Q: How do I verify cable integrity after installation?
A: Use DeltaV Diagnostics to monitor I/O bus communication errors. Elevated error rates indicate connector issues or cable damage. Physical inspection should check for bent pins, cable jacket damage, and secure connector latching.

Request a Quote or Technical Consultation

Our DeltaV-certified engineers provide complimentary system design reviews for multi-carrier installations. Contact us with your carrier count, redundancy requirements, and cabinet layout to receive optimized cable specifications, installation drawings, and project pricing within 24 hours. Bulk discounts available for projects requiring 10+ cables.
