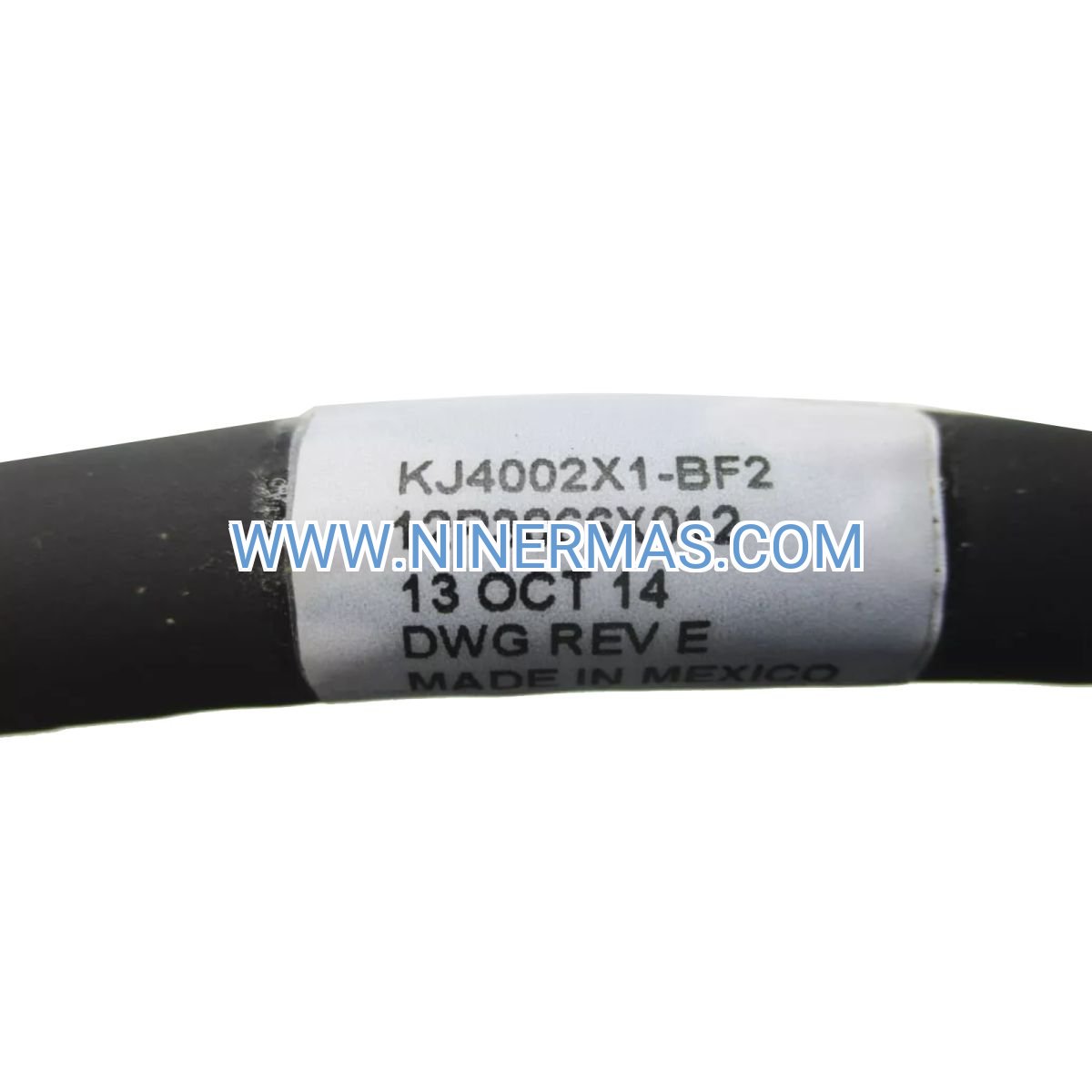

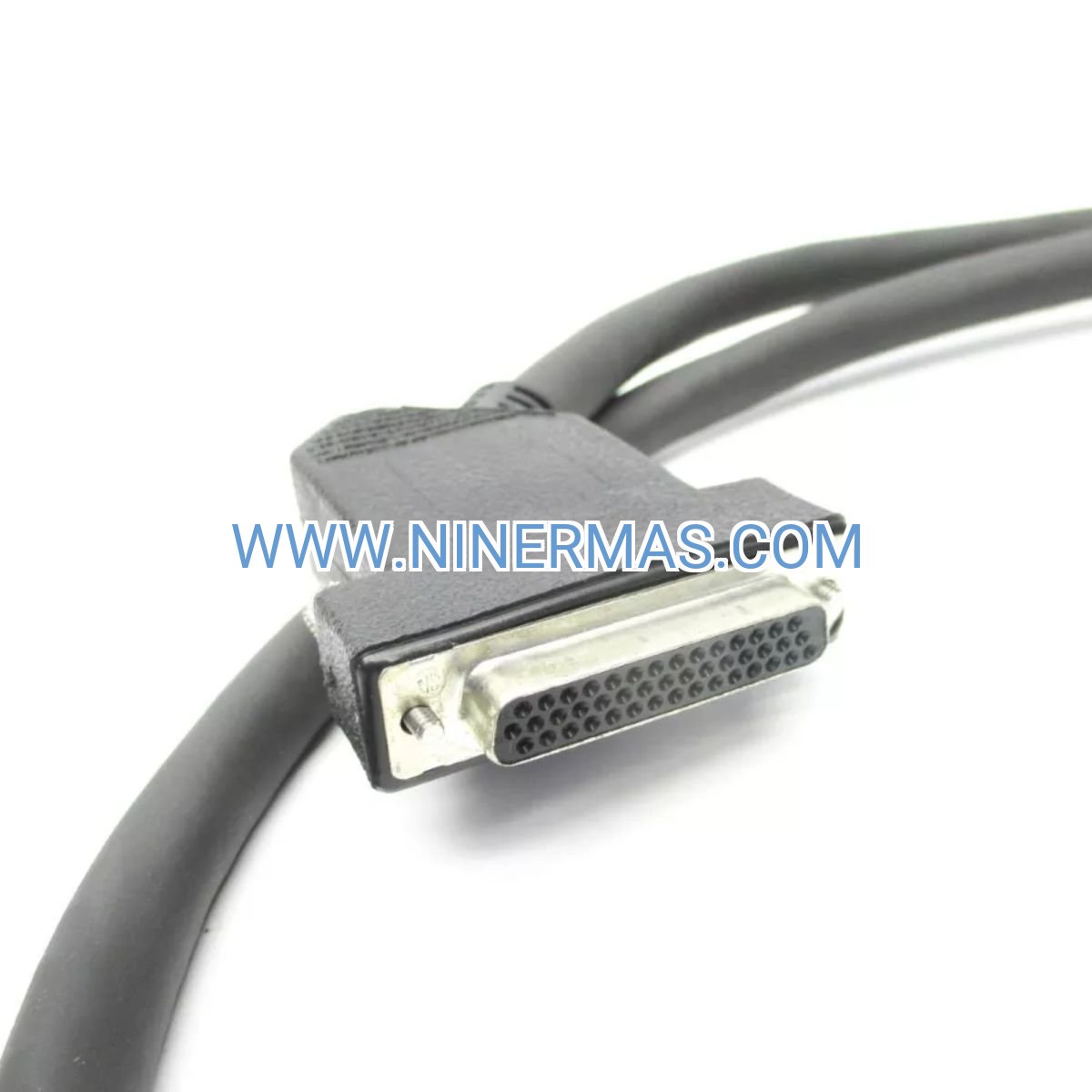

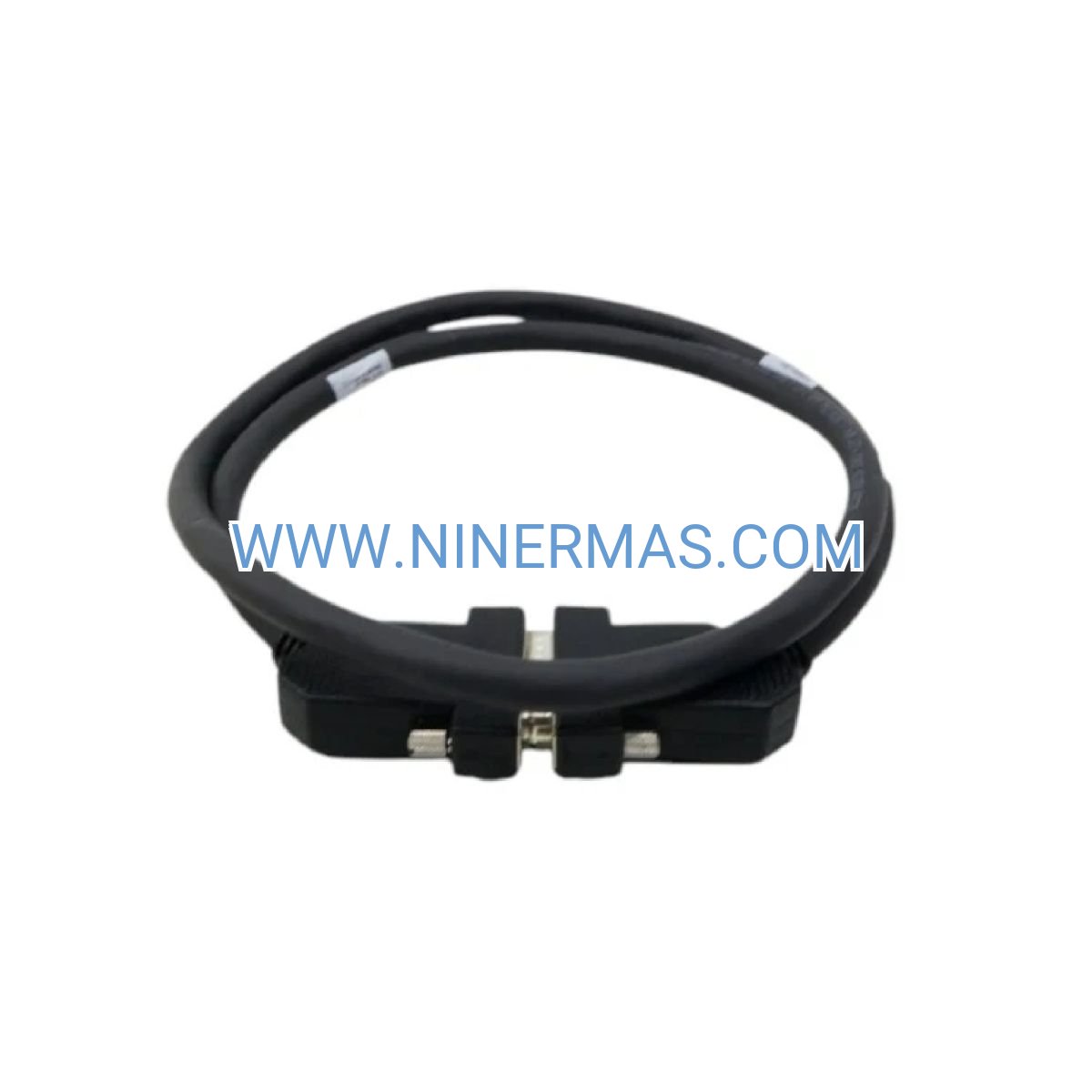

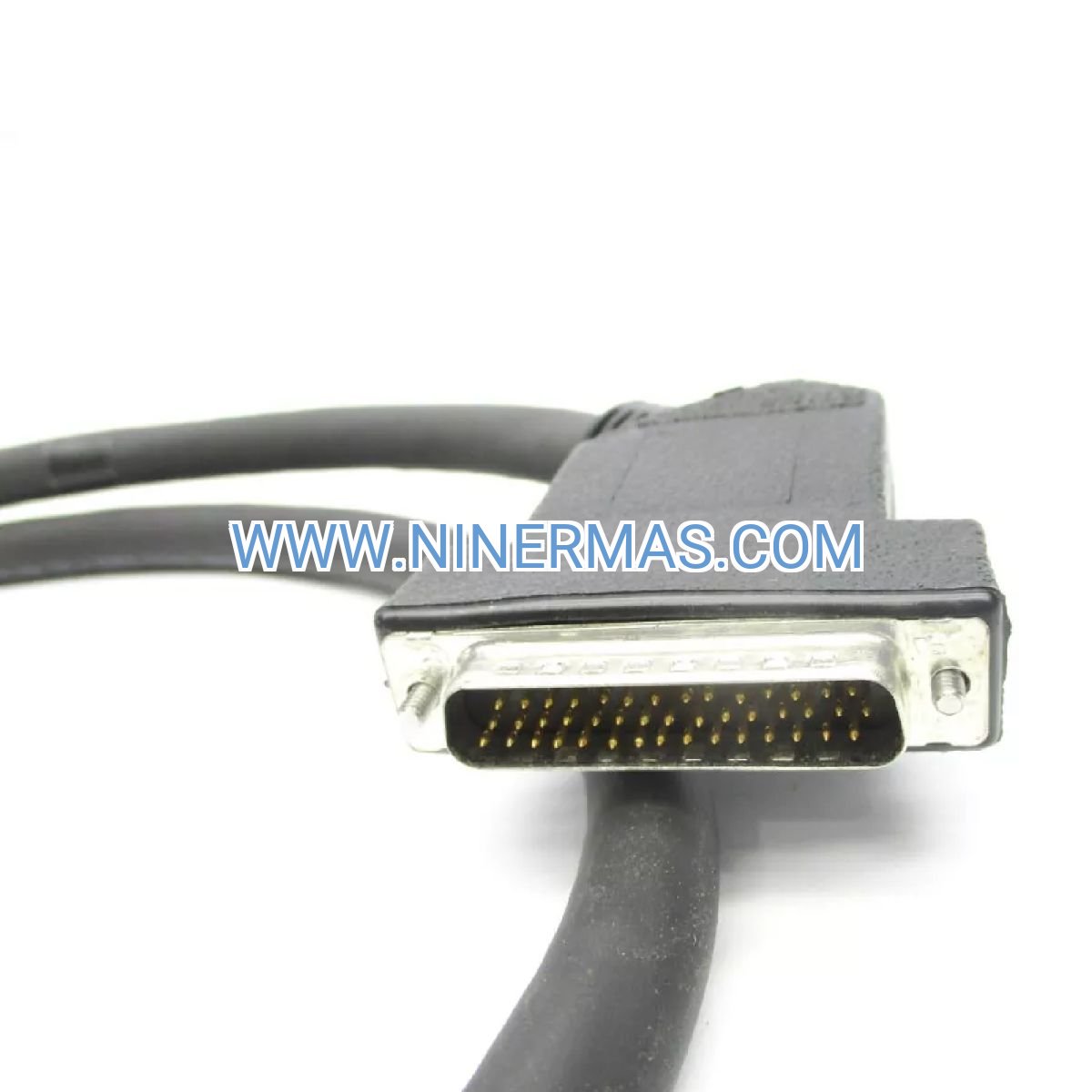

KJ4002XI-BF2 Bottom Extender Cable Assembly (Industrial-Grade DeltaV LocalBus Interconnect)

The KJ4002XI-BF2 is a bottom-mount extender cable assembly engineered for Emerson DeltaV distributed control systems, delivering robust LocalBus connectivity between I/O carriers in multi-cabinet process automation architectures. This industrial-grade interconnect solution combines 12.6VDC power distribution with high-speed digital communication in a single cable assembly, supporting up to 15A current capacity for powering multiple I/O modules across extended distances in oil refineries, chemical plants, pharmaceutical manufacturing, and power generation facilities.

Designed for harsh industrial environments, the KJ4002XI-BF2 operates reliably from -40°C to +70°C with conformal coating protection against corrosive atmospheres. Global hazardous area certifications (FM, CSA, ATEX, IECEx) enable deployment in Zone 2 and Division 2 classified locations, making it the preferred choice for expanding DeltaV I/O capacity in explosive atmosphere installations worldwide.

Whether you're retrofitting legacy systems, building new process units, or segregating I/O equipment across control rooms, this bottom extender cable provides the flexibility and reliability demanded by mission-critical automation applications. Contact our DCS specialists for system design assistance and volume pricing.

Key Features & Industrial Benefits

→ High-Capacity Power Distribution: 12.6VDC at 15A maximum current supports multiple I/O carriers on a single LocalBus segment, reducing infrastructure complexity and installation costs in large-scale DCS deployments.

→ Extended Reach Architecture: Enables up to 6.5 meters combined length of I/O carriers and extenders, accommodating cabinet-to-cabinet connections and distributed marshalling layouts without signal degradation or voltage drop concerns.

→ Bottom-Mount Configuration: Vertical expansion design preserves existing top-mount connections while enabling downward I/O carrier stacking, ideal for phased project execution and retrofit installations with space constraints.

→ Extreme Temperature Performance: -40°C to +70°C operating range with 5-95% humidity tolerance ensures reliable operation in outdoor enclosures, non-climate-controlled buildings, and tropical/arctic industrial sites.

→ Global Hazardous Area Compliance: FM/CSA Class I Division 2, ATEX Zone 2, and IECEx certifications enable worldwide deployment in explosive atmosphere locations with full regulatory compliance and simplified approval processes.

→ Vibration & Shock Resistant: Withstands 0.5g vibration (16-150 Hz) and 10g shock loads, suitable for installations near compressors, pumps, and rotating machinery without connection failures or intermittent faults.

Application Scenarios Across Process Industries

Scenario 1: Multi-Cabinet I/O Distribution in Refineries
In large crude distillation units where I/O point counts exceed 500 channels, the KJ4002XI-BF2 enables LocalBus extension between primary control cabinets and remote marshalling panels positioned near field junction boxes. This architecture reduces field wiring costs by 30-40% while maintaining deterministic scan times for critical temperature, pressure, and flow control loops. The bottom extender configuration allows vertical stacking of I/O carriers within existing cabinet footprints, eliminating the need for additional floor space in congested control rooms.

Scenario 2: Distributed Control Room Layouts
Pharmaceutical batch processing facilities often require physical separation between operator workstations and I/O termination equipment to meet cleanroom classification requirements. The KJ4002XI-BF2 bridges this gap by routing LocalBus connections through wall penetrations and conduit systems, connecting I/O carriers in classified manufacturing areas to controllers in non-classified control rooms. The 15A power capacity supports up to 8 analog I/O cards per segment, providing sufficient capacity for recipe-driven batch operations without voltage drop issues.

Scenario 3: Phased Expansion Projects
When adding new process units to existing chemical plants, the bottom extender cable enables incremental I/O capacity additions without controller replacement or system downtime. Engineers can install new I/O carriers in adjacent cabinets during planned maintenance windows, connect them via KJ4002XI-BF2 extenders, and commission new control loops without disrupting running production. This phased approach reduces project risk and capital expenditure compared to forklift upgrades.

Scenario 4: Hazardous Area Segregation
Offshore oil platforms and LNG terminals require strict separation between Zone 2 classified I/O equipment and non-classified control hardware. The KJ4002XI-BF2's FM/ATEX certifications allow LocalBus routing through sealed conduit between purged/pressurized enclosures and standard control cabinets, maintaining area classification boundaries while preserving integrated DeltaV system architecture. This eliminates the need for costly intrinsically safe barriers or separate control systems.

Scenario 5: Retrofit and Modernization
Power generation plants upgrading from legacy DCS platforms to DeltaV can leverage bottom extender cables to integrate new I/O carriers with existing field wiring infrastructure. By positioning new DeltaV I/O modules in original marshalling cabinets and extending LocalBus to centralized controllers, plant engineers minimize rewiring costs and commissioning time while achieving modern control system capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ4002XI-BF2 when you need bottom-mount expansion for vertical I/O carrier stacking, require 15A power capacity for high-density analog I/O, or must maintain existing top-mount connections during retrofit projects. For top-mount expansion, specify KJ4002X1-BE1 instead. For standard cabinet-to-cabinet connections without vertical expansion, consider 12P0631X012 LocalBus extender cables.

Advanced Integration Capabilities

✓ Deterministic Communication Protocol: DeltaV LocalBus delivers guaranteed 10ms scan times for critical control loops, ensuring predictable I/O update rates regardless of network loading or system complexity. This determinism is essential for cascade control, feedforward compensation, and fast-acting safety interlocks.

✓ Integrated Diagnostics: Built-in health monitoring detects cable faults, power supply issues, and communication errors with automatic alarm generation in DeltaV Operate interface. Diagnostic LEDs on I/O carriers provide visual status indication for rapid troubleshooting during commissioning and maintenance.

✓ Hot-Swap Support: Replace individual I/O cards without system shutdown in non-hazardous areas (requires proper I/O loop assessment and bypass procedures). This capability reduces mean time to repair (MTTR) and minimizes production losses during component failures.

✓ Redundancy Options: Combine with DeltaV redundant controller pairs and dual I/O carrier configurations for fault-tolerant architectures in critical process units. The bottom extender cable supports both simplex and redundant LocalBus topologies without modification.

✓ Future-Proof Scalability: Add I/O capacity incrementally as process requirements evolve without controller upgrades or system redesign. The modular LocalBus architecture accommodates plant expansions, process modifications, and technology insertions over 15-20 year asset lifecycles.

Installation Best Practices & Critical Requirements

Cable Length Calculations: The 6.5-meter maximum applies to the COMBINED length of all I/O carriers plus extender cables in a single LocalBus segment. For example, if you have three I/O carriers (each 0.3m wide) plus two extender cables, the total must not exceed 6.5m. Exceeding this limit causes communication timeouts, I/O faults, and unpredictable control system behavior. Always verify total segment length during design phase.

Conduit Protection Mandate: All inter-cabinet LocalBus cables MUST be installed in metallic conduit for electromagnetic shielding and mechanical protection. This requirement is non-negotiable for hazardous area installations and is mandated by FM/ATEX certification conditions. Use rigid steel conduit or flexible metallic conduit with proper bonding at both ends to prevent ground loops.

Hot-Swap Restrictions: NEVER disconnect or connect LocalBus extender cables while system power is energized in hazardous area installations. This operation is only permitted when the system is fully de-energized OR the area is verified as non-hazardous by a qualified safety professional. Violating this restriction risks equipment damage, data corruption, and personnel safety incidents.

Grounding & EMI Mitigation: Ensure all control cabinets are bonded to a common ground reference with impedance below 1 ohm. Route LocalBus cables separately from high-voltage power cables, VFD motor leads, and welding equipment to minimize electromagnetic interference. Use shielded cable trays or dedicated conduit runs in electrically noisy environments.

Environmental Considerations: While the KJ4002XI-BF2 operates across -40°C to +70°C, avoid installations where cables are exposed to direct sunlight, steam leaks, or chemical spray. Use NEMA 4X enclosures in corrosive atmospheres and verify that cabinet ventilation maintains internal temperatures within specification during peak ambient conditions.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock items to North America, Europe, and Asia-Pacific destinations. Expedited 24-48 hour shipping available for emergency shutdowns and critical path projects (additional charges apply).

Custom Lead Time: 4-6 weeks for special-length cables or non-standard configurations requiring factory customization. Contact our engineering team for feasibility assessment and quotation.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares and long-term service agreements.

Technical Support: Lifetime application engineering assistance including system design review, cable routing analysis, power budget calculations, and troubleshooting support. Our DCS-certified engineers provide remote diagnostics and on-site commissioning services worldwide.

Documentation Package: Complete installation manuals, wiring diagrams, certification documents, and test reports included with every shipment. Digital copies available for download immediately upon order confirmation.

Frequently Asked Questions

Q1: What is the maximum number of I/O carriers I can connect using KJ4002XI-BF2 extender cables?
A: The limiting factor is the combined 6.5-meter segment length, not the number of carriers. Typically, you can connect 4-6 I/O carriers depending on their physical width and the extender cable lengths required. Each standard I/O carrier is approximately 0.3 meters wide, so calculate total length carefully during system design. Additionally, verify that total I/O power consumption does not exceed the 15A LocalBus power capacity.

Q2: Can I use KJ4002XI-BF2 cables for outdoor installations between buildings?
A: Yes, provided the cables are installed in sealed metallic conduit with proper drainage and the ambient temperature remains within -40°C to +70°C. For long outdoor runs exceeding 10 meters, consider using DeltaV FieldBus or FOUNDATION Fieldbus instead of LocalBus to avoid segment length limitations. Consult Document 12P2046 for specific outdoor installation requirements in hazardous areas.

Q3: How do I calculate power budget for a LocalBus segment with multiple I/O carriers?
A: Each I/O card has a specified power consumption listed in its datasheet (typically 2-5W for analog cards, 1-3W for digital cards). Sum the power consumption of all cards in the segment and verify the total does not exceed 189W (12.6V × 15A). Include a 20% safety margin for inrush current and future expansion. Our application engineers provide free power budget analysis for complex configurations.

Q4: What is the difference between KJ4002XI-BF2 and KJ4002X1-BF2?
A: The "XI" designation indicates enhanced specifications including higher temperature range, improved EMI immunity, and extended vibration tolerance compared to the standard "X1" version. For new installations, we recommend the KJ4002XI-BF2 for maximum reliability and future-proofing. Both versions are mechanically and electrically interchangeable.

Q5: Do I need special tools to install LocalBus extender cables?
A: No special tools are required - the connectors use hand-tightened locking mechanisms. However, we recommend using torque-limiting screwdrivers (0.5-0.7 Nm) to prevent over-tightening and connector damage. Cable insertion/extraction tools are available for tight spaces but not mandatory for most installations.

Q6: Can I mix bottom extenders and top extenders in the same LocalBus segment?
A: Yes, you can combine KJ4002XI-BF2 (bottom) and KJ4002X1-BE1 (top) extenders in the same segment as long as the total combined length does not exceed 6.5 meters. This flexibility enables complex cabinet layouts and vertical/horizontal I/O carrier arrangements. Ensure proper cable routing to avoid strain on connectors.
