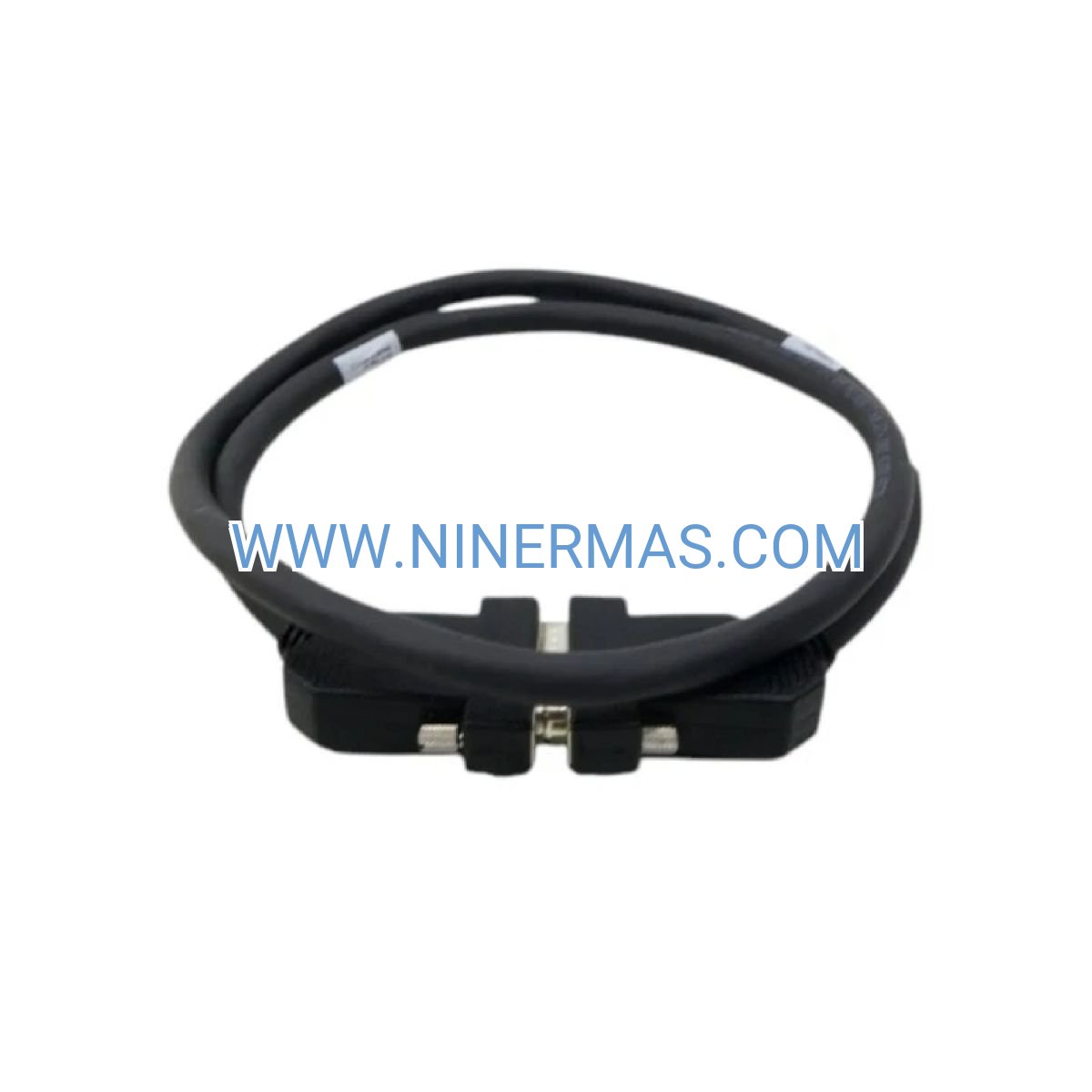

KJ4002X1-BF2 Bottom Extender Cable Assembly (Industrial-Grade DeltaV LocalBus Connector)

The KJ4002X1-BF2 represents a mission-critical interconnect solution for expanding Emerson DeltaV distributed control system architectures. Engineered as a bottom-mount extender cable assembly, this component enables vertical I/O carrier stacking and multi-enclosure LocalBus networks across oil & gas, chemical processing, pharmaceutical manufacturing, and power generation facilities. Delivering 12.6VDC at 15 amperes with FM/ATEX/IECEx certifications, the KJ4002X1-BF2 ensures reliable power distribution and high-speed communication in both standard and hazardous area installations.

Key Features & Industrial Benefits

→ Flexible System Architecture: Bottom extender configuration supports vertical I/O carrier placement within control cabinets, maximizing space utilization while maintaining the 6.5-meter LocalBus length requirement for optimal signal integrity.

→ Robust Power Delivery: 12.6VDC at 15A capacity accommodates high-density analog modules, HART-enabled CHARMs, and discrete I/O cards without voltage drop concerns across extended LocalBus chains.

→ Global Hazardous Area Compliance: FM/CSA Class I Division 2 Groups A-D, ATEX Zone 2, IECEx certified for deployment in explosive atmosphere environments per Document 12P2046 installation standards.

→ Extreme Environment Performance: -40°C to +70°C operating range with 10g shock resistance and 0.5g vibration tolerance (16-150 Hz) ensures reliability in offshore platforms, arctic facilities, and high-vibration industrial settings.

→ Pre-Assembled Quality: Factory-terminated connectors eliminate field wiring errors, reduce commissioning time by 40-60%, and provide consistent signal integrity across all installations.

→ Marine-Grade Construction: DNV and ABS certifications validate suitability for offshore oil platforms, FPSO vessels, and maritime process control applications subject to corrosive atmospheres and mechanical stress.

Typical Application Scenarios

Refinery Control Room Expansions:
When existing DeltaV systems require additional I/O capacity during unit turnarounds or capacity debottlenecking projects, the KJ4002X1-BF2 enables phased expansion without complete cabinet redesigns. Vertical stacking of new I/O carriers using bottom extender cables maintains logical organization by process unit while preserving valuable control room floor space. This approach reduces installation costs by 30-50% compared to horizontal cabinet additions and minimizes commissioning downtime during critical turnaround windows.

Chemical Plant Multi-Enclosure Systems:
Complex batch processing facilities often require I/O carriers distributed across multiple marshalling cabinets to minimize field wiring runs and reduce installation costs. The KJ4002X1-BF2 maintains LocalBus continuity between cabinets when routed through conduit, enabling flexible system layouts that accommodate existing infrastructure constraints. This distributed architecture reduces field wiring by up to 40% while simplifying troubleshooting through logical grouping of I/O by process area.

Offshore Platform Space-Constrained Installations:
Offshore oil and gas platforms demand maximum equipment density within limited equipment room footprints. Vertical I/O carrier stacking using bottom extender cables achieves 2-3x higher I/O density per square meter compared to horizontal layouts, critical for brownfield platform upgrades where new cabinet space is unavailable. The rugged construction withstands continuous vibration from rotating equipment and wave motion, maintaining communication integrity in harsh marine environments.

Pharmaceutical Clean Room Control Systems:
GMP-regulated pharmaceutical manufacturing requires segregated I/O systems for different production suites while maintaining centralized control room oversight. Bottom extender cables enable vertical organization of I/O carriers by production area within common marshalling cabinets, simplifying validation documentation and reducing cross-contamination risks. The conformal coating protection (ISA-S71.04 Class G3) ensures reliable operation in controlled humidity environments typical of clean room facilities.

Power Generation Auxiliary Systems:
Combined-cycle power plants and cogeneration facilities utilize DeltaV for balance-of-plant control including feedwater systems, emissions monitoring, and auxiliary cooling. The KJ4002X1-BF2 supports incremental I/O additions as environmental regulations evolve or plant capacity increases, avoiding costly controller upgrades. Hot-swap capability (when properly configured in non-hazardous areas) enables I/O carrier replacement during scheduled outages without disrupting adjacent control loops.

Technical Specifications & Selection Guide

Selection Criteria for KJ4002X1 Cable Variants

Choose the appropriate bottom extender cable based on vertical spacing requirements and cabinet layout:

• KJ4002X1-BF1 (Short): Minimal vertical spacing between adjacent I/O carriers in compact cabinet designs
• KJ4002X1-BF2 (Medium): Standard vertical carrier spacing for typical control cabinet layouts (this product)
• KJ4002X1-BF3 (Long): Extended vertical reach within tall cabinets or when carriers are separated by cable management trays
• KJ4002X1-BF4 (Extra Long): Maximum vertical spacing or inter-cabinet connections requiring longer cable runs

Critical Planning Note: Calculate total system length by adding physical dimensions of all I/O carriers plus lengths of all extender cables in the LocalBus chain. Total must not exceed 6.5 meters to ensure reliable communication and power delivery.

Advanced Integration Capabilities

✓ Scalable I/O Architecture: Add I/O capacity incrementally as process requirements evolve without controller hardware upgrades or system downtime, supporting phased project execution and capital expenditure optimization.

✓ Simplified Wiring Infrastructure: Single cable assembly provides both LocalBus communication and power distribution, eliminating separate power wiring and reducing installation labor by 50-70% compared to traditional I/O backplane systems.

✓ Hot-Swap Maintenance: Replace failed I/O carriers without disrupting adjacent control loops when properly configured in non-hazardous areas, reducing mean time to repair (MTTR) and improving overall system availability.

✓ Multi-Cabinet Flexibility: Extend LocalBus networks across multiple enclosures within control rooms or equipment shelters, enabling logical organization by process unit while maintaining centralized controller architecture.

✓ Future-Proof Design: Compatible with current DeltaV M-series and legacy S-series controllers, protecting long-term investment in existing automation infrastructure during technology transitions.

Installation Guidelines & Critical Requirements

Maximum System Length Compliance:
The combined length of all I/O carriers and LocalBus extender cables must not exceed 6.5 meters. This includes the physical dimensions of each carrier (typically 25-50mm depending on model) plus the length of all extender cables in the chain. Exceeding this limit results in communication errors, power delivery issues, and potential system instability. Use the shortest cable variant that accommodates your cabinet layout to maximize available length budget for future expansions.

Conduit Protection for Inter-Enclosure Runs:
All interconnecting cables between separate enclosures MUST be installed in rigid or flexible conduit rated for the area classification. This requirement applies to both hazardous and non-hazardous area installations to prevent mechanical damage, maintain EMC compliance, and ensure long-term reliability. Conduit routing should minimize sharp bends and avoid proximity to high-voltage power cables to reduce electromagnetic interference.

LocalBus Power Budget Management:
Calculate total I/O module power consumption before system design to ensure it remains within the 12.6VDC at 15A LocalBus capacity. High-density analog input/output modules typically consume 3-5W each, while HART-enabled CHARMs may draw 6-8W. Discrete I/O modules consume 1-2W. Exceeding the power budget causes voltage drop, communication errors, and potential I/O module malfunctions. Consult DeltaV I/O module datasheets for specific power consumption values.

Grounding & Shield Continuity:
Maintain proper cabinet grounding and LocalBus shield continuity throughout the cable chain. Connect cabinet ground bars to facility ground grid using minimum 6 AWG (10mm²) copper conductors. Improper grounding introduces ground loops, common mode noise, and communication errors, particularly in installations with multiple cabinets or long cable runs. Verify ground resistance <1 ohm between all cabinets in the LocalBus network.

Hazardous Area Installation Requirements

Critical safety protocols for classified location deployments:

✓ Installation Documentation: Refer to Document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions" and "Installing Your DeltaV Automation System" manual for complete hazardous area installation procedures and certification requirements.

✓ De-Energized Installation: Extender cables MUST NOT be removed or inserted while system power is energized unless area is verified non-hazardous and proper hot-work permits are obtained. Energized installation in classified areas violates FM/ATEX/IECEx certifications and creates ignition risks.

✓ Energy Isolation Verification: Disconnect LocalBus power supply and verify zero energy state using calibrated multimeter before cable installation or removal in classified areas. Follow facility lockout/tagout procedures and obtain area gas testing clearance before commencing work.

✓ Conduit System Requirements: Inter-enclosure cables in hazardous areas require rigid steel conduit or approved flexible conduit rated for the area classification (Class I Division 2 or Zone 2). Seal conduit entries using approved sealing fittings to prevent gas migration between enclosures.

Delivery & Service Commitment

Frequently Asked Questions

Q: What is the maximum number of I/O carriers I can connect using KJ4002X1-BF2 bottom extender cables?
A: The limiting factor is the 6.5-meter total system length, not the number of carriers. A typical DeltaV I/O carrier is 25-50mm wide depending on the model. If using 40mm carriers and 200mm BF2 cables, you could theoretically connect 15-20 carriers, but you must also account for power consumption. The 12.6VDC at 15A LocalBus capacity typically supports 8-12 carriers depending on I/O module types. High-density analog modules consume more power than discrete I/O, so calculate your specific power budget before finalizing system design.

Q: Can I use KJ4002X1-BF2 cables to connect I/O carriers in separate control cabinets?
A: Yes, but with critical requirements. All inter-cabinet cables MUST be routed through conduit for mechanical protection and EMC compliance. Ensure total system length (carriers + cables) remains ≤6.5 meters. Maintain proper grounding between cabinets using minimum 6 AWG copper conductors to prevent ground loops. In hazardous areas, use rigid steel conduit or approved flexible conduit rated for the area classification, and install approved sealing fittings at enclosure entries per Document 12P2046.

Q: How do I calculate LocalBus power budget for my DeltaV I/O system expansion?
A: Consult the datasheet for each I/O module to determine its power consumption (typically 1-8W depending on module type). Sum the power consumption of all modules in your LocalBus chain. Convert to current: I = P / 12.6V. Ensure total current remains below 15A with at least 20% margin for reliability. Example: Ten 4W analog input modules = 40W total = 3.17A, well within the 15A limit. High-density systems with HART CHARMs may approach the limit with 12-15 modules.

Q: What are the differences between KJ4002X1-BF1, BF2, BF3, and BF4 bottom extender cables?
A: The variants differ only in cable length to accommodate different vertical spacing requirements. BF1 is the shortest for minimal spacing, BF2 (this product) provides medium length for standard cabinet layouts, BF3 offers extended reach for tall cabinets, and BF4 provides maximum length for widely-spaced carriers or inter-cabinet connections. All variants have identical electrical specifications (12.6VDC, 15A) and certifications. Select the shortest cable that accommodates your layout to maximize available length budget within the 6.5-meter system limit.

Q: Can I hot-swap I/O carriers connected with KJ4002X1-BF2 extender cables during operation?
A: Hot-swap capability depends on system configuration and area classification. In non-hazardous areas with properly configured DeltaV systems, individual I/O carriers can be removed and replaced without disrupting adjacent carriers or shutting down the entire LocalBus. However, in hazardous areas (Class I Division 2, Zone 2), hot-swap operations are prohibited unless the area is verified non-hazardous and proper hot-work permits are obtained. Always consult Document 12P2046 and your facility's electrical safety procedures before attempting hot-swap operations.

Q: Is the KJ4002X1-BF2 compatible with legacy DeltaV S-series controllers or only M-series?
A: The KJ4002X1-BF2 bottom extender cable is compatible with both current DeltaV M-series controllers and legacy S-series controllers. The LocalBus electrical interface and communication protocol remain consistent across DeltaV generations, ensuring backward compatibility. This protects your investment in existing automation infrastructure during technology transitions and enables incremental system upgrades without complete controller replacement.

Why Choose Industrial Control Hub for DeltaV Components?

Industrial Control Hub specializes in genuine Emerson DeltaV automation components with comprehensive technical support:

• ✓ 100% Authentic OEM Products: Factory-sealed units with full manufacturer traceability, certifications, and warranty coverage
• ✓ Expert DCS Engineering Support: Pre-sales system design consultation, LocalBus length calculations, power budget analysis, and cabinet layout assistance from certified automation engineers
• ✓ Extensive Inventory: Current production and legacy DeltaV interconnect cables, I/O modules, controllers, and power supplies for immediate shipment
• ✓ Global Logistics Network: Expedited shipping to US, UK, EU, Asia-Pacific, and Middle East markets with customs documentation support
• ✓ Competitive Project Pricing: Volume discounts for project quantities, flexible payment terms for qualified accounts
• ✓ Complete Documentation: Installation manuals, certification documents, system planning guides, and CAD drawings for project documentation

Related DeltaV LocalBus Expansion Products

Complementary components for complete DeltaV I/O system design:

• KJ4002X1-BE1 Top Extender Cable Assembly: Upward vertical I/O expansion for top-mount carrier configurations
• KJ4010X1-BG1 Right LocalBus Extender (12P0830X062): Horizontal I/O carrier expansion for side-by-side cabinet layouts
• 12P0631X012 LocalBus Extender Cable: Standard horizontal I/O carrier connections for traditional backplane-style installations
• DeltaV I/O Carriers: 8-slot and 12-slot carriers for analog, discrete, and HART I/O module mounting
• LocalBus Power Supplies: Redundant 12.6VDC power supplies for critical process control applications

Request a Quote or Technical Consultation

Our DCS application engineering team provides complimentary system design assistance including LocalBus architecture planning, power budget calculations, cabinet layout optimization, and hazardous area certification guidance. Contact us with your project requirements for detailed technical recommendations and competitive pricing.

Ready to expand your DeltaV I/O system? Add the KJ4002X1-BF2 bottom extender cable to your cart or contact our technical sales team for project-specific consultation and volume pricing.
