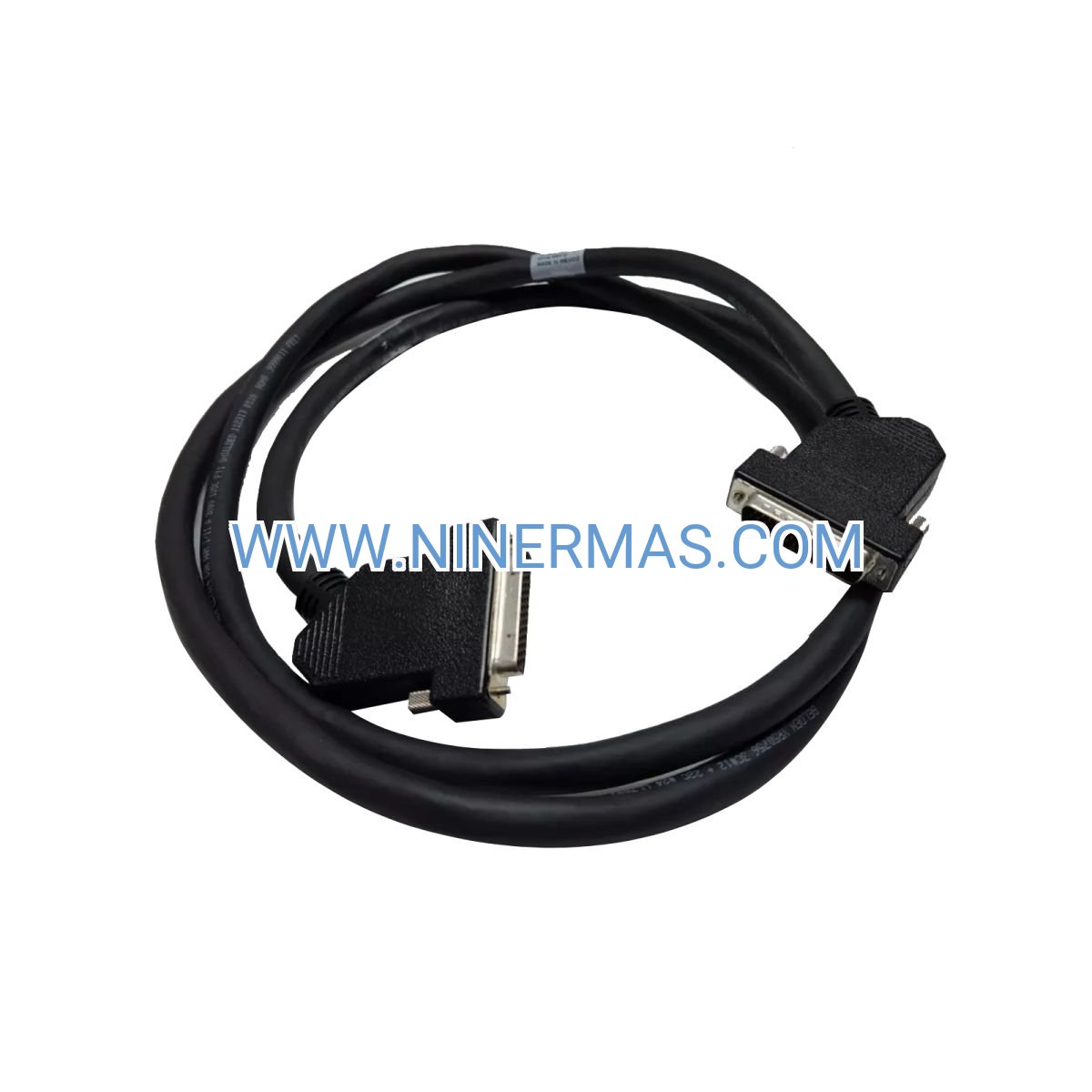

KJ4002X1-BA1 LocalBus Bottom Extender Cable (Industrial-Grade DeltaV Connectivity)

Engineered for mission-critical process automation, the KJ4002X1-BA1 LocalBus Bottom Extender Cable provides reliable vertical I/O expansion in Emerson DeltaV distributed control architectures. This factory-assembled interconnect solution supports downward carrier stacking within marshalling cabinets, delivering combined 12.6VDC power distribution and high-speed digital communication through a single ruggedized cable assembly rated for harsh industrial environments from -40°C to +70°C.

Designed for refining, chemical processing, pharmaceutical manufacturing, and offshore oil & gas installations, this bottom-mount extender enables flexible cabinet layouts while maintaining the critical 6.5-meter total system length requirement for LocalBus integrity. FM, CSA, ATEX, and IECEx certifications ensure compliant deployment in Class I Division 2 and Zone 2 hazardous locations worldwide.

Whether modernizing legacy DCS infrastructure, expanding production capacity, or optimizing control room footprint, the KJ4002X1-BA1 delivers the mechanical robustness and electrical performance demanded by continuous process industries operating 24/7/365 production schedules.

Key Features & Industrial Benefits

• → Vertical I/O Stacking Architecture: Downward carrier connectivity maximizes cabinet space utilization in equipment rooms with height constraints, reducing horizontal panel proliferation and simplifying field wiring organization
• li>✓

15-Ampere Power Delivery:

• Supports high-density analog modules, HART-enabled CHARMs, and intrinsically safe barriers without external power injection, eliminating additional power supplies and associated failure points
• → Factory-Sealed Connectors: Pre-assembled cable eliminates field termination errors, accelerates commissioning timelines by 40-60%, and ensures consistent signal integrity across multi-cabinet installations
• ✓ Extended Temperature Range: -40°C to +70°C operation accommodates unheated equipment shelters, outdoor marshalling kiosks, and tropical climate installations without derating or auxiliary cooling

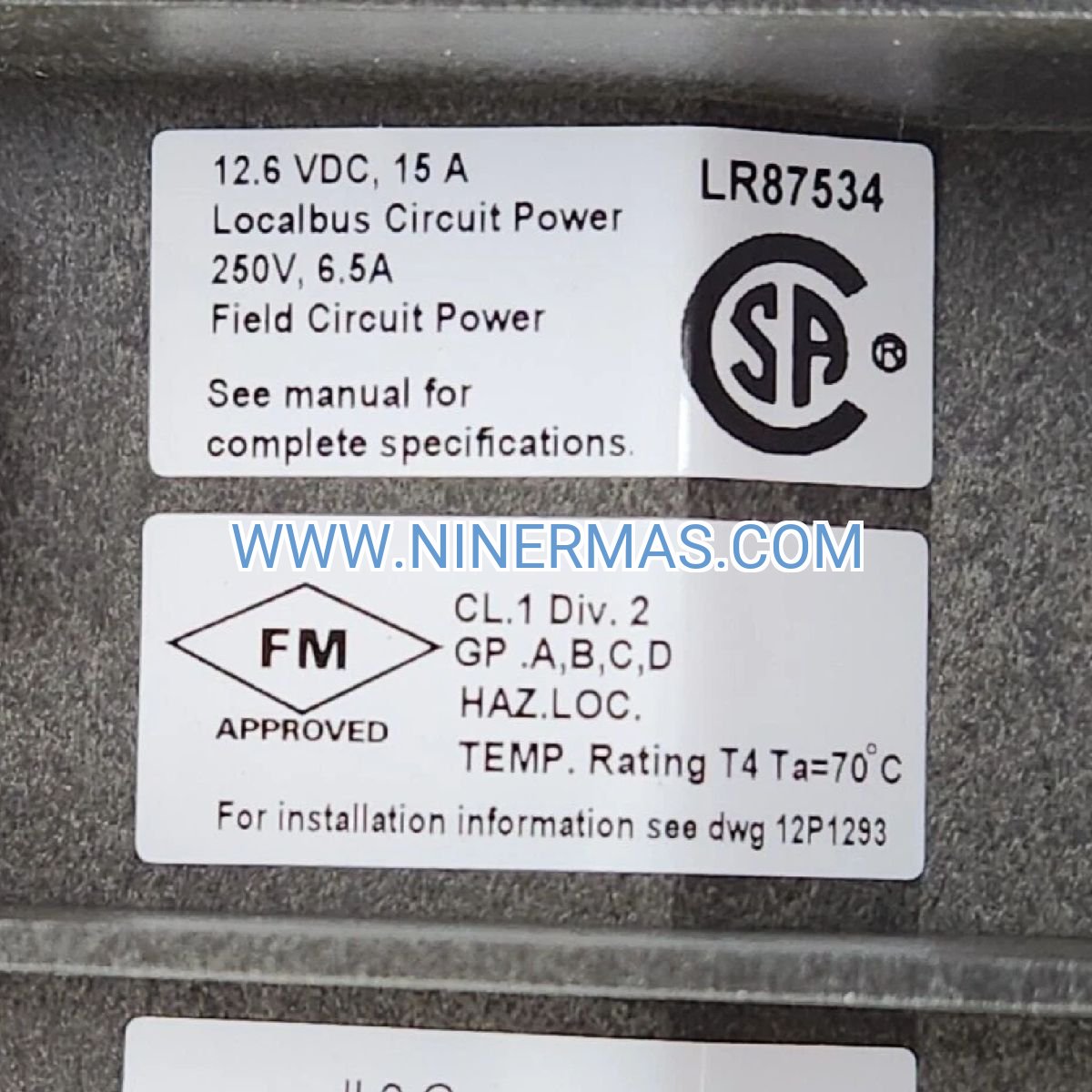

• → Global Hazardous Area Approvals: FM/CSA Class I Division 2, ATEX Zone 2, and IECEx certifications enable worldwide deployment in explosive atmosphere environments with single product qualification
• ✓ Conformal Coating Protection: ISA-S71.04-1985 Class G3 coating resists sulfur dioxide, hydrogen sulfide, chlorine, and other corrosive airborne contaminants common in chemical plants and refineries

Application Scenarios & Problem-Solving Capabilities

Brownfield DCS Capacity Expansion: Add new I/O points to existing DeltaV installations without complete cabinet redesigns or controller replacements. The KJ4002X1-BA1 enables incremental vertical carrier additions, preserving existing field terminations and minimizing turnaround duration during planned maintenance windows. Typical applications include adding analyzer inputs for emissions monitoring compliance, expanding discrete I/O for new safety instrumented functions, or integrating wireless HART gateways for predictive maintenance programs.

Offshore Platform Space Optimization: Vertical expansion addresses severe footprint constraints in offshore production platforms where control room real estate commands premium value. By stacking I/O carriers vertically rather than horizontally, operators reduce panel quantities by 30-50%, lower structural steel requirements, and simplify cable tray routing in congested equipment modules. The 10g shock resistance and 0.5g vibration tolerance withstand wave-induced motion and rotating equipment vibration inherent to marine installations.

Multi-Unit Marshalling Consolidation: Organize I/O carriers by process unit, operating area, or functional discipline within centralized marshalling systems serving multiple production trains. Bottom extenders enable logical field termination grouping—separating reactor controls from distillation columns or batch operations from continuous processes—while maintaining electrical continuity across the LocalBus network. This architecture simplifies troubleshooting, reduces commissioning errors, and improves long-term maintainability for operations and instrumentation technicians.

Hazardous Area Cabinet Segmentation: Connect I/O carriers located in separate enclosures within the same classified area when proper conduit installation is employed. This capability supports installations where explosion-proof junction boxes, purged enclosures, or intrinsically safe barriers require physical separation from general-purpose I/O modules. Proper conduit routing maintains area classification integrity while enabling flexible system architectures that accommodate existing infrastructure and equipment placement constraints.

Pharmaceutical Clean Room Integration: Deploy DeltaV I/O in controlled environments requiring IP-rated enclosures and validated system architectures. The KJ4002X1-BA1's sealed construction prevents particulate ingress, while the conformal coating resists cleaning agents and sanitization chemicals used in aseptic processing areas. Vertical stacking minimizes cabinet footprint in clean rooms where floor space directly impacts production capacity and regulatory compliance costs.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the KJ4002X1-BA1 standard-length bottom extender for typical vertical carrier spacing in standard 19-inch or 600mm-wide cabinets. For compact installations or minimal vertical reach, consider the BF1 short variant. Extended vertical spacing or tall cabinets may require BF3 or BF4 longer variants. Always calculate total carrier dimensions plus all cable lengths to ensure the combined system remains within the 6.5-meter LocalBus length limit. Exceeding this specification causes communication failures and intermittent I/O errors that are difficult to diagnose.

Extended Functionality & System Integration

IoT-Ready Architecture: The LocalBus infrastructure supports integration with Emerson's Plantweb digital ecosystem, enabling predictive analytics, asset performance monitoring, and cloud-based optimization services. Connect DeltaV I/O to wireless HART gateways, AMS Device Manager, or DeltaV Live for real-time process visualization and mobile operator interfaces.

Cybersecurity Compliance: When deployed within properly configured DeltaV systems, the KJ4002X1-BA1 supports IEC 62443 industrial cybersecurity frameworks through network segmentation, encrypted communication protocols, and role-based access controls implemented at the controller and workstation levels.

Customization Options: For non-standard cabinet configurations or unique installation requirements, Emerson offers custom cable lengths and specialized connector orientations through their engineering services group. Contact our technical team for feasibility assessment and lead time quotations for project-specific requirements.

Delivery Timeline & Service Assurance

• Standard Lead Time: 3-5 business days for in-stock items with expedited shipping to North America, Europe, and Asia-Pacific regions
• Custom Configurations: 4-6 weeks for non-standard cable lengths or specialized connector variants (subject to minimum order quantities)
• Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions
• Technical Support: Lifetime access to application engineering assistance for system design, troubleshooting, and installation guidance
• Documentation Package: Installation manuals, dimensional drawings, hazardous area certificates, and material traceability documentation included with every shipment

Frequently Asked Questions

Q: Can I hot-swap the KJ4002X1-BA1 cable while the DeltaV system is energized?
A: Cable removal or insertion while energized is prohibited in hazardous area installations per FM/ATEX/IECEx requirements. In non-hazardous areas, hot-swapping is technically possible but requires proper I/O loop assessment to prevent process upsets. Best practice is to de-energize the LocalBus segment, verify zero energy state, and apply lockout/tagout before cable installation or removal.

Q: What is the maximum number of I/O carriers I can connect using bottom extender cables?
A: The limiting factors are the 6.5-meter total system length and the 15-ampere LocalBus power capacity. A typical 8-wide I/O carrier measures approximately 0.4 meters, so physical length allows 10-15 carriers depending on cable lengths used. However, power consumption usually limits practical installations to 6-10 carriers depending on module types. High-density analog modules and HART CHARMs consume significantly more power than discrete I/O.

Q: Does the KJ4002X1-BA1 require periodic calibration or preventive maintenance?
A: No calibration or routine maintenance is required. The digital communication protocol eliminates signal drift, and the sealed connectors require no inspection or cleaning. Replace the cable only if physical damage, connector wear, communication errors, or power delivery issues occur. For critical systems, maintain spare cables to minimize downtime during unplanned failures.

Q: Can I route the cable through flexible conduit for inter-cabinet connections?
A: Yes, but conduit installation is mandatory for all inter-enclosure cables per NEC/IEC requirements. Rigid metal conduit is required for Division 1/Zone 1 areas, while flexible conduit is acceptable for Division 2/Zone 2 installations. Ensure conduit bending radius does not exceed cable manufacturer specifications to prevent conductor damage or connector strain.

Q: Is the KJ4002X1-BA1 compatible with legacy DeltaV Classic systems or only newer M-series hardware?
A: The cable is compatible with both DeltaV Classic (legacy) and modern M-series/S-series I/O carriers and controllers. The LocalBus electrical interface has remained consistent across DeltaV generations, enabling seamless integration during phased migration projects. However, verify controller firmware compatibility when mixing legacy and modern hardware in the same system.

Q: What energy efficiency improvements does vertical I/O stacking provide compared to horizontal expansion?
A: Vertical stacking reduces cabinet quantities by 30-50% in space-constrained installations, lowering HVAC cooling loads, lighting requirements, and building footprint. Consolidated marshalling also reduces field wiring lengths by 15-25%, decreasing voltage drop, signal attenuation, and copper material costs. For large installations (>500 I/O points), these savings can reduce total installed cost by $50-$150 per I/O point.

Order Your KJ4002X1-BA1 LocalBus Extender Today

Ensure reliable DeltaV I/O expansion with genuine Emerson components backed by expert technical support and fast global delivery. Our automation specialists are available to assist with system architecture planning, LocalBus length calculations, power budget analysis, and cabinet layout optimization for your specific application requirements.

Ready to optimize your DeltaV system? Contact our team for technical consultation, volume pricing, or expedited delivery options. We support brownfield modernization projects, greenfield installations, and emergency replacement requirements with the same commitment to quality and customer service.
