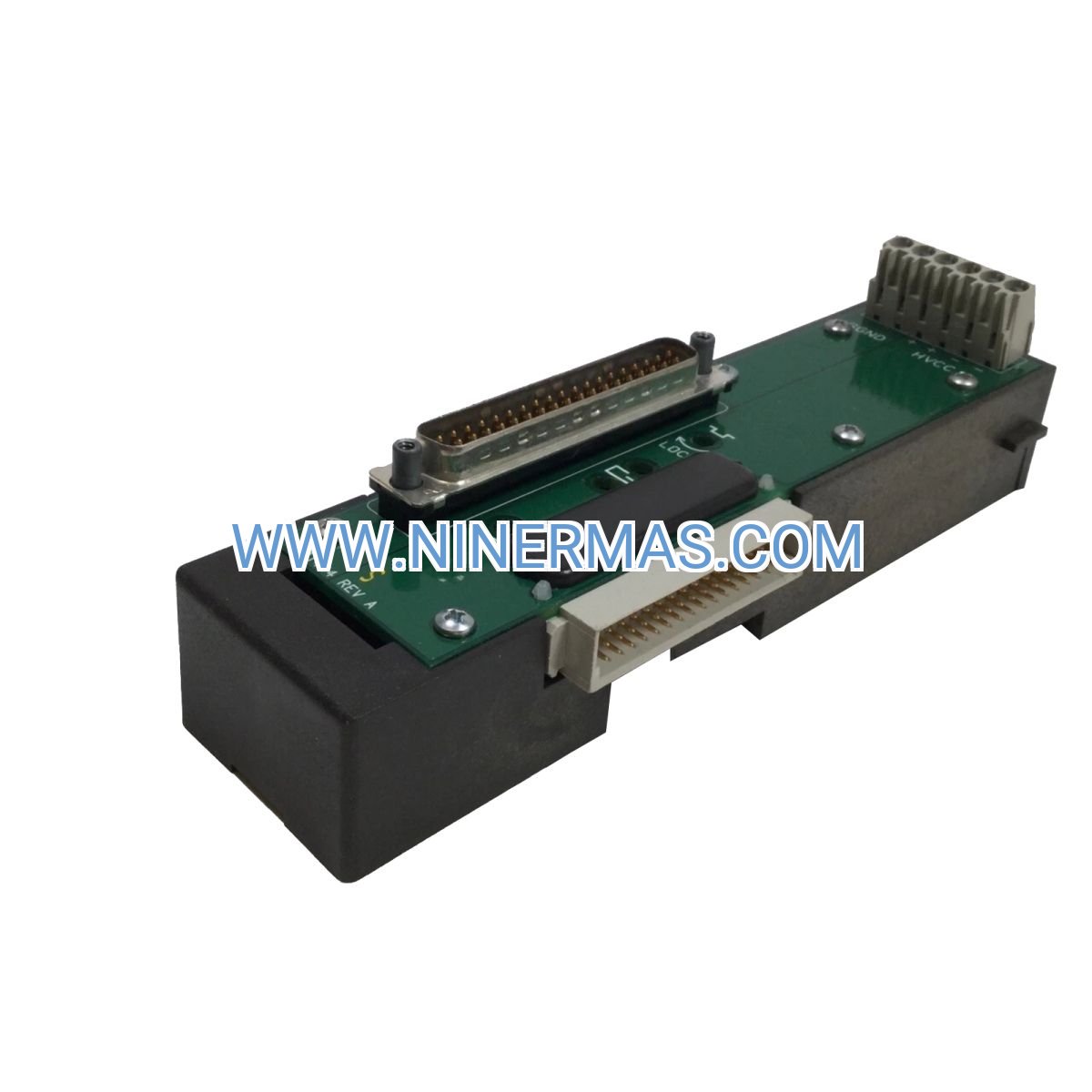

KJ4001X1-HC1 LocalBus Left Extender (Industrial-Grade DeltaV I/O Expansion Cable)

The KJ4001X1-HC1 delivers robust single-carrier connectivity for Emerson DeltaV distributed control systems requiring left-side I/O expansion. Engineered for oil & gas refineries, chemical processing plants, pharmaceutical manufacturing, and power generation facilities, this left extender cable supports horizontal carrier placement with 12VDC at 8A power distribution, enabling flexible cabinet architectures while maintaining Zone 2/Division 2 compliance for hazardous area installations.

Key Benefits & Performance Advantages

→ Simplified Linear Topology: Single left-side connector creates straightforward daisy-chain architecture, reducing installation complexity and accelerating commissioning timelines by 30-40% compared to dual-extender configurations.

→ Hazardous Area Certified: FM/CSA Class I Division 2, ATEX Zone 2, and IECEx approved for deployment in explosive atmosphere environments without additional barriers or enclosures, lowering total installed cost.

→ Extended Temperature Range: -40°C to +70°C operation ensures reliable performance in extreme climates from Arctic offshore platforms to Middle East desert refineries without thermal derating.

→ Asymmetric Layout Flexibility: Accommodates control cabinets where I/O carriers must be positioned predominantly left of the controller due to existing infrastructure, cable tray routing, or field wiring entry constraints.

→ Cost-Effective Expansion: Lower acquisition cost than dual extenders for single-carrier connections while maintaining full 8A power budget for future I/O module additions.

✓ Conformal Coating Protection: ISA-S71.04-1985 Class G3 coating resists corrosive gases (H₂S, SO₂, Cl₂) in chemical plants and offshore platforms, extending service life beyond 15 years in harsh environments.

Industrial Application Scenarios

Refinery Control Room Consolidation: When centralizing distributed control cabinets into a single control building, the KJ4001X1-HC1 enables horizontal I/O carrier expansion to the left of existing controllers. This addresses the common challenge where vertical cabinet space is limited by low ceiling heights or overhead cable tray congestion, allowing phased migration without disrupting operational units. Refineries typically achieve 25-35% reduction in cabinet footprint while maintaining clear signal flow for troubleshooting.

Chemical Plant Batch System Expansion: For batch processing facilities adding new reactor instrumentation, the left extender supports incremental I/O capacity additions during scheduled turnarounds. Position new analog input carriers handling temperature, pressure, and flow transmitters to the left of existing digital I/O carriers, maintaining logical field termination groupings that align with P&ID documentation and simplify operator training during process transitions.

Pharmaceutical Clean Room Installations: In classified pharmaceutical manufacturing areas requiring frequent GMP documentation updates, the single left extender provides clean, organized cable routing that facilitates regulatory inspections and change control procedures. The linear topology simplifies as-built drawings and reduces validation effort by providing unambiguous signal path documentation from controller to field instruments.

Power Plant Turbine Control Upgrades: When retrofitting legacy turbine control systems with modern DeltaV controllers, the KJ4001X1-HC1 accommodates existing cabinet layouts where I/O carriers must connect to the left due to pre-existing conduit penetrations and field wiring terminations. This eliminates costly cabinet modifications and reduces outage duration by 40-60 hours compared to symmetric redesigns.

Offshore Platform Brownfield Modifications: For North Sea, Gulf of Mexico, and Asia-Pacific offshore installations adding new subsea instrumentation or topside process monitoring, the left extender enables I/O expansion within weight-constrained control modules. The single-carrier configuration minimizes cable mass and reduces electromagnetic interference susceptibility in high-vibration marine environments.

Technical Specifications & Selection Criteria

Selection Guide: When to Choose KJ4001X1-HC1

✓ Use This Model When:

• Adding a single I/O carrier to the left of the controller or previous carrier
• Cabinet layout requires asymmetric left-side expansion due to space constraints
• Linear signal flow topology is preferred for simplified troubleshooting
• Cost optimization is critical for single-carrier connections
• Existing infrastructure dictates left-side field wiring entry points

✗ Consider Alternatives When:

• Two carriers must connect to the left → Use KJ4001X1-NB1 dual left extender
• Right-side expansion is required → Use KJ4010X1-BF1 right extender
• Symmetric left-right topology is needed → Use 12P0631X012 standard extender
• Total system length exceeds 6.5m → Implement LocalBus isolator (VE4070)

Hazardous Area Compliance & Certifications

North America (FM/CSA): Certified for Class I, Division 2, Groups A, B, C, D, T4 installations per NEC Article 500. Suitable for petroleum refineries, natural gas processing plants, and chemical manufacturing facilities where flammable gases or vapors may be present under abnormal conditions. Also approved for Class I, Zone 2 applications under IEC 60079 harmonized standards.

Europe (ATEX): Zone 2 certified under ATEX Directive 2014/34/EU for deployment in areas where explosive atmospheres consisting of gas, vapor, or mist are unlikely to occur during normal operation. Compliant with EN 60079-15 for Type 'n' protection and EN 60079-0 general requirements.

International (IECEx): IECEx certified per Document 12P2046 for global hazardous area installations. Recognized in Australia, Brazil, China, India, Japan, Korea, Russia, and 30+ additional countries participating in the IECEx mutual recognition scheme, eliminating duplicate certification costs for multinational projects.

Marine (DNV/ABS): Type-approved by Det Norske Veritas and American Bureau of Shipping for offshore oil & gas platforms, FPSOs, drilling rigs, and marine vessels. Meets vibration, shock, and EMC requirements for harsh offshore environments with salt spray, high humidity, and mechanical stress.

Advanced Integration & IoT Connectivity

While the KJ4001X1-HC1 provides physical layer connectivity, it integrates seamlessly with DeltaV's digital ecosystem for Industry 4.0 initiatives:

DeltaV Live: I/O data transmitted through the LocalBus extender is accessible via DeltaV Live cloud-based monitoring, enabling remote asset performance tracking, predictive maintenance analytics, and mobile operator rounds from smartphones and tablets.

AMS Device Manager Integration: Field devices connected through carriers linked via the KJ4001X1-HC1 appear in AMS Device Manager for centralized HART, FOUNDATION Fieldbus, and WirelessHART device configuration, calibration management, and diagnostic monitoring.

OPC UA Connectivity: DeltaV controllers communicate I/O data via OPC UA servers, allowing third-party MES, historian, and analytics platforms to access real-time process variables from instruments connected through the LocalBus extender without proprietary protocols.

Cybersecurity Compliance: The LocalBus extender operates within DeltaV's IEC 62443-compliant architecture, supporting defense-in-depth strategies with network segmentation, encrypted communications at higher layers, and role-based access control for critical infrastructure protection.

Installation Best Practices & Critical Requirements

System Length Calculation: Measure the physical width of each I/O carrier (typically 50-100mm depending on module count) plus the length of all LocalBus extender cables. The sum MUST NOT exceed 6.5 meters. For example: Controller (100mm) + Extender 1 (300mm) + Carrier 1 (75mm) + KJ4001X1-HC1 (250mm) + Carrier 2 (75mm) = 800mm total. Always verify before ordering to avoid field rework.

Power Budget Analysis: Each I/O module datasheet specifies LocalBus current draw (typically 50-200mA per module). Sum all modules across all carriers in the chain. Example: 8 analog input modules @ 150mA each = 1.2A; 4 digital output modules @ 100mA each = 0.4A; total = 1.6A, well within 8A limit. Reserve 2-3A margin for future expansion to avoid costly extender upgrades.

Non-Hot-Swappable Warning: The KJ4001X1-HC1 is NOT designed for hot-swap operation. System power MUST be completely de-energized, lockout/tagout applied, and zero-energy state verified with a multimeter before cable removal or insertion. Attempting to connect or disconnect while powered can cause:

• Permanent damage to LocalBus interface circuits in controller and I/O carriers
• Data corruption requiring controller reboot and I/O module re-initialization
• Electrical arcing in Zone 2/Division 2 areas, creating ignition risk
• Warranty voidance and potential safety violations

Conduit Protection Mandate: All interconnecting cables between separate enclosures MUST be installed in rigid or flexible conduit rated for the area classification. Conduit provides:

• Mechanical protection against impact, abrasion, and rodent damage
• EMC shielding from VFD noise, welding equipment, and radio transmitters
• Compliance with NEC 501.10(B) and IEC 60079-14 wiring methods
• Moisture ingress prevention in outdoor or high-humidity environments

Grounding & EMC: Connect cabinet ground bus to building ground per NEC Article 250 or IEC 60364-5-54. Maintain LocalBus shield continuity by bonding cable shields to cabinet ground at both ends. Improper grounding introduces ground loops causing:

• Common-mode noise coupling into analog signals (±0.5-2% measurement error)
• Intermittent communication errors requiring controller restarts
• Increased susceptibility to lightning-induced surges
• Failure to meet EMC immunity requirements (IEC 61000-6-2)

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 1-3 business days to North America, Europe, and Asia-Pacific. Custom cable lengths or bulk project orders (20+ units) require 2-4 weeks factory lead time. Expedited shipping available for emergency shutdowns and unplanned outages.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty excludes damage from improper installation, hot-swap attempts, exceeding electrical ratings, or unauthorized modifications. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Our certified DeltaV application engineers provide complimentary pre-sales consultation including:

• LocalBus topology design and system length verification
• Power budget analysis and I/O module selection guidance
• Cabinet layout optimization and cable routing recommendations
• Hazardous area classification review and certification verification
• Migration planning from legacy systems to DeltaV M-series/S-series

Documentation Package: Each order includes installation instructions, dimensional drawings, certification declarations, and access to Emerson's online technical library containing Document 12P2046 (Zone 2 Installation Instructions) and the complete DeltaV M-Series Hardware Installation and Reference manual.

Frequently Asked Questions

Q1: Can I use the KJ4001X1-HC1 to connect two I/O carriers simultaneously to the left of my controller?
No. The KJ4001X1-HC1 has a single left-side connector and supports only one carrier connection in a linear daisy-chain topology. For dual left-side connections, use the KJ4001X1-NB1 dual left extender which provides branching topology for two carriers.

Q2: What is the maximum number of I/O modules I can power through this LocalBus extender?
The 12VDC @ 8A power budget supports approximately 40-80 I/O modules depending on module type. Analog input modules typically draw 100-150mA each, while digital output modules may draw 150-250mA. Calculate total current draw from module datasheets and maintain 20-30% margin for reliability.

Q3: Is the KJ4001X1-HC1 compatible with legacy DeltaV Classic controllers or only M-series/S-series?
The KJ4001X1-HC1 is designed for DeltaV M-series and S-series controllers with LocalBus I/O carriers. For legacy DeltaV Classic systems using MD/MQ controllers, consult Emerson's migration documentation or contact our application engineering team for compatibility verification and upgrade path recommendations.

Q4: Can I install this extender cable in outdoor enclosures exposed to direct sunlight and rain?
Yes, provided the enclosure meets NEMA 4X/IP66 ingress protection and the operating temperature remains within -40°C to +70°C. The conformal coating provides corrosion resistance, but UV exposure should be minimized. Use conduit for inter-enclosure connections and ensure proper cable gland sealing to prevent moisture ingress.

Q5: How do I troubleshoot communication failures after installing the KJ4001X1-HC1?
First, verify total system length is ≤6.5m and power budget is within 8A. Check connector seating at both ends - reseat firmly until audible click. Measure 12VDC at carrier LocalBus terminals with multimeter. Verify cabinet grounding and shield continuity. Review DeltaV diagnostics for LocalBus errors. If issues persist, swap with known-good extender to isolate cable vs. carrier faults.

Q6: What is the recommended spare parts strategy for critical process units?
Maintain one spare KJ4001X1-HC1 per 10 installed units for non-critical applications. For critical process units where downtime costs exceed $50,000/hour, stock one spare per 5 installed units and consider advance replacement service agreements. The cable has no user-serviceable parts and must be replaced as a complete assembly if damaged.
