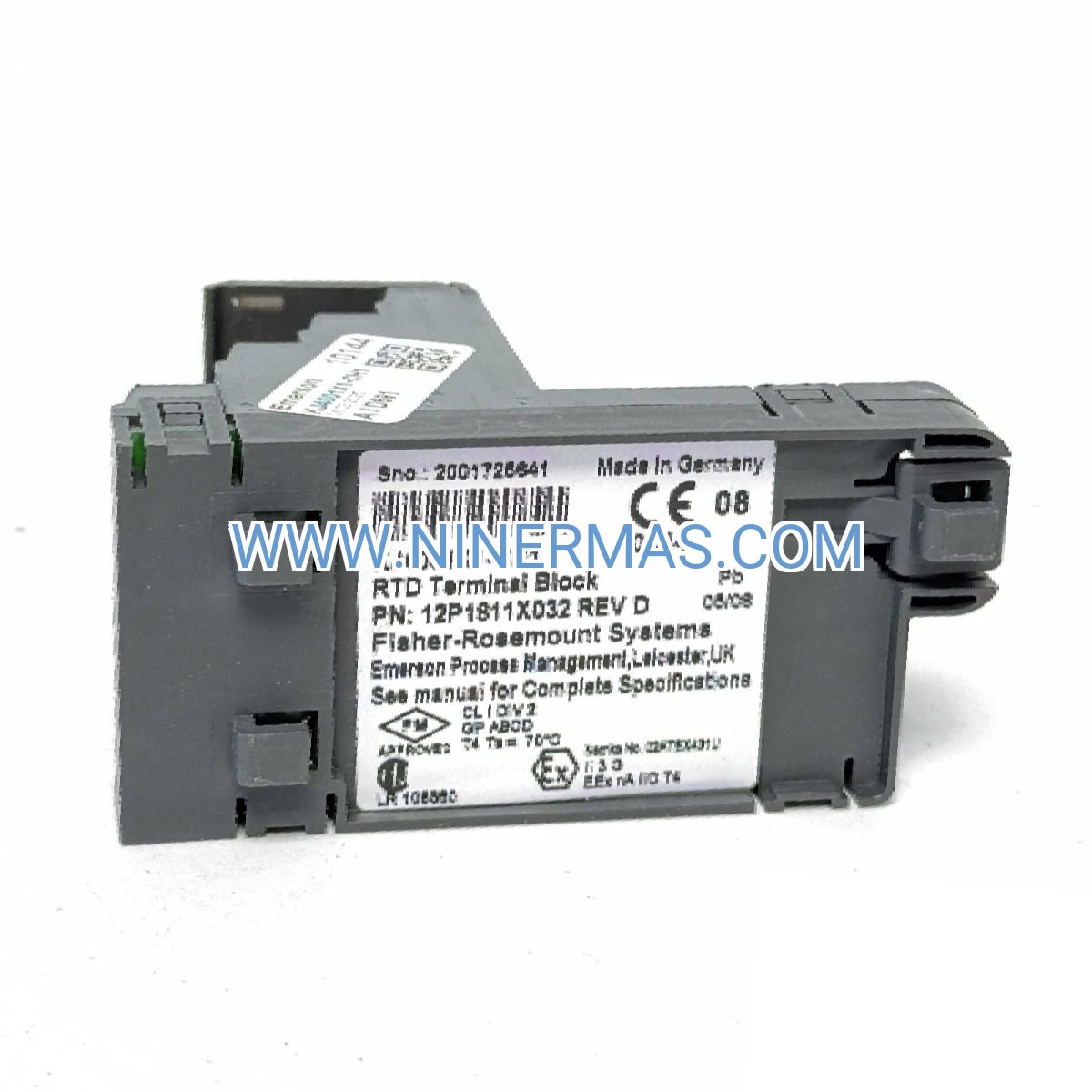

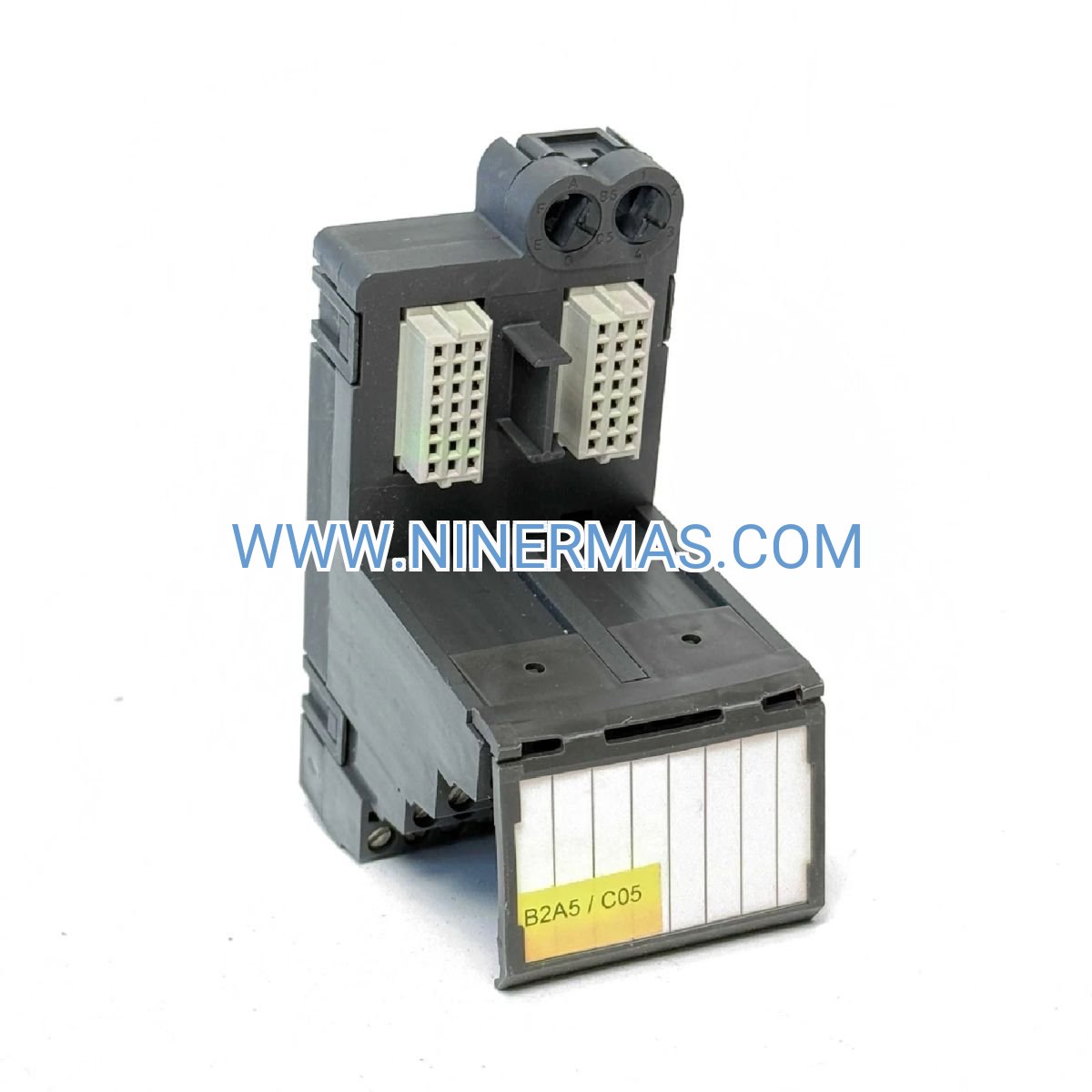

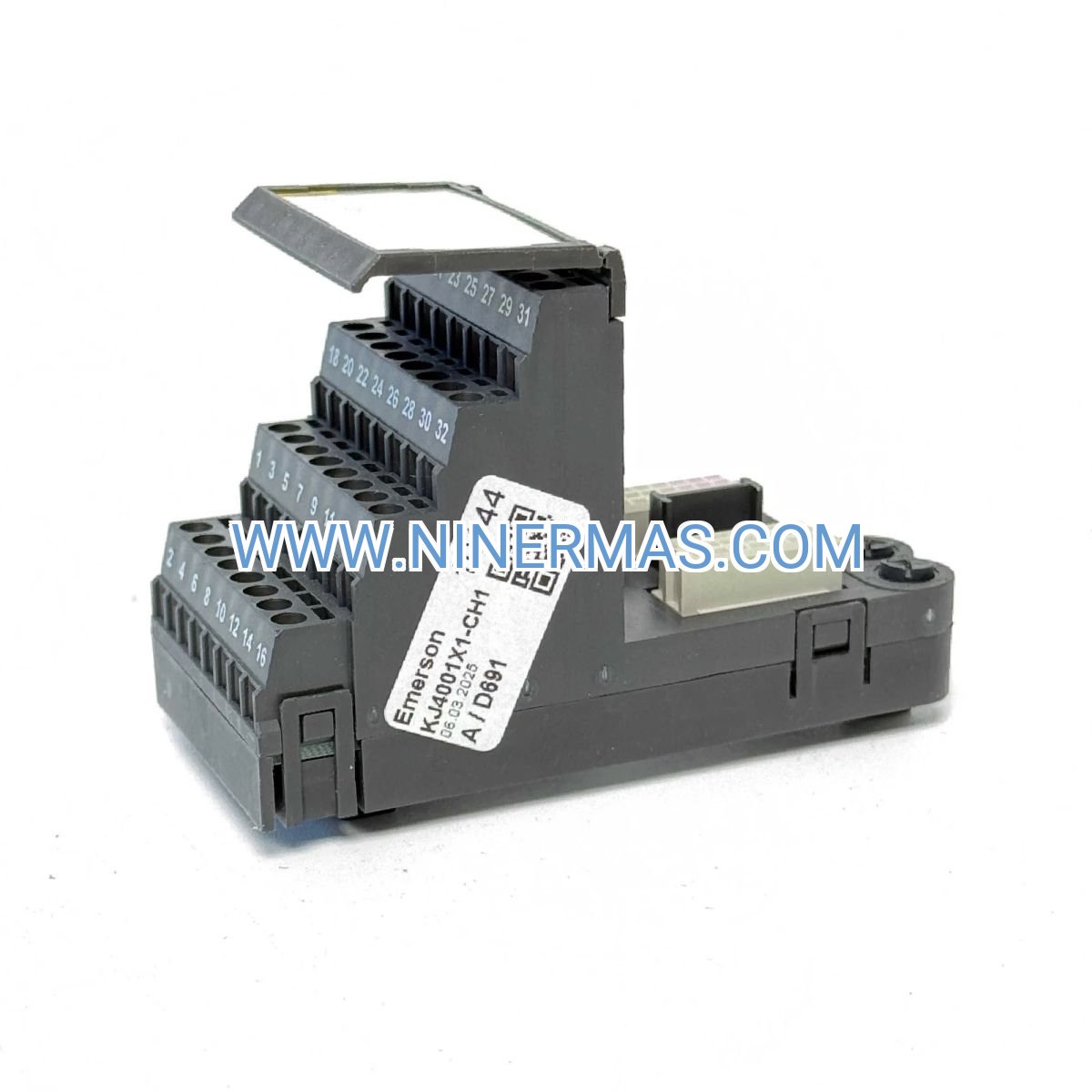

KJ4001X1-CH1 RTD Terminal Block (Industrial-Grade Temperature Interface)

The KJ4001X1-CH1 represents a critical connectivity solution for industrial temperature measurement networks, serving as the physical interface between field-mounted RTD sensors and Emerson DeltaV distributed control platforms. Engineered for harsh industrial environments, this terminal block delivers reliable signal transmission while protecting sensitive measurement circuits from electrical noise and environmental contamination.

Process industries demand precise thermal monitoring to maintain product quality, ensure personnel safety, and optimize energy consumption. The KJ4001X1-CH1 addresses these requirements through robust construction, comprehensive sensor compatibility, and integration with DeltaV's advanced diagnostic capabilities. Whether retrofitting legacy systems or commissioning new installations, this terminal block provides the foundation for accurate, maintainable temperature measurement infrastructure.

Designed for engineers and maintenance teams managing complex process control environments, the KJ4001X1-CH1 combines field-proven reliability with installation efficiency. Its standardized DIN rail mounting, clearly labeled terminals, and hot-swap capability reduce commissioning time while enabling maintenance activities without process interruption.

Core Features & Benefits

→ Multi-Configuration RTD Support
Accommodates 2-wire, 3-wire, and 4-wire RTD sensor architectures, providing flexibility for various accuracy requirements and cable run distances. Three-wire and four-wire configurations eliminate lead resistance errors critical for precision applications.

→ Electromagnetic Interference Protection
Shielded terminal design with dedicated ground connections minimizes signal corruption from variable frequency drives, motor starters, and high-voltage equipment common in industrial facilities. Maintains measurement integrity in electrically noisy environments.

→ Eight-Channel Density
Consolidates eight RTD input connections in a compact footprint, reducing panel space requirements and simplifying cable management. Optimizes I/O cabinet real estate while maintaining accessibility for troubleshooting.

✓ Hot-Swap Maintenance Capability
Enables terminal block replacement during live operation without affecting adjacent measurement channels. Reduces unplanned downtime and allows scheduled maintenance during production windows rather than costly shutdowns.

✓ Wide Operating Temperature Range
Functions reliably from -40°C to +70°C, supporting installations in outdoor enclosures, high-temperature process areas, and climate-controlled environments without performance degradation.

✓ Screw-Clamp Termination
Accepts 12-24 AWG wire gauges with secure mechanical connection that withstands vibration and thermal cycling. Tool-accessible terminals facilitate field wiring modifications without specialized equipment.

Typical Application Scenarios

Chemical Processing Plants
Monitor reactor jacket temperatures, distillation column profiles, and crystallizer conditions where thermal control directly impacts yield and product purity. The KJ4001X1-CH1's chemical-resistant construction withstands exposure to process vapors and cleaning agents during maintenance activities.

Pulp & Paper Manufacturing
Track digester temperatures, dryer section profiles, and bleaching stage conditions in continuous production environments. Robust terminal design resists humidity, dust, and vibration inherent to paper machine operations.

Water & Wastewater Treatment
Measure influent temperatures, digester thermal profiles, and disinfection process conditions for regulatory compliance and process optimization. Corrosion-resistant materials ensure long-term reliability in high-humidity environments.

Automotive Manufacturing
Control paint booth curing temperatures, heat treatment furnaces, and environmental chamber conditions where precise thermal management ensures coating quality and metallurgical properties. Fast response time supports tight process control loops.

Semiconductor Fabrication
Monitor cleanroom environmental conditions, chemical vapor deposition chamber temperatures, and diffusion furnace profiles where sub-degree accuracy prevents wafer defects and maintains yield rates.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ4001X1-CH1 when interfacing RTD sensors to DeltaV M-Series or S-Series I/O subsystems. Verify compatibility with specific RTD input card models (VE4003S6B1, KJ3225X1-BK1) and confirm that sensor wiring configuration (2/3/4-wire) matches application accuracy requirements. For applications requiring intrinsically safe circuits, consult associated barrier specifications.

Extended Functions

Advanced Diagnostics Integration: When paired with HART-enabled DeltaV RTD input cards, the terminal block supports enhanced sensor diagnostics including drift detection, intermittent connection identification, and predictive failure alerts. Diagnostic data integrates with AMS Suite for centralized asset health monitoring.

Redundant System Architecture: Supports dual-sensor configurations where critical temperature points connect to both primary and backup I/O subsystems through separate terminal blocks. Enables bumpless transfer during controller failover events without measurement interruption.

Custom Labeling Options: Field-installable label strips accommodate site-specific tag naming conventions, simplifying troubleshooting and reducing commissioning errors. Laser-printable labels resist chemical exposure and UV degradation.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock items with express shipping options available for urgent requirements. Expedited processing for critical path projects and emergency replacement scenarios.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for high-criticality applications and large-volume procurements.

Technical Support: Pre-sales application engineering assistance for system design questions, wiring configuration guidance, and compatibility verification. Post-sales troubleshooting support via phone, email, and remote diagnostics.

Documentation Package: Each unit ships with installation instructions, wiring diagrams, dimensional drawings, and certification documents. Digital resources include 3D CAD models, product datasheets, and integration guides for DeltaV configuration software.

Frequently Asked Questions

Q: Can the KJ4001X1-CH1 interface with third-party DCS platforms beyond DeltaV?
A: This terminal block is specifically designed for Emerson DeltaV I/O carriers and is not compatible with other control system architectures. For non-DeltaV applications, consult manufacturer-specific terminal block offerings.

Q: What wire insulation temperature rating is required for high-temperature installations?
A: Field wiring should maintain insulation ratings at least 20°C above maximum ambient temperature. For installations near heat sources, specify 105°C or 125°C rated wire to prevent insulation degradation.

Q: How does three-wire RTD configuration improve measurement accuracy compared to two-wire?
A: Three-wire RTD connections compensate for lead resistance by measuring voltage drop across one lead and subtracting it from the total circuit resistance. This eliminates errors from long cable runs, typically improving accuracy by 0.1-0.5°C.

Q: Is the terminal block suitable for hazardous area installations requiring intrinsic safety?
A: The KJ4001X1-CH1 can be used in hazardous locations when combined with approved intrinsic safety barriers between field sensors and the terminal block. Verify barrier compatibility and entity parameters before installation.

Q: What preventive maintenance schedule is recommended for optimal performance?
A: Inspect terminal connections quarterly for tightness, verify shield ground integrity semi-annually, and perform calibration verification annually using precision RTD simulators. Replace terminal blocks showing signs of corrosion or physical damage.

Q: Can I mix different RTD sensor types on a single terminal block?
A: Yes, each channel operates independently and can accommodate different sensor types (Pt100, Pt1000, etc.) provided the associated DeltaV input card is configured appropriately for each channel's specific sensor.

Secure Your Temperature Measurement Infrastructure

Ensure process reliability with genuine Emerson components backed by expert technical support. Contact our automation specialists to verify compatibility with your DeltaV configuration, discuss volume pricing for multi-unit projects, or request expedited delivery for critical maintenance requirements.

Request a Quote: Submit your project specifications for customized pricing and delivery timelines.
Technical Consultation: Schedule a call with our DeltaV integration experts to review system architecture and wiring strategies.
Emergency Support: 24/7 availability for urgent replacement needs and troubleshooting assistance.
