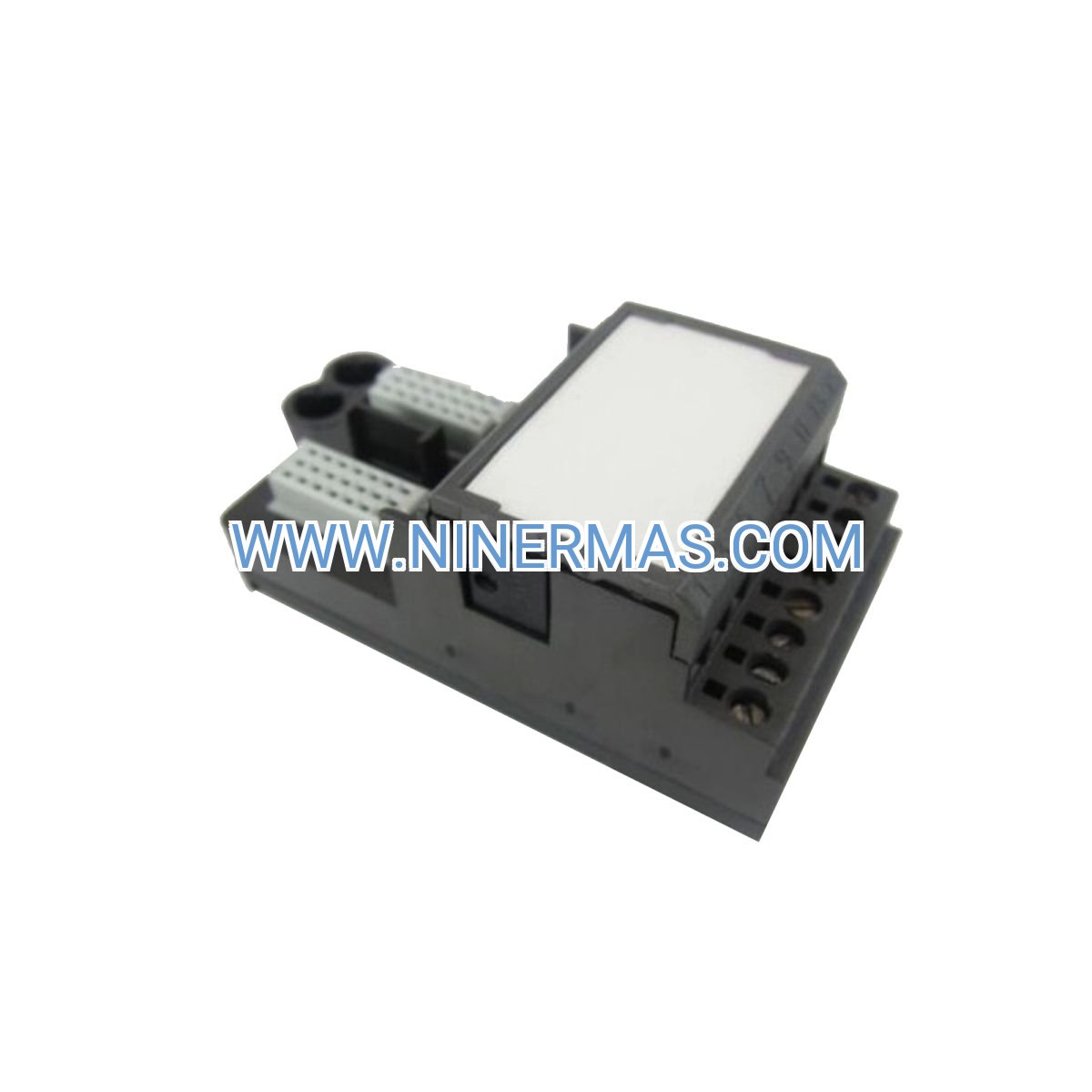

KJ4001X1-CF1 Mass Terminal Block (Industrial-Grade 24-Pin Field Wiring Solution)

The KJ4001X1-CF1 represents a proven mass termination architecture for Emerson DeltaV distributed control systems, consolidating 24 individual field wire connections into a single plug-in assembly. Engineered for oil & gas, chemical processing, pharmaceutical manufacturing, and power generation facilities, this terminal block eliminates repetitive screw-terminal wiring while maintaining FM, ATEX, and IECEx compliance for hazardous area deployments.

Designed for system integrators and plant engineers managing high-density I/O installations, the KJ4001X1-CF1 addresses the core challenge of field wiring complexity: reducing labor hours, minimizing human error, and accelerating commissioning schedules in mission-critical control environments where downtime translates directly to production losses.

With operational temperature range from -40°C to +70°C and ISA-S71.04 Class G3 environmental protection, this mass terminal block delivers reliable performance across arctic offshore platforms, desert refineries, and tropical chemical plants—backed by Emerson's global DCS support infrastructure and comprehensive hazardous area certifications.

Key Features & Technical Advantages

→ 70% Installation Time Reduction: Single plug-in connection replaces 24 individual wire terminations, cutting field wiring labor from hours to minutes per I/O card while eliminating screw-terminal fatigue and connection inconsistencies.

→ Global Hazardous Area Certification: FM/CSA Class I Division 2, ATEX Zone 2, IECEx compliant, plus DNV/ABS marine approvals—enabling deployment across North American, European, and international classified locations without re-engineering.

→ Extreme Environment Durability: -40°C to +70°C operation, 10g shock resistance, 0.7g vibration tolerance, and ISA-S71.04 Class G3 conformal coating protect against thermal cycling, mechanical stress, and corrosive atmospheres in harsh industrial settings.

✓ Hot-Swap Maintenance Architecture: Replace I/O cards without disturbing field wiring (when de-energized per safety protocols), reducing mean time to repair from hours to minutes during critical equipment failures or planned maintenance windows.

✓ Universal DeltaV I/O Compatibility: Supports M-series and S-series analog input/output, discrete I/O, and HART-enabled cards—providing standardized termination across mixed I/O architectures and simplifying spare parts inventory.

✓ Factory-Assembled Quality Assurance: Pre-assembled connector eliminates field termination variables, ensuring consistent contact resistance, proper wire gauge engagement, and traceable manufacturing quality control.

Industrial Application Scenarios

Refinery DCS Expansion Projects: When adding 200+ I/O points to existing crude distillation or fluid catalytic cracking units, mass terminal blocks enable parallel wiring activities—field technicians pre-wire cables in marshalling panels while control room teams configure I/O cards, then connect both in final commissioning phase. This approach compressed a recent Gulf Coast refinery expansion from 6 weeks to 3.5 weeks, avoiding $2M+ in delayed startup costs.

Offshore Platform Turnaround Maintenance: During 14-day platform shutdowns, maintenance teams face extreme time pressure to replace aging I/O hardware. Mass terminal blocks allow technicians to pre-stage replacement I/O cards with connected terminal blocks, then swap complete assemblies in under 30 minutes per card—versus 2-3 hours for traditional wire-by-wire replacement. This capability proved critical for a North Sea operator replacing 47 I/O cards across three platforms within weather-limited maintenance windows.

Pharmaceutical Batch Control Upgrades: GMP-regulated facilities require validated control systems with minimal clean room disruption. By pre-wiring mass terminal blocks outside classified areas, then installing complete assemblies during controlled shutdown windows, pharmaceutical manufacturers maintain environmental monitoring continuity and reduce validation documentation burden. A recent biologics facility upgrade achieved 40% reduction in clean room occupancy hours using this approach.

Chemical Plant Brownfield Modernization: Replacing obsolete DCS systems in operating chemical plants demands surgical precision—new I/O must be installed, tested, and cutover without disrupting adjacent operating units. Mass terminal blocks enable "dark cutover" strategies where new I/O cards are fully wired and tested in parallel, then energized during brief planned outages. This technique reduced cutover risk for a European specialty chemicals producer migrating 12 process units over 18 months.

Power Generation Distributed I/O Networks: Coal, combined-cycle, and renewable power plants deploy hundreds of remote I/O cabinets across turbine halls, boiler houses, and auxiliary systems. Standardizing on mass terminal blocks reduces installation variability across multiple contractors, simplifies as-built documentation, and accelerates troubleshooting when field technicians can quickly identify cable-to-card relationships without tracing individual wires through terminal strips.

Technical Specifications & Selection Criteria

Selection Guidelines: Specify KJ4001X1-CF1 for DeltaV I/O cards requiring 24-point field termination (16-channel analog I/O, 32-channel discrete I/O with shared commons). For lower density applications, consider KJ4001X1-CD1 (10-pin variant). For high-density discrete I/O, evaluate KJ4006X1-BF1 (32-channel discrete terminal block). Consult DeltaV I/O card datasheets to verify terminal block compatibility before ordering.

Advanced Integration Capabilities

Pre-Assembled Cable Strategies: Maximize installation efficiency by ordering field cables with factory-installed mating connectors. Cable assembly houses can terminate shielded multi-pair cables to mass terminal block connectors under controlled conditions, then deliver tested cable assemblies ready for plug-in installation—eliminating all field termination labor and ensuring 100% connection quality verification before site delivery.

Modular Cabinet Design: Design marshalling cabinets with removable I/O card mounting rails that accept pre-wired terminal blocks. This approach enables complete I/O subsystem assembly and factory acceptance testing (FAT) before shipping to site, reducing field commissioning to mechanical installation and power-up verification—a strategy proven effective for modular skid-mounted process units and offshore topsides modules.

Redundant I/O Architectures: In critical control applications requiring redundant I/O, mass terminal blocks simplify dual-channel wiring by providing clear physical separation between primary and backup I/O cards. Use color-coded terminal blocks or cabinet labeling to distinguish redundant channels, reducing the risk of cross-wiring errors that could compromise fault tolerance.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for stock items; 2-4 weeks for project quantities (100+ units). Expedited shipping available for emergency replacements and critical path projects.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for large capital projects and multi-year maintenance contracts.

Technical Support: Pre-sales application engineering assistance for terminal block selection, wiring diagram review, and cabinet layout optimization. Post-sales support includes installation troubleshooting, connector inspection guidance, and replacement part cross-referencing.

Documentation Package: Each order includes installation instructions, hazardous area certification documents (Document 12P2046), and wiring diagrams. Complete DeltaV hardware manuals available via Emerson documentation portal.

Frequently Asked Questions

Q: Can I hot-swap the KJ4001X1-CF1 terminal block while the DeltaV system is energized?
A: No. Mass terminal blocks must be installed and removed only when system power is completely de-energized and locked out. Unlike some DeltaV components with hot-swap capability, terminal blocks carry full field power and signal voltages—connecting or disconnecting under power creates arcing risk, potential component damage, and personnel safety hazards. Always follow lockout/tagout procedures before handling terminal blocks.

Q: What field wire gauge range is compatible with the terminal block screw terminals?
A: The KJ4001X1-CF1 accepts 14-22 AWG (2.5-0.5 mm²) solid or stranded copper wire. Using wire gauges outside this range may result in poor screw terminal engagement, increased contact resistance, or terminal damage. For optimal connection quality, use 18 AWG (0.75 mm²) stranded wire for typical 4-20mA and 24VDC field wiring applications. Consult DeltaV hardware installation manual for detailed wire preparation and termination torque specifications.

Q: How much cabinet space does mass termination save compared to traditional terminal strips?
A: Mass terminal blocks typically reduce cabinet depth requirements by 40-60% compared to equivalent terminal strip installations. A traditional 24-point terminal strip installation requires approximately 150mm (6") of cabinet depth for terminal strip mounting, wire bending radius, and access clearance. The KJ4001X1-CF1 mass termination approach requires only 60-80mm (2.5-3") of depth, enabling more compact cabinet designs or increased I/O density within existing cabinet footprints.

Q: Are mass terminal blocks compatible with intrinsically safe (IS) I/O applications?
A: The KJ4001X1-CF1 is certified for Class I Division 2 / Zone 2 non-incendive applications, not intrinsically safe (IS) circuits. For IS applications requiring entity or FISCO barriers, consult Emerson for IS-rated terminal block options and verify that terminal block selection maintains IS circuit certification. Mixing IS and non-IS wiring on the same terminal block violates hazardous area installation codes and compromises safety barrier integrity.

Q: Can I use the KJ4001X1-CF1 with third-party DCS systems or only Emerson DeltaV?
A: The KJ4001X1-CF1 is specifically designed for Emerson DeltaV M-series and S-series I/O cards with matching 24-pin receptacles. The connector pinout, mechanical dimensions, and electrical ratings are DeltaV-specific and not compatible with ABB, Honeywell, Yokogawa, or other DCS platforms. Attempting to use DeltaV terminal blocks with non-DeltaV I/O cards will result in mechanical incompatibility or incorrect signal mapping.

Q: What is the recommended spare parts inventory level for mass terminal blocks?
A: Maintain 10% spare inventory (minimum 2 units) for installations with 20+ terminal blocks. Mass terminal blocks are passive components with high reliability, but connector pin damage from mishandling or repeated insertion cycles can occur. Having spare terminal blocks enables rapid replacement during commissioning or maintenance activities without waiting for emergency shipments. For critical process units, consider maintaining one spare per I/O card type to support worst-case failure scenarios.

Ready to Streamline Your DeltaV I/O Installation?

Contact our DCS specialists today for application-specific terminal block selection, project quantity pricing, and technical documentation. Whether you're planning a greenfield installation, brownfield upgrade, or emergency replacement, we provide the expertise and inventory to keep your DeltaV system running at peak reliability.

Request a quote now or speak with our engineering team to discuss your specific I/O wiring requirements, cabinet layout constraints, and delivery timeline.
