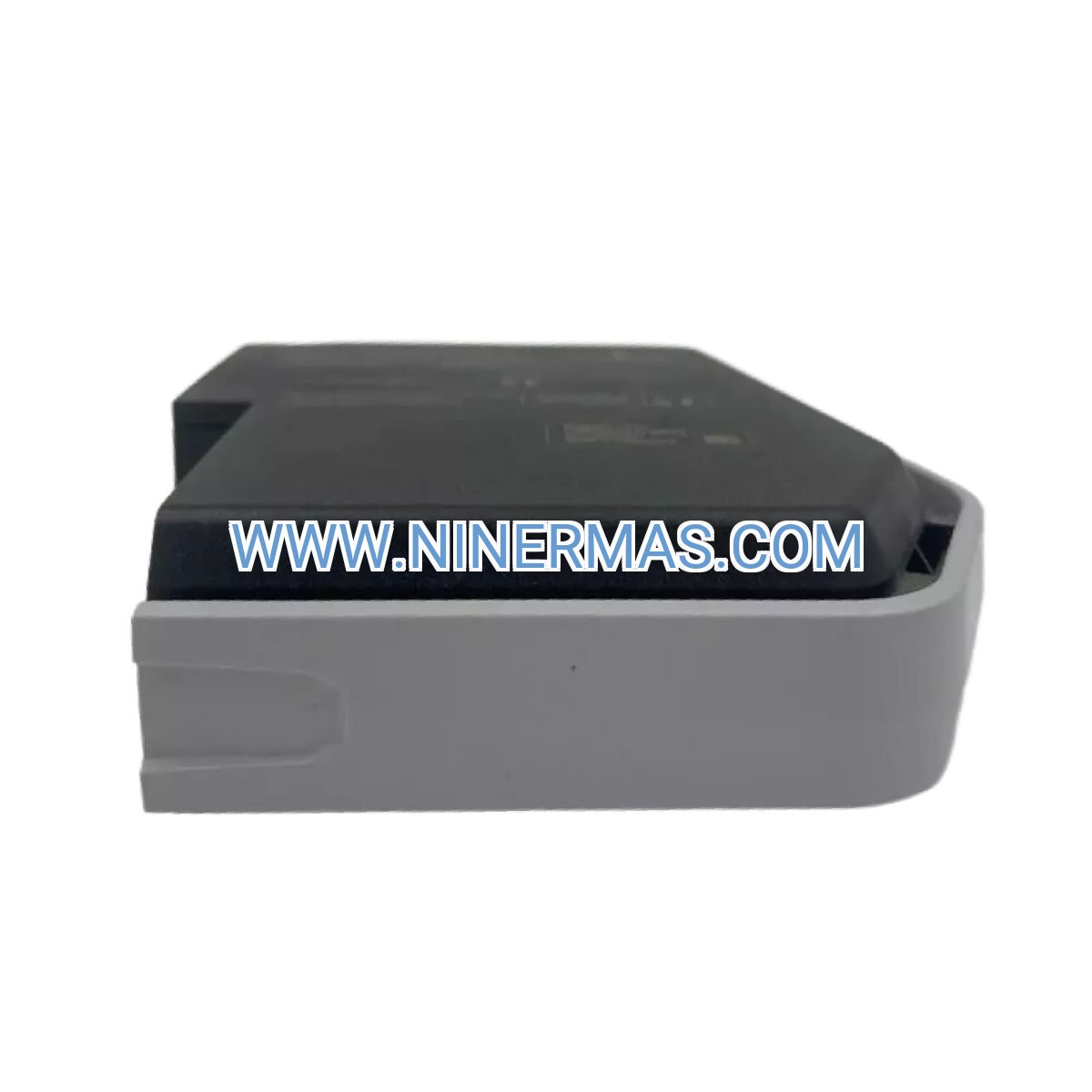

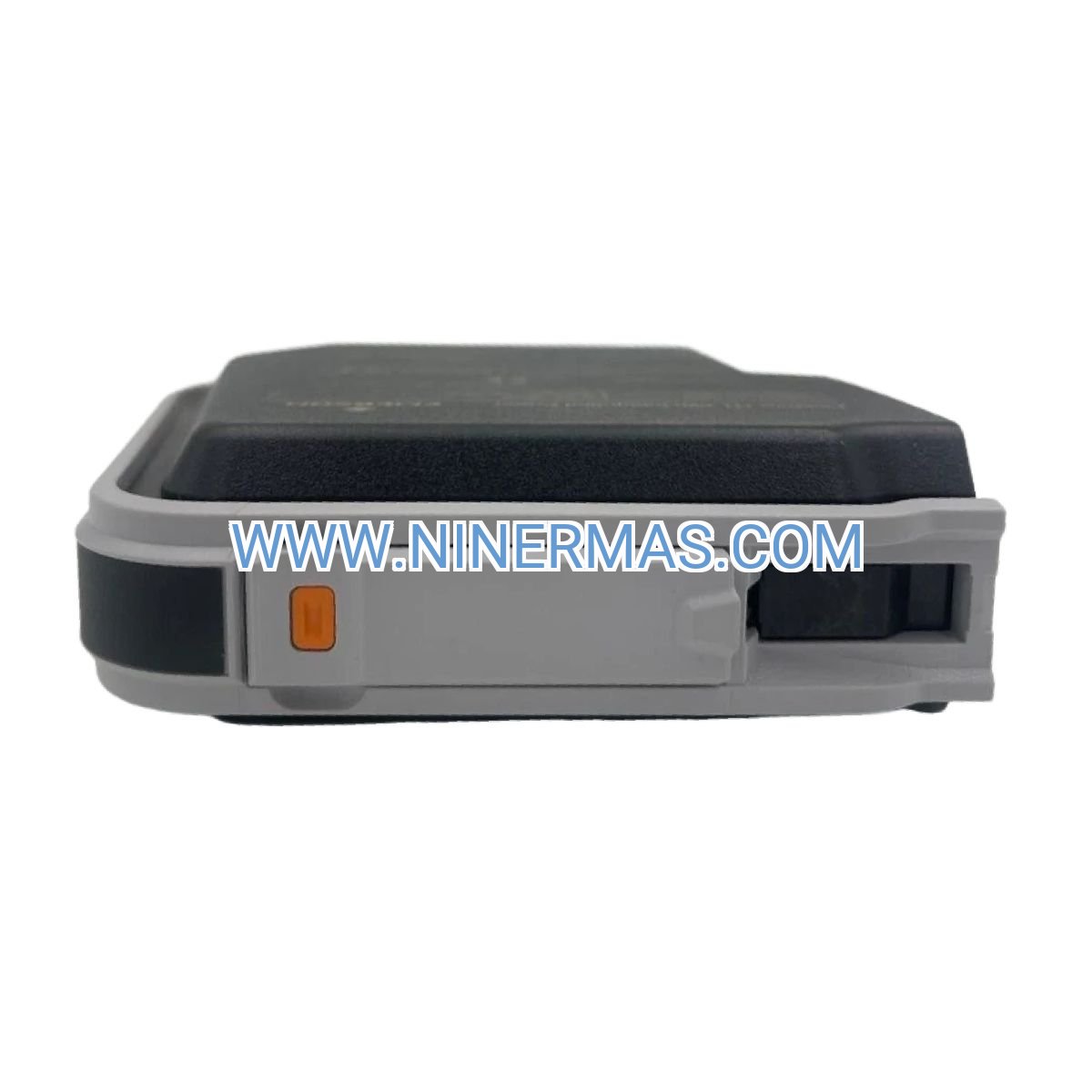

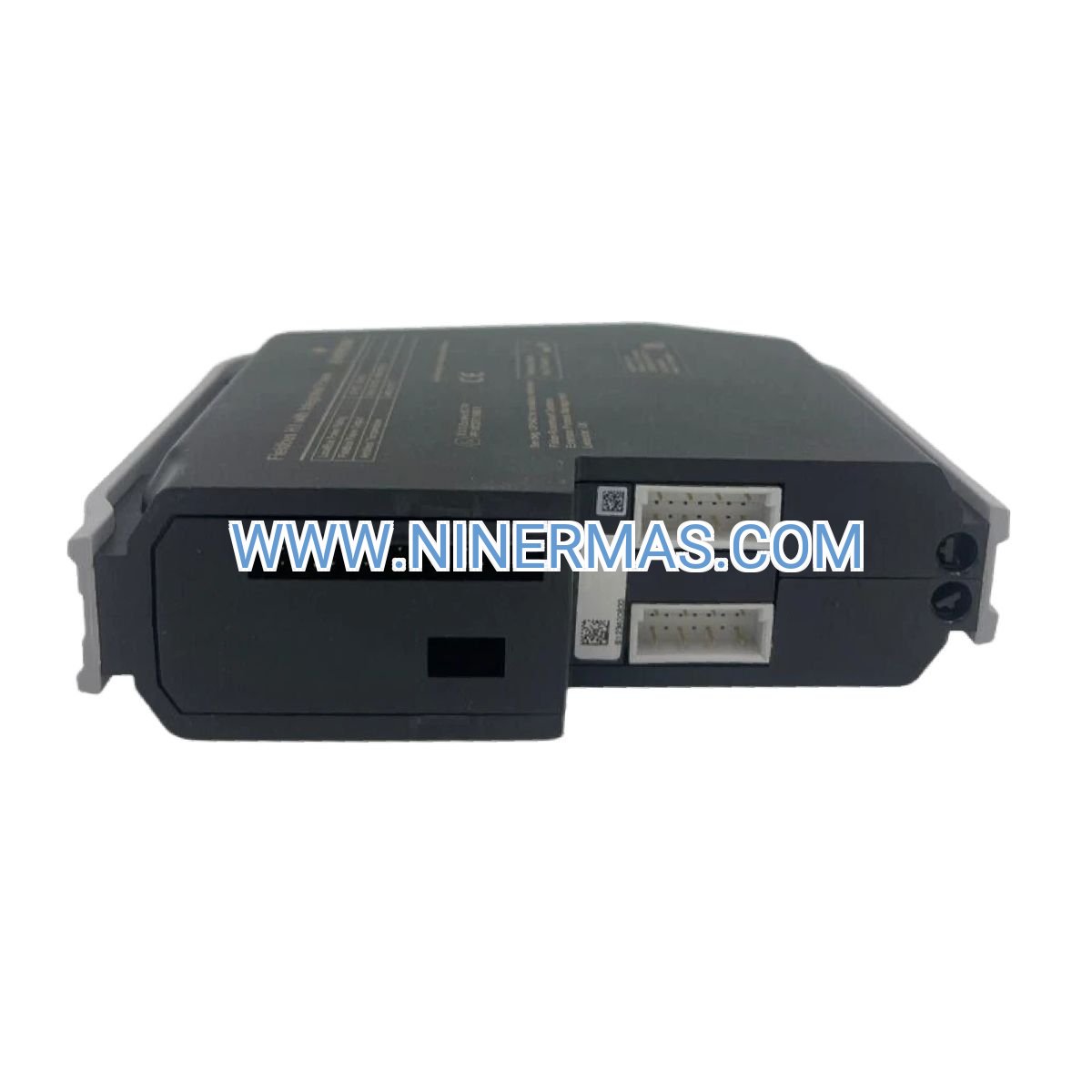

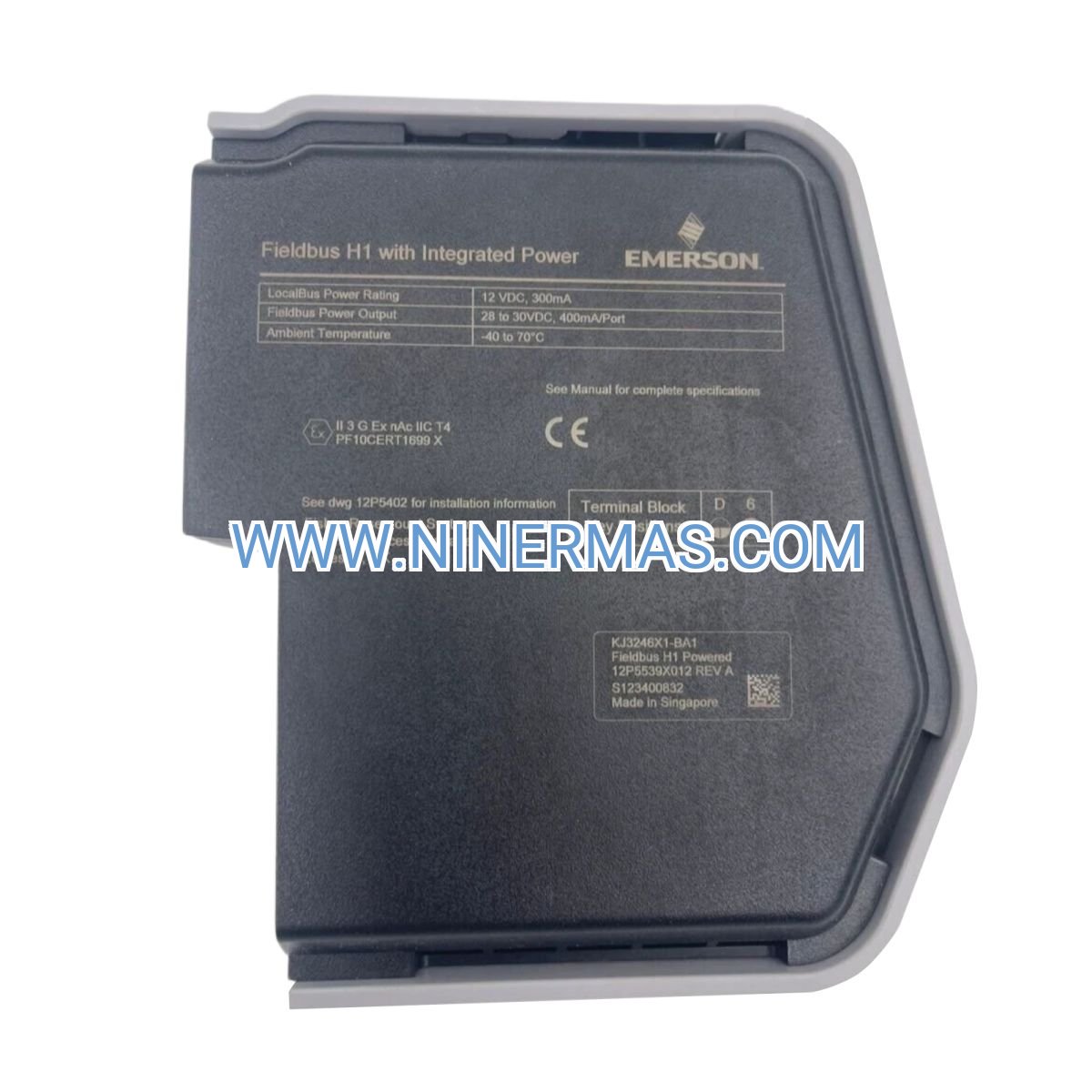

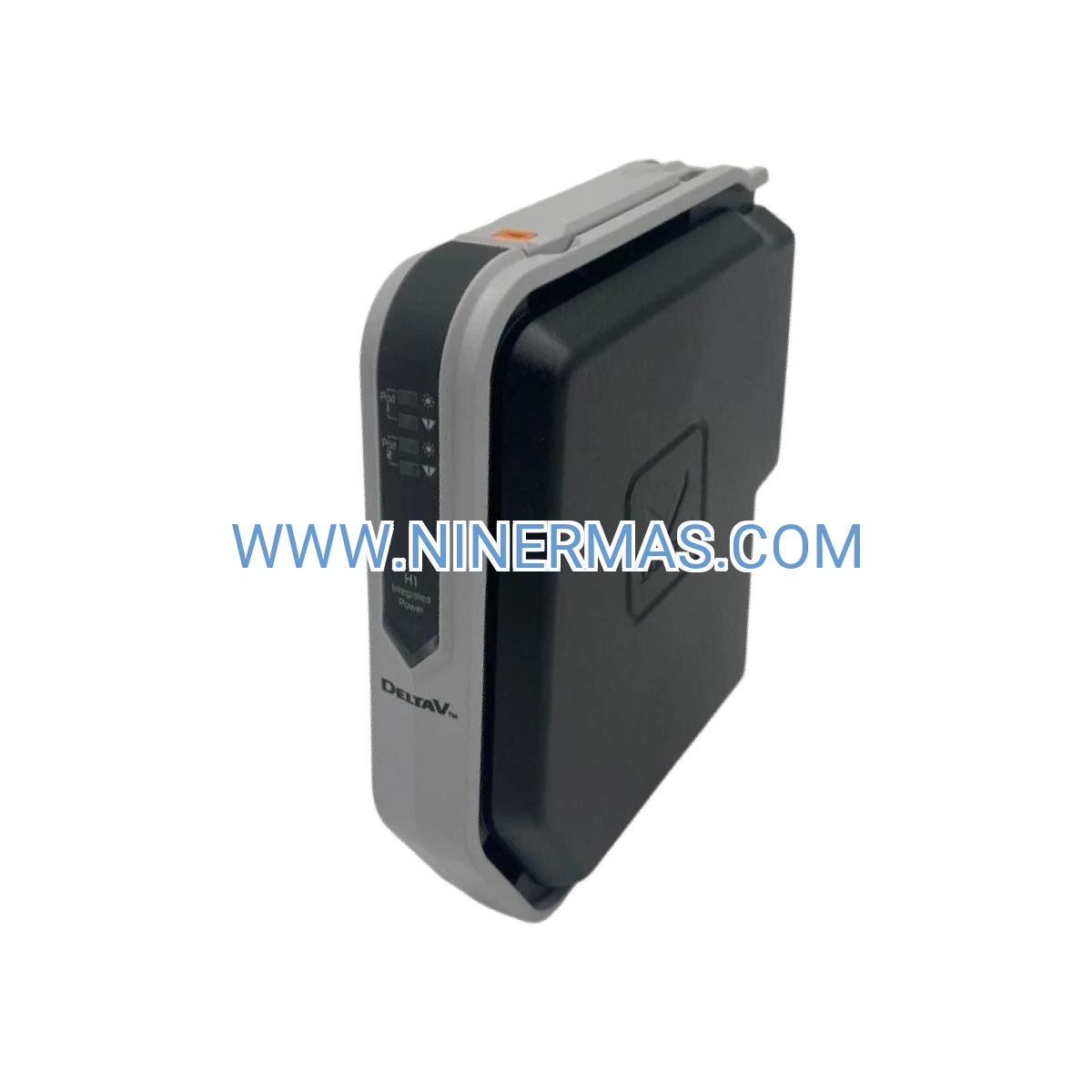

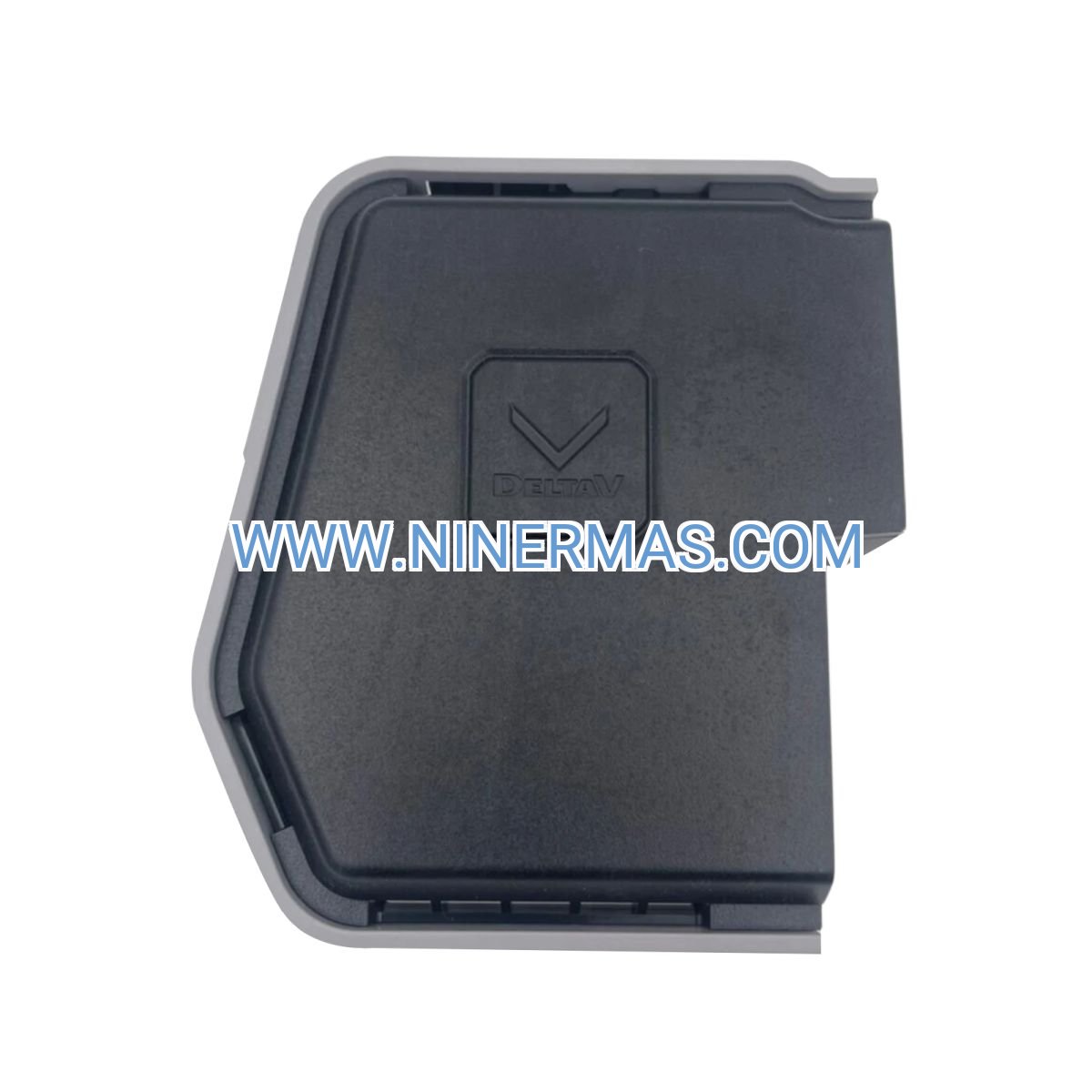

KJ3246X1-BA1 H1 Fieldbus Power Module (Industrial-Grade Communication Interface)

The KJ3246X1-BA1 represents a next-generation approach to industrial fieldbus connectivity, merging FOUNDATION Fieldbus H1 protocol support with self-contained power distribution in a unified hardware platform. Designed specifically for DeltaV control architectures, this module eliminates the traditional separation between communication interfaces and power conditioning equipment, delivering a streamlined solution for process industries operating in classified hazardous environments.

Process engineers and automation specialists deploy this module to establish reliable digital communication pathways between DeltaV controllers and intelligent field instrumentation—including smart transmitters, analytical sensors, and modulating valve actuators—while maintaining full compliance with intrinsic safety standards for Zone 1 and Division 1 explosive atmosphere classifications. The integrated architecture addresses a critical pain point in traditional fieldbus installations: the complexity and cabinet space consumed by separate IS barriers, power supplies, and interface cards.

By consolidating these functions into a single DIN-rail mountable unit, the KJ3246X1-BA1 reduces engineering hours, simplifies spare parts inventory, and accelerates project commissioning timelines. Industries ranging from upstream oil extraction to pharmaceutical batch processing benefit from the module's ability to support up to 16 H1 devices per segment while providing continuous diagnostic monitoring of network health, device performance, and wiring integrity.

Technical Specifications & Performance Metrics

Selection Criteria for Your Application

✓ Choose this module when: Your project requires intrinsically safe fieldbus connectivity in classified areas, you need to reduce panel footprint by 35-45%, or you're expanding existing DeltaV S-series infrastructure with H1 device integration.

✓ Consider alternatives if: Your application uses PROFIBUS PA protocol, requires more than 16 devices per segment, or operates in non-hazardous areas where standard I/O modules offer cost advantages.

✓ Key differentiator: Unlike modular systems requiring separate IS barriers and power supplies, the KJ3246X1-BA1's integrated design reduces component count by 60% and eliminates inter-device wiring failures.

Application Scenarios & Industry Solutions

→ Petrochemical Reactor Control
In continuous catalytic reforming units, the module interfaces with multi-variable transmitters monitoring reactor bed temperatures, differential pressures, and catalyst activity indicators. The intrinsic safety certification permits installation in Division 1 areas surrounding reactor vessels, while FOUNDATION Fieldbus diagnostics detect sensor drift and impulse line blockages before they impact product quality. Typical installations reduce wiring costs by $12,000-$18,000 per reactor train compared to conventional 4-20mA architectures.

→ Offshore Production Platform Instrumentation
On floating production storage and offloading (FPSO) vessels, the module connects smart pressure transmitters, Coriolis flow meters, and gas chromatographs in Zone 1 process areas. The compact single-card design saves critical cabinet space in weight-constrained offshore installations, while the -40°C low-temperature rating ensures reliable operation in North Sea and Arctic environments. Integrated power eliminates the need for separate 24 VDC distribution panels in hazardous zones.

→ Pharmaceutical Batch Manufacturing
In aseptic filling suites and active pharmaceutical ingredient (API) synthesis areas, the module supports smart valve positioners, magnetic flow meters, and inline analytical instruments while maintaining compliance with FDA 21 CFR Part 11 electronic records requirements. DeltaV AMS integration provides complete audit trails for device configuration changes, calibration events, and maintenance activities. The sealed enclosure design meets cleanroom particle generation limits for ISO Class 7 environments.

→ Liquefied Natural Gas (LNG) Terminal Operations
At LNG import/export terminals, the module enables custody transfer metering systems using high-accuracy ultrasonic flow meters and gas chromatographs in cryogenic service areas. FOUNDATION Fieldbus multidrop topology reduces cable tray requirements by 70% in sprawling terminal layouts spanning 500+ meters. Real-time diagnostics monitor signal quality degradation from electromagnetic interference near high-voltage motor control centers.

→ Pulp & Paper Digester Control
In kraft pulping operations, the module connects consistency transmitters, pH sensors, and temperature probes monitoring digester cooking conditions. The 1900-meter segment length capability allows centralized control room installations while reaching remote digester vessels without repeaters. Advanced function blocks execute PID control loops directly in field devices, reducing controller loading by 40% in large-scale mills.

Integrated Power Architecture: Engineering Advantages

Simplified Installation Workflow
Traditional H1 implementations require coordination between three separate components: the fieldbus interface card, an intrinsic safety barrier, and a dedicated power supply. Each component introduces potential failure modes, requires individual wiring terminations, and consumes panel space. The KJ3246X1-BA1 collapses this three-tier architecture into a single module, reducing installation labor by 8-12 hours per segment and eliminating 75% of inter-component wiring.

Advanced Power Management Features
The integrated power conditioning system continuously monitors fieldbus voltage (9-32 VDC range), current consumption (up to 400 mA total), and segment impedance. Intelligent current limiting protects against short-circuit conditions without nuisance trips, while soft-start sequencing prevents inrush current spikes during power-up that can disrupt sensitive analytical instruments. Real-time power diagnostics identify devices drawing excessive current, indicating potential sensor failures or wiring degradation.

Reduced Spare Parts Inventory
Consolidating three components into one reduces the number of unique spare part SKUs by 67%. Maintenance teams stock a single module type instead of managing separate inventories for interface cards, IS barriers, and power supplies. This simplification reduces capital tied up in spare parts by $8,000-$15,000 per facility while improving mean time to repair (MTTR) during unplanned outages.

Diagnostic Capabilities & Predictive Maintenance

The module's embedded diagnostic engine performs continuous health monitoring across multiple layers:

1. Physical Layer Diagnostics
Monitors signal amplitude, rise/fall times, jitter, and noise levels to detect cable degradation, moisture ingress, or electromagnetic interference. Automatic wiring fault detection identifies reversed polarity, shield grounding errors, and excessive capacitance from improper cable types.

2. Data Link Layer Analysis
Tracks communication error rates, retry counts, and device response times to identify network congestion or failing devices. Segment utilization metrics help engineers optimize device placement and function block execution schedules.

3. Device-Level Monitoring
Integration with DeltaV AMS Device Manager provides centralized visibility into device diagnostics including sensor drift, calibration status, electronics temperature, and remaining service life predictions. NAMUR NE107 status indicators (failure/out-of-spec/maintenance required/check function) enable condition-based maintenance strategies.

4. Power System Surveillance
Continuous monitoring of supply voltage stability, current draw trends, and load distribution across devices. Alerts trigger when power consumption approaches segment limits, preventing overload conditions that degrade communication reliability.

System Compatibility & Integration Pathways

The KJ3246X1-BA1 mounts directly to DeltaV S-series carriers including the KL4104X1 dual-wide chassis and VE4070 LocalBus isolator assemblies. Compatible with DeltaV software versions 11.3 through 15.1 LTS, ensuring seamless integration with both legacy installations and current-generation systems. Supports redundant controller configurations with automatic failover—when the primary controller fails, the backup assumes control within 100 milliseconds without disrupting fieldbus communication.

Interoperability extends to all FOUNDATION Fieldbus registered devices from manufacturers including Rosemount (pressure/temperature transmitters), Endress+Hauser (flow/level measurement), Yokogawa (analytical instruments), ABB (valve positioners), and Siemens (process chromatographs). The module supports advanced function blocks including cascade control, signal characterization, totalizers, and device-level alarming for distributed control architectures that offload processing from central controllers.

Extended Functionality & Customization Options

IoT Integration Pathways
When paired with DeltaV Edge Environment software, the module enables secure data streaming to cloud analytics platforms including Microsoft Azure IoT Hub and AWS IoT Core. This connectivity supports advanced analytics use cases such as machine learning-based anomaly detection, digital twin modeling, and cross-site performance benchmarking.

Cybersecurity Hardening
The module supports DeltaV's defense-in-depth security architecture including role-based access control (RBAC), encrypted configuration downloads, and audit logging of all parameter changes. Firmware updates deploy through DeltaV's secure update mechanism with cryptographic signature verification to prevent unauthorized code execution.

Custom Segment Configurations
Engineering services available for complex multi-drop topologies, mixed device populations, and applications requiring segment lengths beyond standard specifications. Custom configurations include impedance matching networks, repeater integration, and fiber optic media converters for electrically noisy environments.

Delivery, Warranty & Technical Support

Lead Times & Logistics
→ Standard configuration: 3-5 business days (stock items)
→ Factory-configured modules: 10-15 business days
→ Custom engineered solutions: 4-6 weeks
→ Global shipping available with expedited options for critical outages

Warranty Coverage
→ 24-month comprehensive warranty covering hardware defects and calibration drift
→ Extended warranty programs available for up to 60 months
→ Advanced replacement service for critical applications (4-hour response)

Technical Support Services
→ 24/7 global support hotline for troubleshooting and emergency assistance
→ Remote diagnostic services via secure VPN connections
→ On-site commissioning support for complex multi-segment installations
→ Training programs covering segment design, device integration, and advanced diagnostics

Documentation Package
Each module ships with comprehensive technical documentation including installation manuals, wiring diagrams, intrinsic safety certificates, segment calculation worksheets, loop checkout procedures, and FOUNDATION Fieldbus physical layer compliance test reports per IEC 61158-2 requirements.

Frequently Asked Questions

Q: How does the integrated power module simplify hazardous area installations compared to traditional fieldbus interfaces?
A: Traditional H1 installations require three separate components—an interface card, an intrinsic safety barrier, and a power supply—each requiring individual wiring, testing, and certification documentation. The KJ3246X1-BA1 integrates all three functions in a single module, reducing installation labor by 40-50%, eliminating inter-component wiring failures, and simplifying hazardous area certification by providing a single entity concept IS approval covering the entire signal path.

Q: What is the maximum segment length and device capacity for optimal performance?
A: The module supports up to 1900 meters of Type A fieldbus cable with a maximum of 16 H1 devices per segment. However, for optimal communication performance and diagnostic responsiveness, we recommend limiting segments to 8-12 devices and 1200-1500 meters. Longer distances or higher device counts may require segment repeaters or splitting into multiple segments to maintain sub-100ms response times for critical control loops.

Q: Can this module interface with legacy 4-20mA devices or only FOUNDATION Fieldbus instruments?
A: The KJ3246X1-BA1 is designed exclusively for FOUNDATION Fieldbus H1 devices and cannot directly interface with analog 4-20mA instruments. For mixed installations, use separate DeltaV analog input modules (such as the KJ3002X1-BE1) for 4-20mA devices. However, many modern smart transmitters offer dual-mode operation, allowing you to migrate from analog to fieldbus communication by changing device configuration without hardware replacement.

Q: What energy efficiency improvements does the integrated power architecture provide?
A: The module's integrated power conditioning reduces overall system energy consumption by 15-20% compared to traditional architectures using separate power supplies. This efficiency gain results from optimized voltage regulation (minimizing heat dissipation), elimination of redundant power conversion stages, and intelligent load management that adjusts output based on actual device requirements. In large installations with 50+ segments, this translates to annual energy savings of $3,000-$8,000.

Q: How does remote diagnostic capability reduce maintenance costs and unplanned downtime?
A: The module's continuous monitoring of segment health, device performance, and power system status enables predictive maintenance strategies that identify developing problems before they cause process disruptions. Real-time alerts for wiring degradation, device drift, and communication errors allow maintenance teams to schedule repairs during planned outages rather than responding to emergency failures. Customers report 30-40% reductions in unplanned downtime and 25% lower maintenance labor costs through condition-based maintenance enabled by these diagnostics.

Q: What installation requirements must be met for intrinsic safety certification compliance?
A: Intrinsic safety compliance requires adherence to entity concept parameters documented in the module's control drawing, including maximum cable capacitance (5 nF for Zone 0 applications), maximum cable inductance (typically 3 mH), and proper cable shielding/grounding per IEC 60079-25 standards. All connected field devices must have compatible IS parameters, and the total system entity values must remain within certified limits. Installation must follow the manufacturer's wiring diagrams, and documentation must be maintained for regulatory inspections.

Request Technical Consultation or Pricing

Our application engineering team provides complimentary segment design reviews, device compatibility verification, and project-specific configuration recommendations. Contact us to discuss your fieldbus integration requirements, receive detailed technical specifications, or request a formal quotation for your DeltaV expansion project.

Next Steps:
→ Submit your technical inquiry using the contact form below
→ Schedule a virtual consultation with our DeltaV specialists
→ Request segment design assistance for complex installations
→ Download the complete technical datasheet and certification documents
