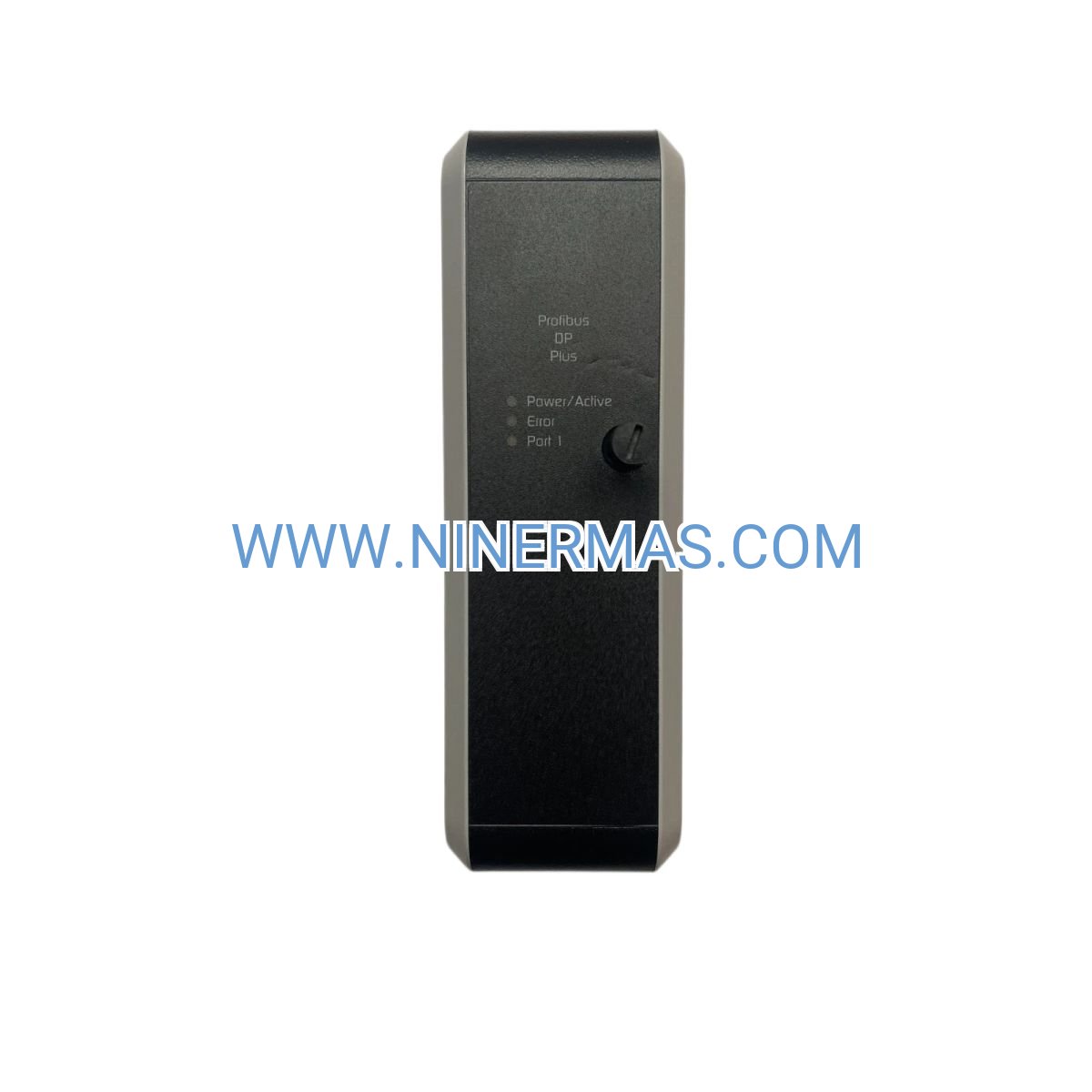

KJ3243X1-BB2 Profibus DP Interface Card (Industrial-Grade DeltaV Communication Module)

The KJ3243X1-BB2 represents Emerson's advanced solution for Profibus DP fieldbus integration within DeltaV distributed control architectures. This communication interface module bridges your DeltaV controller network with Profibus-enabled field devices, delivering deterministic data exchange for process-critical applications across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing sectors.

Designed for engineers managing complex automation infrastructures, this interface card eliminates protocol conversion bottlenecks while maintaining the real-time performance demanded by continuous process industries. Whether you're retrofitting legacy Profibus networks or expanding existing DeltaV installations, the KJ3243X1-BB2 provides proven interoperability with 125+ device nodes per segment.

Built to industrial specifications with -40°C to +70°C operational range and comprehensive safety certifications (CE/UL/ATEX), this module ensures uninterrupted communication in the harshest plant environments. Backed by Emerson's global service network and our technical expertise, you gain both immediate deployment capability and long-term lifecycle support.

Core Capabilities & Business Value

→ Native DeltaV Ecosystem Integration
Direct compatibility with Emerson DeltaV controllers, I/O carriers, and engineering workstations eliminates third-party gateway requirements. Reduces system complexity by 40% compared to multi-vendor integration approaches while accelerating commissioning timelines.

→ Deterministic High-Speed Communication
Supports Profibus DP-V1 protocol at transfer rates up to 12 Mbps with cycle times under 10ms for time-critical control loops. Ensures predictable response for safety instrumented systems (SIS) and emergency shutdown sequences.

✓ Extended Environmental Resilience
Operates reliably across -40°C to +70°C temperature spectrum without derating. Conformal coating and industrial-grade components withstand vibration, humidity, and electromagnetic interference common in heavy industrial settings.

✓ Comprehensive Diagnostic Intelligence
Real-time fault detection with granular status reporting to DeltaV operator interfaces. Predictive maintenance alerts reduce unplanned downtime by identifying communication degradation before failures occur.

✓ Scalable Network Architecture
Manages up to 125 Profibus nodes per segment with flexible topology options (line, tree, star configurations). Supports network segmentation for optimized bandwidth allocation across multiple process units.

✓ Regulatory Compliance & Safety Certification
CE, UL, and ATEX approvals enable deployment in hazardous area classifications (Zone 1/2, Division 1/2). Meets IEC 61158 and EN 50170 international fieldbus standards for global project applicability.

Industrial Application Scenarios

Refinery Process Control Integration
Connect distributed Profibus-enabled analyzers, flow transmitters, and valve positioners across crude distillation units to your DeltaV DCS. The KJ3243X1-BB2 handles real-time composition data from gas chromatographs while maintaining sub-second control loop updates for critical separation processes. Eliminates data latency issues that compromise product quality specifications.

Chemical Batch Manufacturing Coordination
Orchestrate recipe-driven batch sequences across Profibus motor starters, weighing systems, and reactor temperature controllers. Synchronize material additions with ±0.1% accuracy while logging complete audit trails for FDA 21 CFR Part 11 compliance in pharmaceutical applications.

Power Plant Auxiliary Systems Monitoring
Integrate boiler feedwater pumps, coal pulverizers, and flue gas treatment equipment using existing Profibus infrastructure. Centralize monitoring of 100+ field devices per turbine-generator unit within DeltaV operator displays, reducing MTTR by 35% through unified diagnostics.

Water Treatment SCADA Expansion
Retrofit municipal wastewater facilities by connecting legacy Profibus instrumentation (pH sensors, turbidity meters, chemical dosing pumps) to modern DeltaV supervisory systems. Preserve capital investment in field devices while gaining advanced analytics and remote access capabilities.

Mining Conveyor Network Automation
Link Profibus-based belt scales, metal detectors, and variable frequency drives across multi-kilometer conveyor systems to DeltaV control rooms. Achieve coordinated start/stop sequencing and predictive maintenance through vibration analysis integration.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify your DeltaV system firmware version supports Profibus DP integration (DeltaV v11.3 or later recommended). Calculate total Profibus segment length based on baud rate—at 12 Mbps, maximum cable run is 100 meters without repeaters. For hazardous area installations, confirm ATEX/IECEx zone ratings match your plant classification. Consider redundant interface cards for SIL 2/3 safety applications requiring fault-tolerant communication paths.

Advanced Integration Features

DeltaV Live Operator Integration: Profibus device parameters appear directly in DeltaV operator faceplates with native graphics and trending. No separate HMI configuration required—leverage existing DeltaV display templates for consistent operator experience.

Asset Management Connectivity: Integrates with AMS Device Manager for HART-over-Profibus PA devices. Access advanced diagnostics, calibration records, and device documentation through unified asset management interface.

Cybersecurity Hardening: Supports DeltaV's layered security architecture with role-based access controls and encrypted configuration downloads. Complies with IEC 62443 industrial cybersecurity standards for defense-in-depth protection.

Custom Function Block Development: Emerson provides DeltaV function block libraries for common Profibus device profiles (PA devices, drives, weighing modules). Accelerate engineering with pre-tested control strategies and alarm templates.

Delivery Timeline & Service Commitments

Standard Delivery: 5-7 business days for in-stock units via express courier (DHL/FedEx). Expedited 48-hour shipping available for critical outage situations.
Custom Configuration: 10-14 business days for factory-programmed units with customer-specific GSD files and network addresses.
Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 60-month service plans available.
Technical Support: Lifetime access to our automation specialists for configuration assistance, troubleshooting, and integration guidance. Remote commissioning support via secure VPN connections.
Documentation Package: Includes installation manual, GSD device file, DeltaV integration guide, and sample function block configurations. CAD drawings (DWG/PDF) and 3D STEP models provided upon request.

Frequently Asked Questions

How do I connect the KJ3243X1-BB2 to my existing DeltaV controller network?
The interface card installs directly into a DeltaV M-series controller carrier or I/O carrier slot. After physical installation, use DeltaV Explorer to add the Profibus network definition, import your GSD files, and assign device addresses. Our technical team provides step-by-step commissioning checklists to streamline the process.

What is the maximum cable distance supported for Profibus DP communication?
Cable length depends on baud rate selection: 1200 meters at 93.75 kbps, 400 meters at 500 kbps, or 100 meters at 12 Mbps. Use RS-485 repeaters to extend distances up to 9.6 km in segmented topologies. We recommend shielded twisted-pair cable (Type A per IEC 61158-2) for industrial environments.

Can this interface card reduce energy consumption in my automation system?
While the KJ3243X1-BB2 itself draws only 5.4 watts, its primary energy benefit comes from enabling optimized process control. Tighter loop tuning through faster Profibus communication can reduce steam consumption by 3-8% in distillation columns and improve motor efficiency by 12-15% through coordinated VFD control.

What are the installation requirements for hazardous area deployment?
For ATEX Zone 2 installations, mount the card in an IP54-rated enclosure with proper cable gland sealing. Ensure Profibus cable shielding connects to equipotential bonding per IEC 60079-14. Hot-work permits are not required for installation in non-classified areas, but follow your site's Management of Change procedures for DCS modifications.

Does the KJ3243X1-BB2 support remote monitoring and diagnostics?
Yes—when integrated with DeltaV's web-based operator interface or AMS Device Manager, you gain remote visibility into Profibus network health, device status, and communication statistics. Set up email/SMS alerts for bus faults, device dropouts, or communication errors to enable proactive maintenance.

How many Profibus devices can I realistically connect per interface card?
While the specification allows 125 nodes, practical limits depend on update rates and data volumes. For fast control loops (100ms cycles), limit to 40-50 devices per segment. For slower monitoring applications (1-second updates), you can approach the 125-device maximum. Our engineering team can perform network load calculations based on your specific device mix.

Ready to Optimize Your DeltaV Communication Infrastructure?

Contact our automation specialists today for application-specific guidance, competitive quotations, and technical documentation. We maintain strategic inventory of KJ3243X1-BB2 units for immediate deployment and offer trade-in programs for obsolete interface modules.

Request a quote: Share your project requirements via email for same-day pricing and delivery estimates.
Technical consultation: Schedule a 30-minute call with our DeltaV-certified engineers to review integration strategies.
Bulk procurement: Volume discounts available for multi-unit projects and annual supply agreements.
