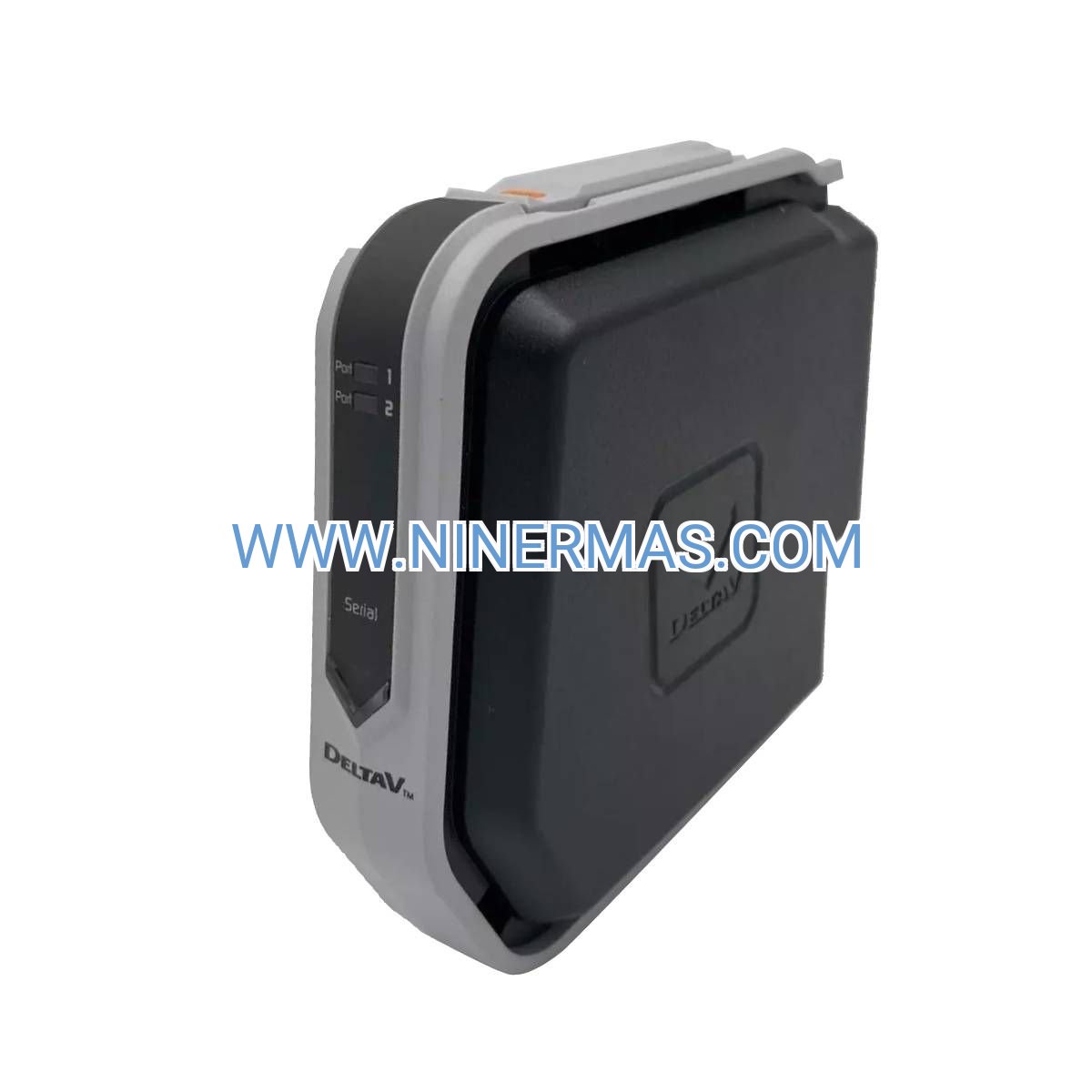

KJ3241X1-BK1 Serial Interface Card (Industrial-Grade RS-232/RS-485 Module)

The KJ3241X1-BK1 represents a robust serial communication solution engineered specifically for Emerson DeltaV S-Series distributed control environments. This dual-port interface module bridges legacy serial equipment with modern automation infrastructure, delivering RS-232 and RS-485 connectivity with comprehensive Modbus protocol support. Designed for mission-critical industrial applications, it ensures reliable data exchange between field devices, third-party instruments, and supervisory control systems.

Process engineers and automation specialists rely on the KJ3241X1-BK1 to integrate analyzers, flow meters, weigh scales, barcode readers, and energy monitoring equipment into their DeltaV architecture. With 1500V electrical isolation, hot-swappable design, and support for communication speeds up to 115.2 kbps, this module minimizes integration complexity while maximizing system uptime.

Whether you're modernizing a legacy installation, expanding process monitoring capabilities, or establishing SCADA connectivity, the KJ3241X1-BK1 delivers the performance and reliability demanded by pharmaceutical manufacturing, chemical processing, oil & gas operations, and power generation facilities worldwide.

Core Features & Benefits

→ Dual Independent Serial Ports
Simultaneous RS-232 and RS-485 operation enables connection to two separate devices without additional hardware. RS-232 port supports point-to-point communication up to 15 meters, while RS-485 facilitates multi-drop networks spanning 1200 meters, reducing wiring costs and installation time.

→ High-Speed Data Transfer
Configurable baud rates from 300 bps to 115.2 kbps ensure compatibility with both legacy equipment and modern high-speed devices. Faster communication reduces polling cycles and improves real-time process response, critical for batch control and quality monitoring applications.

→ Native Modbus Protocol Support
Built-in Modbus RTU and Modbus ASCII functionality eliminates the need for protocol converters or custom programming. Direct integration with thousands of Modbus-compatible instruments accelerates commissioning and reduces engineering costs by up to 40%.

→ 1500V Galvanic Isolation
Channel-to-system isolation protects sensitive DeltaV controllers from ground loops, voltage spikes, and electrical noise common in industrial environments. This protection extends equipment lifespan and prevents costly downtime caused by electrical faults.

→ Hot-Swappable Architecture
Replace or upgrade modules during operation without shutting down the control system. This capability is essential for continuous process industries where unplanned downtime can cost thousands per hour, enabling maintenance during production runs.

→ Diagnostic LED Indicators
Real-time visual feedback for power status, communication activity, and fault conditions accelerates troubleshooting. Technicians can identify connection issues, protocol errors, or device failures within seconds, reducing mean time to repair (MTTR) by 60%.

Typical Application Scenarios

Process Instrumentation Integration
Connect pH analyzers, conductivity meters, turbidity sensors, and gas chromatographs to your DeltaV system for comprehensive process monitoring. The KJ3241X1-BK1 handles multiple instrument protocols simultaneously, eliminating the need for separate interface cards. In water treatment plants, this module enables real-time quality monitoring across multiple treatment stages, ensuring regulatory compliance and product consistency.

Material Handling & Packaging Lines
Interface with barcode scanners, label printers, weigh scales, and conveyor controllers in pharmaceutical packaging operations. The dual-port design allows simultaneous communication with checkweighers and serialization systems, supporting track-and-trace requirements. Manufacturers report 25% faster line changeovers when using integrated serial communication versus standalone systems.

Energy Management & Utilities
Establish data links with power meters, energy analyzers, and building management systems for facility-wide energy optimization. RS-485 multi-drop capability supports up to 32 devices on a single port, ideal for monitoring distributed electrical panels. Chemical plants use this configuration to track energy consumption per production unit, identifying optimization opportunities worth $50,000+ annually.

SCADA & HMI Connectivity
Create reliable communication paths between DeltaV controllers and supervisory systems, historian databases, or third-party HMI platforms. The module's Modbus support ensures compatibility with virtually all industrial SCADA packages, enabling centralized monitoring of multi-site operations without proprietary gateways.

Legacy Equipment Modernization
Extend the operational life of proven serial-based equipment by integrating it into modern DeltaV architectures. Oil refineries have successfully connected 20-year-old analyzers to new control systems using the KJ3241X1-BK1, avoiding $200,000+ replacement costs while gaining advanced data logging and trending capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ3241X1-BK1 when you need simultaneous RS-232 and RS-485 communication in a single module. For applications requiring only RS-485 or higher port density, consider alternative DeltaV serial interface options. Verify that your DeltaV system firmware supports the module revision before ordering.

Extended Functions

Custom Protocol Implementation
Beyond standard Modbus, the KJ3241X1-BK1 supports custom serial protocols through DeltaV function blocks. This flexibility enables integration with proprietary instruments or legacy equipment using manufacturer-specific communication formats, eliminating the need for external protocol converters.

Advanced Diagnostics & Monitoring
The module provides detailed communication statistics including message counts, error rates, timeout events, and buffer utilization. These metrics integrate with DeltaV's diagnostic framework, enabling predictive maintenance strategies that identify failing field devices before they cause process disruptions.

Redundancy Configuration
Deploy dual KJ3241X1-BK1 modules in redundant DeltaV controller pairs for fault-tolerant serial communication. Automatic failover ensures continuous operation even during module replacement or controller switchover, critical for safety instrumented systems (SIS) and emergency shutdown applications.

IoT & Cloud Connectivity
When paired with DeltaV Edge gateways, serial data from the KJ3241X1-BK1 can be published to cloud platforms for advanced analytics, machine learning, and remote monitoring. This architecture enables predictive maintenance and performance optimization without modifying existing field wiring.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations or large quantity orders typically require 2-4 weeks. Express shipping options available for urgent requirements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical applications requiring 3-5 year coverage.

Technical Support: Our certified DeltaV specialists provide pre-sales application engineering, configuration assistance, and post-installation troubleshooting. Support available via email, phone, and remote desktop sessions during your commissioning phase.

Documentation Package: Each module ships with installation manual, wiring diagrams, DeltaV configuration examples, and Modbus register maps. Digital documentation library includes application notes, firmware release notes, and integration guides for common instruments.

Calibration & Testing: All units undergo factory acceptance testing (FAT) including communication verification, isolation testing, and environmental stress screening. Calibration certificates available upon request for regulated industries.

Frequently Asked Questions

Can I use both serial ports to communicate with the same device for redundancy?
No, the ports operate independently and cannot be configured for redundant communication to a single device. For redundant serial links, deploy two KJ3241X1-BK1 modules in a redundant controller pair, with each module connected to the same field device.

What is the maximum number of RS-485 devices I can connect to one port?
The RS-485 standard supports up to 32 unit loads per segment. Using repeaters or devices with fractional unit loads, you can extend this to 256 devices. Practical limits depend on baud rate, cable quality, and network topology—consult our application engineers for complex networks.

Does the module support RS-422 communication?
While not explicitly designed for RS-422, the RS-485 port can interface with RS-422 devices in point-to-point configurations. RS-422's differential signaling is electrically compatible with RS-485, though you may need to terminate unused receiver inputs.

How do I configure Modbus parameters like slave address and register mapping?
Configuration is performed in DeltaV Explorer using the serial interface function block. You define slave addresses, function codes, register addresses, data types, and polling intervals through the block's parameter interface—no programming required for standard Modbus implementations.

Is firmware upgradeable in the field?
Yes, firmware updates are distributed through DeltaV system updates and can be applied remotely via the DeltaV network. Always review release notes before upgrading, as some firmware versions may require specific DeltaV system versions.

What cable specifications are recommended for RS-485 installations?
Use twisted-pair cable with 120-ohm characteristic impedance, such as Belden 3105A or equivalent. For industrial environments, specify shielded cable with drain wire. Terminate both ends of the RS-485 bus with 120-ohm resistors to prevent signal reflections.

Ready to Integrate Serial Devices into Your DeltaV System?

The KJ3241X1-BK1 serial interface card delivers proven reliability for thousands of installations worldwide. Whether you're connecting a single analyzer or building a complex multi-device network, this module provides the performance and flexibility your automation project demands.

Contact our DeltaV specialists today for application-specific recommendations, pricing, and delivery options. We're here to ensure your serial communication integration succeeds.
