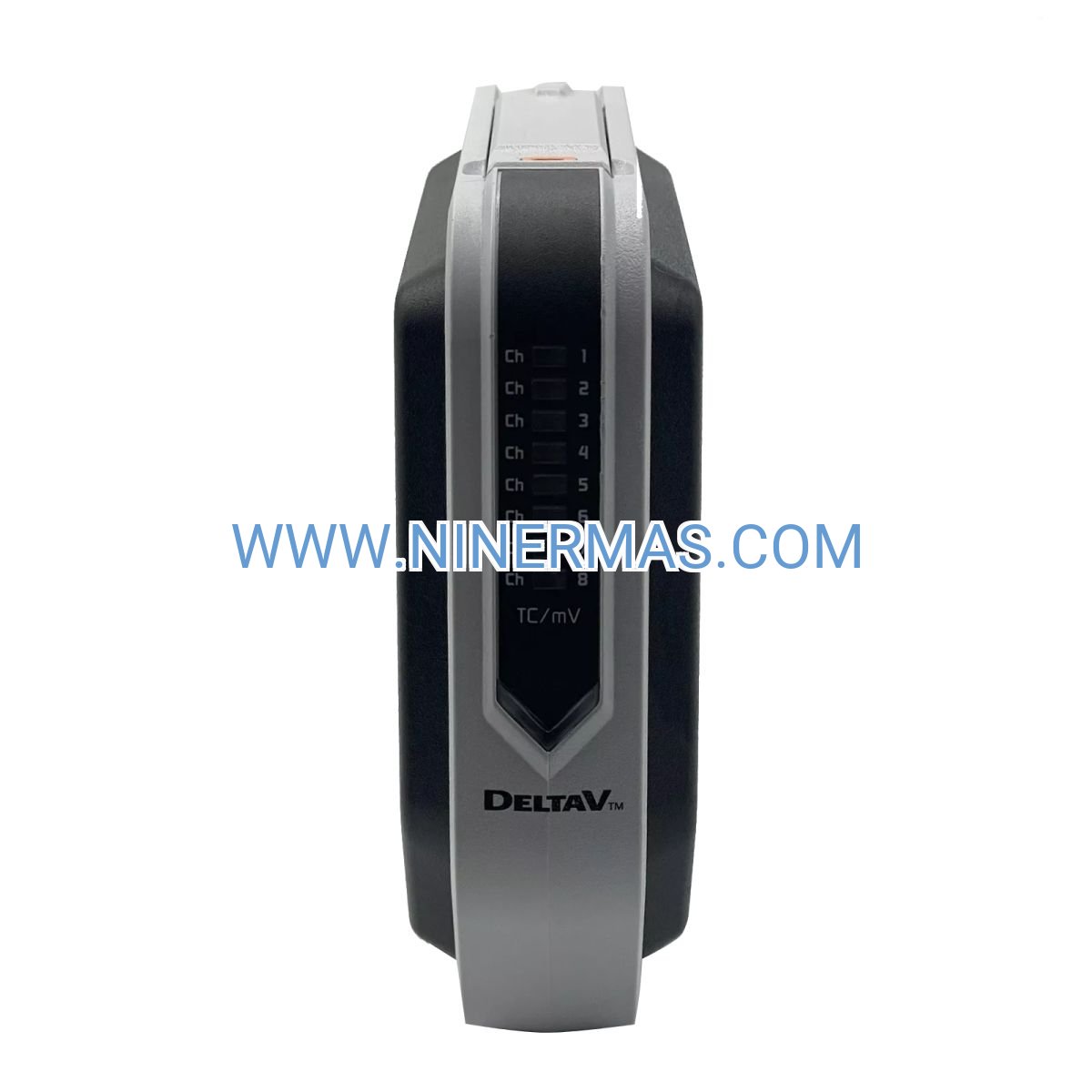

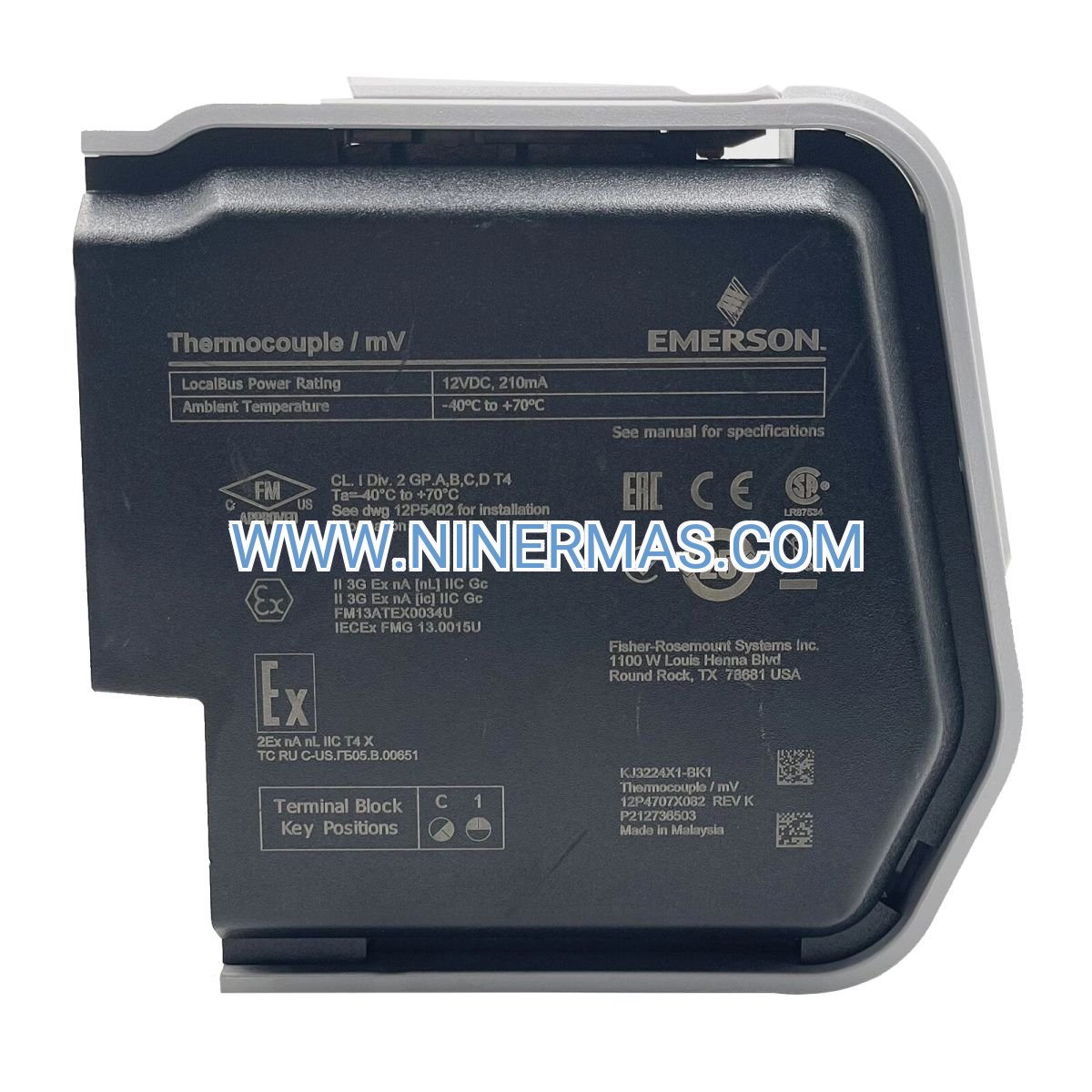

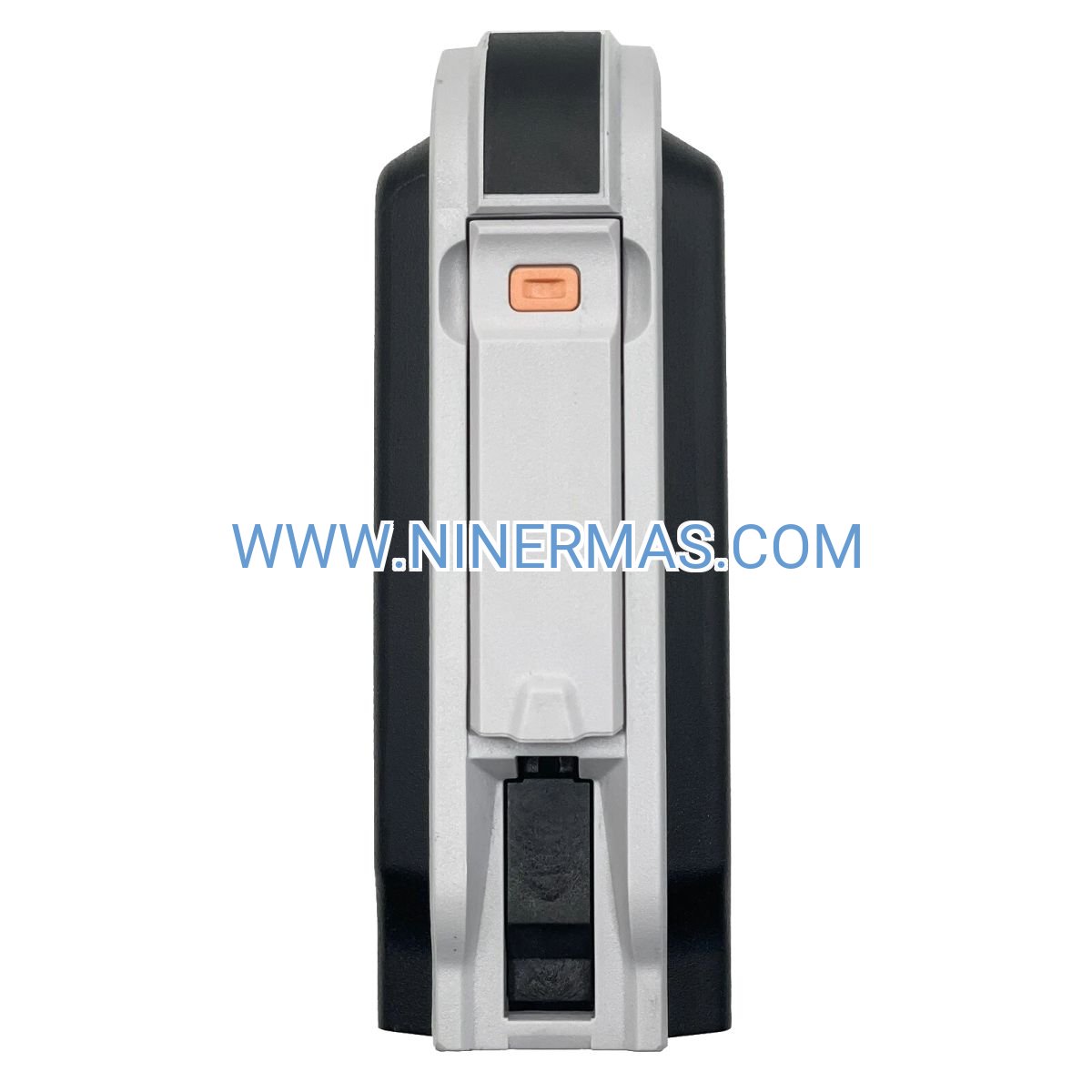

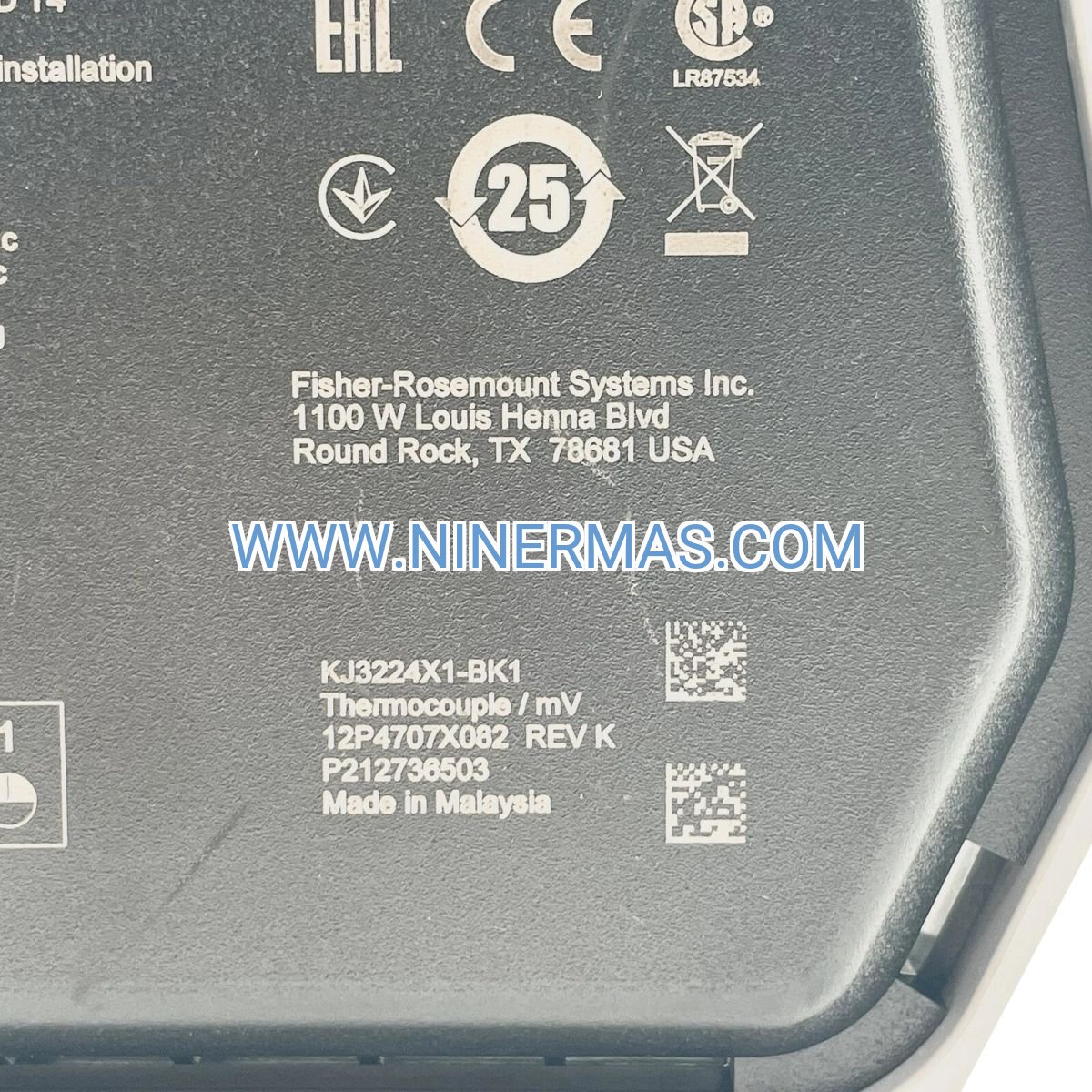

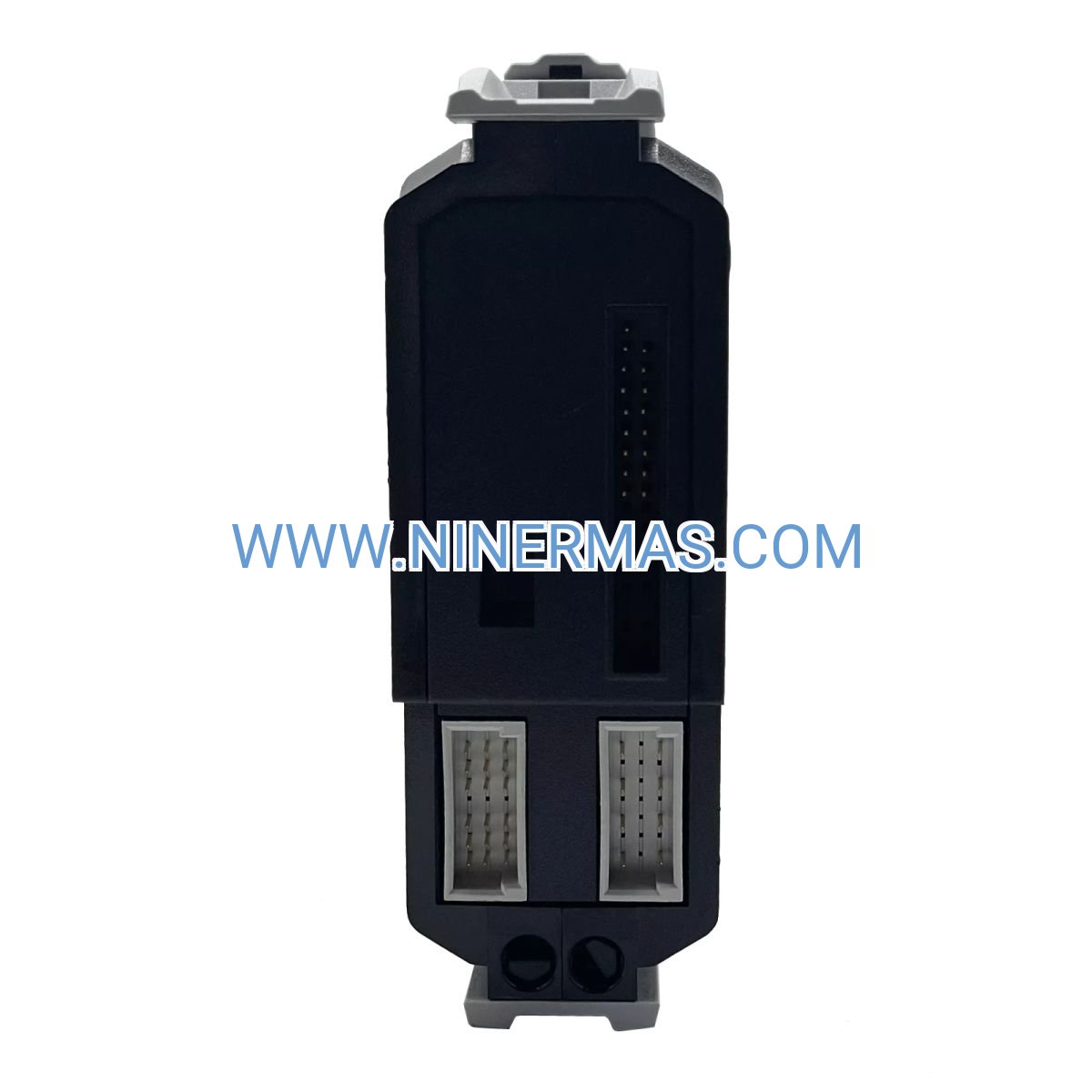

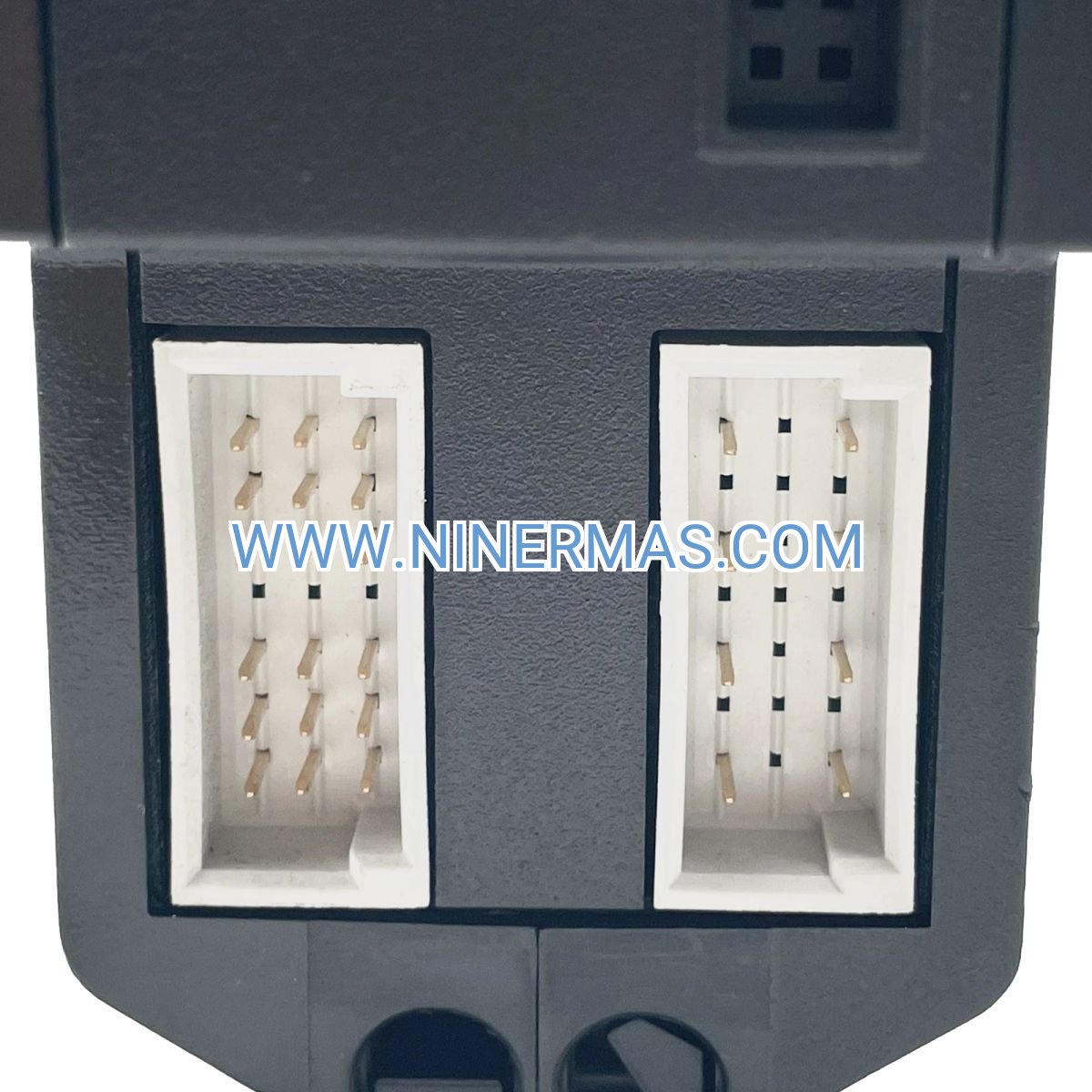

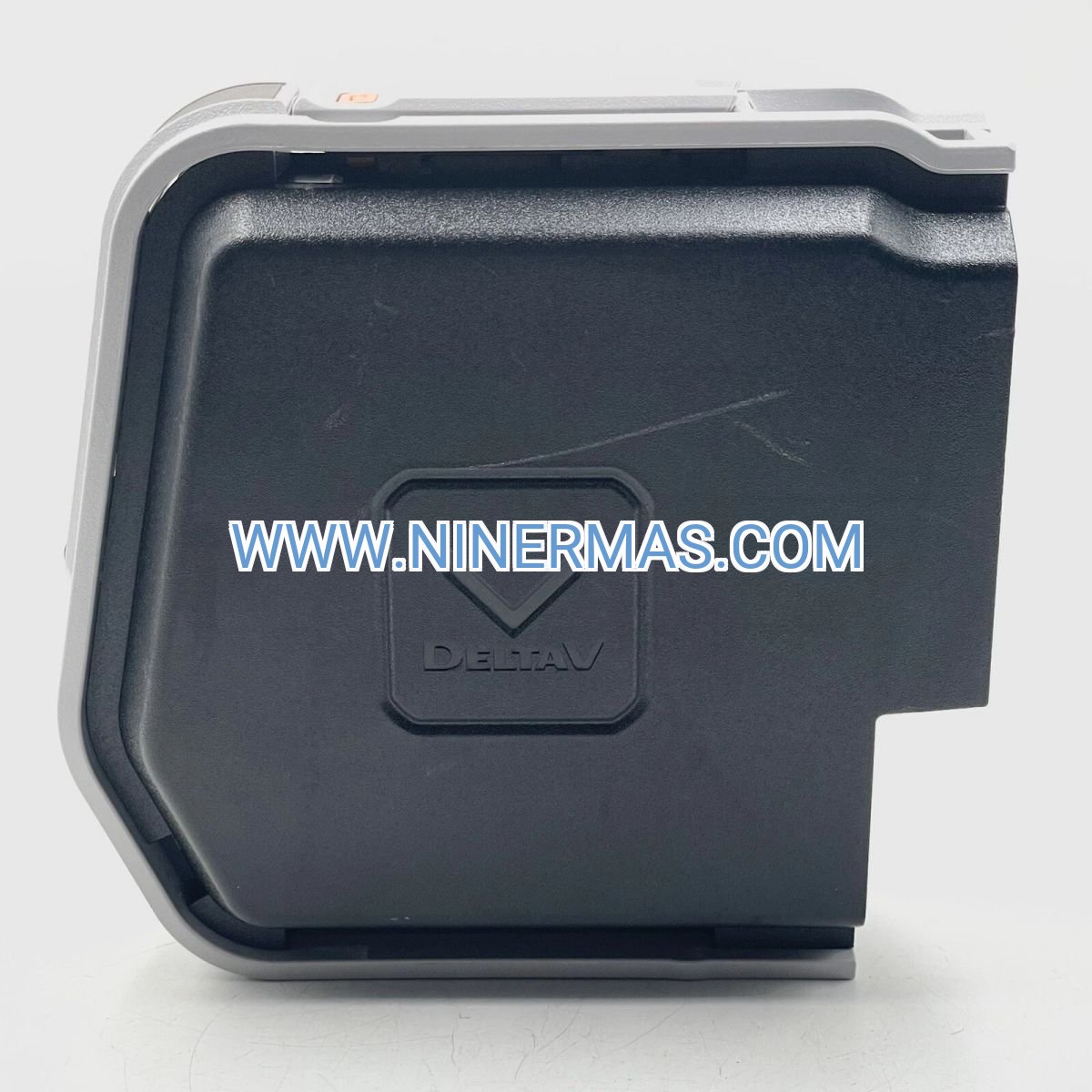

KJ3224X1-BK1 Thermocouple/mV Input Module (Industrial-Grade Temperature Acquisition)

The Emerson KJ3224X1-BK1 delivers precision temperature measurement for DeltaV S-Series distributed control systems. Engineered for critical process applications, this 8-channel thermocouple and millivolt input module combines advanced signal conditioning, automatic cold junction compensation, and HART-enabled diagnostics to ensure reliable temperature data acquisition in demanding industrial environments.

Designed for process industries requiring multi-point temperature monitoring—from petrochemical reactors to pharmaceutical sterilization systems—the KJ3224X1-BK1 supports all standard thermocouple types (B, C, D, E, G, J, K, N, R, S, T) plus custom millivolt ranges. Its high channel density reduces cabinet footprint while maintaining measurement integrity in high-EMI installations.

With 16-bit resolution, ±0.1% accuracy, and continuous self-diagnostics, this module provides the measurement performance and reliability demanded by modern process control strategies. CHARM I/O technology enables hot-swap replacement and automatic configuration restoration, minimizing downtime during maintenance activities.

Key Features & Technical Advantages

→ Universal Thermocouple Compatibility
Software-configurable input types eliminate hardware jumpers—support all standard TC types plus custom mV ranges (-100 to +100 mV) within a single module. Mix sensor types across channels without module swapping during commissioning.

→ Precision Cold Junction Compensation
Independent CJC sensors at each terminal block interface compensate for ambient temperature variations with ±0.5°C accuracy. Continuous CJC health monitoring through HART diagnostics ensures long-term measurement reliability.

→ Intelligent Fault Detection
Integrated burnout current sources detect open thermocouples and broken wiring, driving process variables to configurable safe states (upscale/downscale) to trigger operator alarms and prevent unsafe conditions.

→ High-Accuracy Signal Processing
16-bit A/D conversion with ±0.1% span accuracy delivers precise temperature data for critical control loops. ITS-90 linearization tables ensure standards-compliant temperature conversion across full measurement ranges.

→ Robust Electrical Isolation
250V channel-to-bus and 30V channel-to-channel isolation protects against ground loops and electrical noise in industrial installations. Withstands 10g shock and 0.7g vibration for harsh process environments.

→ HART Diagnostic Integration
Built-in HART protocol enables sensor-level diagnostics, detecting thermocouple aging, insulation degradation, and connection resistance increases before measurement errors impact process control. Integrates with DeltaV AMS Suite for predictive maintenance.

Industrial Application Scenarios

✓ Petrochemical & Refining Operations
Challenge: Monitor multi-zone reactor vessel temperatures and distillation column profiles in high-EMI refinery environments.
Solution: High channel density reduces cabinet space while robust isolation maintains measurement integrity. Burnout detection prevents unsafe conditions during sensor failures.
Value: Improved process safety, reduced installation costs, simplified maintenance through hot-swap capability.

✓ Power Generation Facilities
Challenge: Track boiler tube temperatures, superheater conditions, and turbine bearing temperatures with Type K/N thermocouples requiring predictive maintenance.
Solution: HART diagnostics identify sensor drift before failures occur. Continuous self-diagnostics enable condition-based maintenance strategies.
Value: Extended sensor life, reduced unplanned downtime, optimized maintenance intervals per ISA-67.06.

✓ Pharmaceutical Manufacturing
Challenge: Regulate autoclave sterilization and lyophilization chamber temperatures with accuracy supporting 21 CFR Part 11 validation.
Solution: ±0.1% accuracy with NIST-traceable calibration certificates. FDA-compliant data logging through DeltaV batch management.
Value: Regulatory compliance, validated critical process parameters, simplified audit documentation.

✓ Metals & Primary Processing
Challenge: Measure furnace and kiln temperatures using high-temperature Type R/S thermocouples in vibration-prone environments.
Solution: Rugged construction withstands 10g shock and 0.7g vibration. Wide operating range (-40°C to +70°C ambient) handles thermal cycling.
Value: Reliable operation in harsh conditions, reduced sensor replacement frequency, consistent product quality.

✓ Food & Beverage Processing
Challenge: Control pasteurization temperatures and cold storage conditions with Type J/T sensors requiring regulatory compliance.
Solution: High-accuracy measurement with configurable filtering (0.1 to 100 seconds) balances noise rejection and response time. Integrates with DeltaV batch management for compliance reporting.
Value: Product safety assurance, simplified regulatory compliance, optimized process efficiency.

Technical Specifications & Selection Guide

Selection Criteria: Choose the KJ3224X1-BK1 when your application requires multi-type thermocouple support, high channel density (8 inputs per module), HART diagnostics for predictive maintenance, or mixed TC/mV sensor installations. For applications requiring only 4-20mA analog inputs, consider the KJ3222X1-BK1. For higher channel counts (16 inputs), evaluate the KJ3223X1-BK1 analog input module.

Advanced Integration Capabilities

CHARM I/O Technology: Modules store configuration data locally, enabling hot-swap replacement with automatic parameter restoration from the DeltaV controller. Configuration, calibration, and diagnostics execute through DeltaV Explorer software without interrupting process measurements—critical for continuous process industries.

System Architecture: Installs into DeltaV S-Series carriers including 12P0818X072 8-wide I/O carrier and KL4104X1-BA1 dual universal carrier. Field wiring terminates on KJ4001X1-series terminal blocks with removable screw terminals for simplified maintenance and sensor replacement.

Software Configuration: DeltaV Control Studio provides graphical configuration of thermocouple types, engineering units, filtering, and alarm limits. Software-selectable input filtering (0.1 to 100 seconds) rejects electrical noise while maintaining acceptable response times for process dynamics.

Custom Linearization: Beyond standard ITS-90 thermocouple linearization, the module supports custom linearization tables for non-standard sensors and mV transmitters used in pressure, flow, and level measurement applications.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock items; 2-4 weeks for factory orders
Expedited Shipping: Same-day dispatch available for urgent requirements to Americas, EMEA, and APAC regions
Warranty Coverage: 12-month manufacturer warranty on factory-sealed units; extended warranty options available
Technical Support: Pre-sales application engineering, post-sales commissioning assistance, lifecycle spare parts management
Documentation: Installation manuals, calibration certificates (NIST-traceable), configuration guides, and CAD drawings included

Frequently Asked Questions

Q: Can I mix different thermocouple types on a single KJ3224X1-BK1 module?
A: Yes, each of the 8 channels is independently configurable for any supported thermocouple type (B, C, D, E, G, J, K, N, R, S, T) or custom mV range. Software configuration eliminates the need for hardware jumpers or module swapping.

Q: How does the module handle thermocouple burnout or open circuit conditions?
A: Integrated burnout current sources continuously monitor circuit integrity. Upon detecting an open thermocouple or broken wiring, the module drives the process variable to a configurable safe state (upscale or downscale) and triggers operator alarms through the DeltaV control system.

Q: What accuracy can I expect for cold junction compensation across the operating temperature range?
A: Each channel features an independent cold junction sensor with ±0.5°C accuracy positioned at the terminal block interface. The module continuously monitors CJC sensor health and reports degradation through HART diagnostics, ensuring long-term measurement reliability from -40°C to +70°C ambient.

Q: Is the KJ3224X1-BK1 suitable for SIL-rated safety instrumented systems?
A: The module is SIL 2 capable per IEC 61508 when used in accordance with Emerson's safety manual requirements. For SIL 3 applications, consult Emerson's safety engineering team for system architecture guidance and redundancy requirements.

Q: Can I perform field calibration verification without removing the module from service?
A: Yes, field calibration verification uses precision mV sources connected to terminal blocks without interrupting process measurements. Factory calibration certificates provide NIST traceability, and DeltaV software supports ISA-67.06 calibration interval optimization based on historical performance data.

Q: What diagnostic information is available through the HART protocol?
A: HART diagnostics include thermocouple aging detection, insulation degradation monitoring, connection resistance trending, A/D converter performance, reference voltage stability, and CJC sensor accuracy. Diagnostic status propagates to DeltaV control strategies and integrates with AMS Suite for predictive maintenance work order generation.

Order Your KJ3224X1-BK1 Module Today

Ensure reliable temperature measurement for your critical process applications. Contact our application engineering team for system design assistance, module selection guidance, or to request a formal quotation. We support global installations with expedited logistics, genuine OEM parts, and comprehensive technical documentation.

Ready to upgrade your DeltaV temperature measurement capability? Reach out now for expert consultation and competitive pricing on the KJ3224X1-BK1 and complementary DeltaV I/O modules.
