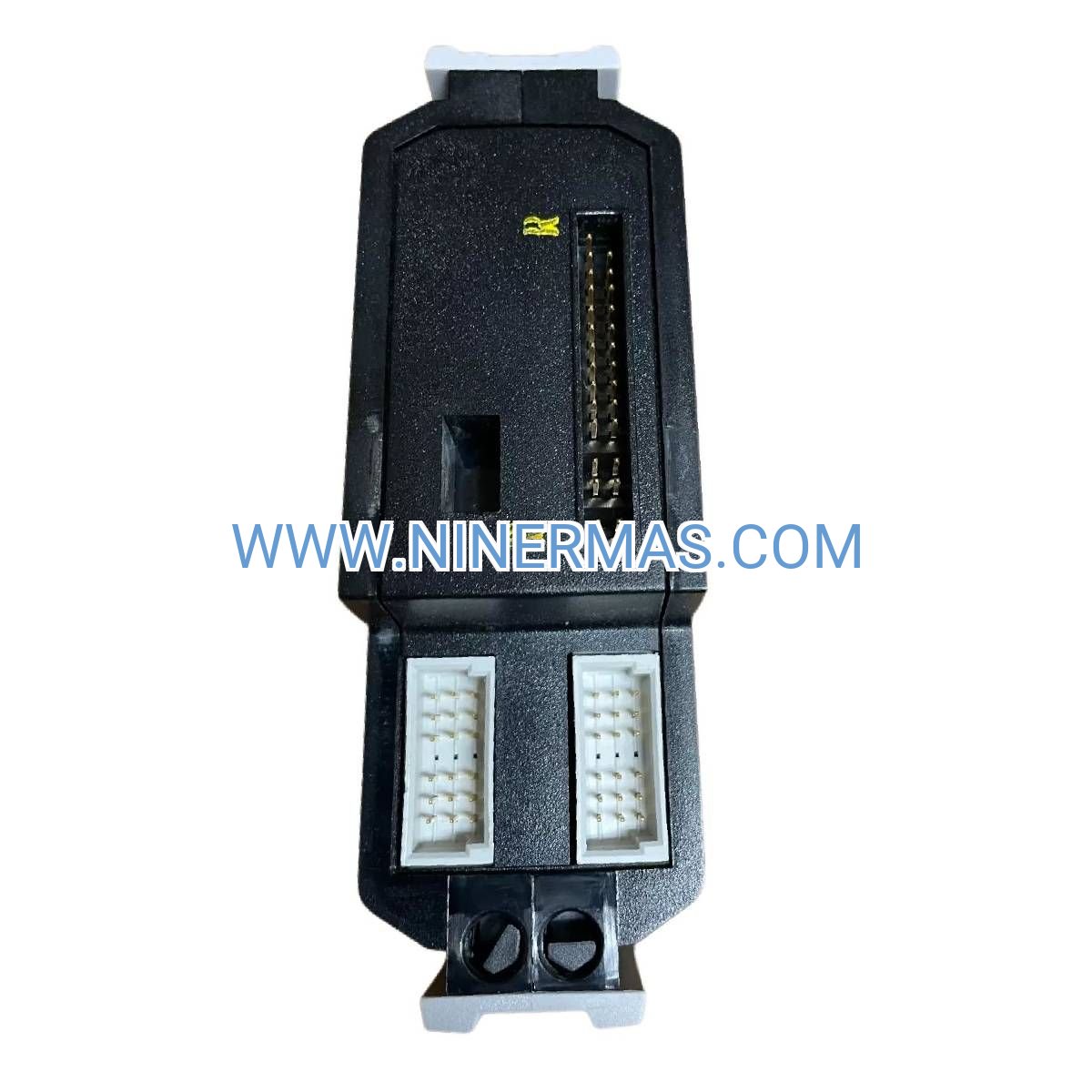

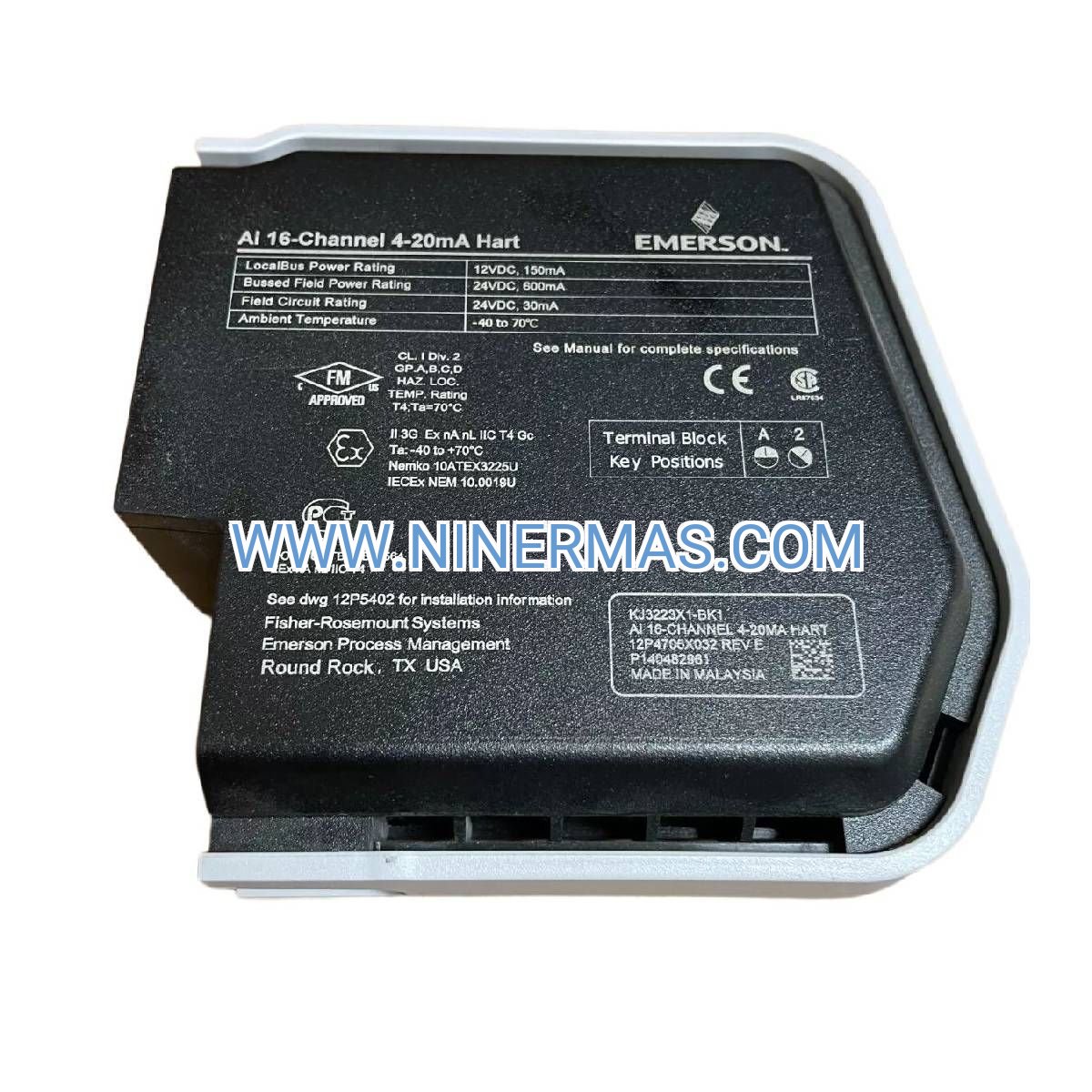

KJ3223X1-BK1 Analog Input Module (Industrial-Grade Multi-Channel Signal Processor)

The KJ3223X1-BK1 represents Emerson's advanced approach to high-density analog signal acquisition for mission-critical process control environments. This 16-channel analog input module combines precision measurement technology with intelligent HART communication, delivering real-time process data to DeltaV distributed control systems across oil & gas, chemical processing, pharmaceutical manufacturing, and power generation facilities.

Designed for engineers and automation specialists managing complex process instrumentation networks, this S-Series I/O module addresses the persistent challenge of maintaining measurement accuracy while reducing installation complexity and lifecycle costs. With 16-bit A/D conversion and channel-level isolation, the KJ3223X1-BK1 ensures signal integrity even in electrically noisy industrial settings.

Key advantages include hot-swappable architecture for zero-downtime maintenance, HART overlay for advanced diagnostics without additional wiring, and hazardous area certification for Zone 0/1 deployment. Whether you're retrofitting legacy systems or designing greenfield installations, this module delivers the reliability and performance demanded by modern process automation.

Core Capabilities & Technical Advantages

→ High-Density Signal Acquisition
16 differential analog inputs in a single module footprint reduce cabinet space requirements by up to 60% compared to 8-channel alternatives, while maintaining full channel-to-channel isolation for superior noise immunity.

→ Precision Measurement Architecture
16-bit resolution with configurable scan rates (100ms to 10s) enables tight process control tolerances, supporting applications requiring ±0.1% accuracy for temperature, pressure, flow, and level transmitters.

✓ Integrated HART Protocol Support
Bi-directional digital communication overlaid on 4-20mA signals provides access to device diagnostics, configuration parameters, and secondary process variables without disrupting analog measurements—reducing commissioning time by 40%.

✓ Intrinsically Safe Barrier Compatible
CE, ATEX, IECEx, and CSA certifications enable direct connection to field devices in hazardous locations when paired with approved barriers, eliminating the need for separate safe-area marshalling panels.

✓ Hot-Swappable Design
Field-replaceable module with automatic configuration download from DeltaV controllers ensures maintenance activities complete in under 5 minutes without process shutdown or controller reboot.

✓ Extended Operating Range
-40°C to +70°C temperature rating supports installation in uncontrolled environments including outdoor enclosures, offshore platforms, and desert climates without derating.

Application Scenarios & Industry Solutions

Refinery Process Control
Monitor distillation column temperatures, reactor pressures, and product flow rates across 16 measurement points per module. HART diagnostics identify sensor drift before quality deviations occur, while high-density design reduces distributed I/O cabinet footprint in space-constrained pipe racks.

Pharmaceutical Batch Manufacturing
Achieve FDA 21 CFR Part 11 compliance with traceable calibration data and audit trails via HART communication. 16-bit resolution supports critical quality attributes (CQAs) monitoring in bioreactor temperature control (±0.2°C) and sterile filtration pressure management.

Power Generation Turbine Monitoring
Capture vibration, bearing temperature, and lube oil pressure signals from gas turbine protection systems. Channel isolation prevents ground loop interference in high-EMI environments, while fast scan rates (100ms) enable protective trip logic execution.

Chemical Processing Safety Systems
Integrate with SIS-rated DeltaV controllers for SIL 2 safety instrumented functions. Proven MTBF >200,000 hours and diagnostic coverage >95% meet IEC 61508 requirements for emergency shutdown valve control and toxic gas detection.

Water Treatment SCADA Integration
Connect pH, chlorine residual, turbidity, and flow transmitters to centralized DeltaV systems. HART multidrop capability reduces wiring costs by 70% in distributed lift station and remote well monitoring applications.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose KJ3223X1-BK1 for applications requiring HART communication and 4-20mA signals. For voltage inputs (0-10V, ±10V), consider KJ3222X1 variant. When channel count exceeds 16, deploy multiple modules on the same S-Series carrier for up to 128 AI points per controller node. Verify transmitter loop power requirements—module does not supply field power; use separate 24VDC distribution or HART-compatible barriers with integrated power conditioning.

Extended Integration & Connectivity

The KJ3223X1-BK1 mounts to DeltaV S-Series carriers (8-slot or 18-slot configurations) and communicates via redundant serial H1 fieldbus to DeltaV M-Series or S-Series controllers. Configuration and diagnostics managed through DeltaV Explorer or AMS Device Manager, supporting bulk commissioning workflows with CSV import/export for multi-module installations.

Advanced features include automatic sensor type detection, configurable engineering units conversion, and alarm limit monitoring at the I/O level—offloading controller CPU for faster scan times. OPC UA and Modbus TCP gateways enable third-party SCADA/HMI integration without custom programming.

For remote asset monitoring, pair with DeltaV Edge Environment to stream HART diagnostic data (sensor health, calibration dates, process alerts) to cloud analytics platforms, enabling predictive maintenance strategies that reduce unplanned downtime by 35%.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; express shipping available to 180+ countries via DHL/FedEx with real-time tracking.

Custom Configuration: Factory-programmed modules with pre-loaded channel assignments and scaling parameters ship within 7-10 business days—ideal for large projects requiring plug-and-play deployment.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; extended 5-year service plans available with advance replacement and on-site calibration services.

Technical Support: Lifetime access to application engineers for integration assistance, troubleshooting, and system optimization. Includes DeltaV configuration file templates, wiring diagrams, and loop checkout procedures.

Documentation Package: Product datasheet, installation manual, HART DD files, AutoCAD drawings, and IEC 61508 SIL certification reports provided with every order.

Frequently Asked Questions

How do I connect HART devices to the KJ3223X1-BK1 module?
Wire 4-20mA transmitters directly to module terminals using shielded twisted-pair cable (Belden 9841 or equivalent). HART communication is automatic—no additional wiring required. Use 250Ω resistor in series if transmitter lacks internal resistance. Access HART data via AMS Device Manager or DeltaV HART interface blocks.

What is the maximum cable length for analog input signals?
Up to 1500 meters (4900 feet) for 4-20mA signals with proper cable sizing (18 AWG minimum). Voltage drop must not exceed 6V to maintain transmitter power. For longer distances, use HART-compatible signal isolators or consider fieldbus alternatives (FOUNDATION Fieldbus H1).

Can this module improve energy efficiency in my control system?
Yes—3.5W power consumption per 16 channels (0.22W per channel) represents 45% lower energy use versus legacy 8-channel modules. High-density design also reduces cooling requirements in control cabinets, lowering HVAC costs by 15-20% in large installations.

What are the installation requirements for hazardous area deployment?
Module installs in Zone 2/Division 2 non-incendive locations without additional protection. For Zone 0/1 field devices, use approved intrinsically safe barriers (MTL, Pepperl+Fuchs) between module and transmitters. Verify barrier parameters (Voc, Isc, Po) match transmitter entity parameters per IEC 60079-11.

Does the KJ3223X1-BK1 support remote monitoring and diagnostics?
Full remote capability via DeltaV Mobile app (iOS/Android) and web-based DeltaV Live interface. HART diagnostic data (sensor status, calibration dates, process alerts) accessible from any network-connected device. Configure email/SMS notifications for critical alarms using DeltaV Notify or third-party SCADA systems.

How quickly can I replace a failed module during production?
Hot-swap procedure completes in under 5 minutes: remove failed module, insert replacement, controller auto-downloads configuration. No tools required; process remains online throughout. Keep one spare per 10 installed modules to achieve 99.9% system availability.

Get Started with Precision Process Control

Transform your analog signal acquisition infrastructure with the KJ3223X1-BK1's combination of measurement accuracy, diagnostic intelligence, and installation efficiency. Our technical team is ready to assist with system design, product selection, and integration planning.

Request a quote today or contact our application engineers to discuss your specific process control requirements. Volume pricing available for projects requiring 10+ modules.
