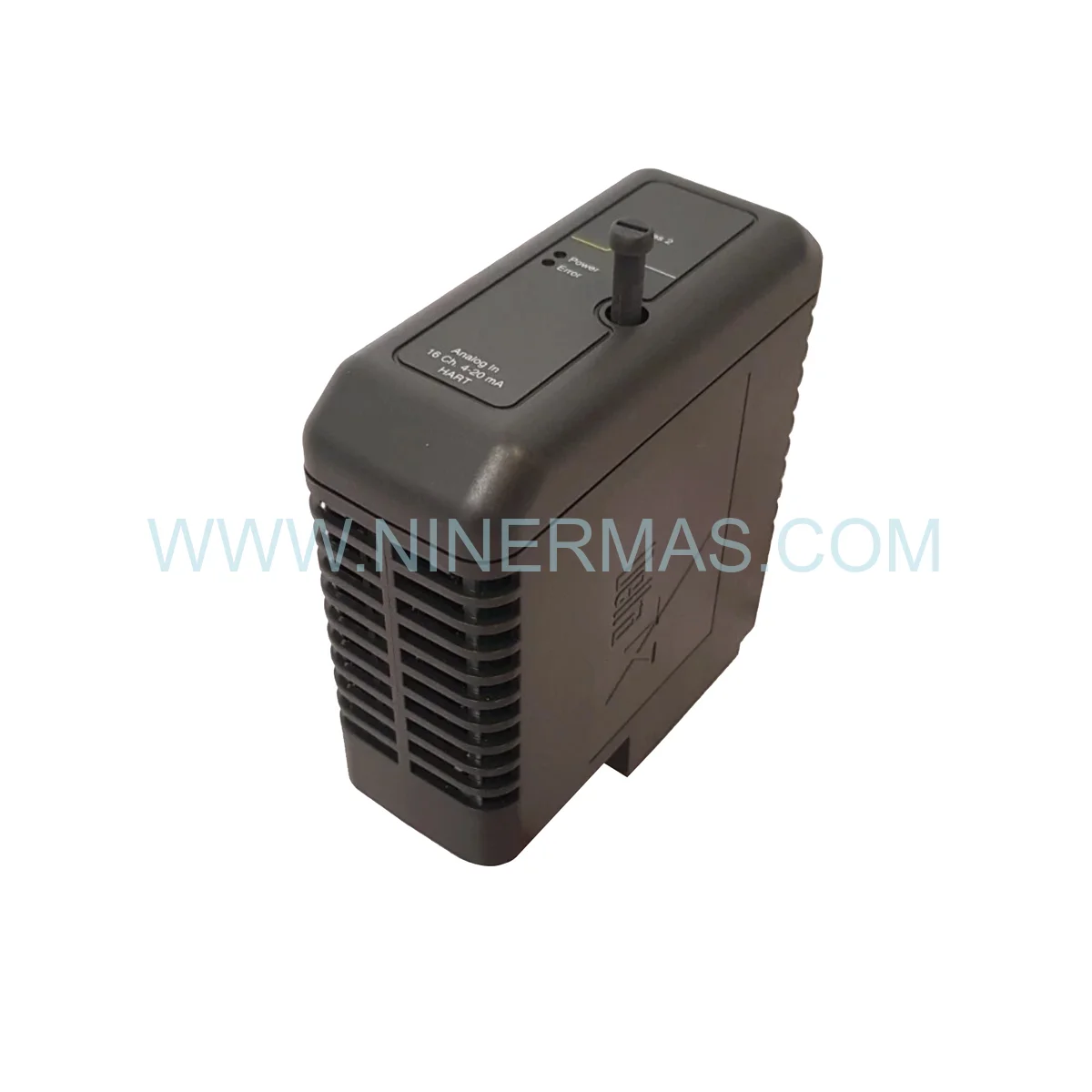

KJ3223X1-BA1 Analog Input Module (Industrial-Grade 16-Channel HART Interface)

The KJ3223X1-BA1 represents a precision-engineered analog signal acquisition solution designed for demanding industrial automation environments. Featuring 16 independent current loop channels with integrated HART communication, this module transforms raw 4-20mA sensor signals into actionable process data for Emerson DeltaV distributed control architectures.

Process engineers rely on this card to bridge the gap between field instrumentation and control room intelligence. Whether monitoring reactor temperatures in chemical plants, tracking pressure gradients in oil refineries, or managing flow rates in water treatment facilities, the KJ3223X1-BA1 delivers measurement accuracy and diagnostic visibility that traditional analog I/O cannot match.

Built to IEC 61508 SIL 2 standards with conformal coating protection, this module thrives in corrosive atmospheres and extreme temperature swings while maintaining ±0.1% measurement precision. The hot-swappable architecture and automatic calibration routines minimize maintenance windows, making it the preferred choice for continuous process industries where uptime directly impacts profitability.

Core Features & Benefits

→ Dual-Protocol Signal Processing
Simultaneously transmits 4-20mA process variables and HART digital diagnostics over the same two-wire connection, eliminating the need for parallel communication infrastructure while enabling predictive maintenance strategies.

→ Enterprise-Grade Isolation Architecture
1500V galvanic isolation between each channel and the backplane prevents ground loop interference and protects downstream control systems from field-side electrical faults in hazardous area installations.

→ Intelligent Fault Detection
Real-time monitoring identifies open circuits, short circuits, and out-of-range conditions within 100ms, triggering configurable alarms through the DeltaV network to prevent process deviations before they escalate.

→ Hot-Swap Serviceability
Field-replaceable design allows technicians to swap modules during live operation without shutting down control loops, reducing mean time to repair (MTTR) by up to 75% compared to legacy systems.

→ Extended Environmental Tolerance
Operates reliably across -40°C to +70°C ambient temperatures with conformal coating that resists moisture, salt spray, and chemical vapors common in offshore platforms and heavy industrial settings.

→ Backward Compatibility Assurance
Integrates seamlessly with existing DeltaV M-series and S-series controllers through the 12P2871X022 CHARM interface, protecting capital investments during phased system upgrades.

Application Scenarios

Pharmaceutical Batch Processing
Monitor critical quality parameters across fermentation vessels, crystallization reactors, and sterile filtration systems. The HART overlay enables remote calibration verification to maintain 21 CFR Part 11 compliance without breaking containment seals.

Petrochemical Distillation Control
Track temperature profiles across 40+ tray locations in distillation columns using cascaded KJ3223X1-BA1 modules. The 16-bit resolution detects 0.1°C variations that optimize separation efficiency and product purity.

Power Generation Steam Cycle Monitoring
Acquire pressure, temperature, and flow measurements from boiler feedwater systems, turbine extraction points, and condenser circuits. SIL 2 certification supports deployment in safety-instrumented systems for overpressure protection.

Water Treatment Plant Automation
Centralize monitoring of pH sensors, turbidity meters, chlorine analyzers, and flow transmitters across multiple treatment stages. HART diagnostics identify sensor drift before it compromises water quality compliance.

Food & Beverage CIP Systems
Control cleaning-in-place sequences by monitoring detergent concentration, rinse water conductivity, and sanitizer levels. The module's corrosion-resistant construction withstands caustic and acidic cleaning agents.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ3223X1-BA1 when your application requires simultaneous process control and asset management over existing 4-20mA wiring. For applications needing only basic analog input without HART diagnostics, consider the KJ3222X1 variant. If your system demands redundant signal paths for critical measurements, pair with the VE4033S2B1 redundant input module.

Extended Functions

Asset Management Integration: The embedded HART multiplexer enables AMS Device Manager and PACTware software to access device configuration, calibration data, and diagnostic registers without interrupting the 4-20mA control signal—reducing commissioning time by 40%.

Advanced Filtering Options: Configurable low-pass filters (0.1Hz to 10Hz cutoff) suppress electrical noise from VFDs, welders, and high-voltage switchgear, while adaptive damping algorithms smooth turbulent flow measurements without introducing excessive lag.

Custom Scaling & Linearization: DeltaV control strategies can apply square-root extraction for differential pressure flow calculations, polynomial curve fitting for thermocouple linearization, and custom characterization tables for non-linear sensor outputs.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with factory testing require 2-3 weeks for production and quality validation.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical process applications requiring 4-hour response times.

Technical Support: Access to Emerson-certified application engineers for system integration guidance, troubleshooting assistance, and performance optimization recommendations. Remote diagnostic support available 24/7/365.

Documentation Package: Each module ships with installation manual, wiring diagrams, HART device description files (DD), calibration certificates, and DeltaV library configuration examples.

Frequently Asked Questions

How does the KJ3223X1-BA1 interface with existing DeltaV controllers?
The module mounts directly into DeltaV M-series or S-series carriers using the 12P2871X022 CHARM connector. The DeltaV control network automatically discovers the card during power-up, and you configure channel assignments through DeltaV Explorer software—no manual addressing required.

What is the maximum cable length between field transmitters and the input card?
Standard 4-20mA current loops support up to 1,500 meters (5,000 feet) of twisted-pair cable with proper shielding. For HART communication reliability, limit cable capacitance to 65,000 pF total—typically achieved with 1,000 meters of standard instrumentation cable.

Can this module reduce energy consumption compared to older analog input systems?
Yes. The KJ3223X1-BA1 consumes 4.5W versus 8-12W for legacy cards, and the HART diagnostics enable predictive maintenance that prevents energy waste from degraded sensors. Customers report 15-20% reduction in calibration-related downtime costs.

What are the installation requirements for hazardous area deployment?
The card carries Class I Division 2 / ATEX Zone 2 certification for installation in control rooms adjacent to hazardous process areas. Field wiring must use intrinsically safe barriers or galvanic isolators when connecting to sensors in Class I Division 1 / Zone 1 locations.

Does the module support remote monitoring and diagnostics?
Absolutely. HART variables stream through the DeltaV network to AMS Device Manager, enabling remote access to sensor health metrics, calibration dates, and performance trends. Integration with cloud-based analytics platforms is supported via OPC UA gateways.

How do I verify measurement accuracy after installation?
Use a precision current source (0.01% accuracy) to inject known signals into each channel while monitoring readings in DeltaV. The module's auto-calibration feature compensates for drift, but annual verification against NIST-traceable standards is recommended for regulated industries.

Take the Next Step

Ready to upgrade your analog signal acquisition infrastructure? Contact our industrial automation specialists for application-specific guidance, system integration support, and volume pricing. Request a technical datasheet or schedule a live demonstration of HART diagnostics capabilities.
