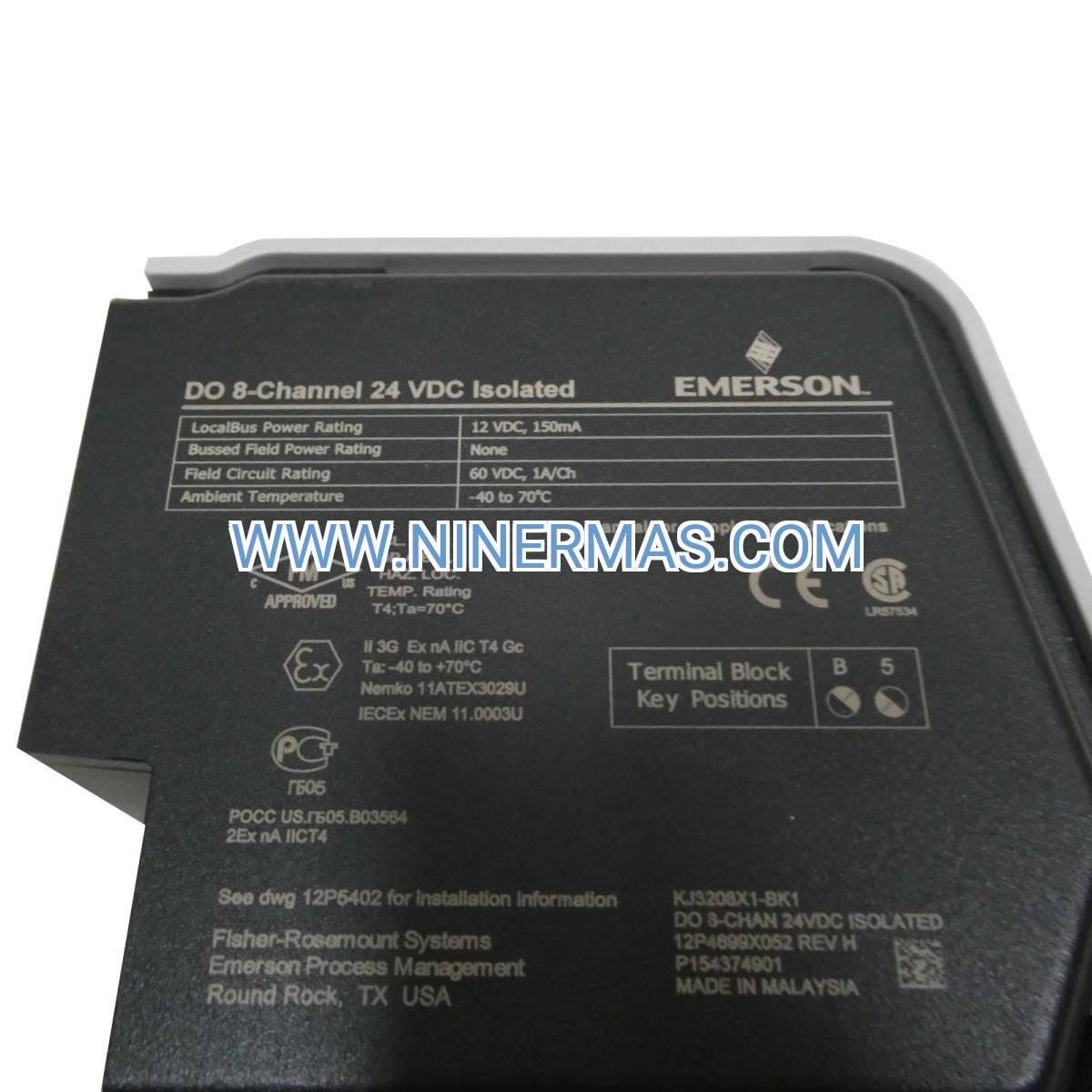

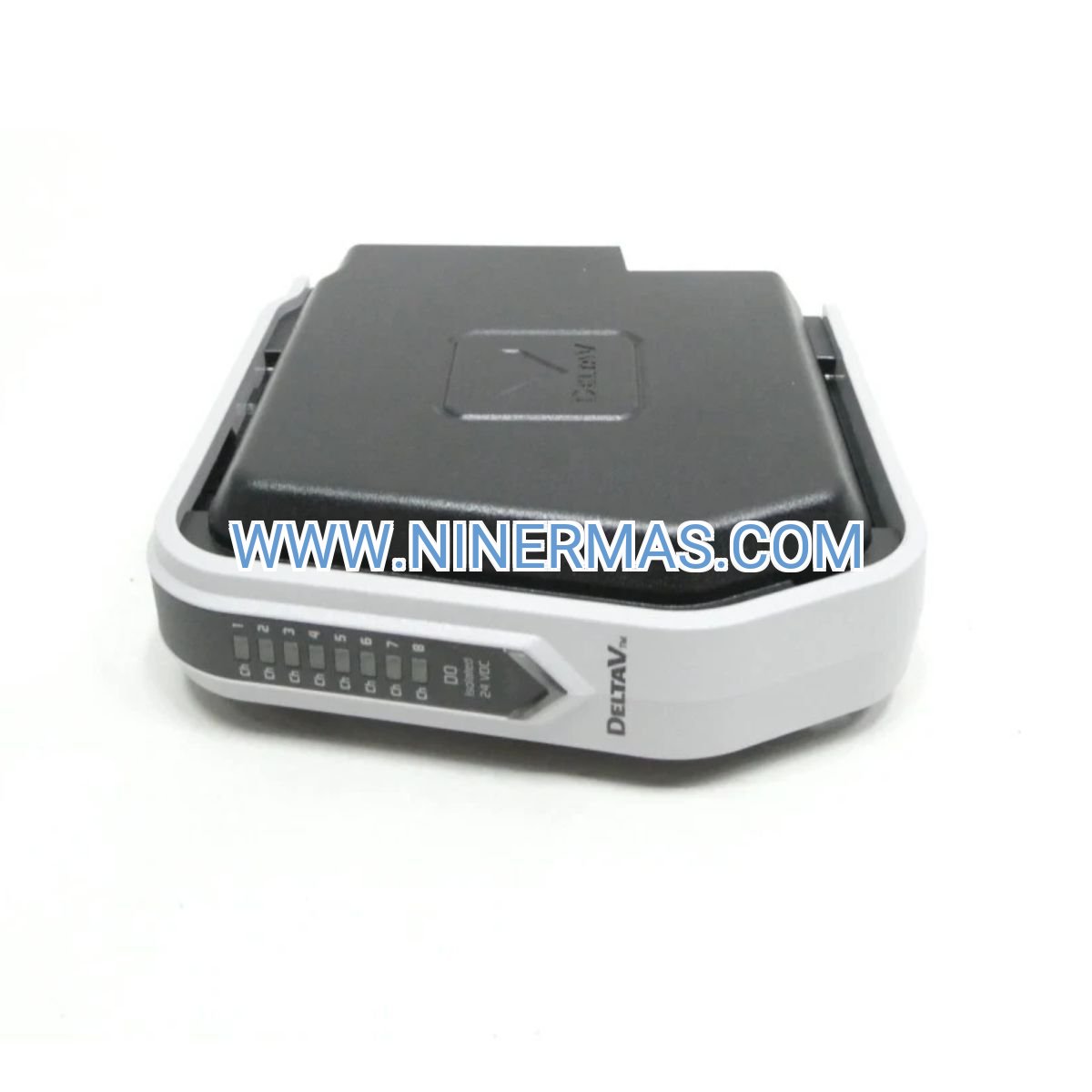

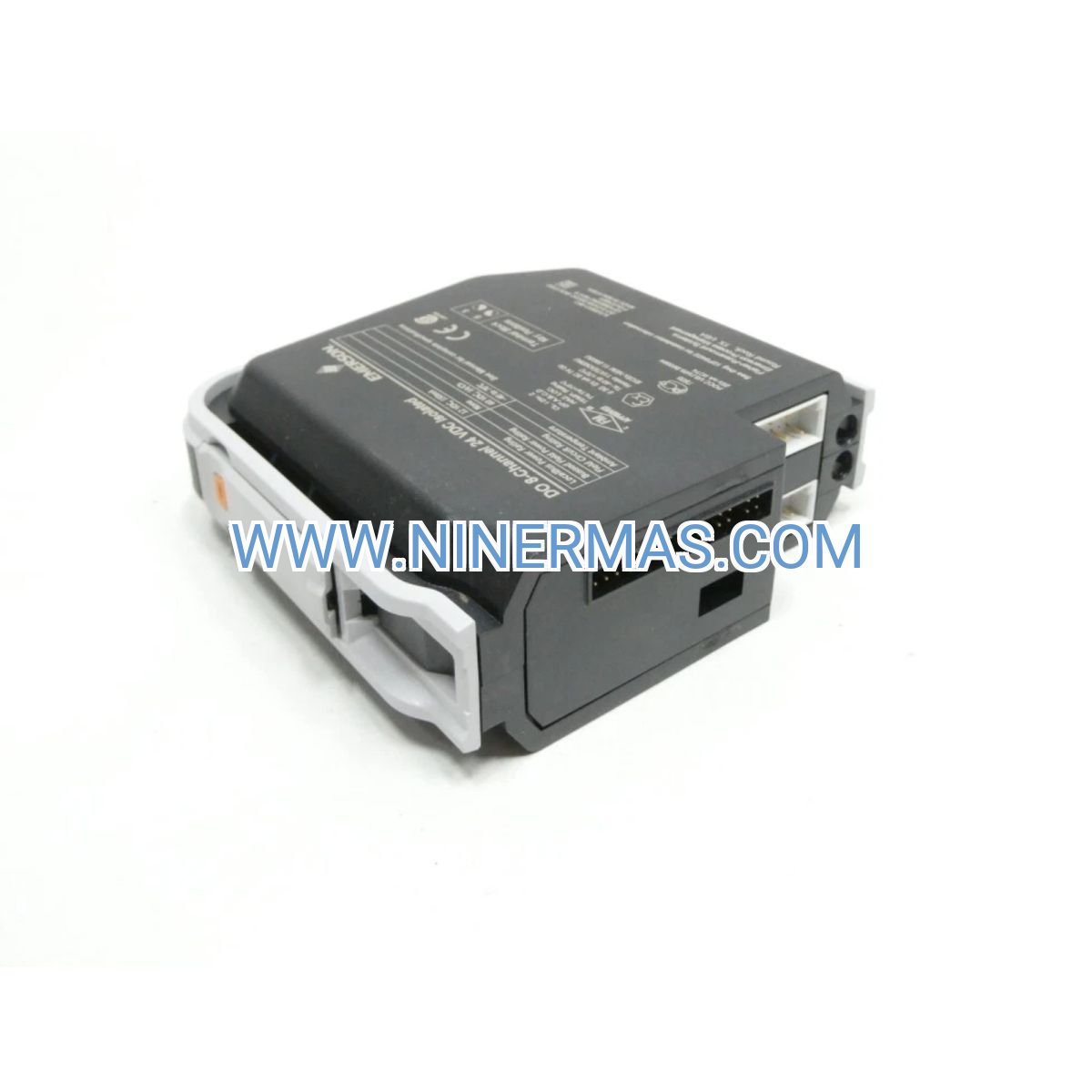

KJ3208X1-BK1 Digital Output Module (Industrial-Grade 8-Channel Isolated Controller)

The KJ3208X1-BK1 represents a field-proven digital output solution engineered for demanding process automation environments. Designed as a core component within Emerson's DeltaV S-Series architecture, this 8-channel isolated output card delivers precise on/off control for actuators, valves, and motor starters across pharmaceutical, chemical, and energy sectors. Built with galvanic isolation technology, it eliminates cross-channel interference while maintaining continuous operation in electrically harsh industrial settings.

Process engineers and automation specialists rely on this module to interface DeltaV controllers with field devices requiring 24 VDC switching signals. Whether managing batch reactor sequences, coordinating packaging line actuators, or controlling utility distribution systems, the KJ3208X1-BK1 provides the reliability and diagnostic intelligence modern facilities demand. Its hot-swappable design minimizes downtime during maintenance, while built-in fault detection ensures early warning of wiring issues or load failures.

With certifications meeting IEC 61508 SIL 2 standards and conformal coating for corrosive atmospheres, this output card bridges the gap between control logic and physical processes. Each channel operates independently with current limiting and thermal protection, delivering consistent performance across temperature extremes from -40°C to +70°C.

Core Features & Technical Advantages

→ 8 Independently Isolated Output Channels
Each channel features 1500V isolation barrier preventing ground loop currents and electrical noise propagation between circuits, critical for multi-grounded industrial power systems.

→ High-Side Switching Architecture
Enables common-ground field wiring configurations that simplify installation and reduce troubleshooting complexity compared to low-side switching designs.

→ Intelligent Fault Diagnostics
Real-time monitoring detects open-load conditions, short-circuit events, and overcurrent situations with status reporting through DeltaV network for predictive maintenance.

→ 2A Per-Channel Current Capacity
Directly drives solenoid valves, pilot relays, and indicator lamps without external amplification, with 8A total card capacity for flexible load distribution.

✓ Rapid Response Performance
Sub-10ms switching speed ensures precise timing for sequential valve operations and synchronized actuator control in high-speed processes.

✓ Hot-Swappable Replacement
Field-replaceable during system operation without controller shutdown, reducing mean time to repair (MTTR) and maintaining production continuity.

Industrial Application Scenarios

Pharmaceutical Batch Processing
Controls automated valve sequencing in clean-in-place (CIP) systems and ingredient dosing operations. The isolated outputs prevent contamination of analog measurement circuits while the diagnostic features ensure FDA 21 CFR Part 11 compliance through comprehensive audit trails of valve state changes.

Chemical Reactor Safety Systems
Interfaces with emergency shutdown valves and nitrogen purge solenoids in SIL-rated safety instrumented systems. The card's SIL 2 certification and proven failure rate data support safety integrity level calculations for process hazard analysis.

Power Generation Auxiliary Control
Manages boiler feedwater pump starter circuits, damper actuators, and fuel valve controls in combined-cycle plants. The wide operating temperature range accommodates installation in non-climate-controlled equipment rooms near turbine halls.

Food & Beverage Packaging Lines
Drives pneumatic cylinder solenoids for product diverters, reject gates, and case erectors. The conformal coating protects against moisture and cleaning chemical exposure common in sanitary production environments.

Water Treatment SCADA Integration
Operates remote pump starters, chlorination system valves, and alarm annunciators across distributed lift stations. The module's surge suppression handles inductive kickback from long cable runs to field-mounted equipment.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ3208X1-BK1 when your application requires isolated outputs to prevent ground loop issues in systems with multiple earth reference points. For non-isolated high-density applications, consider the KJ3202X1-BK1 variant. If controlling AC loads or requiring higher current capacity, evaluate relay output modules or external contactors. Verify that your field devices operate within the 18-30 VDC range and draw less than 2A per channel.

Extended Functionality & Integration

DeltaV Network Integration: The module communicates via the S-Series backplane, automatically recognized by DeltaV controllers upon installation. Configuration occurs through DeltaV Explorer software with pre-built function blocks for output control, pulse generation, and time-proportional modulation.

Advanced Diagnostic Capabilities: Beyond basic fault detection, the card provides load current monitoring for predictive maintenance. Trending output current over time reveals degrading solenoid coils or valve actuators before complete failure, enabling condition-based replacement strategies.

Customization Options: Available with factory-configured channel grouping for redundant output pairs in critical applications. Custom labeling and color-coded terminal blocks can be specified for large projects to accelerate commissioning and reduce wiring errors.

IoT & Remote Monitoring: When integrated with DeltaV Mobile or AMS Device Manager, output status and diagnostic data become accessible via secure web interfaces for remote troubleshooting and performance analysis.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Bulk orders (10+ units) ship within 5-7 business days.

Custom Configuration: Factory-programmed or labeled units require 10-15 business days lead time depending on specification complexity.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares inventory.

Technical Support: Lifetime access to application engineering support via email and phone. On-site commissioning assistance available for large-scale deployments.

Documentation Package: Each unit ships with installation manual, wiring diagrams, DeltaV configuration templates, and dimensional drawings. Compliance certificates (CE, UL) provided upon request.

Frequently Asked Questions

How does the KJ3208X1-BK1 connect to existing DeltaV S-Series controllers?
The card installs directly into available slots on DeltaV S-Series I/O carriers via the backplane connector. No external wiring between card and controller is required—only field device connections to the terminal blocks. The system automatically detects the card upon power-up.

What is the maximum cable length for connecting field devices to this output module?
For 24 VDC loads, cable runs up to 300 meters are supported using 18 AWG wire, though voltage drop calculations should account for load current and wire resistance. Shielded cable is recommended in electrically noisy environments to maintain signal integrity.

Can this digital output card reduce energy consumption in my automation system?
While the card itself draws only 5W, its intelligent diagnostics help identify stuck-open valves or continuously energized solenoids that waste compressed air or hydraulic fluid. Detecting these faults early can reduce utility costs by 15-20% in pneumatic systems.

What are the physical installation requirements for the KJ3208X1-BK1 in control cabinets?
The module requires no special mounting beyond standard DeltaV S-Series carrier installation. Ensure adequate ventilation with 50mm clearance above and below the carrier for convection cooling. Ambient temperature must remain within -40°C to +70°C range.

Does the isolated output design support remote monitoring and predictive maintenance strategies?
Yes—the card's diagnostic data integrates with DeltaV's asset management system, enabling trend analysis of output current, fault frequency, and thermal conditions. This data feeds predictive algorithms that forecast component degradation 30-60 days before failure.

How quickly can I replace a failed KJ3208X1-BK1 module during production operations?
The hot-swappable design allows replacement in under 2 minutes without system shutdown. Simply remove the failed card, insert the replacement, and the controller automatically resumes control. Configuration downloads from the controller to the new card within 10 seconds.

Request Technical Consultation

Our automation specialists are ready to assist with system design, compatibility verification, and application-specific configuration. Contact us for detailed wiring diagrams, DeltaV integration guides, or bulk pricing for project deployments.
