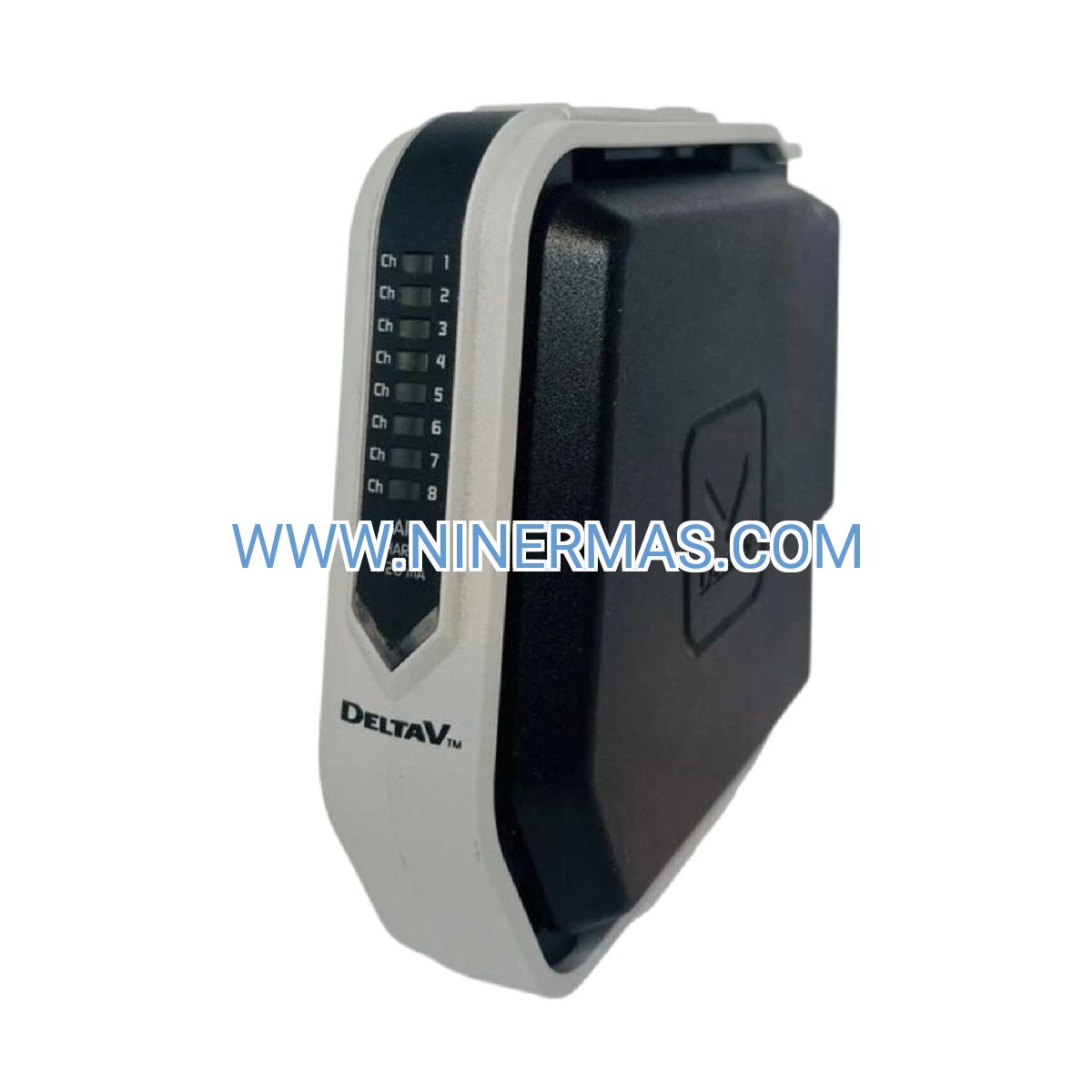

KJ3206X1-BK1 Digital Input Card (Industrial-Grade Isolated I/O)

The KJ3206X1-BK1 delivers enterprise-class signal acquisition for DeltaV distributed control systems. Engineered with eight galvanically isolated 24VDC input channels, this S-Series module safeguards automation infrastructure from electrical transients, ground loops, and cross-channel interference—critical for maintaining uptime in process manufacturing, utilities, and heavy industry.

Designed for system integrators and plant engineers managing complex discrete device networks, the KJ3206X1-BK1 bridges field instrumentation to DeltaV controllers with deterministic response times and comprehensive diagnostics. Its hot-swappable architecture minimizes maintenance windows while channel-level isolation ensures fault containment across distributed installations.

Whether monitoring safety interlocks in pharmaceutical batch reactors, tracking valve positions in refinery units, or capturing alarm states in power distribution systems, this input card combines rugged construction with intelligent signal conditioning to deliver reliable data acquisition in the harshest industrial environments.

Core Features & Benefits

→ Galvanic Isolation Technology
Optical isolation barriers rated to 1500 VAC on every channel eliminate ground potential differences between field devices and control systems. This architecture prevents fault propagation, protects sensitive electronics from voltage spikes, and maintains signal integrity across installations spanning hundreds of meters—reducing nuisance trips by up to 40% in electrically noisy environments.

→ Intelligent Debounce Filtering
Programmable input conditioning suppresses contact bounce from mechanical switches and relay chatter, delivering clean state transitions to control logic. Configurable time constants (1-100ms) adapt to specific device characteristics, cutting false alarm rates while preserving fast response for critical safety circuits.

→ Real-Time Diagnostic Monitoring
Built-in channel health detection identifies open circuits, short circuits, and out-of-range voltages before they impact production. Per-channel LED indicators combined with DeltaV system-level diagnostics accelerate troubleshooting, slashing mean time to repair (MTTR) from hours to minutes during unplanned outages.

✓ Hot-Swap Capability
Replace or add cards during live operation without halting adjacent I/O or disrupting controller communication. This feature enables preventive maintenance during production runs, maximizing asset utilization in continuous process industries where downtime costs exceed $10,000 per hour.

✓ Wide Operating Range
Certified for -40°C to +70°C ambient temperatures with conformal coating options for corrosive atmospheres. Meets ATEX Zone 2, IECEx, and Class I Division 2 hazardous location requirements—ideal for offshore platforms, chemical plants, and mining operations.

✓ Low Power Consumption
Draws less than 3W from the carrier backplane, reducing thermal load in densely populated I/O racks and lowering cooling infrastructure costs in large-scale DCS deployments with 500+ I/O points.

Typical Application Scenarios

Safety Instrumented Systems (SIS)
Monitor emergency shutdown (ESD) pushbuttons, flame detector contacts, and protective relay outputs in SIL 2/3 safety loops. Channel isolation ensures independent failure modes required by IEC 61511 functional safety standards, while diagnostic coverage exceeds 95% for proof test optimization.

Rotating Equipment Monitoring
Capture vibration switch trips, bearing temperature alarms, and motor overload contacts from pumps, compressors, and turbines. The card's 10ms response time detects transient faults before catastrophic failures, protecting assets valued at $500K+ per unit.

Batch Process Control
Interface with limit switches on automated valves, agitator run confirmations, and level switch inputs in pharmaceutical and food/beverage manufacturing. Isolated inputs prevent cross-contamination of control signals in multi-product facilities requiring strict recipe segregation.

Utility & Power Generation
Track breaker status, transformer fault relays, and generator protection contacts in substations and combined-cycle plants. The card's extended temperature rating and EMI immunity ensure reliable operation in high-voltage switchgear environments with intense electromagnetic fields.

Material Handling Systems
Monitor conveyor interlocks, bin level sensors, and equipment permissive switches in mining, cement, and bulk chemical handling. Rugged construction withstands vibration and dust ingress common in heavy industrial settings.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ3206X1-BK1 when interfacing 24VDC discrete devices requiring channel-to-channel isolation. For dry contact inputs (voltage-free switches), consider the KJ3201X1-BA1 32-channel card. For higher density non-isolated applications, the VE4001S2T2B5 offers 32 channels in the same footprint. Verify compatibility with your DeltaV controller firmware version (minimum v11.3 recommended).

Extended Functions

Redundancy Support: Deploy in redundant I/O configurations using dual carrier modules for fault-tolerant architectures in critical control loops. Automatic failover occurs within 100ms, maintaining process continuity during card failures.

Sequence-of-Events (SOE) Recording: When paired with DeltaV SOE-enabled controllers, the card timestamps input transitions with 1ms resolution—essential for post-incident analysis in power systems and safety investigations.

Cybersecurity Integration: Operates within DeltaV's secure-by-design architecture, supporting role-based access control, encrypted FieldBus communication, and audit logging compliant with NERC CIP and IEC 62443 industrial cybersecurity standards.

Custom Configuration Profiles: Save and replicate input filter settings, alarm thresholds, and diagnostic parameters across multiple cards using DeltaV Bulk Edit tools—reducing commissioning time by 60% in large projects with standardized I/O requirements.

Delivery & Service Assurance

Lead Time: In-stock items ship within 24-48 hours. Custom configurations or large quantity orders (20+ units) typically require 5-7 business days for quality verification and programming.

Warranty: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options available for critical spares programs.

Technical Support: Access to application engineers with DeltaV certification for pre-sales sizing, post-installation troubleshooting, and integration guidance. Remote diagnostic support available via secure VPN connections.

Documentation Package: Each shipment includes product datasheet, installation quick-start guide, wiring diagrams, and DeltaV configuration templates. Full technical manuals and 3D CAD models available for download.

Frequently Asked Questions

Q: Can the KJ3206X1-BK1 interface with 12VDC or 48VDC field devices?
A: The card accepts 18-30 VDC inputs. For 12VDC devices, use external signal conditioning or consider the KJ3201X1-BA1 which supports 10-15 VDC logic levels. 48VDC sources require voltage divider networks to stay within the 30 VDC maximum rating.

Q: What carrier modules are compatible with this digital input card?
A: The KJ3206X1-BK1 mounts in DeltaV S-Series carriers including KL4104X1-BA1 (dual universal), KL4002X1-BA1 (single universal), and KL4204X1-BA1 (quad universal). Verify carrier firmware compatibility with your DeltaV system version.

Q: How does channel isolation improve system reliability compared to non-isolated cards?
A: Isolation prevents ground loop currents that cause erratic readings in distributed installations. A single ground fault on a non-isolated card can corrupt all channels; isolated designs contain faults to individual channels, maintaining 87.5% I/O availability even during wiring failures.

Q: What is the maximum cable length for field device connections?
A: Shielded twisted-pair cable supports runs up to 300 meters (1000 feet) for 24VDC signals. Beyond 100 meters, use low-capacitance cable (<100 pF/m) and verify voltage drop remains below 2V at maximum input current to ensure reliable logic level detection.

Q: Does the card support remote I/O configurations over Ethernet?
A: Yes, when installed in DeltaV S-Series CHARacterization Modules (CHARM) with Ethernet interface cards. This enables distributed I/O placement up to 100 meters from the controller cabinet, reducing field wiring costs in large facilities.

Q: Can I replace this card without downloading the DeltaV control strategy?
A: Yes, the hot-swap feature allows online replacement. The new card auto-configures from the controller's database within 30 seconds. For redundant systems, swap one card at a time to maintain continuous I/O operation.

Ready to Upgrade Your DeltaV I/O Infrastructure?

Contact our automation specialists for application-specific recommendations, volume pricing, or technical integration support. We provide same-day quotes and can expedite critical spares shipments to minimize your process downtime.
