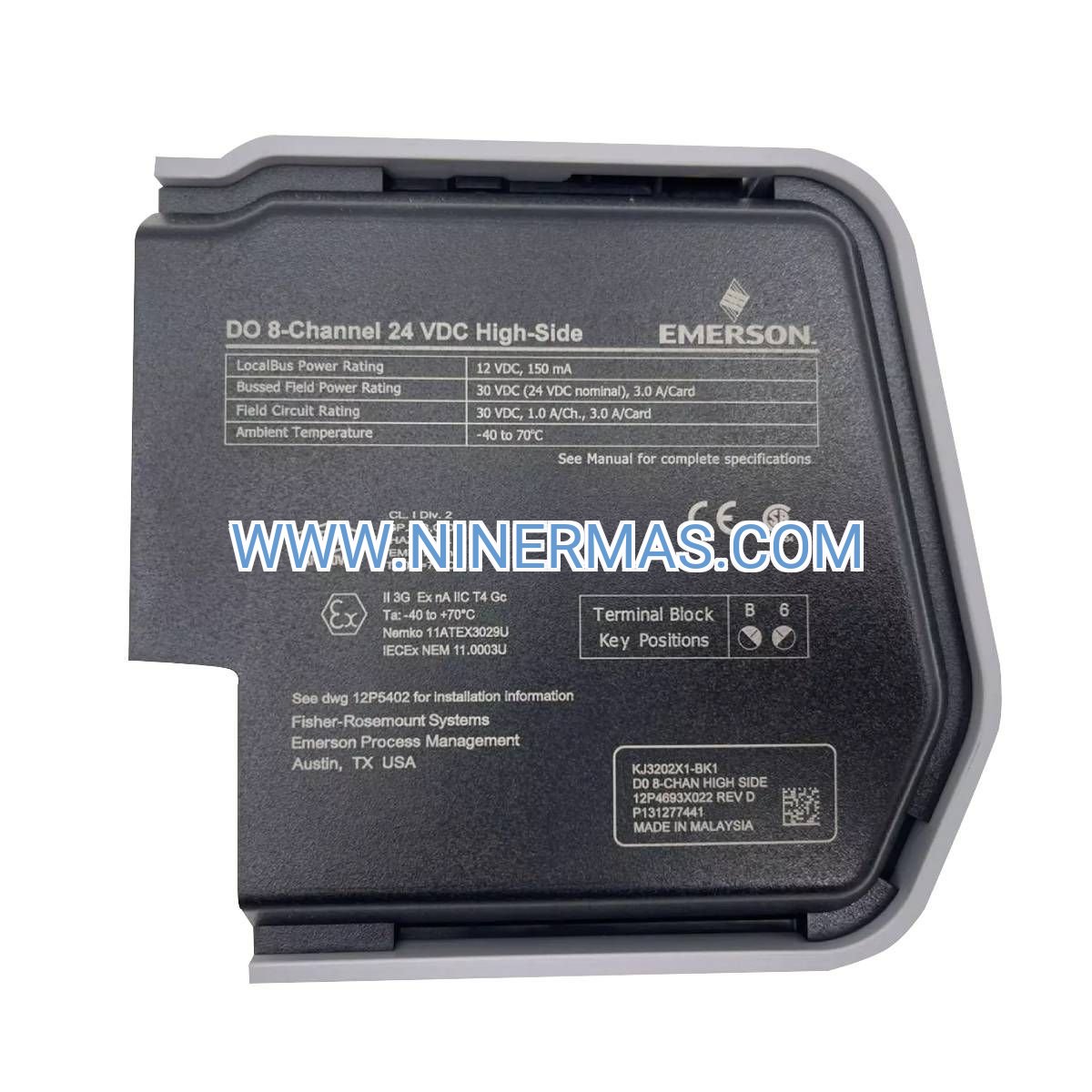

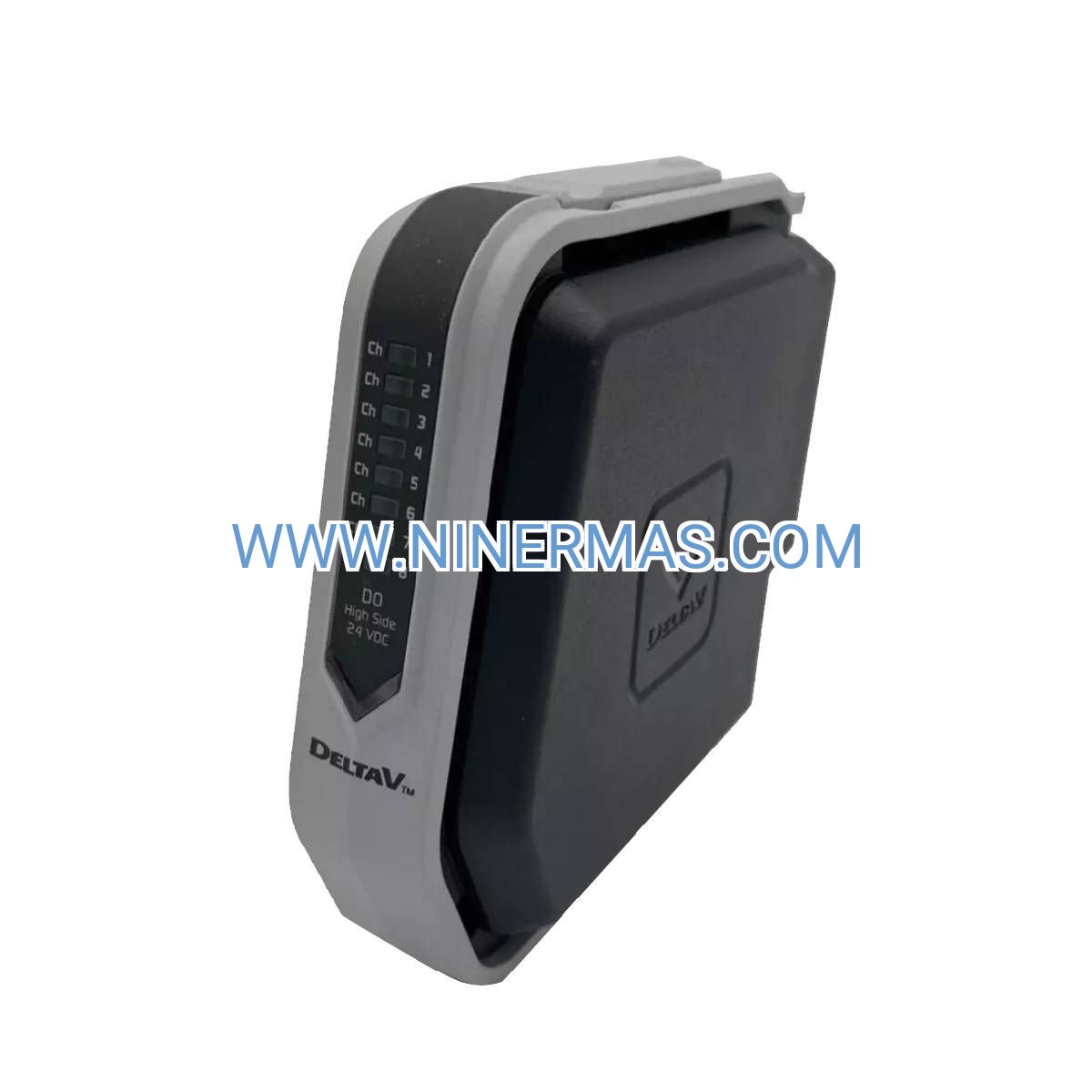

KJ3202X1-BK1 Digital Output Card (Industrial-Grade 24VDC Control Solution)

The KJ3202X1-BK1 represents a high-performance digital output solution engineered specifically for Emerson's DeltaV S-Series distributed control architecture. This 8-channel 24VDC high-side switching module delivers dependable control signals to solenoid valves, motor contactors, actuators, and alarm devices across process manufacturing, oil & gas, power generation, and water treatment facilities. With 2-ampere continuous current capacity per channel, hot-swap serviceability, and intelligent fault diagnostics, this I/O card minimizes downtime while maximizing operational reliability in demanding industrial environments.

Designed for engineers and automation professionals managing complex process control systems, the KJ3202X1-BK1 addresses critical challenges including unplanned maintenance outages, inadequate load handling capacity, and insufficient diagnostic visibility. Its field-proven architecture combines robust electrical isolation, comprehensive status monitoring, and seamless DeltaV integration to deliver a control solution that enhances both system availability and troubleshooting efficiency.

Key advantages include online module replacement without process interruption, real-time channel-level diagnostics with short-circuit and open-load detection, wide operating temperature range (-40°C to +70°C), and global safety certifications (CE, UL, ATEX, IECEx) for hazardous area deployment. Whether you're upgrading legacy I/O infrastructure or designing new automation systems, the KJ3202X1-BK1 provides the performance, reliability, and flexibility required for mission-critical industrial applications.

Core Features & Technical Advantages

→ 8 Independent High-Side Outputs
Each channel provides isolated 24VDC sourcing output with 2A continuous rating, enabling direct control of high-current loads including large solenoid valves and motor starters without external relay interfaces.

→ Hot-Swap Architecture
Replace failed or suspect modules during live operation without halting production processes, reducing mean time to repair (MTTR) by up to 75% compared to traditional fixed-installation I/O systems.

→ Advanced Diagnostic Intelligence
Built-in monitoring detects short-circuit faults, open-load conditions, and over-current events with millisecond response times, transmitting detailed status information to DeltaV controllers for predictive maintenance and rapid fault isolation.

✓ Multi-Layer Electrical Isolation
Channel-to-channel and channel-to-logic isolation protects control circuitry from field-side electrical noise, ground loops, and transient voltage spikes common in industrial power distribution systems.

✓ Extended Environmental Ratings
Operates reliably across -40°C to +70°C ambient temperature range with conformal coating protection against moisture, dust, and corrosive atmospheres typical of chemical processing and offshore installations.

✓ Proven Reliability Metrics
Mean time between failures (MTBF) exceeding 100,000 hours based on field deployment data, reducing spare parts inventory requirements and lifecycle ownership costs.

Industrial Application Scenarios

Chemical Batch Processing
Controls ingredient addition valves, transfer pumps, and agitator motors in pharmaceutical and specialty chemical manufacturing. Diagnostic capabilities identify valve coil failures before batch quality is compromised, while hot-swap functionality enables maintenance during campaign transitions without production loss.

Oil & Gas Production Facilities
Manages wellhead control valves, separator dump valves, and compressor anti-surge systems in upstream operations. Hazardous area certifications permit installation in Zone 2/Division 2 locations, while robust isolation withstands electrical noise from variable frequency drives and high-voltage switchgear.

Power Generation & Utilities
Operates boiler feedwater control valves, turbine trip systems, and auxiliary cooling equipment in combined-cycle and cogeneration plants. High current capacity eliminates need for interposing relays, simplifying panel layouts and reducing potential failure points.

Water & Wastewater Treatment
Drives chemical dosing pumps, clarifier rake mechanisms, and filter backwash valves in municipal treatment facilities. Open-load detection identifies broken valve actuator wiring before process upsets occur, supporting regulatory compliance and environmental protection.

Food & Beverage Manufacturing
Sequences CIP (clean-in-place) valve manifolds, filler machine actuators, and pasteurizer controls in dairy, brewing, and packaged goods production. Stainless steel compatible terminal blocks and conformal coating meet sanitary design requirements for washdown environments.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the KJ3202X1-BK1 when your application requires high-side (sourcing) outputs for controlling grounded loads. For low-side (sinking) applications or higher channel density requirements, consult our DeltaV I/O portfolio for alternative modules. Verify that connected load current does not exceed 2A per channel; for higher current demands, specify external contactors or solid-state relays. Confirm compatibility with DeltaV S-Series carriers (M3, M5) and controller firmware versions.

Extended Capabilities & System Integration

DeltaV Ecosystem Compatibility
Seamless integration with DeltaV controllers, workstations, and engineering tools. Automatic module recognition via electronic keying eliminates manual configuration errors. Supports FOUNDATION Fieldbus HSE and standard Ethernet communication protocols for distributed I/O architectures.

Redundancy Support
Deploy in redundant I/O configurations for critical control loops requiring fault-tolerant operation. Automatic switchover maintains output states during controller or network failures, ensuring continuous process control without operator intervention.

Remote Monitoring & Predictive Maintenance
Integrate with DeltaV Asset Management Suite to track module health metrics, diagnostic event histories, and performance trends. Predictive algorithms identify degrading channels before failures occur, enabling condition-based maintenance scheduling.

Third-Party Device Connectivity
Interface with non-DeltaV equipment including PLCs, motor drives, and safety systems via hardwired discrete signals. Supports integration with legacy control systems during phased migration projects.

Delivery, Warranty & Technical Support

Lead Times: Standard stock items ship within 1-3 business days via express courier services. Custom configurations or bulk orders may require 2-4 weeks; contact our sales team for project-specific delivery schedules and expedited shipping options.

Warranty Coverage: All KJ3202X1-BK1 modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs (24/36 months) available for critical applications requiring enhanced protection.

Technical Assistance: Our certified DeltaV specialists provide installation guidance, configuration support, and troubleshooting assistance throughout the product lifecycle. Services include pre-sales application engineering, startup commissioning support, and 24/7 emergency technical hotline access.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and safety certifications. Complete technical documentation available for download including CAD models, IODD files, and integration guides.

Frequently Asked Questions

What is the maximum wire gauge supported by the terminal blocks?
The removable terminal blocks accept 12-24 AWG (0.25-2.5mm²) solid or stranded copper conductors. Ferrule terminations recommended for stranded wire to ensure reliable connections in high-vibration environments.

Can this module control AC-powered solenoid valves?
No, the KJ3202X1-BK1 is designed exclusively for 24VDC loads. For AC valve control applications, consider solid-state relay interfaces or specify AC-rated digital output modules from the DeltaV I/O family.

How does the hot-swap feature work during module replacement?
The DeltaV carrier provides continuous power and communication to adjacent modules while you remove and install the replacement card. Output states transfer automatically upon insertion, with typical switchover times under 2 seconds. No controller programming changes required.

What diagnostic information is available to operators?
DeltaV operator displays show real-time channel status including output state (on/off), fault conditions (short/open), current draw, and accumulated operating hours. Alarm notifications trigger automatically when diagnostic thresholds are exceeded.

Is the module suitable for SIL-rated safety applications?
The KJ3202X1-BK1 is a standard process I/O module not certified for safety instrumented functions. For SIL 2/3 applications, specify Emerson's DeltaV SIS (Safety Instrumented System) I/O modules designed to IEC 61508 requirements.

What energy efficiency benefits does this module provide?
Solid-state switching eliminates mechanical relay coil power consumption, reducing module power dissipation by approximately 60% compared to electromechanical output cards. Lower heat generation improves cabinet thermal management and extends component lifespan.

Get Started with Your Automation Project

Ready to enhance your DeltaV system reliability and reduce maintenance costs? Our application engineers are available to discuss your specific control requirements, recommend optimal I/O configurations, and provide detailed quotations. Contact us today for technical specifications, pricing information, or to request evaluation units for your next project.
