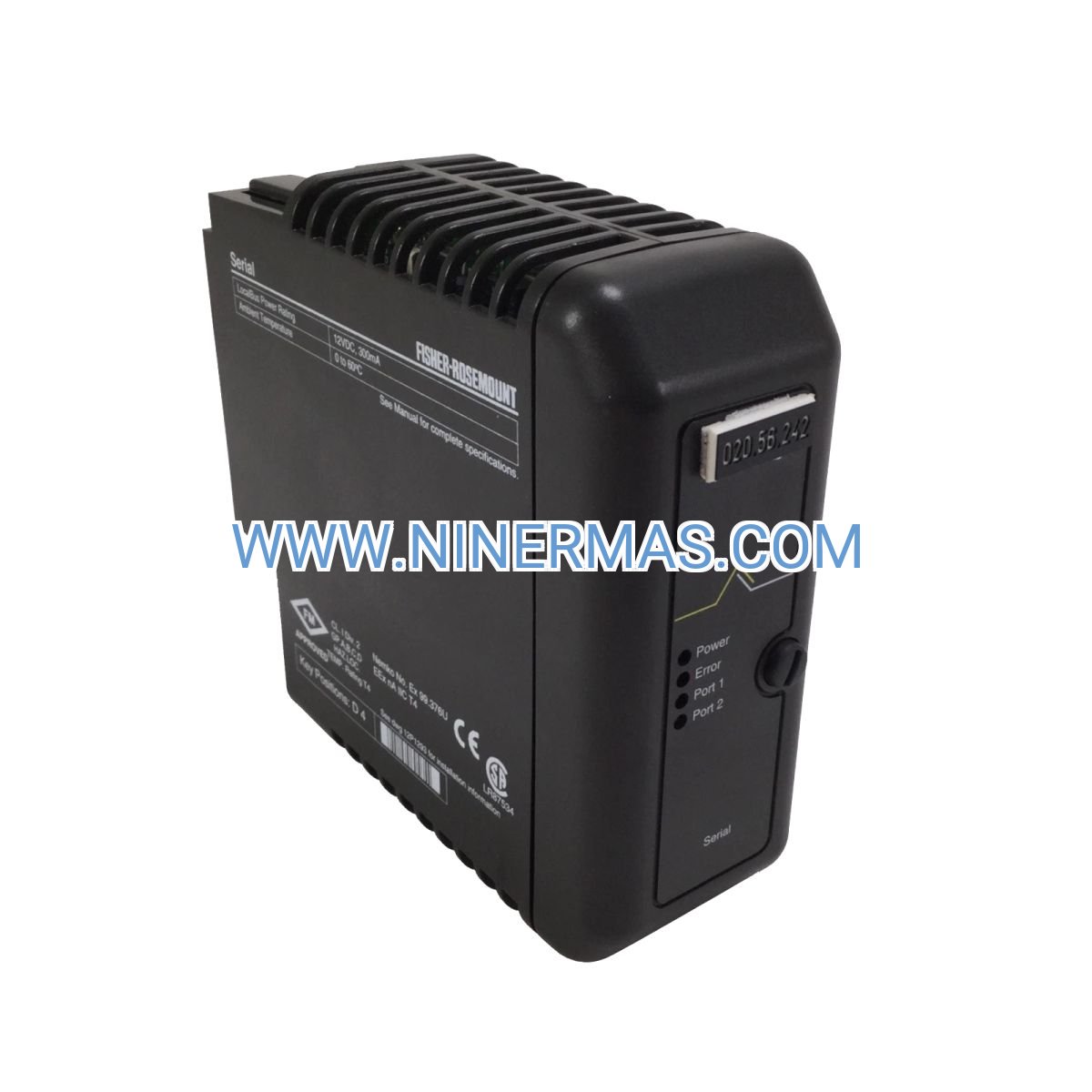

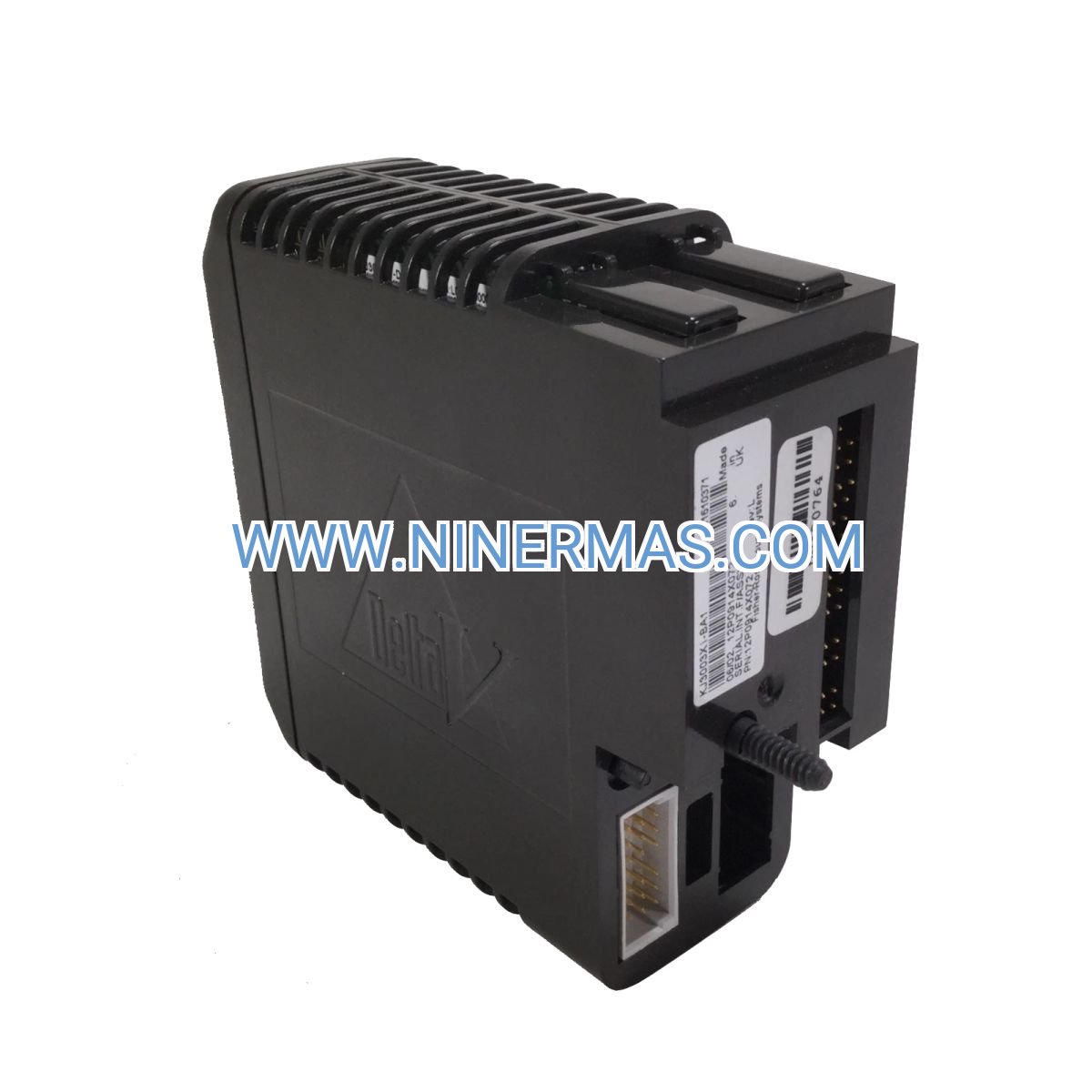

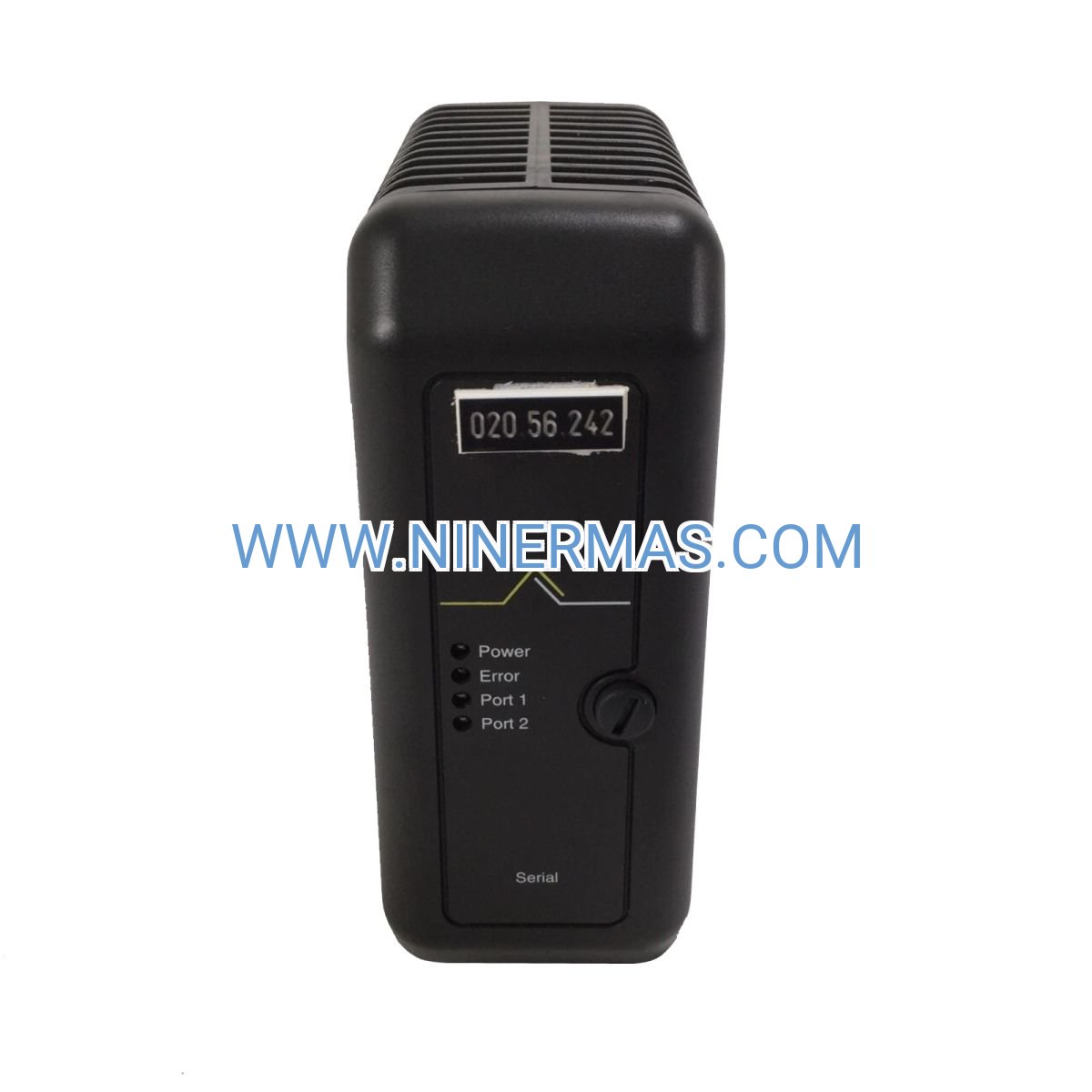

KJ3003X1-BA1 Serial Communication Module (Industrial-Grade DeltaV Integration)

The KJ3003X1-BA1 represents a field-proven serial communication solution engineered specifically for Emerson DeltaV distributed control architectures. This interface module establishes reliable data exchange between DeltaV controllers and external serial devices—including legacy SCADA systems, Modbus RTU instruments, analytical equipment, and proprietary industrial protocols—through dual-mode RS-232/RS-485 physical layers.

Designed for mission-critical process industries where communication integrity directly impacts operational safety and production efficiency, this card delivers galvanically isolated serial channels with comprehensive protocol flexibility. Plant engineers leverage the KJ3003X1-BA1 to eliminate costly protocol converters while maintaining full DeltaV ecosystem integration.

Whether you're retrofitting existing automation infrastructure or deploying greenfield DeltaV installations, this serial interface card provides the connectivity foundation for heterogeneous device networks. Factory-calibrated and certified for hazardous area deployment, it reduces commissioning time while ensuring long-term reliability in demanding industrial environments.

Technical Specifications & Performance Characteristics

Selection Criteria for Serial Communication Needs

✓ Choose RS-232 mode when connecting single devices within 15 meters (analytical instruments, local HMIs, barcode scanners)
✓ Deploy RS-485 configuration for multi-drop networks up to 1200 meters with 32 slave devices (Modbus flowmeters, VFDs, remote I/O)
✓ Verify protocol compatibility using DeltaV Control Studio's serial function block library before procurement
✓ Consider redundant pairs for critical communication links requiring automatic failover capability

Core Capabilities & Business Value

→ Multi-Protocol Flexibility: Native support for Modbus RTU/ASCII eliminates third-party gateways, while custom protocol implementation through DeltaV function blocks accommodates proprietary device communication—reducing integration costs by 40-60% compared to external converter solutions.

→ Electrical Isolation Protection: 1500 VDC galvanic isolation prevents ground loop currents and voltage transients from propagating between field devices and DeltaV control networks, protecting expensive controller hardware and ensuring data integrity in electrically noisy industrial environments.

→ Hot-Swap Serviceability: Field-replaceable design with automatic hardware recognition allows maintenance during live operations—critical for continuous process industries where unplanned downtime costs $10,000-$50,000 per hour in lost production.

→ Diagnostic Intelligence: Onboard LEDs provide real-time TX/RX activity, fault status, and link health indicators, while integration with DeltaV AMS Device Manager enables remote troubleshooting and performance trending without site visits.

→ Hazardous Area Certification: ATEX Zone 2 and IECEx approvals permit installation in classified locations (oil & gas, chemical processing) without costly explosion-proof enclosures, simplifying compliance and reducing installation expenses.

→ Surge Hardening: ±15 kV ESD immunity and transient voltage suppression protect against lightning-induced surges and switching transients common in outdoor installations and high-voltage industrial facilities.

Industry Application Scenarios

Chemical Manufacturing – Analytical Instrument Integration
Connect gas chromatographs, mass spectrometers, and NIR analyzers outputting serial data streams to DeltaV batch management systems. Automate sample sequencing, calibration verification, and out-of-spec alarm generation. Eliminates manual data transcription errors and accelerates quality control workflows by 70%.

Oil & Gas Production – Legacy RTU Modernization
Interface aging remote terminal units and PLC networks with modern DeltaV SCADA platforms without replacing functional field equipment. Preserve decades of operational knowledge embedded in existing control logic while gaining centralized visualization and advanced analytics capabilities. Typical ROI achieved within 18 months through avoided capital expenditure.

Water Treatment – Modbus Device Aggregation
Aggregate data from distributed Modbus RTU flowmeters, chlorine analyzers, turbidity sensors, and pump VFDs into unified DeltaV operator interfaces. Multi-drop RS-485 topology reduces wiring costs by 60% compared to individual 4-20mA loops while enabling bidirectional control and advanced diagnostics.

Pharmaceutical Production – Batch Traceability
Integrate industrial barcode scanners and RFID readers with DeltaV batch execution systems for real-time material tracking and electronic batch records. Ensures 21 CFR Part 11 compliance through automated genealogy documentation and eliminates manual logbook entries prone to human error.

Power Generation – Turbine Monitoring Systems
Bridge proprietary turbine control systems and vibration monitoring equipment to DeltaV plant-wide control networks. Enables predictive maintenance strategies by correlating operational parameters with equipment health indicators, reducing unplanned outages by 35%.

Installation & Configuration Workflow

1. Hardware Mounting: Insert card into available slot on DeltaV S-series (VE4006P2) or M-series (VE4014, VE4022) carrier. Automatic hardware discovery occurs during controller boot sequence—no manual addressing required.

2. Physical Connections: Terminate RS-232 devices via DB9 connector or RS-485 networks to screw terminal blocks. Observe proper shield grounding and twisted-pair wiring practices per Emerson installation guidelines.

3. DeltaV Configuration: Launch Control Studio and drag pre-built serial communication function blocks into control modules. Configure baud rate, parity, device addresses, and polling intervals through graphical parameter forms—no custom coding required for standard protocols.

4. Protocol Mapping: Define data point mappings between serial device registers and DeltaV database parameters. Utilize built-in Modbus RTU templates for common device types or create custom parsing logic for proprietary protocols.

5. Validation Testing: Use DeltaV Diagnostics Viewer to monitor real-time TX/RX traffic, verify checksum integrity, and troubleshoot communication errors. Built-in protocol analyzers eliminate need for external test equipment during commissioning.

Advanced Integration Features

Redundant Controller Support: Operates seamlessly in DeltaV redundant controller pairs with automatic failover. Communication sessions transfer to backup controller within 2 seconds during primary controller failure, maintaining continuous data flow for critical process variables.

HART-over-Serial Passthrough: Enables HART device configuration and diagnostics through serial connections without dedicated HART multiplexers. Reduces hardware costs and simplifies asset management for mixed analog/digital field device populations.

Time Synchronization: Supports NTP and SNTP protocols for precise timestamp alignment across distributed serial devices. Critical for batch record integrity and sequence-of-events analysis in regulated industries.

Firmware Updateability: Field-upgradable firmware via DeltaV AMS Device Manager ensures long-term protocol compatibility as device manufacturers release updated communication specifications. Protects investment against obsolescence.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units | 4-6 weeks for factory-direct orders
Warranty Coverage: 12 months from shipment date covering manufacturing defects and component failures
Technical Support: Global application engineering assistance for protocol troubleshooting, configuration optimization, and integration planning
Documentation Package: Installation manual, wiring diagrams, DeltaV function block library, protocol specification sheets, test certificates

Extended warranty programs and on-site commissioning services available upon request. Contact our technical sales team for custom support agreements tailored to your project requirements.

Frequently Asked Questions

Q: Can the KJ3003X1-BA1 interface with non-Modbus serial devices?
A: Yes. While Modbus RTU/ASCII protocols are natively supported through pre-built DeltaV function blocks, you can implement custom serial protocols using DeltaV's flexible communication framework. Our application engineers provide protocol development support for proprietary device integration.

Q: What is the maximum number of Modbus slave devices supported per card?
A: RS-485 multi-drop configurations support up to 32 Modbus RTU slave devices per serial channel. Actual device count depends on polling frequency requirements and network response times. For networks exceeding 32 devices, deploy multiple interface cards or segment networks using Modbus repeaters.

Q: Does this module require external power supplies for RS-485 networks?
A: No external power needed. The card draws 3.5W from the DeltaV carrier backplane and provides sufficient drive capability for standard RS-485 networks up to 1200 meters. Passive devices on the serial bus must have independent power sources.

Q: Is the interface card compatible with DeltaV virtual controllers?
A: The KJ3003X1-BA1 requires physical DeltaV controller hardware (S-series or M-series carriers). For virtualized DeltaV environments, consider Ethernet-based serial device servers that connect to virtual controller networks via TCP/IP encapsulation.

Q: How do I verify communication performance after installation?
A: DeltaV Diagnostics Viewer provides real-time monitoring of message throughput, error rates, retry counts, and response times. Built-in protocol analyzers decode serial traffic for troubleshooting. Baseline performance metrics during commissioning and establish alarm thresholds for proactive maintenance.

Q: Can I use this card for safety-instrumented system (SIS) applications?
A: The KJ3003X1-BA1 is designed for process control applications, not safety-critical functions. For SIS communication requirements, consult Emerson's DeltaV SIS product line which offers certified safety-rated serial interfaces meeting IEC 61508 SIL requirements.

Upgrade Your DeltaV Communication Infrastructure

Eliminate protocol barriers between your DeltaV control system and essential field devices. The KJ3003X1-BA1 serial interface card delivers the connectivity foundation for integrated automation architectures—reducing engineering costs, accelerating commissioning schedules, and ensuring long-term operational reliability.

Ready to specify this module for your next project? Our technical sales team provides application-specific guidance including network topology design, protocol compatibility verification, and integration cost estimation. Contact us today for detailed technical discussions and project quotations.
