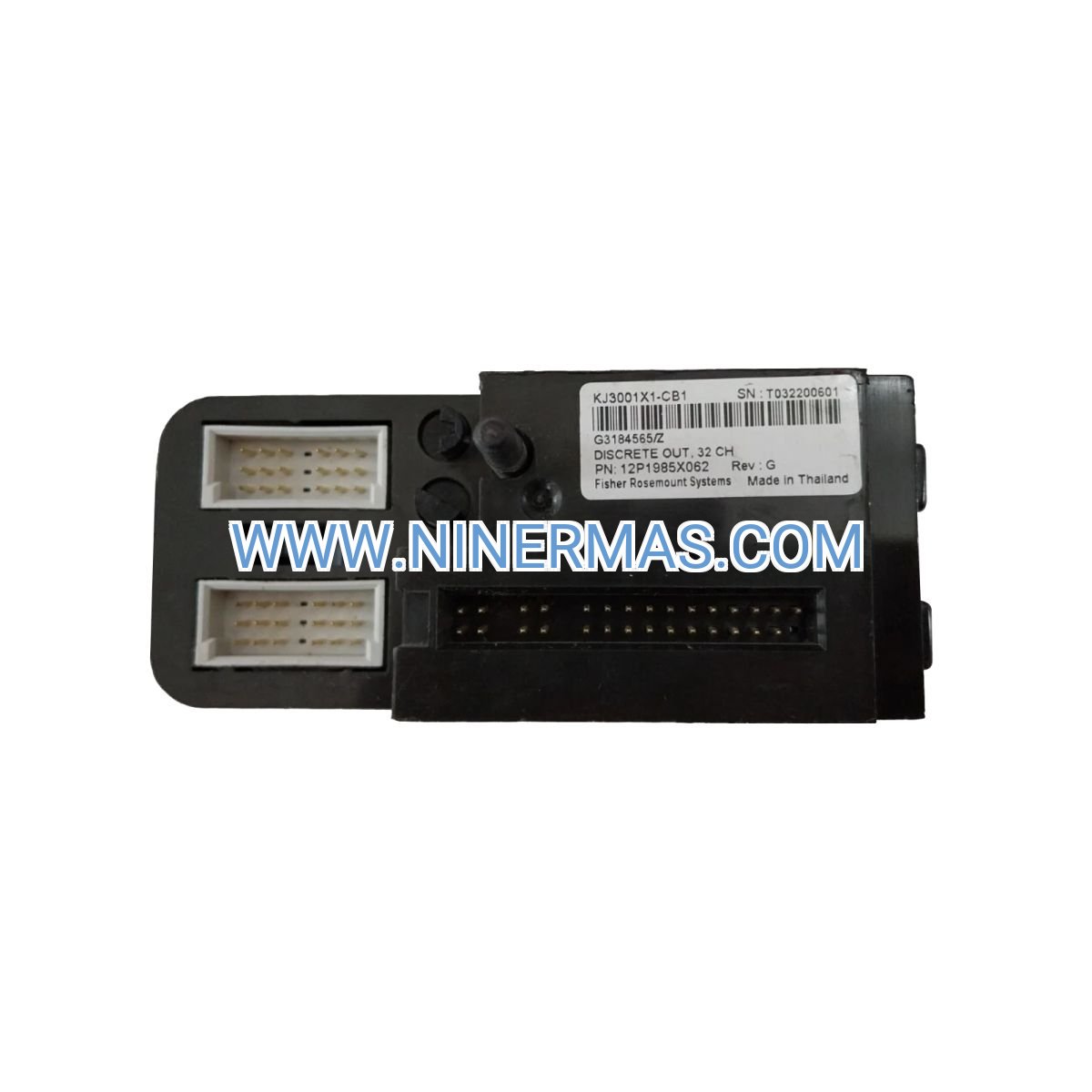

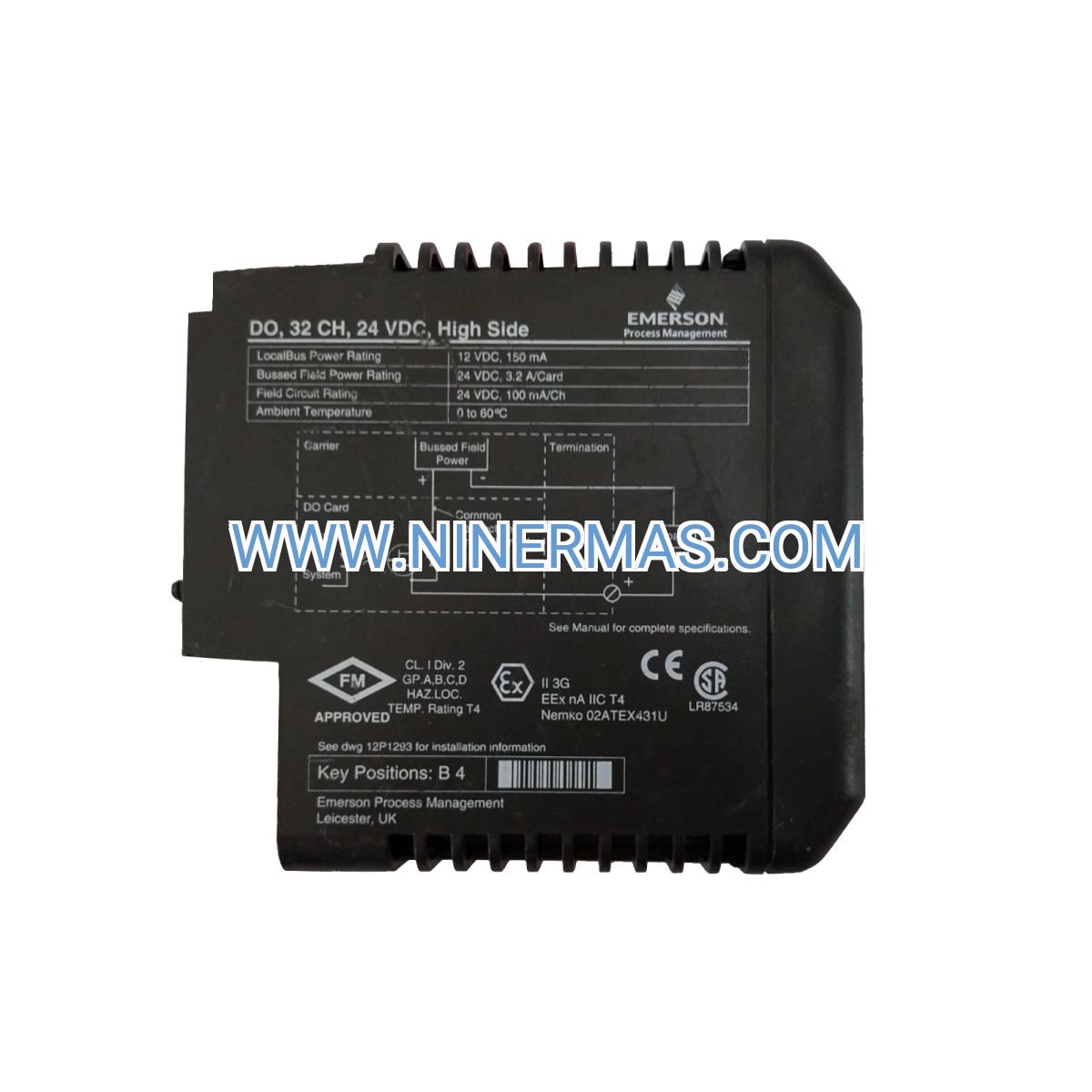

KJ3001X1-CB1 Digital Output Card (Industrial-Grade 32-Channel Discrete Controller)

The KJ3001X1-CB1 represents Emerson's proven solution for high-density discrete control in mission-critical DeltaV M-series installations. Engineered for solenoid valve actuation, motor starter interfacing, and alarm annunciator control, this 24VDC high-side switching module delivers 32 independent output channels with 100mA per-channel capacity—purpose-built for oil & gas, chemical processing, pharmaceutical manufacturing, and power generation environments demanding fail-safe field device control.

Process automation engineers rely on this card's positive voltage switching architecture to eliminate ground fault risks while maintaining electrical isolation between DCS logic and high-power field circuits. Hot-swap capability enables maintenance without system shutdown, while global hazardous area certifications (FM/CSA, ATEX, IECEx, DNV/ABS) ensure compliant deployment across classified industrial zones worldwide.

Whether you're upgrading legacy I/O infrastructure, expanding existing DeltaV systems, or commissioning new process control installations, the KJ3001X1-CB1 provides the reliability, safety features, and technical documentation required for regulatory compliance and long-term operational excellence. Contact our automation specialists for application engineering support and volume pricing.

Key Features & Industrial Benefits

→ High-Density Discrete Control: 32 independent output channels per card maximize cabinet space efficiency while reducing wiring complexity. Each channel supports up to 100mA continuous current—ideal for standard solenoid valve coils (50-80mA), indicator lamps (20-40mA), and relay coils (30-60mA). Total card capacity of 3.2A at 24VDC enables full simultaneous channel activation.

→ Fail-Safe High-Side Switching: Positive voltage switching topology ensures field devices default to de-energized state upon wire breaks, card failures, or power loss. This architecture prevents unintended device activation from ground faults—critical for safety instrumented systems (SIS) and emergency shutdown (ESD) applications where fail-safe operation is mandatory.

→ Hot-Swap Maintenance Capability: Replace cards during system operation without controller shutdown or process interruption. Field power isolation requirements and single-card-at-a-time procedures protect LocalBus communication integrity while enabling rapid fault recovery in 24/7 continuous process environments.

→ Global Hazardous Area Compliance: FM/CSA Class I Division 2 Groups A-D, ATEX Zone 2, IECEx international, and DNV/ABS marine certifications authorize installation in explosive atmosphere locations. Document 12P2046 provides complete Zone 2 installation instructions for European directive compliance.

→ Integrated Transient Protection: Internal flyback diodes on all 32 channels suppress inductive kickback from solenoid coils and relay coils during de-energization. This protection extends output transistor service life and prevents voltage spikes from propagating into DCS power distribution systems.

→ Terminal Block Keying System: B4 position rotary key prevents incorrect card insertion and ensures field wiring matches installed card type. This mechanical safeguard reduces commissioning errors, prevents field device damage, and accelerates troubleshooting during maintenance activities.

Typical Application Scenarios

Solenoid Valve Actuation in Process Automation
Control pneumatic actuators for block valves, control valves, and emergency shutdown (ESD) valves across refinery units, chemical reactors, and pipeline systems. The 24VDC high-side switching provides positive voltage to solenoid coils while maintaining fail-safe operation—valves automatically return to spring-return position upon power loss or control system failure, meeting API and IEC safety standards for process safety management (PSM).

Motor Starter Interfacing for Rotating Equipment
Drive 24VDC contactor coils for pumps, fans, compressors, and agitators in water treatment plants, HVAC systems, and batch manufacturing facilities. The 100mA per-channel output safely energizes standard motor starter coils while electrical isolation protects DCS electronics from high-power motor circuit transients, ground faults, and electromagnetic interference (EMI).

Alarm Annunciator Panel Control
Activate visual and audible alarm indicators in control rooms, field equipment shelters, and offshore platforms. Connect stack lights, horn relays, and panel-mounted indicator lamps to provide operators with immediate visual feedback on critical process conditions, equipment status, and alarm states requiring response—essential for operator situational awareness in complex multi-unit facilities.

Safety Interlock Logic Implementation
Execute permissive relay sequences preventing unsafe equipment operation. Control interlock relay coils that enforce start-up sequences, prevent simultaneous operation of incompatible equipment (e.g., inlet/outlet valves), and implement lockout/tagout (LOTO) requirements mandated by OSHA, ATEX, and other regulatory agencies governing industrial safety.

Pharmaceutical Batch Process Sequencing
Coordinate multi-step batch operations in FDA-regulated pharmaceutical, food & beverage, and specialty chemical manufacturing. Sequence valve openings, pump starts, material transfers, and cleaning-in-place (CIP) cycles according to validated recipes while maintaining complete 21 CFR Part 11 audit trails for regulatory compliance and quality assurance documentation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ3001X1-CB1 when your application requires high-density 24VDC discrete outputs with fail-safe high-side switching. Verify that field device current draw does not exceed 100mA per channel and total card load remains below 3.2A. For applications requiring higher current per channel (>100mA), consider using external relay interfaces or selecting alternative I/O cards with higher current ratings. Ensure compatibility with DeltaV M-series controllers and verify that your power supply meets KJ1501X1-BC1 specifications (Ui = 12.6VDC, Lo < 23µH including wire inductance).

Extended Functions & System Integration

DeltaV DCS Integration: Seamless integration with DeltaV M-series controllers via LocalBus communication. Configure channel assignments, diagnostic alarms, and output forcing through DeltaV Explorer software. Real-time channel status monitoring and fault diagnostics enable predictive maintenance and rapid troubleshooting.

IoT & Remote Monitoring: When integrated with DeltaV Edge Environment or third-party SCADA systems, output channel status and diagnostic data can be transmitted to cloud-based analytics platforms for remote monitoring, performance trending, and predictive maintenance algorithms. OPC UA and Modbus TCP connectivity options enable integration with enterprise MES and ERP systems.

Customization Options: Field wiring configurations can be customized for specific applications. Terminal block labeling, wire color coding, and documentation packages are available for large-scale projects. Contact our application engineering team for custom cable assemblies, pre-wired terminal blocks, and factory acceptance testing (FAT) services.

Delivery Timeline & Service Guarantee

✓ Standard Delivery: 3-5 business days for in-stock items to major industrial hubs (Houston, Singapore, Rotterdam, Shanghai). Expedited shipping available for urgent project requirements.

✓ Custom Orders: 2-3 weeks for factory-sealed units with custom labeling, pre-configuration, or FAT documentation. Lead times may vary based on Emerson production schedules.

✓ Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring long-term support.

✓ Technical Support: Lifetime application engineering support including wiring diagram review, power budget calculations, hot-swap procedures, and troubleshooting assistance. Access to Document 12P2046 (Zone 2 Installation Instructions) and complete DeltaV I/O installation manuals.

✓ Documentation Package: Product datasheet, installation manual, hazardous area certification documents, and wiring diagrams provided with every order. CAD drawings and 3D models available upon request for panel design integration.

Frequently Asked Questions

Q1: What is the maximum current rating per output channel on the KJ3001X1-CB1?
Each of the 32 output channels supports up to 100mA continuous current. This rating accommodates standard solenoid valve coils (50-80mA), indicator lamps (20-40mA), and relay coils (30-60mA). Total card power budget is 3.2A at 24VDC, allowing full simultaneous activation of all channels at maximum current.

Q2: Can I hot-swap the KJ3001X1-CB1 without shutting down the DeltaV system?
Yes, the card supports hot-swapping under strict safety conditions. Field power (24VDC) must be removed before card removal or insertion to prevent arcing and protect electronics. Only one card may be swapped at a time to maintain LocalBus communication integrity. Follow Document 12P2046 procedures for Zone 2 installations.

Q3: Which terminal block key position is required for the KJ3001X1-CB1?
The KJ3001X1-CB1 requires a terminal block with B4 key position. This rotary keying system ensures proper card-to-terminal-block matching, prevents incorrect card insertion, and verifies that field wiring corresponds to the installed card type—reducing commissioning errors and preventing field device damage.

Q4: Is the KJ3001X1-CB1 certified for hazardous area installations?
Yes, the card holds multiple hazardous area certifications: FM/CSA Class I Division 2 Groups A-D (North America), ATEX Zone 2 (Europe), IECEx (international), and DNV/ABS (marine/offshore). Document 12P2046 provides complete Zone 2 installation instructions for European directive compliance.

Q5: What power supply is required for the KJ3001X1-CB1 digital output card?
The card requires KJ1501X1-BC1 Dual DC/DC Power Supply (24 or 12VDC) or certified equivalent with Ui = 12.6VDC and Lo < 23µH (including wire inductance). Input wiring inductance must be less than 23µH to meet intrinsic safety requirements for Zone 2 installations.

Q6: How does high-side switching improve safety compared to low-side switching?
High-side (positive) switching provides fail-safe operation where field devices default to de-energized state upon wire breaks or card failures. This topology prevents unintended device activation from field wiring ground faults—critical for safety instrumented systems (SIS) and emergency shutdown (ESD) applications. Common negative bus simplifies cabinet wiring and enables easy voltage measurement at field device terminals for troubleshooting.
