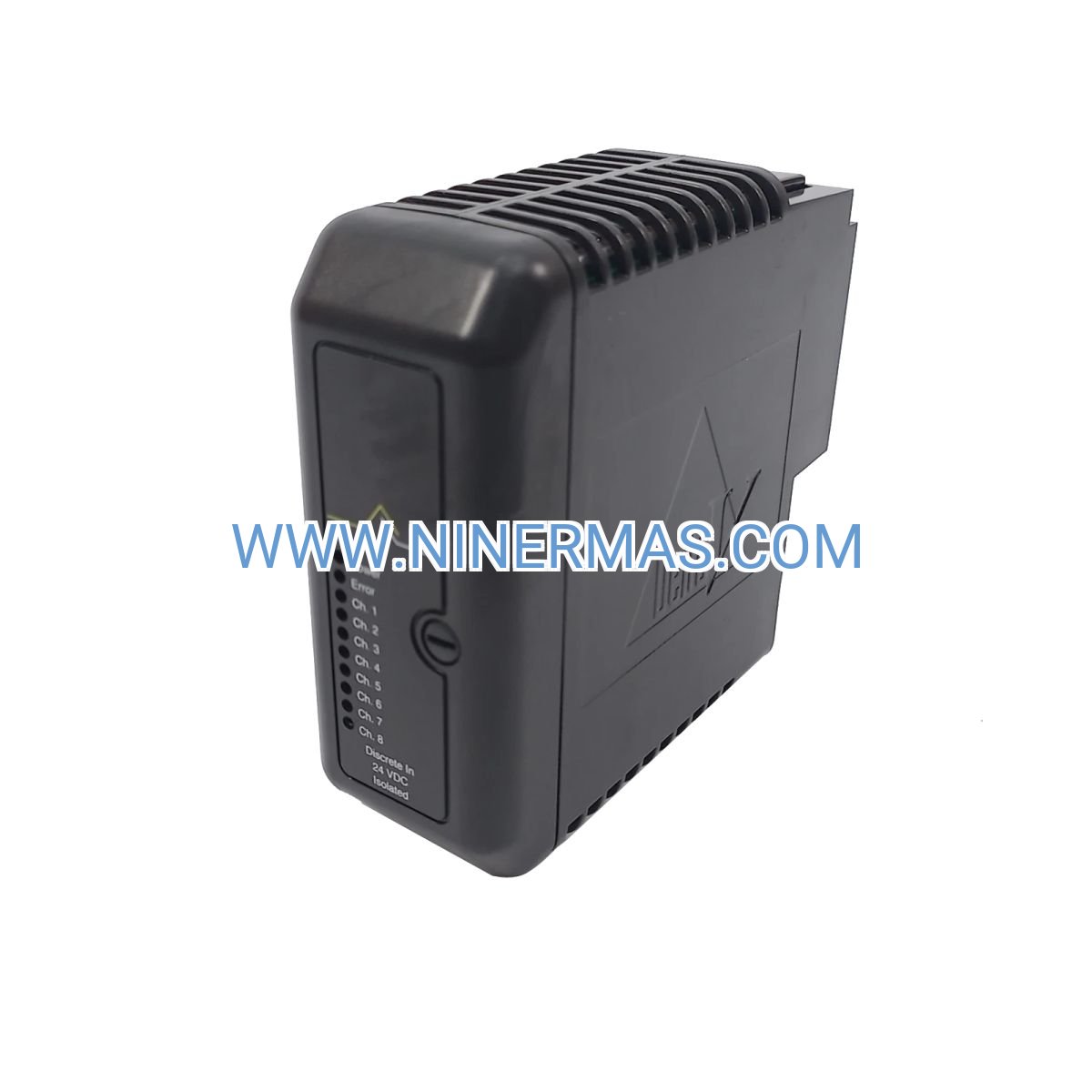

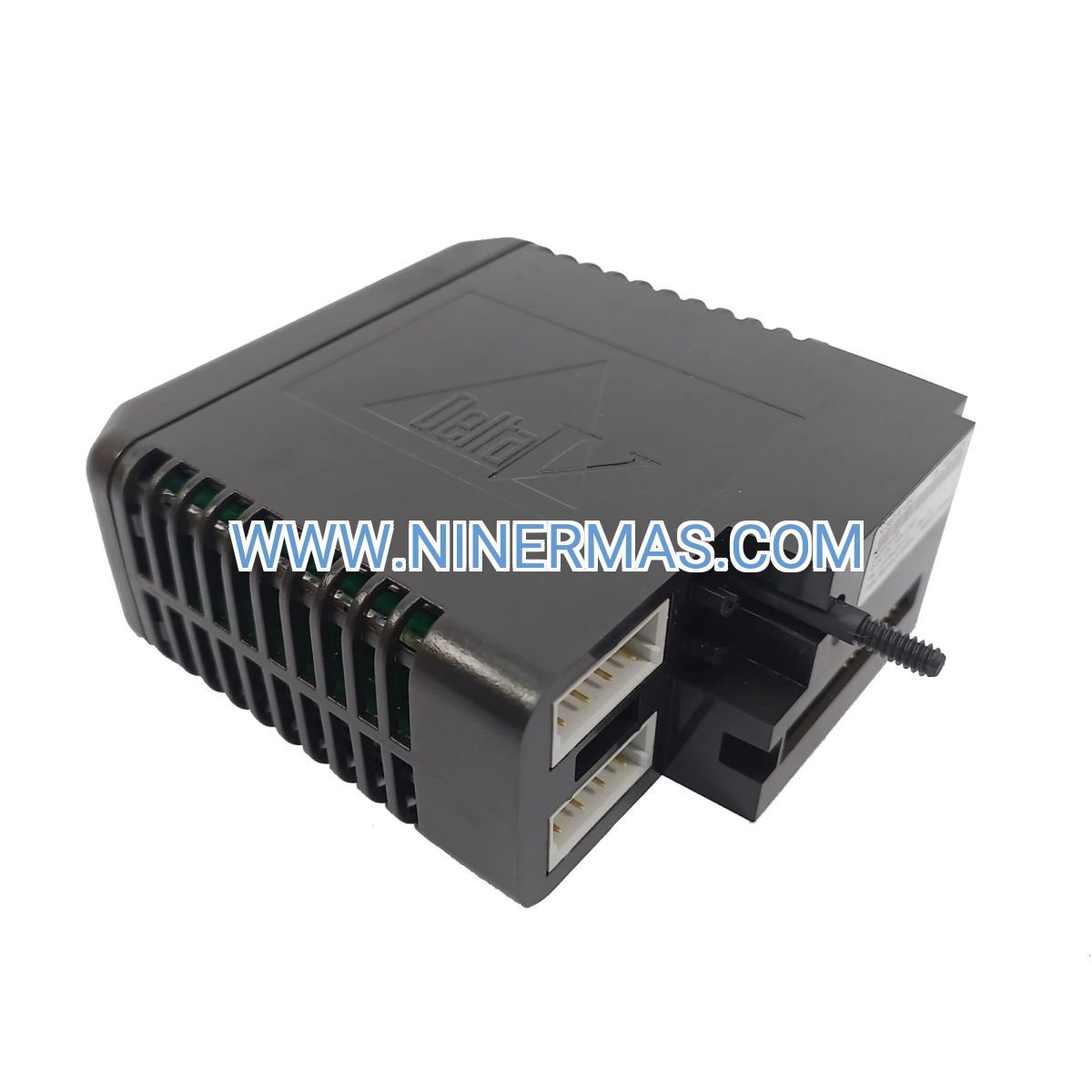

KJ3001X1-BA1 Digital Input Card (Industrial-Grade Isolated Monitoring)

The KJ3001X1-BA1 delivers channel-level galvanic isolation for discrete signal acquisition in DeltaV M-series control platforms. Engineered for process industries demanding electrical noise immunity and ground loop elimination, this 8-channel 24VDC input module interfaces limit switches, proximity sensors, relay contacts, and alarm panels across oil & gas, chemical processing, pharmaceutical manufacturing, and power generation installations where signal integrity is mission-critical.

Designed for harsh industrial environments, the module provides robust monitoring of valve positions, motor statuses, safety interlocks, and level switches while protecting your DCS infrastructure from field-side electrical transients and wiring faults. Hot-swap capability enables maintenance without process interruption, while global hazardous area certifications support deployment in classified Zone 2 and Division 2 locations worldwide.

Whether you're upgrading legacy I/O systems, expanding existing DeltaV installations, or building new process control architectures, the KJ3001X1-BA1 combines proven reliability with advanced isolation technology to ensure accurate discrete monitoring in electrically challenging industrial settings.

Key Features & Technical Benefits

→ Channel-Level Galvanic Isolation
Each of the 8 input channels features independent electrical isolation, eliminating ground loops between field devices and the DCS. This architecture prevents common mode noise from VFDs, welders, and high-power equipment from corrupting signal integrity, ensuring reliable status detection even in electrically noisy environments.

→ Hot-Swap Capability for Zero-Downtime Maintenance
Replace failed cards without shutting down the control system. The module supports live insertion and removal under controlled conditions, minimizing process interruptions and enabling rapid response to hardware failures in critical applications.

→ Global Hazardous Area Certification
FM/CSA Class I Division 2, ATEX Zone 2, IECEx, and marine (DNV/ABS) approvals enable deployment in explosive atmosphere installations worldwide. Certified for use in oil refineries, chemical plants, offshore platforms, and other classified industrial environments.

→ Low Power Consumption & Compact Design
Draws only 100mA from the 12VDC LocalBus, allowing high-density I/O configurations without overloading power supplies. The compact form factor maximizes channel count per rack space, reducing cabinet footprint and installation costs.

→ Wide Operating Temperature Range
Rated for 0°C to +60°C operation, the module performs reliably in control rooms, field enclosures, and industrial cabinets without requiring additional cooling or environmental conditioning.

✓ Terminal Block Keying System

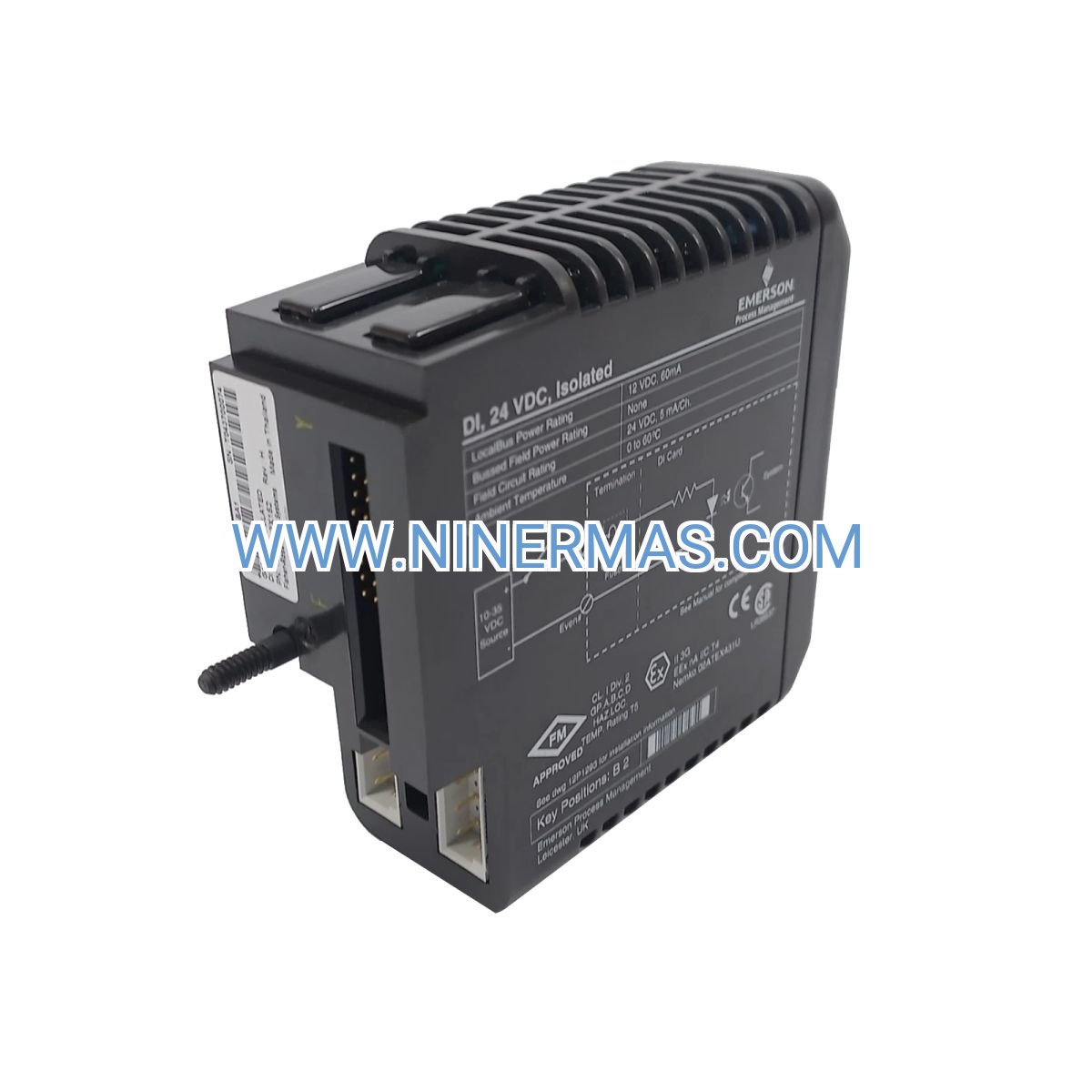

B2 position rotary key prevents incorrect card insertion and ensures field wiring matches the installed module type, reducing commissioning errors and protecting both card electronics and connected field devices.

Industrial Application Scenarios

Valve Position Monitoring in Pipeline Systems
Track limit switch feedback from motor-operated valves (MOVs) and pneumatic actuators in oil & gas transmission networks. The galvanic isolation prevents ground loops caused by long cable runs between remote valve stations and central control rooms, ensuring accurate position indication critical for pipeline safety and interlock logic.

Motor Starter Status Detection in Chemical Processing
Monitor auxiliary contacts from pump, compressor, and agitator motor starters. Isolated inputs protect the DCS from electrical transients generated during contactor switching events, maintaining control system integrity while providing real-time equipment status for predictive maintenance programs.

Safety Interlock Integration in Pharmaceutical Manufacturing
Interface emergency stop buttons, safety gate switches, and guard door interlocks in cleanroom production equipment. Electrical isolation ensures that ground faults or wiring errors in safety circuits cannot propagate to the control system, maintaining separation between safety-critical inputs and process control logic as required by regulatory compliance.

Level Switch Monitoring in Tank Farms
Connect float switches, capacitance probes, and vibrating fork sensors in storage tanks and process vessels. Isolated inputs eliminate common mode voltage issues when multiple level switches share common wiring or are installed in grounded metal vessels, preventing false alarms and improving measurement reliability.

Third-Party Alarm Panel Integration
Link fire alarm systems, gas detection panels, and process alarm annunciators to DeltaV for centralized monitoring and historical logging. Galvanic isolation prevents ground loops between third-party systems and the DCS, ensuring clean signal transmission and eliminating nuisance alarms caused by electrical interference.

Technical Specifications & Selection Guide

Selection Criteria: Choose the KJ3001X1-BA1 when you need channel-level isolation for discrete monitoring in electrically noisy environments, when field devices have different ground references, or when hazardous area certification is required. For higher channel density without isolation, consider the KJ2003X1-BA2 (32-channel) or KJ3203X1-BK1 (32-channel S-series) alternatives.

Advanced Integration Capabilities

DeltaV System Integration: The module integrates seamlessly with DeltaV M-series controllers via the LocalBus backplane, appearing as standard discrete input points in control strategies. Configuration is performed through DeltaV Explorer software, with automatic channel diagnostics and status reporting to the DCS historian.

Redundancy Support: Deploy in redundant I/O configurations for critical applications requiring fault tolerance. The module supports DeltaV's redundant I/O architecture, automatically switching to backup cards during primary card failures without process interruption.

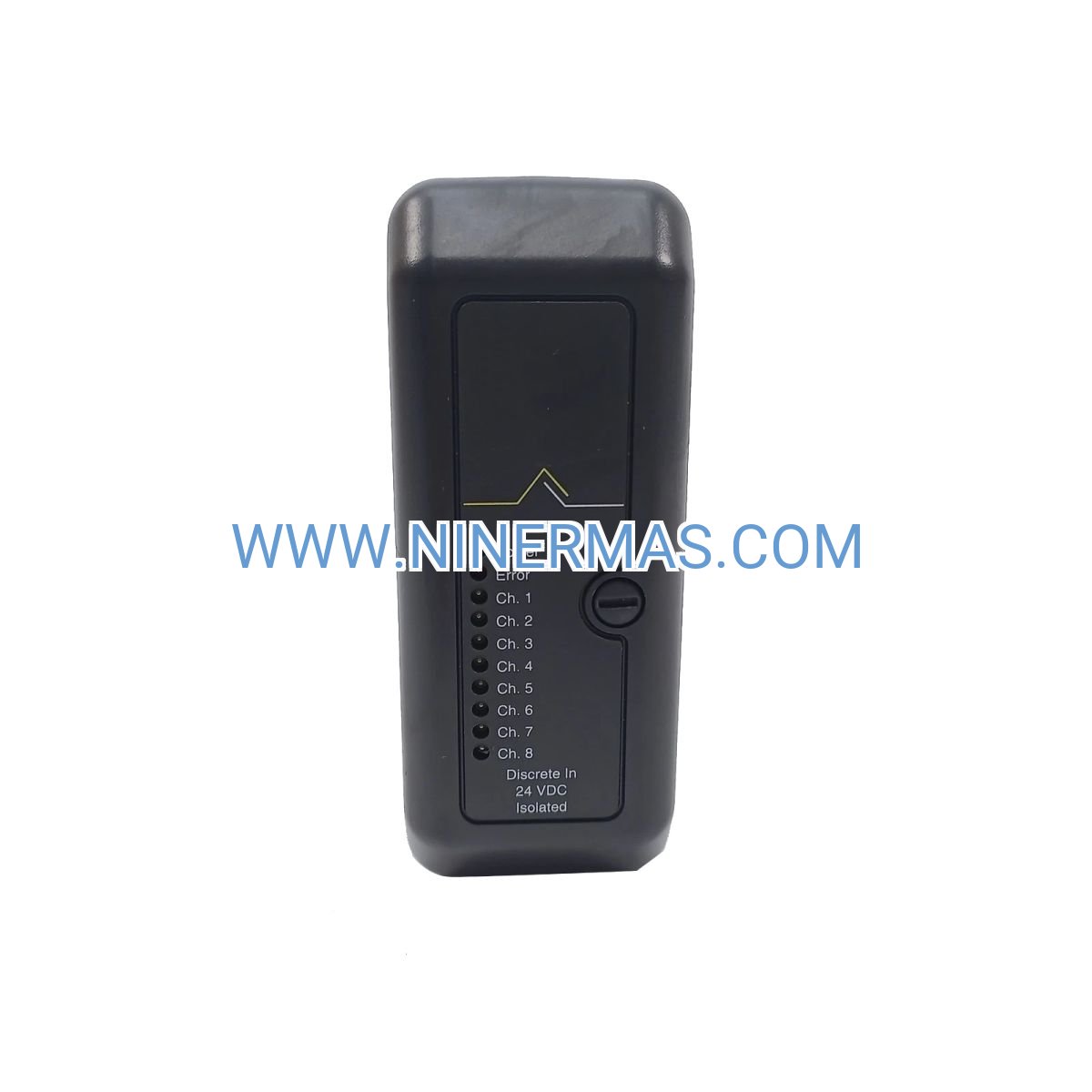

Diagnostic Capabilities: Built-in diagnostics monitor channel health, power supply status, and isolation integrity. Diagnostic LEDs provide visual indication of card status, while detailed fault information is available through DeltaV system displays for rapid troubleshooting.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock items to major industrial hubs (Houston, Singapore, Rotterdam, Shanghai). Expedited shipping available for urgent project requirements and emergency replacements.

Custom Delivery: 2-3 weeks for factory-fresh units with full traceability documentation and extended warranty options. Ideal for large-scale projects requiring batch consistency and long-term spare parts planning.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring long-term support commitments.

Technical Support: Pre-sales application engineering assistance, wiring diagram review, configuration guidance, and post-installation troubleshooting from certified DeltaV specialists. Documentation package includes installation manuals, wiring diagrams, and Zone 2 installation instructions (Document 12P2046).

Included Documentation: Installation manual, wiring diagrams, hazardous area installation instructions, terminal block keying guide, hot-swap procedures, and diagnostic troubleshooting flowcharts.

Frequently Asked Questions

Q: Can I hot-swap the KJ3001X1-BA1 while the system is running?
A: Yes, but only under controlled conditions. Field power must be removed before handling the device, and only one card may be removed or inserted at a time. Non-sparking circuits must be de-energized in Zone 2 installations. Always follow Document 12P2046 hot-swap procedures to prevent equipment damage and maintain hazardous area compliance.

Q: What power supply is required for the KJ3001X1-BA1?
A: The module requires the KJ1501X1-BC1 Dual DC/DC Power Supply or certified equivalent with Ui = 12.6VDC and Lo < 23µH. Input wiring inductance must be less than 23µH (including wire) to meet intrinsic safety requirements for classified area installations.

Q: How does galvanic isolation improve signal reliability?
A: Channel-level isolation eliminates ground loops between field devices and the DCS, preventing circulating currents when ground potentials differ. This architecture rejects common mode noise from VFDs, welders, and high-power equipment, ensuring accurate status detection even when field devices have different ground references or are located in electrically noisy environments.

Q: Is the KJ3001X1-BA1 suitable for safety-critical applications?
A: While the module provides electrical isolation between safety circuits and the control system, it is not certified as a safety-rated component. For SIL-rated safety applications, consult Emerson's safety I/O product line or implement redundant architectures with voting logic as required by your safety integrity level (SIL) requirements.

Q: What is the difference between the KJ3001X1-BA1 and KJ2003X1-BA2?
A: The KJ3001X1-BA1 offers 8 channels with galvanic isolation per channel, ideal for electrically noisy environments or when field devices have different ground references. The KJ2003X1-BA2 provides 32 channels without isolation, suitable for high-density applications in clean electrical environments where isolation is not required.

Q: Can I use the KJ3001X1-BA1 with proximity sensors and limit switches?
A: Yes, the module is compatible with standard 24VDC proximity sensors, inductive/capacitive limit switches, relay contacts, and push buttons. The 5mA input current is sufficient for most industrial discrete devices without requiring external signal conditioning or amplification.

Order Your KJ3001X1-BA1 Digital Input Card Today

Upgrade your DeltaV discrete monitoring with proven isolation technology. Contact our application engineering team for wiring diagram review, system integration guidance, and volume pricing for multi-card projects. Fast global shipping ensures your automation upgrade stays on schedule.

Ready to enhance your process control reliability? Add to cart now or request a technical consultation for complex integration requirements.
