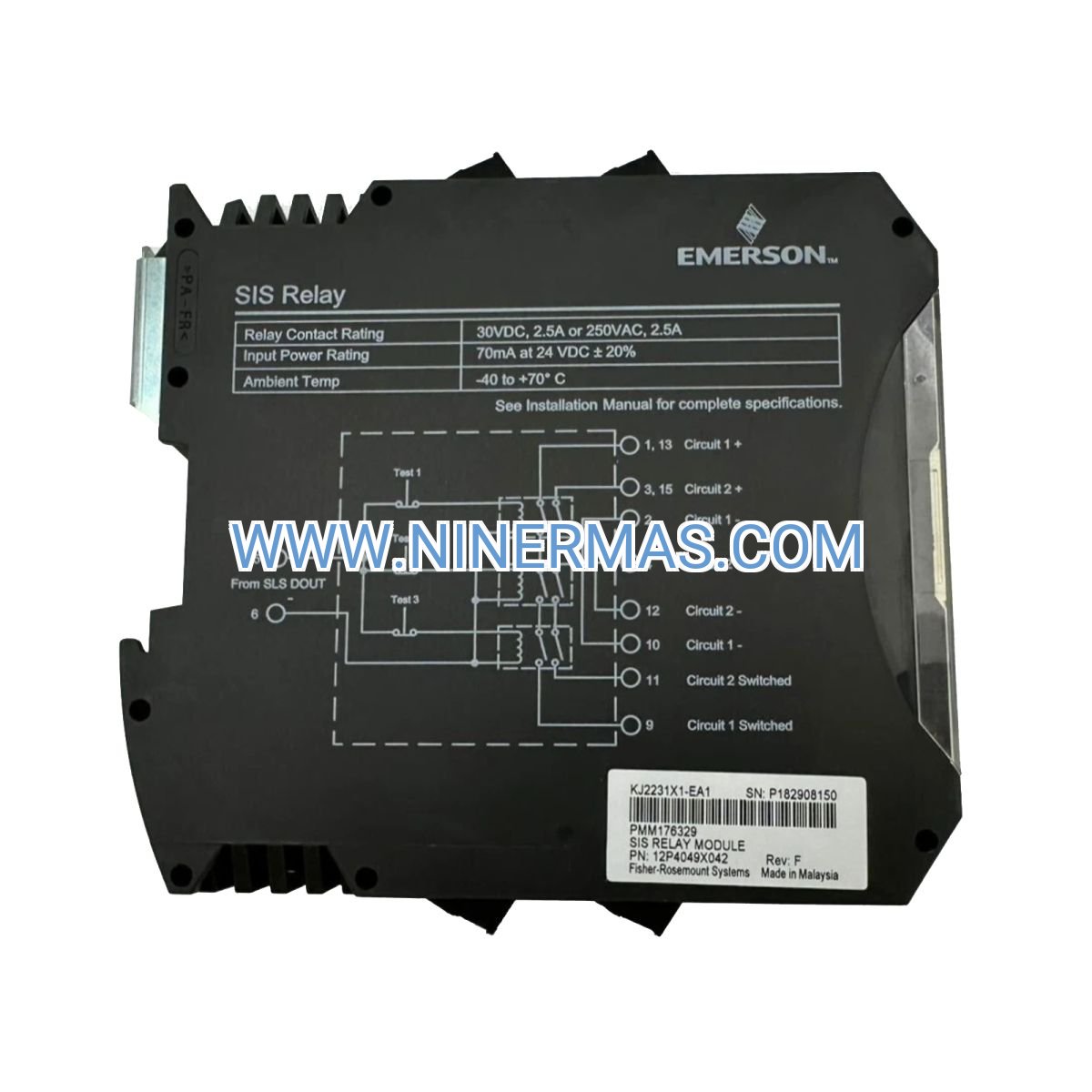

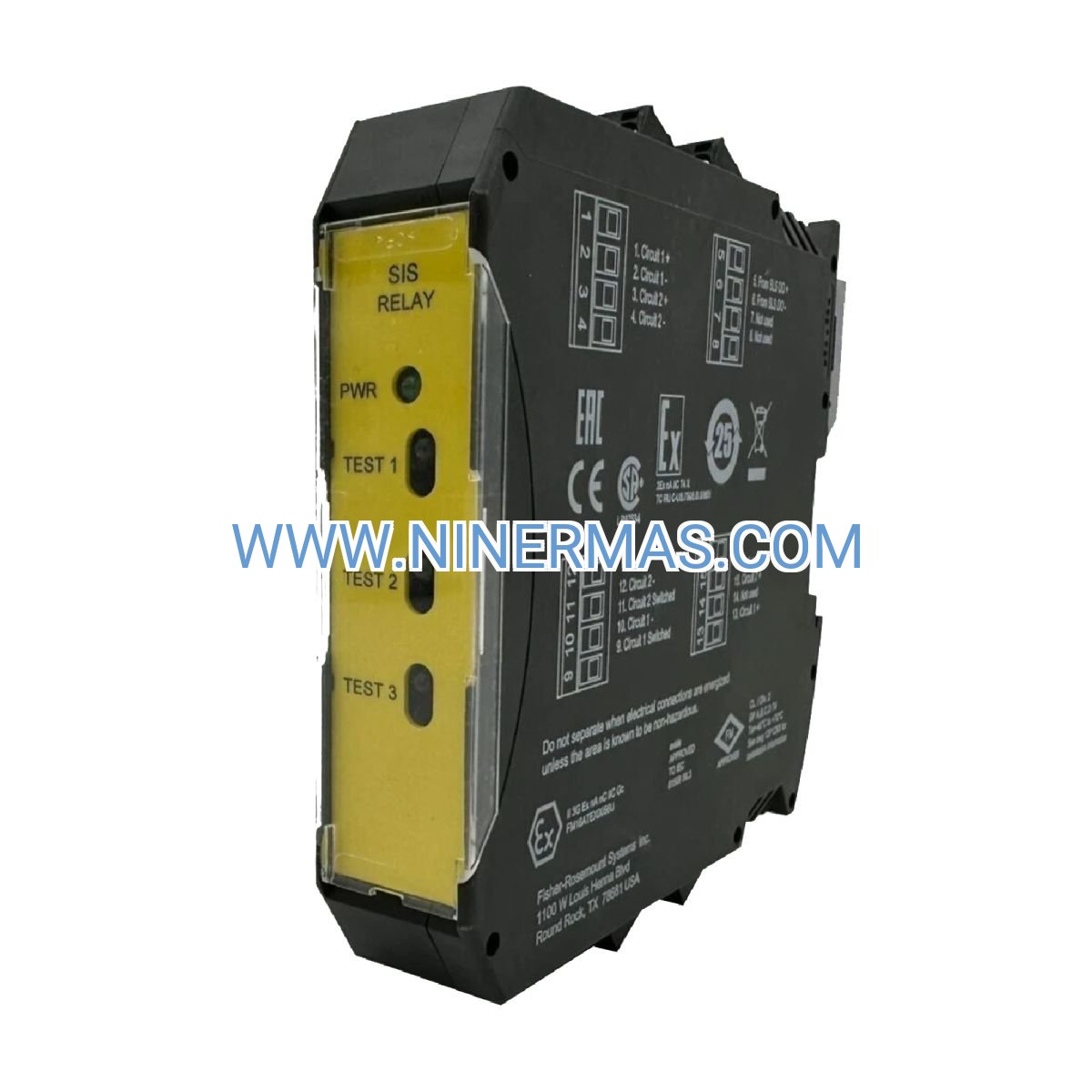

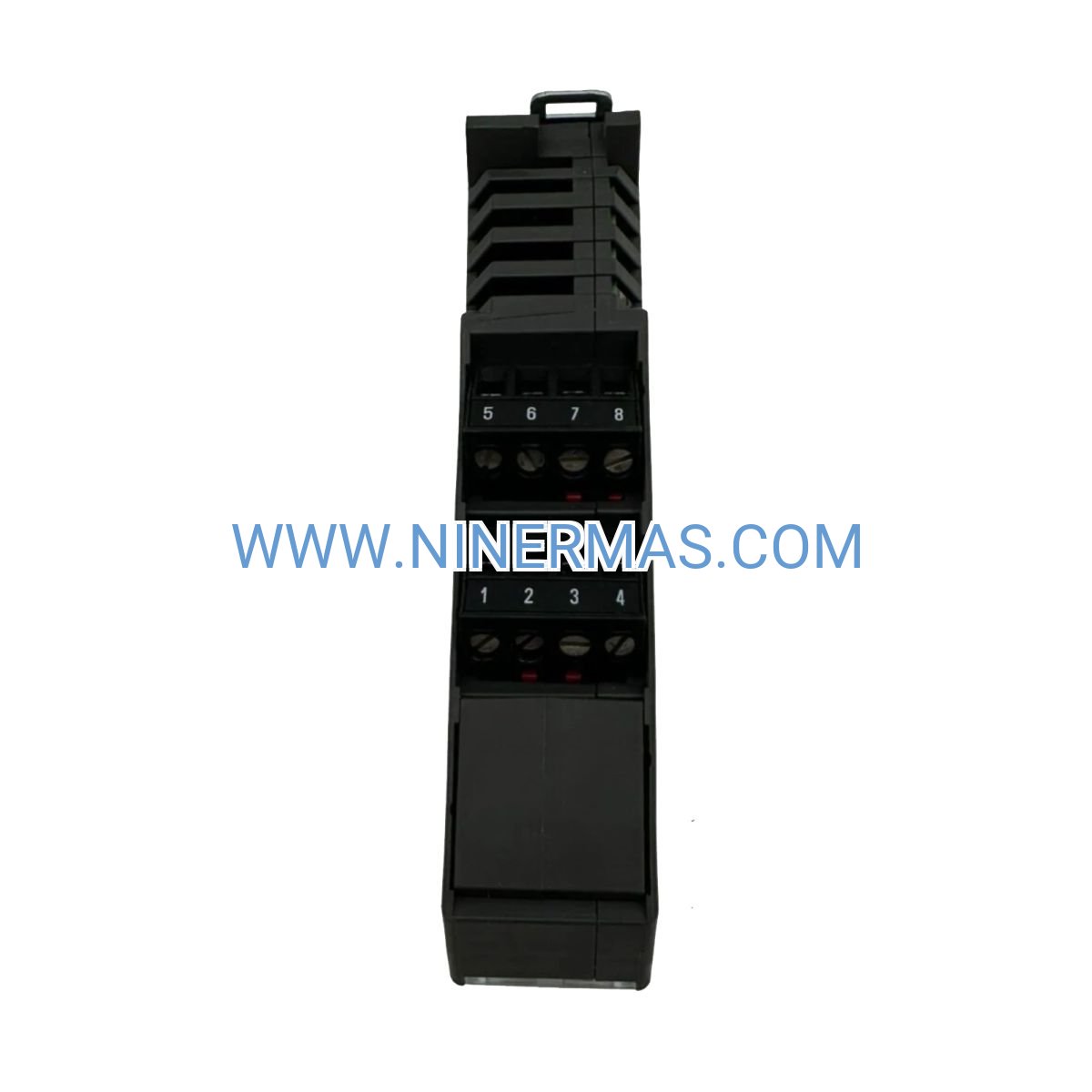

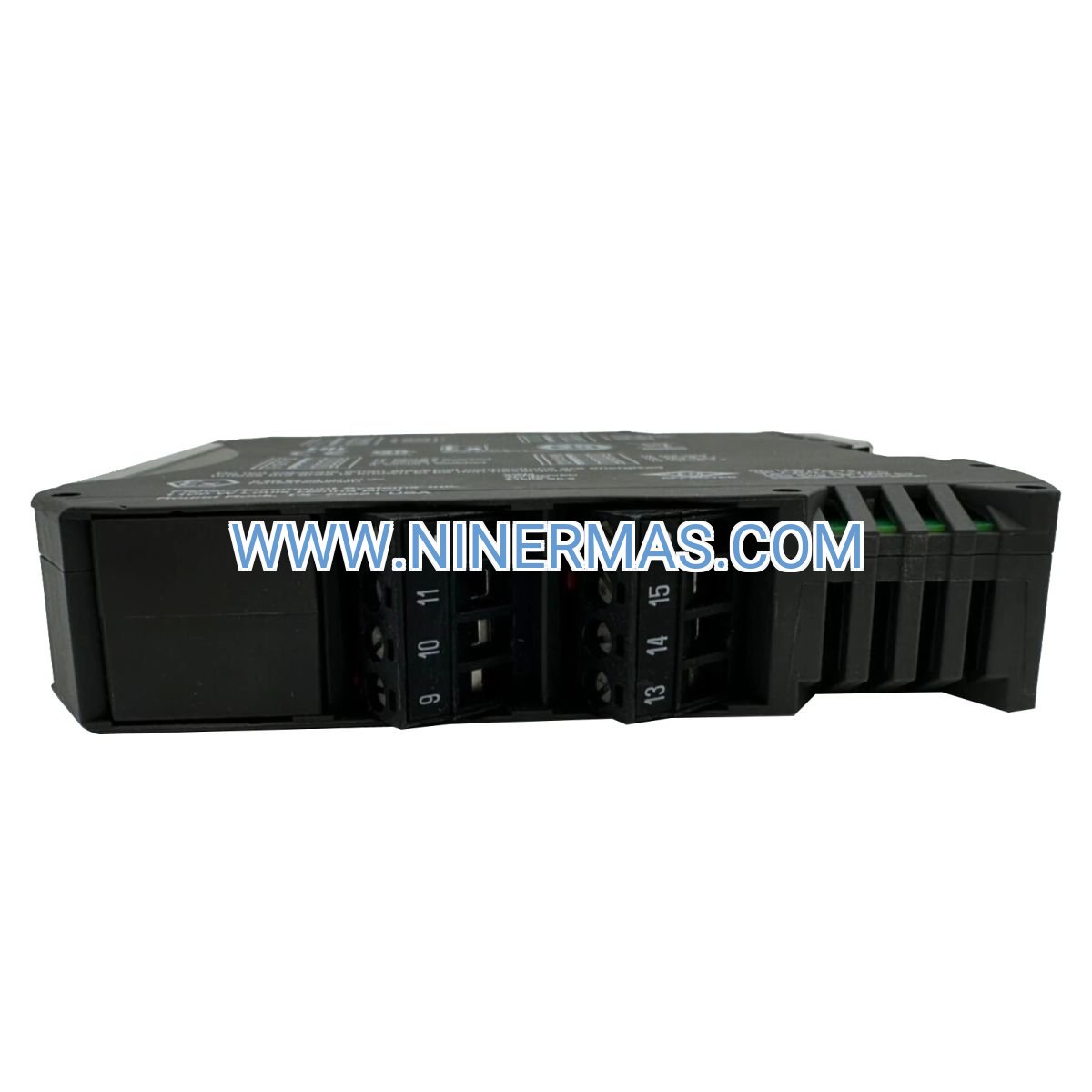

KJ2231X1-EA1 Safety-Rated Relay Output Module (Industrial-Grade SIS Interface)

The KJ2231X1-EA1 represents a proven safety relay interface engineered for mission-critical shutdown applications within DeltaV Safety Instrumented Systems. Designed to bridge certified safety logic solvers with hardwired final control elements, this module delivers SIL 2/3 compliant relay outputs for emergency isolation valves, fire suppression actuators, and process trip systems across petrochemical refineries, offshore platforms, pharmaceutical manufacturing, and power generation facilities.

Built on force-guided relay technology with proven-in-use heritage, the KJ2231X1-EA1 ensures predictable fail-safe behavior during critical safety events. Whether protecting against overpressure scenarios, toxic gas releases, or thermal runaway conditions, this relay module provides the final voting element between digital safety logic and physical shutdown devices—maintaining functional safety integrity even under extreme environmental stress.

With comprehensive hazardous area certifications spanning FM/CSA Class I Division 2, ATEX Zone 2, and IECEx compliance, the module supports global deployment in classified industrial environments. Conformal coating protection and extended temperature ratings (-40°C to +70°C) ensure reliable operation in corrosive atmospheres, offshore marine conditions, and desert climates where equipment failure could result in catastrophic consequences.

Technical Capabilities & Performance Specifications

→ Dual-Voltage Contact Rating: SPDT relay contacts rated for both 30VDC at 2.5A (DC solenoid valves, contactors) and 250VAC at 2.5A (AC motor starters, alarm devices), providing flexibility for diverse final element types without external interface relays.

→ SIL 2/3 Functional Safety Certification: IEC 61508 certified with systematic capability SC3, enabling deployment in SIL 1, SIL 2, and SIL 3 safety instrumented functions when properly configured within 1oo2 or 2oo3 voting architectures per IEC 61511 requirements.

→ Integrated Diagnostic Coverage: Built-in diagnostics detect relay coil failures, contact welding, and power supply anomalies—reporting faults to the DeltaV SIS logic solver for alarm generation and maintenance scheduling, reducing dangerous undetected failure rates.

✓ Low Power Consumption: 24VDC input at only 70mA minimizes heat generation and power supply loading, critical for multi-module safety systems where thermal management affects long-term reliability in enclosed cabinets.

✓ Extended Mechanical Life: 10 million mechanical operations ensure decades of service in low-demand safety applications (typical proof test intervals of 1-3 years), reducing lifecycle costs and minimizing safety system unavailability during module replacements.

✓ Environmental Hardening: ISA-S71.04-1985 Class G3 conformal coating protects against sulfur dioxide, hydrogen sulfide, chlorine, and other corrosive airborne contaminants common in chemical processing and pulp/paper facilities.

Industry-Specific Deployment Scenarios

Petrochemical Emergency Shutdown (ESD) Systems:

In crude distillation units and catalytic crackers, the KJ2231X1-EA1 actuates pneumatic shutdown valves isolating feed streams during high-pressure excursions or flame-out conditions. When safety logic detects pressure transmitter readings exceeding 95% of vessel design pressure, relay de-energization closes spring-return ball valves within 2 seconds—preventing vessel rupture and hydrocarbon release. The module's SIL 3 systematic capability supports risk reduction requirements for Safety Integrity Level 2 applications per API RP 754 process safety performance indicators.

Offshore Platform Fire & Gas Systems:

On FPSO vessels and fixed production platforms, relay outputs trigger deluge valve solenoids when multi-point gas detectors confirm 20% LEL methane concentrations in compressor enclosures. The 250VAC contact rating directly drives 120VAC deluge solenoids without intermediate interface relays, simplifying panel wiring and reducing failure points. Marine certifications (DNV, ABS) ensure compliance with SOLAS and NORSOK S-001 safety system requirements for offshore installations.

Pharmaceutical Reactor Protection:

In exothermic batch reactors producing active pharmaceutical ingredients, the module controls emergency cooling water injection valves and reactor vent isolation during thermal runaway scenarios. When jacket temperature rise rates exceed 5°C/minute, safety logic commands relay activation to flood the reactor jacket and open emergency vents—preventing pressure buildup that could breach containment. SIL 2 certification supports FDA 21 CFR Part 11 validation requirements for electronic safety systems in pharmaceutical manufacturing.

Gas Turbine Overspeed Protection:

In combined-cycle power plants, relay contacts interrupt fuel gas supply to combustion turbines when shaft speed exceeds 110% of rated RPM due to load rejection or governor failure. The fail-safe de-energize-to-trip design ensures fuel isolation even during module power loss or catastrophic failure—protecting $50M+ turbine assets from destructive overspeed events. Compliance with NFPA 85 Boiler and Combustion Systems Hazards Code supports insurance and regulatory approval.

High Integrity Pressure Protection (HIPPS):

Protecting downstream piping and equipment rated for lower pressures than upstream sources, the KJ2231X1-EA1 provides final voting in 2oo3 HIPPS architectures. When two of three pressure transmitters detect inlet pressure approaching downstream equipment design limits, relay de-energization closes fast-acting ball valves in under 2 seconds—preventing overpressure without activating conventional pressure relief devices. This application reduces flaring emissions and supports environmental compliance in gas gathering systems.

Functional Safety Architecture & Compliance

Installation & Commissioning Requirements

Hazardous Area Precautions: Module insertion or removal in Class I Division 2 or Zone 2 areas requires either area de-classification verification OR complete system de-energization. Hot-swapping in live classified areas violates FM/ATEX certification conditions and may generate incendive sparks capable of igniting flammable atmospheres. Always follow NFPA 70 Article 501 and IEC 60079-14 installation practices.

Wiring Segregation Protocol: Route SIS relay output wiring in dedicated conduit systems physically separated from BPCS (Basic Process Control System) circuits by minimum 50mm spacing. Use orange-jacketed cable or orange conduit marking to identify safety circuits per ISA-84.00.01 recommendations. Terminate safety wiring on dedicated terminal blocks with "SAFETY SYSTEM - DO NOT MODIFY" labeling to prevent inadvertent cross-connections during maintenance.

Proof Testing Methodology: Execute partial stroke testing of final elements (valves) during normal operation to verify relay contact operation without full process shutdown. Full proof tests requiring complete SIF activation should align with planned maintenance turnarounds. Document all proof test results including contact resistance measurements, relay coil current draw, and diagnostic alarm verification—maintaining records per IEC 61511 safety lifecycle documentation requirements.

Grounding & Shielding: Connect module chassis ground to dedicated safety system ground bus using minimum 14 AWG wire. For installations in high-EMI environments (near VFDs, welding equipment), use shielded twisted-pair cable for relay output wiring with shields grounded at panel entry point only—preventing ground loops while maintaining noise immunity per IEC 61326 industrial EMC standards.

Electrical & Environmental Ratings

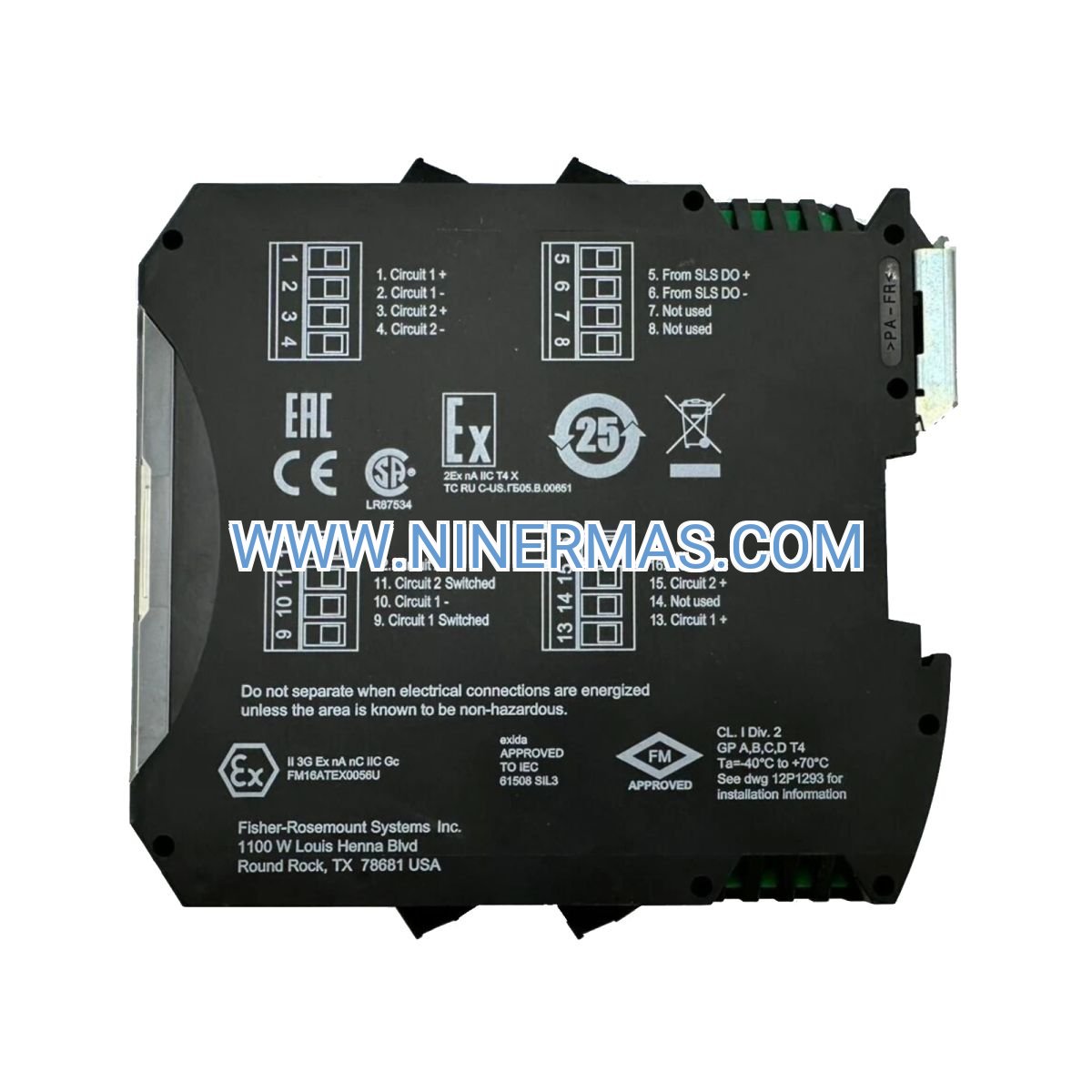

Hazardous Area & Marine Certifications

✓ FM Approval: Class I, Division 2, Groups A, B, C, D, T4 (North American hazardous locations per NEC Article 500)

✓ CSA Certification: Class I, Division 2, Groups A-D; Class I, Zone 2, Group IIC (Canadian electrical code compliance)

✓ ATEX Directive: II 3 G Ex nA IIC T4 Gc (European explosive atmosphere directive 2014/34/EU)

✓ IECEx Scheme: Ex nA IIC T4 Gc (international electrotechnical commission explosive certification)

✓ Marine Approvals: DNV (Det Norske Veritas) and ABS (American Bureau of Shipping) for offshore/maritime installations

✓ Functional Safety: IEC 61508:2010 SIL 2/3 certified; suitable for IEC 61511 process industry SIS applications

Selection Guide & System Integration

When to Choose KJ2231X1-EA1:

• → Safety applications requiring hardwired relay outputs (not solid-state outputs)
• → Final elements with 24VDC or 120/240VAC solenoid coils rated ≤2.5A
• → SIL 2 or SIL 3 safety instrumented functions per IEC 61511 verification
• → Hazardous area installations (Class I Div 2, Zone 2) requiring certified equipment
• → Applications requiring proven-in-use relay technology with mechanical contact verification

Alternative Considerations:

• → For higher current loads (>2.5A), specify external safety-rated contactors with KJ2231X1-EA1 driving contactor coils
• → For simplex (non-redundant) applications, consider VS6907 single-channel relay module
• → For solid-state outputs with faster switching, evaluate KJ3222X1 digital output modules
• → For intrinsically safe Zone 0/Division 1 applications, use KJ3241X1 IS barrier modules

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders during supply chain constraints

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures; does not cover damage from improper installation, overvoltage, or environmental contamination exceeding specifications

Technical Documentation: Includes installation manual (Document 12P2046), IEC 61508 safety manual with FMEDA data, proof test procedures, and AutoCAD dimensional drawings—all critical for IEC 61511 safety lifecycle documentation

Engineering Support: Our certified functional safety engineers (TÜV Rheinland FS Engineer certification) provide SIL verification calculations, proof test procedure customization, and HAZOP/LOPA integration support for complex DeltaV SIS implementations

Frequently Asked Questions

Q: Can the KJ2231X1-EA1 relay module directly control 480VAC motor starters in emergency shutdown applications?

A: No. The relay contacts are rated for maximum 250VAC at 2.5A. For 480VAC motor control, use the KJ2231X1-EA1 to energize a safety-rated intermediate relay or contactor (such as Pilz PNOZ or Phoenix Contact PSR series) rated for 480VAC loads. This two-stage approach maintains SIL certification while providing adequate voltage/current ratings for large motor starters.

Q: What is the maximum wire run distance between the KJ2231X1-EA1 module and final shutdown valves?

A: Maximum distance depends on wire gauge and solenoid coil resistance. For typical 24VDC solenoid valves (20-30Ω coil resistance), use 14 AWG wire for runs up to 500 feet, 12 AWG for 500-1000 feet. Calculate voltage drop to ensure minimum 19.2VDC at solenoid terminals (24VDC -20% tolerance). For AC solenoids, voltage drop is less critical but verify minimum pickup voltage per valve manufacturer specifications.

Q: How do I perform proof testing on the KJ2231X1-EA1 without shutting down the entire process?

A: Implement partial stroke testing using smart valve positioners (such as Fisher DVC6200 SIS) that can verify valve movement to 10-20% closure without full process isolation. For relay contact verification, use the DeltaV SIS diagnostic functions to measure relay coil current and contact resistance during scheduled maintenance windows. Full proof tests requiring complete SIF activation should align with planned turnaround schedules per your SIL verification calculations.

Q: Is the KJ2231X1-EA1 compatible with legacy DeltaV SIS controllers or only newer SLS1508 logic solvers?

A: The module is compatible with all DeltaV SIS Smart Logic Solver generations including SLS1508, SLS1504, and earlier SLS controllers. Verify firmware compatibility in DeltaV SIS version 11.3.1 or later for full diagnostic functionality. Consult Emerson Product Data Sheet 12P2046 for specific controller compatibility matrices and required DeltaV Books versions.

Q: What are the cybersecurity considerations for DeltaV SIS relay modules in IEC 62443 compliant installations?

A: The KJ2231X1-EA1 is a hardwired relay module without network connectivity or embedded firmware, making it inherently immune to cyber attacks. However, the connected DeltaV SIS logic solver requires IEC 62443 security hardening including network segmentation, firewall protection, and access control per Emerson's DeltaV SIS Security Reference Manual. Maintain physical security of SIS cabinets with locked enclosures and access logging per ISA-99/IEC 62443-2-1 requirements.

Q: Can I use the KJ2231X1-EA1 in SIL 3 applications or is it limited to SIL 2?

A: The module is certified for SIL 2/3 per IEC 61508 with systematic capability SC3. It can be used in SIL 3 safety instrumented functions when configured in appropriate redundant architectures (typically 2oo3 voting) and when SIL verification calculations confirm the required PFDavg (average probability of failure on demand) is achieved. Consult with a certified functional safety engineer to verify your specific SIL 3 application meets IEC 61511 requirements.
