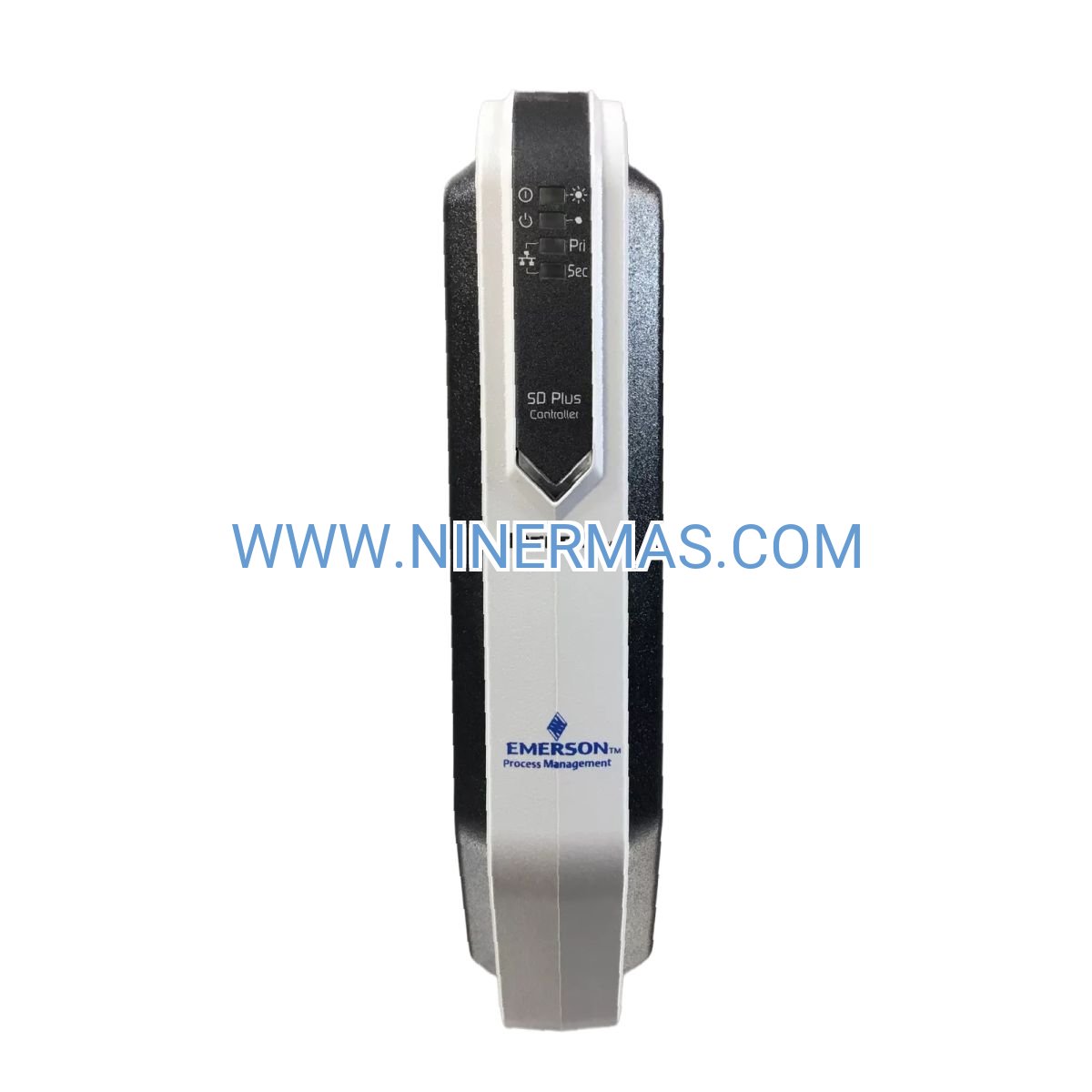

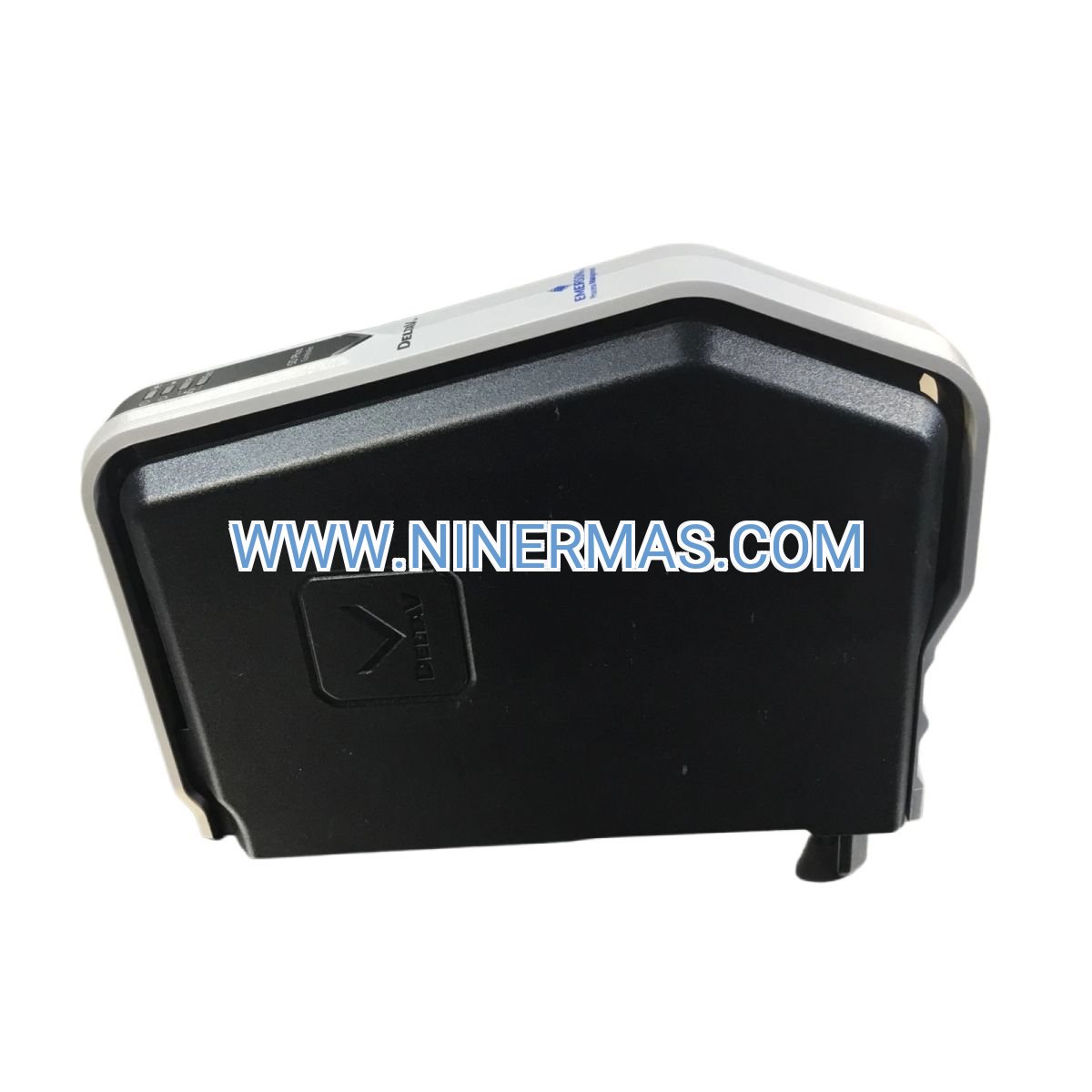

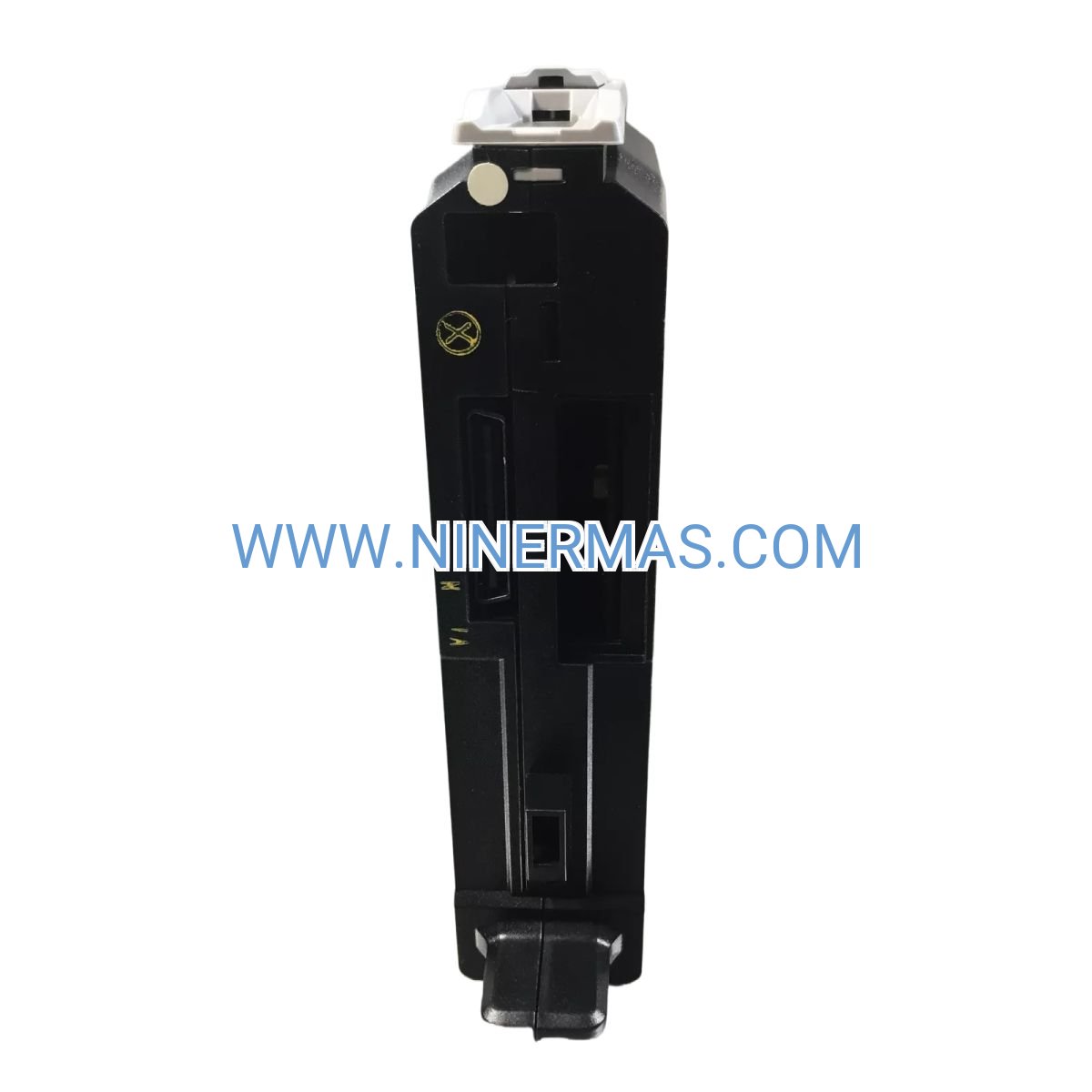

KJ2003X1-BK1 DeltaV SD Plus Controller (Industrial-Grade Process Automation Core)

The Emerson KJ2003X1-BK1 is an enterprise-class SD Plus Controller Module designed for deterministic process control in mission-critical DeltaV distributed control systems. Engineered to execute complex control algorithms with microsecond precision, this controller delivers unmatched reliability for oil & gas, chemical processing, power generation, and pharmaceutical manufacturing environments where downtime is not an option.

Built to withstand extreme industrial conditions (-40°C to +70°C operating range), the KJ2003X1-BK1 combines hot-swappable architecture with ATEX Zone 2 certification, enabling safe deployment in hazardous areas while maintaining continuous operations during maintenance cycles. Whether you're modernizing legacy systems or building greenfield facilities, this controller provides the scalable foundation for your automation infrastructure.

With seamless integration across HART, FOUNDATION Fieldbus, and conventional 4-20mA instrumentation, the KJ2003X1-BK1 bridges legacy and modern field devices while future-proofing your investment through backward and forward compatibility with the entire DeltaV ecosystem. Request a technical consultation today to optimize your control architecture.

Engineering Advantages & Performance Benefits

→ Deterministic Scan Execution: Guaranteed cycle times ensure predictable process response, eliminating control jitter and improving product quality consistency across batch and continuous operations.

→ Hot-Swappable Maintenance: Replace or upgrade controllers without process shutdown, reducing planned maintenance windows by up to 75% and maximizing production uptime in 24/7 facilities.

→ Multi-Protocol Connectivity: Native support for HART, FOUNDATION Fieldbus, and analog signals eliminates protocol converters, reducing system complexity and potential failure points by 40%.

→ Conformal Coating Protection: ISA-S71.04 Class G3 environmental hardening extends operational life in corrosive atmospheres, reducing replacement frequency and total cost of ownership.

→ Integrated Diagnostics: Continuous health monitoring with predictive maintenance alerts identifies potential failures 72 hours in advance, preventing unplanned shutdowns.

→ Scalable Architecture: Supports 10 to 10,000+ I/O points within a single DCS framework, enabling phased expansion without architectural redesign or controller replacement.

Industry-Specific Application Scenarios

Upstream Oil & Gas Production: Manages wellhead control, separator optimization, and pipeline pressure regulation in remote offshore platforms where environmental extremes and safety certifications are mandatory. Solves the challenge of maintaining stable production rates despite fluctuating reservoir pressures, delivering 15-20% improvement in recovery efficiency.

Chemical Batch Processing: Executes recipe-driven control for polymerization reactors, ensuring precise temperature ramping, ingredient sequencing, and exothermic reaction management. Addresses the pain point of batch-to-batch variability, reducing off-spec production by 30% through repeatable control sequences.

Power Plant Boiler Control: Coordinates combustion air, fuel flow, and steam temperature across multiple control loops to optimize thermal efficiency while meeting emissions compliance. Resolves the complexity of load-following operations, improving response time to grid demand changes by 40%.

Pharmaceutical Clean Room HVAC: Maintains critical environmental parameters (temperature ±0.5°C, humidity ±2% RH, differential pressure ±5 Pa) required for FDA validation. Eliminates manual intervention in environmental control, ensuring 99.9% compliance with 21 CFR Part 11 audit trails.

Water Treatment Clarification: Automates coagulant dosing, flocculation mixing, and sludge removal in municipal water plants serving 500,000+ residents. Overcomes the challenge of variable raw water quality, reducing chemical consumption by 25% through adaptive control strategies.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the KJ2003X1-BK1 for applications requiring 100-500 control loops per controller with scan times ≤100ms. For smaller systems (<100 loops), consider the MD Plus controller; for ultra-high-density applications (>500 loops), evaluate the LD Plus variant. Verify DeltaV software version compatibility before ordering—v13.3.1 or later recommended for full feature access including advanced diagnostics and cybersecurity enhancements.

Advanced Integration & Customization Options

IIoT Connectivity: Integrate with Emerson's Plantweb digital ecosystem for cloud-based analytics, enabling predictive maintenance algorithms that analyze controller performance trends across your entire facility network. OPC UA server functionality allows seamless data exchange with MES and ERP systems.

Cybersecurity Hardening: Deploy with DeltaV CyberSecurity Services including role-based access control (RBAC), encrypted communications (TLS 1.2), and change management audit trails compliant with IEC 62443 industrial security standards.

Redundancy Configurations: Pair with a secondary KJ2003X1-BK1 in simplex-to-redundant upgrade paths, achieving 99.99% availability through automatic failover with bumpless transfer in <50ms.

Custom I/O Mapping: Factory pre-configuration services available for turnkey installations—provide your I/O schedule and control narratives for tested, ready-to-install controllers that reduce commissioning time by 60%.

Delivery Timeline & Service Commitments

✓ Standard Lead Time: 3-5 business days for in-stock units (North America/Europe); 7-10 days for Asia-Pacific regions
✓ Expedited Shipping: 24-48 hour emergency delivery available for critical outage situations
✓ Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship
✓ Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting, and system optimization
✓ Documentation Package: Includes installation manual, configuration guide, wiring diagrams, and DeltaV library integration files

Frequently Asked Questions

Q: How does the KJ2003X1-BK1 integrate with existing FOUNDATION Fieldbus H1 segments?
A: The controller communicates with FF devices through DeltaV interface cards (e.g., KJ2005X1-BA1). Each H1 segment supports up to 16 devices at 31.25 kbit/s, with the controller managing device configuration, diagnostics, and control block execution. No third-party gateways required.

Q: What is the maximum I/O capacity per KJ2003X1-BK1 controller module?
A: The SD Plus controller supports approximately 500 control modules (equivalent to 2,000-3,000 physical I/O points depending on module types). Actual capacity depends on control strategy complexity and required scan times—contact our engineering team for capacity planning assistance.

Q: Can this controller reduce energy consumption in my process operations?
A: Yes. Advanced control algorithms like Model Predictive Control (MPC) and cascade strategies optimize setpoints in real-time, typically reducing energy usage by 8-15% in thermal processes and 12-20% in variable-speed drive applications through improved process stability and reduced overshoot.

Q: What are the physical installation requirements for the KJ2003X1-BK1?
A: Mounts on standard T-type DIN rail within a DeltaV controller carrier. Requires +5 VDC power from carrier backplane (1.4A max), ambient temperature control (recommend <55°C for optimal MTBF), and minimum 50mm clearance on sides for airflow. Conformal coating allows installation in ISA-S71.04 G3 environments without additional enclosure protection.

Q: Is remote monitoring and diagnostics supported for offshore installations?
A: Absolutely. The controller integrates with DeltaV Mobile for smartphone/tablet access and supports secure VPN connections for remote engineering workstations. AMS Device Manager provides comprehensive diagnostics accessible from anywhere with network connectivity, ideal for offshore platforms and remote facilities.

Q: How do I verify compatibility with my current DeltaV system version?
A: The KJ2003X1-BK1 requires DeltaV v10.3 minimum. For optimal performance and security features, upgrade to v13.3.1 or later. Check your Professional Plus station software version under Help > About. Our team can provide migration planning services if system upgrades are needed before controller installation.

Start Your Automation Upgrade Today

Ready to enhance your process control reliability? Our automation specialists will analyze your current DCS architecture and recommend the optimal controller configuration for your application. Request a technical consultation or place your order now to receive factory-certified modules with expedited delivery.

Contact our team: Share your project requirements for customized pricing, bulk order discounts, and integration support packages.
