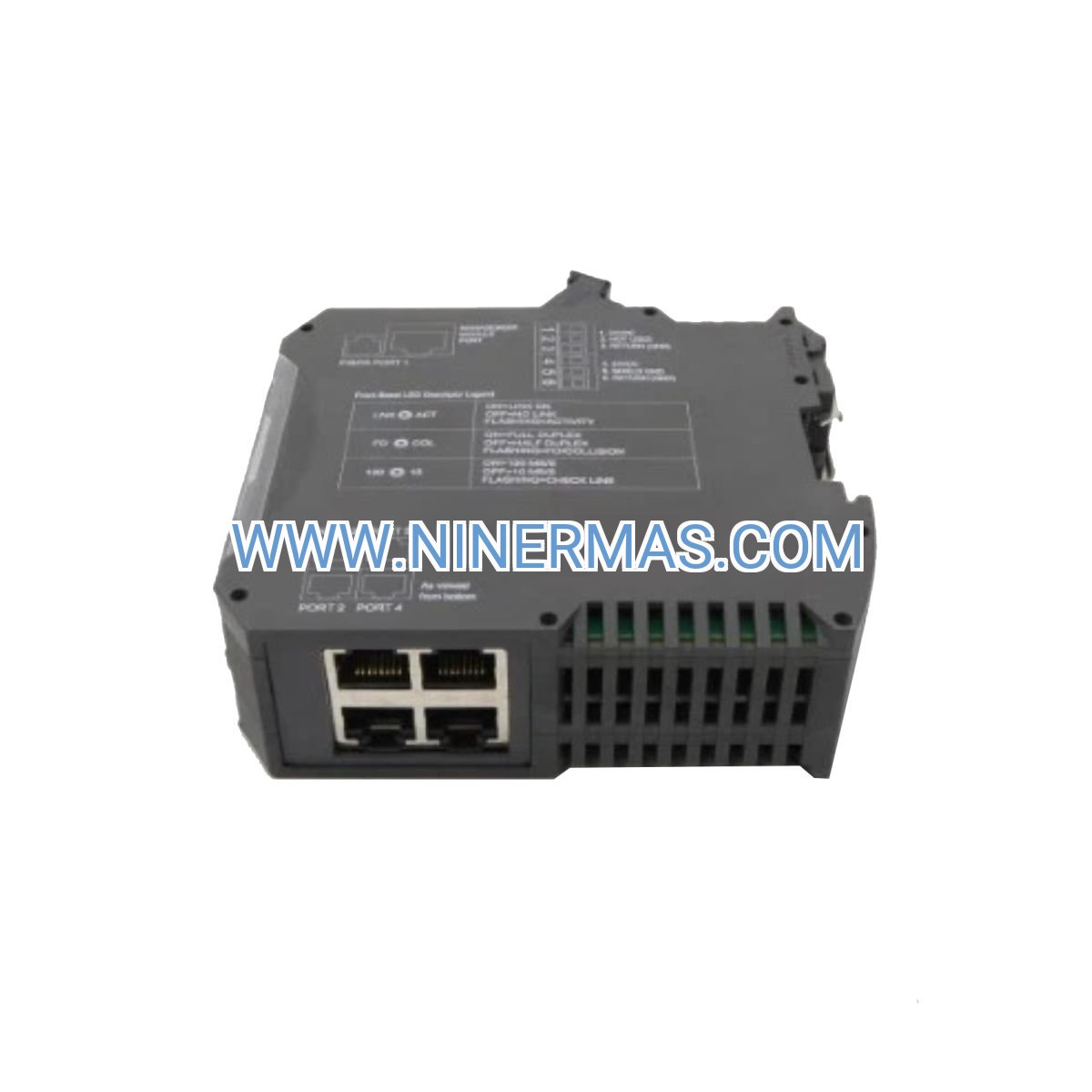

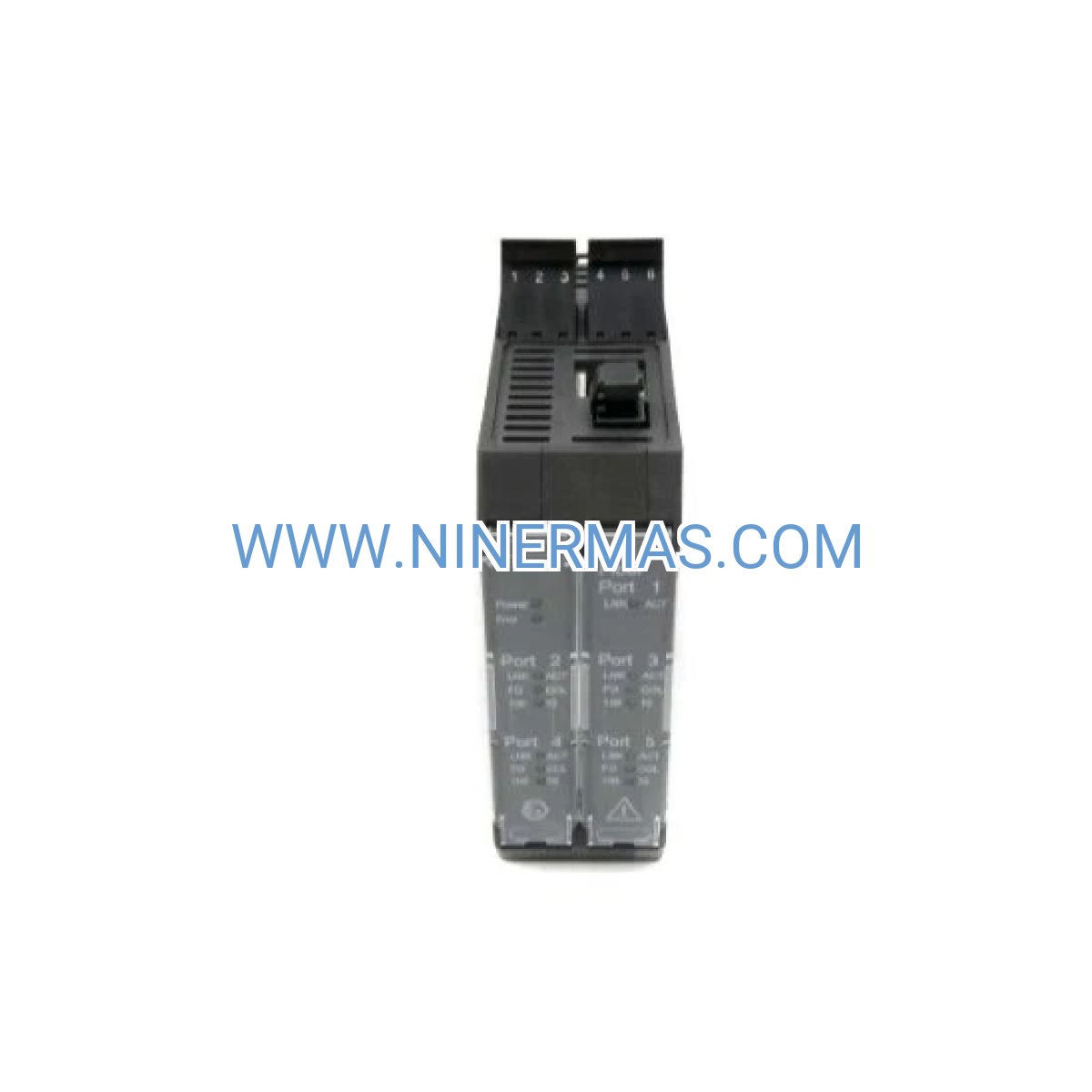

KJ1710X1-BA1 Fiber Optic Network Switch (Industrial-Grade DeltaV Connectivity)

The Emerson KJ1710X1-BA1 represents a specialized fiber optic switching solution purpose-built for extending DeltaV distributed control networks across industrial facilities where conventional copper infrastructure fails. This single-port fiber switch transforms network architecture by enabling long-distance, electrically isolated communication links that maintain signal integrity in the most challenging process environments.

Process industries face unique networking challenges: vast physical distances between control rooms and remote equipment, pervasive electromagnetic interference from variable frequency drives and high-voltage switchgear, and hazardous area classifications that restrict copper cabling. The KJ1710X1-BA1 addresses these constraints through fiber optic technology that delivers 100 Mbps Fast Ethernet over distances up to 20 kilometers while providing complete galvanic isolation between network segments.

Engineered for DeltaV system integrators and plant engineers, this fiber switch serves as the critical bridge between copper-based control room networks and fiber backbone infrastructure. Whether you're retrofitting an existing facility with extended I/O cabinets or designing greenfield installations with distributed architecture, the KJ1710X1-BA1 provides the reliability and environmental resilience demanded by continuous process operations.

Core Features & Benefits

→ Extended Network Reach: Supports fiber runs up to 2 km on multimode fiber or 20 km on single-mode fiber, eliminating the 100-meter copper Ethernet distance limitation and enabling network connectivity across large refineries, chemical complexes, and power generation facilities without intermediate repeaters.

→ Complete EMI/RFI Immunity: Fiber optic transmission is inherently immune to electromagnetic and radio frequency interference, ensuring reliable data communication in electrically noisy environments such as motor control centers, substations, and areas with high-density VFD installations where copper networks experience chronic packet loss.

→ Ground Loop Elimination: Optical isolation prevents ground potential differences between buildings or equipment from creating destructive current loops, protecting network equipment and eliminating a common failure mode in multi-building industrial facilities with separate electrical grounding systems.

✓ Hazardous Area Deployment: ATEX Zone 2 certification and intrinsically safe fiber optic connections enable network extension into classified areas without the spark risks associated with copper cabling, simplifying installation compliance and reducing certification costs in oil & gas, chemical processing, and pharmaceutical manufacturing.

✓ Industrial Temperature Range: Operates reliably from -40°C to +70°C without supplemental heating or cooling, suitable for outdoor installations, unheated buildings, and extreme climate regions where commercial-grade network equipment would fail or require expensive environmental controls.

✓ DIN Rail Mounting: Standard 35mm DIN rail compatibility enables quick installation in control panels, junction boxes, and field enclosures using existing mounting infrastructure, reducing installation time and hardware costs compared to custom mounting solutions.

Application Scenarios

Refinery & Petrochemical Facilities: In large-scale refining operations where process units span hundreds of acres, the KJ1710X1-BA1 enables fiber backbone networks connecting central control rooms to remote pump stations, tank farms, and loading racks. The switch's hazardous area certification permits installation in Zone 2 classified locations, while its EMI immunity ensures reliable communication despite proximity to high-power electrical equipment. A typical deployment might use single-mode fiber to connect a control room to a remote compressor station 5 kilometers away, with the KJ1710X1-BA1 converting fiber to copper Ethernet for local DeltaV I/O subsystems.

Power Generation Plants: Coal, gas, and nuclear power stations require network connectivity between control rooms and distributed equipment across turbine halls, boiler areas, and switchyards. The KJ1710X1-BA1 solves the dual challenges of distance and electrical noise by providing fiber links that span 500+ meters while remaining unaffected by the intense electromagnetic fields generated by generators, transformers, and high-voltage switching equipment. This ensures continuous DeltaV communication for critical safety systems and process control loops.

Water & Wastewater Treatment: Municipal treatment facilities often spread across multiple buildings and outdoor areas require network infrastructure that withstands weather extremes and operates without climate control. The KJ1710X1-BA1's extended temperature range (-40°C to +70°C) and conformal coating protection enable reliable operation in outdoor junction boxes and unheated pump stations, while fiber optic connections prevent lightning-induced surges from propagating between buildings during electrical storms.

Mining & Metals Processing: Underground mining operations and surface processing plants present extreme networking challenges: long distances, severe electrical interference from arc furnaces and grinding mills, and corrosive atmospheres. Fiber optic switches eliminate copper's distance and EMI limitations while the KJ1710X1-BA1's industrial construction withstands vibration, dust, and chemical exposure typical of mining environments.

Pharmaceutical Manufacturing: Multi-building pharmaceutical campuses require validated network infrastructure connecting clean rooms, utility buildings, and quality control laboratories. The KJ1710X1-BA1 provides deterministic network performance for DeltaV batch control systems while its fiber optic isolation prevents ground loops between buildings with separate electrical services—a critical consideration for maintaining data integrity in FDA-regulated environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose multimode fiber (2 km range) for intra-building or campus applications where fiber runs are under 2 kilometers and budget constraints favor lower-cost multimode cable and transceivers. Select single-mode fiber (20 km range) for long-distance inter-building links, future-proofing for higher data rates, or applications requiring maximum signal integrity. Verify that your fiber cable type (50/125μm, 62.5/125μm multimode, or 9/125μm single-mode) matches the KJ1710X1-BA1 transceiver specification. For redundant network topologies, deploy switches in pairs to create dual fiber paths for fault tolerance.

Extended Functions

Network Redundancy Integration: The KJ1710X1-BA1 supports standard Ethernet protocols, enabling integration into redundant ring topologies when combined with managed switches. Deploy pairs of fiber switches to create geographically diverse fiber paths between control rooms and remote sites, ensuring network availability even if one fiber cable is damaged by construction or environmental events.

Multi-Vendor Compatibility: While optimized for DeltaV systems, the KJ1710X1-BA1 operates as a standard Fast Ethernet media converter compatible with third-party PLCs, SCADA systems, IP cameras, and industrial IoT devices. This flexibility allows mixed-vendor installations and simplifies network architecture in facilities with diverse automation platforms.

Diagnostic Capabilities: Front-panel LED indicators provide real-time status for power, fiber link integrity, and network activity. These visual diagnostics enable rapid troubleshooting during commissioning and ongoing operations without requiring laptop-based diagnostic tools or network analyzers.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations or large quantity orders typically ship within 5-7 business days. Contact our team for expedited delivery options on critical projects.

Warranty Coverage: All KJ1710X1-BA1 units include the standard Emerson manufacturer warranty covering defects in materials and workmanship. Extended warranty programs are available for critical applications requiring enhanced support coverage.

Technical Support: Our application engineers provide pre-sales consultation on fiber type selection, network topology design, and DeltaV integration requirements. Post-installation support includes troubleshooting assistance, configuration guidance, and replacement coordination for warranty claims.

Documentation Package: Each unit ships with installation manual, technical datasheet, certification documents (UL, CE, ATEX), and fiber optic cable recommendations. CAD drawings and 3D models are available for panel design and layout planning.

Frequently Asked Questions

Q: What fiber cable type should I use with the KJ1710X1-BA1 for a 10-kilometer link between buildings?
A: For 10 km distance, you must use single-mode fiber (9/125μm) with LC connectors. Multimode fiber is limited to 2 km maximum. Ensure your fiber cable is rated for outdoor installation if running between buildings, with appropriate armoring and UV protection. We recommend OM3 or OM4 grade single-mode fiber for optimal performance and future bandwidth upgrades.

Q: Can this switch operate in ATEX Zone 1 or Division 1 hazardous areas?
A: The KJ1710X1-BA1 is certified for ATEX Zone 2 and Division 2 classified locations. For Zone 1/Division 1 areas, the switch must be installed in a purged or explosion-proof enclosure with appropriate certification. The fiber optic cable itself can traverse Zone 1 areas since it carries no electrical energy, but the switch electronics require Zone 2 or safe area installation.

Q: How much power does the KJ1710X1-BA1 consume, and what happens during power interruptions?
A: Typical power consumption is under 5 watts at 24 VDC. For critical applications, connect the switch to a UPS-backed 24 VDC power supply to maintain network connectivity during utility power outages. The switch includes reverse polarity protection and can operate across an 18-32 VDC input range to tolerate voltage fluctuations in industrial power systems.

Q: Is configuration required, or does the switch work plug-and-play?
A: The KJ1710X1-BA1 operates as an unmanaged media converter with automatic configuration. Simply connect power, attach fiber to the LC port, and connect copper Ethernet to the RJ45 port—the switch auto-negotiates speed and duplex settings. No software configuration, IP addressing, or management interface is required, simplifying installation and reducing commissioning time.

Q: Can I use this switch for remote monitoring and control over fiber optic networks?
A: Yes, the KJ1710X1-BA1 transparently extends Ethernet networks over fiber, supporting all standard TCP/IP protocols including Modbus TCP, OPC, HTTPS, and DeltaV proprietary protocols. This enables remote HMI access, SCADA integration, and cloud connectivity for IIoT applications. The fiber link provides the same functionality as copper Ethernet but with extended distance and EMI immunity.

Q: What installation considerations apply for outdoor fiber optic cable runs?
A: Use outdoor-rated fiber cable with UV-resistant jacketing and appropriate armoring (steel or dielectric) for direct burial or aerial installation. Protect fiber entry points into buildings with weatherproof conduit and seal penetrations to prevent moisture ingress. Install fiber slack loops near the switch to accommodate thermal expansion/contraction and provide service loops for future maintenance. Follow local electrical codes for fiber cable routing in cable trays and conduit systems.

Take the Next Step

Ready to extend your DeltaV network with reliable fiber optic connectivity? Contact our technical team for application-specific recommendations on fiber type selection, network topology design, and integration with your existing control system infrastructure. Request a quote today or speak with an application engineer to discuss your project requirements.
