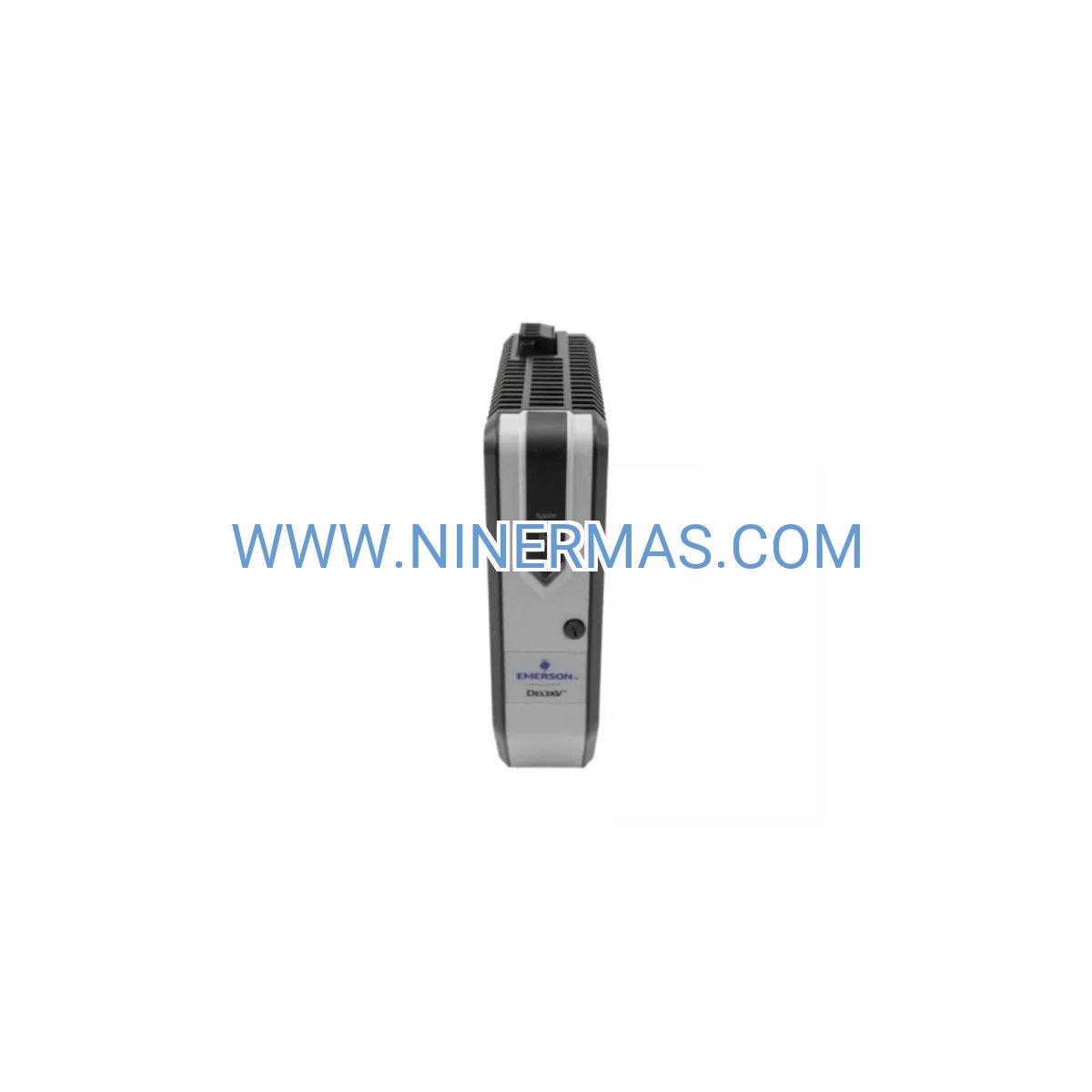

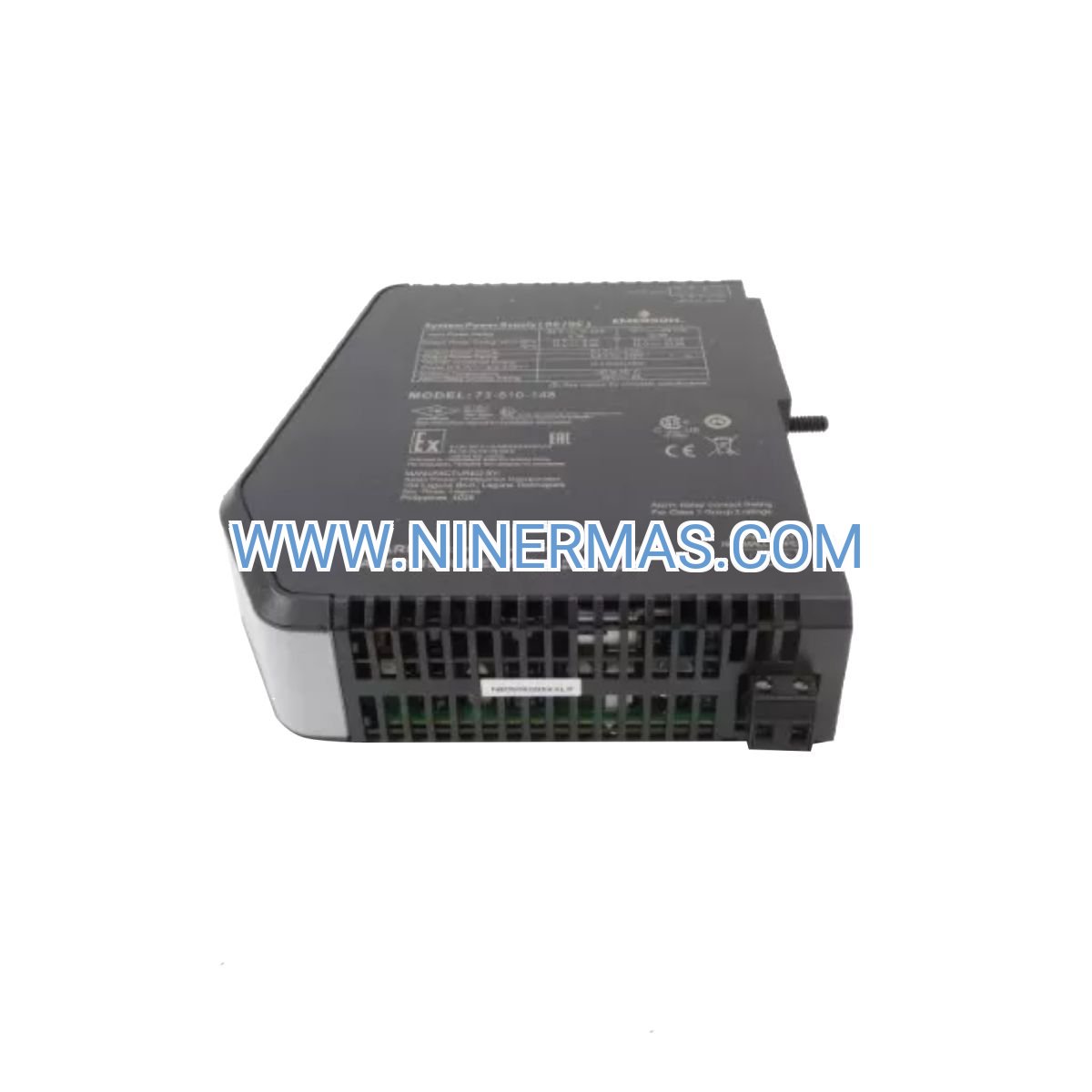

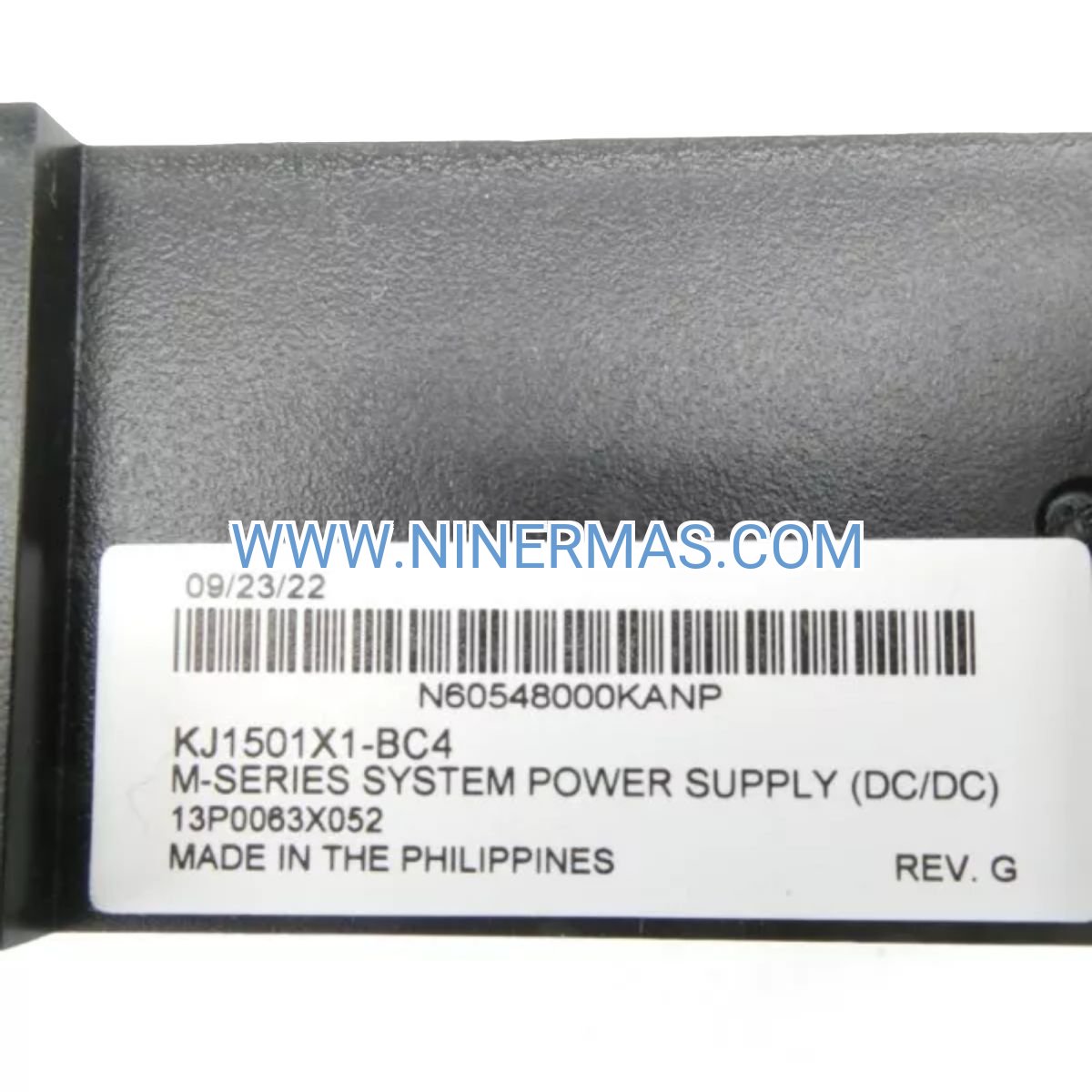

KJ1501X1-BC4 Industrial-Grade Redundant Power Module

The KJ1501X1-BC4 represents Emerson's advanced approach to mission-critical power distribution in distributed control environments. Engineered as a dual-channel DC power solution, this module delivers uninterrupted 24-volt supply to DeltaV automation infrastructure across pharmaceutical production lines, petrochemical refineries, water treatment facilities, and continuous manufacturing operations.

Built for environments where power failure translates to production loss, this redundant architecture eliminates vulnerability through independent dual channels. Process engineers and plant managers rely on the KJ1501X1-BC4 to maintain uptime in applications ranging from batch reactor control to pipeline monitoring systems.

With hot-swap serviceability and universal input compatibility, this power module reduces maintenance windows while supporting global deployment standards. The combination of high-efficiency conversion and comprehensive fault protection makes it the backbone of reliable automation power systems.

Engineering Advantages & Performance Metrics

→ Dual-Channel Redundancy Architecture
Two independent 10A power paths operate simultaneously, automatically load-sharing during normal operation. If one channel fails, the surviving module instantly assumes full load without voltage sag or system reset—critical for maintaining PLC scan cycles and preventing I/O communication dropouts in time-sensitive control loops.

→ Zero-Downtime Maintenance Capability
Hot-swappable cartridge design enables technicians to replace failed modules during live operation. Keyed connectors prevent reverse insertion, while LED diagnostics indicate channel health before removal. This feature reduces mean time to repair (MTTR) from hours to minutes in 24/7 production environments.

→ Universal Input Voltage Compatibility
Automatic 100-240 VAC input sensing eliminates voltage selection switches and configuration errors. Power factor correction circuitry maintains >0.95 PF across the input range, reducing harmonic distortion on facility electrical systems and complying with IEEE 519 standards for industrial installations.

✓ Multi-Layer Protection Systems
Integrated overvoltage crowbar circuits clamp transients within 1 microsecond, protecting sensitive microprocessor-based I/O cards. Current-limiting folds back output during short-circuit conditions without nuisance tripping, while thermal shutdown prevents damage during cooling system failures or high-ambient operation.

✓ High-Efficiency Conversion Technology
Switching topology achieves ≥88% efficiency at full load, generating 40% less heat than linear designs. Reduced thermal output extends component lifespan, lowers cooling requirements, and decreases energy consumption—a 20A system saves approximately 35 watts compared to legacy power supplies over continuous operation.

✓ Compact DIN-Rail Integration
Standard 35mm DIN-rail mounting with snap-lock retention fits existing control cabinet layouts without modification. The 120mm width conserves panel space, allowing higher I/O density in retrofit applications where cabinet real estate is constrained.

Industrial Application Scenarios

Pharmaceutical Batch Processing
In FDA-regulated manufacturing, the KJ1501X1-BC4 powers DeltaV batch controllers managing reactor temperature, agitator speed, and ingredient dosing. Redundant power prevents batch loss during utility fluctuations, while hot-swap capability enables preventive maintenance during campaign changeovers without validation impact.

Oil & Gas Pipeline Monitoring
Remote metering stations use this module to energize flow computers, pressure transmitters, and RTU communication systems. The wide operating temperature range (-40°C to +70°C) handles unheated enclosures in extreme climates, while dual channels ensure continuous custody transfer measurement even during component failures.

Water Treatment SCADA Systems
Municipal treatment plants deploy the KJ1501X1-BC4 to power distributed I/O controlling chemical feed pumps, clarifier drives, and filtration valves. The module's surge protection withstands lightning-induced transients common in outdoor installations, reducing unplanned downtime and maintenance callouts.

Chemical Process Safety Systems
Safety Instrumented Systems (SIS) require proven reliability for emergency shutdown logic. This power supply's redundant design supports SIL 2 architectures when configured with appropriate diagnostics, providing the foundation for burner management, high-integrity pressure protection, and toxic gas detection systems.

Food & Beverage Production Lines
Continuous packaging and filling operations cannot tolerate power interruptions during production runs. The KJ1501X1-BC4 maintains stable voltage to servo drives, vision systems, and checkweighers, preventing product waste and reducing line stoppages that impact overall equipment effectiveness (OEE).

Technical Parameters & Selection Guide

Selection Criteria: Calculate total system load by summing all connected I/O modules, controllers, and network devices. Add 25% safety margin for inrush current and future expansion. For loads exceeding 16A continuous, deploy two KJ1501X1-BC4 units in parallel with separate distribution blocks. In applications requiring SIL-rated power, consult factory for certified configuration documentation.

Extended Functionality & Integration Options

Remote Monitoring Integration: Optional communication modules enable MODBUS RTU or Ethernet/IP connectivity for predictive maintenance programs. Monitor output voltage, current draw, and module temperature through DeltaV Operate or third-party SCADA platforms to identify degradation trends before failure occurs.

Parallel Redundancy Configurations: Multiple KJ1501X1-BC4 units can be paralleled using external ORing diodes for N+1 or N+2 redundancy in ultra-critical applications. This topology supports maintenance on any single module while maintaining full system capacity and fault tolerance.

Custom Voltage Variants: While the standard model outputs 24 VDC, factory-configurable versions support 12 VDC, 48 VDC, or ±15 VDC for specialized instrumentation requirements. Minimum order quantities and lead times apply for non-standard configurations.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 24-48 hours via DHL/FedEx Express with tracking. Typical transit time to North America: 3-5 business days; Europe: 4-6 days; Asia-Pacific: 2-4 days. Expedited same-day shipping available for emergency replacements.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service—receive a new unit before returning the defective module to minimize downtime.

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting assistance, and system integration questions. Support available via email, phone, and remote desktop sessions during your local business hours.

Documentation Package: Each unit includes installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD models (STEP/IGES) and EPLAN macros available for download to streamline panel design workflows.

Frequently Asked Questions

What is the recommended wire gauge for 20A output connections?
Use 12 AWG (4 mm²) copper wire with 75°C insulation rating for output terminals. Torque terminal screws to 0.5-0.6 Nm using a calibrated driver. For runs exceeding 10 meters, upsize to 10 AWG to compensate for voltage drop in high-current applications.

Can this power supply operate in hazardous area classifications?
The KJ1501X1-BC4 carries Class I Division 2 certification for installation in non-incendive locations. For Zone 1 or Division 1 applications, mount the power supply outside the hazardous area and route wiring through appropriate sealing methods per NEC Article 501.

How does the module indicate which channel has failed?
Dual-color LEDs on the front panel show green for normal operation, amber for reduced capacity (single-channel mode), and red for complete failure. The failed channel can be identified by its extinguished LED, allowing targeted replacement without diagnostic equipment.

What is the inrush current during power-up?
Peak inrush current is limited to 30A for 5 milliseconds during cold start. This controlled soft-start prevents nuisance tripping of upstream circuit breakers. Size input protection at 10A slow-blow or 15A Type C curve for reliable coordination.

Does the power supply require periodic calibration?
No field calibration is necessary. Output voltage is factory-trimmed and stable over the product lifetime. Annual verification with a calibrated multimeter is recommended for quality system compliance, but adjustment is not required unless voltage drifts outside ±2% specification.

Are replacement modules backward-compatible with older BC1 or BC2 variants?
Yes, the KJ1501X1-BC4 is form-fit-function compatible with earlier BC1 and BC2 revisions. Connector pinouts and mounting dimensions are identical, enabling drop-in replacement during upgrades or repairs without wiring modifications.

Secure Your Critical Power Infrastructure

Protect your automation investment with proven Emerson power technology. The KJ1501X1-BC4 delivers the reliability, serviceability, and performance that process industries demand.

Request a quote today: Contact our automation specialists to discuss your specific application requirements, volume pricing, and integration support. We provide technical consultation at no charge to ensure optimal power system design.
